Lindy USB Extension Cables

Overview The Lindy 15m USB 3.0 Active Extension Cable Pro is a high-performance cable that allows a computer to connect to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds of up to 5Gbps, making it ideal for quickly and reliably transferring large amounts of data.

The cable incorporates proven active technology and locking connectors to ensure reliable signal integrity, even in demanding environments.

This 15m extension cable can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that combines multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

Using this cable as part of the USB 3.0 Active Extension System Pro If you would like to use this cable as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

The final part of the extension can be any cable or hub from the Extension System Pro range.

If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit (No. 43159) with its power supply as the final part of the extension.

Information about USB Generations Because of USB Specifications changing:

USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps


USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps


USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps


*USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Product Details High performance, active cable that provides an extended 15m connection between a computer and USB 3.0 device


Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)


Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps


Easy to use – connects to the device’s existing USB cable (2m maximum)


2 year warranty

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.

Specifications



Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
Supports data transfer speeds up to 480Mbps
Robust PVC housing, nickel connectors and gold plated contacts
Double shielded cable, corrosion resistant tinned copper conductors
USB 2.0, 480Mbps; 10 year warranty
Technical Information

Connectors Connector A USB 2.0 Type A Male Connector B USB 2.0 Type A Female Housing Material PVC Connector Plating Nickel Pin Construction Copper Pin Plating 24K Gold Dimensions (approx.)
WxDxH USB A Male: 15.5x35x7.8mm (0.61x1.38x0.31in)
USB A Female: 17x35x9.8mm (0.67x1.38x0.39in) Cable Construction Lengths Available 0.2m, 0.5m, 1m, 2m, 3m and 5m Colour Black Standard USB 2.0 Jacket Diameter 4.4mm (0.17in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge 26/28AWG Type Round Shielding Aluminium Magnesium Braid Specifications Supported Bandwidth 480Mbps Maximum Resolution - Nominal Attenuation: 5.8db/km Minimum Bend Radius 16mm (0.63in) Operating Temperature 0°C - 60°C Storage Temperature 0°C - 60°C

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 3.0 Type A to A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.0 cables are premium connections that feature triple shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

The SuperSpeed protocol is supported with up to 5Gbps bandwidth to allow the rapid transfer of large data volumes.

Anthra Line USB 3.0 Type A to A Extension cables are available in lengths from 0.5m to 3m.

Specifications



Professional choice USB 3.0 Type A to A Extension cable for commercial and high performance AV and IT installations
Supports SuperSpeed data transfer speeds up to 5Gbps, compatible to USB 3.1 Gen1 / USB 3.2 Gen1
Robust PVC housing, gold plated connectors and contacts
Triple shielded cable, corrosion resistant tinned copper conductors
SuperSpeed, USB 3.0, 5Gbps; 10 year warranty
Technical Information

Connectors Connector A USB 3.0 Type A Male Connector B USB 3.0 Type A Female Housing Material PVC Connector Plating Gold Plated Pin Construction Copper Pin Plating Gold Plated Dimensions (approx.)
WxDxH USB A Male: 15.5x35x7.8mm (0.61x1.38x0.31in)
USB A Female: 17x35x9.8mm (0.67x1.38x0.39in) Cable Construction Lengths Available 0.5m, 1m, 2m and 3m Colour Black Standard USB 3.0 Jacket Diameter 5.5mm (0.22in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge 24/28/30AWG Type Round Shielding Aluminium Braid 85% Specifications Supported Bandwidth 5Gbps Maximum Resolution - Nominal Attenuation: 0.5-5m: 0.5MHz-7.5GHz Minimum Bend Radius 48mm (1.89in) Operating Temperature 0°C - 60°C Storage Temperature 0°C - 60°C

USB Type C to DVI Adapter Cable 0.5m - Connect a DVI display to your computer's USB Type C port

Key Features:

Converts a USB Type C port to a DVI port
Supports DVI resolutions up to 1920x1200@60Hz
Requires DisplayPort Alternate Mode support by the USB Port/Bus
Plug & Play, no drivers required.
2 Year Warranty


This Lindy USB Type C to DVI Adapter Cable allows users to easily add external video capabilities to a computer featuring the USB Type C port with additional support for DisplayPort Alternate Mode. The DVI connector of the adapter cable can be directly connected to the DVI display - while the 0.5m cable allows for a more flexible positioning of the DVI display than when using a box converter - perfect for a simple and adaptable installation.

With support for a resolution of 1920x1200@60Hz, content can be viewed with clarity and accuracy, while the Type C connector' s reversible design was developed to find a connection regardless of which way the cable is inserted into the port. The USB Type C to DVI Adapter Cable is powered by the USB Bus, therefore no external power supply is needed and with 'Plug and Play' installation, this converter cable can be installed into an AV ecosystem with minimum difficulty, ideal for both professional and first time users.

Specifications:

Connector A: USB Type C Male
Connector B: DVI (24+1) Male
Housing Material: PVC
Connector Plating: Gold
Pin Construction: Phosphor Bronze
Pin Plating: Gold plating
Dimensions (approx.) WxDxH:
A: 12x32x6.3mm (0.47x1.26x0.25in)
B: 39.5x16.5x44.5mm (1.56x0.65x1.75in)
Length: 0.5m (1.64ft)
Standard: DVI-D Single Link
Colour: Black
Type: Round
Jacket Diameter: 4.2mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 32+24AWG
Shielding: Copper Braid 75%
Supported Bandwidth: 2.25Gbps/225MHz
Maximum Resolution: 1920x1200@60Hz
Nominal Attenuation: 0.1MHz-6MHz< 12DB
Minumum Bend Radius: 47mm (1.85in)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Packaging Type: Polybag
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH & UL


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.

With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.

The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.

Specifications



USB Type A Male to USB Type A Female
Features 28AWG for Data and 26AWG for Power
Fully moulded
10 year warranty
Technical Information

Connectors Connector A USB Type A Male Connector B USB Type A Female Housing Material Plastic Connector Plating Nickel Pin Construction Brass Pin Plating Gold Power - Dimensions (approx.)
WxDxH USB A Male: 15x40x6mm (0.59x1.57x0.24in)
USB A Female: 15x45x8mm (0.59x1.77x0.31in) Cable Construction Lengths Available 0.5m, 1m, 3m and 5m Colour Black Standard USB 2.0 Jacket Diameter 4.8mm (0.19in) Jacket Material PVC Conductor Material Tinned Copper Conductor Gauge 24AWG+28AWG Type Round Shielding AL Mylar Specifications Supported Bandwidth 480 Mbps Maximum Resolution - Nominal Attenuation: 24AWG: 93.25Ohm/km
28AWG: 237.25Ohm/km Minimum Bend Radius 48mm (1.89in) Maximum Tensile Load - Transmission Medium Twisted Pair Transmission Technology USB 2.0 Operating Temperature 0°C - 70°C Storage Temperature -10°C - 80°C

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.

It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.

Specifications



5 metre USB 3.0 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
For even greater distances simply connect 2 cables in series
Plug & Play
2 year warranty
Technical Information

Connectors Connector A USB Type A Male Connector B USB Type A Female Housing Material Plastic Connector Plating Gold 3µ Pin Construction Brass Pin Plating Gold 15µ Dimensions (approx.)
WxDxH USB A Male: 16x48x6mm (0.63x1.89x0.24in)
USB A Female: 24x46x12mm (0.94x1.81x0.47in) Cable Construction Lengths Available 5m and 10m Colour Black Standard USB 3.1 Gen 1 / 3.0 Jacket Diameter 5.5mm (0.22in) Jacket Material Matt PVC Conductor Material Tinned Copper Conductor Gauge 28AWG+24AWG Type Round Shielding AL Mylar Specifications Supported Bandwidth 5 Gbps Maximum Resolution - Nominal Attenuation: 1.5dB/2M@0.1GHz
5.0dB/2M@1.25GHz
7.5dB/2M@2.5GHz
25dB/2M@7.5GHz Minimum Bend Radius 55mm (2.17in) Maximum Tensile Load 1500PSI min Transmission Medium Twisted Pair Transmission Technology USB 3.1 Gen 1 / 3.0 Operating Temperature 0°C - 60°C Storage Temperature 0°C - 70°C

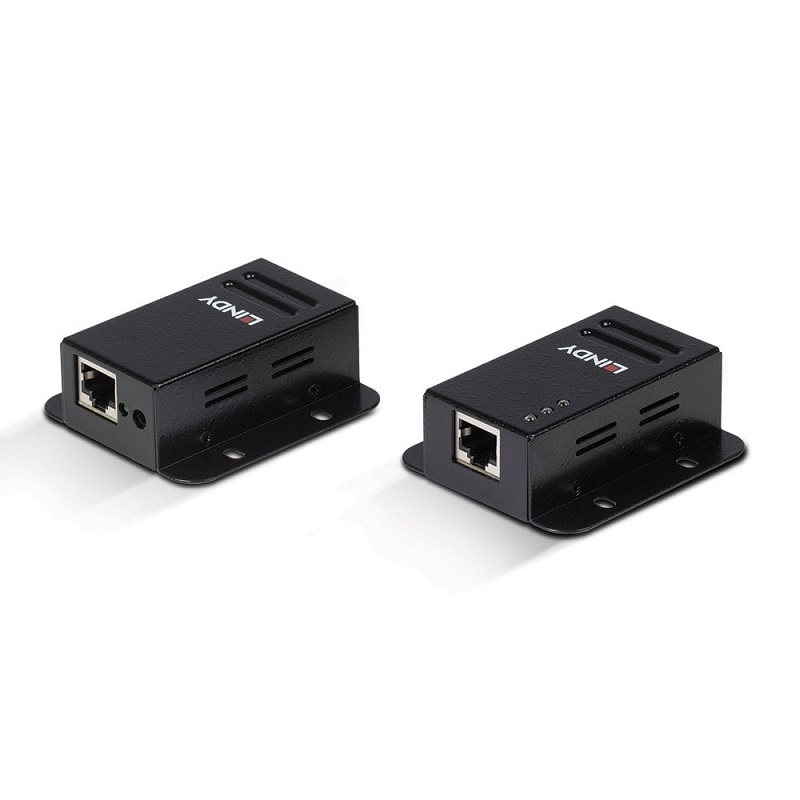

60m USB 1.1 Cat.6 Extender Basic - 60m USB 1.1 Extension

Key Features:

Extends a single USB port up to 60m using low cost Cat.5e/6 network cable (not included)
Supports data transfer rates of up to 12Mbps
Plug and Play Installation, OS independant
Powered by the USB Bus
2 year warranty


The Lindy Cat.6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 60m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB devices like mice or keyboards, perfect for long distance access.

Standard, low cost Cat.5e/6 cable (not included) is used to connect the two units together. For best performance and compatibility, we recommend the use of solid core patched cables.

Specifications:

USB Standard: USB 1.1
Supported Bandwidth: 12Mbps
Maximum Distance: 60m (196ft)
Transmission Medium: Cat.5e/6 or higher network cable
Chipset: BCH4105G
Transmitter Input: USB Type A (Male)
Transmitter Output: RJ45 (Female)
Receiver Input: RJ45 (Female)
Receiver Output: USB Type A (Female)
Dimensions WxDxH:
Transmitter: 53x26x20mm (2.09x1.02x0.79in)
Receiver: 53x26x20mm (2.09x1.02x0.79in)
Housing Material: Plastic
Net Weight: 0.054kg (0.12lb)
Operating Temperature: 0° - 70°C (32°F - 158°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
Humidity: 0 - 90% RH (non-condensing)
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
Gross Weight: 0.104kg (0.23lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package Contents:

Transmitter unit
Receiver unit
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

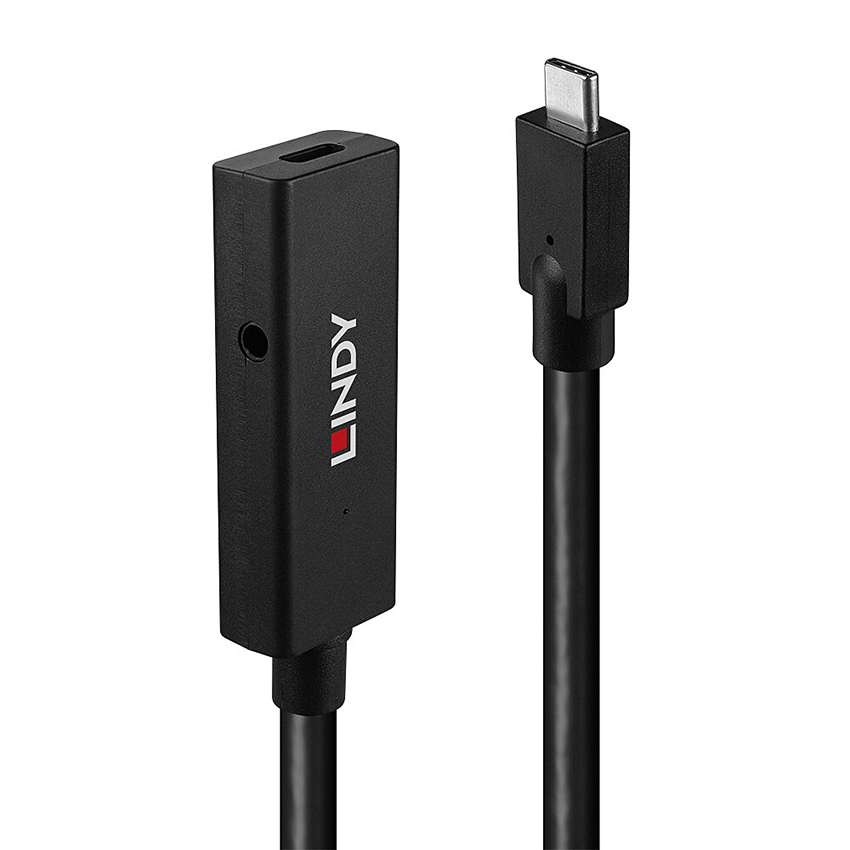

Overview The Lindy USB 3.2 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps.

With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs.

Compatible with all USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.

*Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported

Information about USB Generations Because of USB Specifications changing:

USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps


USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps


USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps


*USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Product Details 5 metre USB 3.2 Active Extension Repeater Lead


Supports transfer rates up to 5Gbps


DC socket for connection of an optional external power supply


For even greater distances simply connect 2 cables in series


2 year warranty

Overview The Lindy USB 3.2 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps.

With a reversible Type C input connector and Type A female port, this extension cable allows Type A devices such as pen drives, cameras or smartphones to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C device is hard to repeatedly access or when connecting USB devices that are required at a distance such as boardroom webcams.

Compatible with all USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers which, with plug and play functionality, can be installed quickly and with minimum fuss.

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.

Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported

Information about USB Generations Because of USB Specifications changing:

USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps


USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps


USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps


*USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Product Details 5 metre USB 3.2 Active Extension Repeater Lead


Supports transfer rates up to 5Gbps


DC socket for connection of an optional external power supply


Plug & Play


2 year warranty

3m USB 3.2 Gen 1 C/A Active Extension - 3m USB 3.2 Extension of a USB Type C port

Key Features:

3 metre USB 3.2 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
USB Micro-B socket for connection of an optional external power supply
Plug & Play
2 year warranty


The Lindy USB 3.2 Gen 1 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 3m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps. This active cable overcomes distance and performance restrictions of standard USB cables with limited lengths.

With a reversible Type C input connector and Type A female port, this extension cable allows Type A devices such as pen drives, cameras or smartphones to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C device is hard to repeatedly access or when connecting USB devices that are required at a distance such as boardroom webcams.

Compatible with all USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers which, with plug and play functionality, can be installed quickly and with minimum fuss.

The USB Active Extension Cable also features a USB Micro-B socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements. Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:

Connector A: USB Type C Male
Connector B: USB Type A Female
Power: USB Micro-B female connector
Housing Material: ABS
Connector Plating: Nickel plated shell
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB C Male: 12.66x22.4x8mm (0.5x0.88x0.31in)
USB A Female (housing): 23.3x56.5x12.55mm (0.92x2.22x0.49in)
Length:  3m (9.84ft)
Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG+28AWG+22AWG
Shielding: 85% AL - MG
Supported Bandwidth: 5Gbps
Nominal Attenuation: -
Minimum Bend Radius: 36mm (1.42in)
Maximum Tensile Load: -
Operating Temperature: 0°C to 40°C (32°F - 104°F)
Storage Temperature: -10°C to 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1 / USB 3.0
Packaging Type: Polybag
Packaging Dimensions: 236x255mm (9.29x10.04in)
Net Weight: 0.18kg (0.4lb)
Gross Weight: 0.2kg (0.44lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package Contents:

USB 3.2 C/A Active Extension 3m
Lindy manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

3m USB 3.0 Active Extension - 3m USB 3.0 Extension of a USB Type A port of your computer

This product is also available in other lengths:
43322 - 15m (49.21ft)

Key Features:

3 metre USB 3.0 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
For even greater distances simply connect 4 cables in series
Plug & Play
2 year warranty


The Lindy USB 3.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 3m whilst continuing to support data transfer rates of up to 5Gbps. This active cable overcomes distance and performance restrictions of standard USB cables with limited lengths.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 4 extension cables can be chained together to achieve a distance of 12m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors.

The USB active extension cable also features a DC socket for connecting an external power supply (5V 2A, not included) when using USB peripherals which have higher power requirements.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:

Connector A: USB Type A Male
Connector B: USB Type A Female
Power: 3.5/1.35mm DC Connector
Housing Material: Plastic
Connector Plating:  Nickel
Pin Construction: Brass
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB A Male: 16x41x9.5mm (0.63x1.61x0.37in)
USB A Female: 22x61x13mm (0.87x2.4x0.51in)
Length: 3m (9.84ft)
Standard: USB 3.2 / 3.1 Gen 1 / 3.0
Colour:  Black
Type: Round
Jacket Diameter: 7mm (0.28in)
Jacket Material: ABS, PVC
Conductor Material: OFC
Conductor Gauge: 22+25+28AWG
Shielding: Aluminium foil and braid
Supported Bandwidth: 5 Gbps
Minimum Bend Radius: 70mm (2.76in)
Maximum Tensile Load: 60P
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1 / 3.0
Packaging Type: Polybag
Packaging Dimensions: 236x255mm (9.29x10.04in)
Net Weight: 0.18kg (0.4lb)
Gross Weight: 0.2kg (0.44lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package Contents:

USB 3.0 Active Extension 3m
Lindy Manual


 Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

5m USB 3.2 Gen 1 C/C Active Extension - 5m USB 3.2 Extension of a USB Type C port

Key Features:

5 metre USB 3.2 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
DC socket for connection of an optional external power supply
For even greater distances simply connect 2 cables in series
2 year warranty


The Lindy USB 3.2 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps.

With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs.

Compatible with all USB 3.2 Type C and Thunderbolt 3 equipped computers (incl. Apple M1), this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

The USB active extension cable also features a DC socket for connecting an external power supply (5V 1A, not included) when using USB peripherals which have higher power requirements.

Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:

Connector A: USB Type C Male
Connector B: USB Type C Female
Power: 3.5/1.35mm DC Connector
Housing Material: ABS
Connector Plating: Nickel plated shell
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB C Male: 30.2x12.4x8mm (1.19x0.49x0.31in)
USB C Female (housing): 62x23.1x12.3mm (2.44x0.91x0.48in)
Length:  5m (16.4ft)
Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
Colour: Black
Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG+28AWG+22AWG
Shielding: 85% AL-MG
Supported Bandwidth: 5Gbps
Minimum Bend Radius: 36mm (1.42in)
Operating Temperature: 0°C to 40°C (32°F - 104°F)
Storage Temperature: -10°C to 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1 / USB 3.0
Packaging Type: Polybag
Packaging Dimensions: 236x255mm (9.29x10.04in)
Net Weight: 0.198kg (0.44lb)
Gross Weight: 0.253kg (0.56lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Packaging Content:

USB 3.2 C/C Active Extension 5m
Lindy manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

5m USB 3.2 Gen 1 C/A Active Extension - 5m USB 3.2 Extension of a USB Type C port

Key Features:



5 metre USB 3.2 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
Micro B socket for connection of an optional external power supply
Plug & Play
2 year warranty


The Lindy USB 3.2 Gen 1 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps.

With a reversible Type C input connector and Type A female port, this extension cable allows Type A devices such as pen drives, cameras or smartphones to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C device is hard to repeatedly access or when connecting USB devices that are required at a distance such as boardroom webcams.

Compatible with all USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers which, with plug and play functionality, can be installed quickly and with minimum fuss.

The USB Active Extension Cable also features a USB Micro-B socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements. Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.

Information about USB 3.0, 3.1 & 3.2



USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:



Connector A: USB Type C Male
Connector B: USB Type A Female
Power: USB Micro-B female connector
Housing Material: ABS
Connector Plating: Nickel plated shell
Pin Construction: Copper
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB C Male: 12.66 x 22.4 x 8mm (0.5 x 0.88 x 0.31in)
USB A Female (housing): 23.3 x 56.5 x 12.55mm (0.92 x 2.22 x 0.49in)
Length:  5m (16.4ft)
Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0
Colour: Black
Cable Type: Round
Jacket Diameter: 5.5mm (0.22in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG+28AWG+22AWG
Shielding: 85% AL - MG
Supported Bandwidth: 5Gbps
Minimum Bend Radius: 36mm (1.42in)
Operating Temperature: 0°C to 40°C (32°F - 104°F)
Storage Temperature: -10°C to 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1 / USB 3.0
Packaging Type: Polybag
Packaging Dimensions: 236 x 255mm (9.29 x 10.04in)
Net Weight: 0.215kg (0.47lb)
Gross Weight: 0.24kg (0.53lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package contents:



USB 3.2 C/A Active Extension 5m
Lindy manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

The Lindy Cat.6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 50m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB devices like storage devices, perfect for long-distance access to files.

Standard, low-cost Cat.5e/6 cable (not included) is used to connect the two units together. For best performance and compatibility, we recommend the use of solid core patched cables.

A power supply can be connected optionally for use with high current USB devices.

Product Details

Extends a single USB port up to 50m using low cost Cat.5/5e/6 network cable (not included)
Supports data transfer rates of up to 12Mbps
Plug and Play Installation, OS independant
Powered by the USB Bus
2 year warranty

Overview The Lindy USB 2.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 20m whilst continuing to support data transfer rates of up to 480Mbps.

With its USB A male and USB A female connector it allows multiple Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.

Up to 2 extension cables can be chained together to achieve a distance of 40m.

The Lindy USB 2.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

It is recommended that this extender is used with low power or self powered USB peripherals and not high power consuming devices.

Product Details 20 metre USB 2.0 Active Extension Repeater Lead


Supports transfer rates up to 480Mbps


For even greater distances simply connect 2 cables in series


Plug & Play


2 year warranty

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

This extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Specifications



High performance, active cable that provides an extended 12m connection between a computer and USB 2.0 device
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
Easy to use – connects to the device’s existing USB cable (2m maximum)
2 year warranty
Technical Information

Connectors Connector A USB Type A Male Connector B USB Type A Female Housing Material Plastic Connector Plating Front: Gold / Back: Nickel Pin Construction Brass Pin Plating Gold Flash Dimensions (approx.)
WxDxH USB A Male: 15x43x8mm (0.59x1.69x0.31in)
USB A Female: 20x64x13mm (0.83x2.52x0.51in) Cable Construction Lengths Available 8m and 12m Colour Black Standard USB 3.1 Gen 1 / 3.0 Jacket Diameter 5mm +/-0.15mm (0.2in +/- 0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 26/20AWG Type Round Shielding AL Mylar and braid

5m USB 3.2 Gen 2 C/C Active Extension - 5m USB 3.2 Extension of a USB Type C port with data transfer rates up to 10Gbps

Key Features:

5 metre USB 3.2 Active Extension Repeater Lead
Supports transfer rates up to 10Gbps
For even greater distances simply connect 2 cables in series
Easy to use - connects to the device's existing USB cable (1m maximum)
2 year warranty


The Lindy USB 3.2 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 10Gbps.

With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs.

Compatible with all USB 3.2 Type C and Thunderbolt 3 equipped computers (incl. Apple M1), this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.

The USB active extension cable also features a DC socket for connecting an external power supply (5V 1A, not included) when using USB peripherals which have higher power requirements.

Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:

Connector A: USB Type C Male
Connector B: USB Type C Female
Power: 3.5/1.35mm DC Connector
Housing Material: ABS
Connector Plating: Nickel
Pin Construction: Brass
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB C Male: 12.5x38x7.65mm (0.49x1.5x0.3in)
USB C Female (housing): 23.2x62x12.4mm (0.91x2.44x0.49in)
Length:  5m (16.4ft)
Standard: USB 3.2 / 3.1 Gen 2
Colour: Black
Cable Type: Round
Jacket Diameter: 7mm (0.28in)
Jacket Material: ABS, PVC
Conductor Material: Tinned Copper
Conductor Gauge: 28AWG+25AWG+22AWG
Shielding: Aluminium foil and baid
Supported Bandwidth: 10Gbps
Nominal Attenuation: -
Minimum Bend Radius: 70mm (2.76in)
Maximum Tensile Load: 60P
Operating Temperature: 0°C to 50°C (32°F - 122°F)
Storage Temperature: -10°C to 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.2 / 3.1 Gen 1
Packaging Type: Polybag
Packaging Dimensions: 236x255mm (9.29x10.04in)
Net Weight: 0.32kg (0.71lb)
Gross Weight: 0.35kg (0.77lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Packaging Content:

USB 3.2 C/C Active Extension 5m
Lindy manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

15m USB 3.0 Active Extension Slim - 15m USB 3.0 Extension of a USB Type A port of your computer

Key Features:



15 metre USB 3.0 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
For even greater distances simply connect 2 cables in series
Plug & Play
2 year warranty


The Lindy USB 3.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors.

The USB active extension cable also features a DC socket for connecting an external power supply (5V 2A, not included) when using USB peripherals which have higher power requirements.

Information about USB 3.0, 3.1 & 3.2



USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:



Connector A: USB Type A Male
Connector B: USB Type A Female
Power: 3.5/1.35mm DC Connector
Housing Material: Plastic
Connector Plating:  Nickel
Pin Construction: Brass
Pin Plating: Gold
Dimensions (approx.) WxDxH:
USB A Male: 16 x 41 x 9.5mm (0.63 x 1.61 x 0.37in)
USB A Female / Repeater: 22 x 61 x 13mm (0.87 x 2.4 x 0.51in)
Length: 15m (49.21ft)
Standard: USB 3.1 Gen 1 / 3.0
Colour:  Black
Cable Type: Round
Jacket Diameter: 7mm (0.28in)
Jacket Material: ABS, PVC
Conductor Material: OFC
Conductor Gauge: 22+25+28AWG
Shielding: Aluminium foil and braid
Supported Bandwidth: 5 Gbps
Minimum Bend Radius: 70mm (2.76in)
Maximum Tensile Load: 60P
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Transmission Medium: Twisted Pair
Transmission Technology: USB 3.0
Packaging Type: Polybag
Packaging Dimensions: 324x335mm (12.76 x 13.19in)
Net Weight: 0.98kg (2.16lb)
Gross Weight: 1kg (2.2lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package Contents:



USB 3.0 Active Extension 15m
Lindy Manual


 Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy 50m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 50m.

It consists of a local unit which connects to the computer and a remote unit that connects to the device.

Standard, low cost Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units.For best performance and compatibility, we recommend the use of solid core patched cables.

The included power supply ensures secure and uninterrupted electricity supplies.

Product Details Extends a single USB port up to 50m using low cost Cat.5e/6 network cable (not included)


Plug & Play installation, OS independent


Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards


Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed


2 year warranty

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

This extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at 50m (depending on the cable configurations used).

The 8m and 10m cable, and the 10m hub, feature a single active repeater module to boost the USB signal. The 15m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 50m and 5 repeater modules. Any combination of cables and a single hub can be connected providing the 50m / 5 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Specifications



High performance, active cable that provides an extended 8m connection between a computer and USB 3.0 device
Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cables used)
Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
Easy to use – connects to the device’s existing USB cable (2m maximum)
2 year warranty
Technical Information

Connectors Connector A USB Type A Male Connector B USB Type A Female Housing Material Plastic Connector Plating Nickel Pin Construction Brass Pin Plating Gold Flash Power 2.5/0.7mm DC Connector Dimensions (approx.)
WxDxH USB A Male: 15x49x8mm (0.59x1.93x0.31in)
USB A Female: 20x80x13mm (0.79x3.15x0.51in) Cable Construction Lengths Available 8m and 10m Colour Black Standard USB 3.1 Gen 1 / 3.0 Jacket Diameter 7mm +/- 0.15mm (0.28in +/- 0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 24/24/20AWG Type Round Shielding AL Mylar and braid

Overview The Lindy USB 2.0 Cat.6 Extender extends the distance between four USB peripheral devices and the computer up to distances of 60m using a single Cat.5e/6 or higher network cable.

The Extender is a two part hardware solution comprising a transmitter that connects directly to your computer and a receiver that connects to the USB device.

It is perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards. The included power supply ensures secure and uninterrupted electricity supplies. For best performance and compatibility, we recommend the use of solid core patched cables.

Product Details Extends the distance of 4 USB 2.0 peripherals by up to 60m


Connect devices using standard Cat.5e/6 or higher network cables (not included)


Supports USB 2.0 High Speed transfer rates up to 480Mbps


Plug & Play installation, OS independent


2 year warranty

Overview The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

This 30m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Product Details High performance, active cable that provides an extended 30m connection between a computer and USB 2.0 device


Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m


Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps


Easy to use – connects to the device’s existing USB cable (2m maximum)


2 year warranty

Overview The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m.

A standard, low cost Cat.5/5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features Power over Cat.5/6, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Product Details Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included)


Power over Cat.5/6 requires a single power supply to be connected to the transmitter only


Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed


Plug & Play installation


2 year warranty

50m 4 Port USB 2.0 Cat.6 Extender

Key Features:

Extend 4 USB 2.0 ports up to 50m using low cost Cat5/5e/6 network cable (not included)
Power over Cat.5/6 requires a single power supply to be connected to the transmitter only
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
Plug & Play installation
2 year warranty


This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.

A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features Power over Cat.5/6, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Specifications:

USB Standard: USB 2.0
Supported Bandwidth: 480 Mbps
Maximum Distance: 50m (164.04ft)
Transmission Medium: Cat.5/5e/6 or higher network cable
Chipset: NS1021
Special Features: Power over RJ45, Supports isochronous data transfer
Transmitter Input: USB Type B (Female)
Transmitter Output: RJ45 (Female)
Receiver Input: RJ45 (Female)
Receiver Output: 4 x USB Type A (Female)
Power: 3.5/1.35mm DC socket
Dimensions WxDxH:
60x67x23mm (2.36x2.64x0.91in) (TX)
110x64x23mm (4.33x2.52x0.91in) (RX)
Housing Material: Metal
Net Weight: 0.415kg (0.91lb)
Operating Temperature: -0° - 70°C (32°F - 158°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
Humidity: 0 - 90% RH (non-condensing)
Power Requirements: 24VDC 0.5A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 215x155x50mm (8.46x6.1x1.97in)
Gross Weight: 0.6kg (1.32lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH


 Package contents:

Transmitter unit
Receiver unit
0.5m USB 2.0 A Male to B Male cable
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

100m USB 2.0 Cat.6 Extender

Key Features:



Extends a single USB port up to 100m using Cat.5/5e/6 network cable (not included)
Plug & Play installation, OS independent
Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
2 year warranty


The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5/5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.

For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

*Please Note: this extender might not support USB devices that require high bandwidths such as Full HD webcams.

Specifications:



USB Standard: USB2.0
Supported Bandwidth: 480Mbps
Maximum Distance: 100m (328.08ft)
Transmission Medium: Cat. 5/5e/6 or higher UTP network cable
Chipset: CH317Q, CH9317, RTL8211E
Special Features: Supports isochronous data transfer
Transmitter Input:  USB Type A (Male)
Transmitter Output:  RJ45 (Female)
Receiver Input:  RJ45 (Female)
Receiver Output: USB Type A (Female)
Power: 3.5/1.35mm DC socket
Dimensions WxDxH: 69x36x22mm (2.72x1.42x0.87in)
Housing Material: Plastic
Net Weight: 0.05kg (0.11lb)
Operating Temperature: 0° - 40°C (32°F - 104°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Humidity: 0 - 80% RH (non-condensing)
Power Requirements: 5V DC 2A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 200x200x48mm (7.87x7.87x1.89in)
Gross Weight: 0.25kg (0.55lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, CP65


Package contents:



Transmitter unit
Receiver unit
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview This Lindy 300m USB Cat.6 Extender extends the distance between a standard Human Interface Device and the computer up to distances of 300m

It is not suitable for keyboards or mice that require their own driver, however can be used with both standard and wireless USB mice and keyboards.

This Extender is a two part hardware solution comprising a transmitter that connects directly to your computer and a receiver that connects to the USB HID device

Cat.5e or higher network patch cable (not included) is required to connect the two units together

For best performance and compatibility, we recommend the use of solid core patched cables.

A power supply for the receiver unit ensures uninterrupted electricity supplies.

Product Details Extends keyboard and mouse signals up to 300m


Connect devices using standard Cat.5e/6 or higher network cables (not included)


Supports USB 1.1 data transfer rates up to 12Mbps


Plug & Play installation, OS independent


2 year warranty

140m 4 Port USB 2.0 Cat.6 Extender

Key Features:



Extends the distance of 4 USB 2.0 peripherals by up to 140m
Connect devices using standard Cat.6 UTP or higher network cables (not included)
Supports USB 2.0 High-Speed transfer rates up to 480Mbps
Robust aluminium housing with mounting points
2-year warranty


The Lindy USB 2.0 Cat.6 Extender extends the distance between four USB peripheral devices and a PC over distances up to 140m using a single Cat.6 UTP or higher network cable. Cat.5e UTP/STP cable can be used in lengths up to a maximum of 120m. For best performance and compatibility, we recommend the use of solid core patched cables. For best performance and compatibility, we recommend the use of solid core patched cables.

This Extender is a two-part hardware solution comprising of a transmitter that connects directly to your computer and a receiver that connects to the USB device.

With a robust aluminium housing and mounting points, it is the ideal solution for providing remote access to printers, scanners, webcams* and external HDD & flash drive storage. The Extender is also perfect for digital signage applications, home network integration, industrial control, security, USB device sharing, and KVM extension. The included power supply for the receiver unit ensures secure and uninterrupted power to all devices.

*tested with Logitech C310, Logitech C920e, V-Gear Talkcam LIVE 09-VTL480, I-Family IF-008B. For the latest firmware fixing compatibility issue, please contact our support team.

Please note: Through the use of the Signal Repeater No. 42709 distances can be doubled up to 280m.

Information about USB 3.0, 3.1 & 3.2



USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:



USB Standard: USB 2.0
Supported Bandwidth: 480Mbps
Maximum Distance: 140m (459.31ft)
Transmission Medium: Cat.6 or higher network cable
Chipset: AST1620
Special Features: Can reach distances up to 280m by use of Signal Repeater No. 42709; Supports isochronous data transfer
Transmitter Input: USB Type B (Female)
Transmitter Output: RJ45 (Female)
Receiver Input: RJ45 (Female)
Receiver Output: 4 x USB Type A (Female)
Power: 5.5/2.5mm DC socket
Dimensions WxDxH:
Transmitter: 120x67x27mm (4.72x2.64x1.06in)
Receiver: 130x67x27mm (5.12x2.64x1.06in)
Housing Material: Aluminium
Net Weight:
Transmitter: 0.19kg (0.42lb)
Receiver: 0.21kg (0.46lb)
Operating Temperature: 0° - 55°C (32°F - 131°F)
Storage Temperature: -20°C - 85°C (-4°F - 185°F)
Humidity: 0 - 95% RH (non-condensing)
Power Requirements: 5VDC 2.6A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 240x150x55mm (9.45x5.91x2.17in)
Gross Weight:0.6kg (1.32lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, CP65


Package Contents:



Transmitter unit
Receiver unit
1.5m USB 2.0 A Male to B Male cable
8x Assembly Screws & Dowels
Multi-Country Power Supply (EU, UK, US & AUS)
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy 200m Fibre Optic USB 3.0 Extender supports far longer distances than standard copper cables, using standard "off the shelf" LC duplex fibre, whilst retaining SuperSpeed transfer rates of up to 5Gbps.

The Extender is a two part hardware solution comprising of a transmitter that connects directly to your computer and receiver that connects to the USB peripheral.

Since the Extender uses fibre optic cable this rules out the possibility of any electrical interference on the extended signal and makes it the perfect solution for sensitive environments.

Ideal for remote desktop links, industrial control, surveillance and external storage applications the Extender gives long distance access to many devices.

For added convenience the Fibre Optic USB 3.0 cable is supplied with a power supply, which can be connected should additional power be required.

Please note: this product is not backwards compatible with USB 2.0 or USB 1.1

Product Details Extends USB 3.0 connections up to 200m


Supports transfer rates up to 5Gbps


Low RFI/EMI for sensitive environments


Plug & Play installation


2 year warranty

350m Fibre Optic USB 3.0 Extender

Key Features:

Extends USB 3.0 connections up to 350m
Supports data transfer rates up to 5Gbps
Uses standard “off the shelf” LC duplex fibre cabling
Resistant to RF & EM Interference for use in highly sensitive areas
2 year warranty


Fibre Optic USB extenders allow USB signals to be extended far beyond the limits of traditional copper cable solutions. The Lindy 350m Fibre Optic USB 3.0 Extender supports SuperSpeed transfer rates of up to 5Gbps. This Extender is a complete, two-part hardware solution comprising of a transmitter that connects directly to the user's computer and receiver that connects to the USB peripheral, using “off the shelf” LC duplex fibre cabling.

The extender is ideal for long distance use with remote desktop links, industrial control systems, surveillance control rooms and external storage applications. Utilising fibre optic transmission, this extender provides high resistance to EMI and RFI, perfect for use in “noisy” areas such as hospitals, large retail installations or industrial buildings.

Please note: that this Extender is not backwards compatible with USB 2.0.

Specifications:

USB Standard: USB 3.1 Gen 1 / USB 3.0
Supported Bandwidth: 5Gbps
Maximum Distance: 350m (1148.28ft)
Transmission Medium: Duplex LC (50/125µm), Multimode
Chipset: TI TUSB8041 and Macom
Special Features: Supports isochronous data transfer
Transmitter Input: USB Micro-B (Female)
Transmitter Output: Duplex LC (Female)
Receiver Input: Duplex LC (Female)
Receiver Output: USB Type-A (Female)
Power: 5.5/2.1mm DC socket
Dimensions WxDxH: 57x93x28mm (2.24x3.66x1.1in)
Housing Material: Metal
Net Weight: Transmitter: 0.125kg (0.28lb), Receiver: 0.129kg (0.28lb)
Operating Temperature: 0° - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Humidity: 20 - 80% RH (non-condensing)
Power Requirements: 5VDC 3A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 151x112x127mm (5.94x4.41x5in)
Gross Weight: 0.58kg (1.28lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, REACH, ROHS, California Proposition 65


Package Contents:

1 x Transmitter
1 x Receiver
1 x Multi-Country PSU DC 5V 3A (EU/UK/US/AUS)
Lindy Manual


Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

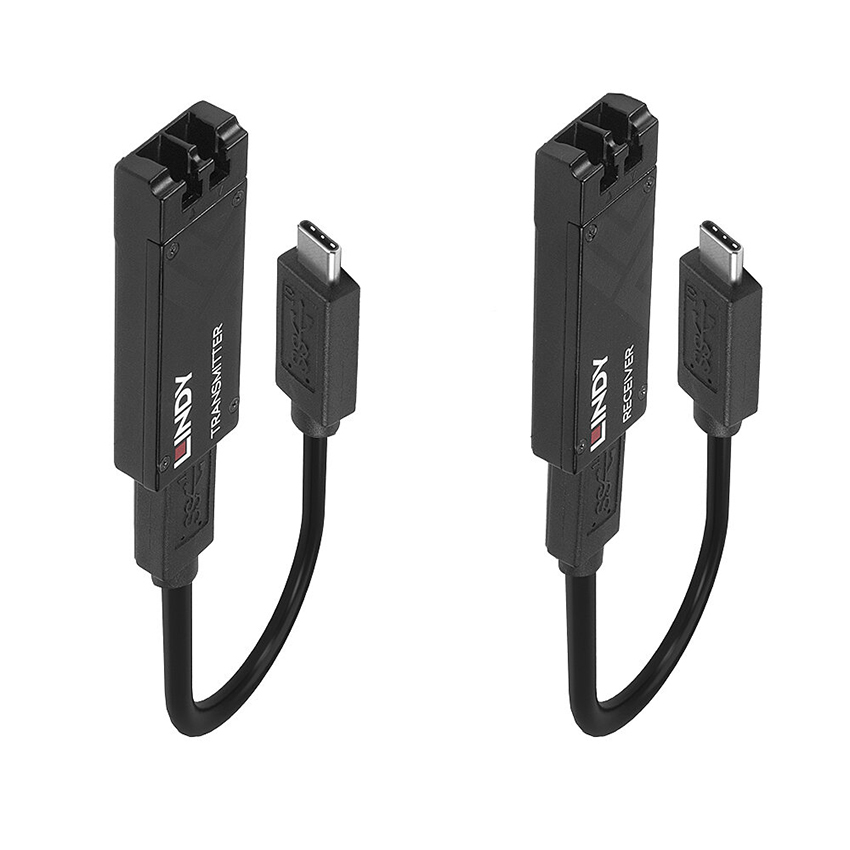

100m Fibre Optic USB 3.2 Type C Extender - 100m USB 3.2 Gen 2 Extension via fibre optic cabling

Key Features:

Extends USB 3.2 Gen 2 connections up to 100m
Supports data transfer rates up to 10Gbps
Uses standard “off the shelf” LC duplex fibre cabling
Resistant to RF & EM Interference for use in highly sensitive areas
2 year warranty


Fibre Optic USB extenders allow USB signals to be extended far beyond the limits of traditional copper cable solutions. The Lindy 100m Fibre Optic USB 3.2 Type C Extender supports SuperSpeed transfer rates of up to 10Gbps. This Extender is a complete and compact two-part hardware solution comprising of a transmitter that connects directly to the user's computer and receiver that connects to the USB peripheral, using “off the shelf” LC duplex fibre cabling.

The extender is ideal for long distance use with remote desktop links, industrial control systems, surveillance control rooms and external storage applications. This device is fully compatible with, and can be used to extend signals from, 4K USB webcams and video conferencing systems. Utilising fibre optic transmission, this extender provides high resistance to EMI and RFI, perfect for use in “noisy” areas such as hospitals, large retail installations or industrial buildings. The Fibre Optic USB 3.2 Type C Extender is supplied with a USB Type A to Micro-B cable which can be attached to a second USB port or to a USB Power supply (not included) should additional power be required.

Please note: This Extender is not backwards compatible with USB 2.0.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:

USB Standard: USB 3.2 / 3.1 Gen 2
Supported Bandwidth: 10Gbps
Maximum Distance: 100m (328.08ft)
Transmission Medium: Multimode 50µm/125µm OM3
Chipset: Silicon Line SL86050
Special Features: Supports isochronous data transfer
Transmitter Input: USB Type C (Male)
Transmitter Output: Duplex LC (Female)
Receiver Input: Duplex LC (Female)
Receiver Output: USB Type C(Male)
Power: USB Micro-B
Dimensions WxDxH: 58 x 20 x 9mm (2.28 x 0.79 x 0.35in) per unit
Housing Material: Metal
Net Weight: Transmitter: 0.039kg (0.09lb), Receiver: 0.039kg (0.09lb)
Operating Temperature: 0° - 50°C (32°F - 122°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 80% RH (non-condensing)
Power Requirements: 5VDC 2A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 220 x 50 x 160mm (8.66 x 1.97 x 6.3in)
Gross Weight: 0.19kg (0.42lb)
Warranty (Years): 2
Certificated: CE, FCC, REACH, ROHS, California Proposition 65


Package contents:

1 x Transmitter
1 x Receiver
1 x USB Cable USB Type A to Micro-B, 0.95m
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy 200m Fibre Optic USB 2.0 Extender supports far longer distances than standard copper cables.

It is a compact two part hardware solution comprising of a transmitter dongle that connects directly to your computer and receiver dongle that connects to the USB peripheral. These are then joined together using LC Multimode Simplex Fibre.

The small form factor of the Extender allows for an easy and discreet installation while the use of fibre helps rule out the possibility of electrical interference in the extended signal.

Ideal for remote desktop links, industrial control, surveillance and external storage applications the extender gives long distance access to USB keyboards & mice, printers, scanners, webcams, audio devices, disc burners, external drive storage and much more.

Connecting a USB hub to the receiver also gives additional access to a larger number of USB devices.

For added convenience the Fibre Optic USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

Product Details Extends USB 2.0 connections up to 200m


Supports transfer rates up to 480Mbps


Low RFI/EMI for sensitive environments


Plug & Play installation


2 year warranty
