Lindy USB Converters

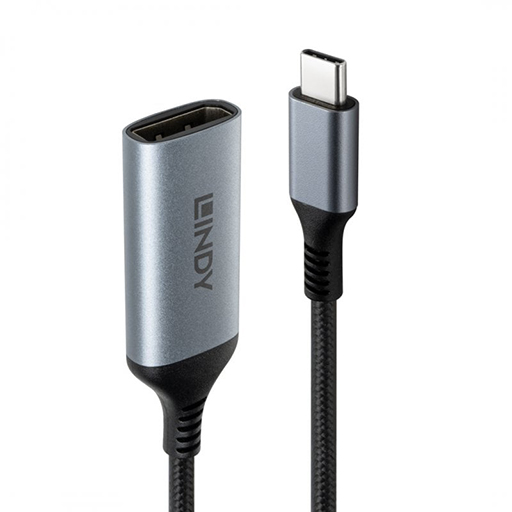

USB Type C to DisplayPort Converter

Key Features:

Connects a DP display to a computer's USB Type C port
Supports DP resolutions up to 4K 3840x2160@60Hz
Requires DisplayPort Alternate Mode support by the USB Port/Bus
Plug & Play, no drivers required
2 year warranty


The Lindy USB Type C to DisplayPort Converter allows users to easily add external video capabilities to a PC featuring the USB Type C port with support for DisplayPort Alternate Mode. The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.

With support for 4K UHD resolutions, content can be viewed with superior clarity and stunning accuracy, while the Type C connectors reversible design means a connection can be found regardless of which way the cable is inserted into the port of a laptop, ultrabook or Macbook.

With Plug and Play installation, this converter can be installed with minimum fuss, perfect for both professional and first-time users.

Specifications:

AV Interface: USB Type C to DisplayPort
Interface Standard: DisplayPort 1.2
Supported Bandwidth: -
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution: 3840x2160@60Hz
Chipset: VL100
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
HDCP Support: HDCP 1.4 / DPCP 1.4
Special Features: Display Port Alternate Mode
Inputs: 1 x USB Type C (Male)
Outputs: 1 x DisplayPort (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH: 53.5x22x11mm (2.11x0.87x0.43in)
(Fixed) Cable Length: 120mm (4.72in)
Housing Material: Aluminium
Net Weight: 0.026kg (0.06lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: Grey
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.03kg (0.07lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, CP65


Package contents:

USB Type C to DisplayPort Converter
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy USB Type C to Mini DisplayPort Converter allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort Alternate Mode.

USB Power Delivery of up to 60W provides power to a notebook or ultrabook via it's USB Type C port whilst simultaneously using it as a video output, simply connect a compatible USB power supply to the Mini DisplayPort Converter.

With support for 4K UHD resolutions, content can be viewed with superior clarity and stunning accuracy, while the Type C connectors reversible design means a connection can be found regardless of which way the cable is inserted into the port of a laptop, notebook or Macbook.

*Any interruption of the power supply will cause the USB bus to reset. This is a technical limitation of USB PD 2.0

Product Details Adds a MiniDP port and a USB Type C power supply port to a computer


Supports MiniDP resolutions up to 4K@60Hz


Requires DisplayPort Alternate Mode support by the USB Port/Bus


Supports Type C power supplies up to 60W


2 year warranty

USB to PS/2 Converter - Converts a USB port into two PS/2 ports

Key Features:

Connects any PS/2 device like mouse, keyboard, KVM switch or barcode scanner
Plug and Play installation
Compatible with USB Type A equipped computers
USB bus-powered
2 year warranty


The Lindy USB to PS/2 Converter allows the user to connect two PS/2 peripherals to a USB Type A equipped computer. Two 6 Pin Mini DIN ports make connection of various devices like mice, keyboards, barcode scanners or KVM switches possible.

The converter is powered by the USB Bus, an external power supply is not necessary. With 'Plug and Play' installation, no drivers are required, therefore it can be installed with minimum difficulty.

Specifications:

Interface: USB to PS/2
Interface Standard: USB 1.1, PS/2
Supported Bandwidth: 12Mbps, 7 - 12kbps
Chipset: CJS1028
Compatibility: USB Type A equipped computers
Inputs: 1 x USB Type A (Male)
Outputs: 2 x Mini-DIN 6 Pin (Female)
Power: Bus-powered
Dimensions WxDxH: USB: 50.7 x 18.5 x 9.6mm (2 x 0.73 x 0.38in)
PS/2: 13 x 35 x 13mm (0.51 x 1.38 x 0.51in)
Housing Material: PVC
Net Weight: 0.031kg (0.07lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: 0°C - 70°C (32°F - 158°F)
Humidity: 5 - 90% RH (non-condensing)
Colour: Black
Packaging Type: Polybag
Packaging Dimensions: 133 x 144mm (5.24 x 5.67in)
Gross Weight: 0.035kg (0.08lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH


Package contents:

USB to PS/2 Converter

Overview The Lindy USB Type-C to DVI-D Adapter Converter allows you to quickly add external video capabilities to devices featuring the USB Type-C port with support for DisplayPort Alternate Mode.

Installation is simple as no drivers are required and the Type-C's reversible design means that you do not have to pay attention to which way the cable is inserted into the port.

Product Details Converts a USB Type-C port to a DVI-D port


Requires DisplayPort Alternate Support by the USB Port/Bus


Supports resolutions up to 1920x1200 & 1080p


Plug and Play installation, no drivers required, Bus-powered


2 Year Warranty

Bi-directional USB Type C to DisplayPort 4K60 Converter

Key Features:



Connects a USB Type C source to a DisplayPort display, or vice versa*
Supports highly detailed resolutions up to 3840x2160@60Hz
USB Type C “C” & “E” pin configurations ensures maximum compatibility with Type C displays*
Utilises DisplayPort Alt Mode to send AV signals using the USB Type C Connector
2-year warranty


The Bi-directional USB Type C to DisplayPort Converter allows users to connect either a DisplayPort display to USB Type C alt mode source device, or a USB Type C display to a DisplayPort source. The converter features a USB Type C connector with pin assignment “E” as well as one with Pin assignment “C” to ensure maximum compatibility with USB Type C displays.

With support for 4K UHD resolutions, video content can be displayed with superior clarity and stunning accuracy, while the Type C connectors reversible design makes connection simple, whether using a desktop, laptop, tablet or Mac.  As the converter is bus powered, integration within installations is made easy with no need for external power supplies or outlets.

*Please note: The following USB Type C displays are supported:



ACER PE270K
ASUS MX27UC
LG 27UK850
LG 27UD99-W
LG 32UD99
LG 43UD79
BenQ EX3203R
BenQ SW271
EIZO EV2760


Specifications:



AV Interface: USB Type C, DisplayPort
Interface Standard: DisplayPort 1.4
Supported Bandwidth: -
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution: 3840x2160@60Hz
Chipset: CYPD2119
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
HDCP Support: HDCP 2.2 / DPCP 1.4
Special Features: DisplayPort Alternate Mode
Inputs: 2 x USB Type C (Male), bi-directional
Outputs: 1 x DisplayPort (Female), bi-directional
Power: Bus-powered
Dimensions (approx.) WxDxH: 38x40x15mm (1.5x1.57x0.59in)
(Fixed) Cable Length: 170mm (6.69in)
Housing Material: PVC (USB), ABS (DisplayPort)
Net Weight: 0.022kg (0.05lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: Black
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.038kg (0.08lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, California Proposition 65


Package Contents:



Bi-directional USB Type C to DisplayPort Converter
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

USB Type C to DisplayPort Converter with Power Delivery

Key Features:



Adds a DP port and a USB Type C power supply port to your computer
Supports DisplayPort resolutions up to 4K 3840x2160@60Hz
Requires DisplayPort Alternate Mode support by the USB Port/Bus
Supports Type C power supplies up to 60W
2-year warranty


The Lindy USB Type C to DisplayPort Converter allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort Alternate Mode. USB Power Delivery of up to 60W provides power to a notebook or ultrabook via its USB Type C port whilst simultaneously using it as a video output, simply connect a compatible USB power supply to the DisplayPort Converter.

With support for 4K UHD resolutions, content can be viewed with superior clarity and stunning accuracy, while the Type C connectors reversible design means a connection can be found regardless of which way the cable is inserted into the port of a laptop, notebook or Macbook. With Plug and Play installation, this converter can be installed with minimum fuss, perfect for both professional and first-time users.

Please note: Any interruption of the power supply will cause the USB bus to reset. This is a technical limitation of USB PD 2.0

Specifications:



AV Interface: USB Type C to DisplayPort
Interface Standard: DisplayPort 1.2
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution: 3840x2160@60Hz
Chipset: VL100
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
Power Delivery: PD 2.0 up to 60W (20V 3A)
HDCP Support: HDCP 2.2
Special Features: DisplayPort Alternate Mode
Inputs: 1 x USB Type C (Male)
Outputs: 1 x DisplayPort (Female), 1 x USB Type C (Female)
Dimensions (approx.) WxDxH: 40x43x11.5mm (1.57x1.69x0.45in)
(Fixed) Cable Length: 150mm (5.91in)
Housing Material: Plastic
Net Weight: 0.021kg (0.05lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: White
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.033kg (0.07lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, Califonia Proposition 65


Package Contents:



USB Type C to DisplayPort Converter
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

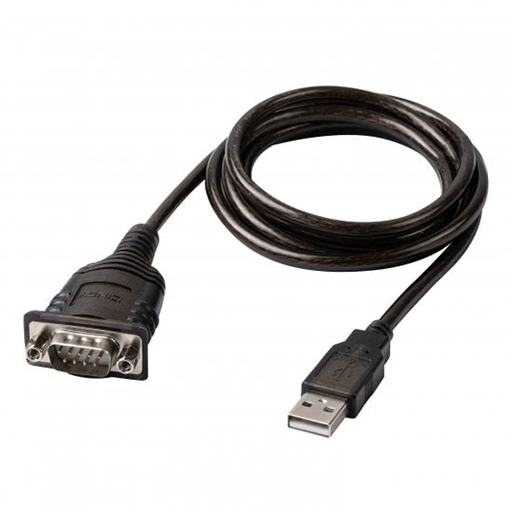

The Lindy USB to Serial Converter Lite allows the user to easily connect peripheral devices featuring 9 Way Serial RS232 to a USB Type A port.

With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to notebooks and Macbooks, in retail and IT scenarios.

This converter is compatible with both Windows and Mac operating systems and as it is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.

Product Details

Connects to any standard serial device via USB Type A
Plug & Play - USB bus-powered with no external power supply required
Compatible with Windows and Mac Operating Systems
2 Year Warranty

USB 3.1 Type C to 2.5G Ethernet Converter

Key Features:

Connects a USB 3.1 Type C computer to a 2.5 Gigabit Ethernet network
Supports up to 2.5G Ethernet bandwidth*
USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
Bus-powered with no external power supply required
2 year warranty
Type C to Ethernet Converters allow users to connect USB Type C equipped devices to a Gigabit Ethernet network.

The Lindy USB 3.1 Type C to 2.5G Ethernet Converter is perfect for users looking to connect a computer, notebook or tablet to a Gigabit Ethernet network via a Type C USB port. It supports extremely high data rates up to 2.5Gbps* on existing Cat.5e/6 cabling infrastructure.

This Converter is ideal for ultrabooks or tablets which do not feature wired network connectivity. With its small size and lightweight design this USB 3.1 to 2.5G Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required. It is compatible with Thunderbolt 3 ports to cover a wide range of devices.

* Please make sure that the connected switch supports 2.5GBASE-T (IEEE 802.3bz)

Specifications:

Interface: USB to RJ45
Interface Standard: USB 3.1 Gen 1 / 3.0, 2.5G LAN
Supported Bandwidth: 5 Gbps (USB), 10/100/1000Mbps/2.5Gbps (Ethernet)
Chipset: RTL8156
Compatibility: USB Type C equipped computers, Windows, Mac & Linux OS
Inputs: 1 x USB Type C (Male)
Outputs: 1 x RJ45 (Female)
Standby Power < 80mA (when Ethernet cable is not connected)
Normal Operating Power:
< 80mA  10Mbps
< 130mA 100Mbps
< 300mA 1Gbps
< 460mA 2.5Gbps
Dimensions WxDxH:
Housing: 35x74.5x15.5mm (1.38x2.93x0.61in)
USB Connector: 22x12x6.4mm (0.87x0.47x0.25in)
(Fixed) Cable Length: 110mm (4.33in)
Housing Material: Plastic
Net Weight: 0.034kg (0.07lb)
Operating Temperature: 0° to 45° C (32°F - 113°F)
Storage Temperature: -10° to 70° C (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: Black
Packaging Type: Polybag
Packaging Dimensions: 194x176x20mm (7.64x6.93x0.79in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH
Package Contents:

USB 3.1 Type C to 2.5G Ethernet Converter
Lindy Manual
Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

USB 3.0 to 2.5G Ethernet Converter

Key Features:

Connects a USB 3.0 computer to a 2.5 Gigabit Ethernet network
Supports up to 2.5G Ethernet bandwidth*
USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
Bus-powered with no external power supply required
2 year warranty


The Lindy USB 3.0 to 2.5G Ethernet Converter allows users to conveniently connect a computer or notebook to a Gigabit Ethernet network via a Type A USB port. It supports extremely high data rates up to 2.5Gbps* on existing Cat.5e/6 cabling infrastructure.

This converter is ideal for ultrabooks or tablets which do not feature wired network connectivity. With its small size and lightweight design this USB 3.0 to 2.5G Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.

* Please make sure that the connected switch supports 2.5GBASE-T (IEEE 802.3bz)

Specifications:

Interface: USB to RJ45
Interface Standard: USB 3.1 Gen 1 / 3.0, 2.5G LAN
Supported Bandwidth: 5 Gbps (USB), 10/100/1000Mbps/2.5Gbps (Ethernet)
Chipset: RTL8156
Compatibility: USB Type A equipped computers, Windows, Mac & Linux OS
Inputs: 1 x USB Type A (Male)
Outputs: 1 x RJ45 (Female)
Normal Operating Power:
< 80mA  10Mbps
< 130mA 100Mbps
< 300mA 1Gbps
< 460mA 2.5Gbps
Dimensions WxDxH:
Housing: 35x74.5x15.5mm (1.38x2.93x0.61in)
USB Connector: 20x15x7.8mm (0.79x0.59x0.31in)
(Fixed) Cable Length: 110mm (4.33in)
Housing Material: Plastic
Net Weight: 0.034kg (0.07lb)
Operating Temperature: 0° to 45° C (32°F - 113°F)
Storage Temperature: -10° to 70° C (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Power Requirements:
Colour: Black
Packaging Type: Polybag
Packaging Dimensions: 194x176x20mm (7.64x6.93x0.79in)
Gross Weight: 0.06kg (0.13lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH


Package contents:

USB 3.0 to 2.5G Ethernet Converter
Lindy Manual


Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Overview The Lindy USB Type C Audio Converter is a useful, portable adapter for connecting 3.5mm audio devices, such as headphones and microphones, to the USB Type C port on an ultrabook, notebook or tablet.

With the increasing production of slim, compact laptops and notebooks, the number of external ports is becoming limited, leaving some audio devices obsolete.

This converter solves this issue by utilising the USB Type C port to connect external audio output devices to provide audio from movies, music or video calls via a 3.5mm audio device. A separate 3.5mm mono-microphone port also allows audio to be input via a microphone, perfect for conference calls or voice recording.

The converters small form factor also makes it a perfect accompaniment for the minimalist designs seen with newer devices, while its portability ensures it can fit in small carry cases, ideal for both business and leisure travel.

With plug & play installation, the audio converter can be easily connected and used instantly for fuss free enjoyment of your audio.

*Contains only the audio converter, images show the intended use of this product

Product Details Add 3.5mm audio interfaces to your ultrabook, notebook or tablet


Connect a 3.5mm stereo headphone or speaker


Connect an external 3.5mm microphone


Plug & Play installation


2 year warranty

USB Type C to VGA Converter - Connect a VGA monitor to a computer's USB Type C port

Key Features:

Converts a USB Type C port to a VGA port
Supports VGA resolutions up to 1920x1200@60Hz
Requires DisplayPort Alternate Mode support by the USB Port/Bus
Plug & Play, no drivers required
2 year warranty


The Lindy USB Type C to VGA Converter allows users to easily add external video capabilities to a computer featuring a USB Type C port with support for DisplayPort Alternate Mode. The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.

Installation is simple as no drivers are required and the Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port, perfect for both professional and first time users.

Specifications:

AV Interface: USB Type C to VGA
Interface Standard: VGA
Maximum Input Resolution: 1920x1200@60Hz
Maximum Output Resolution: 1920x1200@60Hz
Chipset: AG9300
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support (incl. Apple M1)
Special Features: DisplayPort Alternate Mode
Inputs: 1 x USB Type C (Male)
Outputs: 1 x VGA (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH: 45x45x15.2mm (1.77x1.77x0.6in)
(Fixed) Cable Length: 110mm (4.33in)
Housing Material: Plastic
Net Weight: 0.028kg (0.06lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -10°C - 60°C (14°F - 140°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: White
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.037kg (0.08lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH


Package Contents:

USB Type C to VGA Converter
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

USB 2.0 Fast Ethernet Converter - Connect your computer to a Fast Ethernet network

Key Features:

Connects a USB 2.0 computer with Micro-B interface to a Fast Ethernet network
Supports 10BASE-T or 100BASE-TX, autosensing
USB 2.0 data transfer rates up to 480Mbps, backwards compatible with USB 1.1 host controllers
Bus-powered with no external power supply required
2 year warranty


The Lindy USB 2.0 Fast Ethernet Converter allows users to conveniently connect a notebook or tablet with USB Micro-B port to a Fast Ethernet network.

This converter is ideal for notebooks which do not feature wired network connectivity and for locations which lack wireless connectivity.

With its small size and lightweight design this USB 2.0 Fast Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.

Specifications:

Interface: USB to RJ45
Interface Standard: USB 2.0, 10/100 LAN
Supported Bandwidth: 480Mbps, 10/100Mbps
Chipset: RTL8152B-VB-CG
Compatibility: USB Type Micro-B equipped computers & mobile devices
Inputs: 1 x USB Type Micro-B (Male)
Outputs: 1 x RJ45 (Female)
Power: Bus-powered
Dimensions WxDxH: 27x60x16mm (1.06x2.36x0.63in)
(Fixed) Cable Length: 100mm (3.94in)
Housing Material: Plastic
Net Weight: 0.021kg (0.05lb)
Operating Temperature: 0°C - 40°C (0°F - 104°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
Humidity: 0 - 85% RH (non-condensing)
Colour: White
Packaging Type: Polybag
Packaging Dimensions: 133x144x20mm (5.24x5.67x0.79in)
Gross Weight: 0.03kg (0.07lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, California Proposition 65


Package Contents:

USB 2.0 Fast Ethernet Converter

USB Type C to Dual Display Converter, MST Hub

Key Features:

Connects an HDMI and VGA display to a USB Type C device
Requires DisplayPort Alternate support from the USB 3.1 Port/Bus
Supports resolutions up to 3840x2160@30Hz 8bit RGB (HDMI) / 1920x1080@60Hz (VGA)
Plug and Play, no drivers required
2 year warranty


USB Type C to Multi-AV converters allow users to connect multiple AV interfaces to a USB C equipped device. The Lindy USB 3.1 Type C to Dual Display Converter allows users to connect two high definition displays using HDMI & VGA interfaces to a Macbook, ultrabook or notebook with USB DisplayPort Alternate Mode.

The Converter can send the same display information to two screens with SST technology or use both screens as individual displays with separate display information using MST functionality, this is easily configured using the display settings of your computer.

Installation is simple as no drivers are required, while Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port.

Specifications:

AV Interface: USB Type C to HDMI & VGA
Interface Standard: HDMI 1.4, VGA
Supported Bandwidth: 10.2Gbps
Maximum Input Resolution: 3840x2160@30Hz 8bit RGB (HDMI) / 1920x1080@60Hz (VGA)
Maximum Output Resolution: 3840x2160@30Hz 8bit RGB (HDMI) / 1920x1080@60Hz (VGA)
Chipset: VL100,STDP4320,SN75DP149, PTN3355
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
HDCP Support: HDCP 1.4
Special Features: DisplayPort Alternate Mode, SST & MST support
Inputs: 1 x USB Type C (Male)
Outputs: 1 x HDMI (Female), 1 x VGA (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH: 53.9x66.4x15.4mm (2.12x2.61x0.61in)
(Fixed) Cable Length: 110mm (4.33in)
Housing Material: Aluminum shell
Net Weight: 0.08kg (0.18lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (-4°F - 158°F)
Humidity: 5% - 90% RH ( non-condensing)
Colour: Grey
Packaging Type: Polybag
Packaging Dimensions: 176x194x20mm (6.93x7.64x0.79in)
Gross Weight: 0.1kg (0.22lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, CP65


Package Contents:

USB 3.1 Type C to Dual Display Converter


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy USB Type C to VGA Converter allows users to easily add external video capabilities to a computer featuring a USB Type C port with support for DisplayPort Alternate Mode. The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.

Installation is simple as no drivers are required and the Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port, perfect for both professional and first-time users.

Product Details Converts a USB Type C port to a VGA port


Supports VGA resolutions up to 1920x1200@60Hz


Requires DisplayPort Alternate Mode support by the USB Port/Bus


Plug & Play, no drivers required


2-year warranty

Overview A USB to serial adapter is used to convert USB data signals to a standard serial port allowing USB devices to be connected to serial devices.

The Lindy USB to Serial Converter allows for the simple connection of peripheral devices featuring 9 Way Serial RS232 to a USB Type A port. With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to computers, in retail, IT and digital signage scenarios.

Featuring the widely compatible Prolific chipset and support for both Windows and Mac operating systems, this converter ensures there are no issues when connecting with a range of devices, and as the converter is USB bus-powered it can be installed quickly and easily with no need for additional power supplies.

Product Details Connects to any standard serial device via USB Type A


Prolific chipset for wide compatibility


Plug & Play - USB bus-powered with no external power supply required


Compatible with Windows and Mac operating systems


2 year warranty

Overview The Lindy USB Type C to DisplayPort Converter allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort Alternate Mode.

The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.

With support for 4K UHD resolutions, content can be viewed with superior clarity and stunning accuracy, while the Type C connectors reversible design means a connection can be found regardless of which way the cable is inserted into the port of a laptop, notebook or Macbook.

With Plug and Play installation, this converter can be installed with minimum fuss, perfect for both professional and first time users.

Product Details Converts a USB Type C port to a DP port


Supports DP resolutions up to 4K 3840x2160@60Hz


Requires DisplayPort Alternate Mode support by the USB Port/Bus


Plug & Play, no drivers required


2 year warranty

USB Type C to VGA Converter - Connect a VGA monitor to a computer's USB Type C port

Key Features:

Converts a USB Type C port to a VGA port
Supports VGA resolutions up to 1920x1200@60Hz
Requires DisplayPort Alternate Mode support by the USB 3.1 Port/Bus
Plug & Play, no drivers required
2 year warranty


The Lindy USB 3.1 Type C to VGA Converter allows users to easily add external video capabilities to a computer featuring a USB 3.1 Type C port with support for DisplayPort Alternate Mode. The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.

Installation is simple as no drivers are required and the Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port, perfect for both professional and first time users.

Specifications:

AV Interface: USB Type C to VGA
Interface Standard: VGA
Supported Bandwidth: -
Maximum Input Resolution: 1920 x 1200 @ 60Hz
Maximum Output Resolution: 1920 x 1200 @ 60Hz
Chipset: AG9300
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support (incl. Apple M1)
Special Features: DisplayPort Alternate Mode
Inputs: 1 x USB Type C (Male)
Outputs: 1 x VGA (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH: 36 x 14 x 39.5mm (1.42 x 0.55 x 1.56in)
(Fixed) Cable Length: 120mm (4.72in)
Housing Material: Aluminium Shell
Net Weight: 0.028kg (0.06lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: Grey
Packaging Type: Polybag
Gross Weight: 0.037kg (0.08lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, California Proposition 65


Package contents:

USB Type C to VGA Converter
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

USB Type C to DisplayPort 8K60 Converter - Connect an 8K DP display to your computer's USB Type C port

Key Features:



Converts a USB Type C port to an 8K capable DisplayPort connection
Supports resolutions up to 7680x4320@60Hz and 3840x2160@120Hz
Requires DisplayPort 1.4 Alternate Mode support by the USB Port/Bus
Plug & Play, no drivers required
2 year warranty


The Lindy USB Type C to DP 1.4 Converter is a high performance solution, which allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort 1.4 Alternate Mode. It supports video resolutions of 8K 7680x4320@60Hz and 4K120Hz*, making it the ideal tool for 8K game streaming or high resolution 8K video editing.

Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour. HDCP 2.2 ensures issue-free playback of 8K Ultra HD movies and other 8K content.

The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting. The Type C connectors' reversible design means a connection can be found regardless of which way the cable is inserted into the port of a laptop, notebook or Macbook. With Plug and Play installation, this converter can be installed with minimum fuss, perfect for both professional and first time users.

*Please make sure that DSC v1.2a is supported on your devices

Specifications:



AV Interface: USB Type C to DisplayPort
Interface Standard: DisplayPort 1.4
Supported Bandwidth: 32.4Gbps
Maximum Input Resolution: 7680 x 4320 @ 60Hz and 3840 x 2160 @ 120Hz
Maximum Output Resolution: 7680 x 4320 @ 60Hz and 3840 x 2160 @ 120Hz
Chipset: FL7102, TUSB544
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support (incl. Apple M1)
HDCP Support: HDCP 2.2
Special Features: DisplayPort Alternate Mode, HDR
Inputs: 1 x USB Type C (Male)
Outputs: 1 x DisplayPort (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH: 66.5 x 33.5 x 7mm (2.62 x 1.32 x 0.28in)
(Fixed) Cable Length: 130mm (5.12in)
Housing Material: Plastic
Net Weight: 0.027kg (0.06lb)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40°C - 80°C (-40°F - 80°F)
Humidity: 0 - 85% RH (non-condensing)
Colour: Black
Packaging Type: Polybag
Packaging Dimensions: 174 x 20 x 194mm (6.3 x 0.79 x 7.64in)
Gross Weight: 0.032kg (0.07lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package contents:



USB Type C to DisplayPort 1.4 Converter


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy USB to Serial Converter with COM retention allows easy connection of peripheral devices featuring 9 Way Serial RS232 to a USB Type A port.

With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to computers in retail, IT and digital signage scenarios.

Thanks to COM Port Retention technology, once the USB to Serial Converter with COM Retention has been installed and configured, it can be disconnected from the computer and reconnected to any available USB port on that computer at any time without having to reconfigure your software, saving time.

Product Details Connects to any standard serial device via USB Type A


Bulit-in COM Port Retention feature allows COM port settings to be stored within the converter


USB bus-powered with no external power supply required


Compatible with Windows, Mac and Linux operating systems


2 year warranty

Overview The Lindy USB 3.0 to VGA Converter allows users to display Full HD 1080p video and graphics on your TV, monitor or projector via a computer's USB 3.0 Type A port making this adapter perfect for notebooks and ultrabooks.

Perfect for connecting a HD display to USB 3.0 Type A equipped computers this installation free adaptor is a simple, high performance alternative to installing a traditional graphics card. It can be used as a primary, mirrored or extended desktop.

Simply install the driver and then connect the adapter to a computer.

Before installing this converter, please make sure that no DisplayLink or MCT drivers are installed.

Info about USB 3.0/.1/.2 USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Product Details Easily connect an additional VGA monitor or projector to your PC's USB 3.0 port


Requires an Intel i5/7 series 3rd Generation (or higher) processor


Easy to install and bus-powered from USB 3.0 port


Compatible with Windows 7, 8 & 10


2 year warranty

The Lindy HDMI to USB 3.0 Video Capture Device is designed to capture video and audio from any* HDMI source device. Once installed a variety of software packages can be used, making it ideal for use with computers, games consoles, camcorders and security systems. This also gives the ability to provide a high quality input signal for devices such as a camera, ideal when used in combination with a PC for live webcam functionality.

60Hz capture has the benefit of double the frame rate over older 30Hz capture devices which allows a smoother and clearer video to be saved or viewed.

Plug & Play installation means that you don’t have to worry about complex driver installs for devices with Windows 8 & 10, macOS X 10.8 or above, simply insert the capture device and the installation will begin automatically by your operating system.

Please note: No software is provided with this capture device, 3rd party software must be used. It has been tested with Open Broadcaster Software, Wirecast, Adobe FMLE, Daum PotPlayer, Skype and also the Windows 10 “Camera” app.

* No support for HDCP content and supports 59/60 Hz input only

Specifications



Capture video and audio from a HDMI source device
High USB Bandwidth, enabling video capture up to 1080p@60Hz
Compatible with Windows 7, 8 and 10, Mac OS X 10.8 and above (not compatible with macOS 10.14 or higher)
USB Bus-powered, no external power supply required
2 year warranty

USB Type C to DVI Converter

Key Features:



Converts a USB Type C port to a DVI-D port
Supports DVI resolutions up to 1920x1200@60Hz
Requires DisplayPort Alternate Mode support by the USB Port/Bus
Plug & Play, no drivers required
2-year warranty


The Lindy USB Type C to DVI Converter allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort Alternate Mode. The converter is powered by the USB Bus, therefore no external power supply is needed, saving space and time when connecting.

Installation is simple as no drivers are required and the Type-Cs reversible design has been developed to work regardless of which way the cable is inserted into the port, perfect for both professional and first-time users.

Specifications:



AV Interface: USB Type C to DVI
Interface Standard: DVI (Single Link)
Maximum Input Resolution: 1920x1200@60Hz
Maximum Output Resolution: 1920x1200@60Hz
Chipset: AG9310
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
HDCP Support: HDCP 1.4
Special Features: DisplayPort Alternate Mode
Inputs: 1 x USB Type C (Male)
Outputs: 1 x DVI (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH: 43x14x44,5mm (1.69x0.55x1.75in)
(Fixed) Cable Length: 120mm (4.72in)
Housing Material: Aluminium Shell
Net Weight: 0.035kg (0.08lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: Grey
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.04kg (0.09lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS & REACH, California Proposition 65


Package Contents:



USB Type C to DVI Converter
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

USB 3.2 Type C Gigabit Ethernet Converter

Key Features:



Connects a USB 3.2 Type C computer to a Gigabit Ethernet network
Supports 10/100/1000BASE-T, full and half duplex mode
USB 3.2 / 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
Bus-powered with no external power supply required
2-year warranty


The Lindy USB 3.2 Type C Gigabit Ethernet Converter allows users to conveniently connect a notebook or ultrabook to a Gigabit Ethernet network via a Type C USB port.

This converter is ideal for ultrabooks or notebooks which do not feature wired network connectivity and for locations which lack wireless connectivity or where it is unreliable or slow.

With its small size and lightweight design this USB 3.2 Gigabit Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.

Information about USB 3.0, 3.1 & 3.2:



USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:



Interface: USB to RJ45
Interface Standard: USB 3.2 / 3.1 Gen 1 / 3.0, Gigabit LAN
Supported Bandwidth: 5Gbps, 10/100/1000Mbps
Chipset: RTL8153
Compatibility: USB Type C equipped computers
Inputs: 1 x USB Type C (Male)
Outputs: 1 x RJ45 (Female)
Power: Bus-powered
Dimensions WxDxH: 24x58x16mm (0.94x2.28x0.63in)
(Fixed) Cable Length: 135mm (5.31in)
Housing Material: Aluminium
Net Weight: 0.027kg (0.06lb)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 0 - 80% RH (non-condensing)
Colour: Silver
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.03kg (0.07lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS, REACH, California Proposition 65


Package Contents:



USB 3.2 Type C Gigabit Ethernet Converter


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy USB 3.0 to DisplayPort Converter allows users to easily connect a 4K UHD DisplayPort monitor via your computer's USB 3.0 Type A port making this adapter perfect for notebooks and ultrabooks.

This converter is a simple, high performance alternative to installing a traditional graphics card. It can be used as a primary, mirrored or extended desktop and it also supports audio transmission via DisplayPort.

Simply install the driver and then connect the adapter to your computer.

Information about USB 3.0, 3.1 & 3.2:

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.


USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.


USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Product Details Easily connect an additional DisplayPort display to your PC's USB 3.0 port


Supports resolutions up to 3840x2160@30Hz RGB


DisplayLink technology


Easy to install and bus-powered from USB 3.0 port


2 year warranty

USB 3.0 Gigabit Ethernet Converter

Key Features:



Connects a USB 3.0 Type A computer to a Gigabit Ethernet network
Supports 10/100/1000BASE-T, full and half duplex mode
USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
Bus-powered with no external power supply required
2-year warranty


The Lindy USB 3.0 Gigabit Ethernet Converter allows users to conveniently connect a notebook or ultrabook to a Gigabit Ethernet network via a Type A USB port.

This converter is ideal for ultrabooks or notebooks which do not feature wired network connectivity and for locations which lack wireless connectivity or where it is unreliable or slow.

With its small size and lightweight design this USB 3.0 Gigabit Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.

Information about USB 3.0, 3.1 & 3.2:



USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:



Interface: USB to RJ45
Interface Standard: USB 3.1 Gen 1 / 3.0, Gigabit LAN
Supported Bandwidth: 5Gbps, 10/100/1000Mbps
Chipset: RTL8153
Compatibility: USB Type A equipped computers
Inputs: 1 x USB Type A (Male)
Outputs: 1 x RJ45 (Female)
Power: Bus-powered
Dimensions WxDxH: 24x58x16mm (0.94x2.28x0.63in)
(Fixed) Cable Length: 135mm (5.31in)
Housing Material: Aluminium
Net Weight: 0.027kg (0.06lb)
Operating Temperature: 0°C - 60°C (32°F - 140°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 0 - 80% RH (non-condensing)
Colour: Silver
Packaging Type: Polybag
Packaging Dimensions: 174x194mm (6.85x7.64in)
Gross Weight: 0.03kg (0.07lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS, REACH, California Proposition 65


Package Contents:



USB 3.0 Gigabit Ethernet Converter


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

USB Type C to Dual Display Converter, MST Hub

Key Features:



Connects an HDMI and DisplayPort display simultaneously to a Windows or Apple computer
Requires DisplayPort Alternate support from the USB Type c Port
Supports resolutions up to 3840x2160@60Hz for one display and 3840x2160@30Hz for simultaneous use*
Plug and Play, no drivers required
2-year warranty


USB Type C to Multi-AV converters allow users to connect multiple AV interfaces to a USB C equipped device. The Lindy USB 3.1 Type C to Dual Display Converter allows users to connect a high-definition HDMI and/or DisplayPort display to a Macbook, ultrabook or notebook with USB 3.1 DisplayPort Alternate Mode.

The Converter can send the same display information to two screens with SST technology or use both screens as individual displays with separate display information using MST functionality, this is easily configured using the display settings of your computer.

Installation is simple as no drivers are required, while Type-Cs reversible design has been developed to work regardless of which way the cable is inserted into the port.

*Some AMD GPUs & 8th Generation Intel NUCs do not support two native 4K displays.

Specifications:



AV Interface: USB Type C to HDMI & DisplayPort
Interface Standard: HDMI 2.0,, DP 1.2
Supported Bandwidth: 21.6Gbps
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution: 3840x2160@60Hz; 3840x2160@30Hz (2 displays simultaneously)
Chipset: STDP4320
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
HDCP Support: HDCP 1.3
Special Features: DisplayPort Alternate Mode, SST & MST support
Inputs: 1 x USB Type C (Male)
Outputs: 1 x HDMI (Female), 1 x DP (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH: 67.8x63x17mm (2.67x2.48x0.67in)
(Fixed) Cable Length: 232mm (9.13in)
Housing Material: ABS
Net Weight: 0.053kg (0.12lb)
Operating Temperature: 0°C - 45°C (32°F - 113°F)
Storage Temperature: -10°C - 70°C (-4°F - 158°F)
Humidity: 0% - 90% RH (non-condensing)
Colour: Black
Packaging Type: Polybag
Packaging Dimensions: 176x194x20mm (6.93x7.64x0.79in)
Gross Weight: 0.065kg (0.14lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package Contents:



USB 3.1 Type C to Dual Display Converter


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy USB 3.2 Hub & Gigabit Ethernet Converter allows users to conveniently connect a ultrabook, netbook or tablet to a Gigabit Ethernet network via a Type C USB port and also provides three additional USB 3.2 / 3.1 Gen 1 / 3.0 Type A ports.

This converter is ideal for ultrabooks or tablets which do not feature wired network connectivity and may only offer a limited number of USB ports.

With its small size and lightweight design this USB 3.2 Hub & Gigabit Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required. It is backwards compatible with Thunderbolt 3 ports to cover a wide range of devices including MacBooks.

Product Details Connects a USB 3.2 Type C computer to a Gigabit Ethernet network


Provides three USB 3.2 / 3.1 Gen 1 / 3.0 Type A ports


Supports 10/100/1000BASE-T, full and half duplex mode


USB 3.2 / 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps


2 year warranty

Overview The Lindy USB to Serial Converter allows the user to easily connect peripheral devices featuring 9 Way Serial RS485 to a USB Type A port.

With both USB Type A and serial connectors, this device is a perfect solution for connecting legacy RS485 equipment such as barcode scanners and industrial devices to notebooks and Macbooks, in retail, IT and digital signage scenarios.

This converter is compatible with Windows, Mac and Linux operating systems. It supports hot-swapping so the user can quickly switch serial devices without shutting down the computer.

The converter is USB bus-powered, it can be installed quickly and easily with no need for additional power supplies.

Product Details Connects to any serial RS485 device via USB Type A


9 Way D Male to USB A Male connectors


Plug & Play - USB bus-powered with no external power supply required


Compatible with Windows, Mac and Linux operating systems


2 year warranty

Overview The Lindy USB Type C to Triple Display Converter allows users to connect either an HDMI, DVI or VGA screen to a Macbook, ultrabook or notebook with USB DisplayPort Alternate Mode.

With its lightweight, low profile design, the adapter easily fits into a notebook bag and simply expands any available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters - ideal for BYOD applications.

The converter is powered by the USB Bus, therefore no external power supply is needed. Installation is simple as no drivers are required and Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port.

Product Details Converts a USB 3.1 Type C port to an HDMI, DVI or VGA port


Requires DisplayPort Alternate Support by the USB Port/Bus


Supports resolutions up to 4096x2160@30Hz RGB (HDMI) / 1920x1200@60Hz (DVI) / 1920x1080@60Hz (VGA)


Plug and Play, no drivers required


2 year warranty

USB 3.0 to 2.5G Ethernet Converter - Connect a computer to a 2.5G network

Key Features:

Connects a USB 3.0 computer to a 2.5 Gigabit Ethernet network
Supports up to 2.5G Ethernet bandwidth*
USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
Bus-powered with no external power supply required
2 year warranty
USB to Ethernet Converters allow users to connect USB equipped devices to a Gigabit Ethernet network.


The Lindy USB 3.0 Type A to 2.5G Ethernet Converter allows users to conveniently connect a computer or notebook to a Gigabit Ethernet network via a Type A USB port. It supports extremely high data rates up to 2.5Gbps* on existing Cat.5e/6 cabling infrastructure.

This converter is ideal for thin and light ultrabooks or tablets which do not feature wired network connectivity. With its small size and lightweight design this USB 3.0 to 2.5G Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.

* Please make sure that the connected switch supports 2.5GBASE-T (IEEE 802.3bz)

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.


Specifications:

Interface: USB to RJ45
Interface Standard: USB 3.1 Gen 1 / 3.0, 2.5G LAN
Supported Bandwidth: 5 Gbps (USB), 10/100/1000Mbps/2.5Gbps
Chipset: RTL8156B
Compatibility: USB Type A equipped computers, Windows, Mac & Linux OS
Special Features: Supports Wake on Lan (WoL)
Inputs: 1 x USB Type A (Male)
Outputs: 1 x RJ45 (Female)
Standby Power less than 80mA (when Ethernet cable is not connected)
Normal Operating Power:
less than 80mA  10Mbps
less than 130mA 100Mbps
less than 300mA 1Gbps
less than 460mA 2.5Gbps
Dimensions WxDxH: 60 x 22 x 17mm (2.36 x 0.87 x 0.67in)
(Fixed) Cable Length: 270mm (10.63in)
Housing Material: Aluminium
Net Weight: 0.036kg (0.08lb)
Operating Temperature: 0° to 70° C (32°F - 158°F)
Storage Temperature: -20° to 70° C (-4°F - 158°F)
Humidity: 5 - 95% RH (non-condensing)
Power Requirements: less than 450mA @5V
Colour: Silver
Packaging Type: Polybag
Packaging Dimensions: 133 x 144mm (5.24 x 5.67in)
Gross Weight: 0.04kg (0.09lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, POP, CP65
USB 3.0 to 2.5G Ethernet Converter


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

USB 3.0 to SATA Converter

USB to SATA converters allow users to expand PC storage by allowing a SATA hard drive or SSD to connect to a USB equipped PC.


Highlights • Connects a SATA hard drive to a USB Type A equipped computer

• Supports SATA up to 6Gbps

• USB 3.1 Gen 1 / USB 3.0 SuperSpeed standard with data rates up to 5Gbps

• Compatible with USB Type A equipped computers

• 2 year warranty

  This Lindy USB 3.0 to SATA Converter allows users to easily connect high performance 5.25", 3.5" or 2.5" SATA drives without having to install the drive in an enclosure or computer. It is an ideal tool for computer technicians as well as for private users for quick backups.

With plug & play installation, the converter can be easily connected and used instantly.

The included mains adapter powers the connected hard drive. The USB 3.0 to SATA Converter does not directly support 3.3V HDD/SSDs; for drives which require 3.3V, please use a SATA/Micro SATA adapter.

USB 3.2 Type C to 2.5G Ethernet Converter - Connect a computer to a 2.5G network

Key Features:

Connects a USB 3.2 Type C computer to a 2.5 Gigabit Ethernet network
Supports up to 2.5G Ethernet bandwidth*
USB 3.2 / 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
Bus-powered with no external power supply required
2 year warranty
Type C to Ethernet Converters allow users to connect USB Type C equipped devices to a Gigabit Ethernet network.
The Lindy USB 3.2 Type C to 2.5G Ethernet Converter is perfect for users looking to connect a computer, notebook or tablet to a 2.5 Gigabit Ethernet network via a Type C USB port. It supports extremely high data rates up to 2.5Gbps* on existing Cat.5e/6 cabling infrastructure.

This Converter is ideal for thin and light laptops or tablets which do not feature wired network connectivity. With its small size and lightweight design this USB 3.2 to 2.5G Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required. It is compatible with Thunderbolt 3 ports to cover a wide range of devices.

* Please make sure that the connected switch supports 2.5GBASE-T (IEEE 802.3bz)

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications:

Interface: USB to RJ45
Interface Standard: USB 3.2 / 3.1 Gen 1 / 3.0, 2.5G LAN
Supported Bandwidth: 5 Gbps (USB), 10/100/1000Mbps/2.5Gbps
Chipset: RTL8156B
Compatibility: USB Type C equipped computers, Windows, Mac (including Apple M1) & Linux OS
Special Features: Supports Wake on LAN (WoL)
Inputs: 1 x USB Type C (Male)
Outputs: 1 x RJ45 (Female)
Power:
Standby Powerless than 80mA (when Ethernet cable is not connected)
Normal Operating Power:
less than 80mA  10Mbps
less than 130mA 100Mbps
less than 300mA 1Gbps
less than 460mA 2.5Gbps
Dimensions WxDxH:  60 x 22 x 17mm (2.36 x 0.87 x 0.67in)
(Fixed) Cable Length: 270mm (10.63in)
Housing Material: Aluminium
Net Weight: 0.034kg (0.07lb)
Operating Temperature: 0° to 70° C (32°F - 158°F)
Storage Temperature: -20° to 70° C (-4°F - 158°F)
Humidity: 5 - 95% RH (non-condensing)
Power Requirements: less than 450mA @5V
Colour: Silver
Packaging Type: Polybag
Packaging Dimensions: 133 x 144mm (5.24 x 5.67in)
Gross Weight: 0.38kg (0.08lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, POP, CP65
Package Contents:

USB 3.2 Type C to 2.5G Ethernet Converter
Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

USB to 4 Port Serial Converter  - Flexible connection of 4 serial devices to a USB Type A computer

Key Features:



Connects four standard serial devices via USB Type A
With four flexible cabled 9 Way D Male RS232 connectors
Plug & Play - USB bus-powered with no external power supply required
Compatible with Windows and Linux operating systems
2 year warranty


The Lindy USB to 4 Port Serial Converter allows the user to easily connect four peripheral devices featuring 9 Way Serial RS232 to a USB Type A port. Its functional design with cabled connectors offers more flexibility compared with standard box converters. It is an ideal solution for connecting legacy RS232 equipment such as barcode scanners and industrial devices to notebooks, in retail, IT and digital signage scenarios.

This converter is compatible with both Windows and Linux operating systems and as it is USB bus-powered, it can be installed quickly and simply with no need for additional power supplies.

Specifications:



Interface: USB to 4 x RS232 Serial
Interface Standard: USB 1.1, RS232
Supported Bandwidth: 12Mbps, > 230kbps
Chipset: PL2303RA
Compatibility: USB Type A equipped computers
Inputs: 1 x USB Type A (Male)
Outputs: 4 x RS232 9 way (Male)
Power: Bus-powered
Dimensions WxDxH: 68 x 29 x 9mm (2.68 x 1.14 x 0.63in) / Housing
33 x 58 x 16mm (1.3 x 2.28 x 0.55in) / RS232 15 x 35 x 8mm (0.59 x 1.38 x 0.31in) / USB
Cable Length: 940mm (37.01in)
Housing Material: Plastic
Net Weight: 0.2kg (0.44lb)
Operating Temperature: 0°C - 50°C (32°F -122°F)
Storage Temperature: -10°C - 65°C (14°F - 149°F)
Humidity: 0 - 80% RH (non-condensing)
Colour: Black
Packaging Type: Polybag
Packaging Dimensions: 174 x 194mm (6.85 x 7.64in)
Gross Weight: 0.21kg (0.46lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH, CP65


Package contents:



USB to 4 Port Serial Converter


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)

Overview The Lindy USB Type C to DVI Converter allows users to easily add external video capabilities to a computer featuring the USB Type C port with support for DisplayPort Alternate Mode.

USB Power Delivery of up to 60W provides power to a notebook or ultrabook via it's USB Type C port whilst simultaneously using it as a video output, simply connect a compatible USB power supply to the DVI Converter.

Installation is simple as no drivers are required and the Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port.

Any interruption of the power supply will cause the USB bus to reset. This is a technical limitation of USB PD 2.0

Product Details Adds a DVI-D port and a USB Type C power supply port to your computer


Supports DVI Single Link resolutions up to 1920x1200@60Hz


Requires DisplayPort Alternate Mode support by the USB Port/Bus


Supports Type C power supplies up to 60W


2 year warranty

USB Type C to Multi-AV Converter

Key Features:



Allows users to connect a DisplayPort, HDMI, DVI or VGA device to a USB Type C port
Supports HDMI and DP resolutions up to 4K@60Hz, VGA and DVI up to 1920x1200@60Hz
Requires DisplayPort Alternate support from the USB Port/Bus
Easily connect a single legacy or modern display at any one time
2 year warranty


USB Type C to Multi-AV converters allow users to connect multiple AV interfaces to a USB C equipped device. The Lindy USB Type C to Multi-AV Converter connects either an HDMI, DisplayPort, DVI or VGA display to a Macbook, Ultrabook or Notebook with USB DisplayPort Alternate Mode.

Supporting full 4K Ultra HD resolutions up to 3840x2160@60Hz on DP and HDMI displays, content can be viewed with superior clarity and stunning accuracy. DVI and VGA monitors are supported with a maximum resolution of 1920x1200@60Hz.

With its lightweight, low-profile design, this converter easily fits into a notebook bag and simply expands available connectivity options, so users can connect to the most commonly used digital and analogue video equipment, without having to carry multiple adapters - ideal for BYOD applications. The converter is powered by the USB Bus, therefore no external power supply is necessary. Installation is simple as no drivers are required and Type-C's reversible design has been developed to work regardless of which way the cable is inserted into the port.

Specifications:



AV Interface: USB to DP / HDMI / DVI / VGA
Interface Standard: DisplayPort 1.2, HDMI 2.0, DVI, VGA
Supported Bandwidth: 21.6Gbps
Maximum Input Resolution: 4K 60Hz
Maximum Output Resolution: 3840x2160@60Hz RGB 8bit (DP), 3840x2160@60Hz RGB 8bit (HDMI),  1920x1200@60Hz (DVI) & 1920x1200@60Hz (VGA)
Chipset: VL103, PS176, PS8348B, AG6320
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate
HDCP Support: HDCP 2.2
Supported Audio: Audio for DP and HDMI
Inputs: USB Type C (Male)
Outputs: HDMI Type A (Female), DisplayPort (Female), DVI-I (Female), VGA (Female)
Power: Bus-powered
Dimensions (approx.) WxDxH:
Connector: 21x13x7mm (0.83x0.51x0.28in)
Housing: 105.5x46x14.5mm (4.15x1.81x0.57in)
(Fixed) Cable Length: 145mm (5.71in)
Housing Material: Plastic
Net Weight: 0.077kg (0.17lb)
Operating Temperature: 0° to 40° (32°F - 104°F)
Storage Temperature: -10° to +70° (14°F - 158°F)
Humidity: 10 - 85% RH (non-condensing)
Colour: White
Packaging Type: Polybag
Packaging Dimensions: 174x15x194mm (6.85x0.59x7.64in)
Gross Weight: 0.086kg (0.19lb)
Warranty (Years): 2
Certified: CE, UKCA, FCC, RoHS, REACH, Calif. Prop. 65


Package Contents:



USB Type C to Multi-AV Active Converter
