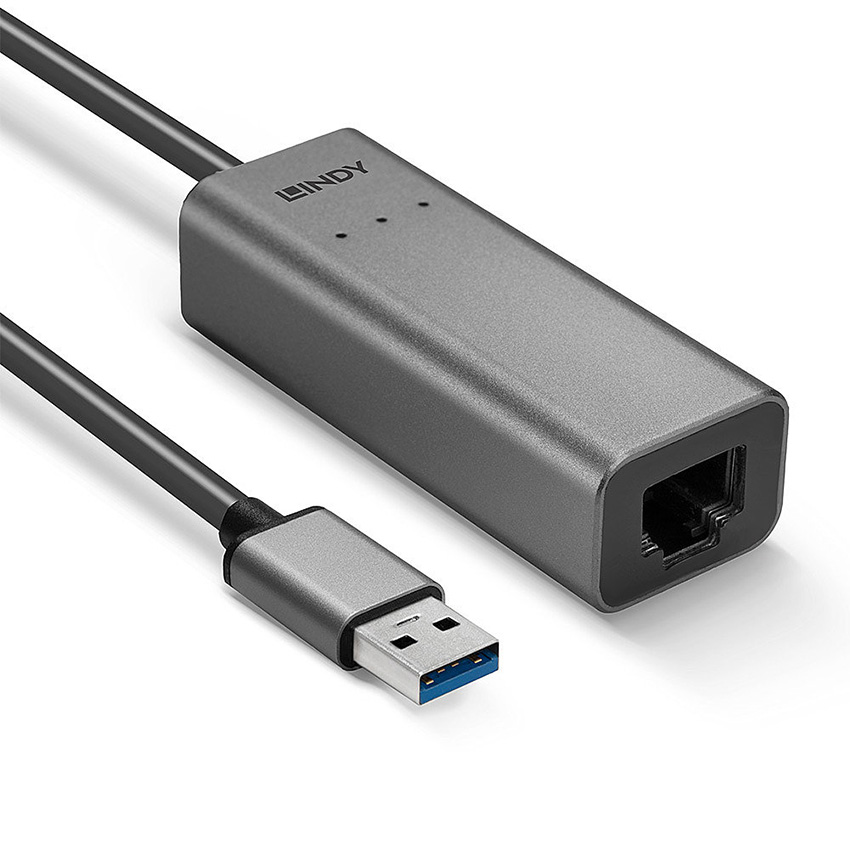

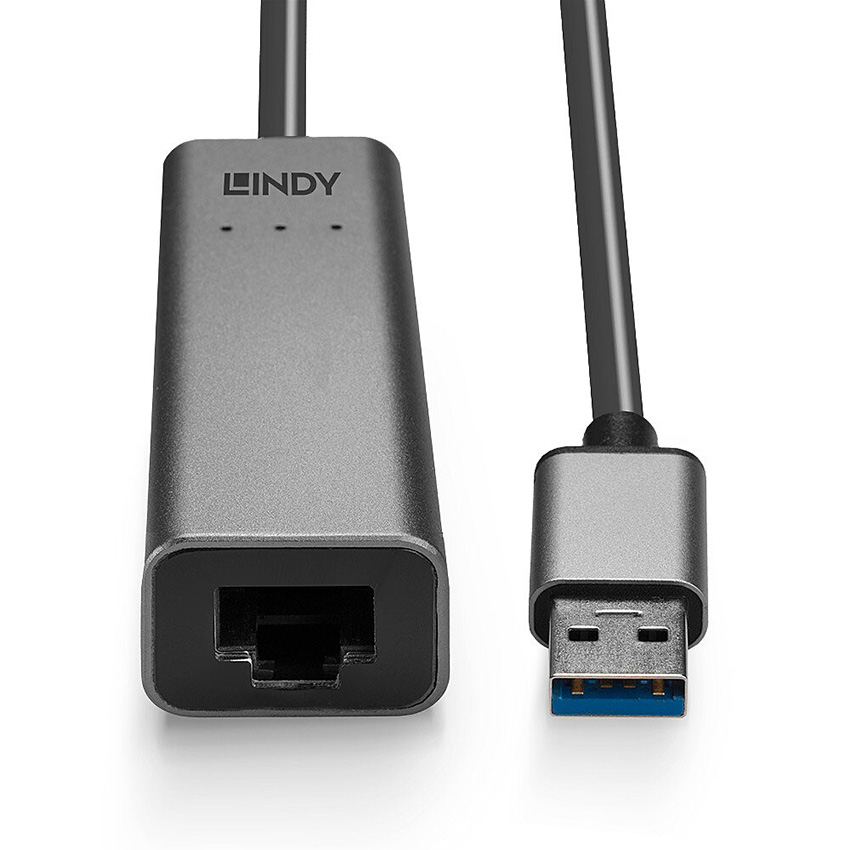

Lindy 43313 USB 3.0 to 2.5G Ethernet Converter

USB 3.0 to 2.5G Ethernet Converter - Connect a computer to a 2.5G network

Key Features:

• Connects a USB 3.0 computer to a 2.5 Gigabit Ethernet network
• Supports up to 2.5G Ethernet bandwidth*
• USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
• Bus-powered with no external power supply required
• 2 year warranty
• USB to Ethernet Converters allow users to connect USB equipped devices to a Gigabit Ethernet network.

The Lindy USB 3.0 Type A to 2.5G Ethernet Converter allows users to conveniently connect a computer or notebook to a Gigabit Ethernet network via a Type A USB port. It supports extremely high data rates up to 2.5Gbps* on existing Cat.5e/6 cabling infrastructure.

This converter is ideal for thin and light ultrabooks or tablets which do not feature wired network connectivity. With its small size and lightweight design this USB 3.0 to 2.5G Ethernet Converter is easy and convenient to carry, and because it is powered by the USB Bus no power adapter is required.

* Please make sure that the connected switch supports 2.5GBASE-T (IEEE 802.3bz)

Information about USB 3.0, 3.1 & 3.2

• USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
• USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
• USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications:

• Interface: USB to RJ45
• Interface Standard: USB 3.1 Gen 1 / 3.0, 2.5G LAN
• Supported Bandwidth: 5 Gbps (USB), 10/100/1000Mbps/2.5Gbps
• Chipset: RTL8156B
• Compatibility: USB Type A equipped computers, Windows, Mac & Linux OS
• Special Features: Supports Wake on Lan (WoL)
• Inputs: 1 x USB Type A (Male)
• Outputs: 1 x RJ45 (Female)
• Standby Power less than 80mA (when Ethernet cable is not connected)
• Normal Operating Power:
• less than 80mA  10Mbps
• less than 130mA 100Mbps
• less than 300mA 1Gbps
• less than 460mA 2.5Gbps
• Dimensions WxDxH: 60 x 22 x 17mm (2.36 x 0.87 x 0.67in)
• (Fixed) Cable Length: 270mm (10.63in)
• Housing Material: Aluminium
• Net Weight: 0.036kg (0.08lb)
• Operating Temperature: 0° to 70° C (32°F - 158°F)
• Storage Temperature: -20° to 70° C (-4°F - 158°F)
• Humidity: 5 - 95% RH (non-condensing)
• Power Requirements: less than 450mA @5V
• Colour: Silver
• Packaging Type: Polybag
• Packaging Dimensions: 133 x 144mm (5.24 x 5.67in)
• Gross Weight: 0.04kg (0.09lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, POP, CP65
• USB 3.0 to 2.5G Ethernet Converter

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
