Lindy 43365 60m USB 1.1 Cat.6 Extender Basic

60m USB 1.1 Cat.6 Extender Basic - 60m USB 1.1 Extension

Key Features:

• Extends a single USB port up to 60m using low cost Cat.5e/6 network cable (not included)
• Supports data transfer rates of up to 12Mbps
• Plug and Play Installation, OS independant
• Powered by the USB Bus
• 2 year warranty

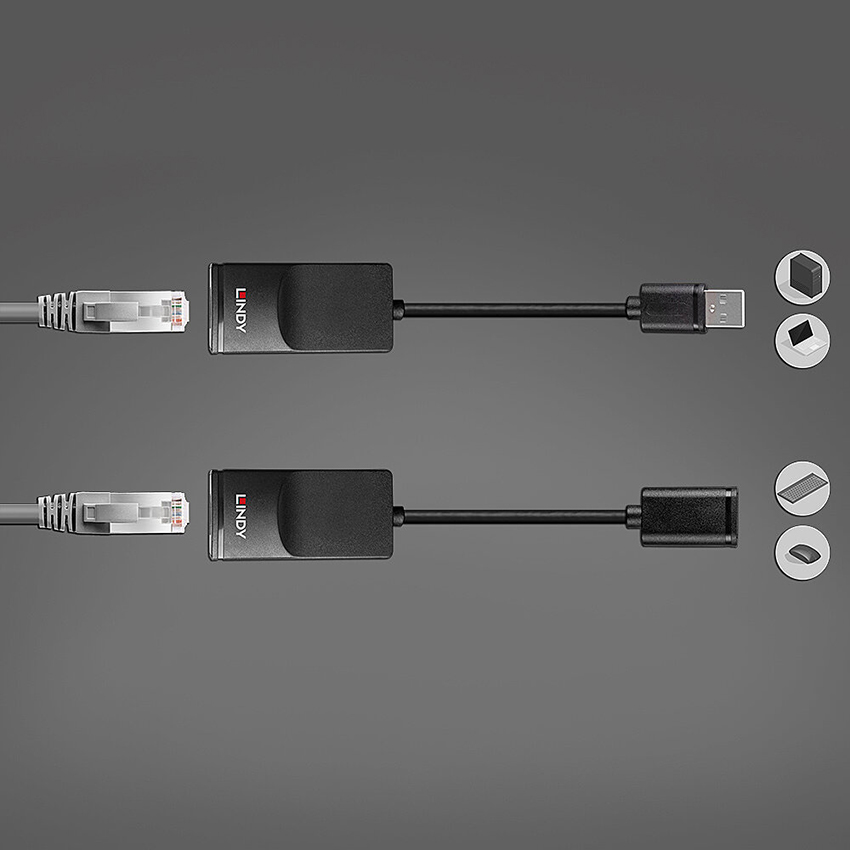

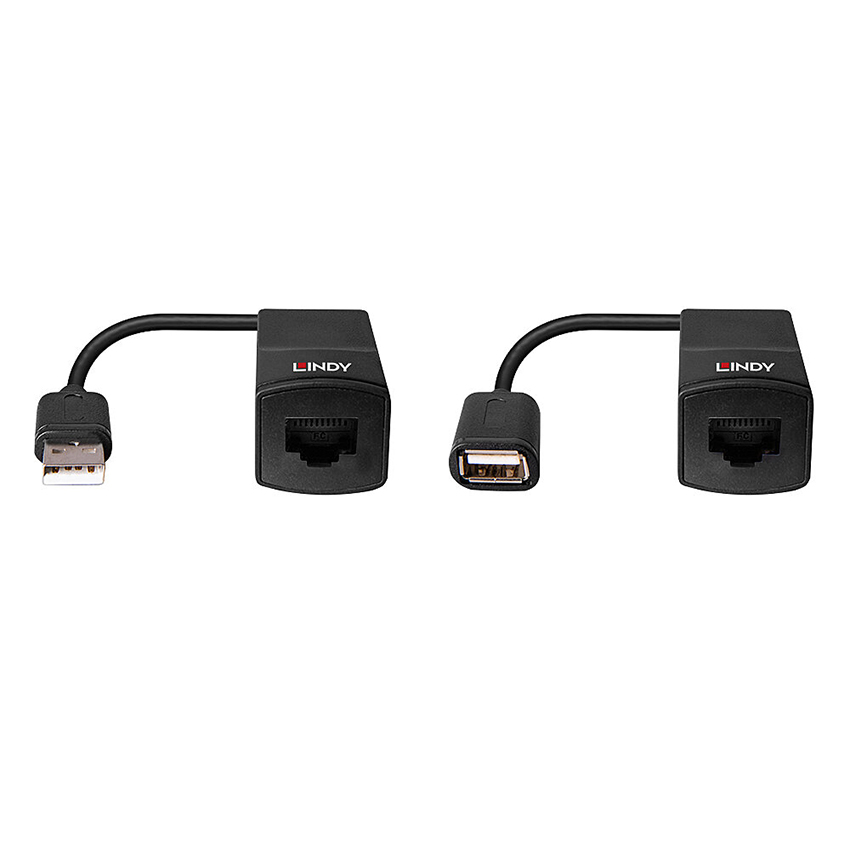

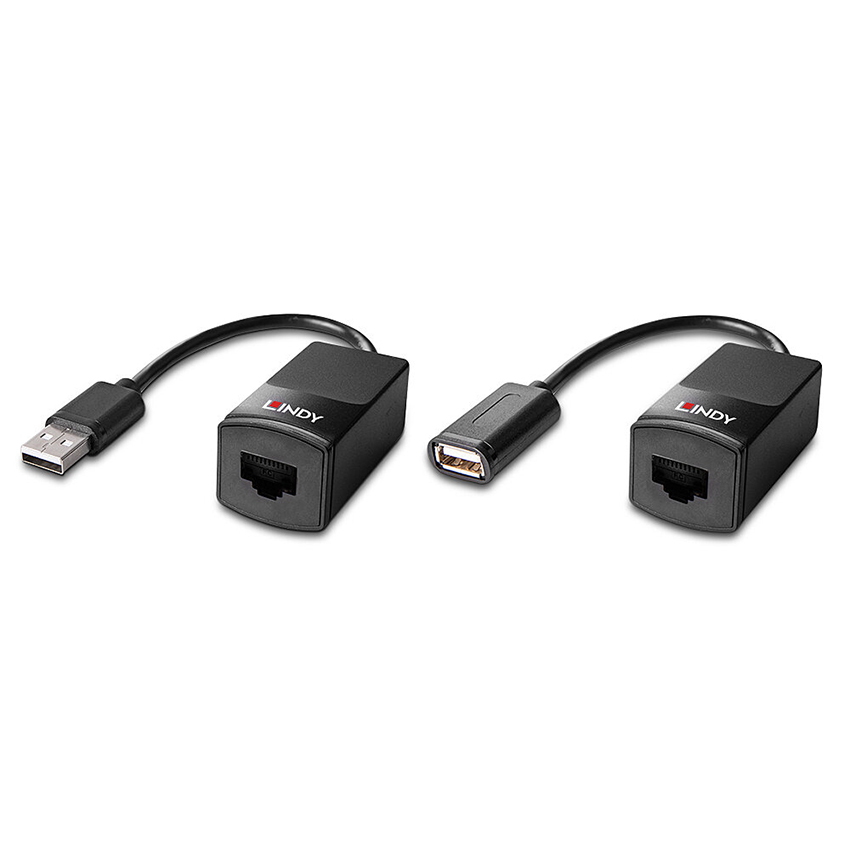

The Lindy Cat.6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 60m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB devices like mice or keyboards, perfect for long distance access.

Standard, low cost Cat.5e/6 cable (not included) is used to connect the two units together. For best performance and compatibility, we recommend the use of solid core patched cables.

Specifications:

• USB Standard: USB 1.1
• Supported Bandwidth: 12Mbps
• Maximum Distance: 60m (196ft)
• Transmission Medium: Cat.5e/6 or higher network cable
• Chipset: BCH4105G
• Transmitter Input: USB Type A (Male)
• Transmitter Output: RJ45 (Female)
• Receiver Input: RJ45 (Female)
• Receiver Output: USB Type A (Female)
• Dimensions WxDxH:
• Transmitter: 53x26x20mm (2.09x1.02x0.79in)
• Receiver: 53x26x20mm (2.09x1.02x0.79in)
• Housing Material: Plastic
• Net Weight: 0.054kg (0.12lb)
• Operating Temperature: 0° - 70°C (32°F - 158°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Colour: Black
• Packaging Type: Carton Box
• Packaging Dimensions: 180x105x30mm (7.09x4.13x1.18in)
• Gross Weight: 0.104kg (0.23lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH, CP65

Package Contents:

• Transmitter unit
• Receiver unit
• Lindy Manual

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
