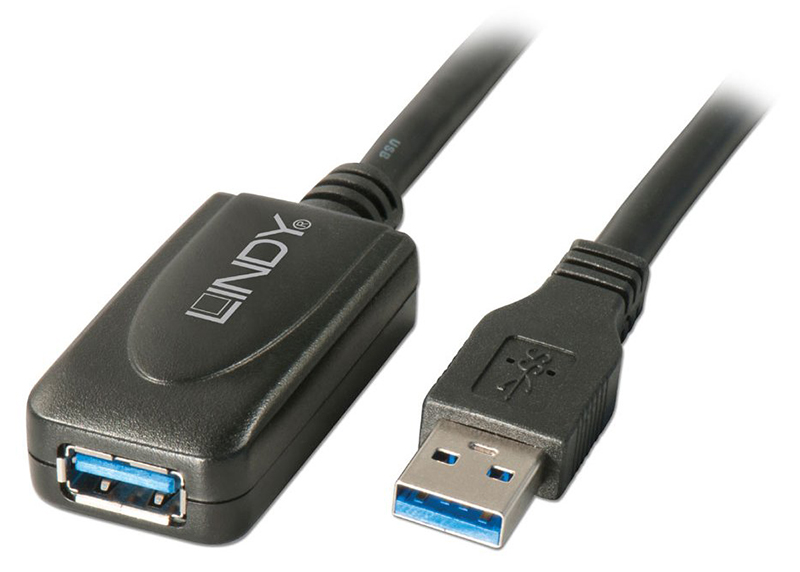

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.
It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.
Specifications
Technical Information
| Connectors | |
| Connector A | USB Type A Male |
| Connector B | USB Type A Female |
| Housing Material | Plastic |
| Connector Plating | Gold 3µ |
| Pin Construction | Brass |
| Pin Plating | Gold 15µ |
|
Dimensions (approx.) WxDxH |
USB A Male: 16x48x6mm (0.63x1.89x0.24in) USB A Female: 24x46x12mm (0.94x1.81x0.47in) |
| Cable Construction | |
| Lengths Available | 5m and 10m |
| Colour | Black |
| Standard | USB 3.1 Gen 1 / 3.0 |
| Jacket Diameter | 5.5mm (0.22in) |
| Jacket Material | Matt PVC |
| Conductor Material | Tinned Copper |
| Conductor Gauge | 28AWG+24AWG |
| Type | Round |
| Shielding | AL Mylar |
| Specifications | |
| Supported Bandwidth | 5 Gbps |
| Maximum Resolution | - |
| Nominal Attenuation: | 1.5dB/[email protected] 5.0dB/[email protected] 7.5dB/[email protected] 25dB/[email protected] |
| Minimum Bend Radius | 55mm (2.17in) |
| Maximum Tensile Load | 1500PSI min |
| Transmission Medium | Twisted Pair |
| Transmission Technology | USB 3.1 Gen 1 / 3.0 |
| Operating Temperature | 0°C - 60°C |
| Storage Temperature | 0°C - 70°C |
