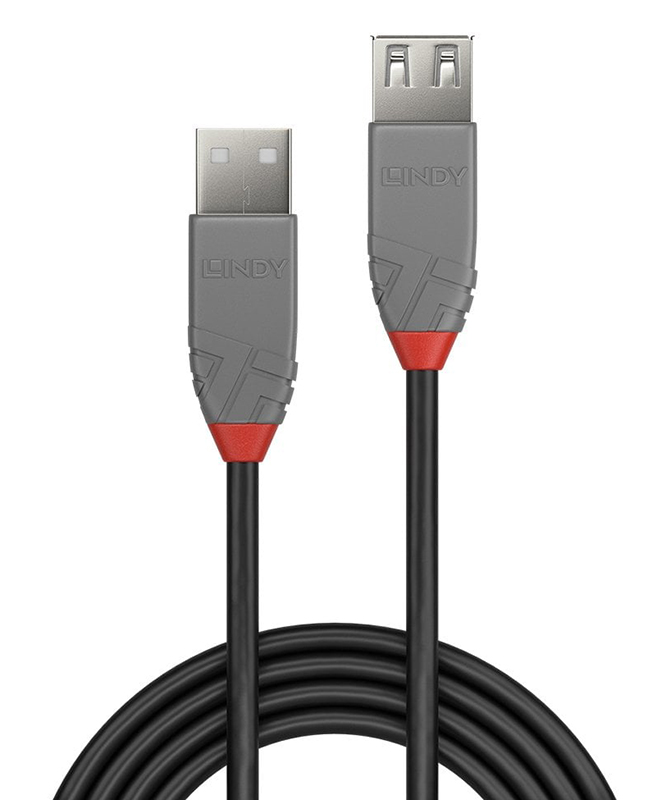

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.
Specifications
Technical Information
Connectors | |
Connector A | USB 2.0 Type A Male |
Connector B | USB 2.0 Type A Female |
Housing Material | PVC |
Connector Plating | Nickel |
Pin Construction | Copper |
Pin Plating | 24K Gold |
Dimensions (approx.) WxDxH |
USB A Male: 15.5x35x7.8mm (0.61x1.38x0.31in) USB A Female: 17x35x9.8mm (0.67x1.38x0.39in) |
Cable Construction | |
Lengths Available | 0.2m, 0.5m, 1m, 2m, 3m and 5m |
Colour | Black |
Standard | USB 2.0 |
Jacket Diameter | 4.4mm (0.17in) |
Jacket Material | PVC |
Conductor Material | Tinned Copper |
Conductor Gauge | 26/28AWG |
Type | Round |
Shielding | Aluminium Magnesium Braid |
Specifications | |
Supported Bandwidth | 480Mbps |
Maximum Resolution | - |
Nominal Attenuation: | 5.8db/km |
Minimum Bend Radius | 16mm (0.63in) |
Operating Temperature | 0°C - 60°C |
Storage Temperature | 0°C - 60°C |
