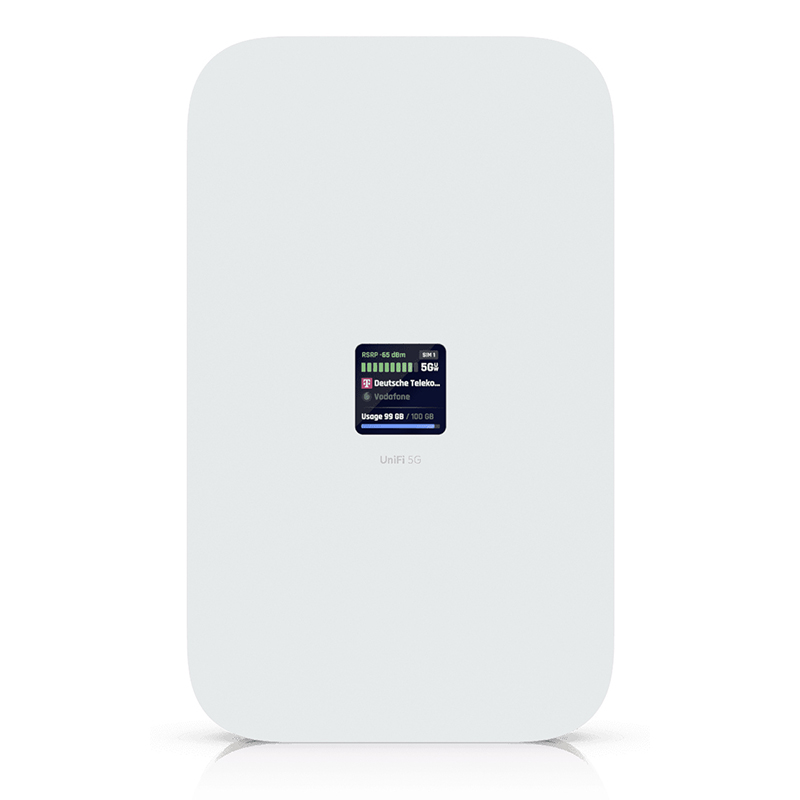

The Ubiquiti U5G-Max is a high-speed 5G modem that brings cellular connectivity into UniFi network deployments through a 2.5 GbE Ethernet connection. It supports 5G NR, 4G LTE and 3G UMTS networks, with Nano-SIM and eSIM options for flexible carrier connectivity. Powered through PoE and supporting desktop, wall and window mounting, it can provide a fast primary or backup WAN connection for compatible UniFi gateways and consoles.
Key Features of Ubiquiti U5G-Max
5G NR and 4G LTE modem
Supports 3G UMTS connectivity
1 x 2.5 GbE RJ45 Ethernet port
1 x Nano-SIM slot with Nano-SIM or eSIM support
1.3-inch touchscreen display
High-speed 5G connectivity
The modem supports 5G NR connectivity across a broad range of frequency bands, with peak 5G NSA download speeds reaching up to 3.4 Gbps. This provides a high-speed cellular WAN option for locations requiring fast internet access without relying solely on a fixed-line connection.
Flexible cellular access
Support for a Nano-SIM alongside Nano-SIM or eSIM connectivity gives users flexibility when selecting a mobile network service. The modem also supports 4G LTE and 3G UMTS, allowing it to maintain cellular connectivity when 5G service is unavailable.
2.5 GbE network connection
A 2.5 GbE RJ45 port connects the cellular modem to compatible UniFi networking equipment. The Ethernet interface provides a high-speed wired connection between the 5G modem and the network gateway or console.
PoE-powered installation
The unit receives power through PoE, reducing the need for a separate local power connection at the modem. Desktop, wall and window mounting options are included, allowing the unit to be positioned where cellular reception is most suitable.
Integrated touchscreen
A 1.3-inch touchscreen provides a local interface on the modem, while the four embedded cellular antennas support the 5G NR, LTE and UMTS radio connections.
Warranty: |

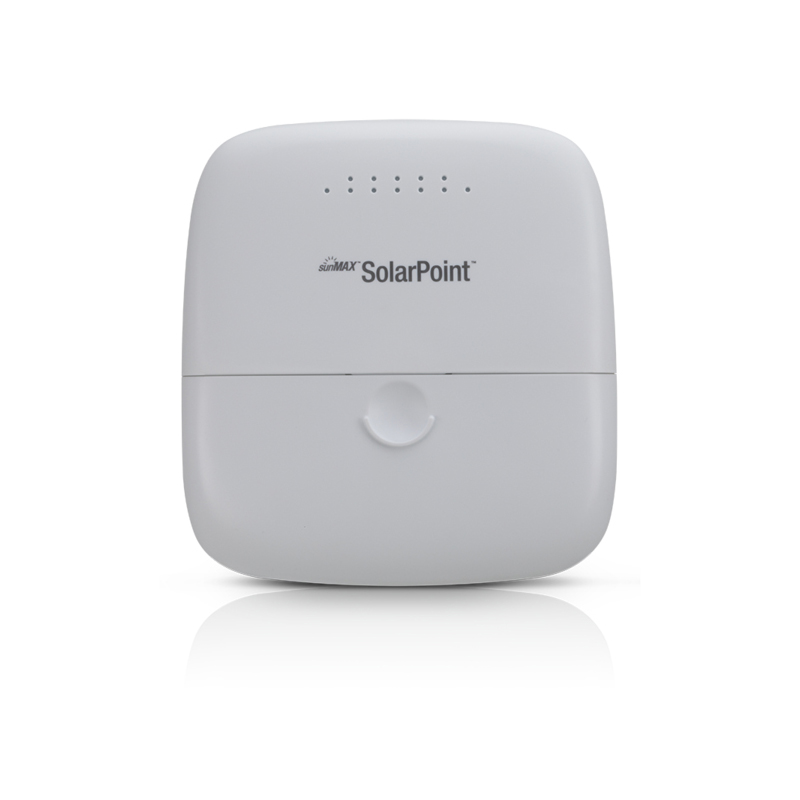

The Ubiquiti SM-SP-40 is a remotely managed solar site charging appliance that combines MPPT solar charging with network connectivity and 24V power distribution. It accepts power from a photovoltaic panel through H4 connectors, supports up to 7A of charging current, and can provide up to 40W of total output for compatible network equipment and other connected devices. Built-in UISP management, Wi-Fi, and four Fast Ethernet ports provide monitoring and connectivity for off-grid network installations.
Key Features of Ubiquiti SM-SP-40
Remotely managed MPPT solar charge controller
24V, 7A maximum charging capability
Up to 40W maximum total output
24V passive PoE output up to 17W
24V DC terminal block output up to 24W
Four 10/100 MbE Fast Ethernet ports
Ethernet and 2.4 GHz Wi-Fi management
10A maximum PV input current
Solar power management
The integrated maximum power point tracking controller manages energy from a connected photovoltaic panel while supporting a maximum charging current of 7A. The 10–60V PV input range and reverse and surge protection accommodate a variety of suitable solar panel configurations.
40W power distribution
The unit can provide up to 40W of combined output, with up to 17W available through 24V passive PoE and up to 24W through the 24V DC terminal block. Two output priority levels allow connected equipment to be managed when available battery power becomes limited.
Network connectivity and management
Four 10/100 MbE Fast Ethernet ports provide network connections for compatible equipment, while Ethernet and 2.4 GHz Wi-Fi management interfaces provide access to device administration. UISP, SNMP, NTP client services and other management functions support remote monitoring and configuration.
Battery and protection features
The charging system supports 24V SLA, AGM and gel lead-acid batteries and includes software-configurable undervoltage protection between 22 and 23.6V, along with hardware protection at 22V. These functions help manage available stored power for connected network equipment.
Warranty: |
