StarTech PCI Express Serial Cards

2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART

Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot










The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.


Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.


This product is a replacement for our PEX2S5521P card.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Diagram:








Applications: Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
Used to control multiple surveillance / security cameras in a parking structure, office building, etc.









Features: Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps
One parallel port with data transfer rate up to 1.5 Mbps
Compliant with PCI Express base specifications revision 1.0a
128-byte deep FIFO per transmitter and receiver
Configurable in 5V, 12V, and RI (non-powered) modes
Selectable power output on pin 9 for the serial port
Native single-chip, single lane PCI Express
Automated out-of-band flow control using CTS/RTS and DSR/DTR
Automated in-band flow control using programmable Xon/Xoff in both directions









The StarTech.com Advantage: Native single-chip, single lane PCI Express chipset delivers true PCIe performance
Standard and low profile/half-height bracket included to ensure fitment in any system
Easy to install and use with full step-by-step instructions saving time and hassle







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Parallel ports quantity 1 Host interface PCIe Expansion card standard PCIe 1.0a Technical details Chipset ASIX - MCS9901CV-CC FIFO (First In, First Out) 128 B Supported protocols EPP, ECP, SPP, PS/2 Sustainability certificates CE, RoHS
Performance Baud rate 460.8 Kbit/s Chipset ASIX - MCS9901CV-CC FIFO (First In, First Out) 128 B Product colour Green, Stainless steel Supported protocols EPP, ECP, SPP, PS/2
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 120 mm Height 20 mm Depth 105 mm Weight 112 g
Packaging data Package width 145 mm Package height 31 mm Package depth 174 mm Package weight 208 g Manual Yes Drivers included Yes Full specification and details can be found in the

1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16550 UART - Low Profile Expansion Card - Windows & Linux

Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot










The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.


The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.


The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).


This product is a replacement for our PEX1S552LP card.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Diagram:








Applications: Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
Bank Teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
Used to control multiple surveillance / security cameras in a parking structure, office building, etc.









Features: 1 PORT SERIAL CARD: Serial controller card w/ 16550 UART based on ASIX MCS9922CV-AA, allows 1x DB9 port w/bi-directional RS232 speeds up to 460.8Kbps per port, available 256 byte FIFO buffer; Upgraded version of our popular card PEX1S552LPOPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows & LinuxVERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscopeTHE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance









The StarTech.com Advantage: Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility
Easy to install and use with full step-by-step instructions saving time and hassle







Certifications, Reports and Compatibility:





Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 1 Peripheral (Molex) power connectors (4-pin) 1 Host interface PCIe Expansion card standard PCI 1.1 Technical details Chipset ASIX - MCS9922CV-AA FIFO (First In, First Out) 128 B Sustainability certificates CE, RoHS
Performance Baud rate 460.8 Kbit/s Chipset ASIX - MCS9922CV-AA FIFO (First In, First Out) 128 B Product colour Green
Design Internal Yes Product colour Green Certification CE, FCC
Other features Compatible operating systems Linux, Mac OS 10.4.x Chipset ASIX - MCS9922CV-AA
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 80 mm Height 20 mm Depth 105 mm Weight 44 g
Packaging data Package width 143 mm Package height 32 mm Package depth 174 mm Package weight 130 g Full specification and details can be found in the

2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART

Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot










The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.


The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.


The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).


This product is a replacement for our PEX2S552LP card.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Diagram:








Applications: Self service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
Used to control multiple surveillance / security cameras in a parking structure, office building, etc









Features: One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
Single chip design optimizes speed and reliability
Native single-chip, single lane PCI Express
Selectable power output on pin 9 for the serial port
Compliant with PCI Express base specifications revision 1.1a
Automated out-of-band flow control using CTS/RTS and DSR/DTR
Automated in-band software flow control using programmable Xon/Xoff in both directions
128-byte deep FIFO per transmitter and receiver









The StarTech.com Advantage: Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility
Easy to install and use with full step-by-step instructions saves time and hassle







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Peripheral (Molex) power connectors (4-pin) 1 Host interface PCIe Expansion card standard PCIe 1.1 Technical details Chipset ASIX - MCS9922CV-AA FIFO (First In, First Out) 128 B Sustainability certificates CE, RoHS
Performance Baud rate 460.8 Kbit/s Chipset ASIX - MCS9922CV-AA FIFO (First In, First Out) 128 B Product colour Green
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 80 mm Height 20 mm Depth 105 mm Weight 63.5 g
Packaging data Package width 143 mm Package height 32 mm Package depth 173 mm Package weight 180 g Manual Yes Drivers included Yes Mounting brackets included Yes Full specification and details can be found in the

2S1P PCI Express Serial Parallel Combo Card with Breakout Cable

Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot










The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.


Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.


The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.


This product is a replacement for our PEX2S1P552B card.


Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Connect legacy parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip drives and memory card readers
Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Healthcare (patient monitoring equipment, nurses' stations, modems)
Security (UPS control, access key panels, video cameras, card readers, modems)
Environmental Control (lighting, temperature, clocks)
Entertainment (video lottery terminals, slot machines, gaming systems)
Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Consumer (modems, PDAs, digital cameras, printers)
ISDN Networking









Features: Low profile/half-height design with optional full profile bracket
Single-chip architecture, no bridge chip
Supports parallel data transfer rates up to 1.5 Mbps
Supports serial data transfer rate up to 250 Kbps (per port)
Compatible with industrial standard 16C450/16C550 UART
Supports (SPP), Enhanced Parallel Port (EPP), Enhanced Capability Port(ECP)
PCI Express Base Specification 1.0a compliant
On-chip 256-byte depth FIFO in transmit/receive path of each port
Single-Lane (x1) PCI-Express host connection









The StarTech.com Advantage: Break-out cable design with low and standard profile brackets offers a versatile, single slot solution for adding 3 additional ports (2 serial, 1 parallel) to almost any system, including space-sensitive embedded applications
Native single-chip design reduces CPU load for improved performance and reliability
Broad Operating System support, including 64-bit Windows systems, for easy integration into mixed environments







Ports & interfaces Internal Yes Output interface Parallel, Serial Serial interface type RS-232 Serial ports quantity 2 Parallel ports quantity 1 Host interface PCIe Expansion card form factor Low-profile Technical details Chipset ASIX - MCS9901CV-CC FIFO (First In, First Out) 256 B Logical block addressing (LBA) supportx 8 bit Supports EPP and ECP Yes Sustainability certificates RoHS
Performance Data bits 5, 6, 7, 8 Baud rate 230.4 Kbit/s Chipset ASIX - MCS9901CV-CC FIFO (First In, First Out) 256 B Logical block addressing (LBA) support 8 bit Supports EPP and ECP Yes Product colour Black, Silver
Design Internal Yes Product colour Black, Silver Certification CE, FCC, REACH
Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 23 mm Height 79 mm Depth 95 mm Weight 225 g
Packaging data Package width 173 mm Package height 32 mm Package depth 143 mm Package weight 317 g Manual Yes Mounting brackets included Yes Drivers included Yes Cables included Serial Full specification and details can be found in the

2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16550 UART - Expansion Card - Windows & Linux

Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot










The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.


The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.


Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.


This product is a replacement for our PEX2S552 card.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Diagram:








Applications: Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
Used to control multiple surveillance / security cameras in a parking structure, office building, etc









Features: 2 PORT SERIAL CARD: Serial controller card w/16550 UART based on ASIX MCS9922CV-AA, allows 2x DB9 ports w/bi-directional RS232 speeds up to 460.8Kbps per port, available 128 byte FIFO buffer Upgraded version of our popular card PEX2S552
OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9; Each of the 2 ports are individually configurable
STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows & Linux
VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance









The StarTech.com Advantage: Native single-chip, single lane PCI Express chipset delivers true PCIe performance
Standard and low profile/half-height bracket included to ensure fitment in any system
Easy to install and use with full step-by-step instructions saving time and hassle







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Peripheral (Molex) power connectors (4-pin) 1 Host interface PCIe Expansion card form factor PCIe 1.0 Technical details Chipset ASIX - MCS9922CV-AA FIFO (First In, First Out) 128 B Sustainability certificates RoHS
Performance Baud rate 460.8 Kbit/s Chipset ASIX - MCS9922CV-AA FIFO (First In, First Out) 128 B Product colour Green
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 120 mm Height 20 mm Depth 105 mm Weight 61 g
Packaging data Package width 145 mm Package height 32 mm Package depth 175 mm Package weight 151 g Manual Yes Drivers included Yes Full specification and details can be found in the

2-Port PCI Express Serial Card with 16C1050 UART - RS232

Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot










This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.




Convenient system upgrades through PCIe The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.




High-performance serial communication The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.




Easy installation The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.


The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support.


Top view:






Front view:








Applications: Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Consumer (modems, PDAs, digital cameras, printers)
Healthcare (patient monitoring equipment, nurses' stations, modems)
Hospitality/Restaurant (credit card/debit card reader, serial printers)
ISDN Networking
Security (UPS control, access key panels, video cameras, card readers, modems)
Casino (video lottery terminals, slot machines)
Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Environmental Control (lighting, temperature, clocks)









Features: Dual-channel 16C1050 UART for full compatibility with 16C1050 devices
Maximum data transfer rate of 460Kbps
Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
256-Byte deep FIFO per transmitter and receiver
In-band software flow control using programmable Xon/Xoff in both directions
Out-of-band hardware flow control using RTS / CTS
Support for 5,6,7 or 8 data bits
Standard profile bracket installed, optional dual low-profile brackets included







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Host interface PCIe Expansion card form factor Full-height / Low-profile Technical details Chipset SystemBase - SB16C1052PCI FIFO (First In, First Out) 256 B Full duplex Yes Sustainability certificates RoHS
Performance Data bits 5, 6, 7, 8 Baud rate 460.8 Kbit/s Chipset SystemBase - SB16C1052PCI FIFO (First In, First Out) 256 B Full duplex Yes Flow control support Yes
Design Internal Yes Certification CE, FCC, Microsoft WHQL
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 120 mm Height 20 mm Depth 103 mm Weight 61 g
Packaging data Package width 143 mm Package height 32 mm Package depth 174 mm Package weight 149 g Quick installation guide Yes Mounting brackets included Yes Drivers included Yes Full specification and details can be found in the

1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible










This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.




Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.




Experience Optimal Technology This PCIe to serial adapter supports the following features: • Compatible with industry standard 16950 UART • Supports max baud rate of up-to 921.4Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 128-byte depth FIFO per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits • Asix AX99100 chipset • PCI Express 1.1 compliant


PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Install in home or office workstationsConnect in retail POS applicationsConnect to automated self-service kiosks or ATM machinesInteract with RS232 serial devices like card readers or printers









Features: 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP
OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows & Linux
VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance







Certifications, Reports and Compatibility:





Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 1 Peripheral (Molex) power connectors (4-pin) 1 Host interface PCIe Expansion card standard PCI 1.1 Technical details Chipset Asix AX99100 FIFO (First In, First Out) 256 B Sustainability certificates RoHS
Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.4 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B Flow control support Yes Product colour Green
Design Mean time between failures (MTBF) 277385 h Internal Yes Product colour Green Certification CE, FCC, Microsoft WHQL
Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.4 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B Flow control support Yes Parity bit Even, Mark, N, Odd, Space Flow Control type N, RTS/CTS, XON/XOFF
Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -20 - 80 °C Operating relative humidity (H-H) 20 - 80 %
Weight & dimensions Width 67 mm Height 150 mm Depth 98 mm Weight 44 g
Packaging data Package width 142 mm Package height 30 mm Package depth 170 mm Package weight 112 g Manual Yes Mounting brackets included Yes Full specification and details can be found in the

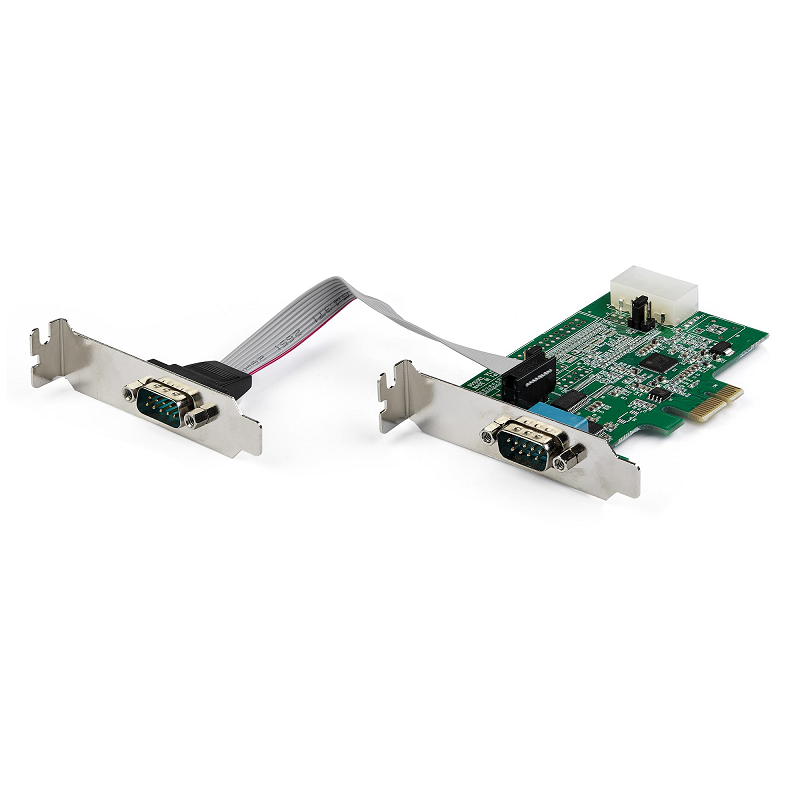

2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible










This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.




Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.




Experience Optimal Technology This PCIe to serial adapter supports the following features: • Compatible with industry standard 16950 UART • Supports max baud rate of up-to 921.4Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 256-byte depth FIFO per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits • Asix AX99100 chipset • PCI Express 1.1 compliant


PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Install in home or office workstations
Connect in retail POS applications
Connect to automated self-service kiosks or ATM machines
Interact with RS232 serial devices like card readers or printers









Features: 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX2S952LP
OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux
VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support







Certifications, Reports and Compatibility:






Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Peripheral (Molex) power connectors (4-pin) 1 Host interface Mini PCI Express Expansion card standard PCIe 1.1 Technical details Chipset Asix AX99100 FIFO (First In, First Out) 256 B Sustainability certificates RoHS
Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B
Design Mean time between failures (MTBF) 222366 h Internal Yes Certification CE, FCC
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B Parity bit Even, Mark, N, Odd, Space Flow Control type N, RTS/CTS, XON/XOFF
Weight & dimensions Width 67 mm Height 18 mm Depth 98 mm Weight 55.6 g
Packaging data Package width 142 mm Package height 32 mm Package depth 172 mm Package weight 55.6 g Manual Yes Mounting brackets included Yes Full specification and details can be found in the

2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible










This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.


The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®, and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).




Maximum Compatibility With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952.




Experience Optimal Technology This PCIe to serial adapter supports the following features: • Industry standard 16950 UART compatible • Supports max baud rate of up-to 921.6Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 256-byte depth FIFO cache per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits (one per port) • Asix AX99100 chipset • Base PCI Express 1.1 compliant • Low and full-profile brackets included




The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.


PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Connect to automated self-service kiosks or ATM machines
Connect in retail POS applications
Install in home or office workstations
Connect serial printers and other legacy devices to modern computers









Features: 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit Upgraded version of our popular card PEX2S952
OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9; Each of the 2 ports are individually configurable
STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed & 2x low profile brackets incl for versatile install; supports Windows & Linux
VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
THE IT PRO’S CHOICE: Designed and built for IT Professionals, this PCIe serial adapter card is backed for life, including free lifetime 24/5 multi-lingual technical assistance









The StarTech.com Advantage: Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility
Easy to install and use with full step-by-step instructions saves time and hassle







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Host interface PCIe Expansion card standard PCIe 1.1 Technical details Chipset Asix AX99100 FIFO (First In, First Out) 256 B Sustainability certificates RoHS
Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B Product colour Green
Design Mean time between failures (MTBF) 222366 h Internal Yes Product colour Green Certification CE, FCC
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 63 mm Height 15 mm Depth 75 mm Weight 56 g
Packaging data Package width 170 mm Package height 30 mm Package depth 142 mm Package weight 136 g Quick installation guide Yes Full specification and details can be found in the

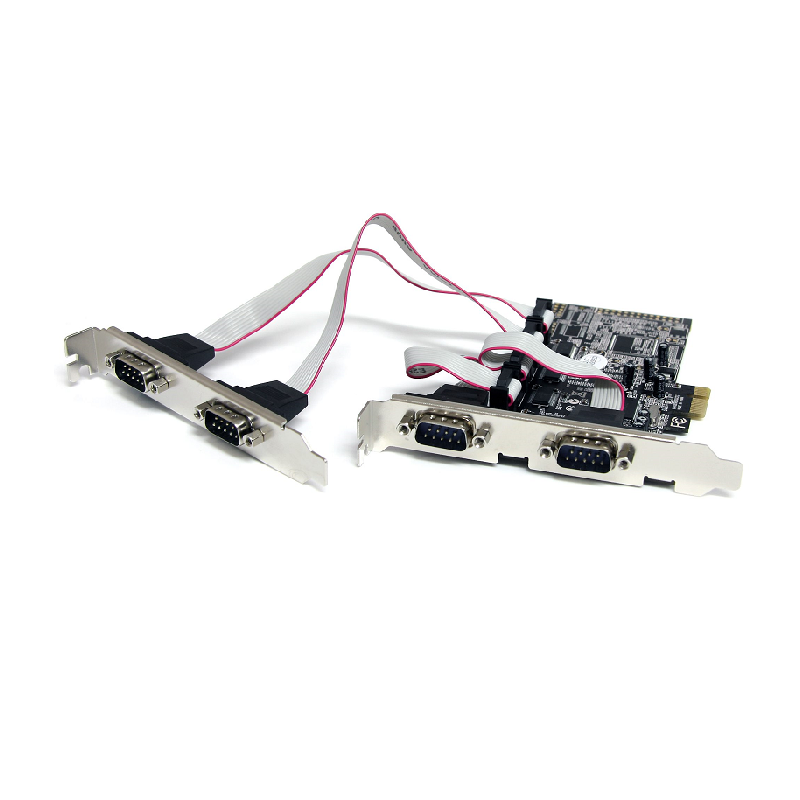

4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART

Add 4 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot










The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.


Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.


The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.


Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
Used to control multiple surveillance / security cameras in a parking structure, office building, etc.









Features: Four high speed RS232 serial ports, with support for data transfer rates up to 128000bps
256-byte deep FIFO per transmitter and receiver
Native single-Chip, single lane PCI Express
Includes half-height/low profile mounting brackets
Built-in 16C450/550 compatible UART
Compliant with PCI Express Base Specification 1.1









The StarTech.com Advantage: Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs
Standard and low profile/half-height brackets included to ensure fitment in any system







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 4 Host interface PCIe Technical details Chipset ASIX - MCS9904CV-AA FIFO (First In, First Out) 256 B Sustainability certificates RoHS Performance Data bits 5, 6, 7, 8 Baud rate 128 Kbit/s Chipset ASIX - MCS9904CV-AA FIFO (First In, First Out) 256 B Design Mean time between failures (MTBF) 26280 h Internal Yes Certification CE, FCC, REACH
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 130 mm Height 19 mm Depth 120 mm Weight 74 g
Packaging data Package width 141 mm Package height 30 mm Package depth 170 mm Package weight 230 g Manual Yes Mounting brackets included Yes Drivers included Yes Full specification and details can be found in the

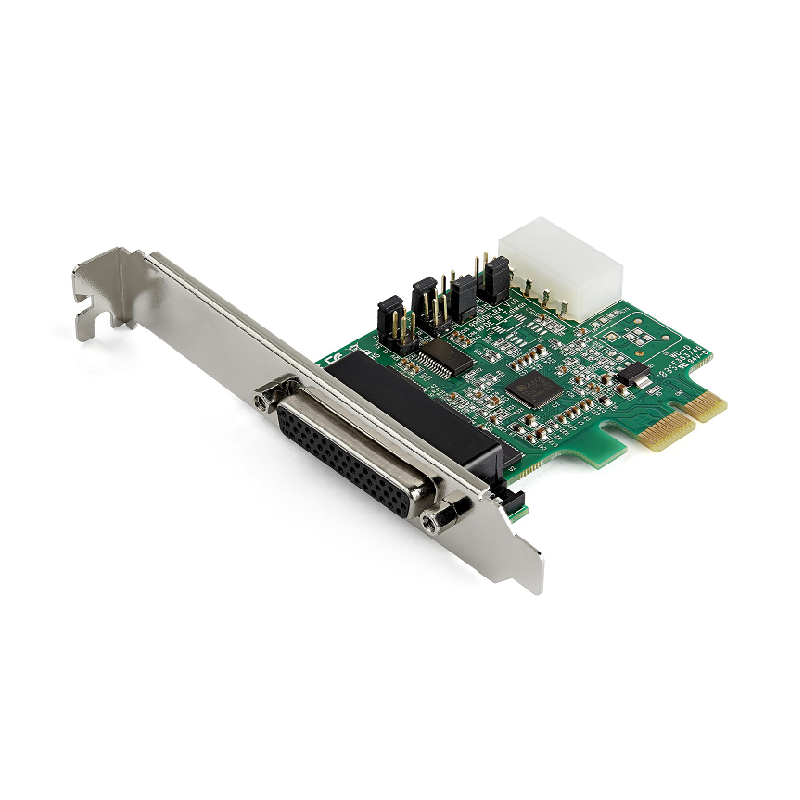

4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows/Linux

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible










This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.




Maximum Compatibility With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952.




Experience Optimal Technology This PCIe to serial adapter supports the following features: • Industry standard 16950 UART compatible • Supports max baud rate of up-to 921.6Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 256-byte depth FIFO cache per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits (one per port) • Asix AX99100 chipset • Base PCI Express 1.1 compliant




The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.


PEX4S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Connect to automated self-service kiosks or ATM machines
Connect in retail POS applications
Install in home or office workstation
Connect serial printers and other legacy devices to modern computers









Features: 4 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer; Upgraded version of our popular Serial card PEX4S952
OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 4 ports are individually configurable; DB44 to 4x DB9 breakout cable incl
STANDARD PROFILE & LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has standard bracket pre-installed & 1x low profile bracket incl for versatile install; Supports Windows XP and up & Linux
VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support







Certifications, Reports and Compatibility:





Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 8 Host interface PCIe Expansion card form factor Full-height / Low-profile Technical details Chipset ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI FIFO (First In, First Out) 256 B Sustainability certificates RoHS Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI FIFO (First In, First Out) 256 B Flow control support Yes Product colour Yellow Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI FIFO (First In, First Out) 256 B Flow control support Yes Parity bit Even, N, Odd Flow Control type RTS/CTS, XON/XOFF
Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95 %
Weight & dimensions Width 22 mm Height 60 mm Depth 145 mm Weight 116 g
Packaging data Package width 190 mm Package height 70 mm Package depth 290 mm Package weight 750 g User guide Yes Mounting brackets included Yes Cables included Serial Full specification and details can be found in the

4 Port RS232 PCI Express Serial Card w/ Breakout Cable

Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot










The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot.


The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers.


The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS.


This product is a replacement for our PEX4S552B card.


Backed by a StarTech.com lifetime warranty and free lifetime technical support.




Applications: Point-of-Sale (POS credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
Connect specialized parallel and serial devices like printers, scanners, ISDN terminal adapters, CD-R/RWs, Zip drives and memory card readers
Environmental Control (lighting, temperature, clocks)
Entertainment (video lottery terminals, slot machines, gaming systems)
Healthcare (patient monitoring equipment, nurses' stations, modems)
Security (UPS control, access key panels, video cameras, card readers, modems)
Hospitality/Restaurant (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Consumer (modems, PDAs, digital cameras, printers)
ISDN Networking









Features: Native single chip design
Includes a full profile and low profile/half-height bracket
On chip 256-byte depth FIFO in transmit/receive path of each port
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
Supports hardware and software flow control
Supports data transfer rates up to 250Kbps on each port
Compliant with PCI Express base specifications revision 1.0a
Automated out-of-band flow control using CTS/RTS and DSR/DTR









The StarTech.com Advantage: Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load)
Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications
Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 4 Host interface PCIe Technical details Chipset ASIX Moschip MCS9904CV-AA FIFO (First In, First Out) 256 B Sustainability certificates RoHS Performance Data bits 5, 6, 7, 8 Baud rate 230.4 Kbit/s Chipset ASIX Moschip MCS9904CV-AA FIFO (First In, First Out) 256 B Product colour Black
Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 12 mm Height 68 mm Depth 80.5 mm Weight 239 g
Packaging data Package width 208 mm Package height 41 mm Package depth 145 mm Package weight 343 g Manual Yes Mounting brackets included Yes Drivers included Yes Full specification and details can be found in the

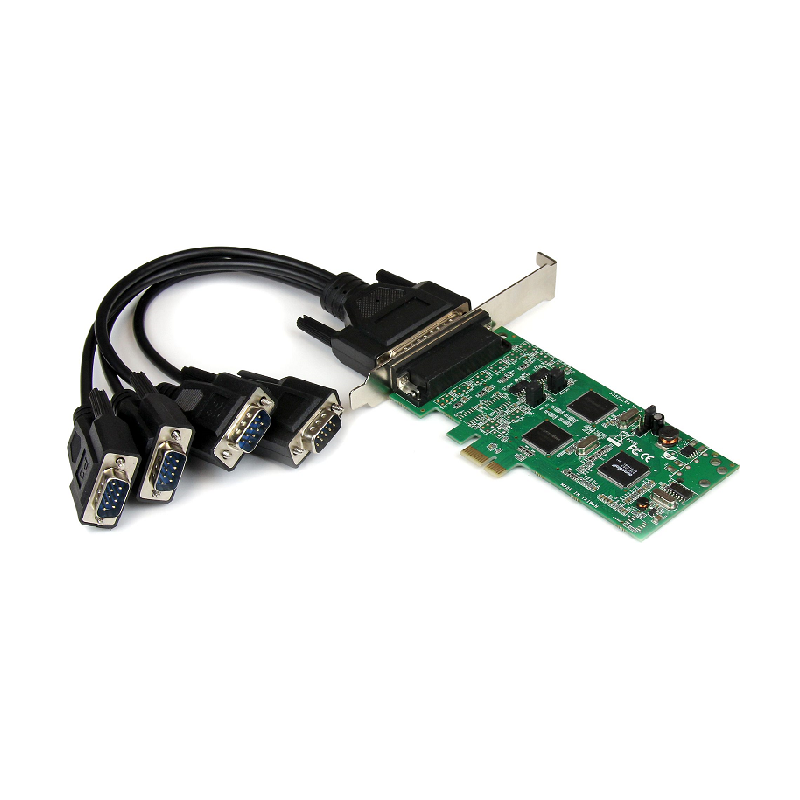

4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot










The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.


This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.


A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.


Backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Monitor and control industrial machines on an assembly line or in a production environment
POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers









Features: 4 port (2 x RS232, 2 x RS422/485) serial combo card
RS232 data transfer rates up to 460 Kbps
Supports 2-Wire / 4-Wire RS485 modes
256-byte deep FIFO per transmitter and receiver
Standard and low-profile bracket included
Compliant with PCI-Express Specification 1.0a
Supports PCI Power Management 1.1









The StarTech.com Advantage: This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols
Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors
The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232/422/485 Serial ports quantity 4 Host interface PCIe Technical details Chipset SystemBase SB16C1052PCI FIFO (First In, First Out) 256 B Sustainability certificates RoHS
Operational conditions Operating temperature (T-T) 0 - 100 °C Storage temperature (T-T) 0 - 150 °C Operating relative humidity (H-H) 20 - 80 %
Other features Data transfer rate 0.4608 Mbit/s Connectivity technology Wired Chipset SystemBase SB16C1052PCI
Weight & dimensions Width 125 mm Height 20 mm Depth 70 mm Weight 67.4 g
Packaging data Package width 146 mm Package height 41 mm Package depth 210 mm Package weight 390 g User guide Yes Full specification and details can be found in the

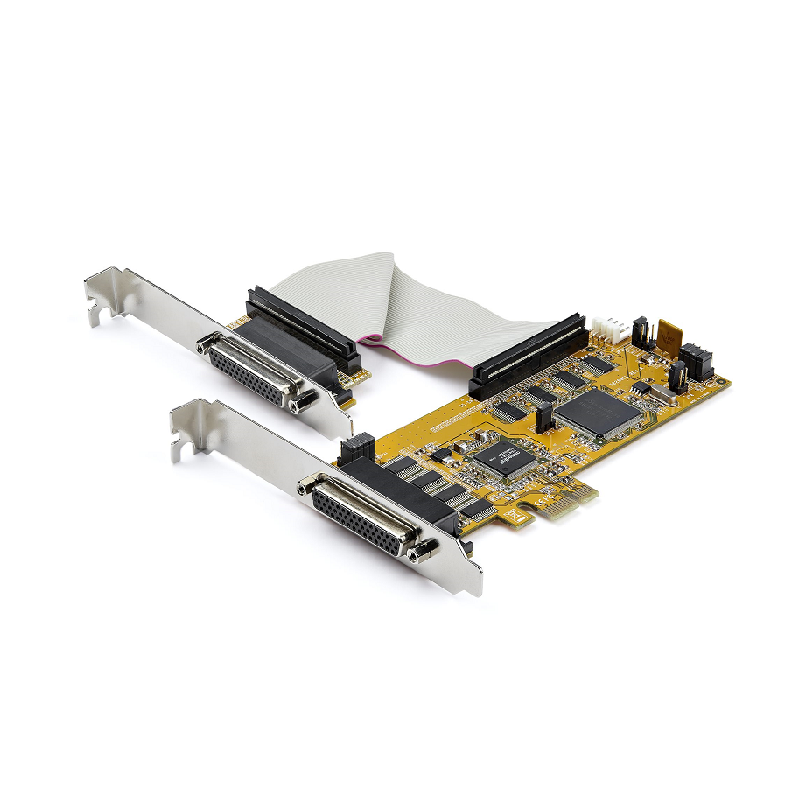

8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Low Profile Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows/Linux

Low Profile Serial Card | Full Profile Brackets Incl | 921.4Kbps | Windows® and Linux®










Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.




Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.




Versatile Use The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.




Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.


PEX8S1050LP?is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Consumer (modems, PDAs, digital cameras, printers)
Security (UPS control, access key panels, video cameras, card readers, modems)
Casino (video lottery terminals, slot machines)
Environmental Control (lighting, temperature, clocks)
Healthcare (patient monitoring equipment, nurses' stations, modems)
Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Hospitality/Restaurant (credit card/debit card reader, serial printers)
ISDN Networking









Features: 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer An upgrade to our popular card PEX8S950LP
OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface
COMPATABILITY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Spec, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For low profile desktop/servers
VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support







Certifications, Reports and Compatibility:






Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Peripheral (Molex) power connectors (4-pin) 1 Host interface Mini PCI Express Expansion card standard PCIe 1.1 Technical details Chipset Asix AX99100 FIFO (First In, First Out) 256 B Sustainability certificates RoHS
Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B
Design Mean time between failures (MTBF) 222366 h Internal Yes Product colour Green Certification CE, FCC
Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 63 mm Height 15 mm Depth 75 mm Weight 56 g
Packaging data Package width 170 mm Package height 30 mm Package depth 142 mm Package weight 136 g Quick installation guide Yes Full specification and details can be found in the

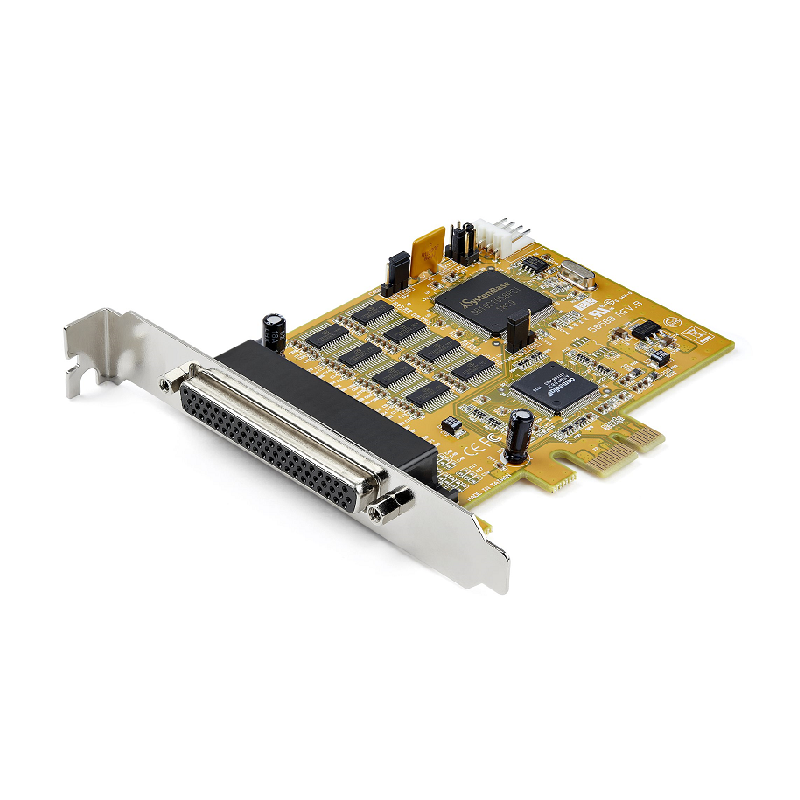

8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Multiport Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows & Linux

8-Port | PCI-Express | DB9 | RS-232 | 16C1050 UART | 15kV ESD Protection










Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.




Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.




Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.


PEX8S1050?is backed by a StarTech.com lifetime warranty and free lifetime technical support.


Product Diagram:








Applications: Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
Consumer (modems, PDAs, digital cameras, printers)
Security (UPS control, access key panels, video cameras, card readers, modems)
Casino (video lottery terminals, slot machines)
Environmental Control (lighting, temperature, clocks)
Healthcare (patient monitoring equipment, nurses' stations, modems)
Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
Hospitality/Restaurant (credit card/debit card reader, serial printers)
ISDN Networking









Features: 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer; Upgraded version of our popular card PEX8S952
OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
COMPATABILITY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For standard profile desktop/servers
VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support







Certifications, Reports and Compatibility:






Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 8 Host interface PCIe Technical details Chipset ASMedia - ASM1083, System Base - SB16C1058PCI FIFO (First In, First Out) 256 B Sustainability certificates RoHS
Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset ASMedia - ASM1083, System Base - SB16C1058PCI FIFO (First In, First Out) 256 B Product colour Yellow Maximum cable length 0.5 m
Design Mean time between failures (MTBF) 160013 h Internal Yes Product colour Yellow Maximum cable length 0.5 m
Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset ASMedia - ASM1083, System Base - SB16C1058PCI FIFO (First In, First Out) 256 B Parity bit Even, N, Odd Flow Control type RTS/CTS, XON/XOFF
Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 5 - 95 %
Weight & dimensions Width 16 mm Height 120 mm Depth 105 mm Weight 74 g
Packaging data Package width 190 mm Package height 65 mm Package depth 290 mm Package weight 672 g Quick installation guide Yes Full specification and details can be found in the

16-Port Low-Profile Serial Card - RS232 - PCI Express

Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot










This PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It's the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots.




Add 16 RS232 ports through one PCIe slot You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It's ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.




High-speed serial communication The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.




Easy installation The serial card is easy to install and configure, and compatible with a broad range of Windows® and Linux® operating systems. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket making it compatible with both full profile and low profile PC chassis slots.


The PEX16S550LP is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Top view:






Front view:








Applications: Control/monitoring of surveillance/security cameras and systems
Industrial automation for factory/manufacturing floors
Self-service automated machines and kiosks (in customer-facing areas such as grocery stores or airports) to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
POS applications to control keyboards, cash drawers, receipt printers, card readers/card swipes, scales, and elevated displays on poles
Bank teller workstations in either full-profile or low-profile versions to control their serial devices such as cash drawers, card readers/card swipes, printers, keypads/PIN pads, pen pads









Features: 16 DB9 RS232 ports from a single PCIe slot
Enables high-speed serial communication with data transfer rates up to 921.6 Kbps
Compatible with low- and full-profile desktop computers or servers
Fully compliant with PCI Express 1.0a/1.1 specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
+/-15kV ESD protection
Selectable power output (5V or 12V ) on pin 9 for the serial port
Data Bits: 5, 6, 7, or 8-bit characters
Windows and Linux support







Ports & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 16 Internal SATA ports quantity 1 Host interface PCIe Expansion card form factor Low-profile Expansion card standard PCIe 1.1 Technical details Chipset ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058 FIFO (First In, First Out) CE, RoHS
Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8 Baud rate 921.6 Kbit/s Chipset ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058 Product colour Yellow
Design Internal Yes Product colour Yellow
Other features Electrostatic Discharge (ESD) protection 15 kV Chipset ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058
Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -20 - 75 °C Operating relative humidity (H-H) 10 - 90 %
Weight & dimensions Width 68 mm Height 22 mm Depth 168 mm Weight 70 g
Packaging data Package width 192 mm Package height 70 mm Package depth 293 mm Package weight 1.2 kg Full specification and details can be found in the
