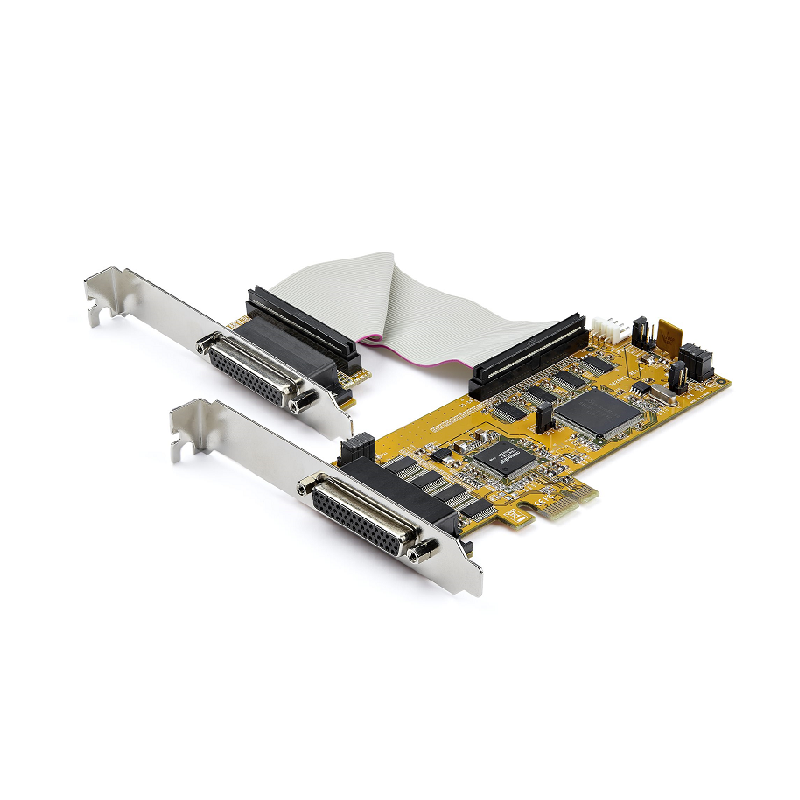

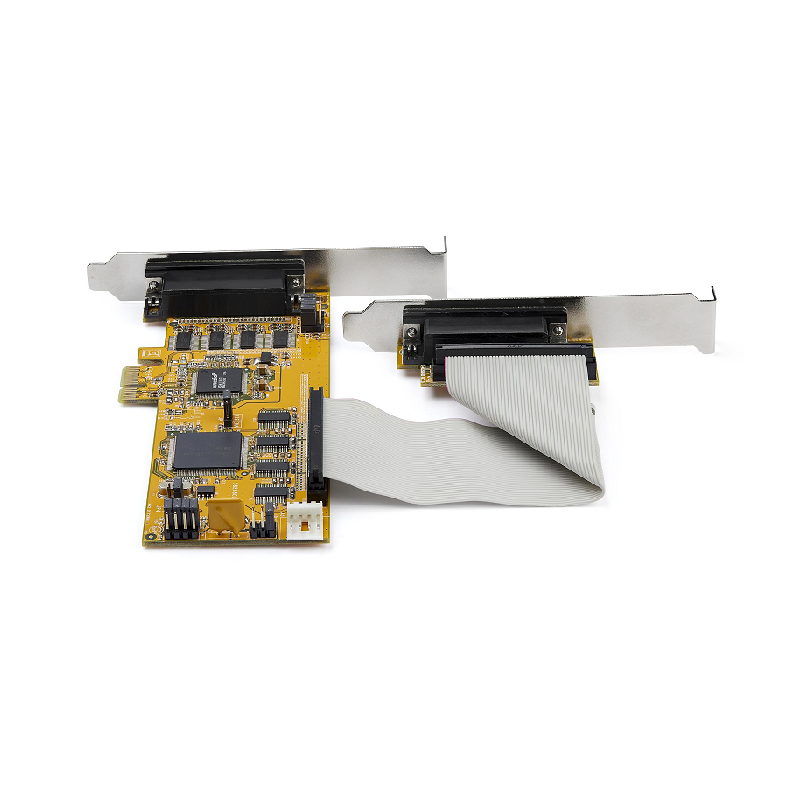

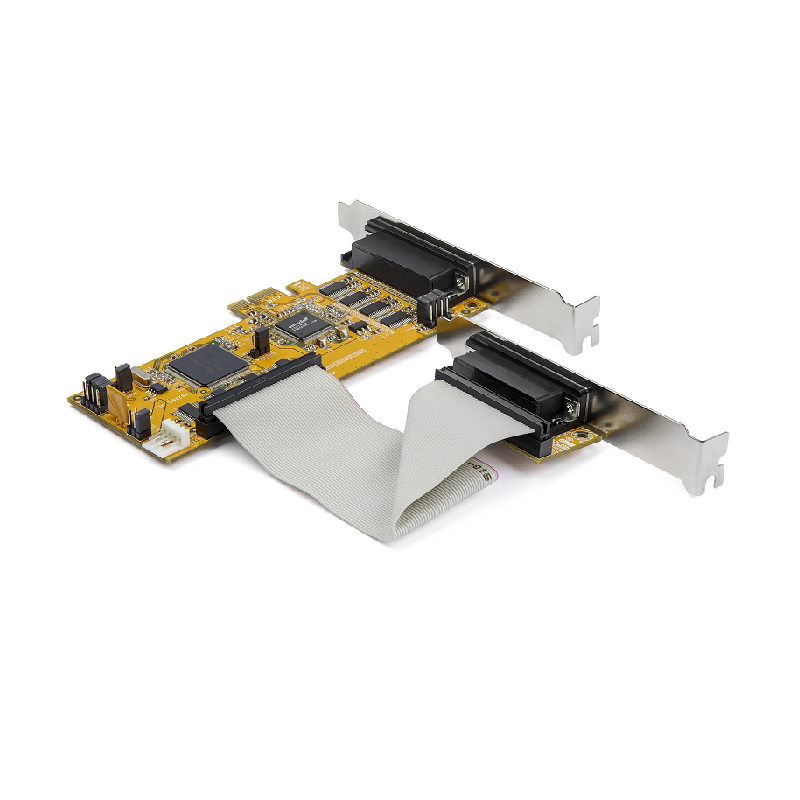

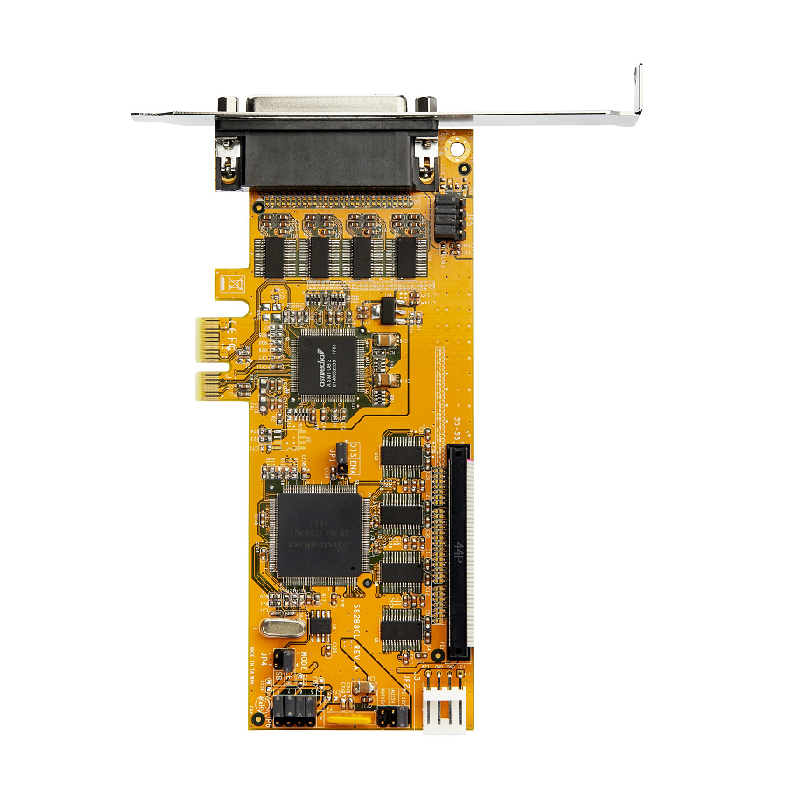

8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Low Profile Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows/Linux
Low Profile Serial Card | Full Profile Brackets Incl | 921.4Kbps | Windows® and Linux®
Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

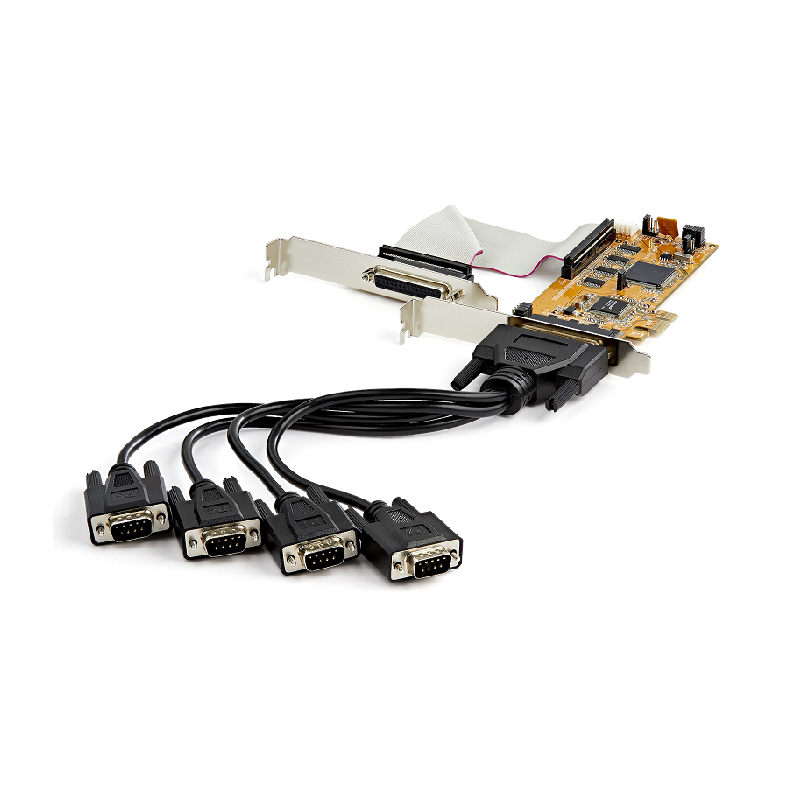

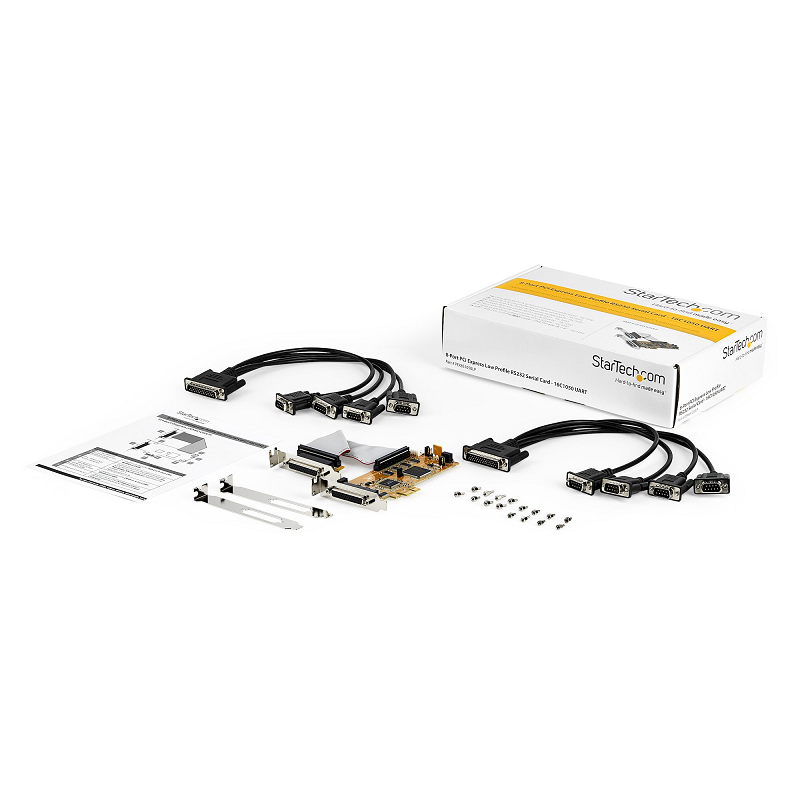

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.

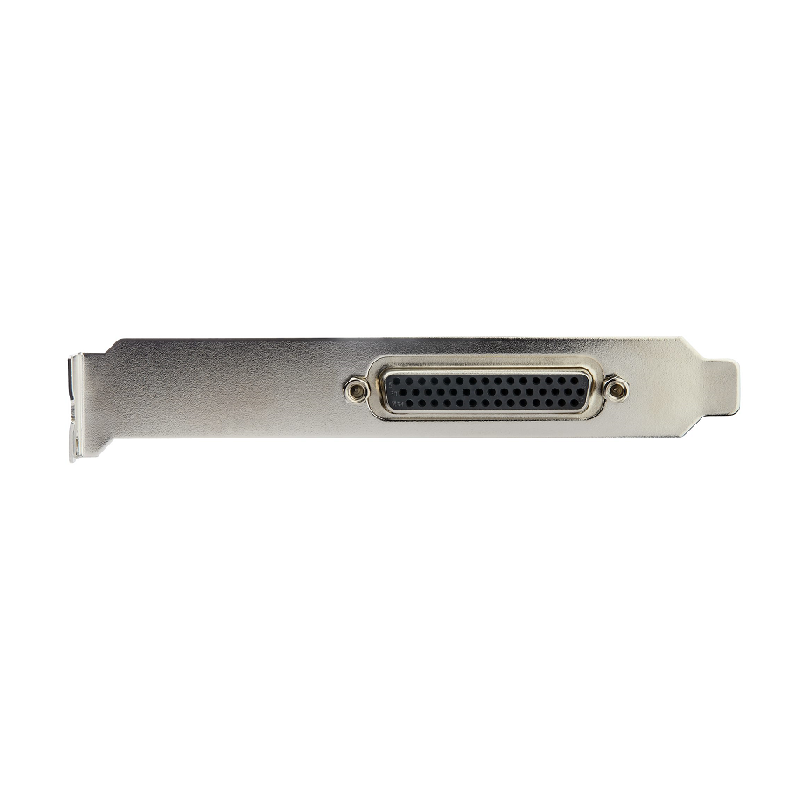

The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
PEX8S1050LP?is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Output interface | Serial |
Serial interface type | RS-232 |
Serial ports quantity | 2 |
Peripheral (Molex) power connectors (4-pin) | 1 |
Host interface | Mini PCI Express |
Expansion card standard | PCIe 1.1 |
Technical details | |
Chipset | Asix AX99100 |
FIFO (First In, First Out) | 256 B |
Sustainability certificates | RoHS |
Performance | |
Stop bits | 1, 1.5, 2 |
Data bits | 5, 6, 7, 8, 9 |
Baud rate | 921.6 Kbit/s |
Chipset | Asix AX99100 |
FIFO (First In, First Out) | 256 B |
Design | |
Mean time between failures (MTBF) | 222366 h |
Internal | Yes |
Product colour | Green |
Certification | CE, FCC |
Operational conditions | |
Operating temperature (T-T) | -10 - 80 °C |
Storage temperature (T-T) | -20 - 100 °C |
Operating relative humidity (H-H) | 5 - 85 % |
Weight & dimensions | |
Width | 63 mm |
Height | 15 mm |
Depth | 75 mm |
Weight | 56 g |
Packaging data | |
Package width | 170 mm |
Package height | 30 mm |
Package depth | 142 mm |
Package weight | 136 g |
Quick installation guide | Yes |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
