| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEPEX1S953LP |
| Manufacturer No: | PEX1S953LP |
| Delivery: | In Stock: Next Day |
 |

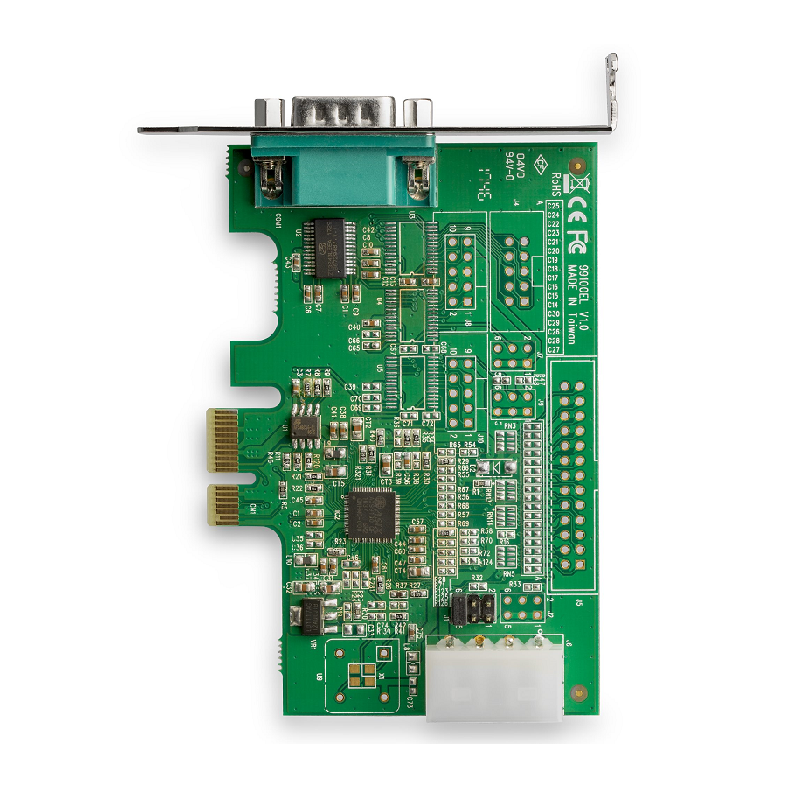

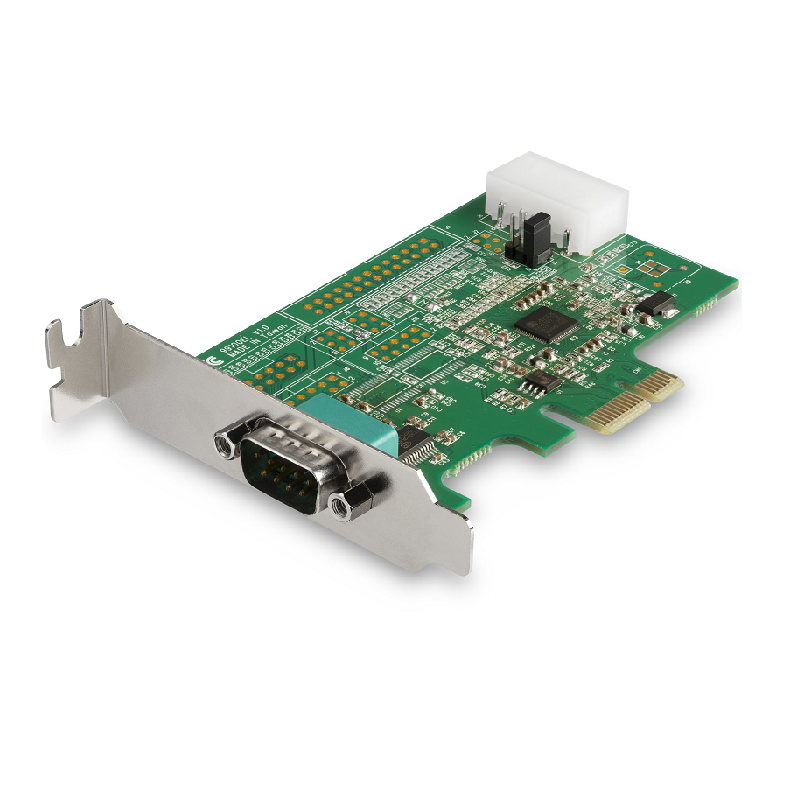

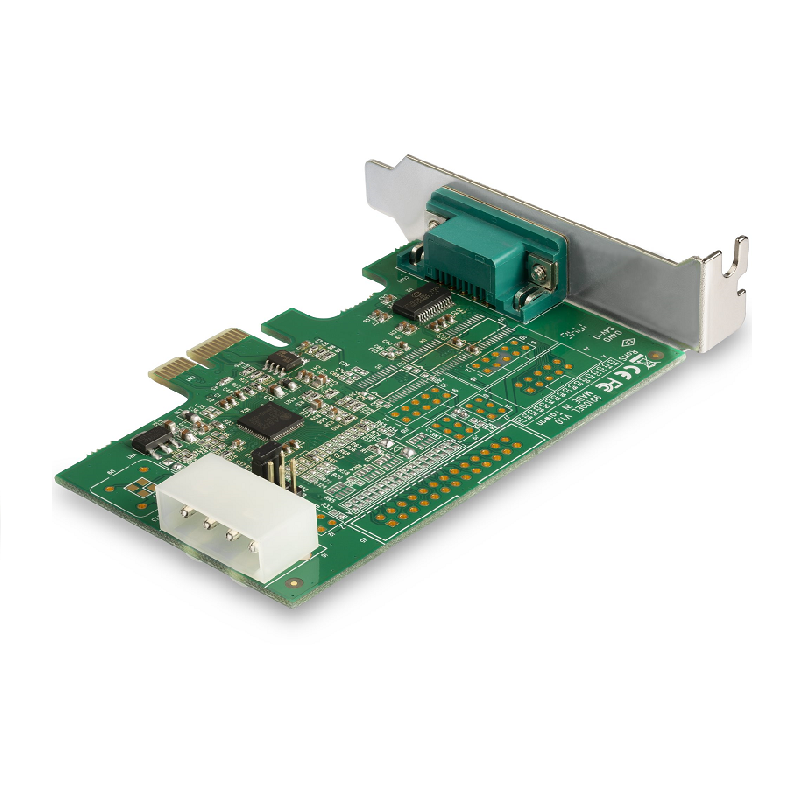

1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

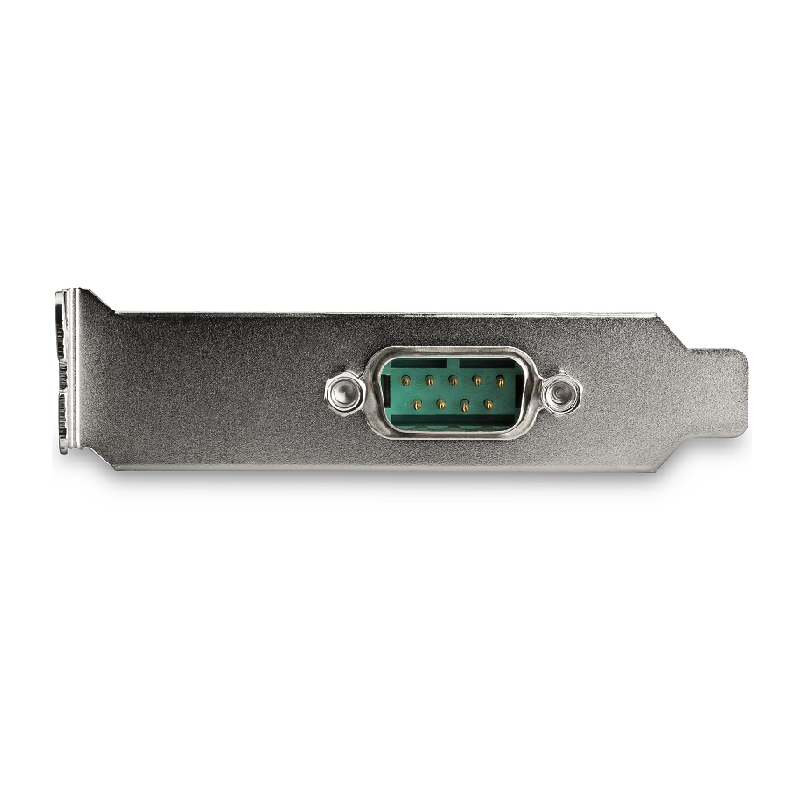

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

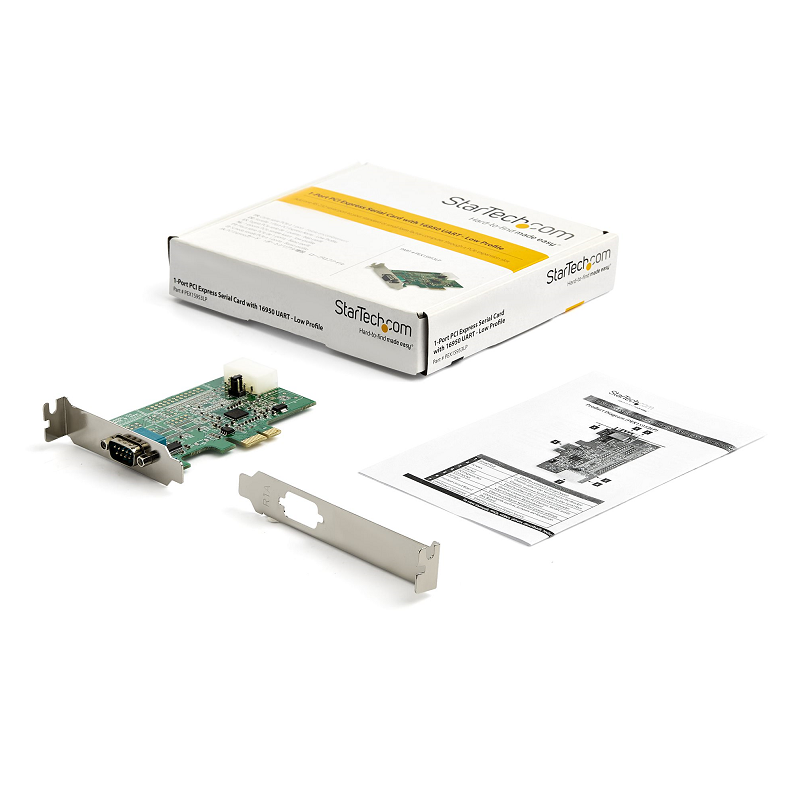

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps

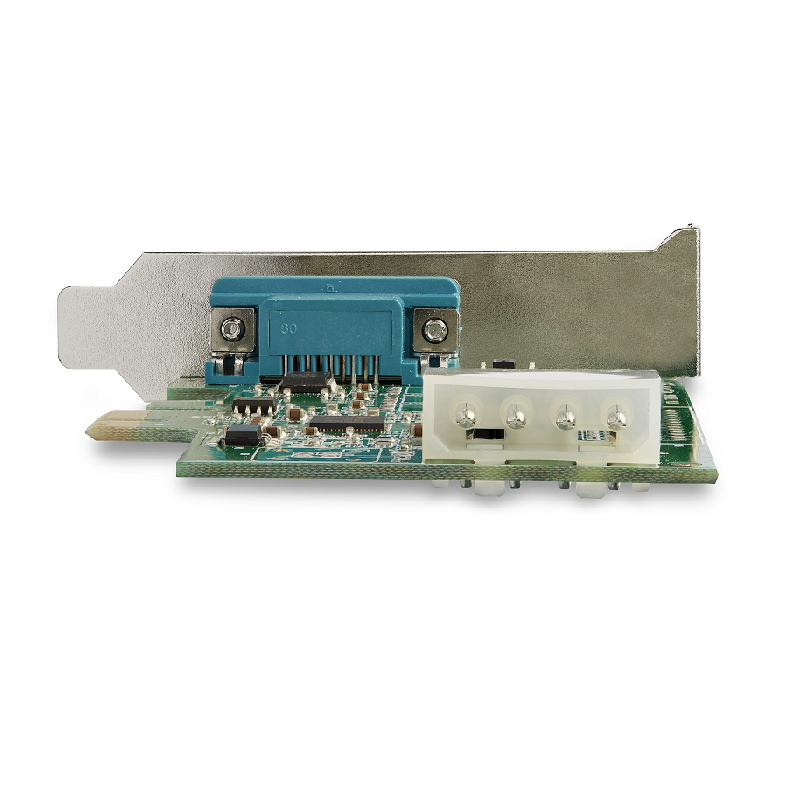

• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Ports & interfaces | |
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Host interface | PCIe |
| Expansion card standard | PCI 1.1 |
| Technical details | |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Sustainability certificates | RoHS |
| Performance | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.4 Kbit/s |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Product colour | Green |
| Design | |
| Mean time between failures (MTBF) | 277385 h |
| Internal | Yes |
| Product colour | Green |
| Certification | CE, FCC, Microsoft WHQL |
| Features | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.4 Kbit/s |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Parity bit | Even, Mark, N, Odd, Space |
| Flow Control type | N, RTS/CTS, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Weight & dimensions | |
| Width | 67 mm |
| Height | 150 mm |
| Depth | 98 mm |
| Weight | 44 g |
| Packaging data | |
| Package width | 142 mm |
| Package height | 30 mm |
| Package depth | 170 mm |
| Package weight | 112 g |
| Manual | Yes |
| Mounting brackets included | Yes |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
