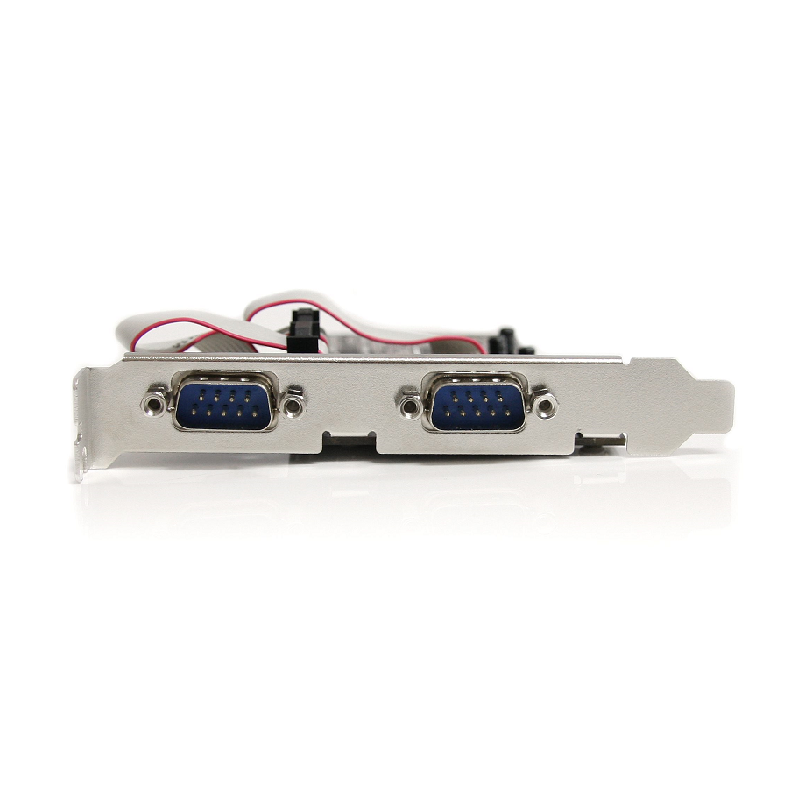

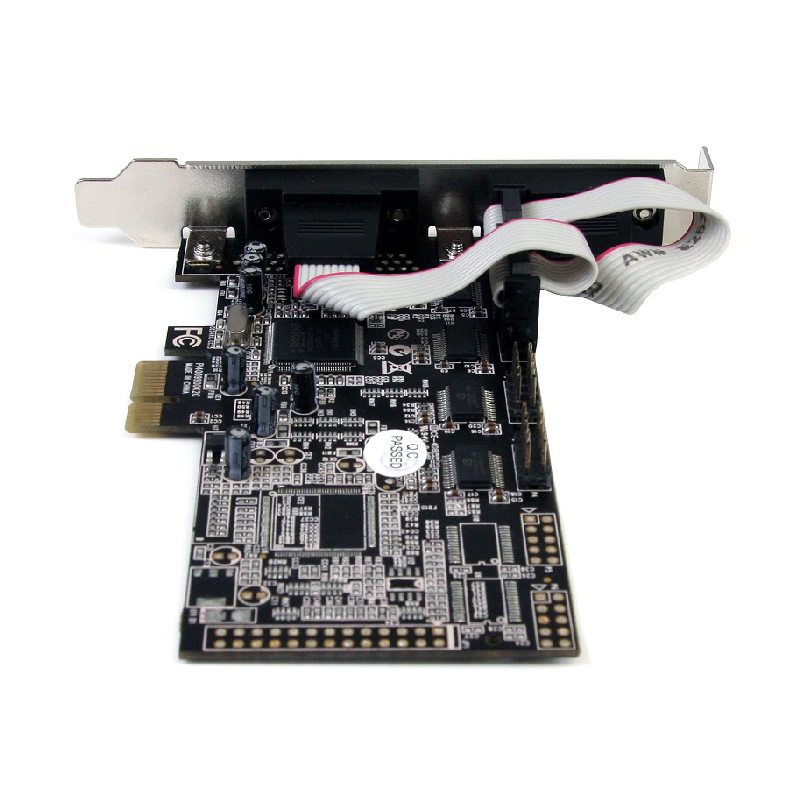

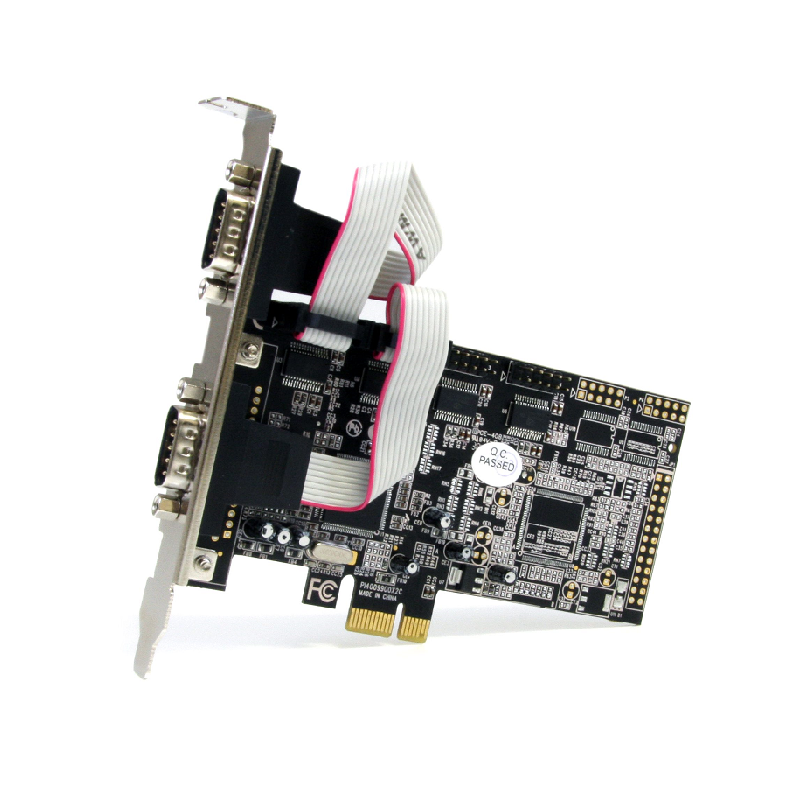

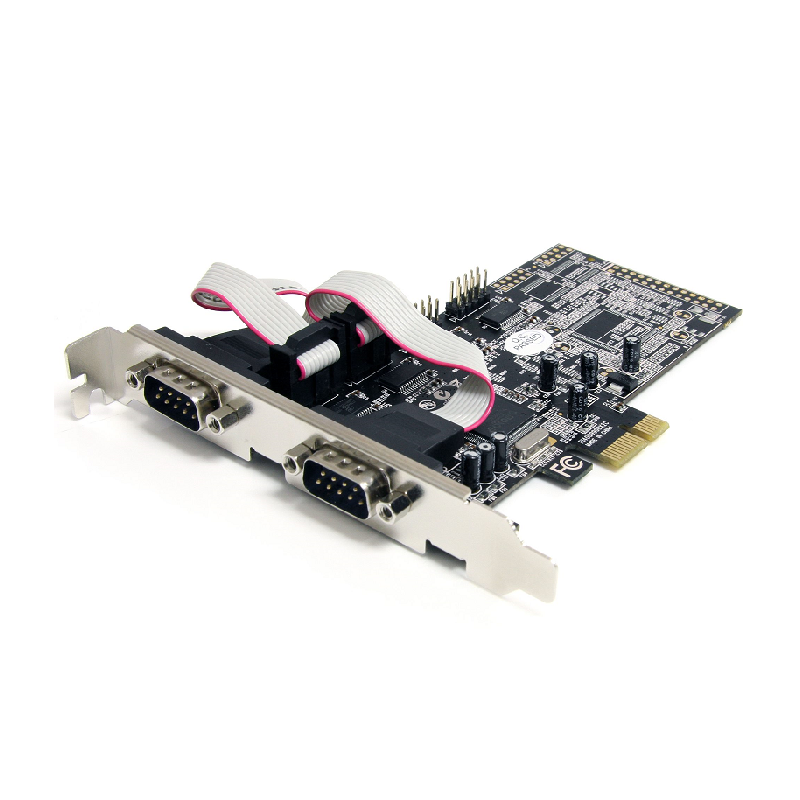

4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
Add 4 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.

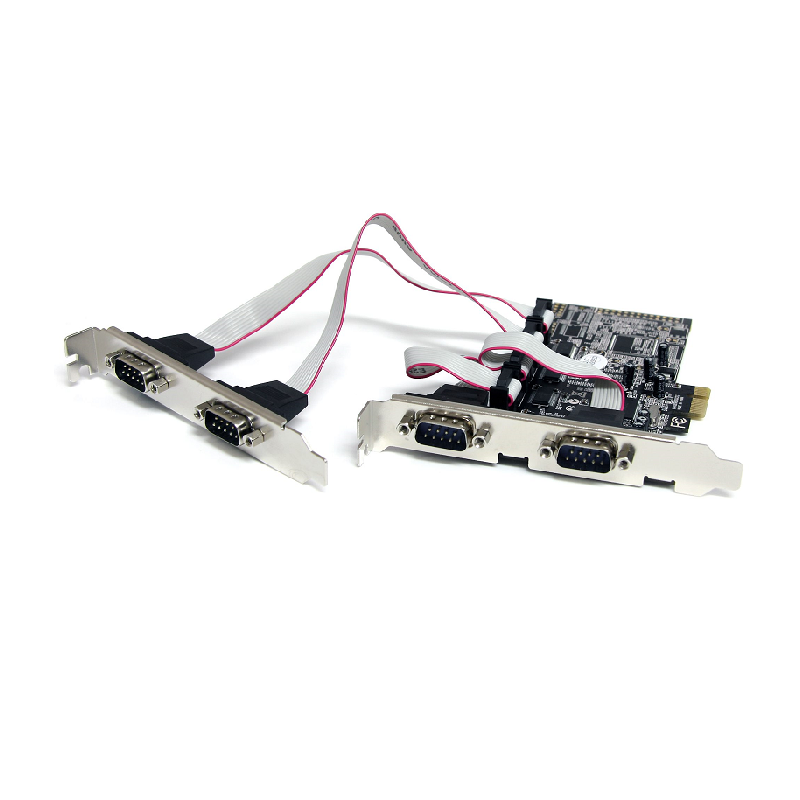

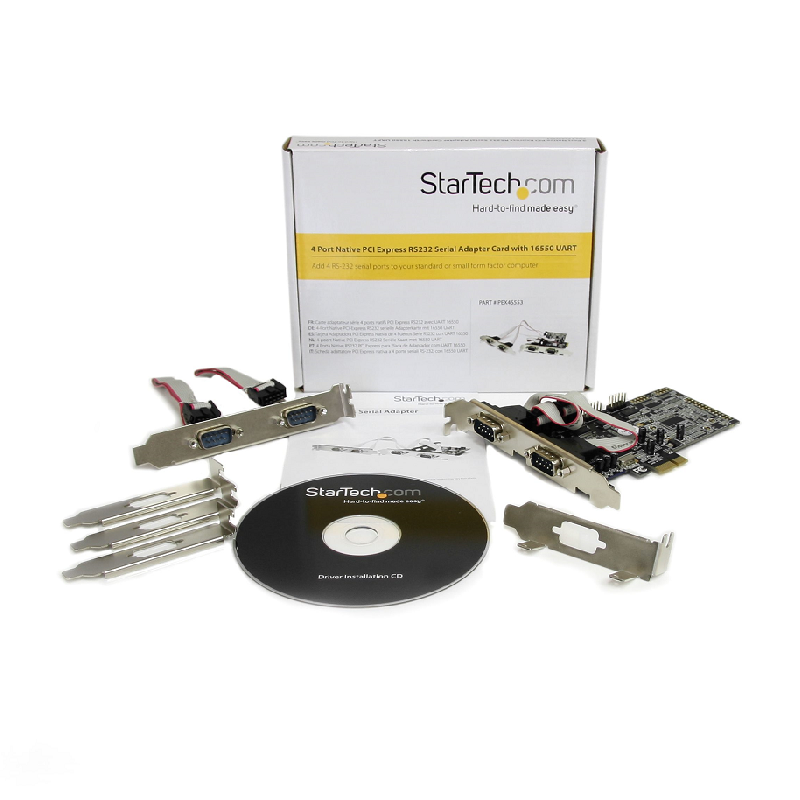

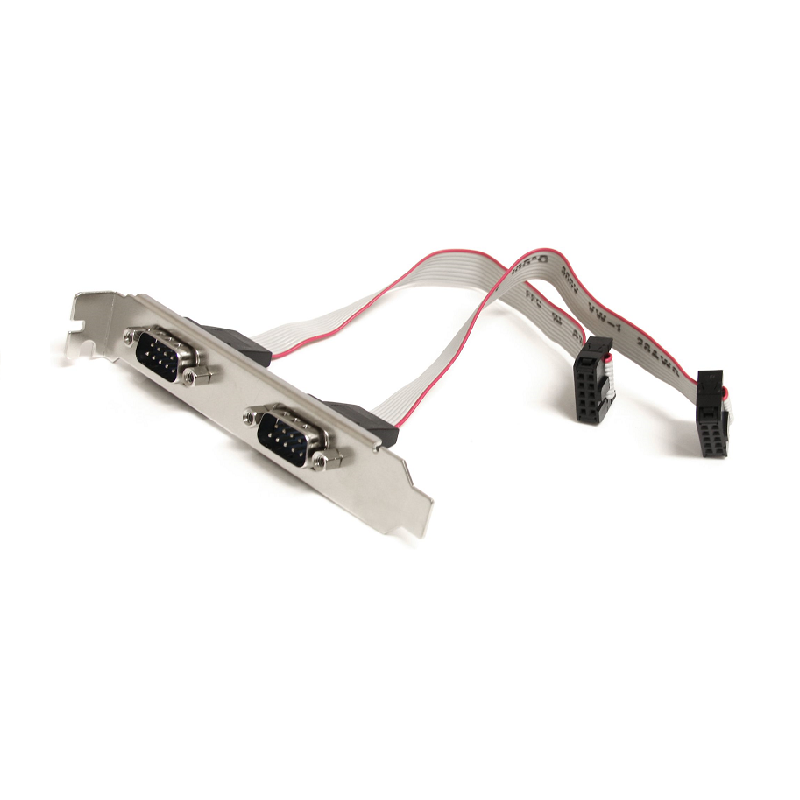

The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Output interface | Serial |
Serial interface type | RS-232 |
Serial ports quantity | 4 |
Host interface | PCIe |
Technical details | |
Chipset | ASIX - MCS9904CV-AA |
FIFO (First In, First Out) | 256 B |
Sustainability certificates | RoHS |
Performance | |
Data bits | 5, 6, 7, 8 |
Baud rate | 128 Kbit/s |
Chipset | ASIX - MCS9904CV-AA |
FIFO (First In, First Out) | 256 B |
Design | |
Mean time between failures (MTBF) | 26280 h |
Internal | Yes |
Certification | CE, FCC, REACH |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 5 - 85 % |
Weight & dimensions | |
Width | 130 mm |
Height | 19 mm |
Depth | 120 mm |
Weight | 74 g |
Packaging data | |
Package width | 141 mm |
Package height | 30 mm |
Package depth | 170 mm |
Package weight | 230 g |
Manual | Yes |
Mounting brackets included | Yes |
Drivers included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product diagram can be found in the PDF file
