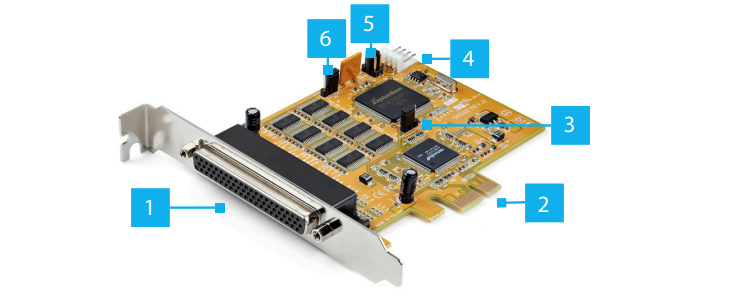

8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Multiport Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows & Linux
8-Port | PCI-Express | DB9 | RS-232 | 16C1050 UART | 15kV ESD Protection

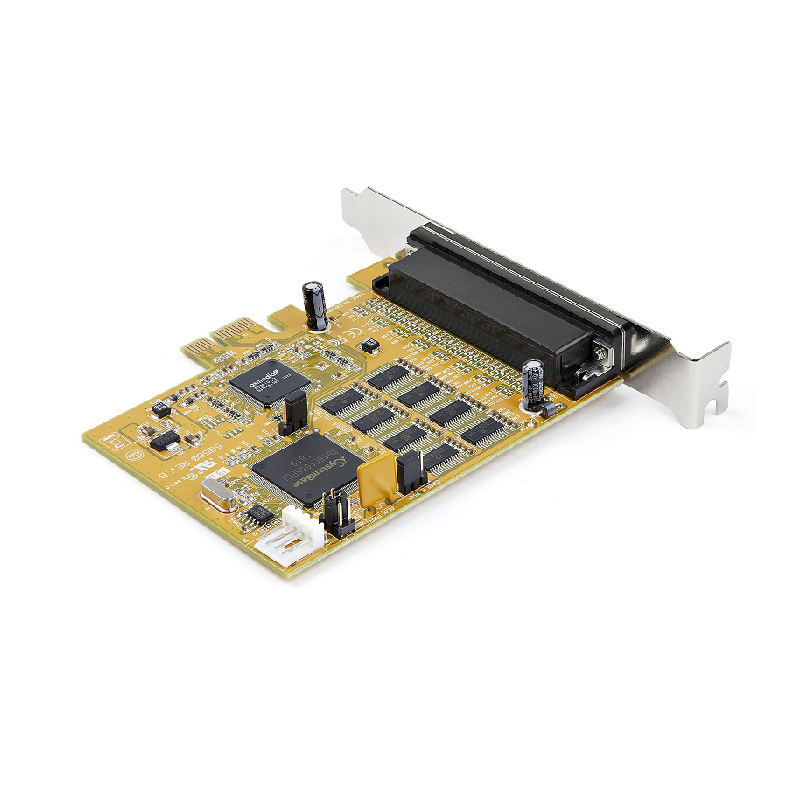

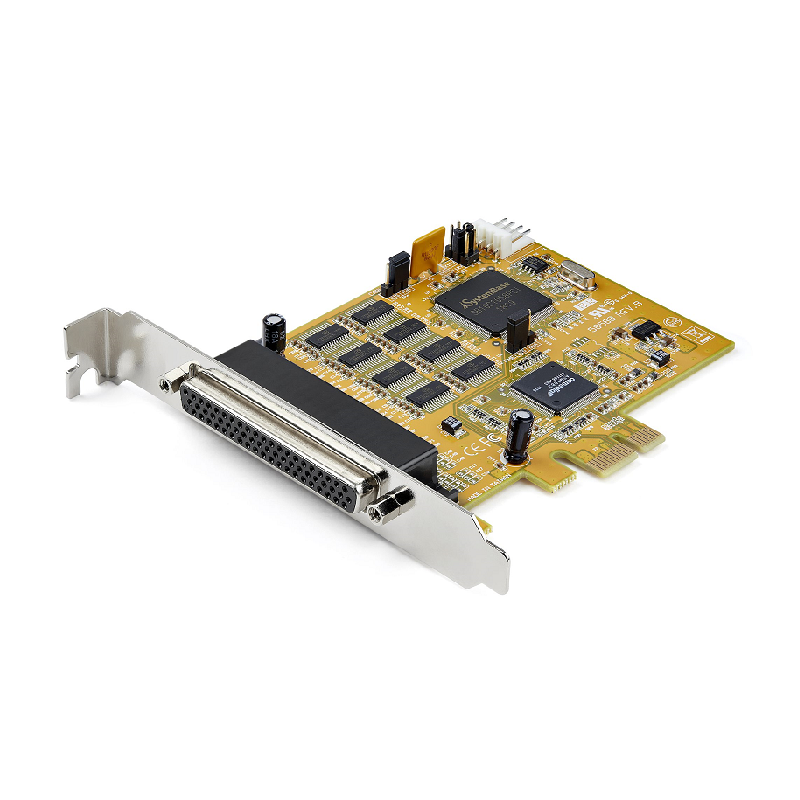

Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

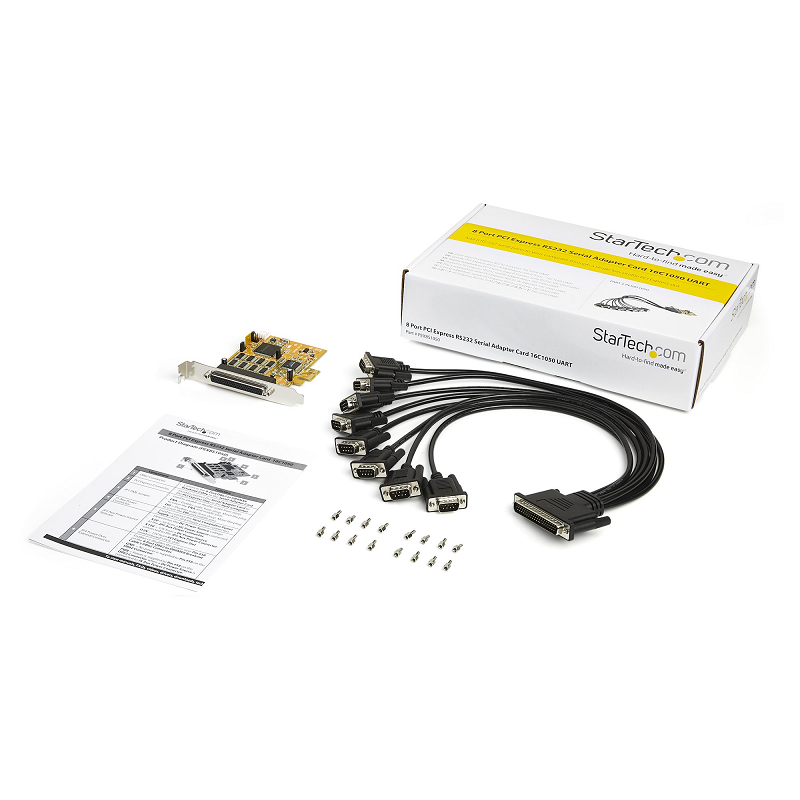

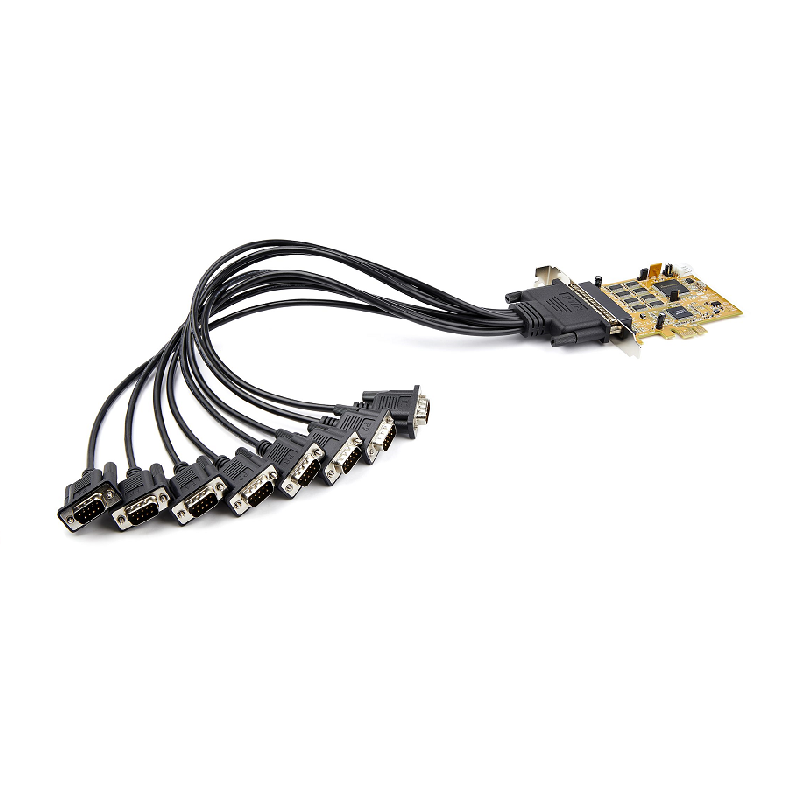

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
PEX8S1050?is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Ports & interfaces | |
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 8 |
| Host interface | PCIe |
| Technical details | |

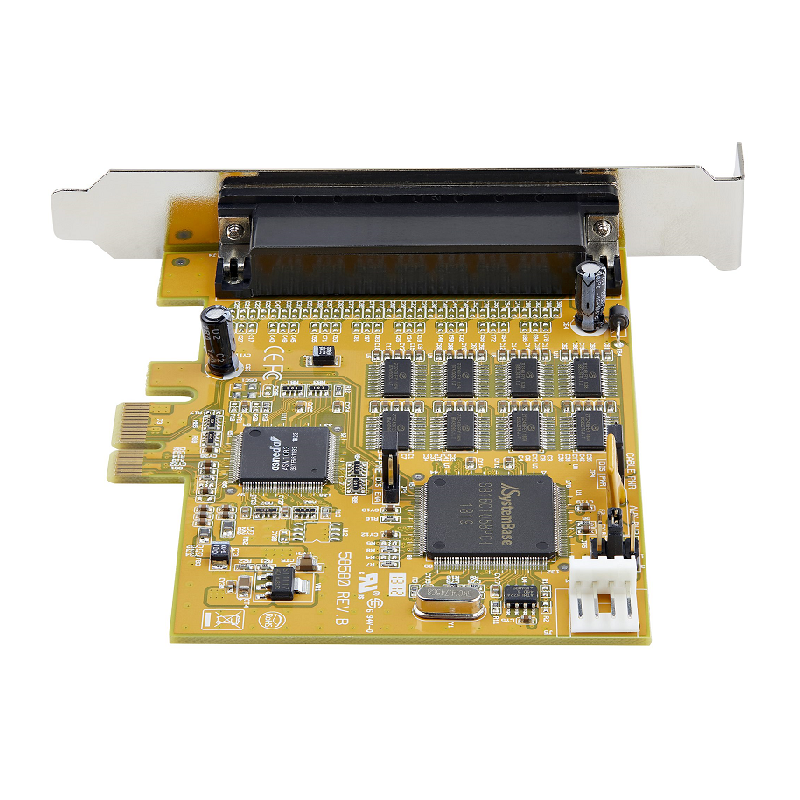

| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Sustainability certificates | RoHS |
| Performance | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Product colour | Yellow |
| Maximum cable length | 0.5 m |
| Design | |
| Mean time between failures (MTBF) | 160013 h |
| Internal | Yes |
| Product colour | Yellow |
| Maximum cable length | 0.5 m |
| Features | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Parity bit | Even, N, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 16 mm |
| Height | 120 mm |
| Depth | 105 mm |
| Weight | 74 g |
| Packaging data | |
| Package width | 190 mm |
| Package height | 65 mm |
| Package depth | 290 mm |
| Package weight | 672 g |
| Quick installation guide | Yes |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
