StarTech RS232 Serial Cards

Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter










The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.


Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.


The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).


Backed by a 2-year StarTech.com warranty and free lifetime technical support.


Product Diagram:








Applications: Monitor or control RS-422/485 serial devices like PLCs and other industrial equipment
Adapt and connect a scale, meter, scanner or one of several other control peripherals to a computer system with only RS232









Features: RS232 to 2/4-wire RS485 or RS422 conversion
Supports RS422 and RS485 auto detect and manual switching
15KV ESD protection on all signal pins
Supports baud rates up to 921.6 Kbps
Wall-mountable
Supports a maximum connection distance of 4000ft (1200m)









The StarTech.com Advantage: Protect sensitive industrial equipment with integrated ESD protection
Communicate efficiently with connected devices through high-speed 921Kbps support
Suitable for industrial environments with a rugged, wall-mountable enclosure







Technical details Connector 1 DB-9 Connector 2 DB-9 Maximum cable length 1200 m Connector gender Male/Female Output interface RS-232 Host interface RS-232 Product colour Black Sustainability certificates RoHS Power Input voltage 110 - 240 V Input current 0.3 A
Operational conditions Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions Width 59 mm Height 22 mm Depth 117 mm Weight 143 g
Packaging data Package width 208 mm Package height 41 mm Package depth 146 mm Package weight 351 g Manual Yes Full specification and details can be found in the

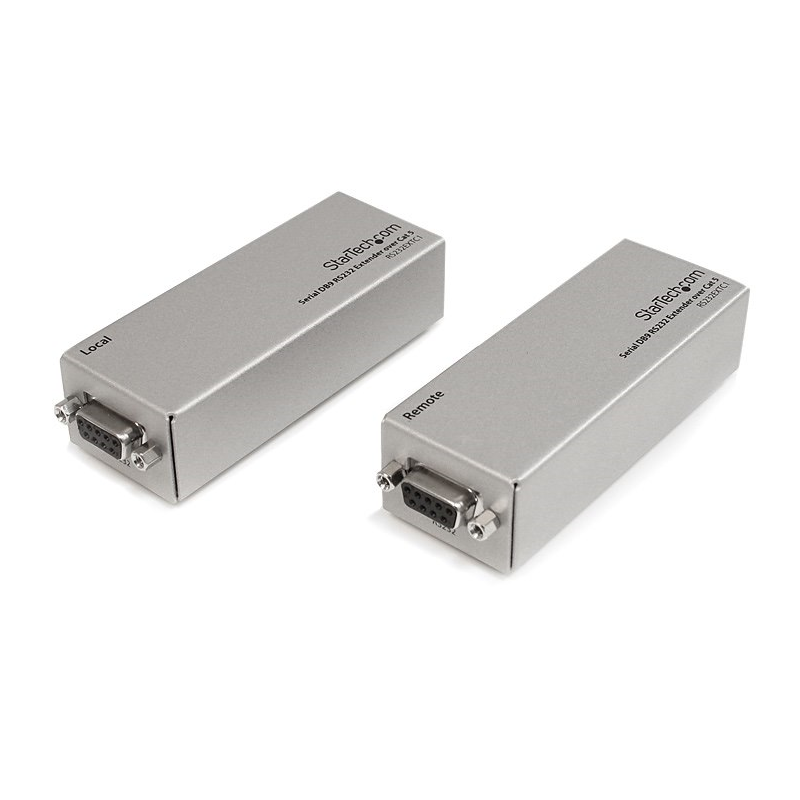

Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)

Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling










The RS232EXTC1GB Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit.


The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.


Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Product Diagram:








Applications: Industrial applications include controlling CNC machinery, polling bar code scanner data, administering process control equipment, weigh stations, and other manufacturing applications
Monitor and control medical equipment, security keypads/card scanners, point of sale equipment and remote sensor data, and various other healthcare related serial communications
Extend connectivity to Point of Sale card swipe devices, bar code scanners, scales, receipt printers or cash register displays
Remotely poll data from access keypads, card scanners, camera installations or home security systems
Remote sensor monitoring for traffic flow management (air traffic control, expressway flow)









Features: Extend RS232 up to 1000m / 3300ft
Data transfer rates of up to 230 Kbps
Compatible with all RS232 communications
Employ existing Cat5, 5e, 6 or better Ethernet infrastructure to remotely connect serial devices
Supports full-duplex data communication
Compact design
No driver software required for easy Plug-and-Play installation









The StarTech.com Advantage: Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length
Pure hardware design, no software or drivers required, ensuring a simple plug and play installation
Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located







Performance Type Yes Maximum transfer distance 1000 m Cable types supported Cat5 Technical details Type Network transmitter Maximum transfer distance 1000 m Cable types supported Cat5 Sustainability certificates RoHS
Ports & interfaces Ethernet LAN (RJ-45) ports 2 VGA (D-Sub) ports quantity 2
Power AC input voltage 240 V Input current 0.055 A Output current 0.3 A
Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) 0 - 85 °C Operating relative humidity (H-H) 0 - 95 %
Weight & dimensions Width 34 mm Height 22 mm Depth 92 mm Weight 65 g
Packaging data Package width 57 mm Package height 138 mm Package depth 315 mm Package weight 1 kg Manual Yes Full specification and details can be found in the
