| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEPEX4S953 |
| Manufacturer No: | PEX4S953 |
| Delivery: | In Stock: Next Day |
 |
4-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 Card - 16950 UART - Expansion Card - Windows/Linux
PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible

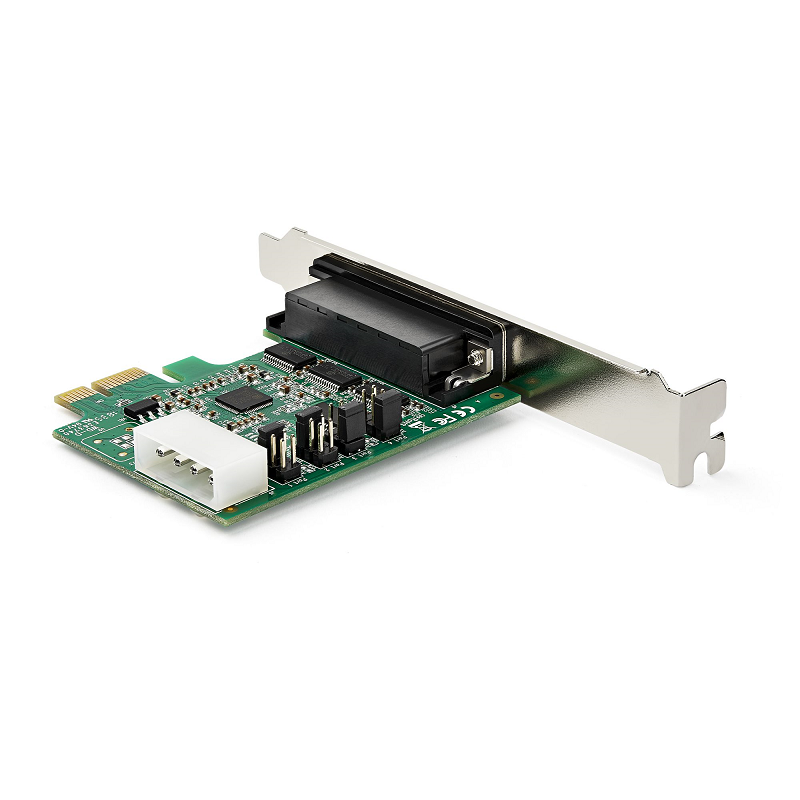

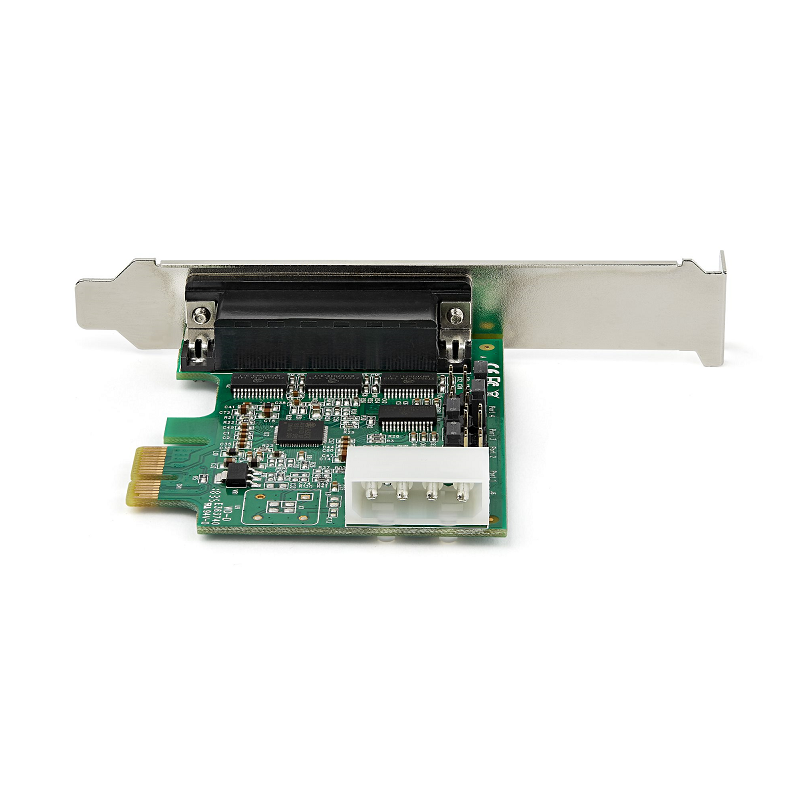

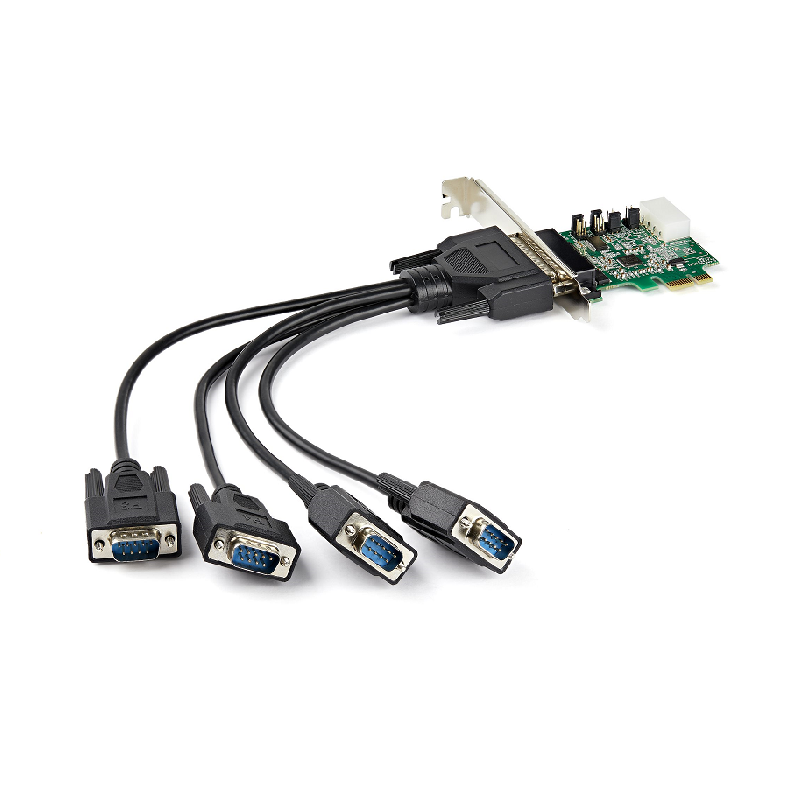

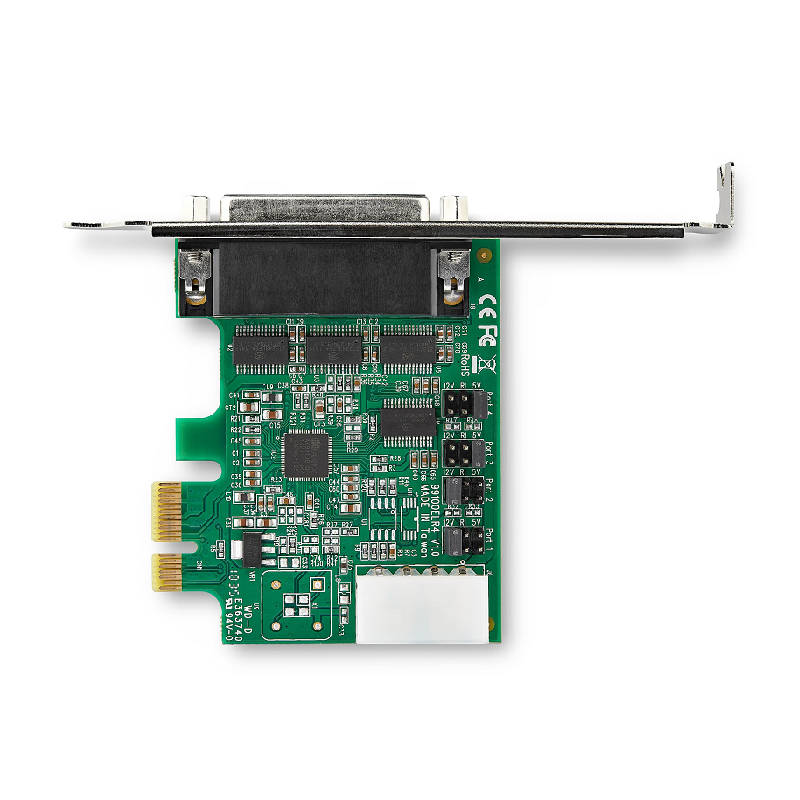

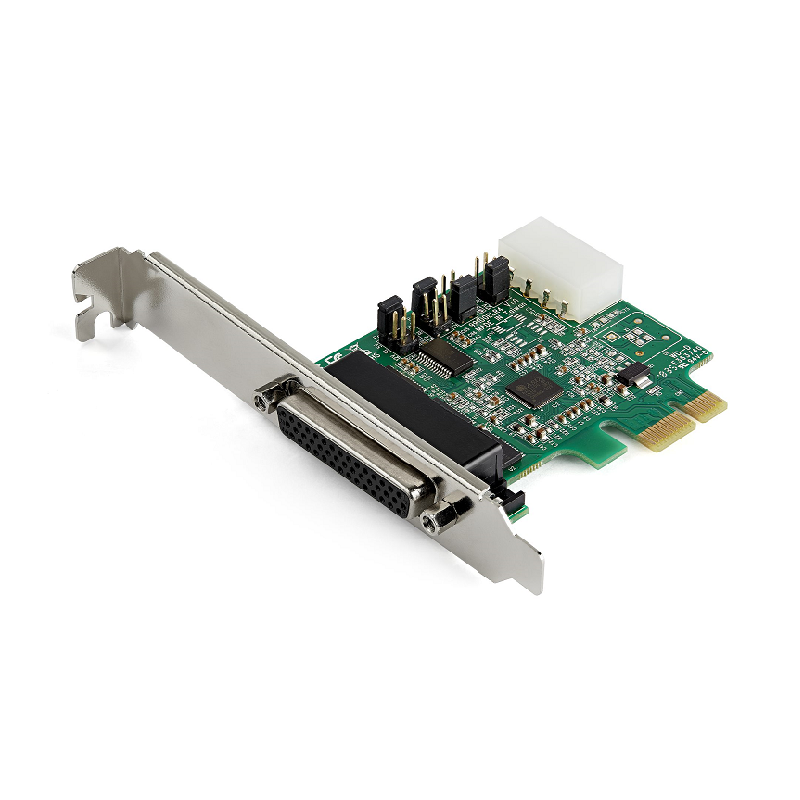

This PCI Express RS232 serial adapter card lets you add four RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The 4 port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.

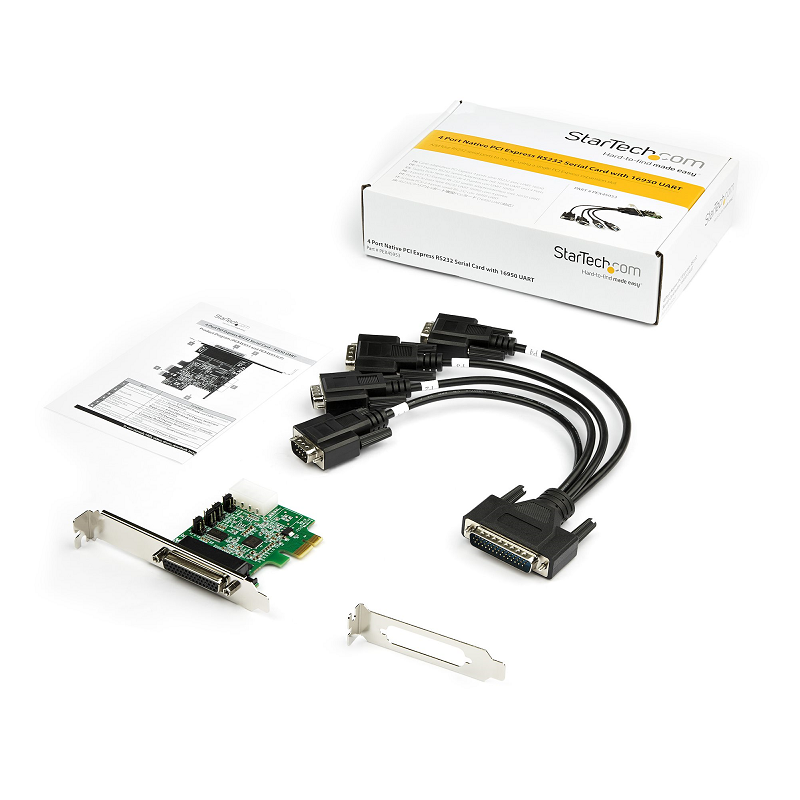

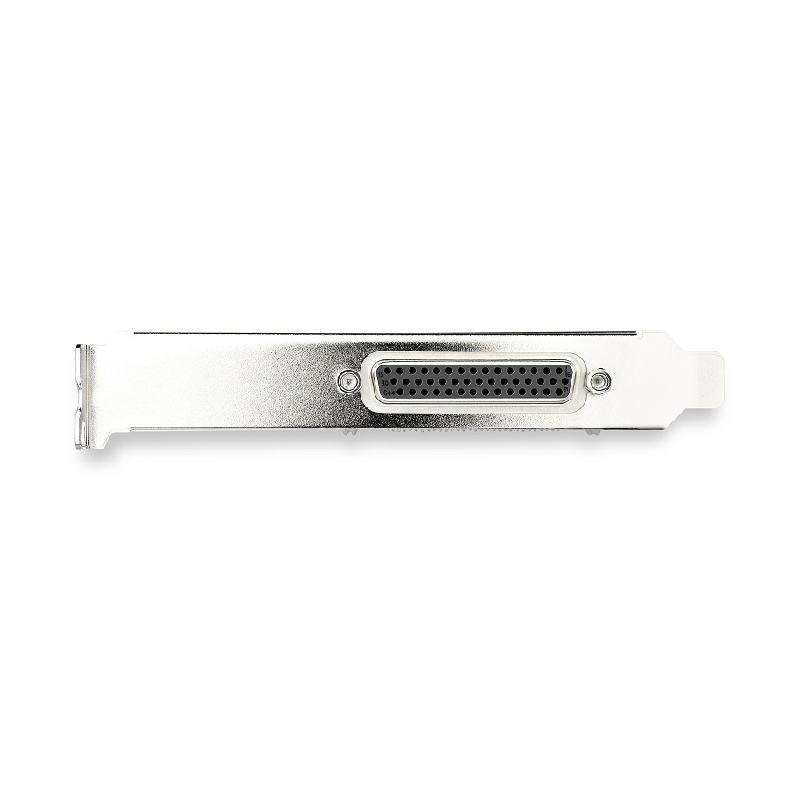

With broad OS support, including for Windows and Linux, this multiport PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-sized bracket, and includes an optional low-profile bracket, so installation is easy regardless of the case form factor. This expansion card is a direct replacement for PEX4S952.
This PCIe to serial adapter supports the following features:
• Industry standard 16950 UART compatible
• Supports max baud rate of up-to 921.6Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO cache per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits (one per port)
• Asix AX99100 chipset
• Base PCI Express 1.1 compliant
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEX4S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Ports & interfaces | |
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 8 |
| Host interface | PCIe |
| Expansion card form factor | Full-height / Low-profile |
| Technical details | |
| Chipset | ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Sustainability certificates | RoHS |
| Performance | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Product colour | Yellow |
| Features | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Parity bit | Even, N, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Weight & dimensions | |
| Width | 22 mm |
| Height | 60 mm |
| Depth | 145 mm |
| Weight | 116 g |
| Packaging data | |
| Package width | 190 mm |
| Package height | 70 mm |
| Package depth | 290 mm |
| Package weight | 750 g |
| User guide | Yes |
| Mounting brackets included | Yes |
| Cables included | Serial |
Full specification and details can be found in the PDF file
A user quick start guide can be found in the PDF file
