StarTech Cisco Compatible 40GbE SFP Transceivers

Cisco QSFP-H40G-CU0-5M Compatible 0.5m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC Firepower C9200 C9400

Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

The QSFPH40GCU05 is a Cisco QSFP-H40G-CU0-5M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point across-rack server or network switch connections







Features:

100% CISCO QSFP-H40G-CU0-5M COMPATIBLE: Works with Cisco switches like C9300, C9200, C9400, C9500, C9600 and others
TECHNICAL SPECS: 0.5m (1.6ft) 40 Gbps Passive Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 30 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
HOT-SWAPPABLE
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers








StarTech.com SFP Cables: All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.



Technical details Jacket material Polyvinyl chloride (PVC) Cable length 0.5 m Sustainability certificates RoHS

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC, REACH Product colour Black Connector 2 gender Male Connector 1 gender Male Cabling technology 40GBase-T AWG wire size 30

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 0.5 m Width 18 mm Depth 500 mm Height 13 mm Weight 99 g

Logistics data Master (outer) case width 25.5 cm Master (outer) case length 34.4 cm Master (outer) case height 29.5 cm Products per master (outer) case 10 pc(s) Full specification and details can be found in the

Cisco QSFP-H40G-CU1M Compatible 1m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC Firepower C9200 C9400

Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

The QSFPH40GCU1M is a Cisco QSFP-H40G-CU1M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point in-rack server or network switch connections







Features:

100% CISCO QSFP-H40G-CU1M COMPATIBLE: Works with Cisco switches like C9300, C9200, C9400, C9500, C9600 and others
TECHNICAL SPECS: 1m (3.3ft) 40 Gbps Passive Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 30 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
HOT-SWAPPABLE
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers








StarTech.com SFP Cables: All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.



Technical details Jacket material Polyvinyl chloride (PVC) Cable length 1 m Sustainability certificates RoHS

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC, REACH Product colour Black Connector 2 gender Male Connector 1 gender Male Input impedance 100 AWG wire size 30

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 1 m Width 18 mm Depth 1000 mm Height 13 mm Weight 72 g

Logistics data Master (outer) case width 25.5 cm Master (outer) case length 34.4 cm Master (outer) case height 29.5 cm Products per master (outer) case 10 pc(s) Full specification and details can be found in the

Cisco QSFP-H40G-CU3M Compatible 3m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC Firepower C9200 C9400

Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

The QSFPH40GCU3M is a Cisco QSFP-H40G-CU3M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point in-rack and across-rack server or network switch connections







Features:

100% CISCO QSFP-H40G-CU3M COMPATIBLE: Works with Cisco switches like C9300, C9200, C9400, C9500, C9600 and others
TECHNICAL SPECS: 3m (9.8ft) 40 Gbps Passive Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 30 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cable won't void your OEM support and with access to our Tech Advisors 5/24
HOT-SWAPPABLE
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers








StarTech.com SFP Cables: All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.



Technical details Jacket material Polyvinyl chloride (PVC) Cable length 3 m Sustainability certificates RoHS

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC Product colour Black Connector 2 gender Male Connector 1 gender Male Input impedance 100 AWG wire size 30

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 1 m Width 18 mm Depth 3000 mm Height 13 mm Weight 261 g

Logistics data Master (outer) case width 25.5 cm Master (outer) case length 34.4 cm Master (outer) case height 29.5 cm Products per master (outer) case 10 pc(s) Full specification and details can be found in the

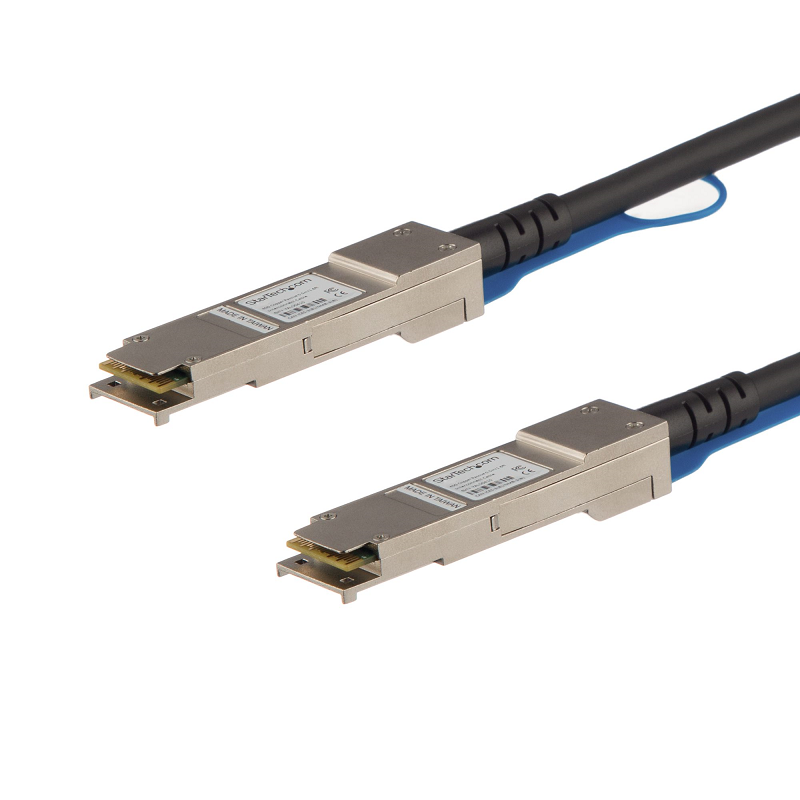

Cisco QSFP-H40G-CU5M Compatible 5m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC Firepower C9200 C9400

Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

The QSFPH40GCU5M is a Cisco QSFP-H40G-CU5M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point in-rack and across-rack server or network switch connections







Features:

100% CISCO QSFP-H40G-CU5M COMPATIBLE: Works with Cisco switches like C9300, C9200, C9400, C9500, C9600 and others
TECHNICAL SPECS: 5m (16.4ft) 40 Gbps Passive Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 30 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
HOT-SWAPPABLE
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers








StarTech.com SFP Cables: All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.



Technical details Jacket material Polyvinyl chloride (PVC) Cable length 5 m Sustainability certificates RoHS

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC, REACH Product colour Black Connector 2 gender Male Connector 1 gender Male Input impedance 100 AWG wire size 30 Cabling technology 40GBase-T

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 5 m Width 18 mm Depth 5000 mm Height 13 mm Weight 451 g

Logistics data Master (outer) case width 25.5 cm Master (outer) case length 34.4 cm Master (outer) case height 29.5 cm Products per master (outer) case 10 pc(s) Full specification and details can be found in the

Cisco QSFP-4SFP10G-CU5M Compatible 5m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ Copper DAC - Low Power Passive Transceiver Module DAC - Cisco Firepower, C9300, C3850

Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty

The SFPCMM3M is a Cisco compatible direct-attach copper SFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. This copper SFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency SFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb/10Gb mixed Ethernet network applications
Point-to-point in-rack and across-rack server or network switch connections, for up to four devices







Features:

100% CISCO QSFP-4SFP10G-CU5MCOMPATIBLE QSFP+ BREAKOUT DAC: Works with Cisco switches like Firepower, C9300, C3850, C9300, C9500 and others
TECHNICAL SPECS: 5m (16.4ft) 40Gbps Passive Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 30 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers







StarTech.com SFPs All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.



Technical details Jacket material Polyvinyl chloride (PVC) Cable length 5 m Sustainability certificates RoHS Input impedance 100

Features Connector 1 QSFP+ Connector 2 4x SFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC, REACH Product colour Black Connector 2 gender Male Connector 1 gender Male Cabling technology 40GBase-T AWG wire size 26

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 5 m Width 14 mm Depth 5000 mm Height 12 mm Weight 500 g

Logistics data Master (outer) case width 33.4 cm Master (outer) case length 63.8 cm Master (outer) case height 28.2 cm Products per master (outer) case 10 pc(s) Full specification and details can be found in the

Cisco QSFP-H40G-ACU7M Compatible 7m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Active Transceiver Module DAC Firepower ASR1000 ASR9000

Copper QSFP+ Cable | 40 Gbps | Active DAC | Lifetime Warranty

The QSFPH40GACU7 is a Cisco QSFP-H40G-ACU7M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This Active Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point across-rack server or network switch connections







Features:

100% CISCO QSFP-H40G-ACU7M COMPATIBLE: Works with Cisco switches like Firepower, ASR1000, ASR9000, C9300, C3650 and others
TECHNICAL SPECS: 7m (23ft) 40 Gbps Active Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 30 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
HOT-SWAPPABLE
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers







Technical details Jacket material Polyvinyl chloride (PVC) Cable length 7 m Sustainability certificates RoHS Input impedance 100

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC Product colour Black Connector 2 gender Male Connector 1 gender Male AWG wire size 24

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 7 m Width 14 mm Depth 7000 mm Height 12 mm Weight 451 g

Logistics data Master (outer) case width 33.4 cm Master (outer) case length 63.8 cm Master (outer) case height 28.2 cm Products per master (outer) case 20 pc(s) Full specification and details can be found in the

Cisco QSFP-H40G-ACU5M Compatible 5m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Active Transceiver Module DAC Firepower ASR1000 ASR9000

Copper QSFP+ Cable | 40 Gbps | Active DAC | Lifetime Warranty

The QSFPH40GACU5 is a Cisco QSFP-H40G-ACU5M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This Active Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point in-rack and across-rack server or network switch connections







Features:

100% CISCO QSFP-H40G-ACU5M COMPATIBLE: Works with Cisco switches like Firepower, ASR1000, ASR9000, C9300, C3650 and others
TECHNICAL SPECS: 5m (16.4ft) 40 Gbps Active Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 30 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
HOT-SWAPPABLE
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers







Technical details Jacket material Polyvinyl chloride (PVC) Cable length 5 m Sustainability certificates RoHS Input impedance 100

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC Product colour Black Connector 2 gender Male Connector 1 gender Male AWG wire size 24

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 5 m Width 14 mm Depth 5000 mm Height 12 mm Weight 370 g

Logistics data Master (outer) case width 25.5 cm Master (outer) case length 34.4 cm Master (outer) case height 29.5 cm Products per master (outer) case 10 pc(s) Full specification and details can be found in the

Cisco QSFP-H40G-AOC15M Compatible 5m/16.4ft 40G QSFP+ to QSFP+ AOC Cable - 40GbE QSFP+ Active Optical Fiber - 40Gbps QSFP Plus/Transceiver Module Cable - Firepower ASR1000

Fiber QSFP+ Cable | 40 Gbps | AOC | Lifetime Warranty

The QSFPH40GACU5 is a Cisco QSFP-H40G-ACU5M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point across-rack server or network switch connections







Features:

Cisco QSFP-H40G-AOC15M COMPATIBLE ACTIVE OPTICAL CABLE (AOC): Works with Cisco switches like Firepower, ASR1000, and others
TECHNICAL SPECS: 5m Active Optical Cable 40Gbps Active Optical Fiber 2x QSFP+ Pluggable Connector PVC Cable Jacket Hot swappable MSA Compliant
DESIGNED FOR SERVER ROOMS: A convenient alternative to transceivers inside and between racks. Factory termination means high performance & reliability, with less maintenance
OUTSTANDING SUPPORT: Backed for life by StarTech.com for the life of the module itself, not your equipment; our cables won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules








StarTech.com SFP Cables: All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.



Technical details Jacket material Polyvinyl chloride (PVC) Cable length 15 m Sustainability certificates REACH, RoHS

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40 Gbit/s Certification CE, FCC Product colour Black Connector 2 gender Male Connector 1 gender Male

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 15 m Package width 250 mm Package depth 270 mm Package height 25 mm Weight 229 g

Logistics data Master (outer) case width 25.5 cm Master (outer) case length 34.4 cm Master (outer) case height 25 cm Products per master (outer) case 10 pc(s) Quantity per pack 1 pc(s) Full specification and details can be found in the

Cisco QSFP-H40G-ACU10M Compatible 10m 40G QSFP+ to QSFP+ Direct Attach Cable Twinax - 40GbE QSFP+ Copper DAC 40 Gbps Low Power Active Transceiver Module DAC Firepower ASR1000 ASR9000

Copper QSFP+ Cable | 40 Gbps | Active DAC | Lifetime Warranty

This 40G QSFP+ cable delivers what you need most in your network connections: reliable performance. It’s built to MSA specifications and fully tested to ensure seamless compatibility.

The active twinaxial cable is a fully hot-pluggable solution, supporting 40 Gigabit Ethernet applications connected through QSFP+ (Quad Small Form-Factor Pluggable) ports.

Designed for high-speed interconnects, this cable is intended for medium-distance applications such as across rack network switch or server connections.












Applications:

Use in 40Gb Ethernet network applications
Point-to-point across-rack server or network switch connections







Features:

100% CISCO QSFP-H40G-ACU10M COMPATIBLE: Works with Cisco switches like Firepower, ASR1000, ASR9000, C9300, C3650 and others
TECHNICAL SPECS: 10m (32.8ft) 40 Gbps Active Twinax (Copper) 2x QSFP+ Pluggable Connector 100 Ohm Impedance 24 AWG Wire Gauge PVC Cable Jacket Hot swappable MSA Compliant
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
HOT-SWAPPABLE







Technical details Jacket material Polyvinyl chloride (PVC) Cable length 10 m Sustainability certificates RoHS Input impedance 100

Features Connector 1 QSFP+ Connector 2 QSFP+ Data transfer rate 40000 Mbit/s Certification CE, FCC, TAA Product colour Black Connector 2 gender Male Connector 1 gender Male AWG wire size 24

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 80 °C

Weight & dimensions Cable length 10 m Width 14 mm Depth 10000 mm Height 12 mm Weight 520 g

Logistics data Master (outer) case width 33.4 cm Master (outer) case length 63.8 cm Master (outer) case height 28.2 cm Products per master (outer) case 10 pc(s) Full specification and details can be found in the
