MikroTik Network Cards

R11e-2HPnD - 2Ghz miniPCI-express, 802.11b/g/n dual chain, 2x MMCX

R11e-2HPnD is our new 802.11b/g/n Dual Chain high power miniPCI-e card, operating in full 2192-2732 MHz frequency.

Ideally suited for the new RB912 series (Specific frequency range can be limited by country regulations), RB800 or our new miniPCIe adapters - RB14e/RB14eU

Unit is equipped with two MMCX connectors


R11e-2HPnD Specifications:



Licence level: 0
Product code: R11e-2HPnD
Antenna header count: 2
Can be used indoors: Yes
Can be used outdoors: Yes
Certification: FCC, IC
IP: IP00
Max power consumption: 5 W
Storage: 4 KB
Storage type: FLASH
Tested ambient temperature: -40°C to +65°C
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz chip model: AR9582
Wireless 2.4 GHz generation Wi-Fi: 4
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Frequency range: 2312-2732 MHz
Max output power: 1000mW
Format: miniPCIe
Dimensions: 5 1x 30 x 13mm
Features: 9 LED indicators, ESD protection
TX/RX at MCS0: 30dBm / -96dBm
TX/RX at MCS7: 24dBm / -76dBm
TX/RX at 6Mbit: 30dBm / -96dBm
TX/RX at 54Mbit: 25dBm / -80dBm

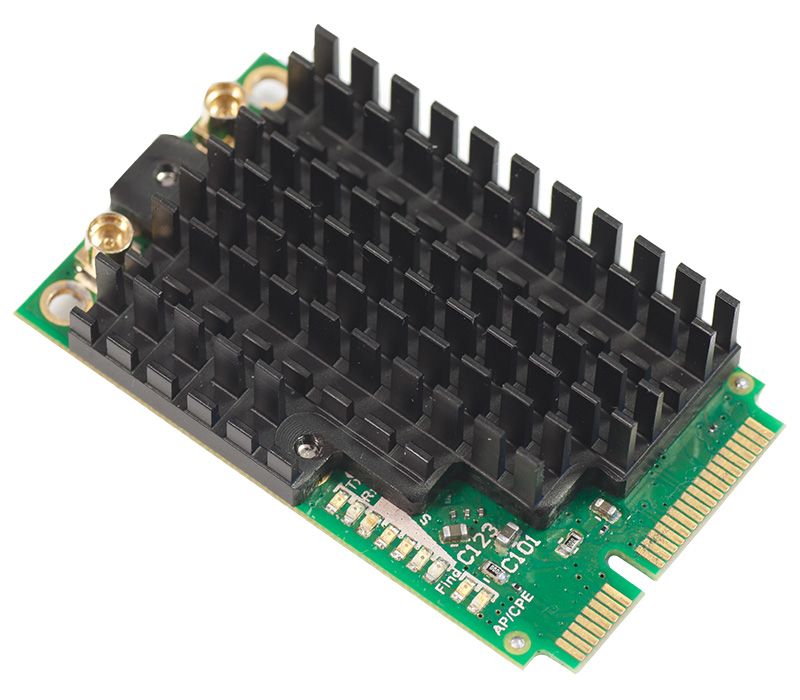

MikroTik R11e-5HnD 802.11a/n dual chain, 5Ghz, 2x MMCX, Mini PCI Express Card

High power 4920-5920MHz 802.11a/n dual chain wireless card in miniPCI-e format.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapter card - RB14e.


MikroTik R11e-5HnD Specifications:



Product code: R11e-5HnD
License level: 0
2GHz: no
5GHz: yes
Antenna header count: 2
Can be used indoors: Yes
Can be used outdoors: Yes
Chipset: AR9580
Connector: MMCX
Format: miniPCI-e
Output power: up to 27dBm
Storage size: 4 KB
Storage type: FLASH
Tested ambient temperature: -40°C to +65°C
Wi-Fi generation: Wi-Fi 4
Wireless standards: 802.11a/n
Max power consumption: 5W
802.11a: Yes
802.11b: No
802.11g: No
802.11n: Yes
Connector: MMCX
Wireless 1 band5 GHz
Wireless 1 Number of chains2
Certification: FCC, IC

R11e-5HacD - 5Ghz miniPCI-express, 802.11ac/a/n dual chain, 2x MMCX

R11e-5HacD is our new 802.11ac card in miniPCI-express format.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

Perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB922, RB800 or x86 devices with RouterOS.


MikroTik R11e-5HacD Specifications:



Product code: R11e-5HacD
License level: 0
2GHz: no
5GHz: yes
AC speed: C900
Antenna header count: 2
Can be used indoors: Yes
Can be used outdoors: Yes
Certification: FCC, IC
Chipset: QCA9882
Connector: 2x MMCX
Format: miniPCI-e
Max power consumption: 5W
Output power: 27dBm
Storage: 4 KB
Storage type: FLASH
Tested ambient temperature: -40°C to +70°C
Wi-Fi generation: Wi-Fi 5
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz chip model: QCA9882
Wireless 5 GHz generation: Wi-Fi 5
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac

Mikrotik miniPCIe LTE 3G / 4G Wireless Card for International bands

The R11e-LTE is an LTE Cat-4 modem that delivers up to 150Mbps downlink and 50Mbps uplink data rate with 3G and 2G network fallback. This mini-PCIe form factor modem is designed for international bands.

The Mikrotik miniPCIe R11E LTE card - R11e-LTE is designed to work with any Mikrotik Routerboards running RouterOS that have a miniPCI-e slot (exceptions RB800 and RB4011).

The R11e-LTE is incredibly flexible supporting bands 1/2/3/5/7/8/20/38/40 on 2G/3G/4G and LTE.
(For bands higher than 40, take a look at the R11e-4G).


MikroTik R11e-LTE Specifications:



Product code: R11e-LTE
Tested ambient temperature: -30°C to +70°C
Format: miniPCIe
IP: IP00
Max power consumption: 3W
RouterOS compatibility: Yes
2G Category: Class12
2G bands: 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands: 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category: 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands: 38 (2600MHz) / 40 (2300MHz)

2G/3G/4G/LTE miniPCI-e card with carrier aggregation support (up to 300 Mbps) for bands 1/2/3/5/7/8/12/17/20/25/26/38/39/40/41n

The R11e-LTE6 is an LTE CAT6 modem that delivers up to 300 Mbps downlink and 50 Mbps uplink data rate with 3G and 2G network fallback. CAT6 also features carrier aggregation and allows the device to use multiple bands at the same time.

This miniPCIe form factor modem is designed for international bands.

It can be used with any of the MikroTik Routerboard products that feature miniPCIe slots (except the RB800 and RB4011).


R11e-LTE6 Specifications:



Product code: R11e-LTE6
Tested ambient temperature: -30°C to 70°C
Max power consumption: 5W
IP: IP00
RouterOS compatibility: Yes
Format: miniPCIe
2G Category: Class12
2G bands: 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands: 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
Certification: CE, FCC, IC, ROHS
