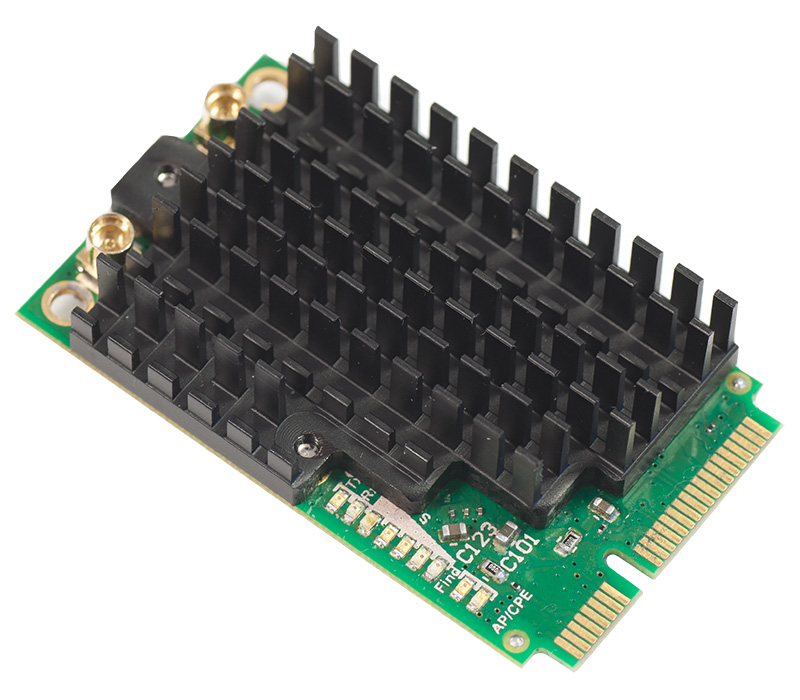

MikroTik R11E-2HPND 802.11b/g/n Mini PCI Express Card

R11e-2HPnD - 2Ghz miniPCI-express, 802.11b/g/n dual chain, 2x MMCX

R11e-2HPnD is our new 802.11b/g/n Dual Chain high power miniPCI-e card, operating in full 2192-2732 MHz frequency.

Ideally suited for the new RB912 series (Specific frequency range can be limited by country regulations), RB800 or our new miniPCIe adapters - RB14e/RB14eU

Unit is equipped with two MMCX connectors

R11e-2HPnD Specifications:

• Licence level: 0
• Product code: R11e-2HPnD
• Antenna header count: 2
• Can be used indoors: Yes
• Can be used outdoors: Yes
• Certification: FCC, IC
• IP: IP00
• Max power consumption: 5 W
• Storage: 4 KB
• Storage type: FLASH
• Tested ambient temperature: -40°C to +65°C
• Wireless 2.4 GHz Max data rate: 300 Mbit/s
• Wireless 2.4 GHz chip model: AR9582
• Wireless 2.4 GHz generation Wi-Fi: 4
• Wireless 2.4 GHz number of chains: 2
• Wireless 2.4 GHz standards: 802.11b/g/n
• Frequency range: 2312-2732 MHz
• Max output power: 1000mW
• Format: miniPCIe
• Dimensions: 5 1x 30 x 13mm
• Features: 9 LED indicators, ESD protection
• TX/RX at MCS0: 30dBm / -96dBm
• TX/RX at MCS7: 24dBm / -76dBm
• TX/RX at 6Mbit: 30dBm / -96dBm
• TX/RX at 54Mbit: 25dBm / -80dBm
