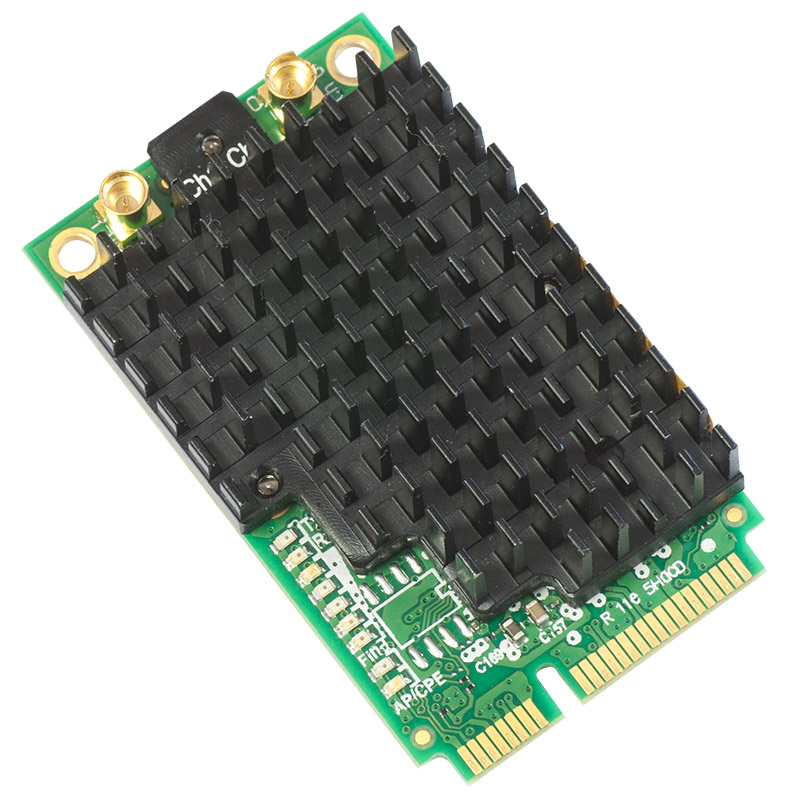

MikroTik R11E-5HACD 802.11ac MiniPCI-Expess Dual Chain Card

R11e-5HacD - 5Ghz miniPCI-express, 802.11ac/a/n dual chain, 2x MMCX

R11e-5HacD is our new 802.11ac card in miniPCI-express format.

The card features built-in LED indicators for wireless mode, connection status (connected, searching, disabled), TX and RX activity and wireless signal strength - just looking at the card will help with installation and alignment.

Perfect for any RouterBOARD with miniPCIe slot, such as RB953, RB912, RB922, RB800 or x86 devices with RouterOS.

MikroTik R11e-5HacD Specifications:

• Product code: R11e-5HacD
• License level: 0
• 2GHz: no
• 5GHz: yes
• AC speed: C900
• Antenna header count: 2
• Can be used indoors: Yes
• Can be used outdoors: Yes
• Certification: FCC, IC
• Chipset: QCA9882
• Connector: 2x MMCX
• Format: miniPCI-e
• Max power consumption: 5W
• Output power: 27dBm
• Storage: 4 KB
• Storage type: FLASH
• Tested ambient temperature: -40°C to +70°C
• Wi-Fi generation: Wi-Fi 5
• Wireless 5 GHz Max data rate: 867 Mbit/s
• Wireless 5 GHz chip model: QCA9882
• Wireless 5 GHz generation: Wi-Fi 5
• Wireless 5 GHz number of chains: 2
• Wireless 5 GHz standards: 802.11a/n/ac
