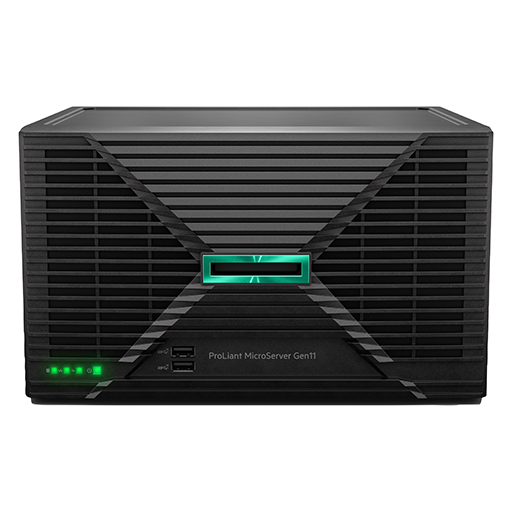

The HPE ProLiant MicroServer Gen11 (P74439-425) is an entry-level tower server built for small offices, branch sites and home labs that need dedicated server hardware without the cost, noise or space requirements of a traditional rack server. This EMEA-region SKU ships ready to run with an Intel® Pentium® Gold G7400 dual-core processor, 16GB of DDR5 memory and a 1TB SATA hard drive, suited to file, print, application and light virtualisation duties.
Key Features
Intel® Pentium® Gold G7400 dual-core processor at 3.7 GHz
Supports up to 128GB DDR5 memory depending on processor and memory configuration.
1TB SATA 7.2K LFF Business Critical hard drive included
Four LFF non-hot-plug drive bays with embedded Intel® VROC SATA RAID
Two PCIe 5.0 expansion slots and dedicated iLO-M.2 port kit
TPM 2.0, HPE iLO silicon root of trust and 1/1/1 warranty
Benefits
Ready to deploy with processor, memory and storage already fitted
Ultra micro tower sits flat, vertical or wall-mounted to suit constrained office space
DDR5 memory and PCIe 5.0 expansion leave clear headroom for future growth
HPE iLO remote management allows monitoring and recovery without a site visit
EMEA SKU supplied with the correct regional power adapter and documentation
Product Comparison
HPE ProLiant MicroServer Gen11 with Intel Xeon E-2434 - same chassis but a quad-core Xeon with ECC memory support, suited to busier virtualisation or shared file workloads
Dell PowerEdge T150 - Dell's equivalent entry tower, typically configured with a Xeon E-2400 chip and iDRAC remote management as the like-for-like option outside the HPE ecosystem
Lenovo ThinkSystem ST50 V3 - Lenovo's entry tower with XClarity management, worth considering where you're matching an existing vendor estate
Sizing and Capacity
Ultra micro tower form factor that fits on or under a desk without rack hardware. Memory scales from the supplied 16GB to 128GB across four DDR5 UDIMM slots. Storage runs to four LFF drives with embedded SATA RAID, and an optional M.2 slot is available via the iLO/M.2/serial port kit for fast OS boot. Powered by an external 180W adapter (non-redundant). Practical workloads include small file and print services, Active Directory, light virtualisation, backup target duties or hosting two to three line-of-business applications.
Who It's For
Small businesses, branch offices, IT resellers and home lab users replacing an older Gen8 or Gen10 MicroServer, or buying a first HPE server for general business workloads.
FAQs
Is an operating system included? No. The server ships as bare hardware. Windows Server, a Linux distribution or a hypervisor licence will need to be supplied separately.
Can I use ECC memory? The Pentium Gold G7400 does not support ECC. The Xeon E-2400-based MicroServer Gen11 variants are the route to ECC.
Is the power supply redundant? No. This model ships with a single 180W external adapter.
What warranty is included? HPE's standard 1/1/1 warranty (one year parts, labour and on-site response). Care Packs are available to extend cover.
Can it be rack-mounted? No, but it can be placed flat, stood vertically or wall-mounted with the optional kit.
.bullet{
background-color: #3dd0b7;
color: black;
}
Front View (External)
1
Drive activity LED
2
NIC status LED
3
Health LED
4
Power on/ Standby button and system power LED
5
USB 3.2 Gen2 Type-A ports
Front View (Internal)
1
Four (4) LFF NHP SATA HDD cage
2
Hard drive screws
3
USB 3.2 Gen2 Type-A ports
Rear View
1
Padlock eye
2
Kensington security slot
3
(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4
(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5
Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6
Power jack
7
Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8
iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9
Display Port 1.1a
10
VGA Port
11
Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12
Four (4) USB 3.2 Gen1 Type-A ports
Mainboard View
1
System board: System power connector
2
Fan connector
3
Slot 1 PCIe5 x16
4
PDB: System power connector
5
Drive power connector
6
PDB: 4-pin processor power connector
7
Slot 2 PCIe4 x8
8
Coin battery
9
System board: 4-pin processor power connector
10
System fan
11
One (1) processor and heatsink
12
Four (4) DDR5 UDIMM slots
13
Ambient temperature sensor connector
14
SlimSAS x4 port
15
Storage controller backup power connector
16
M.2 slot (optional, enabled by the dedicated iLO/M.2/serial port kit)
The HPE ProLiant DL320 Gen11 is a compact 1U, single-socket server purpose-built for edge, telco, and SMB environments requiring a balanced mix of performance, scalability, and efficiency. Powered by the latest Intel® Xeon® processors and supporting DDR5 memory and PCIe Gen5 architecture, it delivers next-generation compute and connectivity in a dense form factor designed for constrained spaces.
Key Features
Single-Socket Performance: Supports Intel® Xeon® E-2400, Intel® Xeon® 6300-series, and Intel® Pentium® Gold processors to match a wide range of workload needs.
High-Speed DDR5 Memory: Up to 128 GB of memory capacity using four 4400 MT/s DDR5 UDIMMs for improved bandwidth and performance.
PCIe Gen5 Expansion: Offers two expansion slots with PCIe Gen5 for faster throughput and support for modern add-on devices.
Compact 1U Design: Space-efficient chassis ideal for edge deployments and infrastructure with limited rack capacity.
Built-in Remote Management: HPE iLO6 included by default—no activation module required for full remote server management.
Flexible Storage Options: Supports multiple drive bays for various storage configurations, including M.2 boot support.
What's New
The latest Intel® Xeon® 6300-series, Intel® Xeon® E-2400, and Intel® Pentium® Gold processors supported.
Four 4400 MT/s HPE DDR5 UDIMMs, offering 16 GB and 32 GB options, with up to 128 GB total memory capacity.
Two PCIe expansion slots supporting the latest PCIe 5.0 standard for faster bandwidth.
Optional M.2 slot enables fast OS boot times (available via optional HPE iLO/M.2/serial port kit).
Optional serial port support through the dedicated HPE iLO/M.2/serial port option kit.
Built-in HPE iLO6 remote server management now included—no module or activation key required.
Efficient Design for Space-Conscious Deployments
The HPE ProLiant DL320 Gen11 offers high-density compute power in a 1U rack form factor. This compact design is ideal for telco edge, remote offices, and SMBs where physical space and power usage are constrained.
Next-Gen Performance and Memory Bandwidth
By integrating support for the latest Intel® Xeon® processors and DDR5 memory, the server boosts workload performance across virtualization, file/print, web hosting, and entry-level database applications. The faster memory speeds and improved efficiency help maintain throughput under pressure.
Modern I/O and Expansion Capabilities
With two PCIe Gen5 slots, the DL320 Gen11 supports high-bandwidth network cards, accelerators, or storage controllers. It’s designed for scalable configurations that grow with evolving application demands.
Integrated Management and Security
The server comes standard with HPE iLO6 for remote administration, enhancing provisioning and ongoing system health management. With built-in security features, including Silicon Root of Trust, the DL320 Gen11 aligns with zero-trust infrastructure goals.
I/O Diagram (Front)
Key
Component
1
Four (4) LFF NHP SATA HDD cage
2
Hard drive screws
3
USB 3.2 Gen2 Type-A ports
I/O Diagram (Back)
Key
Component
1
Padlock eye
2
Kensington security slot
3
(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4
(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5
Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6
Power jack
7
Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8
iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9
Display Port 1.1a
10
VGA Port
11
Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12
Four (4) USB 3.2 Gen1 Type-A ports
The HPE ProLiant MicroServer Gen11 G7400 is a compact yet powerful solution designed for small businesses and remote offices that require reliable computing performance in a space-efficient form factor. With its Intel® Xeon® G7400 2-core processor, the server delivers a blend of power and efficiency, perfect for essential tasks like file sharing, data backups, and light virtualization. Combined with scalable storage options and a 180W external power supply, this server is built to handle the demands of modern small-scale operations.
Key Features
Intel® Xeon® G7400 2-core processor for dependable performance
Supports up to four LFF drives, offering flexibility for expanding storage
180W external power supply for efficient energy consumption
Compact, space-saving design, ideal for small offices
Perfect for small businesses and remote offices
What's New
The latest Intel® Xeon® 6300-series, Intel® Xeon® E-2400, and Intel® Pentium® Gold processors supported.
Four 4400 MT/s HPE DDR5 UDIMMs, offering 16 GB and 32 GB options, with up to 128 GB total memory capacity.
Two PCIe expansion slots supporting the latest PCIe 5.0 standard for faster bandwidth.
Optional M.2 slot enables fast OS boot times (available via optional HPE iLO/M.2/serial port kit).
Optional serial port support through the dedicated HPE iLO/M.2/serial port option kit.
Built-in HPE iLO6 remote server management now included—no module or activation key required.
Intel Dualcore Processor
The Intel® Xeon® G7400 2-core processor inside the HPE ProLiant MicroServer Gen11 G7400 delivers solid performance without the high energy demands of larger systems. This processor is well-suited to handle daily tasks and essential business applications, ensuring your server performs optimally without lag or downtime.
Scailable Storage
For businesses that require scalable storage, the ProLiant MicroServer Gen11 G7400 is ready to grow with you. It supports up to four LFF drives, allowing you to customize your storage needs as your business expands. Whether you're storing critical data or backups, the server provides the flexibility to meet your changing requirements.
Energy Efficient Power Supply
Efficiency is at the heart of the HPE ProLiant MicroServer Gen11 G7400, thanks to its 180W external power supply. Not only does it minimize power consumption, but it also reduces operational costs, all while providing the necessary power to run your server smoothly. This energy-efficient design ensures your server stays reliable without inflating your energy bills.
Compact Design and Easy Deployment
Designed for environments with limited space, the HPE ProLiant MicroServer Gen11 G7400’s compact form factor makes it ideal for small offices and remote locations. Whether you’re deploying it in a tight server rack or under a desk, the compact design doesn’t compromise on performance, making it the perfect solution for businesses with space constraints
I/O Diagram (Front)
Key
Component
1
Four (4) LFF NHP SATA HDD cage
2
Hard drive screws
3
USB 3.2 Gen2 Type-A ports
I/O Diagram (Back)
Key
Component
1
Padlock eye
2
Kensington security slot
3
(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4
(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5
Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6
Power jack
7
Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8
iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9
Display Port 1.1a
10
VGA Port
11
Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12
Four (4) USB 3.2 Gen1 Type-A ports
The HPE ProLiant MicroServer Gen11 E-2434 is designed for small businesses and remote offices seeking a reliable,
space-saving server solution. With its compact form factor and enterprise-grade features, it offers a balance of
performance, security, and scalability to support daily business operations.
Key Features
Processor: Intel Xeon E-2434 (4-core, 3.4 GHz)
Memory: 16 GB DDR5 UDIMM, expandable up to 128 GB
Storage: 1 TB SATA 6G Business Critical 7.2K LFF RW HDD
Expansion: Two PCIe 5.0 slots for future scalability
Security: Integrated TPM 2.0 and HPE iLO Silicon Root of Trust
Management: Optional HPE iLO6 for remote server management
Design: Ultra micro tower with optional wall-mount kit
Power Supply: 180W external adapter, non-redundant
Performance and Scalability
Equipped with the Intel Xeon E-2434 processor and support for up to 128 GB of DDR5 memory, this server handles
demanding workloads efficiently. The inclusion of PCIe 5.0 slots ensures that the system can adapt to future
expansion needs.
Security and Management
Security is paramount with features like TPM 2.0 and HPE's Silicon Root of Trust. For streamlined management, the
server supports optional HPE iLO6, allowing for remote monitoring and administration.
Design and Deployment Flexibility
The server's compact design allows it to fit in various environments, whether placed flat, vertically, or mounted on
a wall. This flexibility makes it ideal for offices with limited space.
I/O Diagram (Front)
Key
Component
1
Four (4) LFF NHP SATA HDD cage
2
Hard drive screws
3
USB 3.2 Gen2 Type-A ports
I/O Diagram (Back)
Key
Component
1
Padlock eye
2
Kensington security slot
3
(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4
(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5
Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6
Power jack
7
Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8
iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9
Display Port 1.1a
10
VGA Port
11
Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12
Four (4) USB 3.2 Gen1 Type-A ports
The HPE ProLiant MicroServer Gen11 offers a practical balance of performance and simplicity, making it a strong fit for small offices and growing businesses. Powered by an Intel® Xeon® E-2434 processor, it combines compact design with enterprise-grade features. With 32GB of memory and 8TB of included storage, it's ready to take on local file serving, lightweight virtualization, and key business applications—all while staying power-efficient.
Key Features
Intel® Xeon® E-2434 4-core processor ensures fast, stable processing for essential workloads.
32GB Unbuffered DDR4 memory supports multitasking and small business application demands.
Two 4TB LFF non-hot-plug hard drives deliver ample local storage capacity for shared files and data backup.
Compact microserver chassis is designed for deployment in space-constrained environments.
180W external power supply contributes to reduced energy use and easier maintenance.
What's New
The latest Intel® Xeon® 6300-series, Intel® Xeon® E-2400, and Intel® Pentium® Gold processors supported.
Four 4400 MT/s HPE DDR5 UDIMMs, offering 16 GB and 32 GB options, with up to 128 GB total memory capacity.
Two PCIe expansion slots supporting the latest PCIe 5.0 standard for faster bandwidth.
Optional M.2 slot enables fast OS boot times (available via optional HPE iLO/M.2/serial port kit).
Optional serial port support through the dedicated HPE iLO/M.2/serial port option kit.
Built-in HPE iLO6 remote server management now included—no module or activation key required.
Designed for Small Business
Its size, power efficiency, and hardware configuration make the Gen11 MicroServer a reliable starting point for companies moving toward in-house IT infrastructure.
Efficient Storage and Access
With dual 4TB hard drives and simple local file sharing capabilities, this server supports team collaboration and secure on-site data handling.
Cost-Conscious and Scalable
The modular build and affordable entry point help businesses grow without overspending on unused capacity, while allowing for expansion as needs evolve.
I/O Diagram (Front)
Key
Component
1
Four (4) LFF NHP SATA HDD cage
2
Hard drive screws
3
USB 3.2 Gen2 Type-A ports
I/O Diagram (Back)
Key
Component
1
Padlock eye
2
Kensington security slot
3
(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4
(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5
Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6
Power jack
7
Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8
iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9
Display Port 1.1a
10
VGA Port
11
Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12
Four (4) USB 3.2 Gen1 Type-A ports
