HPE P74439-425 MicroSvr G11 G7400 16G NHP EMEA Server

The HPE ProLiant MicroServer Gen11 (P74439-425) is an entry-level tower server built for small offices, branch sites and home labs that need dedicated server hardware without the cost, noise or space requirements of a traditional rack server. This EMEA-region SKU ships ready to run with an Intel® Pentium® Gold G7400 dual-core processor, 16GB of DDR5 memory and a 1TB SATA hard drive, suited to file, print, application and light virtualisation duties.

Key Features

• Intel® Pentium® Gold G7400 dual-core processor at 3.7 GHz
• Supports up to 128GB DDR5 memory depending on processor and memory configuration.
• 1TB SATA 7.2K LFF Business Critical hard drive included
• Four LFF non-hot-plug drive bays with embedded Intel® VROC SATA RAID
• Two PCIe 5.0 expansion slots and dedicated iLO-M.2 port kit
• TPM 2.0, HPE iLO silicon root of trust and 1/1/1 warranty

Benefits

• Ready to deploy with processor, memory and storage already fitted
• Ultra micro tower sits flat, vertical or wall-mounted to suit constrained office space
• DDR5 memory and PCIe 5.0 expansion leave clear headroom for future growth
• HPE iLO remote management allows monitoring and recovery without a site visit
• EMEA SKU supplied with the correct regional power adapter and documentation

Product Comparison

• HPE ProLiant MicroServer Gen11 with Intel Xeon E-2434 - same chassis but a quad-core Xeon with ECC memory support, suited to busier virtualisation or shared file workloads
• Dell PowerEdge T150 - Dell's equivalent entry tower, typically configured with a Xeon E-2400 chip and iDRAC remote management as the like-for-like option outside the HPE ecosystem
• Lenovo ThinkSystem ST50 V3 - Lenovo's entry tower with XClarity management, worth considering where you're matching an existing vendor estate

Sizing and Capacity

Ultra micro tower form factor that fits on or under a desk without rack hardware. Memory scales from the supplied 16GB to 128GB across four DDR5 UDIMM slots. Storage runs to four LFF drives with embedded SATA RAID, and an optional M.2 slot is available via the iLO/M.2/serial port kit for fast OS boot. Powered by an external 180W adapter (non-redundant). Practical workloads include small file and print services, Active Directory, light virtualisation, backup target duties or hosting two to three line-of-business applications.

Who It's For

Small businesses, branch offices, IT resellers and home lab users replacing an older Gen8 or Gen10 MicroServer, or buying a first HPE server for general business workloads.

FAQs

• Is an operating system included? No. The server ships as bare hardware. Windows Server, a Linux distribution or a hypervisor licence will need to be supplied separately.
• Can I use ECC memory? The Pentium Gold G7400 does not support ECC. The Xeon E-2400-based MicroServer Gen11 variants are the route to ECC.
• Is the power supply redundant? No. This model ships with a single 180W external adapter.
• What warranty is included? HPE's standard 1/1/1 warranty (one year parts, labour and on-site response). Care Packs are available to extend cover.
• Can it be rack-mounted? No, but it can be placed flat, stood vertically or wall-mounted with the optional kit.

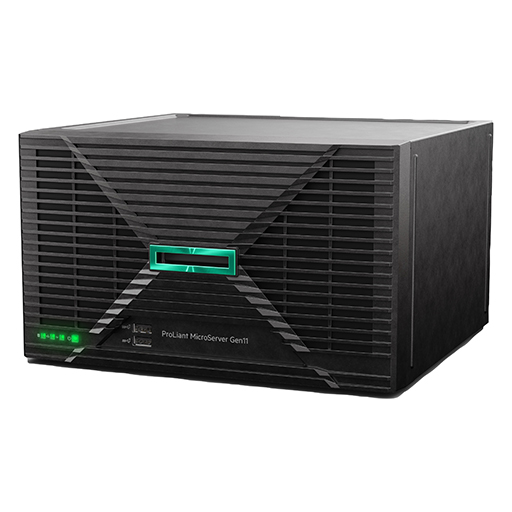

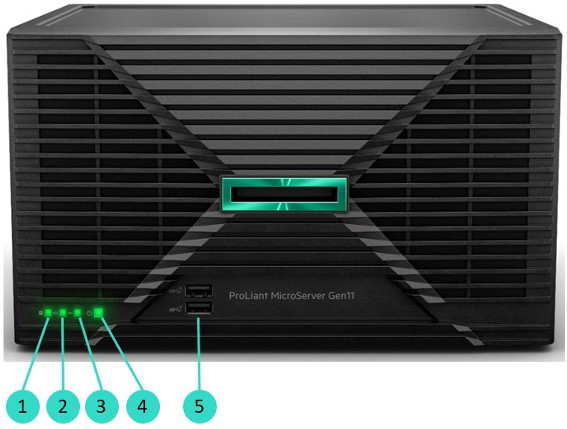

Front View (External)

• 1

  Drive activity LED

• 2

  NIC status LED

• 3

  Health LED

• 4

  Power on/ Standby button and system power LED

• 5

  USB 3.2 Gen2 Type-A ports

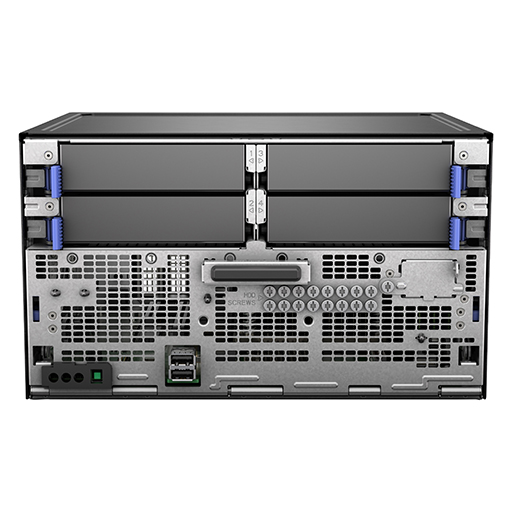

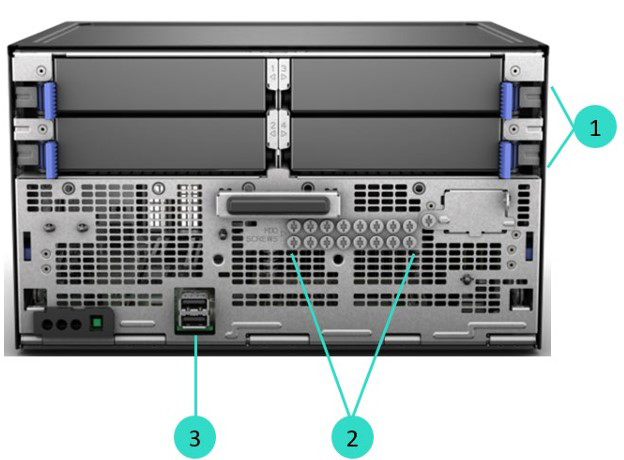

Front View (Internal)

• 1

  Four (4) LFF NHP SATA HDD cage

• 2

  Hard drive screws

• 3

  USB 3.2 Gen2 Type-A ports

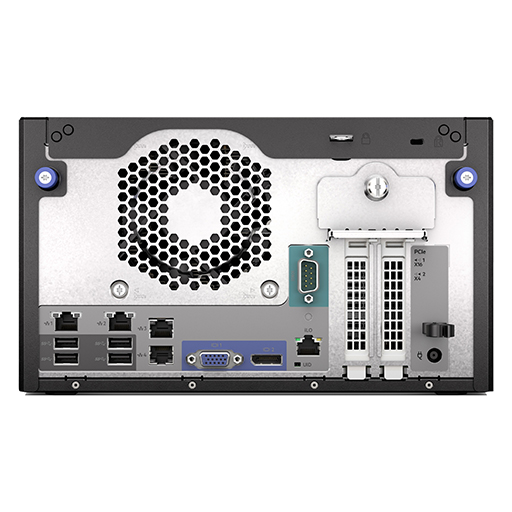

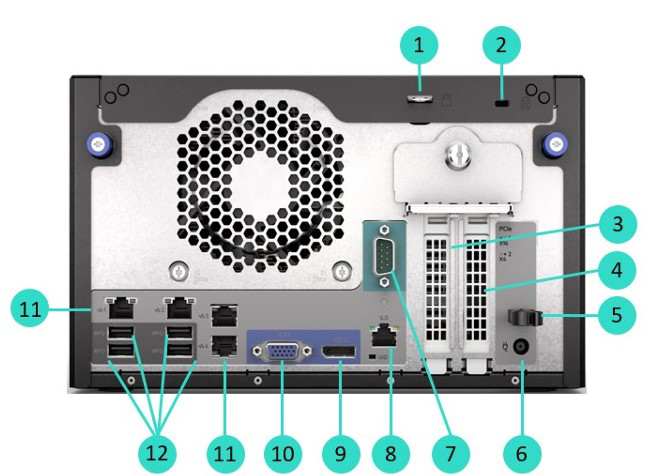

Rear View

• 1

  Padlock eye

• 2

  Kensington security slot

• 3

  (1) PCIe Gen5 low-profile slot (PCIe5 x16)

• 4

  (1) PCIe Gen4 low-profile slot (PCIe4 x8)

• 5

  Power clip hole (for the power cord clip to firmly secure the power adapter cord)

• 6

  Power jack

• 7

  Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)

• 8

  iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)

• 9

  Display Port 1.1a

• 10

  VGA Port

• 11

  Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)

• 12

  Four (4) USB 3.2 Gen1 Type-A ports

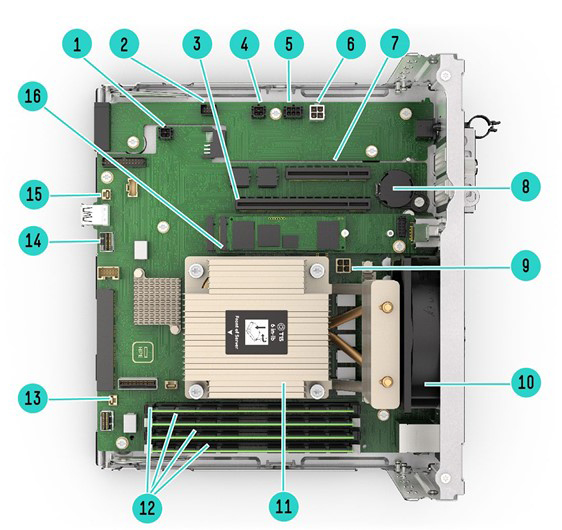

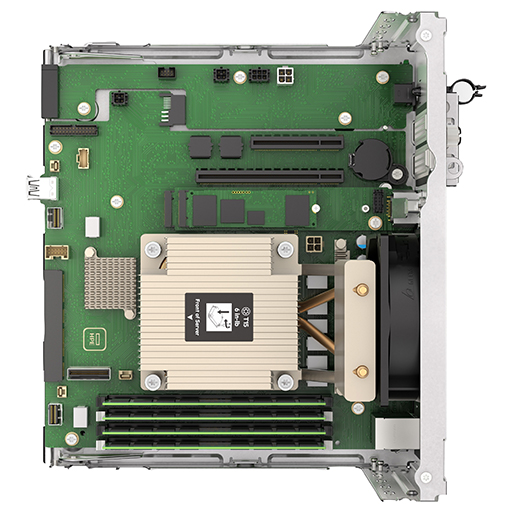

Mainboard View

• 1

  System board: System power connector

• 2

  Fan connector

• 3

  Slot 1 PCIe5 x16

• 4

  PDB: System power connector

• 5

  Drive power connector

• 6

  PDB: 4-pin processor power connector

• 7

  Slot 2 PCIe4 x8

• 8

  Coin battery

• 9

  System board: 4-pin processor power connector

• 10

  System fan

• 11

  One (1) processor and heatsink

• 12

  Four (4) DDR5 UDIMM slots

• 13

  Ambient temperature sensor connector

• 14

  SlimSAS x4 port

• 15

  Storage controller backup power connector

• 16

  M.2 slot (optional, enabled by the dedicated iLO/M.2/serial port kit)
