HPE P75207-425 ProLiant MicroServer Gen11 E-2434, 32GB UDIMM

The HPE ProLiant MicroServer Gen11 offers a practical balance of performance and simplicity, making it a strong fit for small offices and growing businesses. Powered by an Intel® Xeon® E-2434 processor, it combines compact design with enterprise-grade features. With 32GB of memory and 8TB of included storage, it's ready to take on local file serving, lightweight virtualization, and key business applications—all while staying power-efficient.

Key Features

• Intel® Xeon® E-2434 4-core processor ensures fast, stable processing for essential workloads.
• 32GB Unbuffered DDR4 memory supports multitasking and small business application demands.
• Two 4TB LFF non-hot-plug hard drives deliver ample local storage capacity for shared files and data backup.
• Compact microserver chassis is designed for deployment in space-constrained environments.
• 180W external power supply contributes to reduced energy use and easier maintenance.

What's New

• The latest Intel® Xeon® 6300-series, Intel® Xeon® E-2400, and Intel® Pentium® Gold processors supported.
• Four 4400 MT/s HPE DDR5 UDIMMs, offering 16 GB and 32 GB options, with up to 128 GB total memory capacity.
• Two PCIe expansion slots supporting the latest PCIe 5.0 standard for faster bandwidth.
• Optional M.2 slot enables fast OS boot times (available via optional HPE iLO/M.2/serial port kit).
• Optional serial port support through the dedicated HPE iLO/M.2/serial port option kit.
• Built-in HPE iLO6 remote server management now included—no module or activation key required.

Designed for Small Business

Its size, power efficiency, and hardware configuration make the Gen11 MicroServer a reliable starting point for companies moving toward in-house IT infrastructure.

Efficient Storage and Access

With dual 4TB hard drives and simple local file sharing capabilities, this server supports team collaboration and secure on-site data handling.

Cost-Conscious and Scalable

The modular build and affordable entry point help businesses grow without overspending on unused capacity, while allowing for expansion as needs evolve.

I/O Diagram (Front)

Key	Component
1	Four (4) LFF NHP SATA HDD cage
2	Hard drive screws
3	USB 3.2 Gen2 Type-A ports

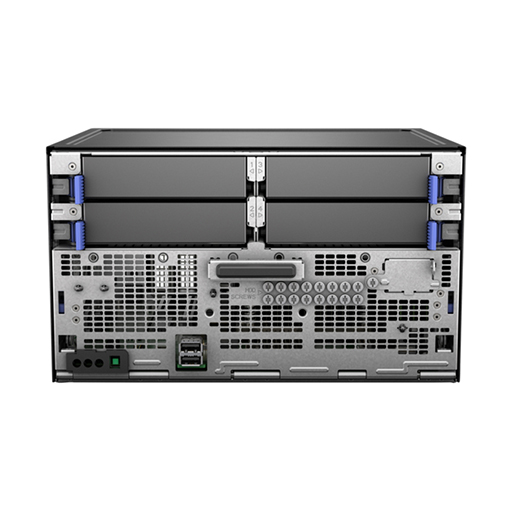

I/O Diagram (Back)

Key	Component
1	Padlock eye
2	Kensington security slot
3	(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4	(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5	Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6	Power jack
7	Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8	iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9	Display Port 1.1a
10	VGA Port
11	Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12	Four (4) USB 3.2 Gen1 Type-A ports
