HPE ProLiant DL300 Servers

The HPE ProLiant Compute DL360 Gen12 6505P Server is a powerful and space-efficient 1U rack server engineered for modern hybrid cloud environments, virtualisation, enterprise applications, and demanding business workloads. Equipped with an Intel® Xeon® 6505P 12-Core processor, 64GB DDR5 memory, dual enterprise SSDs, advanced storage management, and redundant Titanium-rated power supplies, this server delivers the performance, scalability, security, and reliability required for growing data centre infrastructures.

Key Features of the HPE ProLiant Compute DL360 Gen12 6505P Server Intel® Xeon® 6505P 12-Core processor running at 2.20GHz
64GB (2x32GB) DDR5 Smart Memory operating at 6400 MT/s
2x HPE 480GB SATA 6G Read Intensive SSDs included
Supports up to 8 SFF drive bays
HPE MR408i-o Gen11 storage controller with 4GB cache
Broadcom BCM57416 Dual-Port 10Gb BASE-T network adapter
Dual 1000W Flex Slot Titanium Hot Plug power supplies
HPE iLO 7 server management with Intelligent Provisioning
Supports up to 3 single-width GPUs
Advanced security features including TPM and Silicon Root of Trust
Compact 1U rack-optimised chassis
Designed for hybrid cloud, virtualisation, and enterprise workloads
Optimised Enterprise Processing Performance Powered by an Intel® Xeon® 6505P processor featuring 12 cores, 24 threads, and a substantial 48MB L3 cache, this server delivers consistent compute performance for business-critical applications, virtual machines, databases, and cloud environments. The Intel Xeon 6 architecture enhances efficiency while providing the scalability organisations need for future growth.

High-Speed DDR5 Memory Architecture With 64GB of HPE DDR5 Smart Memory pre-installed, operating at speeds of up to 6400 MT/s, the DL360 Gen12 provides faster data access, improved bandwidth, and greater system responsiveness. The platform supports significant memory expansion, making it suitable for memory-intensive workloads and large-scale virtualisation deployments.

Flexible Storage Capabilities The server supports up to eight Small Form Factor drive bays and includes two enterprise-grade HPE 480GB SATA SSDs for reliable operating system and application storage. Its versatile front storage architecture allows organisations to scale storage capacity as business requirements evolve.

Advanced RAID and Storage Management Managing storage efficiently is simplified through the HPE MR408i-o Gen11 Storage Controller. Featuring 4GB cache memory and SPDM support, it delivers enhanced RAID functionality, improved data protection, accelerated storage performance, and enterprise-class reliability.

Built for Hybrid Cloud Deployments The HPE ProLiant Compute DL360 Gen12 has been specifically engineered to support hybrid cloud strategies. Its balance of compute density, scalable memory resources, and flexible storage configurations makes it an ideal platform for cloud-native applications, virtualisation platforms, and software-defined infrastructure.

GPU Expansion for Accelerated Workloads Supporting up to three single-width GPUs, the DL360 Gen12 enables organisations to accelerate AI workloads, data analytics, virtual desktop infrastructure, and specialised compute applications while maintaining a compact 1U form factor.

High-Speed Network Connectivity Integrated networking is provided through the Broadcom BCM57416 dual-port 10Gb BASE-T adapter, delivering reliable high-bandwidth connectivity for demanding workloads, virtual environments, and modern data centre networking requirements.

Intelligent Infrastructure Management HPE iLO 7 Standard with Intelligent Provisioning provides comprehensive remote server management capabilities. The redesigned management interface, enhanced Redfish API integration, and automated deployment tools help simplify administration while improving operational efficiency.

Redundant Titanium Power Efficiency Two HPE 1000W Flex Slot Titanium Hot Plug Power Supplies provide resilient, energy-efficient operation. This redundant power configuration helps maximise uptime while reducing energy consumption and supporting sustainability objectives.

Advanced Security at Every Layer Security is integrated throughout the platform with features including TPM support, UEFI Secure Boot, Secure Start, Intel® Software Guard Extensions, Immutable Silicon Root of Trust technology, chassis intrusion detection support, and bezel locking capabilities. These technologies help safeguard critical business data and infrastructure.

Future-Ready Expandability The DL360 Gen12 supports up to three PCIe Gen5 expansion slots and up to two OCP 3.0 slots, providing flexibility for networking, storage, accelerator, and infrastructure upgrades. This ensures organisations can adapt the platform to meet changing business and workload demands.

Space-Efficient 1U Rack Design Designed for rack-dense environments, the compact 1U chassis maximises data centre space utilisation while maintaining excellent cooling performance. Multiple cooling options, including air and liquid cooling support, help optimise thermal efficiency for a wide range of deployment scenarios.

The HPE ProLiant DL320 Gen11, equipped with a 16-core Intel Xeon Silver 4514Y processor and designed around the Intel C741 chipset, is optimized for compact edge environments that demand reliability, performance, and expandability. Featuring a 1U rack-mountable form factor and support for advanced GPU and storage configurations, this unit balances power efficiency and performance at a single-processor scale, making it ideal for edge AI, virtualization, and distributed workloads.

Key Features: Single Intel Xeon Silver 4514Y processor: 16 cores, 2.0 GHz base, 3.4 GHz boost, 30 MB cache
Intel C741 chipset supports enhanced data throughput and system stability
64 GB DDR5-SDRAM (2 x 32 GB modules) with room to expand up to 2.04 TB via 16 DIMM slots
Memory clock speeds of 5600 MHz for faster performance in virtualized environments
Total storage of 960 GB with 2x 480 GB SATA SSDs installed; scalable up to 153 TB
RAID support and NVMe M.2 boot options for redundancy and faster data access
Dual Broadcom 5720 Gigabit Ethernet ports for high-availability networking
GPU-ready with support for 4 single-wide or 2 double-wide GPUs for AI workloads
2000 W power supply with redundancy, ensuring uptime in critical deployments
Chassis dimensions: 605.1 mm (W) x 434.6 mm (D) x 42.8 mm (H) — compact 1U server
Reliable Compute with 16-Core Intel Xeon Silver This configuration includes the Intel Xeon Silver 4514Y, delivering 16 cores of compute power with a 3.4 GHz turbo boost clock and 30 MB of smart cache. Its 1-processor layout keeps costs low while meeting the needs of mid-tier AI inference, lightweight virtualization, and edge data tasks.

High-Speed DDR5 and Scalable Memory Architecture Configured with 64 GB of DDR5-SDRAM (2 x 32 GB modules), the system can scale to 2.04 TB using 16 DIMM slots. Memory operates at 5600 MHz, enabling faster throughput and reduced latency for containerized and data-intensive workloads.

Flexible Storage and RAID-Ready Architecture With 960 GB of SSD storage across two 480 GB 2.5” SATA drives and expandability up to 153 TB, this server supports diverse data strategies. It includes support for RAID configurations and NVMe boot, ensuring system resilience and high I/O throughput.

Efficient I/O and Network Integration Connectivity is enabled via 2x Gigabit Ethernet ports powered by a Broadcom 5720 controller, alongside three USB 3.2 Gen 1 ports and a VGA port for local access. Integrated PCIe Gen5 and OCP3.0 slots provide headroom for expansion in data-heavy environments.

Compact, Redundant, and Ready for the Edge At only 1U in height and with a redundant 2000 W power supply, the DL320 Gen11 is built for resilience in edge installations. Its small footprint fits into tight spaces without compromising on performance, scalability, or manageability.

4LFF Front View 8SFF Front View 12LFF Front View Front View - GPU CTO Internal View Rear View

The HPE ProLiant DL345 Gen11 featuring the AMD EPYC™ 9115 processor delivers optimized compute for dense storage and virtualization environments. This 2U rack server provides robust processing with a 16-core, 2.60 GHz CPU, enhanced memory support, and scalable drive capacity—making it ideal for software-defined storage, virtualization, and analytics scenarios. It’s a purpose-built single-socket platform that brings balance between performance and power efficiency, supported by advanced management and network capabilities.

Key Features Equipped with 1x AMD EPYC™ 9115 processor (16 cores, 2.60 GHz, 64 MB L3 cache, 125W TDP)
Includes 64 GB DDR5 HPE Smart Memory (2x32 GB) at 6400 MT/s for high-speed data throughput
Up to 8 PCIe Gen5 expansion slots for scalable I/O and future flexibility
2x HPE 480GB SATA 6G Read Intensive SFF SSDs for secure and fast storage access
HPE MR416i-p Gen11 Storage Controller with 8GB Cache and PCI SPDM plug-in
Integrated Broadcom BCM5719 1Gb 4-port BASE-T OCP3 network adapter for dependable connectivity
2x HPE 1000W Titanium Flex Slot Hot Plug Power Supplies for energy-efficient, redundant power
Six standard fans for optimal thermal balance in a 2U rackmount design
Advanced management features via HPE iLO Standard and optional HPE OneView and Compute Ops Management
Performance-Driven Single Socket Design This configuration features a 16-core AMD EPYC™ 9115 processor running at 2.60 GHz, offering balanced performance for compute-heavy operations without excessive power consumption. A 64 MB L3 cache ensures smooth processing across core-intensive tasks.

Scalable Memory and Storage With 64 GB of included DDR5 Smart Memory at 6400 MT/s and support for up to 3 TB, this server is built to handle memory-bound operations. Storage includes two 480GB SATA SSDs, backed by a robust RAID controller with onboard cache for high availability and speed.

Built for I/O Expansion and Network Stability The server accommodates up to eight PCIe Gen5 slots and includes a 4-port 1Gb Ethernet controller to maintain reliable connectivity across workloads. Ideal for environments where expansion and flexibility are critical.

Energy-Conscious with Redundant Power Dual 1000W Titanium Flex Slot power supplies provide the efficiency and resilience needed in mission-critical deployments. Titanium certification ensures reduced power waste and optimal performance across variable loads.

Integrated Management for Simplified Operation HPE iLO and OneView tools provide comprehensive server control from anywhere. Seamless provisioning, monitoring, and lifecycle management are built-in, ensuring minimal overhead and maximum uptime.

24SFF Front View Internal View Rear View

The HPE ProLiant DL365 Gen11, equipped with the AMD EPYC™ 9224 processor, is a 1U rack-mounted dual-socket server built for compute-heavy environments requiring scalable performance and reliable infrastructure. This specific configuration delivers robust processing, fast DDR5 memory, and enterprise-grade SSD storage in a compact footprint, ideal for modern data centers focused on virtualization, HPC, and hybrid cloud applications.

Key Features Includes an AMD EPYC™ 9224 CPU with 24 cores, 64 MB L3 cache, and base/turbo speeds of 2.5 GHz / 3.7 GHz
64 GB DDR5-SDRAM (2 x 32 GB) running at 4800 MHz, with support for future memory scalability
960 GB total SSD capacity across 2 x 480 GB SATA 2.5" SSDs, RAID supported, with up to 8 SSDs possible
Enterprise-class 10 GbE networking powered by Broadcom BCM57416 dual-port RJ-45
Redundant 2000 W power supply installed for fault tolerance and uptime assurance
Built-in Trusted Platform Module (TPM) for hardware-level security and data protection
Supports Direct Liquid Cooling (DLC) and EDSFF for future-ready efficiency and drive density
Comes with HPE iLO 6 for secure remote management and seamless system maintenance
High-Performance Compute Core Featuring the AMD EPYC™ 9224 processor with 24 cores and boost speeds up to 3.7 GHz, this DL365 Gen11 configuration is optimized for multi-threaded workloads and consistent server performance.

DDR5 Memory Power This server includes 64 GB of high-speed DDR5 memory at 4800 MHz in a 2 x 32 GB layout, offering higher bandwidth and improved energy efficiency, ideal for demanding business applications.

Enterprise Storage Configuration Preconfigured with 2 x 480 GB SATA SSDs, this setup delivers 960 GB of total storage with RAID capabilities. The 2.5" SSD bays support up to 8 drives for scaling capacity as needed.

Advanced Network Infrastructure With dual 10 Gigabit Ethernet ports powered by the Broadcom BCM57416 controller, this server ensures high-throughput and low-latency connectivity for critical data operations.

1U Rack-Dense Efficiency The ProLiant DL365 Gen11 fits perfectly in 1U rack spaces, offering dense compute power in compact environments. Rack mounting and enterprise design ensure consistent airflow and performance.

Built-In Redundancy This configuration includes a 2000 W redundant power supply to minimize downtime and ensure reliable power delivery for essential workloads.

Comprehensive Server Management With HPE iLO 6, administrators gain full remote access for secure configuration, monitoring, and updates from anywhere, streamlining maintenance and deployment tasks.

Security-First Architecture The integrated Trusted Platform Module (TPM) and HPE’s Silicon Root of Trust safeguard firmware integrity and provide hardware-based security across the system lifecycle.

Front View - 8SFF & No Media Option Internal View Rear View

The HPE ProLiant DL380 Gen11 server, equipped with a single Intel® Xeon® Gold 6530 processor, delivers optimized compute capacity for environments requiring scalable and secure infrastructure. Designed in a 2U rack-mountable chassis, this server combines performance-focused hardware such as DDR5 memory, SATA SSDs, and advanced I/O features to handle mid-to-heavy workloads across virtualized, data-intensive, and hybrid cloud deployments.

Key Features Intel® Xeon® Gold 6530 processor with 32 cores, 160 MB cache, and up to 4.0 GHz boost frequency
64 GB DDR5-SDRAM (2 x 32 GB) installed, scalable up to 8 TB across 32 DIMM slots
Dual 480 GB SATA III SSDs pre-installed; supports up to 8 x 2.5" SSDs
Integrated RAID support with levels 0, 1, 5, and 10 for flexible storage configuration
High-speed networking via Broadcom BCM57414, supporting 10/25 GbE with SFP28 connectivity
iLO 6 server management for secure remote control and lifecycle management
Redundant 2000 W power supply unit installed with RPS support
TPM 2.0 security module for enhanced platform integrity
Advanced Compute with Xeon Gold At the heart of this system is the Intel® Xeon® Gold 6530 processor, featuring 32 cores, 160 MB of cache, and speeds up to 4.0 GHz. This CPU delivers strong parallel performance for complex virtualization, analytics, and enterprise workloads.

DDR5 Memory for Performance and Headroom Factory-installed with 64 GB (2 x 32 GB) DDR5-SDRAM at 5600 MHz, the server supports up to 8 TB via 32 DIMM slots. The memory architecture ensures lower latency, improved efficiency, and readiness for demanding in-memory workloads.

Scalable and Secure Storage With 2 x 480 GB SATA III SSDs installed and support for up to 8 drives, the DL380 Gen11 provides high-availability storage options. RAID configurations (0, 1, 5, 10) ensure redundancy and data protection for business-critical operations.

Reliable Network and Expansion Options Built with a Broadcom BCM57414 LAN controller and SFP28 fiber connectivity, this server supports both 10GbE and 25GbE speeds, ideal for data center and cluster deployments. Expansion is enabled through high-speed PCIe Gen5 slots.

Infrastructure-Grade Design This rack-ready 2U chassis features a robust layout for airflow and cable management, making it suitable for scale-out environments. At 41.3 kg and nearly 1 meter in depth, it’s engineered for stability and accessibility in dense data center configurations.

Management, Security, and Power Redundancy Integrated HPE iLO 6 allows secure remote server configuration and updates. With TPM 2.0 support and a redundant 2000 W power supply unit, the system is designed for continuous operation in critical enterprise environments.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL360 Gen11 Server, featuring the Intel Xeon Silver 4410Y processor, is engineered to deliver robust performance in a compact 1U form factor. Tailored for data-intensive workloads, this server combines high-speed memory, advanced storage options, and efficient power management to meet the demands of modern IT environments.

Key Features: Intel Xeon Silver 4410Y 2.0GHz 12-core processor for reliable performance.
32GB DDR5 Registered memory, scalable to meet growing workload requirements.
MR408i-o storage controller supporting advanced RAID configurations.
Eight Small Form Factor (SFF) drive bays for flexible storage solutions.
800W power supply ensuring energy efficiency and reliability.
Integrated networking capabilities for seamless connectivity.
What's New: Introduction of the 4th Gen Intel Xeon Scalable processors, enhancing compute performance.
Support for DDR5 memory technology, offering higher bandwidth and efficiency.
Enhanced storage controller options for improved data management.
Updated power supply units for better energy consumption.
Drive support label
Serial number/iLO information pull tab
Quick removal access panel
Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
Display Port (optional – shown)
Optical drive (optional – shown)
USB2.0 port (optional)
iLO Service port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
USB 3.2 Gen1 port
Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
Notes:

- Optional- Systems Insight Display (SID) module is available for 8 SFF CTO Server and will be installed at the left-hand side of iLO Service port and USB 3.2 Gen1 port.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Storage and Expandability Equipped with eight SFF drive bays and the MR408i-o controller, this server offers versatile storage configurations. It supports various RAID levels, ensuring data protection and performance optimization.

Energy Efficiency The 800W power supply is designed for high efficiency, reducing operational costs and environmental impact. Advanced thermal management ensures optimal performance under varying workloads.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Performance and Scalability The DL360 Gen11 is designed to handle demanding workloads with its 12-core processor and scalable memory architecture. Its compact design does not compromise on performance, making it suitable for various enterprise applications.

Networking and Connectivity Integrated networking features provide high-speed connectivity options, facilitating seamless data transfer and communication across networks. The server's design allows for easy integration into existing IT infrastructures.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th and 5th Gen Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows. Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, it adds hardware- and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility.

Harness major computer performance. The HPE ProLiant DL360 Gen11 server is powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores, 385W, and up to 8 TB of memory.

The HPE ProLiant DL360 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL345 Gen11 Server featuring the AMD EPYC™ 9124 processor offers a cost-effective, high-density 1P rack solution purpose-built for data-heavy environments. With a 3.0 GHz base frequency, 16 cores, and support for up to 3 TB of DDR5 memory, this 2U server delivers enterprise-grade computing power with a focus on efficient scaling and streamlined performance for storage-driven applications.

Key Features Powered by AMD EPYC™ 9124 processor with 16 cores, 64 MB cache, and up to 3.7 GHz boost frequency.
64 GB DDR5-SDRAM installed (2 x 32 GB) with support for up to 3 TB across 12 DIMM slots.
4800 MHz memory speed optimized for bandwidth-sensitive applications.
Two 480 GB SATA SSDs pre-installed; up to 8 SSDs supported and max storage capacity of 261.12 TB.
RAID support for high-availability configurations; no optical drive included.
Broadcom BCM5719 Gigabit Ethernet with 4 x RJ-45 ports for scalable network throughput.
Includes 3 USB 3.2 Gen 1 Type-A ports and 1 VGA output for local management.
Redundant 2000 W power supply installed for continuous operation and energy efficiency.
Fits into a standard 2U rackmount chassis (87.5 mm H, 646 mm W, 448 mm D).
Efficient 1P Compute Power Equipped with a single AMD EPYC 9124 processor running at 3.0 GHz, this server strikes the right balance between performance and energy-conscious operation. With 16 cores and 64 MB of L3 cache, it’s designed for modern workloads with consistent processing demands.

DDR5 Memory Optimization The DL345 Gen11 supports up to 3 TB of high-speed DDR5 memory, and comes pre-configured with 64 GB. Twelve DIMM slots and 4800 MHz clock speeds allow for faster data handling and smooth multitasking across memory-intensive applications.

Data-Ready Storage Capabilities With 960 GB of total pre-installed SSD storage and the ability to scale to 261.12 TB, this server is ideal for virtualized storage, backup systems, and read/write-intensive workloads. RAID support adds fault tolerance to critical data infrastructure.

Network Versatility and I/O Integrated Broadcom BCM5719 Ethernet controller offers robust connectivity via four RJ-45 ports, while USB 3.2 and VGA ports provide simplified local access and maintenance capabilities.

Reliable Power and Design The rack-mounted 2U design includes a 2000 W redundant power supply, ensuring uptime in demanding environments. With hot-swappable options and a resilient build, it's made for data centers that can’t afford delays.

Targeted for Virtualized and Storage-Heavy Workloads Ideal for environments running software-defined storage or large-capacity file systems, the HPE ProLiant DL345 Gen11 provides reliable compute and configurable storage in a compact footprint.

24SFF Front View Internal View Rear View

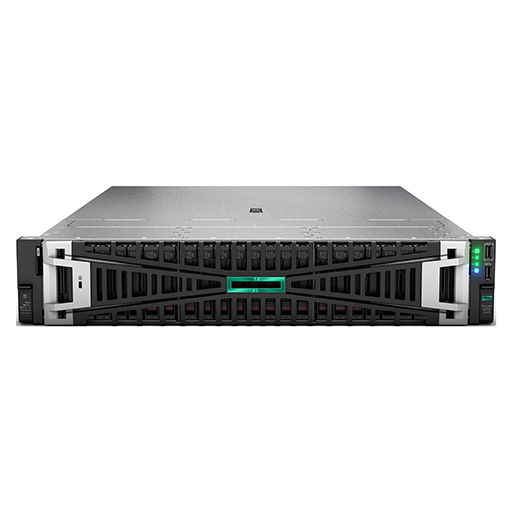

The HPE ProLiant DL380 Gen11 Rack Server is built for performance, scalability, and flexibility—making it a smart choice for hybrid cloud operations, data analytics, and enterprise virtualization. This specific configuration features a 12-core Intel Xeon Silver 4510 processor, 64 GB DDR5 memory, and 4.8 TB of SAS-based storage. Designed in a 2U rack chassis with redundant power and high-speed I/O options, this server provides enterprise-grade reliability while supporting next-gen infrastructure demands.

Key Features 12-core Intel Xeon Silver 4510 processor with base clock of 2.4 GHz and turbo up to 4.1 GHz
64 GB DDR5-SDRAM memory installed (2 x 32 GB), scalable up to 8 TB with 32 DIMM slots
4.8 TB total SAS storage using two 2.4 TB drives, with support for RAID levels 0, 1, 5, and 10
Broadcom BCM5719 LAN controller with 4 x Gigabit Ethernet RJ-45 ports
Redundant 2000W power supply for continuous uptime
Chassis supports rack mounting (2U height) for data center integration
Optimized Compute with Intel Xeon Silver Powered by a 12-core Intel Xeon Silver 4510 processor running at 2.4 GHz with a turbo boost up to 4.1 GHz, this DL380 Gen11 model provides efficient compute for workloads that require consistent performance across multiple virtual machines or database instances.

Next-Level Memory Capabilities Preconfigured with 64 GB of DDR5 memory using two 32 GB modules, this server can scale to 8 TB across 32 DIMM slots. Operating at 5600 MHz, DDR5 technology ensures faster data access and lower power consumption, helping your workloads run smoothly under heavy memory demand.

Enterprise Storage with RAID Support With 4.8 TB of storage via two 2.4 TB SAS drives and hardware RAID support (RAID 0, 1, 5, 10), the system provides both performance and data protection. Ideal for transactional applications, storage-hungry VMs, or as part of a tiered storage architecture.

High-Availability Power and Connectivity This unit includes a 2000W redundant power supply setup and offers a total of four Gigabit Ethernet ports for network redundancy. The Broadcom BCM5719 controller ensures reliable connectivity across demanding networked environments.

Designed for Rack-Mount Deployments At 2U height and 41.3 kg, the ProLiant DL380 Gen11 is optimized for data center integration. Its depth (998 mm) and width (600 mm) allow for standard rack compatibility while offering powerful internals in a compact footprint.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

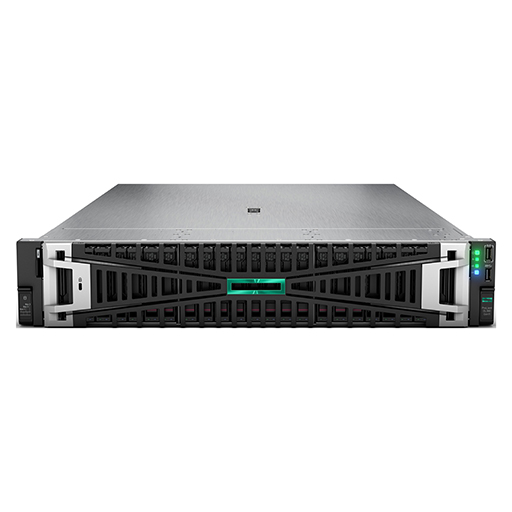

The HPE ProLiant DL385 Gen11 server with AMD EPYC™ 9115 is a 2U rack-mounted platform designed for businesses that require dependable multi-core performance, high-speed DDR5 memory, and scalable expansion in dense environments. With a 16-core processor, high-throughput I/O options, robust power redundancy, and intelligent remote management, this system is well-positioned to support workloads in virtualization, storage-intensive applications, and compute-bound operations.

Key Features Powered by AMD EPYC™ 9115 processor with 16 cores, 2.60 GHz base frequency, and 64 MB L3 Cache
Includes 64 GB (2x32 GB) HPE DDR5 Smart Memory running at 6400 MT/s
Features 6x high-efficiency performance fans for optimal thermal regulation
Up to 8 expansion slots for advanced network, GPU, or storage controller integration
Equipped with Broadcom BCM57416 10Gb 2-port BASE-T OCP3 network controller
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device for system-level storage management
Supports up to 8 LFF drives; none included as standard
Dual HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kits ensure power redundancy and efficiency
Includes HPE iLO Standard and Intelligent Provisioning, with options for iLO Advanced and HPE OneView suite
Enterprise-Class Processor Performance This configuration includes the AMD EPYC™ 9115 processor with 16 physical cores running at 2.60 GHz and 64 MB of L3 cache. Built on 5nm technology, it delivers power-efficient compute for demanding multi-threaded tasks while staying within a 125W TDP.

High-Speed Memory Integration Preloaded with 64 GB of HPE DDR5 Smart Memory (2x32 GB), the DL385 Gen11 supports up to 6400 MT/s speeds, giving memory-intensive applications the bandwidth they require to maintain throughput and efficiency.

Thermal Efficiency and Expandability Outfitted with 6x performance cooling fans, this 2U chassis ensures stable operation across varying environmental conditions. Up to 8 PCIe expansion slots are available for future growth in storage, networking, or GPU acceleration.

Integrated I/O and Storage Flexibility This model ships with a Broadcom 10Gb dual-port BASE-T OCP3 network adapter and HPE NS204i-u NVMe boot controller. While drives are not included by default, the chassis supports up to 8 LFF drives for scalable on-prem storage capacity.

Power Redundancy and Remote Management Includes dual 1000W Titanium-rated Flex Slot power supplies for high-efficiency, redundant operation. Administrators can leverage HPE iLO and Intelligent Provisioning tools for secure remote configuration and lifecycle management.

Form Factor, Dimensions, and Build This rack-ready server fits a standard 2U profile and measures 60 x 91.77 x 27 cm (23.62 x 36.13 x 10.63 in) with a total weight of 42.82 kg (94.402 lb), making it a reliable fit for high-density data center environments.

Front View - SFF Server Front View - GPU Server Rear View Internal View

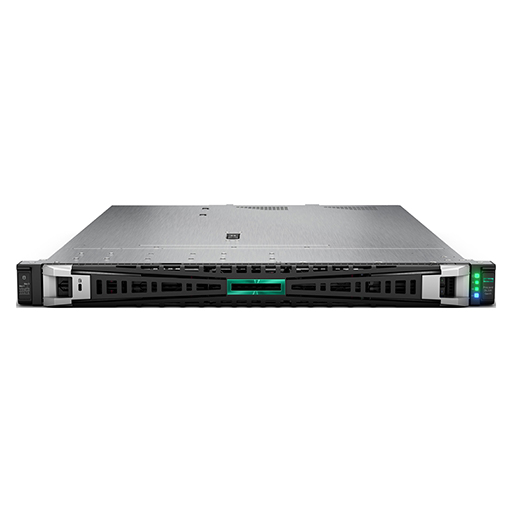

The HPE ProLiant DL325 Gen11 Server is a compact yet performance-focused 1U rack solution built for virtualization, data-centric workloads, and edge computing. With a 16-core AMD EPYC™ 9115 processor, DDR5 Smart Memory, enterprise-grade SSDs, and robust remote management, this server combines power efficiency and scale-out potential in a single-processor design.

Key Features: 1x AMD EPYC™ 9115 Processor (16-core, 2.60 GHz, 64 MB L3, 125W TDP)
64 GB DDR5 (2x32 GB, 6400 MT/s) HPE Smart Memory
2x 480GB SATA 6G Read Intensive SFF SSDs
HPE MR408i-o Gen11 Storage Controller (4GB cache, x8 lanes, SPDM support)
Broadcom BCM5719 Ethernet – 4x 1GbE ports via OCP3 Adapter
4 PCIe expansion slots maximum (as per QuickSpecs)
7x Standard Fans for enhanced thermal performance
Dual HPE 1000W Flex Slot Titanium Hot Plug PSUs
HPE iLO Standard, OneView support, and optional iLO Advanced licenses
AMD EPYC-Powered Performance At its core, the DL325 Gen11 is equipped with a 16-core AMD EPYC™ 9115 CPU operating at 2.60 GHz and 64 MB of L3 cache, delivering strong multi-threaded performance for compute-intensive applications and virtualized workloads.

Optimized DDR5 Memory Architecture Installed with 64 GB of high-speed HPE DDR5 Smart Memory running at 6400 MT/s, the server supports memory-intensive operations with improved power efficiency and data throughput.

Enterprise-Class Storage with Redundancy Pre-installed with two 480GB SATA Read Intensive SSDs, this system ensures fast and reliable storage access. The HPE MR408i-o Gen11 RAID controller offers 4GB of cache and advanced data protection features.

Dense, Scalable Rack Form Factor Built in a 1U rack-mount chassis, the DL325 is ideal for dense deployment environments. It supports up to four PCIe slots for expansion and includes seven system fans to maintain thermal stability under load.

Power Efficiency and Redundancy Dual HPE 1000W Flex Slot Titanium-rated hot-plug power supplies provide power redundancy, energy efficiency, and high availability for critical business operations.

Comprehensive Network and System Management Integrated with a Broadcom 4-port 1GbE OCP3 adapter and HPE iLO for embedded management, the server supports full infrastructure orchestration via HPE OneView and optional security enhancements with iLO Advanced licenses.

Front View - 8SFF + optional 2SFF Drive Bay Internal View Rear View

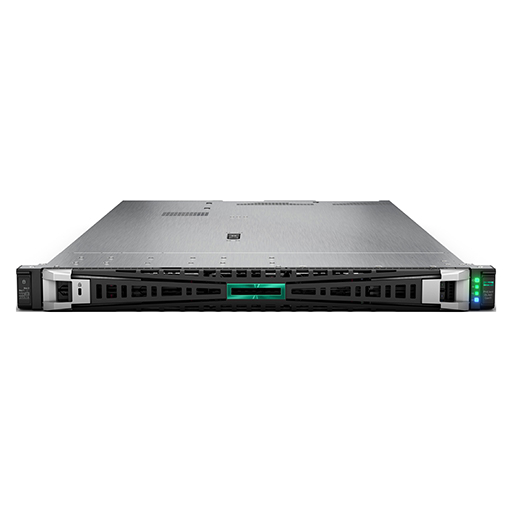

Built to deliver reliable compute power for dense workloads, the HPE ProLiant DL365 Gen11 9115 server features a 1U chassis with AMD EPYC™ 9115 processor, enterprise-class DDR5 memory, and advanced PCIe Gen5 connectivity. With 16 cores running at 2.60 GHz, integrated 10Gb networking, and dual 480GB SSDs, this rack server is tailored for data centers needing compact, secure, and high-performing infrastructure.

Key Features: Powered by a single AMD EPYC™ 9115 16-core processor (2.60 GHz, 64 MB L3 cache, 125W TDP)
64 GB DDR5 HPE Smart Memory (2 x 32 GB, 6400 MT/s) installed
PCIe Gen5 architecture with 2 total expansion slots
Includes 2x HPE 480GB SATA 6G Read Intensive SFF SSDs
HPE MR408i-o Gen11 Storage Controller with 4 GB cache
Broadcom BCM57416 10Gb Ethernet 2-port BASE-T OCP3 Adapter
7x Standard Fans for efficient thermal management
HPE iLO Standard embedded, with options for advanced management suites
1U rack form factor with optional optical drive support
Dual 1000W Titanium Hot Plug Flex Slot Power Supplies included
Reliable Compute with EPYC 9115 Power This configuration includes one AMD EPYC™ 9115 processor delivering 16 cores at 2.60 GHz with 64 MB of L3 cache. Engineered with a 125W power envelope, it offers performance efficiency ideal for virtualized workloads and compute-heavy applications.

High-Speed Memory and Storage Options Equipped with 64 GB of DDR5 Smart Memory (2 x 32 GB modules at 6400 MT/s), this system supports enhanced memory bandwidth and energy efficiency. Storage includes two 480GB SATA SSDs managed by the high-performance HPE MR408i-o Gen11 controller.

Flexible Expansion and Connectivity Two PCIe Gen5 expansion slots and an integrated dual-port 10Gb Ethernet adapter allow for modern network integration and future upgrades. Optional DVD-ROM/RW support ensures adaptability for legacy media requirements.

Optimized Thermal and Power Management The 7-fan thermal solution ensures consistent cooling even under high workloads. Power is supplied by dual 1000W Titanium-rated Flex Slot modules, supporting high efficiency and redundancy.

Centralized Management and Security Comes preloaded with HPE iLO Standard and Intelligent Provisioning for streamlined deployment and monitoring. Advanced licenses like iLO Advanced and OneView are available for broader lifecycle control and infrastructure automation.

Compact Rack Design with Enterprise-Grade Build Housed in a 1U rack chassis, this unit weighs 29.36 kg and measures 91.6 x 60 x 24.2 cm, making it ideal for space-conscious data center environments. Built with enterprise durability in mind, it’s ready for continuous operation and rapid deployment.

Front View - 8SFF & No Media Option Internal View Rear View

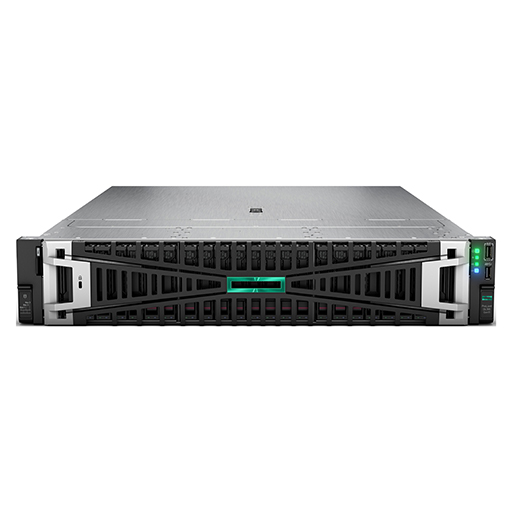

Configured with an Intel Xeon Silver 4514Y processor and engineered for reliable scalability, the HPE ProLiant DL380 Gen11 server delivers dependable performance for growing enterprise workloads. Its DDR5 memory architecture, high-speed storage, and built-in expandability make it an ideal solution for organizations needing consistent computing with room to scale.

Key Features 1x Intel Xeon Silver 4514Y processor with 16 cores, 30 MB cache, 2.0 GHz base, and up to 3.4 GHz boost.
64 GB DDR5-SDRAM (2 x 32 GB), expandable up to 8 TB with 32 DIMM slots running at 5600 MHz.
Total storage capacity of 4.8 TB using 2 x 2.4 TB SAS HDDs; supports maximum capacity of 583.3 TB.
RAID support included for high availability and storage redundancy.
Dual Broadcom BCM57416 10GbE LAN controllers for high-speed network throughput.
3x USB 3.2 Gen 1 Type-A ports and 1x VGA port for versatile connectivity.
Trusted Platform Module (TPM) 2.0 included for hardware-based system integrity.
Redundant power supply configuration with 1x 2000W PSU installed.
2U rack-mounted chassis design measuring 732.5 mm wide, 448 mm deep, and 87.5 mm high.
Performance-Driven Architecture At its core, the server features a 16-core Intel Xeon Silver 4514Y processor built for balanced performance and energy efficiency. Combined with 64 GB of DDR5 memory, it ensures smooth operation of multi-threaded applications and virtualized workloads.

High-Capacity Storage, RAID Support This configuration includes 4.8 TB of SAS-based storage via two 2.4 TB HDDs, offering enterprise-grade durability and speed. RAID functionality ensures resilience and data protection across a potential capacity of up to 583.3 TB.

Advanced Memory and Expansion Potential With support for up to 8 TB of DDR5 RAM across 32 DIMM slots, the server is well-suited for memory-intensive operations. The 5600 MHz clock speed ensures high throughput and low latency for real-time processing demands.

Secure, Remote-Ready, and Network-Optimized Equipped with dual 10GbE interfaces, TPM 2.0, and redundancy features, the DL380 Gen11 ensures secure deployment and stable operations in data centers or remote environments. Integrated management tools (iLO 6, sold separately) streamline monitoring and system updates.

Enterprise-Grade Build and Power Efficiency The server’s 2U rack form factor with redundant 2000W power supply support offers data center-grade reliability. Its optimized airflow and energy-conscious design help maintain uptime without compromise.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL385 Gen11 – AMD EPYC 9015 configuration delivers enterprise-grade performance in a compact 2U rackmount chassis. Equipped with a single 8-core AMD EPYC™ 9015 processor, 64 GB of DDR5 memory, and dual 480GB SATA SSDs, this server is purpose-built for virtualized workloads, general-purpose computing, and secure remote operations. Designed with high-speed connectivity, efficient thermal architecture, and robust power capabilities, it offers dependable compute density for evolving IT needs.

Key Features: AMD EPYC™ 9015 processor with 8 cores at 3.60 GHz and 64 MB L3 cache
64 GB (2x32 GB) DDR5 Smart Memory at 6400 MT/s
HPE MR408i-o Gen11 Storage Controller with 4GB Cache and SPDM support
2x 480GB SATA 6G Read Intensive SFF SSDs for fast, reliable storage
Broadcom BCM57416 10Gb 2-port BASE-T OCP3 Network Adapter
8 total expansion slots with PCIe Gen5 support
2x HPE 1000W Flex Slot Titanium Hot Plug Power Supplies
6x standard cooling fans for optimal thermal performance
Integrated HPE iLO Standard, Intelligent Provisioning, and OneView support
Compute-Optimized AMD EPYC Power Featuring the AMD EPYC™ 9015 processor, this server provides 8 physical cores running at 3.60 GHz with 64 MB L3 cache. Built for power efficiency and steady performance under load, it's ideal for workloads that benefit from consistent single-socket operation.

Fast DDR5 Memory and Expandability Equipped with 64 GB of DDR5 Smart Memory, the system supports ultra-fast 6400 MT/s memory speeds. The Gen11 platform also allows future scalability across 24 DIMMs and up to 6 TB RAM for environments with growing data requirements.

Storage and I/O Architecture The MR408i-o Gen11 controller supports RAID acceleration with 4GB cache, while the included dual 480GB SSDs provide read-intensive performance. With 8 PCIe slots and Gen5 readiness, the system is primed for high-throughput networking or storage expansion.

High-Efficiency Power and Cooling Redundant 1000W Titanium hot-plug power supplies ensure high energy efficiency and availability. The six standard system fans support stable operation even under dense computing loads, making it ideal for rack-based deployments.

Embedded Management and Monitoring Built-in HPE iLO Standard with support for OneView and optional advanced licenses simplifies system provisioning, monitoring, and ongoing lifecycle management, whether local or remote.

Front View - SFF Server Front View - GPU Server Rear View Internal View

Purpose-built for virtualization, container orchestration, and compute-intensive workloads, the HPE ProLiant DL360 Gen11 featuring the Intel® Xeon® Silver 4510 offers a compact, powerful solution in a 1U form factor. With a 12-core, 2.4 GHz processor (boosting up to 4.1 GHz), 64 GB DDR5 memory, and dual 2.4 TB SAS drives, this server blends performance with scalable infrastructure for mid-tier data operations. Ideal for organizations needing consistent performance, reliable RAID storage, and seamless network connectivity, this configuration delivers compute strength without overprovisioning.

Key Features 1 x Intel® Xeon® Silver 4510 processor with 12 cores and 30 MB cache
Base frequency of 2.4 GHz with turbo boost up to 4.1 GHz
64 GB DDR5 memory (2 x 32 GB DIMMs), expandable to 4 TB
Memory speed of 5600 MHz across 16 DIMM slots
2 x 2.4 TB SAS hard drives with RAID support for data protection
Maximum storage capacity up to 153.6 TB
Broadcom BCM5719 Gigabit Ethernet with dual RJ-45 ports
3 x USB 3.2 Gen 1 ports and 1 VGA port for flexible connectivity
Trusted Platform Module 2.0 for secure cryptographic operations
Dual redundant 2000W power supplies (1 installed)
Compact 1U rack chassis (Height: 42.9 mm, Width: 753.1 mm, Depth: 434.6 mm)
Mid-Tier Compute Power in a Compact Form Driven by the Intel® Xeon® Silver 4510 processor, this server configuration offers 12 physical cores and a 30 MB cache—balancing compute density and power efficiency for mid-range workloads. With boost speeds up to 4.1 GHz, it handles concurrent tasks in virtualized environments effectively.

Efficient DDR5 Memory Scalability Configured with 64 GB of high-speed DDR5-SDRAM (2 x 32 GB), this server supports a total capacity of up to 4 TB across 16 DIMM slots. Running at 5600 MHz, it ensures fast access to data for memory-intensive applications, while offering room to scale for future demands.

Reliable SAS Storage with Room to Expand Equipped with two 2.4 TB SAS drives, the DL360 Gen11 delivers enterprise-grade storage with built-in RAID support for enhanced data integrity. The chassis supports a total storage capacity of up to 153.6 TB, making it suitable for structured data workloads and virtual desktop infrastructures (VDIs).

Enterprise Connectivity and Control With integrated Broadcom BCM5719 dual-port Gigabit Ethernet and three USB 3.2 Gen 1 ports, the DL360 Gen11 provides reliable, high-speed connectivity. A VGA port supports legacy monitoring, and TPM 2.0 ensures secure credential storage and cryptographic functions.

Redundancy and Compact Rack Optimization Designed in a space-saving 1U rack form factor, this unit includes one installed 2000W power supply with redundancy support. It delivers consistent uptime in critical deployments while optimizing energy use within dense server environments.

.bullet{ background-color: #3dd0b7; color: black; } 8 SFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
5 Display Port (optional – shown)
6 Optical drive (optional – shown)
7 USB 2.0 port (optional)
8 iLO Service port
9 Power On/Standby button and system power LED
10 Health LED
11 NIC status LED
12 Unit ID button/LED
13 USB 3.2 Gen1 port
14 Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
4 SFF Front View 1 Drive support label
2 Optical drive (optional – shown)
3 Serial number/iLO information pull tab
4 Quick removal access panel
5 Option: Display port & USB 2.0 port bundle kit (blank shown)
6 USB 3.2 Gen1 port
7 iLO Service Port
8 Power On/Standby button and system power LED
9 Health LED
10 NIC status LED
11 Unit ID button/LED
12 SAS/SATA drive bays (12G x1 SAS LP BP embedded)
20 EDSFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 iLO Service Port
5 Power On/Standby button and system power LED
6 Health LED
7 NIC status LED
8 Unit ID button/LED
9 USB 3.2 Gen1 port
10 EDSFF drive bays (32G x4 NVMe BP embedded)
Internal View 1 Liquid Cooling Module connector
2 x8 SlimSAS ports (1A to 4A, 1B to 4B)
3 DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
4 Socket 2 MCIO ports (1 & 2)
5 Backplane Power connector
6 Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
7 Redundant Power Supply (1 & 2 as shown)
8 Secondary (CPU 2) Riser PCIe 5.0
9 SID connector (optional feature, 8 SFF only)
10 Energy Pack connector
11 OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
12 HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
13 System Battery
14 Primary (CPU1) Riser PCIe 5.0
15 OCP Slot port
16 Front Display Port and USB 2.0 connector (optional feature)
17 LP SlimSAS ports (1 & 2)
18 Chipset
19 Front I/O and USB 3.2 Gen1 connector
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser)
20 SATA Optical port
21 Socket 1 MCIO connector
22 CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
23 Hot plug (dual rotor) High Performance Fan Kit (7 fans)
24 HPE Hybrid Capacitor or HPE Storage Battery holder

The HPE ProLiant DL360 Gen11 server is built to deliver dense, efficient performance in a 1U rack-optimized chassis. Preconfigured with a 16-core Intel Xeon Silver 4514Y processor and 64 GB of DDR5 memory at 5600 MHz, this platform is ideal for businesses seeking a reliable solution for virtualization, hybrid cloud, and high-volume compute tasks—all within a compact footprint.

Key Features Equipped with 1 x Intel Xeon Silver 4514Y processor (16 cores, 3.4 GHz turbo, 30 MB cache)
64 GB DDR5 memory (2 x 32 GB modules) with support for up to 4 TB across 16 DIMM slots
Dual 480 GB SATA SSDs for 960 GB of total storage, expandable up to 153.6 TB
RAID support for improved data protection and storage performance
Dual 10 Gigabit Ethernet via Broadcom BCM57416 controller
3 USB 3.2 Gen 1 ports and 1 VGA port for streamlined access and control
Integrated HPE iLO 6 management for secure remote server administration
TPM 2.0 module for trusted platform security
2000 W power supply with redundant PSU support for maximum uptime
Enterprise-Class Memory Scalability With support for up to 4 TB of DDR5 memory across 16 DIMM slots, this system gives IT administrators the flexibility to scale over time. High memory clock speeds and DDR5 bandwidth ensure smooth performance in memory-intensive applications like virtualization and data modeling.

Streamlined Storage and Expansion Two 480 GB SSDs deliver high-speed SATA storage for fast boot and application load times, while the server’s maximum capacity of 153.6 TB offers long-term expansion. Built-in RAID capabilities ensure data integrity and uptime for critical services.

Network Performance and Remote Management The DL360 Gen11 is designed for modern networking environments with 10 Gigabit Ethernet and remote server configuration through HPE iLO 6. These capabilities make it well-suited for high-speed data transfers and remote IT infrastructure control.

Secure, Efficient Rack Integration With a slim 1U rack chassis, redundant power supply support, and integrated TPM 2.0 security, the HPE ProLiant DL360 Gen11 provides dependable performance, hardware-level protection, and efficient deployment in any data center environment.

.bullet{ background-color: #3dd0b7; color: black; } 8 SFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
5 Display Port (optional – shown)
6 Optical drive (optional – shown)
7 USB 2.0 port (optional)
8 iLO Service port
9 Power On/Standby button and system power LED
10 Health LED
11 NIC status LED
12 Unit ID button/LED
13 USB 3.2 Gen1 port
14 Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
4 SFF Front View 1 Drive support label
2 Optical drive (optional – shown)
3 Serial number/iLO information pull tab
4 Quick removal access panel
5 Option: Display port & USB 2.0 port bundle kit (blank shown)
6 USB 3.2 Gen1 port
7 iLO Service Port
8 Power On/Standby button and system power LED
9 Health LED
10 NIC status LED
11 Unit ID button/LED
12 SAS/SATA drive bays (12G x1 SAS LP BP embedded)
20 EDSFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 iLO Service Port
5 Power On/Standby button and system power LED
6 Health LED
7 NIC status LED
8 Unit ID button/LED
9 USB 3.2 Gen1 port
10 EDSFF drive bays (32G x4 NVMe BP embedded)
Internal View 1 Liquid Cooling Module connector
2 x8 SlimSAS ports (1A to 4A, 1B to 4B)
3 DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
4 Socket 2 MCIO ports (1 & 2)
5 Backplane Power connector
6 Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
7 Redundant Power Supply (1 & 2 as shown)
8 Secondary (CPU 2) Riser PCIe 5.0
9 SID connector (optional feature, 8 SFF only)
10 Energy Pack connector
11 OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
12 HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
13 System Battery
14 Primary (CPU1) Riser PCIe 5.0
15 OCP Slot port
16 Front Display Port and USB 2.0 connector (optional feature)
17 LP SlimSAS ports (1 & 2)
18 Chipset
19 Front I/O and USB 3.2 Gen1 connector
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser)
20 SATA Optical port
21 Socket 1 MCIO connector
22 CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
23 Hot plug (dual rotor) High Performance Fan Kit (7 fans)
24 HPE Hybrid Capacitor or HPE Storage Battery holder

The HPE ProLiant DL385 Gen11 (P81843-425) is built to drive performance in AI, virtualization, and data analytics with a powerful 16-core AMD EPYC™ 9115 processor, scalable DDR5 memory, and optimized storage and expansion options. Housed in a 2U rack-mount form factor, this server delivers enterprise-class compute with efficient power and remote management in mind. Whether you're running dense workloads or looking for reliable data center performance, this configuration is tuned for performance and simplicity.

Key Features Powered by a single AMD EPYC™ 9115 processor with 16 cores, 2.60 GHz speed, and 64 MB L3 cache.
Includes 64 GB HPE DDR5 Smart Memory (2x32 GB) running at 6400 MT/s for high memory throughput.
Eight total PCIe expansion slots for scalable networking, storage, or GPU support.
Storage handled by 2x 480GB SATA 6G Read Intensive SFF SSDs on a HPE MR408i-o Gen11 RAID controller with 4GB cache.
Dual 1000W Titanium Hot Plug power supplies support redundancy and efficiency.
Remote monitoring and lifecycle management enabled via iLO Standard and OneView software suite.
Broadcom BCM57416 10Gb 2-port BASE-T OCP3 network controller ensures fast connectivity.
6x standard fans provide reliable cooling under heavy compute loads.
Processor-Tuned for Performance This configuration features the AMD EPYC™ 9115 with 16 cores and a 2.60 GHz base clock. With a 64 MB L3 cache and a 125W TDP, it’s optimized for applications that benefit from lower core count with high frequency and efficient thermal output.

Memory and Expansion Ready Equipped with 64 GB of DDR5 memory, this system supports higher throughput and energy efficiency. With up to eight expansion slots, the platform allows for future upgrades in GPU acceleration, additional storage, or networking modules.

Enterprise Storage and Power Dual 480GB SATA SSDs provide reliable boot and application storage, while the MR408i-o Gen11 controller with 4GB cache ensures RAID reliability. Redundant 1000W Titanium power supplies provide maximum energy efficiency and uptime.

Network and Management Integration The integrated Broadcom 10Gb 2-port Ethernet controller supports high-speed data transfer, making this unit ideal for virtualized environments. Combined with HPE iLO Standard and OneView (with advanced options available), users can manage hardware remotely with ease and security.

Form Factor and Cooling Built into a 2U rack format with six standard fans, the DL385 Gen11 is designed for rack efficiency and thermal stability in dense data center deployments. It weighs 42.82 kg and fits standard rack infrastructures with a 60 x 91.77 x 27 cm footprint.

Front View - SFF Server Front View - GPU Server Rear View Internal View

The HPE ProLiant DL345 Gen11 with AMD EPYC™ 9015 offers a tailored single-socket 2U rack solution engineered for virtualized, data-centric workloads. Combining a balanced 8-core 3.60 GHz processor, 64 GB DDR5 memory, and robust storage and networking components, this server delivers reliability, efficient compute power, and enterprise-class manageability in compact form. It's designed for environments demanding consistent performance and dependable infrastructure support.

Key Features: Single AMD EPYC™ 9015 processor with 8 cores at 3.60 GHz, 64 MB L3 cache, and 125W TDP.
64 GB HPE DDR5 Smart Memory (2x32 GB) running at 6400 MT/s with energy-efficient bandwidth.
8 expansion slots available; supports PCIe Gen5 for high-speed peripheral integration.
Dual HPE 960GB SATA Read Intensive LFF SSDs for reliable storage performance.
Broadcom BCM5719 1Gb 4-port Ethernet OCP3 network controller for consistent connectivity.
HPE MR416i-p Gen11 storage controller with 8GB cache and SPDM support.
iLO Standard and optional iLO Advanced for secure and remote infrastructure management.
6 standard fans and dual 1000W Titanium hot-plug power supplies for resilient cooling and power redundancy.
Optimized Compute Configuration This configuration features the AMD EPYC™ 9015 processor, an 8-core CPU operating at 3.60 GHz with 64 MB of L3 cache. Built for efficiency and predictable performance, it delivers strong processing capabilities for virtualization layers and moderate-to-heavy application loads—all while maintaining low thermal output at 125W.

High-Speed Memory Performance Equipped with 64 GB (2x32 GB) HPE DDR5 Smart Memory, the system utilizes 6400 MT/s memory speed to support fast data throughput and low latency across workloads. The memory configuration allows for scalable growth with 12 DIMM channels per processor available.

Flexible Expansion and Storage Options With 8 PCIe expansion slots and HPE’s Gen11 storage controller, this server supports high-speed data movement and scalable storage architectures. Dual 960GB SATA SSDs are pre-installed, offering reliable performance for read-intensive applications and operating system boot.

Integrated Networking and Cooling Design Connectivity is handled by a Broadcom BCM5719 1Gb 4-port Ethernet adapter via OCP3 slot, delivering steady network throughput for data center integration. Six standard system fans maintain thermal efficiency under typical workload conditions.

Enterprise-Grade Management Tools HPE iLO Standard and HPE OneView (standard and advanced options) allow for secure server setup, monitoring, and lifecycle automation. Remote configuration is streamlined and secured with embedded provisioning and optional advanced security features.

Power and Rack Efficiency This server includes two 1000W Titanium hot-plug power supplies for energy-efficient, redundant power delivery. The 2U rackmount form factor measures 60.02 x 91.77 x 27 cm and weighs 39 kg, balancing power with manageable footprint and installation ease.

24SFF Front View Internal View Rear View

Purpose-built for compute-dense workloads in virtualized and hybrid cloud environments, the HPE ProLiant DL360 Gen11 server in this configuration features a single Intel Xeon Silver 4514Y processor with 16 cores, 30MB cache, and clock speeds up to 3.4 GHz. With 128GB of high-speed DDR5 memory (expandable up to 4TB across 16 DIMM slots) running at 5600 MHz, it’s primed for high-bandwidth tasks like CAD, VDI, and EDA. This 1U rack server also supports up to 153.6TB of storage and includes Broadcom 10GbE networking for faster throughput. Designed for scale, security, and remote manageability, the DL360 Gen11 is optimized to support modern workloads with reliable performance and a power-efficient footprint.

Key Features: Powered by a single Intel Xeon Silver 4514Y CPU with 16 cores, 30MB cache, and up to 3.4 GHz boost frequency.
128GB DDR5 memory installed (4 x 32GB) at 5600 MHz, expandable to 4TB across 16 DIMM slots.
Up to 153.6TB of storage capacity with integrated RAID support for reliability and scalability.
10 Gigabit Ethernet powered by Broadcom BCM57416 with dual RJ-45 ports for high-speed networking.
Three USB 3.2 Gen 1 Type-A ports and one VGA port for connectivity and console access.
Redundant 2000W power supply ensures continuous operation and energy efficiency.
1U rack-optimized design with TPM 2.0 for secure operations in data-intensive environments.
Compute-Driven Performance in 1U Form This configuration of the DL360 Gen11 leverages a 16-core Intel Xeon Silver processor and high-frequency DDR5 memory to deliver solid compute throughput in space-constrained data centers. Its 1U rack-optimized chassis balances performance and efficiency.

Built for Memory-Intensive Workloads With support for up to 4TB of DDR5 memory across 16 DIMM slots, and a standard install of 128GB, this server is engineered for high-bandwidth workloads requiring low latency and strong memory scalability.

Flexible Storage and Networking Up to 153.6TB of storage capacity and built-in RAID support provide the foundation for scalable deployments. Integrated dual-port 10GbE ensures rapid data movement for demanding virtual and containerized applications.

Redundant Power and Secure Operation The inclusion of a 2000W power supply with redundancy and TPM 2.0 security ensures both operational continuity and enterprise-grade protection in mission-critical deployments.

Designed for Remote Control and Integration Featuring iLO 6 for comprehensive remote management and a compact 1U rack design, the DL360 Gen11 is ready for deployment across distributed IT infrastructures with ease and reliability.

.bullet{ background-color: #3dd0b7; color: black; } 8 SFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
5 Display Port (optional – shown)
6 Optical drive (optional – shown)
7 USB 2.0 port (optional)
8 iLO Service port
9 Power On/Standby button and system power LED
10 Health LED
11 NIC status LED
12 Unit ID button/LED
13 USB 3.2 Gen1 port
14 Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
4 SFF Front View 1 Drive support label
2 Optical drive (optional – shown)
3 Serial number/iLO information pull tab
4 Quick removal access panel
5 Option: Display port & USB 2.0 port bundle kit (blank shown)
6 USB 3.2 Gen1 port
7 iLO Service Port
8 Power On/Standby button and system power LED
9 Health LED
10 NIC status LED
11 Unit ID button/LED
12 SAS/SATA drive bays (12G x1 SAS LP BP embedded)
20 EDSFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 iLO Service Port
5 Power On/Standby button and system power LED
6 Health LED
7 NIC status LED
8 Unit ID button/LED
9 USB 3.2 Gen1 port
10 EDSFF drive bays (32G x4 NVMe BP embedded)
Internal View 1 Liquid Cooling Module connector
2 x8 SlimSAS ports (1A to 4A, 1B to 4B)
3 DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
4 Socket 2 MCIO ports (1 & 2)
5 Backplane Power connector
6 Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
7 Redundant Power Supply (1 & 2 as shown)
8 Secondary (CPU 2) Riser PCIe 5.0
9 SID connector (optional feature, 8 SFF only)
10 Energy Pack connector
11 OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
12 HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
13 System Battery
14 Primary (CPU1) Riser PCIe 5.0
15 OCP Slot port
16 Front Display Port and USB 2.0 connector (optional feature)
17 LP SlimSAS ports (1 & 2)
18 Chipset
19 Front I/O and USB 3.2 Gen1 connector
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser)
20 SATA Optical port
21 Socket 1 MCIO connector
22 CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
23 Hot plug (dual rotor) High Performance Fan Kit (7 fans)
24 HPE Hybrid Capacitor or HPE Storage Battery holder
Rear View 1 Slot 1 x16 PCIe 5.0 – Full Height
2 Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
3 Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor) • Low Profile and Full Height options
4 Redundant Power Supply (1 & 2 as shown)
5 Video (VGA) port
6 OCP 3.0 Slot 2: x16* PCIe 5.0¹,² (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
7 Serial port (optional - shown)
8 iLO Management Port
9 USB 3.2 Gen1 Ports
10 Unit ID Indicator LED
11 OCP 3.0 Slot 1: x16* PCIe 5.0²
Notes: *x8 for 20EDSFF CTO Server

The HPE ProLiant DL380 Gen11 is a high-performance, single-socket 2U rack server built for dependable compute workloads in hybrid environments. Equipped with an Intel Xeon Gold 5416S processor and 64 GB of DDR5 memory, this system is designed for efficient multitasking, high availability, and strong data throughput. Featuring robust RAID-enabled storage, 10 Gigabit Ethernet, and redundant power support, it is ideal for growing enterprises needing reliable server infrastructure with strong baseline capabilities.

Key Features: Intel Xeon Gold 5416S processor with 16 cores, 30 MB cache, and a 2.0 GHz base frequency.
64 GB DDR5-SDRAM (2 x 32 GB modules) with 4800 MHz clock speed across 32 DIMM slots.
960 GB of total SATA storage via 2 x 480 GB hard drives with RAID support for data protection.
Dual Broadcom BCM57416 10 Gigabit Ethernet ports for fast, reliable networking.
Integrated DVD-ROM optical drive for legacy media requirements.
Redundant 1000W power supply setup for improved system uptime.
TPM 2.0 module onboard for hardware-based system security.
Balanced Performance in a Compact Footprint This configuration includes a single Intel Xeon Gold 5416S processor, delivering 16 cores at 2.0 GHz. Combined with 64 GB of high-speed DDR5 memory, the server provides dependable processing power for small to mid-sized virtualization, file hosting, or enterprise applications.

Flexible Storage and RAID Protection The server comes equipped with two 480 GB SATA hard drives, delivering a total of 960 GB of storage capacity. Built-in RAID support ensures improved reliability and data redundancy, making it suitable for secure enterprise deployments.

Enterprise Connectivity and Expansion Networking is powered by a dual-port Broadcom BCM57416 controller with 10 Gigabit Ethernet capability, enabling fast, stable connections for data-intensive environments. With 32 DIMM slots and a rack-optimized 2U chassis, future memory and I/O expansion are simple and efficient.

Redundant Power and Physical Security Engineered for uptime, the DL380 Gen11 includes a 1000W redundant power supply unit, minimizing downtime risks. Security is built in with TPM 2.0 hardware, supporting encryption and secure boot processes to safeguard your infrastructure.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

Purpose-built for data-intensive workloads, the HPE ProLiant DL345 Gen11 with AMD EPYC™ 9115 delivers targeted performance in a cost-efficient, single-socket solution. With 16 cores, DDR5 memory, and enterprise-grade storage, this 2U server is well-suited for demanding virtualized environments, high-throughput applications, and scalable storage deployments.

Key Features AMD EPYC™ 9115 processor: 16 cores, 2.60 GHz clock speed, 64 MB L3 cache, 125W TDP
64 GB HPE DDR5 Smart Memory (2x32 GB 6400 MT/s), scalable up to 3 TB
Dual HPE 960GB SATA 6G Read Intensive LFF SSDs for high-speed storage access
HPE MR416i-p Gen11 storage controller with 8GB cache and PCI SPDM support
Eight total expansion slots with PCIe Gen5 capability for high-speed add-ons
Integrated Broadcom BCM5719 4-port 1Gb Ethernet OCP3 adapter
HPE iLO Standard, Advanced, and Compute Ops Management for secure, remote server administration
6x Standard Cooling Fans and dual 1000W Flex Slot Titanium Hot Plug Power Supplies
Powerful Processing, Targeted Workload Efficiency Equipped with a single AMD EPYC™ 9115 processor, the DL345 Gen11 offers 16 high-performance cores at 2.60 GHz. The processor’s 64 MB L3 cache and 125W TDP balance performance with thermal efficiency, making it ideal for virtualization, storage services, and medium-to-heavy compute tasks.

High-Speed Memory and Storage Integration This server includes 64 GB of DDR5 6400 MT/s memory in a 2x32 GB configuration, ensuring rapid data processing and workload responsiveness. Storage is backed by dual 960GB LFF SSDs, perfect for read-intensive applications and seamless throughput.

Flexible Expansion and Next-Gen Connectivity Offering eight total PCIe expansion slots and support for Gen5 architecture, the DL345 Gen11 is designed for rapid integration of accelerators and additional storage or networking options. The system includes Broadcom 4-port 1Gb Ethernet via OCP3 adapter for reliable connectivity across environments.

Built for Resilience and Remote Control Six standard fans and two hot-plug 1000W Titanium power supplies ensure stable operation under load. Server health, provisioning, and lifecycle management are streamlined with HPE iLO 6 and HPE OneView capabilities, allowing secure and remote infrastructure oversight from anywhere.

Form Factor and Physical Specifications The server fits into standard rack deployments with its 2U form factor and weighs approximately 39 kg. Its dimensions are 60.02 x 91.77 x 27 cm, offering ample capacity without compromising rack space efficiency.

24SFF Front View Internal View Rear View

The HPE ProLiant DL360 Gen11 server configured with a single Intel Xeon Silver 4510 processor offers a balanced solution for scalable, compute-efficient workloads. This 1U rack server features a 12-core, 2.4 GHz CPU with 30 MB cache, optimized for performance and energy efficiency with a configurable TDP-down of 4.5W. Equipped with 64 GB of high-speed DDR5 ECC memory at 5600 MHz (2 x 32 GB), it supports critical data integrity and rapid processing for virtualized environments and demanding applications.

Key Features: Single Intel Xeon Silver 4510 processor, 12 cores at 2.4 GHz, 30 MB cache
64 GB DDR5 ECC memory, 5600 MHz, configured as 2 x 32 GB DIMMs
1.92 TB total storage using 2 x 960 GB SATA HDDs, hot-pluggable, RAID support included
Maximum storage capacity up to 20 TB supported
Broadcom BCM5719 Gigabit Ethernet controller with 4 RJ-45 Ethernet ports
On-board graphics and VGA port for local display
Remote management via HPE iLO 6 ASIC and Trusted Platform Module (TPM) 2.0 security
800W power supply with support for 2 redundant power supplies (1 installed)
Rack-mounted 1U chassis, grey color, dimensions: 600mm (W) x 990mm (D) x 241mm (H), weighing 32.3 kg
Compatible with major enterprise operating systems including Windows Server, VMware ESXi, and various Linux distributions
Energy Star certified for sustainability and efficient power use
Compute and Memory The Intel Xeon Silver 4510 processor delivers 12 cores at 2.4 GHz, supported by 64 GB of DDR5 ECC memory running at 5600 MHz. This combination ensures reliable performance with advanced error correction for mission-critical workloads.

Storage and Expandability Featuring two hot-pluggable 960 GB SATA HDDs with RAID support, the system provides 1.92 TB of fast, secure storage. The platform supports up to 20 TB for scaling data capacity as needed.

Networking and Connectivity Equipped with a Broadcom BCM5719 Gigabit Ethernet controller and four RJ-45 LAN ports, the server offers robust network connectivity. Additional ports include three USB 3.2 Gen 1 Type-A and one VGA for local management.

Management and Security Remote administration is simplified with HPE’s iLO 6 ASIC, providing secure server management. Hardware-level security is enhanced with TPM 2.0 for trusted platform assurance.

Power and Cooling The server is powered by an 800W power supply with support for two redundant units, ensuring uptime and reliability. It operates efficiently within a temperature range of 10-35°C and humidity up to 90%, maintaining stable performance in typical data center environments.

.bullet{ background-color: #3dd0b7; color: black; } 8 SFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
5 Display Port (optional – shown)
6 Optical drive (optional – shown)
7 USB 2.0 port (optional)
8 iLO Service port
9 Power On/Standby button and system power LED
10 Health LED
11 NIC status LED
12 Unit ID button/LED
13 USB 3.2 Gen1 port
14 Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
4 SFF Front View 1 Drive support label
2 Optical drive (optional – shown)
3 Serial number/iLO information pull tab
4 Quick removal access panel
5 Option: Display port & USB 2.0 port bundle kit (blank shown)
6 USB 3.2 Gen1 port
7 iLO Service Port
8 Power On/Standby button and system power LED
9 Health LED
10 NIC status LED
11 Unit ID button/LED
12 SAS/SATA drive bays (12G x1 SAS LP BP embedded)
20 EDSFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 iLO Service Port
5 Power On/Standby button and system power LED
6 Health LED
7 NIC status LED
8 Unit ID button/LED
9 USB 3.2 Gen1 port
10 EDSFF drive bays (32G x4 NVMe BP embedded)
Internal View 1 Liquid Cooling Module connector
2 x8 SlimSAS ports (1A to 4A, 1B to 4B)
3 DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
4 Socket 2 MCIO ports (1 & 2)
5 Backplane Power connector
6 Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
7 Redundant Power Supply (1 & 2 as shown)
8 Secondary (CPU 2) Riser PCIe 5.0
9 SID connector (optional feature, 8 SFF only)
10 Energy Pack connector
11 OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
12 HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
13 System Battery
14 Primary (CPU1) Riser PCIe 5.0
15 OCP Slot port
16 Front Display Port and USB 2.0 connector (optional feature)
17 LP SlimSAS ports (1 & 2)
18 Chipset
19 Front I/O and USB 3.2 Gen1 connector
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser)
20 SATA Optical port
21 Socket 1 MCIO connector
22 CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
23 Hot plug (dual rotor) High Performance Fan Kit (7 fans)
24 HPE Hybrid Capacitor or HPE Storage Battery holder

The HPE ProLiant DL380 Gen11 4510 server is built around a 12-core Intel Xeon Silver 4510 processor running at 2.4 GHz with 30 MB cache, delivering reliable compute power for mid-tier workloads. Equipped with 64 GB of DDR5 memory, it supports high-speed, efficient data processing and smooth multitasking. The 2U rack-mount chassis offers flexible storage with RAID support across SATA and SAS interfaces, capable of scaling up to 91.2 TB total capacity with hot-plug HDDs for minimal downtime.

Key Features: Single Intel Xeon Silver 4510 processor, 12 cores at 2.4 GHz, 30 MB cache
64 GB DDR5 SDRAM memory for fast and efficient performance
Supports up to 91.2 TB total storage capacity via SATA and SAS HDDs
Comprehensive RAID support: levels 0, 1, 5, 6, 10, 50, and 60 with hot-plug capability
Integrated Broadcom 57416 LAN controller with dual 10 Gigabit Ethernet RJ-45 ports
On-board graphics with 16 MB dedicated memory for basic management needs
Secure platform with TPM 2.0 for hardware-based security and trusted boot
Redundant 1000 W power supply support, currently configured with one installed unit
Performance Tailored to Your Needs The Intel Xeon Silver 4510 processor provides balanced performance across 12 cores with a robust 30 MB cache, ideal for virtualization, data analytics, and hybrid cloud workloads. Paired with 64 GB of DDR5 memory, the server ensures responsive multitasking and smooth application execution.

Flexible and Scalable Storage The rack-mounted 2U chassis supports up to 91.2 TB of storage via hot-pluggable SATA and SAS drives, with extensive RAID options that protect data integrity and maximize uptime. This flexibility makes it suitable for growing data demands and critical business applications.

Connectivity and Security Dual 10 Gigabit Ethernet ports powered by a Broadcom 57416 controller provide high-speed networking essential for modern data centers. Hardware security is ensured by TPM 2.0, supporting secure boot processes and safeguarding critical workloads from unauthorized access.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL380 Gen11 Rack Server delivers reliable performance and expandability for hybrid cloud and data analytics workloads. Configured with a single Intel Xeon Silver 4509Y processor, 64 GB DDR5 memory, and dual 480 GB SSDs, this 2U system is designed to provide balance, efficiency, and future-ready infrastructure in demanding enterprise settings.

Key Features: Powered by Intel Xeon Silver 4509Y processor with 8 cores at 2.6 GHz and 22.5 MB cache.
Equipped with 64 GB DDR5-SDRAM (2 x 32 GB) operating at 5600 MHz for high-speed memory performance.
32 DIMM slots available, offering flexible memory expansion options up to 8 TB.
Storage includes 2 x 480 GB SATA III SSDs with RAID support for reliability and fast access.
Integrated Broadcom BCM5719 controller with 4x Gigabit Ethernet RJ-45 ports for resilient network connectivity.
Rack-mountable 2U chassis with support for redundant 1000 W power supplies for business continuity.
Built-in TPM 2.0 module to enhance data integrity and secure platform operations.
Reliable Compute Architecture with Enterprise-Grade Components With a single-socket Intel Xeon Silver 4509Y CPU and support for future upgrades, this configuration ensures dependable performance and lower power consumption while maintaining headroom for scaling in-memory workloads.

Efficient Storage and RAID Redundancy Dual 480 GB SATA III SSDs with RAID support deliver secure and rapid data storage ideal for application boot and virtual environments. The system's flexible storage design allows future SSD expansion as needed.

Network-Ready with Broadcom Gigabit Capabilities Integrated with a Broadcom BCM5719 controller and four Gigabit Ethernet ports, the server is ready for multi-channel connectivity and optimized data transfer across demanding network architectures.

Redundant Power for Business Continuity With two installed 1000 W redundant power supplies and support for an additional main power supply, the HPE ProLiant DL380 Gen11 ensures uptime and reliability in enterprise operations.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL380 Gen11 Server featuring the Intel Xeon Silver 4510 processor delivers scalable performance in a compact 2U rack form. Engineered for data-driven enterprises, it offers a robust combination of DDR5 memory support, high-capacity SSD storage, and redundant power capabilities. With its enterprise-grade design, built-in manageability, and expansion flexibility, this server is well-suited for virtualization, storage-centric deployments, and hybrid environments requiring dependable uptime and throughput.

Key Features Powered by Intel Xeon Silver 4510 processor with 12 cores, 2.4 GHz base, and up to 4.1 GHz turbo boost frequency.
64 GB of DDR5-SDRAM installed, expandable up to 8 TB using 32 DIMM slots at 5600 MHz.
Two 480 GB SATA III SSDs included, with support for up to 8 total 2.5" SSDs.
Broadcom BCM5719 Gigabit Ethernet controller with four RJ-45 ports for reliable networking.
HPE iLO 6 server management (optional license) for seamless remote monitoring and configuration.
Redundant 2000W power supply installed, supporting high-availability deployment scenarios.
Efficient Compute Power At the core, the Xeon Silver 4510 processor delivers 12 physical cores and 30 MB cache, designed to balance performance and power efficiency. Ideal for virtual machines, container orchestration, and moderate to heavy data tasks.

High-Bandwidth DDR5 Memory Outfitted with 64 GB of DDR5 memory in a 2 x 32 GB layout and support for up to 8 TB across 32 DIMM slots, the system provides exceptional bandwidth, low latency, and future-proof scaling options.

Storage Built for Expansion Equipped with 960 GB total SSD capacity via dual 480 GB SATA III drives, and expandable to support up to 8 drives, the DL380 Gen11 is ready to handle demanding I/O and structured data environments.

Advanced Network Integration Integrated Broadcom BCM5719 controller with 4x 1GbE ports ensures strong connectivity and network reliability. Suitable for clustered environments, NAS setups, and remote access deployments.

Resilient Design and Power Housed in a 2U rack-mount chassis with active cooling, redundant 2000W power supply, and TPM 2.0 security features, this server is built to maintain uptime and safeguard system integrity.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL360 Gen11 Server delivers enterprise-grade compute in a 1U rack chassis, now configured with the Intel Xeon Silver 4510 processor, 64 GB of DDR5 memory, and dual 480 GB SATA SSDs. This server is engineered for performance-focused virtualization, hybrid cloud environments, and graphics-intensive workflows that require compute-dense platforms with room for growth. With high-speed PCIe Gen5 expandability, advanced thermal design, and integrated remote management, the DL360 Gen11 offers dependable power and intelligent control in a compact footprint.

Key Features 1x Intel Xeon Silver 4510 processor, 12 cores, 2.4 GHz base, up to 4.1 GHz boost, 30 MB cache
64 GB DDR5-SDRAM memory (2 x 32 GB), expandable to 8 TB with 16 DIMM slots
Memory clock speed up to 5600 MHz with High Bandwidth Memory (HBM) support
2 x 480 GB SATA III SSDs (2.5"), RAID levels 0/1/5/10 supported, up to 8 SSDs total
Broadcom BCM5719 Gigabit Ethernet controller with 4 RJ-45 ports
3 x USB 3.2 Gen 1 ports, 1 x VGA, no optical drive included
1U rack-mounted chassis with active cooling and redundant 2000 W power supply
Integrated Lights-Out 6 (iLO 6) management for secure remote monitoring and updates
Purpose-Built for Modern Workloads With its 12-core Intel Xeon Silver 4510 processor and support for DDR5 memory at speeds up to 5600 MHz, this system balances core density with advanced memory performance. It's ideal for mid-level virtualization, containerized applications, and cloud-native development stacks.

Scalable Storage with RAID Protection Outfitted with 2 x 480 GB SATA SSDs and support for up to 8 drives, the DL360 Gen11 handles storage-intensive tasks with flexibility. RAID levels 0, 1, 5, and 10 provide fault tolerance and data resilience for business-critical deployments.

Network-Ready with Built-In Redundancy The built-in Broadcom BCM5719 controller delivers four Gigabit Ethernet ports for high availability and load-balanced networking. Combined with a 2000 W redundant power setup, this unit ensures operational continuity in demanding data environments.

Ready for Remote and Rack-Based Operations With active cooling in a rack-optimized 1U design, and full remote manageability through iLO 6, the ProLiant DL360 Gen11 is built for efficient deployment, ongoing health monitoring, and remote firmware updates—without interrupting your core workloads.

The HPE ProLiant DL360 Gen11 server featuring the Intel Xeon Silver 4509Y processor is a rack-optimized 1U platform tailored for businesses needing reliable, compute-dense infrastructure for virtualization, container deployment, and data-intensive workloads. This model comes with 64 GB of DDR5 memory, dual 480 GB SATA SSDs, and is designed with flexibility, security, and scalability in mind. With advanced PCIe Gen5 support, integrated RAID, and redundant power capabilities, this server provides the foundation for stable IT operations and future-forward growth in demanding data environments.

Key Features Intel Xeon Silver 4509Y processor (8 cores, 2.6 GHz base, 4.1 GHz boost, 22.5 MB cache)
1 installed processor, with support for dual-processor configurations
64 GB DDR5-SDRAM memory (2 x 32 GB), expandable up to 8 TB via 16 DIMM slots
Memory clock speed up to 5600 MHz for faster data access
2 x 480 GB SATA III SSDs installed, 8 SSDs supported in total
Hardware RAID support with levels 0, 1, 5, and 10 for data redundancy and performance
Broadcom BCM5719 Gigabit Ethernet controller with 4 RJ-45 ports for robust connectivity
PCIe Gen5 expansion slots and optional single wide GPU support
Active cooling system within a 1U rack chassis design (black/silver)
2000 W power supply with redundancy (1 main + 1 backup installed)
USB 3.2 Gen 1 and VGA ports for peripheral integration and management access
Processor Power and Efficiency At the heart of this configuration lies the Intel Xeon Silver 4509Y processor, offering 8 physical cores with a 2.6 GHz base clock and 4.1 GHz boost. It's optimized for performance stability and energy efficiency across a range of enterprise workloads.

Expandable High-Speed Memory This server comes equipped with 64 GB of DDR5 memory (2 x 32 GB) and can scale up to 8 TB. With a clock speed of 5600 MHz and 16 DIMM slots available, it’s designed for rapid access and intensive multitasking environments.

Flexible and Reliable Storage Outfitted with 2 x 480 GB SATA SSDs and support for up to 8 drives, the DL360 Gen11 balances speed and capacity. Integrated RAID (levels 0, 1, 5, 10) enhances fault tolerance and protects against data loss.

Network and I/O Throughput Equipped with a Broadcom BCM5719 controller and 4 Gigabit Ethernet ports, the system ensures high availability and network resilience. PCIe Gen5 slots offer future-ready bandwidth for expansion and accelerator cards.

Resilient Power and Cooling Housed in a 1U rack form factor with active cooling, the DL360 Gen11 includes dual power supplies (one redundant), totaling 2000 W. It’s ready for high-demand data center deployments requiring thermal and power reliability.

Management-Ready Design While the system comes without an OS pre-installed, it includes HPE iLO 6 capabilities for secure remote management, monitoring, and provisioning from anywhere—simplifying IT operations without sacrificing control.

The HPE ProLiant DL325 Gen11, equipped with a single AMD EPYC™ 9224 processor and a robust memory and storage configuration, is a purpose-built 1U 1P server designed for virtualization, edge computing, and software-defined environments. Compact yet powerful, it strikes the right balance between compute density, expandability, and operational efficiency for mid-scale deployments requiring cost-conscious scalability.

Key Features: Powered by AMD EPYC™ 9224 processor with 24 cores, 64 MB L3 cache, 2.5 GHz base and 3.7 GHz boost frequencies
Single-socket design with 12 DDR5 DIMM slots supporting up to 3 TB; includes 64 GB DDR5 memory (2x32 GB) at 4800 MHz
Integrated 960 GB storage via 2 x 480 GB SATA SSDs; expandable to a total storage capacity of 76.8 TB
Broadcom BCM57416 dual-port 10 Gb Ethernet LAN controller with two RJ-45 ports
Supports RAID configurations for data protection and redundancy
1U rack chassis design with support for redundant 2000W power supplies (1 installed)
Includes HPE iLO 6 for secure remote monitoring and configuration
Efficient AMD EPYC Compute Power At its core is the AMD EPYC™ 9224 CPU, delivering 24 high-performance cores and up to 3.7 GHz boost speed, ideal for compute-heavy virtualized environments. The 64 MB L3 cache ensures responsive application performance and lower latency.

Expandable DDR5 Memory Architecture With 12 DIMM slots and DDR5-SDRAM support, this system scales up to 3 TB of memory. The included 64 GB configuration (2x32 GB at 4800 MHz) offers ample headroom for VDI and CDN workloads, with low power draw and high bandwidth.

Reliable Storage with Room to Grow This configuration includes two 480 GB SATA SSDs (960 GB total) and supports up to 76.8 TB of storage. RAID functionality ensures data resilience for critical workloads in production or edge environments.

Built-In High-Speed Networking Dual 10 GbE ports backed by the Broadcom BCM57416 controller provide reliable and high-throughput networking ideal for virtualized environments, hybrid cloud operations, or CDN use cases.

Compact Design with Redundant Power Encased in a 1U rack chassis, the server measures 649.4 mm wide, 434.6 mm deep, and 42.9 mm high. It includes a 2000W power supply with redundancy support, ensuring continued operation in high-availability setups.

Front View - 8SFF + optional 2SFF Drive Bay Internal View Rear View

The HPE ProLiant DL380 Gen11, configured with a single Intel Xeon Silver processor and 64 GB of DDR5 memory, is a high-efficiency rack server built for performance in data-centric, virtualized, and hybrid cloud environments. With 960 GB of solid-state storage, advanced RAID capabilities, and 10 Gigabit Ethernet support, this 2U system is purpose-built for enterprises needing scalable computing power and dependable infrastructure.

Key Features Intel Xeon Silver processor with 24 cores, 2.2 GHz base and 3.7 GHz boost clock, and 45 MB cache
Single CPU configuration with support for up to 64 cores and DDR5 memory speeds
64 GB DDR5 memory (2 x 32 GB modules) with scalability up to 8 TB
Two 480 GB 2.5" SATA III SSDs included, expandable up to 8 SSDs
Broadcom BCM57416 10 Gigabit Ethernet for high-speed network access
HPE Integrated Lights-Out 6 (iLO 6) for remote server management
2U rack-mountable chassis with 2000 W redundant power supply included
Balanced Compute Power This server comes equipped with an Intel Xeon Silver processor featuring 24 cores and 45 MB cache, providing strong parallel processing capabilities for virtualization, analytics, and infrastructure workloads.

DDR5 Memory Performance Preconfigured with 64 GB DDR5-SDRAM, this system can be expanded to support up to 8 TB. DDR5 technology enables higher speeds, increased bandwidth, and lower power draw for improved efficiency under load.

Flexible Enterprise Storage Includes 960 GB total SSD storage via two 480 GB 2.5" SATA III drives, with RAID support and capacity for up to 8 SSDs—allowing you to scale your storage solution based on workload requirements.

Robust Connectivity Integrated Broadcom BCM57416 controller offers 10 Gigabit Ethernet support, ensuring rapid data transmission and minimal latency across your network. One RJ-45 port is available for direct connection.

Optimized for Data Center Environments The 2U chassis is rack-mountable and designed for high-density environments. A single 2000 W power supply is installed, with redundancy built in for added system reliability and uptime protection.

Secure and Remote Server Management With HPE iLO 6, system administrators gain full visibility and control over server configuration, health monitoring, and firmware updates from any location, helping maintain system integrity and uptime.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL380 Gen11 (P71674-425) is a powerful 2U rack-mounted server designed for scalability, performance, and reliability in enterprise environments. It provides flexible processor, memory, and storage configurations to meet the demands of various workloads.

Key Features Intel® Xeon® Silver 4510 processor with 12 cores, 2.4 GHz clock speed.
Supports up to 8 TB DDR5 memory for high-performance applications.
Up to 8 Small Form Factor (SFF) hot-plug drive bays for flexible storage options.
Dual redundant power supplies for increased reliability.
What's New Supports the latest Intel® Xeon® Silver processors for enhanced performance.
Supports DDR5 memory for faster data throughput and better efficiency.
Improved storage flexibility with support for both SATA SSD and hot-plug bays.
Enhanced system reliability with redundant power supply options.
Optional Front Display Port (via Universal Media Bay)
Box 1 (shown with optional Universal Media Bay installed)
Box 2 (Empty)
Quick removal access panel
Unit Identification button/LED
NIC Status11
Health LED
Power On / Standby button / LED
iLO Service Port
USB 3.2 Gen1
Box 3 (shown with 8SFF drives populated)
Optional USB 2.0 port (via Universal Media Bay)
Drive Support Label
Serial Number Label Pull Tab
Notes: 1Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

Security Features This server incorporates HPE's Silicon Root of Trust technology, providing a hardware-based security foundation. Additionally, it supports Trusted Platform Module (TPM) 2.0 for secure boot and data protection.

Hot Plug Fans11
Processors, heatsinks showing
Optional NS204i-u Boot Device
Hot Plug redundant HPE Flexible Slot Power Supplies
Secondary Riser (Optional) (Requires second processor)
Primary Riser
DIMM slots, shown fully populated in 32 slots22
Drive Backplanes
Drive Cages
Notes:

- 1High performance temperature fans optional

- 2Shown fully populated in 32 slots (16 per processor)

Energy Efficiency The DL380 Gen11 4510 is ENERGY STAR qualified, reflecting HPE's commitment to energy efficiency and sustainability. Its dual 1000W power supplies ensure efficient power usage and redundancy.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)
OCP NIC 3.0 Slots, shown covered
Secondary Riser. PCIe 5.0 Slots (Slots 4-6)
Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed
Optional NS204i-u Boot Device
Power Supply
VGA Connector
Serial Port Optional
Dedicated iLO Management Port
USB 3.2 Gen1 Connectors (2)
UID Indicator LED
Notes: 1Supports various NICs, and Storage controllers.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consume as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code. The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations. From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth. Harness major computer performance.

The HPE ProLiant DL380 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores per processor, 350W, and up to 8 TB of memory. The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

It provides 16 DIMM channels per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

This configuration of the HPE ProLiant DL380 Gen11 is engineered for enterprise environments requiring strong baseline performance, expandability, and secure infrastructure. Powered by the Intel Xeon Gold 5515+ processor, it’s ready to support virtualization, moderate analytics, and secure remote management while leaving room for future growth in memory and storage capacity.

Key Features 1x Intel Xeon Gold 5515+ processor, 8 cores at 3.2 GHz with 22.5 MB cache.
64 GB DDR5-SDRAM across 2 DIMMs (2 x 32 GB) at 5600 MHz.
32 total DIMM slots allow expansion up to 8 TB memory.
Dual 480 GB SATA HDDs (960 GB total), RAID supported.
Broadcom BCM57416 controller with dual 10 GbE RJ-45 ports.
Redundant 2000W power supplies (1 installed, 1 slot available).
Trusted Platform Module (TPM) 2.0 for secure hardware authentication.
Efficient Computing Power Driven by a single Intel Xeon Gold 5515+ processor, this DL380 Gen11 configuration delivers stable performance across general-purpose workloads. With 8 physical cores and a base frequency of 3.2 GHz, it offers a solid foundation for everyday virtualization, application hosting, and system-level operations.

Memory Ready for Expansion Pre-installed with 64 GB DDR5 at 5600 MHz, the server offers fast, efficient memory performance. With 32 available DIMM slots, you have the flexibility to scale capacity significantly as workloads grow or diversify.

Storage Flexibility with RAID Equipped with two 480 GB SATA HDDs and RAID support, the server ensures data redundancy and consistent storage throughput. Ideal for boot volumes or critical file hosting with room to upgrade into high-performance storage arrays.

Reliable Network Throughput Featuring the Broadcom BCM57416 controller and dual 10 Gigabit Ethernet ports, the system supports fast, stable data transfers—suitable for high-speed virtualization clusters, file servers, and internal application networking.

Redundant Power & Compact Rack Design This 2U rack server includes a 2000W PSU with support for a second redundant unit, ensuring system uptime in enterprise racks. Its 600mm width and under-1m depth make it rack-friendly without compromising on internal capacity.

Secure Management and Deployment With TPM 2.0 and support for HPE’s iLO 6 management tools, administrators can securely manage server infrastructure across data centers or remote branches with real-time access and system integrity controls.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL360 Gen11 (P71673-425) is engineered for performance-intensive environments where space efficiency and scalability are critical. With a compact 1U design, powerful 12-core Intel Xeon processor, and enterprise-grade storage, it's built to tackle demanding applications while maintaining operational reliability and streamlined deployment.

Key Features Intel Xeon Silver 4510 processor with 12 cores and 30 MB cache
64 GB DDR5-SDRAM (expandable up to 4 TB across 16 DIMM slots)
HPE MR408i-o Gen11 RAID Controller with 4 GB cache
Integrated 4 x 1GbE Broadcom BCM5719 network interface
HPE iLO 6 for remote server management
1U rack-mountable chassis
What’s New Support for DDR5 memory enabling higher bandwidth and lower power usage
PCIe Gen5 expansion for next-gen performance in networking and storage
Updated iLO 6 with improved security and automation
Titanium level power supplies for increased energy efficiency
Drive support label
Serial number/iLO information pull tab
Quick removal access panel
Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
Display Port (optional – shown)
Optical drive (optional – shown)
USB2.0 port (optional)
iLO Service port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
USB 3.2 Gen1 port
Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
Notes:

- Optional- Systems Insight Display (SID) module is available for 8 SFF CTO Server and will be installed at the left-hand side of iLO Service port and USB 3.2 Gen1 port.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Performance and Expandability Equipped with the latest Intel Xeon Silver 4510 CPU, this server supports multithreaded workloads and scales easily through its 16 DIMM slots and PCIe Gen5 expansion capability.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Built-in Reliability and Management The DL360 Gen11 includes hot-plug power supplies and HPE's Integrated Lights-Out 6 (iLO 6) for proactive monitoring, remote management, and secure firmware updates, making it ideal for mission-critical operations.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th and 5th Gen Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows.

Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, it adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility.

Harness major compute performance. The HPE ProLiant DL360 Gen11 server is powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores, 385W, and up to 8 TB of memory.

The HPE ProLiant DL360 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL380 Gen11 (P52562-421) is a 2U rack server designed for enterprise environments requiring robust performance and scalability. It combines powerful processors, extensive memory capacity, and advanced storage options to support critical workloads.

Key Features: Processor: Intel® Xeon® Silver 4410Y, 12 cores, 2.0 GHz base frequency, 30 MB L3 cache.
Networking: Broadcom BCM5719 4-port 1Gb BASE-T OCP3.0 adapter.
Expansion Slots: Up to 8 PCIe Gen5 and 2 OCP 3.0 slots.
Security: TPM 2.0 standard; optional locking bezel and intrusion detection kit.
What's New: Intel® Xeon® Silver 4410Y processor with 12 cores for enhanced performance.
Expansion capabilities with up to 8 PCIe Gen5 slots and 2 OCP 3.0 slots.
Supports up to 8.19 TB of memory for demanding applications.
Flexible power supply options for redundancy with 1000W Flex Slot Titanium power supply.
Advanced networking with Broadcom BCM5719 4-port 1Gb BASE-T adapter.
Enhanced security with TPM 2.0 and optional locking bezel and intrusion detection kit.
Performance & Scalability The ProLiant DL380 Gen11 is designed for high-performance workloads, offering up to 12 cores of processing power. It supports a wide range of memory configurations, allowing enterprises to scale based on their specific needs.

Security & Management The server features robust security with TPM 2.0 and optional intrusion detection. It is equipped with HPE iLO Standard for remote management, making it easier to monitor and manage even in large-scale deployments.

Quick removal access panel
Unit Identification Button / LED
NIC Status
Health LED
Power On / Standby button / LED
iLO Service Port
USB 3.2 Gen1 Port
12 x LFF Media
Drive support label
Serial Number Label Pull Tab
Storage Flexibility With support for up to 12 x 3.5" LFF hot-plug drives, the DL380 Gen11 provides ample storage for data-intensive applications and provides hot-plug capabilities for easy maintenance and upgrades.

Design and Form Factor Its compact mini-tower design allows for versatile placement, including horizontal, vertical, or wall-mounted setups. This flexibility makes it ideal for environments with limited space.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)
OCP NIC 3.0 Slots, shown covered
Secondary Riser. PCIe 5.0 Slots (Slots 4-6)
Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed
Optional NS204i-u Boot Device
Power Supply
VGA Connector
Serial Port Optional
Dedicated iLO Management Port
USB 3.2 Gen1 Connectors (2)
UID Indicator LED
Notes: 1Supports various NICs, and Storage controllers.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth.

Harness major computer performance. The HPE ProLiant DL380 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores per processor, 350W, and up to 8 TB of memory.

The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

It provides 16 DIMM channels per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL385 Gen11 Server with AMD EPYC™ 9124 processor delivers a balanced 2U rack solution tailored for compute-intensive workloads. With a 16-core processor clocked at 3.0 GHz (boosting up to 3.7 GHz), 64 GB of DDR5 memory, dual 480 GB SATA SSDs, and support for redundant power and advanced security, it’s engineered to handle high-throughput enterprise operations, virtualization, and scalable storage environments with confidence.

Key Features: 1x AMD EPYC™ 9124 processor with 16 cores, 64 MB cache, 3.0 GHz base, and 3.7 GHz boost
64 GB DDR5 memory (2x32 GB modules), scalable up to 3 TB via 12 DIMM slots
DDR5 memory clocked at 4800 MHz for high bandwidth and improved energy efficiency
Total installed storage of 960 GB (2x 480 GB SATA SSDs); scalable up to 522.24 TB
RAID support included for storage resiliency and performance tuning
10 Gigabit Ethernet with dual Broadcom BCM57416 ports for high-speed networking
iLO 6 server management and TPM 2.0 security for protected remote access and system trust
Redundant 2000W power supply installed for enhanced uptime and system resilience
Rack-optimized 2U chassis with 3x USB 3.2 Gen1 ports and VGA output for accessibility
Focused Compute Efficiency This configuration of the DL385 Gen11 is powered by a single AMD EPYC™ 9124 CPU with 16 cores and a strong base frequency, offering dependable compute performance for small to mid-sized virtualization and data workloads.

Expandable DDR5 Memory Architecture Preloaded with 64 GB DDR5 memory, the system supports up to 3 TB using 12 DIMM slots. With a memory speed of 4800 MHz, it enables faster data access, improved multitasking, and greater efficiency for demanding tasks.

Flexible Storage and RAID Capability The included 960 GB SATA SSDs provide reliable boot and storage performance, while RAID support ensures protection and flexibility. Storage is scalable up to 522.24 TB for future data growth.

Integrated Security and Remote Management With TPM 2.0 and HPE’s iLO 6, the DL385 Gen11 enables secure remote monitoring and configuration. Its silicon root of trust architecture ensures firmware integrity from the first boot.

Network Ready with Enterprise-Level Uptime Dual 10GbE ports powered by Broadcom controllers ensure rapid network throughput. The 2U rack server includes a 2000W redundant PSU to maintain availability in mission-critical environments.

Front View - SFF Server Front View - GPU Server Rear View Internal View

The HPE ProLiant DL360 Gen11 is engineered for compute-dense environments where performance, flexibility, and scale matter. Powered by Intel's Xeon Silver 4410Y processor and equipped with enterprise-grade expandability, it supports growing workloads with reliability and efficiency.

Key Features 12-core Intel Xeon Silver 4410Y processor with 24 threads
32 GB DDR5 memory installed, expandable up to 8.19 TB
4 x 3.5" LFF hot-swap drive bays for large storage capacity
Embedded RAID support for improved data resilience
What’s New Next-gen DDR5 memory architecture with 4800 MHz speed
Support for dual CPUs in a compact 1U rack chassis
Intel C741 chipset delivers faster I/O and memory bandwidth
Scalable storage architecture with 20 TB capacity potential
Drive support label
Optical drive (optional – shown)
Serial number/iLO information pull tab
Quick removal access panel
Option: Display port & USB 2.0 port bundle Kit (blank shown)
USB 3.2 Gen1 port
iLO Service Port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
SAS/SATA drive bays (12G x1 SAS LP BP embedded)
Notes

- The optional Systems Insight Display (SID) module is not available in 4 LFF CTO Server.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Energy Efficiency Designed with energy efficiency in mind, the DL360 Gen11 supports Smart Cooling Modules and offers power supply options that reduce operational costs while maintaining high performance.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Performance and Scalability The DL360 Gen11 delivers scalable performance with support for up to 64-core processors and 8TB of DDR5 memory, making it suitable for compute-intensive applications and virtualization.

Security and Management Equipped with HPE Silicon Root of Trust and Intel® security technologies, the server ensures a secure foundation. Integrated HPE iLO 6 provides comprehensive remote management capabilities.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows.

Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory. HPE ProLiant Gen11 servers continuously protect healthy servers by a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations. Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility. Harness major computer performance.

The HPE ProLiant DL360 Gen11 server is powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores, 385W, and up to 8 TB of memory. The HPE ProLiant DL360 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL380 Gen11 Rack Server configured with a single Intel Xeon Silver 4514Y processor delivers balanced performance with 16 cores running at a base frequency of 2 GHz and turbo boost up to 3.4 GHz. This 2U rack server supports advanced DDR5 memory technology, providing a powerful platform optimized for demanding enterprise workloads, virtualization, and high-speed data processing.

Key Features Intel Xeon Silver 4514Y processor with 16 cores, 30 MB cache, and up to 3.4 GHz turbo boost frequency.
128 GB DDR5-SDRAM installed (4 x 32 GB), expandable up to 8 TB via 32 DIMM slots at 5600 MHz memory speed.
Massive storage support up to 583.3 TB with RAID capability for enhanced data protection and performance.
Integrated Broadcom BCM57416 LAN controller delivering dual 10 Gigabit Ethernet RJ-45 ports.
Connectivity includes 3 USB 3.2 Gen 1 Type-A ports and 1 VGA port for flexible peripheral support.
2U rack chassis measuring 732.5 mm width, 448 mm depth, and 87.5 mm height for optimized data center footprint.
Robust power design featuring a 2000 W power supply with support for redundant power supply (RPS) configuration.
Trusted Platform Module (TPM) version 2.0 for enhanced hardware security.
Processor Performance Tailored for Enterprise The Intel Xeon Silver 4514Y processor delivers 16 cores optimized for multitasking and parallel processing, making it suitable for virtualization, data analytics, and business-critical applications that require reliable and consistent CPU performance.

High-Capacity, High-Speed DDR5 Memory With 128 GB of DDR5 memory installed and the capability to scale up to 8 TB via 32 DIMM slots, this server ensures ample memory bandwidth and capacity to support intensive workloads, in-memory databases, and high-performance computing environments.

Scalable Storage with RAID Support The server supports a maximum storage capacity of 583.3 TB with built-in RAID capabilities, enabling fast, reliable storage configurations that protect data integrity while maximizing throughput for demanding storage applications.

Advanced Network Connectivity Dual 10 Gigabit Ethernet ports powered by Broadcom BCM57416 LAN controller provide high-speed, low-latency networking suited for modern data center needs including cloud workloads and virtualization traffic.

Robust Design with Power Redundancy Designed for data center resilience, the DL380 Gen11 features a 2000 W power supply with optional redundant power supply support to ensure continuous operation and minimize downtime.

Security and Manageability Equipped with TPM 2.0 for hardware-based security, this server supports trusted computing and meets enterprise compliance standards, while comprehensive management options streamline administration and monitoring.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL320 Gen11 (P57687-B21) is a space-optimized 1U server that blends high compute performance with flexibility for edge and enterprise applications. Engineered for businesses that require efficient performance in constrained data center environments, it supports next-gen Intel Xeon CPUs and high-speed memory in a streamlined form factor.

Key Features 12-core Intel Xeon Silver 4410Y processor with 30 MB L3 cache
Support for up to 2.05 TB DDR5 memory via 16 DIMM slots
8x 2.5" hot-plug bays supporting SAS, SATA, and NVMe drives
500W Platinum hot-plug power supply included
What's New Now supports DDR5 memory for improved bandwidth and efficiency
PCIe Gen5 support for faster I/O and expansion capability
Integrated MR408i-o RAID controller with 4 GB cache and battery backup
Designed for edge deployment with full-depth rack compatibility
Quick removal access panel
Serial number/iLO information pull tab
Display Port (optional – shown)
Universal Media Bay (optional): Option 1: Optical drive bay + Display port & USB 2.0 port kit (shown)
Option 2: 2 SFF x4 Tri Backplane -Mode 24G U.3 BC Drive Cage

USB 3.2 Gen1 port (optional – shown)
Optical Drive (optional – shown)
iLO Service Port
Power On / Standby button and system power LED
Health LED
NIC Status 1
Unit ID Button/LED
USB 3.2 Gen1 port
Drive bays; backplane options: Option1: 8SFF x1 Tri-Mode 24G U.3 BC Backplane
Option2: 8SFF x4 Tri-Mode 24G U.3 BC Backplane

Drive support label
Notes:

- 1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

Compact Powerhouse for Modern Workloads This server offers exceptional compute density with advanced cooling and high memory capacity, perfect for virtualization, data analysis, and hybrid cloud needs.



Up to 7 Hot Plug Fans
Two (2) M.2 module connectors (under the air baffle – not visible)
Redundant Power Supply (1 & 2 as shown)
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
Slot-2 PCIe5 x16 FHHL (Secondary Riser)
Slot-1 PCIe5 x16 FHHL (Primary Riser)
16 DDR5 DIMM slots (shown)
Heat Sink
Drive Cage
Notes: 1x Internal USB 3.0 port is not marked

Built for Growth and Flexibility With dual PCIe Gen5 slots and multiple storage configurations, the DL320 Gen11 is ideal for future-proofed IT environments that demand scalability.

Slot-1 & 2 PCIe5 x16 FHHL (Primary and Secondary Riser)
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
Hot-plug Power Supply 1 and 2 (1 +1 Redundancy)
OCP 3.0 Slot: x16 PCIe 5.0
Video (VGA) port
UID Indicator LED
Two (2) USB 3.2 Gen1 ports
Dedicated iLO management port
Embedded 1GbE x2 network port
Serial port (optional)
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel® Xeon® Processor that must be matched exactly before the server will boot. This ensures malicious code is contained and healthy servers are protected.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth. Harness major computer performance.

The HPE ProLiant DL320 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with modern 5nm technology that support up to 60 cores and 270W TDP. Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP slots to improve I/O throughput and reduce latency.

Utilize 16 DIMM channels per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

?The HPE ProLiant DL360 Gen11 5416S is a high-performance, single-processor rack server designed for compute-intensive workloads. It features a 16-core AMD EPYC 5416S processor, 32 GB of DDR5 memory, and supports up to 8 SFF drives, making it suitable for data centers and enterprise environments.

Key Features AMD EPYC 5416S, 16-core, 2.0 GHz base frequency processor
32 GB DDR5 memory, expandable for higher capacities
Support for up to 8 Small Form Factor (SFF) drives
800W power supply for reliable performance
1U rack-mountable design for space-efficient deployment
Integrated networking for seamless connectivity
What's New New AMD EPYC 5416S processor offers improved core performance
Upgraded support for DDR5 memory with enhanced speed and efficiency
Expanded drive support: up to 8 SFF bays for increased storage options
More efficient 800W power supply
Optimized for modern workloads like virtualization and cloud computing
Drive support label
Serial number/iLO information pull tab
Quick removal access panel
Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
Display Port (optional – shown)
Optical drive (optional – shown)
USB2.0 port (optional)
iLO Service port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
USB 3.2 Gen1 port
Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
Notes:

- Optional- Systems Insight Display (SID) module is available for 8 SFF CTO Server and will be installed at the left-hand side of iLO Service port and USB 3.2 Gen1 port.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Performance and Scalability The HPE ProLiant DL360 Gen11 5416S delivers exceptional performance with its AMD EPYC processor and DDR5 memory support. Its scalable architecture allows for future upgrades, ensuring it can meet evolving business needs.

Reliability and Security Built with enterprise-grade components, this server ensures high reliability and uptime. It includes advanced security features to protect against potential threats, safeguarding critical business data.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Management and Deployment The server offers streamlined management tools for easy deployment and monitoring. Its 1U form factor makes it ideal for data centers where space is at a premium.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th and 5th Gen Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows.

Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow. Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code. Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, it adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and securing servers at the edge with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitate recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations. Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and platforms (VCF & Containers) that require increased compute density with built-in security and flexibility. Harness major compute performance with 4th and 5th Gen Intel® Xeon® Scalable Processors, supporting up to 64 cores, 385W, and up to 8 TB of memory.

The server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency. It includes 16 DIMMs per processor for up to 8 TB total DDR5 memory, offering increased memory bandwidth, better performance, and lower power requirements. Real-time operational feedback and BIOS tuning recommendations allow for customization to meet evolving business needs.

The HPE ProLiant DL320 Gen11 (P57687-421) is a compact 1U rack server designed for performance at the edge. Built to support virtualization, containerization, and security-sensitive workloads, it leverages Intel's 4th Gen Xeon Scalable processors, DDR5 memory, and next-gen PCIe 5.0 connectivity to meet the demands of modern infrastructure—without overconsuming space or power.

Key Features Powered by Intel® Xeon® Silver 4410Y 12-core processor (2.0 GHz base)
16 GB DDR5 RDIMM included, expandable up to 2 TB across 16 DIMMs
8x 2.5" SFF hot-plug drive bays, Broadcom MR408i-o RAID controller with 4 GB cache
Supports PCIe Gen5 for faster data throughput and future expansion
HPE iLO 6 for secure remote management and monitoring
1x 1000W Flex Slot Titanium hot-plug power supply with redundancy support
Chassis intrusion detection, UEFI Secure Boot, and TPM 2.0 for system integrity
What's New Support for DDR5 memory, delivering higher bandwidth and lower latency
Introduction of PCIe Gen5 slots to enable modern GPU and I/O capabilities
Updated silicon-level security with HPE’s Silicon Root of Trust and TPM 2.0
Streamlined management via HPE Integrated Lights-Out 6 (iLO 6)
Quick removal access panel
Serial number/iLO information pull tab
Display Port (optional – shown)
Universal Media Bay (optional): Option 1: Optical drive bay + Display port & USB 2.0 port kit (shown)
Option 2: 2 SFF x4 Tri Backplane -Mode 24G U.3 BC Drive Cage

USB 3.2 Gen1 port (optional – shown)
Optical Drive (optional – shown)
iLO Service Port
Power On / Standby button and system power LED
Health LED
NIC Status 1
Unit ID Button/LED
USB 3.2 Gen1 port
Drive bays; backplane options: Option1: 8SFF x1 Tri-Mode 24G U.3 BC Backplane
Option2: 8SFF x4 Tri-Mode 24G U.3 BC Backplane

Drive support label
Notes:

- 1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

Optimized for Edge and Enterprise Compact in size but scalable in design, the DL320 Gen11 is ideal for locations with constrained space that require enterprise-class performance. Whether it's a retail location, remote branch, or SMB data center, this server adapts to your deployment strategy with ease.

High-Speed Architecture With PCIe Gen5 expansion and OCP 3.0 support, this system provides headroom for demanding tasks including network acceleration, storage caching, or GPU computing—all while minimizing latency.



Up to 7 Hot Plug Fans
Two (2) M.2 module connectors (under the air baffle – not visible)
Redundant Power Supply (1 & 2 as shown)
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
Slot-2 PCIe5 x16 FHHL (Secondary Riser)
Slot-1 PCIe5 x16 FHHL (Primary Riser)
16 DDR5 DIMM slots (shown)
Heat Sink
Drive Cage
Notes: 1x Internal USB 3.0 port is not marked

Built-in Security Safeguard your workloads with features such as UEFI Secure Boot, HPE Silicon Root of Trust, and integrated intrusion detection—ensuring system integrity from power-on to deployment.

Slot-1 & 2 PCIe5 x16 FHHL (Primary and Secondary Riser)
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
Hot-plug Power Supply 1 and 2 (1 +1 Redundancy)
OCP 3.0 Slot: x16 PCIe 5.0
Video (VGA) port
UID Indicator LED
Two (2) USB 3.2 Gen1 ports
Dedicated iLO management port
Embedded 1GbE x2 network port
Serial port (optional)
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow. Simplify and secure server management from edge to cloud with HPE GreenLake for Compute Ops Management. HPE GreenLake for Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization. HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel® Xeon® Processor that must be matched exactly before the server will boot. This ensures malicious code is contained and healthy servers are protected.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default. HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth. Harness major computer performance. The HPE ProLiant DL320 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with modern 5nm technology that support up to 60 cores and 270W TDP.

Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP slots to improve I/O throughput and reduce latency. Utilize 16 DIMM channels per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL360 Gen11 server P51932-421, is a high-density 1U rackmount solution built for enterprise-level performance and efficiency. Equipped with the Intel Xeon Gold 5415+ processor and support for DDR5 memory, it is designed to tackle virtualization, analytics, and core data center workloads with consistency and reliability.

Key Features Intel Xeon Gold 5415+ Processor (8 cores, 2.9 GHz base, up to 4.1 GHz turbo)
32 GB DDR5 ECC Registered Memory, expandable up to 8 TB
8 x 2.5" SFF hot-swap bays (no drives pre-installed)
800W Flex Slot Titanium Hot Plug Power Supply (supports redundancy)
2 x 10GbE onboard ports powered by Broadcom BCM57416
2 x PCIe Gen5 x16 expansion slots
HPE iLO 6 remote management with Intelligent Provisioning
Tool-less chassis access and modular drive options
What’s New Support for 4th Gen Intel Xeon Scalable CPUs including energy-efficient SKUs
DDR5 memory architecture for improved bandwidth and lower latency
PCIe Gen5 support for next-generation storage and GPU performance
Enhanced thermal design for better airflow in dense data center environments
Drive support label
Serial number/iLO information pull tab
Quick removal access panel
Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
Display Port (optional – shown)
Optical drive (optional – shown)
USB2.0 port (optional)
iLO Service port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
USB 3.2 Gen1 port
Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
Notes:

- Optional- Systems Insight Display (SID) module is available for 8 SFF CTO Server and will be installed at the left-hand side of iLO Service port and USB 3.2 Gen1 port.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Performance and Reliability The SSD delivers high-performance data transfers, significantly outpacing traditional SAS or SATA SSDs. Its design ensures low latency and high endurance, catering to applications with heavy read demands.

Form Factor and Compatibility Adopting the EDSFF E3.S form factor, this SSD allows for greater NVMe drive density, replacing the traditional 2.5-inch small form factor SSDs. It's compatible with HPE servers supporting PCIe Gen5, ensuring seamless integration into existing infrastructures.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Efficient Infrastructure Integration Thanks to HPE OneView and iLO 6 integration, IT teams can automate lifecycle management and streamline deployment and monitoring processes from anywhere.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th and 5th Gen Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows.

Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, it adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by: a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility.

Harness major computer performance. The HPE ProLiant DL360 Gen11 server is powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores, 385W, and up to 8 TB of memory.

The HPE ProLiant DL360 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL325 Gen11 is a performance-optimized, 1U single-socket rack server designed for scalability and efficiency in modern data centers. Built with AMD EPYC 9124 and PCIe Gen5 capabilities, it targets virtualized workloads, software-defined storage, and edge deployments that demand dense computing with enterprise-grade security and manageability.

Key Features Powered by AMD EPYC 9124: 16-core, 3.0 GHz processor with 64MB L3 Cache
32 GB DDR5 Registered DIMM (1 x 32 GB, 4800 MT/s), expandable up to 3 TB
8 x SFF drive bays (no drives pre-installed)
HPE MR408i-o Gen11 RAID controller for high-speed data management
1 x PCIe Gen5 x16 slot and 1 x OCP 3.0 slot for expansion
Broadcom BCM5719 1Gb 4-port BASE-T OCP3 network adapter
800W Flex Slot Platinum hot-plug redundant power supply
What's New Next-gen PCIe Gen5 support for increased I/O throughput
Support for DDR5 memory for higher bandwidth and efficiency
Integrated HPE iLO 6 with enhanced remote management capabilities
ENERGY STAR 3.0 certification for improved energy efficiency
Silicon Root of Trust and Secure Boot enabled for hardened security
Serial number pull tab
Quick removal access panel
2 SFF Cage Bay (Optional - shown) 1
Power On/Standby button and system power LED
Health LED
NIC status LED 2
Unit ID button/LED
USB 3.2 Gen1 port
iLO Service Port
8 SFF Cage Bay
Notes:

1 Optional: Optical Drives

2 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from PCIE NIC’s

Energy Efficiency Designed for energy efficiency, the server delivers improved performance per watt, reducing operational costs.

Megacell battery holder
Hard drive backplane power connectors
Chassis intrusion detection connector
Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies
Secondary PCIe 5.0 riser
OCP 3.0 Slot 22 (Under)
Internal Dual USB 3.2 Gen1 port
Primary PCIe 5.0 riser
OCP 3.0 Slot 21 (Under)
Processor is shown with Performance heat sink (Up to 1) 1
FHFL PCIe card holder
DDR5 DIMM slots 2
Hot-plug fans 3
Notes:

1 Optional: Standard Heat Sink and Closed-Loop Liquid Cooling Heat Sink

2 Fully populated 12 DIMMs shown

3 7 dual-rotor standard fans shown. Optional: Performance Fans and Liquid Cooling Fans

Performance and Scalability The server offers up to 96 cores and 3TB of DDR5 memory, providing exceptional performance for compute-intensive workloads.

Storage and Expansion With support for up to 10 NVMe drives and PCIe Gen5 slots, the DL325 Gen11 ensures high-speed data access and expansion capabilities.

Slot 1 Primary PCIe 5.0 Riser
Optional NS204i-u hot-plug NVMe boot device
Slot 2 Secondary PCIe 5.0 Riser 1
Hot-plug Power Supply 1 and 2 2
Video (VGA) port
OCP 3.0 Slot 22
Optional Serial port
Dedicated iLO management port
USB 3.1 Gen1 Ports (2)
Unit ID LED
OCP 3.0 Slot 21
Notes:

1 Low profile and full height options

2 Hot-plug Power Supply 2 is optional

Intuitive Cloud Operating Experience: Simple, Self-service, and AutomatedTransform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL325 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization. HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained, and healthy servers are protected.

HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default. HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, and providing a fast path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Customized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth. Harness major computer performance. The HPE ProLiant DL325 Gen11 server is powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores, 400W, and 1150 MB of L3 cache.

Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots, improve I/O throughput and reduce latency. Increase memory bandwidth and performance, and lower power requirements with 12 DIMM channels per processor for up to 3 TB total DDR5 memory.

Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL380 Gen11, equipped with a 16-core Intel® Xeon® Gold 6526Y processor, is a versatile 2U rack server optimized for performance, memory bandwidth, and high-capacity storage. Designed to support demanding workloads such as virtualization, advanced analytics, and hybrid cloud applications, this system offers scalable compute power, expansive memory configuration, and enterprise-grade networking in a secure and compact chassis. With 128 GB DDR5 memory, 10 GbE connectivity, and a redundant 2000W power supply, it’s built for reliable, efficient operation in data-centric environments.

Key Features: Intel® Xeon® Gold 6526Y processor with 16 cores at 2.8 GHz base and 3.9 GHz boost
128 GB DDR5-SDRAM (4 x 32 GB) at 5600 MHz, expandable up to 8 TB across 32 DIMM slots
Maximum storage capacity up to 583.3 TB with RAID support for enhanced data protection
10 Gigabit Ethernet powered by Broadcom BCM57416 with dual RJ-45 ports
Redundant 2000W power supply installed for uninterrupted system availability
Trusted Platform Module (TPM) 2.0 support for hardware-level security
USB 3.2 Gen 1 and VGA ports for versatile connectivity and peripheral support
Optimized Compute Configuration Powered by a single Intel® Xeon® Gold 6526Y processor, this server delivers robust multi-threaded performance across 16 cores, making it ideal for scalable infrastructure and compute-heavy operations. The 37.5 MB cache ensures faster access to frequently used data.

Advanced Memory Architecture Pre-configured with 128 GB DDR5 memory at 5600 MHz, and supporting up to 8 TB, the DL380 Gen11 maximizes throughput and memory bandwidth. Its 32 DIMM slots enable precise memory scaling for both current and future workload needs.

Massive Storage Potential With support for up to 583.3 TB in total storage and hardware-level RAID, this system can be configured to support extensive local storage arrays, making it a strong candidate for backup-intensive and storage-driven environments.

High-Speed Connectivity The Broadcom BCM57416 controller supports dual 10 GbE ports, ensuring fast data transmission, network redundancy, and low-latency access to critical applications across virtualized or clustered environments.

Built-In Reliability Designed with enterprise-class continuity in mind, the server includes a redundant 2000W power supply and Trusted Platform Module 2.0 to meet business continuity, security, and compliance requirements.

Front View - 8SFF chassis with optional Universal Media Bay Front View - 12LFF Front View - 12EDSFF chassis shown Internal View - 8SFF chassis Rear View

The HPE ProLiant DL380 Gen11 8 SFF is a 2U rack server purpose-built to support high-performance computing, dense memory configurations, and secure infrastructure management. Designed for demanding enterprise workloads, it offers a balance of speed, expandability, and control with next-gen Intel processing and DDR5 memory integration.

Key Features Powered by Intel Xeon Silver 4410Y with 12 cores and 24 threads
Supports up to 8 TB DDR5 memory across 32 DIMM slots
8 x 2.5" hot-swap SFF bays with RAID-enabled MR408i-o controller
Integrated 4 x 1GbE network ports with Broadcom BCM5719
What's New DDR5 memory support for higher bandwidth and energy efficiency
PCIe Gen5 architecture allowing faster I/O and device expansion
HPE GreenLake and Compute Ops Management integration
Enhanced security with TPM 2.0 and optional intrusion detection
Optional Front Display Port (via Universal Media Bay)
Box 1 (shown with optional Universal Media Bay installed)
Box 2 (Empty)
Quick removal access panel
Unit Identification button/LED
NIC Status11
Health LED
Power On / Standby button / LED
iLO Service Port
USB 3.2 Gen1
Box 3 (shown with 8SFF drives populated)
Optional USB 2.0 port (via Universal Media Bay)
Drive Support Label
Serial Number Label Pull Tab
Notes: 1Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

Scalable Performance Equipped with Intel’s 4th Gen Xeon scalable processors, the DL380 Gen11 supports virtualization, containerization, and large-scale data operations with ease.

Flexible Storage Architecture Includes 8 SFF hot-swap bays with a modular design that supports both SAS and NVMe SSDs, giving IT teams flexibility for scaling and workload tuning.

Hot Plug Fans11
Processors, heatsinks showing
Optional NS204i-u Boot Device
Hot Plug redundant HPE Flexible Slot Power Supplies
Secondary Riser (Optional) (Requires second processor)
Primary Riser
DIMM slots, shown fully populated in 32 slots22
Drive Backplanes
Drive Cages
Notes:

- 1High performance temperature fans optional

- 2Shown fully populated in 32 slots (16 per processor)

Enterprise-Class Management Comes standard with HPE iLO and Intelligent Provisioning, enabling seamless remote administration, configuration, and troubleshooting from any location.

Redundancy & Reliability With redundant hot-plug fans and a 1000W Titanium PSU, the system ensures high availability and reduced downtime even in mission-critical environments.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)
OCP NIC 3.0 Slots, shown covered
Secondary Riser. PCIe 5.0 Slots (Slots 4-6)
Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed
Optional NS204i-u Boot Device
Power Supply
VGA Connector
Serial Port Optional
Dedicated iLO Management Port
USB 3.2 Gen1 Connectors (2)
UID Indicator LED
Notes: 1Supports various NICs, and Storage controllers.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow. Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code. The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default. HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth. Harness major computer performance. The HPE ProLiant DL380 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores per processor, 350W, and up to 8 TB of memory.

The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency. It provides 16 DIMM channels per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL360 Gen11 (P70540-421) is a performance-focused 1U rack server engineered for modern data centers and IT infrastructure needs. Outfitted with an Intel Xeon Silver 4509Y processor and 32GB of DDR5 memory, it’s an ideal solution for compute-intensive environments, virtualization tasks, and hybrid workloads requiring efficiency, reliability, and remote manageability.

Key Features Powered by Intel Xeon Silver 4509Y processor with 8 cores and turbo speeds up to 4.1 GHz
32GB DDR5 memory, scalable to 8.19TB for high-demand applications
Hot-plug 1000W Titanium power supply with optional redundancy
Supports up to 153.6TB of storage across 8 x 2.5" drive bays
Integrated HPE iLO 6 for secure remote server management
4 x Gigabit Ethernet ports for standard networking needs
What's New Latest generation Intel Xeon Scalable support
PCIe Gen5 support for improved I/O bandwidth
DDR5 memory compatibility increases memory performance and density
Enhanced security with TPM 2.0 and Silicon Root of Trust
Drive support label
Serial number/iLO information pull tab
Quick removal access panel
Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
Display Port (optional – shown)
Optical drive (optional – shown)
USB2.0 port (optional)
iLO Service port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
USB 3.2 Gen1 port
Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
Notes:

- Optional- Systems Insight Display (SID) module is available for 8 SFF CTO Server and will be installed at the left-hand side of iLO Service port and USB 3.2 Gen1 port.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Optimized for Data Centers With its 1U rack-mount design, the DL360 Gen11 is ideal for data centers where space is at a premium. Its robust feature set ensures it can handle virtualization, database management, and other critical applications efficiently.

Scalability and Flexibility The server's architecture allows for easy scalability, accommodating future growth. The 8 SFF drive bays provide ample storage options, and the system supports various RAID configurations for data redundancy and performance optimization.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Advanced Management Tools Equipped with HPE's integrated management tools, administrators can monitor and manage the server remotely, ensuring optimal performance and quick issue resolution without the need for physical access.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th and 5th Gen Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows. Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, it adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by: a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility.

Harness major computer performance. The HPE ProLiant DL360 Gen11 server is powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores, 385W, and up to 8 TB of memory.

The HPE ProLiant DL360 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL380 Gen11 5416S 2.1GHz 16-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS Server is engineered to deliver high performance and scalability for demanding workloads. Featuring a 16-core Intel Xeon 5416S processor and 32 GB of DDR5 memory, this rack server is ideal for data-intensive applications and virtualization. Its 8 SFF drive bays and advanced MR408i-o storage controller provide flexible storage options, while the 1000W power supply ensures reliable operation in enterprise environments.

Key Features Processor: Intel Xeon 5416S, 16-core, 2.1GHz base frequency
Memory: 32 GB DDR5 RAM, expandable for future needs
Storage: 8 Small Form Factor (SFF) drive bays
Storage Controller: HPE MR408i-o with 4GB cache
Power Supply: 1000W Flex Slot Platinum Hot Plug
Management: Integrated Lights-Out (iLO) for remote management
What's New Introduction of the Intel Xeon 5416S processor for enhanced performance
Support for DDR5 memory technology
Enhanced storage capabilities with the MR408i-o controller
Improved power efficiency with the 1000W Flex Slot PSU
Optional Front Display Port (via Universal Media Bay)
Box 1 (shown with optional Universal Media Bay installed)
Box 2 (Empty)
Quick removal access panel
Unit Identification button/LED
NIC Status11
Health LED
Power On / Standby button / LED
iLO Service Port
USB 3.2 Gen1
Box 3 (shown with 8SFF drives populated)
Optional USB 2.0 port (via Universal Media Bay)
Drive Support Label
Serial Number Label Pull Tab
Notes: 1Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

Performance and Scalability With its 16-core processor and support for DDR5 memory, the DL380 Gen11 offers exceptional performance for compute-intensive tasks. The scalable architecture allows for memory and storage expansion to meet growing business demands.

Hot Plug Fans11
Processors, heatsinks showing
Optional NS204i-u Boot Device
Hot Plug redundant HPE Flexible Slot Power Supplies
Secondary Riser (Optional) (Requires second processor)
Primary Riser
DIMM slots, shown fully populated in 32 slots22
Drive Backplanes
Drive Cages
Notes:

- 1High performance temperature fans optional

- 2Shown fully populated in 32 slots (16 per processor)

Management and Security Integrated Lights-Out (iLO) technology offers comprehensive remote management capabilities, enhancing security and simplifying server administration.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)
OCP NIC 3.0 Slots, shown covered
Secondary Riser. PCIe 5.0 Slots (Slots 4-6)
Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed
Optional NS204i-u Boot Device
Power Supply
VGA Connector
Serial Port Optional
Dedicated iLO Management Port
USB 3.2 Gen1 Connectors (2)
UID Indicator LED
Notes: 1Supports various NICs, and Storage controllers.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth. Harness major compute performance with next-generation Intel® technology.

The server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors that support up to 64 cores per processor, 350W, and up to 8 TB of memory. The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds via the PCIe Gen5 serial expansion bus, offering up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

It supports 16 DIMM channels per processor, enabling up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. The system also provides real-time operational feedback on server performance and BIOS tuning recommendations tailored to shifting business demands.

The HPE ProLiant DL360 Gen11 (P70542-421) is a powerful 1U rack-mounted server designed to meet the demands of various high-performance workloads, including virtualization, cloud computing, and data analytics. It is equipped with an Intel® Xeon® Silver 4514Y processor that offers high processing power, complemented by expansive memory and storage options, making it ideal for enterprise-grade tasks.

Key Features Intel® Xeon® Silver 4514Y processor with 16 cores, 2.0 GHz base frequency, up to 3.4 GHz with Turbo Boost
32 GB DDR5 RDIMM memory, expandable up to 8 TB
8 x Small Form Factor (SFF) hot-swap drive bays for flexible storage configurations
Broadcom MR408i-o Gen11 controller with 4 GB cache for enhanced storage management
Dual 10GbE ports for high-speed network connectivity
1000W Flex Slot Titanium Hot Plug Power Supply for power efficiency and redundancy
1U rack-mounted form factor, offering a compact and scalable design
iLO 6 remote management for efficient server monitoring and control
What's New Supports up to 8 TB of DDR5 memory, improving data processing capabilities
Advanced Broadcom MR408i-o Gen11 controller for better storage management and flexibility
Dual 10GbE ports for optimal network throughput
Integrated Lights-Out (iLO 6) for improved remote management and automation
Drive support label
Serial number/iLO information pull tab
Quick removal access panel
Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
Display Port (optional – shown)
Optical drive (optional – shown)
USB2.0 port (optional)
iLO Service port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
USB 3.2 Gen1 port
Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
Notes:

- Optional- Systems Insight Display (SID) module is available for 8 SFF CTO Server and will be installed at the left-hand side of iLO Service port and USB 3.2 Gen1 port.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Networking and Connectivity The server features four Gigabit Ethernet ports, ensuring reliable network connectivity. It also includes various USB ports and video interfaces for versatile connectivity options.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Networking and Power Efficiency The server is equipped with dual 10GbE ports for high-speed networking, ensuring low-latency communication between devices. Additionally, the 1000W Flex Slot Titanium Hot Plug Power Supply offers excellent energy efficiency and redundancy, reducing operational costs and improving the system's reliability.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th and 5th Gen Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows. Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, it adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers—even preventing boot-up if malicious code is identified—and securing servers at the edge with IDevID certificates installed by default.

These servers provide automated recovery from security events, including validated firmware restoration and recovery of the operating system, applications, and data connections—offering a fast path back to normal operations. HPE Integrated Lights-Out 6 (iLO 6) delivers built-in intelligence for server status monitoring, service alerting, and both local and remote management.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is ideal for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and platforms like VCF & Containers that need compute density, integrated security, and flexibility.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, this server supports up to 64 cores, 385W power, and up to 8 TB of memory. It leverages PCIe Gen5 for high-speed data transfer with up to 3 x16 PCIe Gen5 slots and 2 OCP slots, reducing I/O latency and boosting throughput.

It features 16 DIMMs per processor (up to 8 TB DDR5 memory), delivering increased memory bandwidth and performance with improved power efficiency. Real-time operational feedback and BIOS tuning recommendations are also built in to help optimize performance for evolving business needs.

The HPE ProLiant DL360 Gen11 4416+ Server is engineered to deliver exceptional performance and scalability for data-intensive workloads. Equipped with a 20-core AMD EPYC 4416+ processor, 32GB DDR5 memory, and support for PCIe Gen5, this 1U rack server is ideal for environments demanding high throughput and low latency.

Key Features Processor: AMD EPYC 4416+ 20-core, 2.0GHz
Memory: 32GB DDR5 Registered DIMMs
Storage Controller: MR408i-o
Drive Bays: 8 x Small Form Factor (SFF)
Power Supply: 800W
Expansion: PCIe Gen5 slots for enhanced I/O
Form Factor: 1U rack-mountable
What's New Integration of PCIe Gen5 technology for improved bandwidth
Support for DDR5 memory modules
Enhanced storage capabilities with MR408i-o controller
Optimized for virtualization and high-performance computing tasks
Drive support label
Serial number/iLO information pull tab
Quick removal access panel
Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
Display Port (optional – shown)
Optical drive (optional – shown)
USB2.0 port (optional)
iLO Service port
Power On/Standby button and system power LED
Health LED
NIC status LED
Unit ID button/LED
USB 3.2 Gen1 port
Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
Notes:

- Optional- Systems Insight Display (SID) module is available for 8 SFF CTO Server and will be installed at the left-hand side of iLO Service port and USB 3.2 Gen1 port.

- Front NIC LED display doesn’t support NIC LED ACT/LINK indication from OCP NIC without Scan Chain and PCIe type NIC adapters.

Advanced Memory Support With DDR5 memory, the system ensures faster data access and improved energy efficiency, catering to modern workload requirements.

Energy Efficiency An 800W power supply ensures optimal energy consumption, aligning with sustainability goals without compromising performance.

Liquid Cooling Module connector
x8 SlimSAS ports (1A to 4A, 1B to 4B)
DDR5 DIMM Slots (fully populated 32 DIMMs shown)
Socket 2 MCIO ports (1 & 2)
Backplane Power connector
Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
Redundant Power Supply (1 & 2 as shown)
Secondary (CPU 2) Riser PCIe 5.0
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser) SID connector (optional feature, 8 SFF only)
Energy Pack connector
OCP Slot port
HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
System Battery
Primary (CPU1) Riser PCIe 5.0 • 1x 16 FH and 1x16 LP slots
OCP Slot port
Front Display Port and USB 2.0 connector (optional feature)
LP SlimSAS ports (1 & 2)
Chipset
Front I/O and USB 3.2 Gen1 connector
SATA Optical port
Socket 1 MCIO connector
CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
Hot plug (dual rotor) High Performance Fan Kit (7 fans)
• Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
HPE Hybrid Capacitor or HPE Storage Battery holder
Performance and Scalability The server's architecture supports demanding applications, providing the necessary resources for virtualization, database management, and analytics.

Slot 1 x16 PCIe 5.0 – Full Height
Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor)
• Low Profile and Full Height options
Redundant Power Supply (1 & 2 as shown)
Video (VGA) port
OCP 3.0 Slot 2: x16* PCIe 5.0 1,2 (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
Serial port (optional - shown)
iLO Management Port
USB 3.2 Gen1 Ports
Unit ID Indicator LED
OCP 3.0 Slot 1: x16* PCIe 5.0 2
Notes: *x8 for 20EDSFF CTO Server Notes:

1 Supports various NICs, up to 200GbE.

2 Or supports each slot with x8 PCIe 5.0 under one processor, with the selection of “P51911-B21, CPU1 to the “OCP2 x8 Enablement Kit”.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL360 Gen11 servers are engineered for your hybrid world. ProLiant DL360 Gen11 servers are powered by 4th and 5th Gen Intel® Xeon® processors and simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console. Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management to reduce and shorten maintenance windows.

Self-service automated experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow. Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL360 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code. Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, it adds hardware- and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which help secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by a) providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies malicious code, and b) securing servers at the edge with IDevID certificates installed by default. HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, CDN, general-purpose virtualization workloads (including large-scale VDI), Intelligent Video Analytics, and Platforms (VCF & Containers) that require increased compute density with built-in security and flexibility. Harness major compute performance.

The HPE ProLiant DL360 Gen11 server is powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores, 385W, and up to 8 TB of memory. It provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 3 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

The server provides 16 DIMMs per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. The HPE ProLiant DL360 Gen11 server provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL380 Gen11 6430 2.1GHz 32-core 1P 32GB-R NC 8SFF 1000W PS Server is engineered for high-performance computing environments, offering robust processing capabilities and advanced features to meet demanding workloads.

Key Features Intel Xeon 6430, 2.1GHz, 32-core processor
32GB DDR5 Registered (RDIMM) memory
8 Small Form Factor (SFF) drive bays
1000W power supply
Rack-mountable form factor
Integrated network controller
Multiple PCIe expansion slots
What's New Latest Intel Xeon 6430 processor for enhanced performance
Support for DDR5 memory with higher bandwidth
Scalable storage with 8 SFF drive bays
Efficient 1000W power supply for demanding workloads
Improved connectivity via integrated network controller
Optional Front Display Port (via Universal Media Bay)
Box 1 (shown with optional Universal Media Bay installed)
Box 2 (Empty)
Quick removal access panel
Unit Identification button/LED
NIC Status11
Health LED
Power On / Standby button / LED
iLO Service Port
USB 3.2 Gen1
Box 3 (shown with 8SFF drives populated)
Optional USB 2.0 port (via Universal Media Bay)
Drive Support Label
Serial Number Label Pull Tab
Notes: 1Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

Performance and Scalability The DL380 Gen11 server is designed to deliver exceptional performance with its 32-core Intel Xeon processor, making it suitable for virtualization, data analytics, and high-performance computing tasks. The support for DDR5 memory ensures faster data processing and improved energy efficiency.

Storage and Expansion With 8 SFF drive bays, the server offers flexible storage options to accommodate growing data needs. The multiple PCIe expansion slots provide the ability to add additional components such as GPUs, network cards, or storage controllers, enhancing the server's capabilities.

Hot Plug Fans11
Processors, heatsinks showing
Optional NS204i-u Boot Device
Hot Plug redundant HPE Flexible Slot Power Supplies
Secondary Riser (Optional) (Requires second processor)
Primary Riser
DIMM slots, shown fully populated in 32 slots22
Drive Backplanes
Drive Cages
Notes:

- 1High performance temperature fans optional

- 2Shown fully populated in 32 slots (16 per processor)

Reliability and Management Built with HPE's renowned reliability, the DL380 Gen11 includes features that ensure continuous operation and easy management. The integrated network controller facilitates seamless connectivity, while the server's design allows for straightforward maintenance and upgrades.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)
OCP NIC 3.0 Slots, shown covered
Secondary Riser. PCIe 5.0 Slots (Slots 4-6)
Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed
Optional NS204i-u Boot Device
Power Supply
VGA Connector
Serial Port Optional
Dedicated iLO Management Port
USB 3.2 Gen1 Connectors (2)
UID Indicator LED
Notes: 1Supports various NICs, and Storage controllers.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth. Harness major computer performance.

The HPE ProLiant DL380 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores per processor, 350W, and up to 8 TB of memory.

The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

It provides 16 DIMM channels per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements. It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL325 Gen11 (P58691-421) is a 1U rack server engineered for data-intensive workloads, virtualization, and software-defined operations. With a single AMD EPYC 9354P processor and DDR5 memory support, it delivers dense compute power in a compact, energy-efficient form factor.

Key Features AMD EPYC 9354P processor with 32 cores and up to 3.8 GHz boost
32 GB DDR5 memory installed; scalable up to 3 TB across 12 DIMM slots
Support for up to 8 SFF drives (SATA/SAS/NVMe)
Integrated HPE MR408i-o Gen11 RAID controller with 4 GB cache
Dual 10GbE BASE-T networking via Broadcom BCM57416
1 x PCIe Gen5 x16 expansion slot and 1 x OCP 3.0 slot
1 x 1000W Titanium Hot Plug Power Supply
Remote management via iLO 6 and support for HPE OneView
What's New Now powered by AMD EPYC 9354P with higher base and boost frequencies
Incorporates DDR5 memory for improved bandwidth and performance
PCIe Gen5 support for higher throughput on expansion cards
Enhanced energy efficiency with Titanium-rated power supply
Support for HPE GreenLake for Compute Ops Management
Serial number pull tab
Quick removal access panel
2 SFF Cage Bay (Optional - shown) 1
Power On/Standby button and system power LED
Health LED
NIC status LED 2
Unit ID button/LED
USB 3.2 Gen1 port
iLO Service Port
8 SFF Cage Bay
Notes:

- 1 Optional: Optical Drives

- 2 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from PCIE NIC’s

Compact Performance The 1U form factor makes it ideal for data centers where space is a premium, while still delivering top-tier performance.

Scalable Architecture Memory scalability up to 3 TB and multiple storage options allow this server to adapt to changing workload demands.

Megacell battery holder
Hard drive backplane power connectors
Chassis intrusion detection connector
Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies
Secondary PCIe 5.0 riser
OCP 3.0 Slot 22 (Under)
Internal Dual USB 3.2 Gen1 port
Primary PCIe 5.0 riser
OCP 3.0 Slot 21 (Under)
Processor is shown with Performance heat sink (Up to 1) 1
FHFL PCIe card holder
DDR5 DIMM slots 2
Hot-plug fans 3
Notes:

- 1 Optional: Standard Heat Sink and Closed-Loop Liquid Cooling Heat Sink

- 2 Fully populated 12 DIMMs shown

- 3 7 dual-rotor standard fans shown. Optional: Performance Fans and Liquid Cooling Fans

Modern Infrastructure Support Compatible with major operating systems and virtualization platforms including VMware, Windows Server, and Linux distributions.

Efficient Remote Management Integrated iLO 6 with HPE OneView simplifies remote management, monitoring, and firmware updates across deployments.

Slot 1 Primary PCIe 5.0 Riser
Optional NS204i-u hot-plug NVMe boot device
Slot 2 Secondary PCIe 5.0 Riser 1
Hot-plug Power Supply 1 and 2 2
Video (VGA) port
OCP 3.0 Slot 22
Optional Serial port
Dedicated iLO management port
USB 3.1 Gen1 Ports (2)
Unit ID LED
OCP 3.0 Slot 21
Notes:

- 1 Low profile and full height options

- 2 Hot-plug Power Supply 2 is optional

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL325 Gen11 servers are engineered for your hybrid world. The HPE ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Supports closed-loop liquid cooling heat sink for high wattage processors. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL325 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained, and healthy servers are protected.

HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, and providing a fast path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Customized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.

Harness major compute performance. The HPE ProLiant DL325 Gen11 server is powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores, 400W, and 1150 MB of L3 cache.

Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots, improve I/O throughput and reduce latency.

Increase memory bandwidth and performance, and lower power requirements with 12 DIMM channels per processor for up to 3 TB total DDR5 memory.

Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL380 Gen11 (P60638-421) delivers a reliable, scalable server platform built to power hybrid cloud infrastructure and data-intensive workloads. Designed in a compact 2U rack form factor, it pairs cutting-edge compute power with flexible storage and I/O expansion to support a broad range of enterprise applications.

Key Features 1x Intel® Xeon® Gold 5418Y processor with 24 cores at 2.0 GHz
Broadcom MR408i-o Gen11 storage controller
Support for up to 8 SFF (Small Form Factor) drives
1000W Flex Slot Titanium Hot Plug Power Supply
Integrated HPE iLO 6 for intelligent remote server management
Expandable with 8x PCIe Gen5 slots and 2x OCP 3.0 slots
What's New Latest Gen11 platform designed for next-gen hybrid cloud deployments
First-time inclusion of Intel Xeon Scalable 5418Y CPUs in 2U format
Support for PCIe Gen5 – enabling faster I/O performance
Integrated Gen11 Smart Storage controllers for improved reliability
Optional Front Display Port (via Universal Media Bay)
Box 1 (shown with optional Universal Media Bay installed)
Box 2 (Empty)
Quick removal access panel
Unit Identification button/LED
NIC Status11
Health LED
Power On / Standby button / LED
iLO Service Port
USB 3.2 Gen1
Box 3 (shown with 8SFF drives populated)
Optional USB 2.0 port (via Universal Media Bay)
Drive Support Label
Serial Number Label Pull Tab
Notes: 1Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's

Performance-Optimized Architecture With its single 24-core Xeon processor and DDR5 memory support, the DL380 Gen11 ensures excellent performance for virtualized environments, AI/ML workloads, and container-based deployments.

Designed for Expansion The 2U chassis accommodates up to 8 SFF drives and multiple PCIe Gen5 cards, offering room to grow as your data demands increase.

Hot Plug Fans11
Processors, heatsinks showing
Optional NS204i-u Boot Device
Hot Plug redundant HPE Flexible Slot Power Supplies
Secondary Riser (Optional) (Requires second processor)
Primary Riser
DIMM slots, shown fully populated in 32 slots22
Drive Backplanes
Drive Cages
Notes:

- 1High performance temperature fans optional

- 2Shown fully populated in 32 slots (16 per processor)

Secure and Manageable HPE iLO 6 provides advanced server management, including health monitoring, remote provisioning, and firmware security features to maintain uptime and data integrity.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)
OCP NIC 3.0 Slots, shown covered
Secondary Riser. PCIe 5.0 Slots (Slots 4-6)
Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed
Optional NS204i-u Boot Device
Power Supply
VGA Connector
Serial Port Optional
Dedicated iLO Management Port
USB 3.2 Gen1 Connectors (2)
UID Indicator LED
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated HPE ProLiant DL380 Gen11 servers are engineered for your hybrid world. HPE ProLiant DL380 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience. Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows. These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

Trusted Security by Design: Uncompromising, Fundamental, and Protected The HPE ProLiant DL380 Gen11 server utilizes the HPE Silicon Root of Trust, HPE’s fundamental approach to security that provides zero-trust architecture at the silicon level and ensures all server essential firmware is free from malware or compromised code.

The server, powered by 4th and 5th Gen Intel® Xeon® Scalable Processors, adds hardware and software-assisted security features, including Intel® Software Guard Extensions and Intel® Boot Guard, which secure the server hardware foundation on which critical apps run and better protect data in memory.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient The HPE ProLiant DL380 Gen11 server is an excellent choice for compute and data storage demanding workloads (AI, ML, telco, DB analytics, VDI, containers) requiring maximum core count, GPU capabilities, and network and I/O bandwidth. Harness major computer performance.

The HPE ProLiant DL380 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation technology that supports up to 64 cores per processor, 350W, and up to 8 TB of memory.

The HPE ProLiant DL380 Gen11 server provides advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots to improve I/O throughput and reduce latency.

It provides 16 DIMM channels per processor for up to 8 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

It provides real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL360 Gen11 (P82659-425) is a 1U rack-optimized powerhouse, engineered to support compute-intensive hybrid cloud and data workloads with security, speed, and configurability at the forefront. Featuring a 32-core Intel Xeon Gold 6530 processor, 5 high-capacity SSDs, and advanced DDR5 memory, this system is ideal for technical computing environments requiring maximum throughput in minimal space.

Key Features Processor: Intel Xeon Gold 6530 with 32 cores, 2.10 GHz base clock, and 160 MB L3 cache.
Memory: HPE DDR5 Smart Memory, supports up to 8 TB across 16 DIMMs per CPU at speeds up to 5600 MHz.
Storage: 5x HPE 1.92TB SATA 6G Mixed Use SFF SSDs installed; supports up to 20 EDSFF drives total.
Expansion: 2 PCIe Gen5 x16 slots standard, with optional 3rd slot and up to 2 OCP 3.0 PCIe5 slots.
Network: Integrated Broadcom BCM57416 10Gb 2-port BASE-T Adapter.
Security: UEFI Secure Boot, Immutable Silicon Root of Trust, TPM, SGX, iLO Security Modes, Intrusion Detection.
Management: HPE iLO 6 Standard, HPE OneView Standard (Advanced licenses optional).
Power: Dual HPE 1000W Flex Slot Titanium Hot Plug Power Supplies.
Cooling: 7x High-Performance Fans for sustained thermal efficiency.
Form Factor: Ultra-dense 1U Rackmount.
Compute-Dense Architecture for Modern IT Workloads With a single high-core Intel Xeon Gold 6530 processor and support for DDR5 memory, the DL360 Gen11 delivers reliable multi-threaded performance for applications in virtualization, EDA, and rendering environments. The 160 MB L3 cache optimizes data locality, enhancing workload responsiveness.

Efficient Storage and High-Speed I/O Integration Outfitted with 5 pre-installed 1.92TB SSDs and scalable to high-capacity drive configurations, this server is ready for storage-heavy workloads. PCIe Gen5 and OCP 3.0 expansion slots ensure bandwidth is not a bottleneck for modern data applications.

Intelligent System Management and Control Administrators gain complete visibility and control with HPE iLO 6 and Intelligent Provisioning, reducing setup complexity and operational overhead. With OneView compatibility, the server integrates smoothly into your broader infrastructure management stack.

Trusted Infrastructure with Multi-Layered Security With secure boot features, silicon-level trust anchors, TPM, and physical security enhancements like chassis intrusion detection and bezel locking, this server prioritizes resilience and compliance across regulated and sensitive environments.

.bullet{ background-color: #3dd0b7; color: black; } 8 SFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 Universal Media Bay (optional):
• Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
• Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
5 Display Port (optional – shown)
6 Optical drive (optional – shown)
7 USB 2.0 port (optional)
8 iLO Service port
9 Power On/Standby button and system power LED
10 Health LED
11 NIC status LED
12 Unit ID button/LED
13 USB 3.2 Gen1 port
14 Drive bays; optional backplanes:
• Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
• Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC
4 SFF Front View 1 Drive support label
2 Optical drive (optional – shown)
3 Serial number/iLO information pull tab
4 Quick removal access panel
5 Option: Display port & USB 2.0 port bundle kit (blank shown)
6 USB 3.2 Gen1 port
7 iLO Service Port
8 Power On/Standby button and system power LED
9 Health LED
10 NIC status LED
11 Unit ID button/LED
12 SAS/SATA drive bays (12G x1 SAS LP BP embedded)
20 EDSFF Front View 1 Drive support label
2 Serial number/iLO information pull tab
3 Quick removal access panel
4 iLO Service Port
5 Power On/Standby button and system power LED
6 Health LED
7 NIC status LED
8 Unit ID button/LED
9 USB 3.2 Gen1 port
10 EDSFF drive bays (32G x4 NVMe BP embedded)
Internal View 1 Liquid Cooling Module connector
2 x8 SlimSAS ports (1A to 4A, 1B to 4B)
3 DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
4 Socket 2 MCIO ports (1 & 2)
5 Backplane Power connector
6 Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
7 Redundant Power Supply (1 & 2 as shown)
8 Secondary (CPU 2) Riser PCIe 5.0
9 SID connector (optional feature, 8 SFF only)
10 Energy Pack connector
11 OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
12 HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
13 System Battery
14 Primary (CPU1) Riser PCIe 5.0
15 OCP Slot port
16 Front Display Port and USB 2.0 connector (optional feature)
17 LP SlimSAS ports (1 & 2)
18 Chipset
19 Front I/O and USB 3.2 Gen1 connector
• Option: Low Profile x16
• Option: Full height x16 (lose Slot 2 on Primary Riser)
20 SATA Optical port
21 Socket 1 MCIO connector
22 CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
23 Hot plug (dual rotor) High Performance Fan Kit (7 fans)
24 HPE Hybrid Capacitor or HPE Storage Battery holder
Rear View 1 Slot 1 x16 PCIe 5.0 – Full Height
2 Slot 2 x16 PCIe 5.0 – Low Profile*
Notes: *Shown with optional hot-plug NS204i-u Boot Device (cabled, PCIe connection is not required)
3 Option: Slot 3 x16 PCIe 5.0 (Requires 2nd processor) • Low Profile and Full Height options
4 Redundant Power Supply (1 & 2 as shown)
5 Video (VGA) port
6 OCP 3.0 Slot 2: x16* PCIe 5.0¹,² (Requires 2nd Processor)
Notes: *x8 for 20EDSFF CTO Server (requires 2nd Processor)
7 Serial port (optional - shown)
8 iLO Management Port
9 USB 3.2 Gen1 Ports
10 Unit ID Indicator LED
11 OCP 3.0 Slot 1: x16* PCIe 5.0²
Notes: *x8 for 20EDSFF CTO Server

Purpose-built for AI workloads, edge deployments, and virtualization, the HPE ProLiant DL320 Gen11 combines compact design with enterprise-class capabilities. This 1U rackmount server features a 12-core Intel Xeon Silver 4510 processor, 64 GB of DDR5 memory, and dual 480 GB SSDs—offering reliable performance and scalability for demanding applications. Ideal for data-intensive tasks in limited-space environments, it delivers the right balance of power, efficiency, and expandability for forward-thinking operations.

Key Features: Powered by Intel Xeon Silver 4510 (12 cores, 2.4 GHz base, up to 4.1 GHz boost)
64 GB DDR5-SDRAM (2 x 32 GB) with support for up to 128 GB
16x DIMM slots with 5600 MHz memory clock speed
960 GB total SSD storage (2 x 480 GB, 2.5") with RAID 0/1/5/10 support
Expandable storage up to 153600 TB with support for 8 SSDs
Broadcom BCM5720 Gigabit Ethernet with 2 RJ-45 ports
PCIe Gen5 expansion, hot-pluggable NVMe M.2 boot options
HPE iLO 6 management with secure remote access and configuration
Redundant 2000 W power supply support (1 installed, 1 main)
TPM 2.0 hardware-based security included
Optimized Performance in a 1U Form Factor Equipped with a 12-core Intel Xeon Silver 4510 processor and built on the Intel C741 chipset, this server provides reliable compute performance for virtualized and AI-driven environments. The compact 1U rack design ensures efficient deployment at the edge without sacrificing scalability or throughput.

High-Speed Memory with Room to Grow With 64 GB of DDR5 memory installed and support for up to 128 GB across 16 DIMM slots, the DL320 Gen11 is ready to meet modern application demands. The 5600 MHz memory clock ensures low-latency processing ideal for analytics, inference, and containerized workloads.

Reliable and Expandable Storage This system includes two 480 GB 2.5" SSDs with RAID capability and supports up to eight SSDs total. With a maximum storage capacity of 153600 TB, it's well-positioned for growth in high-volume data environments.

Secure Remote Management with iLO 6 The integrated HPE iLO 6 platform allows administrators to configure, monitor, and update the system remotely with advanced security controls. This ensures minimal downtime and consistent performance across deployments.

Connectivity and Power Designed for Reliability Built-in Broadcom BCM5720 Gigabit Ethernet provides fast and stable networking via two RJ-45 ports. The server supports redundant 2000 W power supply units, helping maintain uptime in critical environments while optimizing energy efficiency.

4LFF Front View 8SFF Front View 12LFF Front View Front View - GPU CTO Internal View Rear View
