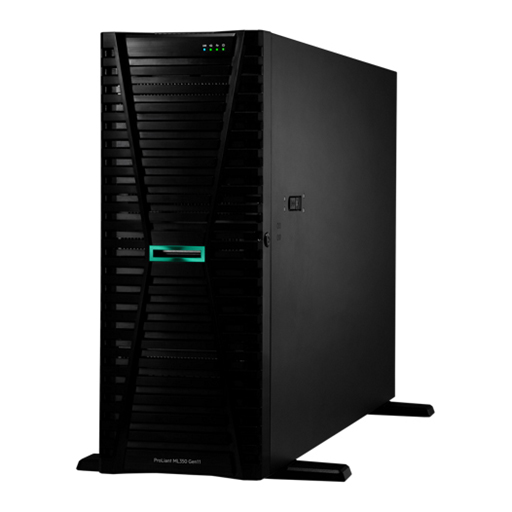

The HPE ProLiant ML350 Gen11 Tower Server featuring the Intel Xeon Silver 4510 is purpose-built for small to mid-sized businesses and branch environments that demand performance, security, and scalability. Powered by a 12-core, 2.40 GHz processor with 30 MB L3 cache and 32 GB of DDR5 Smart Memory, this 4U tower system is optimized for growing compute needs with flexibility for storage, I/O, and acceleration options. With a resilient design, enterprise-grade components, and integrated management capabilities, it provides a dependable backbone for diverse applications and workloads.
Key Features:
1x Intel Xeon Silver 4510 processor with 12 cores, 2.40 GHz base frequency, and 30 MB L3 cache
32 GB HPE DDR5 Smart Memory (1x32 GB, 5600 MT/s), expandable to support higher capacities
2x 4TB SATA 6G Business Critical 7.2K LFF HDDs included, with RAID via Intel VROC SATA Hybrid Controller
Expandable with up to 10 PCIe Gen5 slots (2 OCP 3.0), ideal for high-throughput networking or GPUs
GPU-ready system with optional support for NVIDIA L40, A16, L4, and RTX 4000 Ada accelerators
Redundant 2x 1000W Flex Slot Titanium Hot Plug Power Supplies for high-availability deployments
4-port 1Gb Broadcom BCM5719 Ethernet controller (OCP3) for robust networking out of the box
Integrated Lights-Out (iLO 6) with HPE Intelligent Provisioning and OneView management readiness
4U Tower chassis form factor with 3x standard fans for consistent system cooling
Security-first architecture: Silicon Root of Trust, TPM 2.0, UEFI Secure Boot, and lock-ready chassis
Compute Optimized for Performance
Equipped with the Intel Xeon Silver 4510, the ML350 Gen11 is tailored to handle data-driven workloads with a 12-core CPU and high memory bandwidth. Perfect for office virtualization, business applications, and infrastructure support, this tower server balances price and capability efficiently.
Built-In Redundancy and Expansion Flexibility
The dual hot-plug 1000W power supplies and RAID-protected storage ensure continuous availability, while ten Gen5 PCIe slots accommodate high-performance peripherals and future growth. The optional GPU support allows for AI modeling, visualization, or VDI acceleration within the same chassis.
Enterprise-Grade Storage and Management
Preconfigured with dual 4TB LFF HDDs and Intel VROC RAID support, the ML350 Gen11 is storage-ready and scalable. Remote setup and monitoring are simplified using HPE iLO 6 and HPE OneView, with licensing options for advanced lifecycle management through HPE Compute Ops Management.
Security Features That Matter
From boot integrity to physical chassis protection, the ML350 Gen11 includes enterprise security tools such as Silicon Root of Trust, TPM 2.0, UEFI Secure Boot, and optional locking mechanisms for operational assurance in secure or shared spaces.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
Enterprise-Class Power with SMB-Focused Flexibility

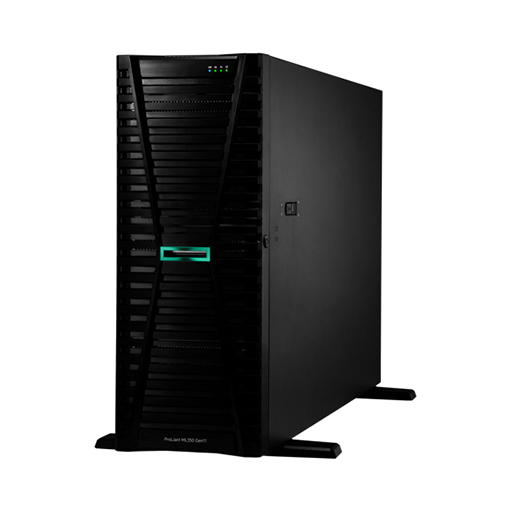

The HPE ProLiant ML350 Gen11 Tower Server is engineered to deliver dependable performance for small to mid-sized business environments. With a 16-core Intel Xeon Silver 4514Y processor, 64 GB DDR5 memory, and 4.8 TB of SAS storage out of the box, this server supports compute-heavy workloads while offering room to scale. Housed in a 4U tower chassis and backed by robust remote management via iLO 6, the ML350 Gen11 is an efficient and secure choice for IT infrastructure, virtualization, and data-centric tasks.
Key Features
Intel Xeon Silver 4514Y processor with 16 cores, 2.0 GHz base, and 3.4 GHz boost frequency
64 GB DDR5 memory at 5600 MHz, expandable to 8 TB across 32 DIMM slots
Dual 2.4 TB SAS HDDs (RAID capable), supporting up to 368.64 TB total storage
Broadcom BCM5719 LAN controller with four Gigabit Ethernet ports
PCIe Gen5 support for up to 10 expansion slots and high-performance GPU options
Redundant 2000 W power supply with 1 RPS installed for reliability
Trusted Platform Module (TPM) security and HPE’s Silicon Root of Trust firmware protection
Hot-pluggable RAID1 protected M.2 NVMe boot options available
Tool-less 4U black tower design with 712 mm depth and remote management via iLO 6
Built Around Intel Xeon Silver Performance
At the core is the 16-core Intel Xeon Silver 4514Y, balancing performance and efficiency with a 3.4 GHz max turbo frequency. Whether you're running ERP systems or virtual desktops, the ML350 Gen11 offers consistent multi-threaded performance with 30 MB of processor cache and a reliable Intel C741 chipset.
High-Speed Memory with Massive Expansion
Configured with 64 GB DDR5 memory (2 x 32 GB) running at 5600 MHz, this server is designed to grow with your business. With 32 DIMM slots, it supports a total memory capacity of up to 8 TB, delivering optimal throughput for database processing and virtualization.
Flexible SAS Storage and Scalable Capacity
Equipped with two 2.4 TB 2.5" SAS drives and supporting up to eight drives, the ML350 Gen11 is capable of achieving up to 368.64 TB of total storage. Combined with RAID support, this offers both performance and data resilience for demanding workloads.
Reliable Connectivity and Expansion
Networking is handled by a Broadcom BCM5719 controller with four RJ-45 Gigabit Ethernet ports. USB 3.2 and VGA outputs ensure quick local access, while PCIe Gen5 slots allow for expansion into graphics, networking, or storage-intensive domains.
Optimized Design and Power Resilience
Compact for its class at 174 mm wide and 462 mm high, this 4U tower fits comfortably into office or edge environments. A 2000 W power supply with redundant support ensures uninterrupted operation for critical applications.
Secure and Remote-Ready
The ML350 Gen11 integrates TPM for platform integrity and leverages HPE iLO 6 for streamlined remote management. From monitoring system health to deploying updates, control remains secure and accessible anytime, anywhere.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot

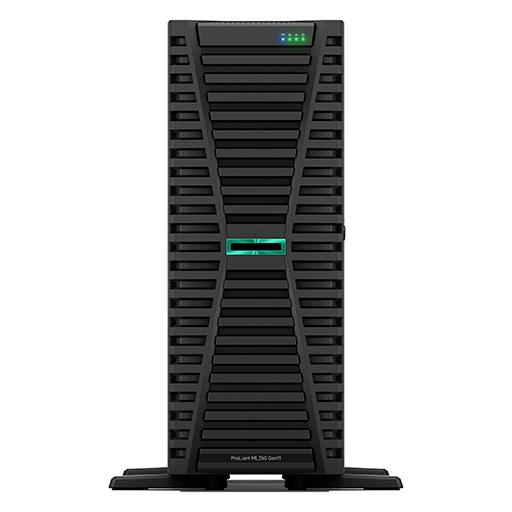

The HPE ProLiant ML350 Gen11 is a versatile and scalable tower server designed to meet the needs of growing businesses. Equipped with a 12-core Intel Xeon processor, 64GB of memory, and dual 960GB SSDs, it offers a balance of performance and storage capacity. The inclusion of redundant power supplies ensures high availability, making it suitable for a variety of workloads in the UK and Ireland regions.
Key Features:
Processor: Intel Xeon 4510 12-core processor
Memory: 64GB-R RAM
Storage: 8 Small Form Factor (SFF) bays
Drives: Dual 960GB SSDs
Power Supply: Dual 1000W Redundant Power Supplies
Controller: HPE MR408i-o Smart Array Controller
Region: UK/IE
What's New:
Introduction of the Intel Xeon 4510 processor for enhanced performance
Increased memory capacity to 64GB-R for improved multitasking
Dual 960GB SSDs for faster data access and reliability
Dual 1000W redundant power supplies for higher availability
HPE MR408i-o Smart Array Controller for advanced storage management
System Overview
The HPE ProLiant ML350 Gen11 is designed for businesses requiring a robust and scalable server solution. Its 12-core processor and ample memory support demanding applications, while the dual SSDs provide quick data access and redundancy. The redundant power supplies ensure continuous operation, and the Smart Array Controller offers advanced storage features.
Performance and Scalability
With the Intel Xeon 4510 processor and 64GB of memory, the ML350 Gen11 delivers strong performance for various workloads. The system's scalability allows for future upgrades, accommodating growing business needs.
Storage and Redundancy
The dual 960GB SSDs provide high-speed storage with redundancy, minimizing the risk of data loss. The HPE MR408i-o Smart Array Controller enhances storage management capabilities, offering features like RAID support and monitoring.
Power and Availability
Equipped with dual 1000W redundant power supplies, the ML350 Gen11 ensures high availability. This design minimizes downtime and supports continuous operation, critical for business environments.
Regional Compatibility
Tailored for the UK and Ireland regions, the ML350 Gen11 complies with local power standards and regulations, ensuring seamless integration into existing infrastructures.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
The HPE ProLiant ML350 Gen11, configured with the Intel Xeon Silver 4514Y processor and 64GB DDR5 memory, is built to handle demanding workloads in remote offices and SMB environments. With its expandable architecture, RAID-protected storage, and integrated remote management, this 4U tower server combines performance, security, and flexibility to support growing business infrastructure.
Key Features:
Equipped with 1x Intel Xeon Silver 4514Y 2.0GHz 16-core CPU (30MB cache, C741 chipset), scalable to dual-CPU configuration.
64GB DDR5 ECC memory (2x32GB modules), expandable up to 8.19TB across 32 DIMM slots.
Supports 5600 MHz memory clock speed for accelerated data handling and performance.
Two 480GB 2.5" SATA SSDs installed (960GB total), with support for up to 8 SSDs and full RAID capability (0, 1, 5, 6, 10, 50, 60).
Onboard Broadcom BCM5719 Gigabit Ethernet controller with 4x RJ-45 ports for robust network connectivity.
Integrated iLO 6 ASIC for secure, remote management and configuration access.
TPM 2.0 security module and Silicon Root of Trust help safeguard firmware integrity.
Dual 1000W hot-plug redundant power supplies for high availability and operational continuity.
4U tower chassis form factor, rack-convertible for deployment flexibility across environments.
Multiple OS support including Windows Server, VMware ESXi, RHEL, SLES, Ubuntu, Oracle Linux/VM, and Citrix.
Reliable Mid-Tier Processing
This configuration includes a single Intel Xeon Silver 4514Y processor with 16 cores and a base frequency of 2.0GHz, offering balanced performance for standard virtualization, file serving, and office application workloads. Upgrade to dual processors for heavier parallel computing tasks.
Optimized Memory Architecture
With 64GB DDR5 ECC memory out of the box and capacity for up to 8.19TB across 32 DIMM slots, the ML350 Gen11 is ready to scale as workload demands increase. 5600 MHz memory speed ensures fast, responsive processing across applications.
Secure and Scalable Storage
Includes two 480GB SATA SSDs with support for RAID levels 0 through 60, enabling flexible redundancy and performance configurations. Expandable to 8x 2.5" drives, this system is designed for scalability and reliability in data-centric environments.
Enterprise Connectivity and Expansion
Equipped with 4x Gigabit Ethernet ports and standard I/O including 3x USB 3.2 Gen 1, 1x VGA, and 1x DisplayPort. The platform supports advanced expansion with PCIe Gen5 slots and optional GPU accelerators for compute-heavy scenarios.
Management, Power, and Deployment
Remote administration is streamlined through HPE’s iLO 6 platform, and uptime is assured with two installed 1000W redundant power supplies. Its tower form factor is ideal for office environments while still being rack-mountable when needed.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
Purpose-built for growing SMBs and remote offices, the HPE ProLiant ML350 Gen11 offers a robust combination of compute power, memory scalability, and enterprise-class design in a 4U tower chassis. Powered by the Intel® Xeon® Gold 5515+ processor, this configuration delivers dependable performance for virtualization, file management, and business-critical workloads — all with room to expand.
Key Features:
1x Intel® Xeon® Gold 5515+ Processor with 8 cores at 3.2 GHz base / 4.1 GHz boost
64 GB DDR5-SDRAM installed (2 x 32 GB) with support for up to 8 TB across 32 DIMM slots
2x 480 GB 2.5" SATA III SSDs installed (RAID supported), up to 8 drives total
PCIe Gen5 expansion support and GPU-ready configuration for future growth
Broadcom BCM5719 Gigabit Ethernet with 4 x RJ-45 LAN ports
Redundant power-ready with dual 1000W power supplies installed (2000W total)
TPM 2.0 for hardware-level security and firmware integrity verification
Chassis: Tower form factor (4U), dimensions 304.8 x 984.3 x 584.2 mm, weight 43.3 kg
Targeted Processing for Mid-Sized Workloads
This configuration includes a single Intel® Xeon® Gold 5515+ processor with 8 physical cores and 22.5 MB cache, designed for consistent performance in environments running virtual machines, line-of-business applications, or centralized file storage.
Built-In Memory Scalability
Starting with 64 GB DDR5 memory across two 32 GB DIMMs, the system supports expansion up to 8 TB through 32 DIMM slots, offering flexibility for future growth and demanding in-memory tasks such as data analytics or ERP systems.
High-Speed, Redundant Storage
Equipped with dual 480 GB 2.5" SATA III SSDs, this server ensures rapid access to data with RAID protection enabled. The configuration supports up to eight drives, making it suitable for high-availability workloads and long-term scaling of storage needs.
Network-Ready and Expansion-Capable
Featuring four RJ-45 Gigabit Ethernet ports via Broadcom BCM5719, the system offers reliable connectivity for high-throughput environments. With PCIe Gen5 slots and GPU support available, it’s well-positioned for performance upgrades and graphics-heavy operations.
Efficient Power and Security Features
Redundant 1000W power supplies and built-in TPM 2.0 hardware help protect uptime and secure sensitive operations. Whether deployed in a standalone setting or within a rack, this system is engineered for stability and continuity.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
The HPE ProLiant ML350 Gen11 (P81775-425) is a reliable, tower-optimized server built for small to mid-sized businesses seeking dependable performance, expandability, and security. Equipped with a single Intel Xeon Silver 4509Y processor, 64 GB of DDR5 memory, and dual 480 GB SSDs, this 4U tower server delivers efficient processing for general-purpose workloads, infrastructure management, and light virtualization. Designed to scale with your business, it includes 32 DIMM slots supporting up to 8 TB of memory and redundant power capabilities for uptime assurance.
Key Features:
Intel Xeon Silver 4509Y CPU with 8 cores, 2.6 GHz base and 4.1 GHz boost frequency
64 GB DDR5-SDRAM (2 x 32 GB), expandable up to 8 TB via 32 DIMM slots
Dual 480 GB 2.5" SATA III SSDs pre-installed; supports up to 8 drives
Broadcom BCM5719 controller with 4x Gigabit Ethernet ports for network connectivity
Includes hardware RAID support and Trusted Platform Module 2.0 security
Redundant 2x 1000W power supplies ensure consistent operation
Tool-less, 4U black tower chassis with optional rack conversion
Reliable Xeon Compute Power
Powered by a single Intel Xeon Silver 4509Y processor, the ML350 Gen11 balances core performance and thermal efficiency. With 8 cores and a max turbo frequency of 4.1 GHz, it supports essential applications and multitasking for IT environments that demand responsiveness without overconsumption.
Expandable DDR5 Memory Architecture
This configuration includes 64 GB of fast DDR5-SDRAM operating at 5600 MHz. With 32 DIMM slots available, the system supports memory expansion up to 8 TB, enabling seamless scaling for VMs, data processing, and future growth.
Enterprise-Grade Storage and RAID
Two pre-installed 480 GB SSDs provide a total of 960 GB of fast storage. RAID support is built in, and the system accommodates up to 8 2.5" drives, giving you flexibility in balancing performance, redundancy, and capacity.
Efficient Networking and Connectivity
Equipped with four Gigabit Ethernet ports via the Broadcom BCM5719 controller, the ML350 Gen11 ensures stable and redundant network access for business-critical applications and remote management setups.
Redundant Power and Secure Operation
Dual 1000W power supplies (redundant) minimize downtime risks, while integrated TPM 2.0 ensures secure system authentication. The server is shipped without an OS, allowing for customized deployment across Windows, Linux, or virtual environments.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
The HPE ProLiant ML350 Gen11 4509Y is a robust tower server tailored for small to medium-sized businesses and remote offices. Equipped with an 8-core Intel Xeon processor, 32GB of memory, and a reliable storage controller, it offers a balance of performance and scalability. Its design ensures adaptability to various workloads, making it a suitable choice for diverse business environments.
Key Features:
Processor: Intel Xeon 4509Y 8-core processor
Memory: 32GB-R RAM
Storage Controller: HPE MR408i-o
Network Controller: Broadcom BCM5719
Drive Bays: 8 Small Form Factor (SFF) bays
Power Supply: 1000W Redundant Power Supply
Region: EMEA
What's New:
Integration of the Intel Xeon 4509Y processor for enhanced performance
Inclusion of the HPE MR408i-o storage controller for improved storage management
Equipped with the Broadcom BCM5719 network controller for reliable connectivity
Designed with 8 SFF drive bays to accommodate various storage needs
Features a 1000W redundant power supply to ensure continuous operation
System Overview
The HPE ProLiant ML350 Gen11 4509Y server is engineered to deliver dependable performance for businesses requiring a versatile and scalable solution. Its configuration supports a range of applications, ensuring adaptability to evolving business demands.
Performance and Scalability
With the Intel Xeon 4509Y 8-core processor and 32GB of RAM, this server provides the necessary computing power for standard business operations. Its architecture allows for future upgrades, accommodating growth and increased workload requirements.
Storage and Redundancy
The inclusion of the HPE MR408i-o storage controller and 8 SFF drive bays offers flexible storage options. The 1000W redundant power supply ensures high availability, minimizing potential downtime.
Network and Connectivity
Equipped with the Broadcom BCM5719 network controller, the server ensures stable and efficient network connectivity, essential for seamless business operations.
Regional Compatibility
Designed for the EMEA region, this server complies with local standards and requirements, ensuring smooth integration into existing infrastructures.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
The HPE ProLiant MicroServer Gen11 offers a compact, affordable, and customizable entry-level server solution tailored for small offices and branch environments. Designed to meet enterprise-class standards, it provides robust performance, enhanced security, and scalability to support evolving business needs.
Key Features:
Supports Intel® Xeon® E-2400 and Pentium® Gold processors for reliable performance.
Up to 128 GB DDR5 UDIMM memory capacity with four 4400 MT/s slots.
Two PCIe expansion slots, including PCIe 5.0 support, for future scalability.
Optional M.2 slot for fast OS boot (available via dedicated HPE iLO/M.2/serial port kit).
Integrated HPE iLO6 for remote server management without additional modules.
Compact mini tower design suitable for various deployment environments.
What's New:
Introduction of Intel® Xeon® E-2400 and Pentium® Gold processors.
Enhanced memory support with DDR5 UDIMMs up to 128 GB.
Inclusion of PCIe 5.0 support for improved data transfer rates.
Optional M.2 slot for faster OS boot times.
Standardized HPE iLO6 remote management capabilities.
Flexible Deployment Options
The MicroServer Gen11's versatile design allows for horizontal, vertical, or wall-mounted placements, adapting seamlessly to space-constrained environments.
Enhanced Security Features
Equipped with HPE iLO silicon root of trust and TPM 2.0, the server ensures robust security measures to protect sensitive data and maintain system integrity.
Scalable Storage Solutions
With support for up to four non-hot-swap 3.5" LFF drives and RAID configurations (0, 1, 5, 10), the server offers flexible storage options to meet varying business requirements.
Energy-Efficient Performance
Designed with energy efficiency in mind, the MicroServer Gen11 operates with a 180W external power supply, aligning with ENERGY STAR standards to reduce operational costs.
Comprehensive Management Tools
Integrated HPE iLO6 and HPE Intelligent Provisioning streamline server setup and management, enhancing operational efficiency and reducing administrative overhead.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
Versatile Enterprise Server for Demanding Workloads
The HPE ProLiant ML350 Gen11 is a robust 2U rack server engineered to handle data-intensive applications, hybrid cloud deployments, and virtualization tasks. Equipped with the latest Intel® Xeon® Scalable processors, DDR5 memory, and PCIe Gen5 technology, it offers exceptional performance, scalability, and security features to meet the evolving needs of modern enterprises.
Key Features:
Supports 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 64 cores per processor.
Up to 8 TB DDR5 memory with 16 DIMM channels per processor for enhanced performance.
Eight PCIe Gen5 slots and two OCP 3.0 slots for high-speed expansion and networking.
Flexible storage configurations supporting up to 36 EDSFF drives, 30 SFF, or 16 LFF drives.
Integrated HPE iLO 6 for secure and efficient remote server management.
Advanced security features including HPE Silicon Root of Trust and TPM 2.0.
What's New:
Introduction of 5th Gen Intel® Xeon® Scalable Processors with up to 64 cores.
Enhanced memory support with DDR5 technology, offering higher bandwidth and capacity.
Support for PCIe Gen5, providing improved data transfer rates and network speeds.
Optional M.2 boot options for high-availability RAID configurations.
Capability to support up to 8 single-wide or 3 double-wide GPUs for accelerated workloads.
Scalable Storage Solutions
The ML350 Gen11 offers versatile storage options, including configurations for up to 36 EDSFF drives, 30 SFF, or 16 LFF drives, accommodating various workload requirements and ensuring optimal performance.
Enhanced Security Measures
Incorporates HPE's Silicon Root of Trust and TPM 2.0, providing robust security to protect against firmware attacks and unauthorized access, ensuring data integrity and system reliability.
Advanced Management Capabilities
Features integrated HPE iLO 6 for comprehensive remote management, enabling administrators to configure, monitor, and update servers efficiently, reducing operational complexity.
Optimized for Hybrid Cloud Environments
Designed to support hybrid cloud infrastructures, the ML350 Gen11 delivers the flexibility and performance needed for seamless integration with cloud services and on-premises deployments.
Energy-Efficient Design
Offers various power supply options, including 800W, 1000W, and 1600W hot-plug redundant power supplies, ensuring energy efficiency and reducing operational costs.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
Enterprise-Class Tower Server for Hybrid Workloads
The HPE ProLiant ML350 Gen11 is a versatile tower server engineered to deliver robust performance, scalability, and security for growing businesses. Powered by 4th and 5th Gen Intel® Xeon® Scalable processors, it supports a wide range of applications from virtualization and database management to AI and machine learning, making it an ideal choice for hybrid cloud environments.
Key Features:
Supports up to two 4th or 5th Gen Intel® Xeon® Scalable processors, offering up to 60 cores per processor for high-performance computing.
Accommodates up to 8 TB of DDR5 memory across 32 DIMM slots, enabling faster data processing and improved efficiency.
Offers flexible storage options with support for up to 24 SFF or 12 LFF drives, including NVMe, SAS, and SATA configurations.
Includes up to 8 PCIe Gen5 slots for enhanced I/O capabilities and future expansion.
Features HPE Integrated Lights-Out 6 (iLO 6) for secure and simplified remote server management.
Incorporates advanced security features such as HPE Silicon Root of Trust and TPM 2.0 to protect against firmware attacks.
What's New:
Introduction of 5th Gen Intel® Xeon® Scalable processors with increased core counts and improved performance per watt.
Enhanced memory support with DDR5 technology, offering higher bandwidth and lower latency.
Support for PCIe Gen5, providing faster data transfer rates and improved I/O throughput.
Optional GPU support for AI and machine learning workloads, with configurations supporting up to 4 double-wide GPUs.
Improved energy efficiency with advanced cooling options, including optional liquid cooling solutions.
Scalable Storage Solutions
The ML350 Gen11 offers versatile storage configurations, supporting up to 24 SFF or 12 LFF drives, including NVMe, SAS, and SATA options. This flexibility allows businesses to tailor storage solutions to their specific needs, ensuring optimal performance and capacity.
Enhanced Security Measures
Equipped with HPE's Silicon Root of Trust and TPM 2.0, the server provides robust security features to protect against firmware attacks and unauthorized access, ensuring data integrity and system reliability.
Advanced Management Capabilities
Features integrated HPE iLO 6 for comprehensive remote management, enabling administrators to configure, monitor, and update servers efficiently, reducing operational complexity.
Energy-Efficient Design
Offers various power supply options, including 800W, 1000W, and 1600W hot-plug redundant power supplies, ensuring energy efficiency and reducing operational costs.
I/O Diagram (Front 4LFF "4 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED 1
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 4LFF
12
Box2: Optional drive cage for 8SFF/4LFF
13
Box1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive
Notes:1 Front NIC LED display doesn’t support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NIC's
I/O Diagram (Front 8SFF "8 Bays")
Key
Component
1
DisplayPort 1.1a
2
USB 3.2 Gen1 port
3
iLO service port
4
UID button/LED
5
NIC status LED
6
Health LED
7
Power on/Standby button and system power LED
8
Optical drive bay
9
Media bay filler panel
10
Serial number/iLO information pull tab
11
Box3: Default drive cage for 8SFF*
12
Box2: Optional drive cage for 8SFF
13
Box1: Optional drive cage for 8SFF, or internal LTO tape drive
Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit
I/O Diagram (Side)
Key
Component
1
CPU Socket 1 & 2
2
Dual USB port (Stacked, Top: USB 3.2 Gen1 port, Bottom: USB 2.0 port)
3
Megacell battery holder (Under)
4
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
5
Secondary riser connector
6
Tertiary riser sideband connector
7
Serial port cable connector
8
Slot 15 OCP 2 (Optional for NIC adapter)
9
HPE NS204i-u power connector
10
Primary riser connector
11
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
Notes:
1 CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
2 CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total)
I/O Diagram (Back)
Key
Component
1
HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)
2
PCIe Slots 9-10 (Optional tertiary riser, 2nd processor required for expansion card installation)
3
Flexible Slot power supply 1
4
Flexible Slot power supply 2 (Optional)
5
VGA Port
6
External Fan connector 9
7
Slot 15 OCP 2 (Optional for NIC adapter)
8
Serial port (Optional)
9
iLO management port
10
USB 3.2 Gen 1 ports x2
11
External Fan connector 10
12
Slot 14 OCP 1 (Optional for OROC/NIC adapter)
13
PCIe Slots 1-4 (Primary riser)
14
Padlock eye
15
PCIe Slots 5-8 (Secondary riser)
16
Kensington slot
