In Stock: 5-7 Days
£7253.69
£8704.43 Inc VAT
Earn 3626 Data Points when purchasing this product. More Info

HPE P77237-425 Proliant DL360 EU Server

Gen11 4514Y 2.0GHz 2x1000W PS

by HPE
See more product details
Part No:HPP77237-425
Manufacturer No:P77237-425
Delivery: In Stock: 5-7 Days
Feefo logo

/assets/images/gallery/large/1754035466HPP77237-425_1.jpg

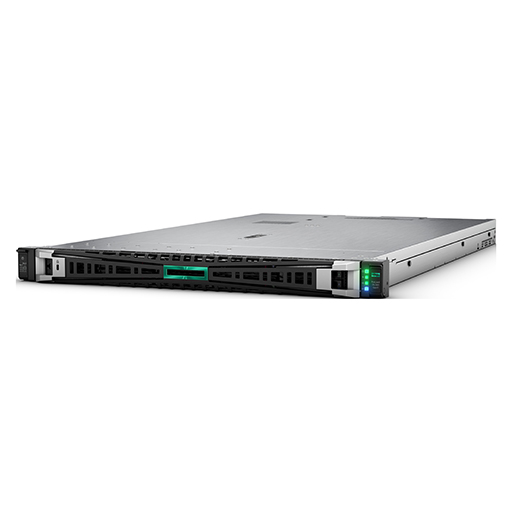

HPE P77237-425 Proliant DL360 EU Server
More Related Items
Click to change options
Length:
Colour:
Apply
£1.20 Ex VAT
Qty:
Click to change options
Colour:
Apply
£140.00 Ex VAT
Qty:
Click to change options
Colour:
Length:
Apply
£40.01 Ex VAT
Qty:
Click to change options
Colour:
Apply
£387.50 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top

    The HPE ProLiant DL360 Gen11 server is built to deliver dense, efficient performance in a 1U rack-optimized chassis. Preconfigured with a 16-core Intel Xeon Silver 4514Y processor and 64 GB of DDR5 memory at 5600 MHz, this platform is ideal for businesses seeking a reliable solution for virtualization, hybrid cloud, and high-volume compute tasks—all within a compact footprint.


    Key Features
    • Equipped with 1 x Intel Xeon Silver 4514Y processor (16 cores, 3.4 GHz turbo, 30 MB cache)
    • 64 GB DDR5 memory (2 x 32 GB modules) with support for up to 4 TB across 16 DIMM slots
    • Dual 480 GB SATA SSDs for 960 GB of total storage, expandable up to 153.6 TB
    • RAID support for improved data protection and storage performance
    • Dual 10 Gigabit Ethernet via Broadcom BCM57416 controller
    • 3 USB 3.2 Gen 1 ports and 1 VGA port for streamlined access and control
    • Integrated HPE iLO 6 management for secure remote server administration
    • TPM 2.0 module for trusted platform security
    • 2000 W power supply with redundant PSU support for maximum uptime

    Enterprise-Class Memory Scalability

    With support for up to 4 TB of DDR5 memory across 16 DIMM slots, this system gives IT administrators the flexibility to scale over time. High memory clock speeds and DDR5 bandwidth ensure smooth performance in memory-intensive applications like virtualization and data modeling.


    Streamlined Storage and Expansion

    Two 480 GB SSDs deliver high-speed SATA storage for fast boot and application load times, while the server’s maximum capacity of 153.6 TB offers long-term expansion. Built-in RAID capabilities ensure data integrity and uptime for critical services.


    Network Performance and Remote Management

    The DL360 Gen11 is designed for modern networking environments with 10 Gigabit Ethernet and remote server configuration through HPE iLO 6. These capabilities make it well-suited for high-speed data transfers and remote IT infrastructure control.


    Secure, Efficient Rack Integration

    With a slim 1U rack chassis, redundant power supply support, and integrated TPM 2.0 security, the HPE ProLiant DL360 Gen11 provides dependable performance, hardware-level protection, and efficient deployment in any data center environment.


    8 SFF Front View

    8 SFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      Universal Media Bay (optional):
      • Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
      • Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
    • 5
      Display Port (optional – shown)
    • 6
      Optical drive (optional – shown)
    • 7
      USB 2.0 port (optional)
    • 8
      iLO Service port
    • 9
      Power On/Standby button and system power LED
    • 10
      Health LED
    • 11
      NIC status LED
    • 12
      Unit ID button/LED
    • 13
      USB 3.2 Gen1 port
    • 14
      Drive bays; optional backplanes:
      • Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
      • Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC

    4 SFF Front View

    4 SFF Front View
    • 1
      Drive support label
    • 2
      Optical drive (optional – shown)
    • 3
      Serial number/iLO information pull tab
    • 4
      Quick removal access panel
    • 5
      Option: Display port & USB 2.0 port bundle kit (blank shown)
    • 6
      USB 3.2 Gen1 port
    • 7
      iLO Service Port
    • 8
      Power On/Standby button and system power LED
    • 9
      Health LED
    • 10
      NIC status LED
    • 11
      Unit ID button/LED
    • 12
      SAS/SATA drive bays (12G x1 SAS LP BP embedded)

    20 EDSFF Front View

    20 EDSFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      iLO Service Port
    • 5
      Power On/Standby button and system power LED
    • 6
      Health LED
    • 7
      NIC status LED
    • 8
      Unit ID button/LED
    • 9
      USB 3.2 Gen1 port
    • 10
      EDSFF drive bays (32G x4 NVMe BP embedded)

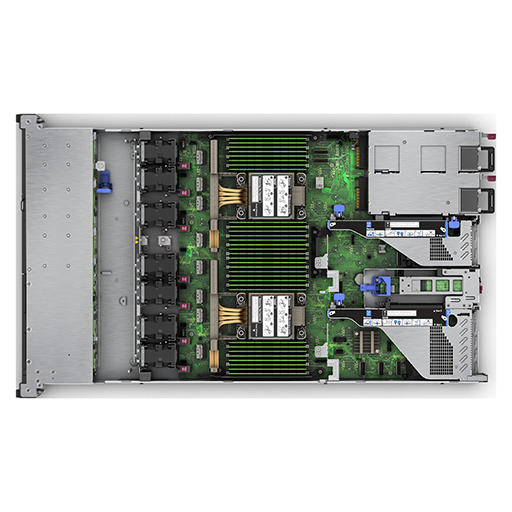

    Internal View

    Internal View
    • 1
      Liquid Cooling Module connector
    • 2
      x8 SlimSAS ports (1A to 4A, 1B to 4B)
    • 3
      DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
    • 4
      Socket 2 MCIO ports (1 & 2)
    • 5
      Backplane Power connector
    • 6
      Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
    • 7
      Redundant Power Supply (1 & 2 as shown)
    • 8
      Secondary (CPU 2) Riser PCIe 5.0
    • 9
      SID connector (optional feature, 8 SFF only)
    • 10
      Energy Pack connector
    • 11
      OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
    • 12
      HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
    • 13
      System Battery
    • 14
      Primary (CPU1) Riser PCIe 5.0
    • 15
      OCP Slot port
    • 16
      Front Display Port and USB 2.0 connector (optional feature)
    • 17
      LP SlimSAS ports (1 & 2)
    • 18
      Chipset
    • 19
      Front I/O and USB 3.2 Gen1 connector
      • Option: Low Profile x16
      • Option: Full height x16 (lose Slot 2 on Primary Riser)
    • 20
      SATA Optical port
    • 21
      Socket 1 MCIO connector
    • 22
      CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
    • 23
      Hot plug (dual rotor) High Performance Fan Kit (7 fans)
    • 24
      HPE Hybrid Capacitor or HPE Storage Battery holder

    The HPE ProLiant DL360 Gen11 server is built to deliver dense, efficient performance in a 1U rack-optimized chassis. Preconfigured with a 16-core Intel Xeon Silver 4514Y processor and 64 GB of DDR5 memory at 5600 MHz, this platform is ideal for businesses seeking a reliable solution for virtualization, hybrid cloud, and high-volume compute tasks—all within a compact footprint.


    Key Features
    • Equipped with 1 x Intel Xeon Silver 4514Y processor (16 cores, 3.4 GHz turbo, 30 MB cache)
    • 64 GB DDR5 memory (2 x 32 GB modules) with support for up to 4 TB across 16 DIMM slots
    • Dual 480 GB SATA SSDs for 960 GB of total storage, expandable up to 153.6 TB
    • RAID support for improved data protection and storage performance
    • Dual 10 Gigabit Ethernet via Broadcom BCM57416 controller
    • 3 USB 3.2 Gen 1 ports and 1 VGA port for streamlined access and control
    • Integrated HPE iLO 6 management for secure remote server administration
    • TPM 2.0 module for trusted platform security
    • 2000 W power supply with redundant PSU support for maximum uptime

    Enterprise-Class Memory Scalability

    With support for up to 4 TB of DDR5 memory across 16 DIMM slots, this system gives IT administrators the flexibility to scale over time. High memory clock speeds and DDR5 bandwidth ensure smooth performance in memory-intensive applications like virtualization and data modeling.


    Streamlined Storage and Expansion

    Two 480 GB SSDs deliver high-speed SATA storage for fast boot and application load times, while the server’s maximum capacity of 153.6 TB offers long-term expansion. Built-in RAID capabilities ensure data integrity and uptime for critical services.


    Network Performance and Remote Management

    The DL360 Gen11 is designed for modern networking environments with 10 Gigabit Ethernet and remote server configuration through HPE iLO 6. These capabilities make it well-suited for high-speed data transfers and remote IT infrastructure control.


    Secure, Efficient Rack Integration

    With a slim 1U rack chassis, redundant power supply support, and integrated TPM 2.0 security, the HPE ProLiant DL360 Gen11 provides dependable performance, hardware-level protection, and efficient deployment in any data center environment.


    8 SFF Front View

    8 SFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      Universal Media Bay (optional):
      • Option: Optical drive bay + Display port & USB 2.0 port kit (shown)
      • Option: 2 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC Cage
    • 5
      Display Port (optional – shown)
    • 6
      Optical drive (optional – shown)
    • 7
      USB 2.0 port (optional)
    • 8
      iLO Service port
    • 9
      Power On/Standby button and system power LED
    • 10
      Health LED
    • 11
      NIC status LED
    • 12
      Unit ID button/LED
    • 13
      USB 3.2 Gen1 port
    • 14
      Drive bays; optional backplanes:
      • Option: 8 SFF 24G x1 NVMe/SAS (TriMode) U.3 BC
      • Option: 8 SFF 24G x4 NVMe/SAS (TriMode) U.3 BC

    4 SFF Front View

    4 SFF Front View
    • 1
      Drive support label
    • 2
      Optical drive (optional – shown)
    • 3
      Serial number/iLO information pull tab
    • 4
      Quick removal access panel
    • 5
      Option: Display port & USB 2.0 port bundle kit (blank shown)
    • 6
      USB 3.2 Gen1 port
    • 7
      iLO Service Port
    • 8
      Power On/Standby button and system power LED
    • 9
      Health LED
    • 10
      NIC status LED
    • 11
      Unit ID button/LED
    • 12
      SAS/SATA drive bays (12G x1 SAS LP BP embedded)

    20 EDSFF Front View

    20 EDSFF Front View
    • 1
      Drive support label
    • 2
      Serial number/iLO information pull tab
    • 3
      Quick removal access panel
    • 4
      iLO Service Port
    • 5
      Power On/Standby button and system power LED
    • 6
      Health LED
    • 7
      NIC status LED
    • 8
      Unit ID button/LED
    • 9
      USB 3.2 Gen1 port
    • 10
      EDSFF drive bays (32G x4 NVMe BP embedded)

    Internal View

    Internal View
    • 1
      Liquid Cooling Module connector
    • 2
      x8 SlimSAS ports (1A to 4A, 1B to 4B)
    • 3
      DDR5 DIMM Slots (fully populated 32 DIMMs shown) • 1x 16 FH and 1x16 LP slots
    • 4
      Socket 2 MCIO ports (1 & 2)
    • 5
      Backplane Power connector
    • 6
      Internal USB port (top USB 3.2 Gen1 and bottom USB 2.0)
    • 7
      Redundant Power Supply (1 & 2 as shown)
    • 8
      Secondary (CPU 2) Riser PCIe 5.0
    • 9
      SID connector (optional feature, 8 SFF only)
    • 10
      Energy Pack connector
    • 11
      OCP Slot port • Option: Closed-loop Liquid Cooling Heat Sink Fan FIO Bundle Kit
    • 12
      HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device (optional – shown)
    • 13
      System Battery
    • 14
      Primary (CPU1) Riser PCIe 5.0
    • 15
      OCP Slot port
    • 16
      Front Display Port and USB 2.0 connector (optional feature)
    • 17
      LP SlimSAS ports (1 & 2)
    • 18
      Chipset
    • 19
      Front I/O and USB 3.2 Gen1 connector
      • Option: Low Profile x16
      • Option: Full height x16 (lose Slot 2 on Primary Riser)
    • 20
      SATA Optical port
    • 21
      Socket 1 MCIO connector
    • 22
      CPU 1 (bottom) and CPU 2 (top) (shown with High Performance Heatsink)
    • 23
      Hot plug (dual rotor) High Performance Fan Kit (7 fans)
    • 24
      HPE Hybrid Capacitor or HPE Storage Battery holder
