| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FE01924-003 |
| Manufacturer No: | 01924-003 |
| Delivery: | In Stock: 1-2 Days |
 |

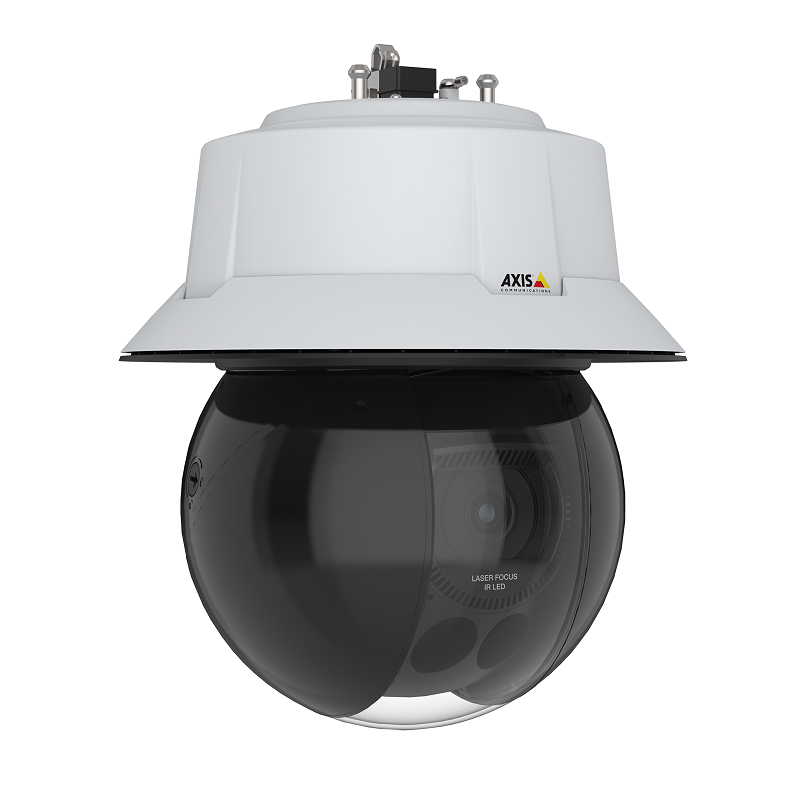

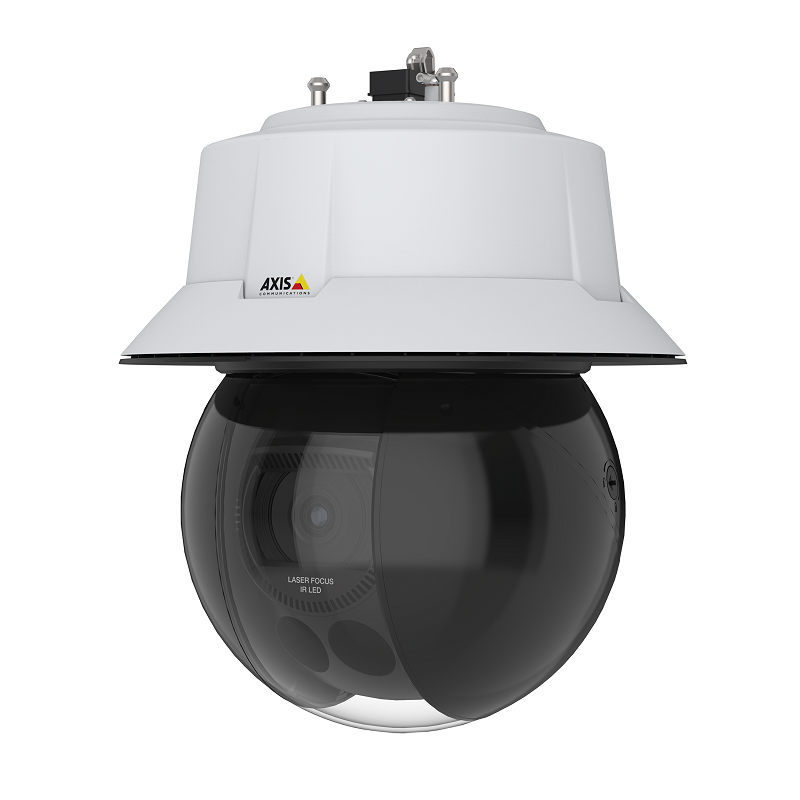

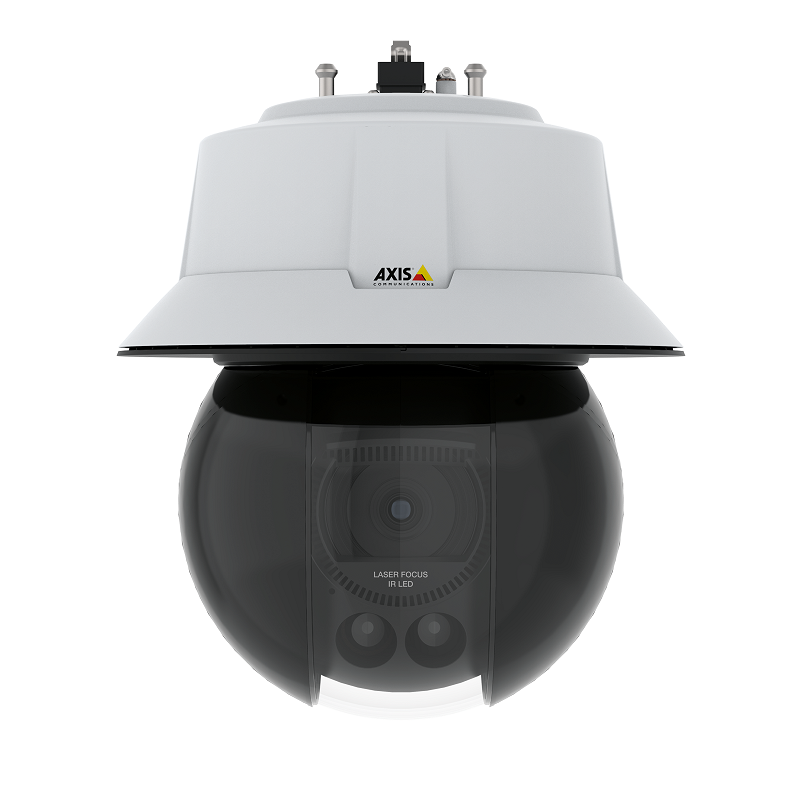

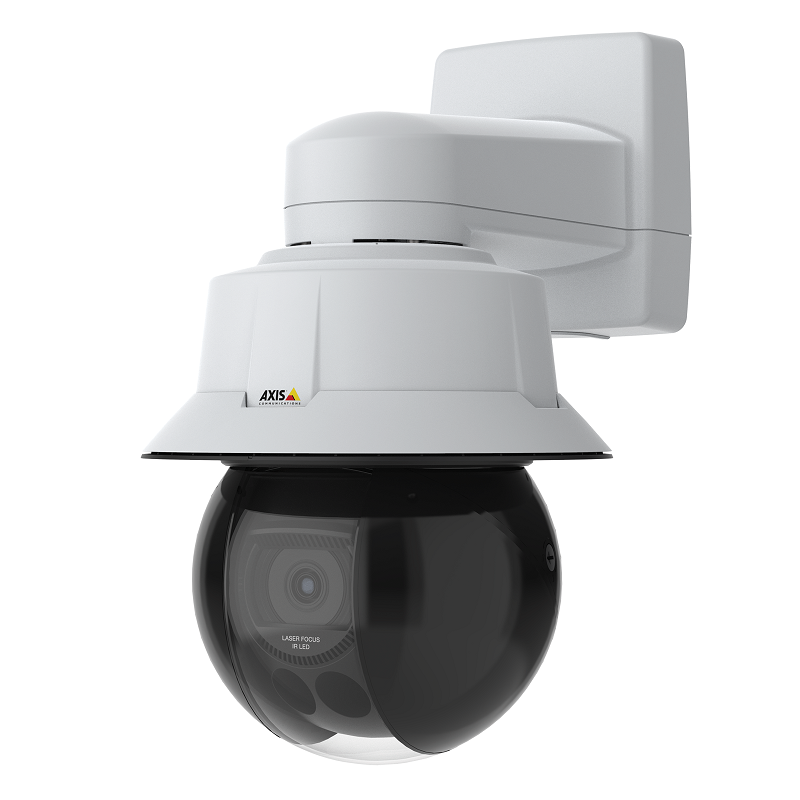

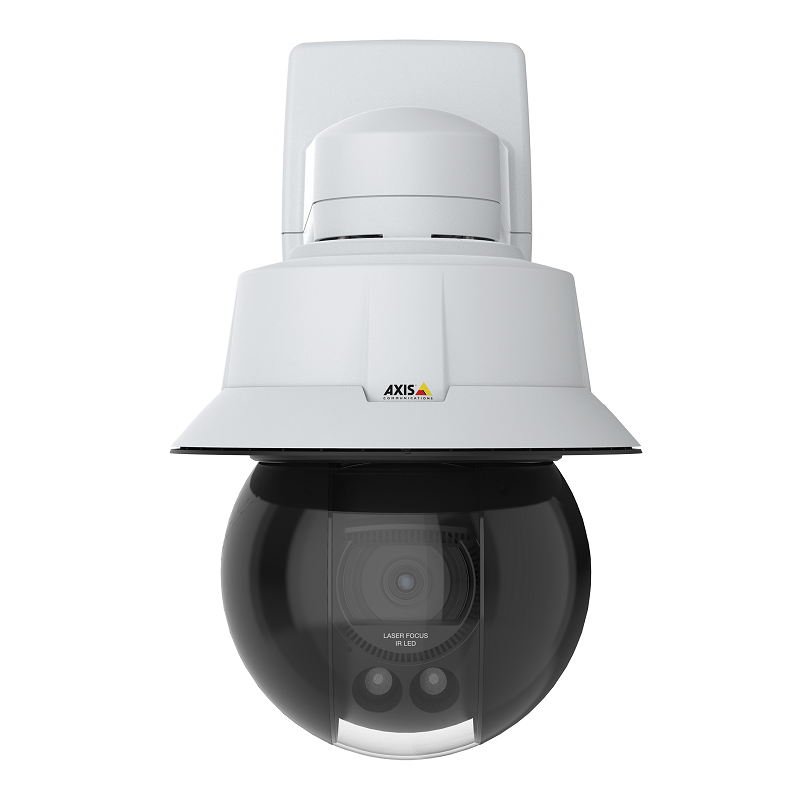

AXIS Q6315-LE PTZ Network Camera
High-end outdoor-ready HDTV 1080p PTZ camera with quick-zoom and laser focus
• 1/2" sensor with 31x optical zoom
• IR illumination, D/N functionality
• Autotracking 2, orientation aid and AXIS Object Analytics
• Laser focus for precise focus with Quick-zoom <1sec
• TPM, FIPS 140-2 level 2 certified
Ideal for city surveillance, AXIS Q6315-LE offers a ½” sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
AXIS Q6315-LE features very light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it’s perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus– every time. It’s possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
Capture color images in low-light conditions.
Save bandwidth and space without sacrificing valuable information.
Make your network camera solution more intelligent with powerful analytics and functionality.
For intrusion detection
For detecting loiterers
Smart motion detection
AI-based object detection and classification
| Performance | |
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Tour recording | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Fog proof | Yes |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Wall |
| IP Rating | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.001 lx |
| Viewing angle, horizontal | 60.6° |
| Viewing angle, vertical | 36.5° |
| Tilt angle range | -90 - 20° |
| Tilt speed | 550 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 550 °/sec |
| Camera shutter speed | 111000 - 1/2 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4.6 |
| Auto focus | Yes |
| Minimum aperture number | 1.36 |
| Zoom capability | Yes |
| Optical zoom | 31x |
| Digital zoom | 12x |
| Focal length range | 6.91 - 214.64 mm |
| Video | |
| Image quality adjustment | Brightness, Colour depth, Sharpness |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 60 fps |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Video streaming | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory card | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Power | |
| Power source type | AC |
| Power consumption (max) | 51 W |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 17 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100 % |
| Storage relative humidity (H-H) | 5 - 95 % |
Full specification and details can be found in the Product Datasheet PDF file
