Ubiquiti airFiber Dish

The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the ISP's customers. Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

airFiber X antennas and airFiberX radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.



Compact Footprint for Deployment Flexibility

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.





Plug and Play Integration

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.





Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.





Antenna Characteristics

AF-2G24-S45 AF-5G23-S45 AF-5G30-S45 AF-5G34-S45 Dimensions* ø 650 x 295 mm 378 x 290 mm 650 x 386 mm 1050 x 421 mm Weight** 9.8Kg 3.4Kg 7.4Kg 13.5Kg Frequency Range 2.3 - 2.7 GHz 5.1 - 5.9 GHz 4.9 - 5.9 GHz 4.9 - 5.8 GHz Gain 24dBi 23dBi 4.9 GHz: 26dBi
5-5.9GHz: 30dBi 4.9 GHz: 30dBi
5-5.8GHz: 34dBi + 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB)  - 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB) + F/B Ratio 28 dB 30 dB 30 dB 42 dB  Max. VSWR 1.6:1 1.5:1 1.6:1 1.4:1 Wind Loading 787N @ 200km/h
(177lbf @ 125mph) 190N @ 200km/h
(43lbf @ 125mph) 790N @ 200km/h
(178lbf @ 125mph) 1,779N @ 200km/h
(400lbf @ 125mph) Wind Survivability 200 km/h (125 mph) Polarisation Dual-Linear Cross-pol Isolation 35 dB Min. ETSI Specification EN 302 326 DN2 Mounting Universal Pole Mount, airFiber X Radio Bracket & Weatherproof RF Connectors Included   Buy Buy Buy Buy * Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)

The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the ISP's customers. Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

airFiber X antennas and airFiberX radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.



Compact Footprint for Deployment Flexibility

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.





Plug and Play Integration

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.





Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.





Antenna Characteristics

AF-2G24-S45 AF-5G23-S45 AF-5G30-S45 AF-5G34-S45 Dimensions* ø 650 x 295 mm 378 x 290 mm 650 x 386 mm 1050 x 421 mm Weight** 9.8Kg 3.4Kg 7.4Kg 13.5Kg Frequency Range 2.3 - 2.7 GHz 5.1 - 5.9 GHz 4.9 - 5.9 GHz 4.9 - 5.8 GHz Gain 24dBi 23dBi 4.9 GHz: 26dBi
5-5.9GHz: 30dBi 4.9 GHz: 30dBi
5-5.8GHz: 34dBi + 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB)  - 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB) + F/B Ratio 28 dB 30 dB 30 dB 42 dB  Max. VSWR 1.6:1 1.5:1 1.6:1 1.4:1 Wind Loading 787N @ 200km/h
(177lbf @ 125mph) 190N @ 200km/h
(43lbf @ 125mph) 790N @ 200km/h
(178lbf @ 125mph) 1,779N @ 200km/h
(400lbf @ 125mph) Wind Survivability 200 km/h (125 mph) Polarisation Dual-Linear Cross-pol Isolation 35 dB Min. ETSI Specification EN 302 326 DN2 Mounting Universal Pole Mount, airFiber X Radio Bracket & Weatherproof RF Connectors Included   Buy Buy Buy Buy * Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)

The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the ISP's customers. Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

airFiber X antennas and airFiberX radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.



Compact Footprint for Deployment Flexibility

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.





Plug and Play Integration

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.





Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.





Antenna Characteristics

AF-2G24-S45 AF-5G23-S45 AF-5G30-S45 AF-5G34-S45 Dimensions* ø 650 x 295 mm 378 x 290 mm 650 x 386 mm 1050 x 421 mm Weight** 9.8Kg 3.4Kg 7.4Kg 13.5Kg Frequency Range 2.3 - 2.7 GHz 5.1 - 5.9 GHz 4.9 - 5.9 GHz 4.9 - 5.8 GHz Gain 24dBi 23dBi 4.9 GHz: 26dBi
5-5.9GHz: 30dBi 4.9 GHz: 30dBi
5-5.8GHz: 34dBi + 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB)  - 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB) + F/B Ratio 28 dB 30 dB 30 dB 42 dB  Max. VSWR 1.6:1 1.5:1 1.6:1 1.4:1 Wind Loading 787N @ 200km/h
(177lbf @ 125mph) 190N @ 200km/h
(43lbf @ 125mph) 790N @ 200km/h
(178lbf @ 125mph) 1,779N @ 200km/h
(400lbf @ 125mph) Wind Survivability 200 km/h (125 mph) Polarisation Dual-Linear Cross-pol Isolation 35 dB Min. ETSI Specification EN 302 326 DN2 Mounting Universal Pole Mount, airFiber X Radio Bracket & Weatherproof RF Connectors Included   Buy Buy Buy Buy * Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)

Precision Alignment Kit for 620 mm Dish Reflector

The Precision Alignment Kit enables extremely accurate aiming to optimize airFiber and airMAX Point-to-Point (PtP) links.

Plug and Play Compatibility

Use the Precision Alignment Kit with any of these dish antennas: airFiber AF-5G30-S45, PowerBeam PBE-5AC-620, PowerBeam PBE-M5-620, and RocketDish RD-5G30-LW.

Optimal Link Deployment

Precision two-axis alignment enhances beam directivity for maximum PtP or backhaul performance.

Combine multiple airFiber X radios on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit Point-to-Point (PtP) throughput.

Introducing the airFiber NxN, a thoughtfully engineered MIMO multiplexer that increases the amazing throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas.

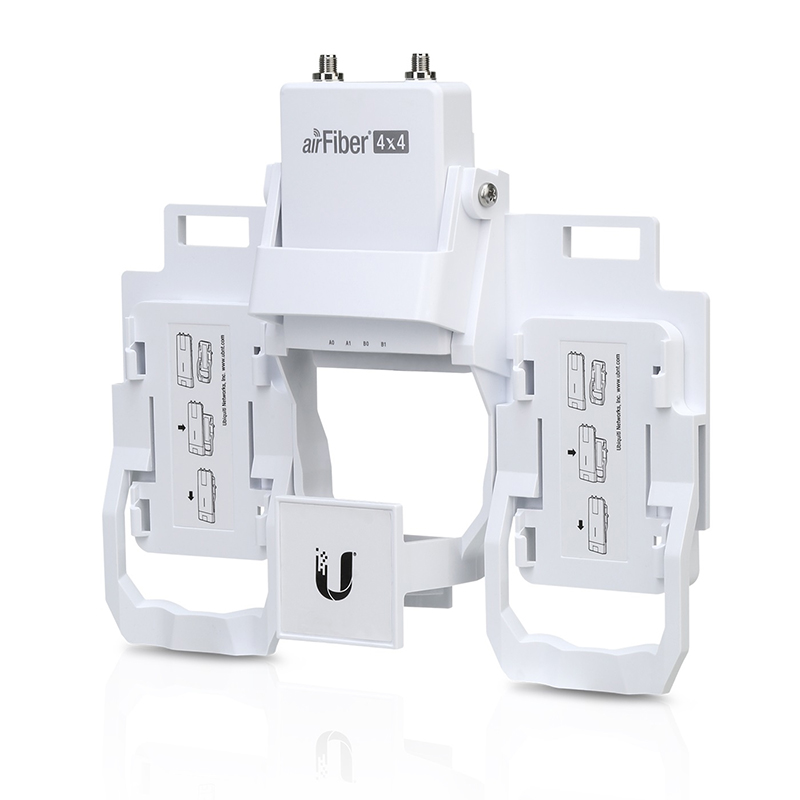

The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber X radios* on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit throughput. Upgrading a 5 GHz airMAX® or airFiber link is fast and easy. Simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables.

Features:

8x8 MIMO
Multiplex up to (4) airFiber X radios*
Aggregate Throughput up to 2+ Gbps
Up to 3 Redundant Links
Precise GPS Synchronisation

Using a common GPS timing reference, the airFiber X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.





8x8 MIMO Backhaul Technology

Quickly mount multiple airFiber X radios on existing airFiber dish antennas for Plug and Play installation. You can use radio channels of different sizes – even adjacent channels with no guard band – and place them anywhere within the radio band.





Mounting Versatility

The airFiber NxN Multiplexer can be attached to most 5 GHz airFiber X or RocketDish™ antenna models. For any other antenna configuration, you can mount the airFiber NxN Multiplexer on a pole.







Reduced Tower Costs

Mounting multiple airFiber X radios on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimising tower costs.





True Redundancy

Multiple airFiber X radios with multiple carriers on multiple frequency bands provide the ultimate noise immunity and link redundancy performance.





Paired with the EdgePoint for Superior Performance

The EdgePoint™ provides powerful configuration features, including radio-link load balancing and advanced reliability for optical fibre deployments.
