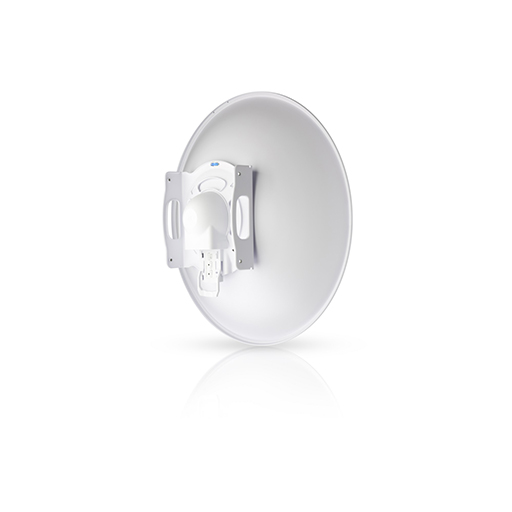

    Ubiquiti 5GHz airFiber Dish, 34dBi, Slant 45
    Slant 45 Antenna for airFiber®

    The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the ISP's customers. Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

    airFiber X antennas and airFiberX radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

    Compact Footprint for Deployment Flexibility

    The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

    Compact Footprint for Deployment Flexibility

    Plug and Play Integration

    The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

    Advanced RF Isolation Design

    The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks.

    Advanced RF Isolation Design

    Antenna Characteristics

    Ubiquiti AF-2G24-S45 AF-5G23-S45 AF-5G30-S45 AF-5G34-S45
    Dimensions* ø 650 x 295 mm 378 x 290 mm 650 x 386 mm 1050 x 421 mm
    Weight** 9.8Kg 3.4Kg 7.4Kg 13.5Kg
    Frequency Range 2.3 - 2.7 GHz 5.1 - 5.9 GHz 4.9 - 5.9 GHz 4.9 - 5.8 GHz
    Gain 24dBi 23dBi 4.9 GHz: 26dBi
    5-5.9GHz: 30dBi
    4.9 GHz: 30dBi
    5-5.8GHz: 34dBi
    + 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB)
     - 45° Beamwidth 6.6° (3 dB) 10° (3 dB) 5.8° (3 dB) 3° (3 dB)
    + F/B Ratio 28 dB 30 dB 30 dB 42 dB
     Max. VSWR 1.6:1 1.5:1 1.6:1 1.4:1
    Wind Loading 787N @ 200km/h
    (177lbf @ 125mph)
    190N @ 200km/h
    (43lbf @ 125mph)
    790N @ 200km/h
    (178lbf @ 125mph)
    1,779N @ 200km/h
    (400lbf @ 125mph)
    Wind Survivability 200 km/h (125 mph)
    Polarisation Dual-Linear
    Cross-pol Isolation 35 dB Min.
    ETSI Specification EN 302 326 DN2
    Mounting Universal Pole Mount, airFiber X Radio Bracket & Weatherproof RF Connectors Included
      Buy Buy Buy Buy

    * Dimensions exclude pole mount and airFiber X radio (airFiber X radio sold separately)
    ** Weight includes pole mount and excludes airFiber X radio (airFiber X radio sold separately)
