The Ubiquiti UISP airFiber 60 XR is a high-capacity point-to-point wireless bridge designed for long-distance, line-of-sight connectivity using the 60 GHz band. It delivers multi-gigabit throughput with a dedicated backup radio to maintain stable links in variable outdoor conditions, making it suitable for linking distant network sites where fibre deployment is impractical or costly.
Key Features of Ubiquiti AF60-XR
Up to multi-gigabit wireless throughput (high-capacity 60 GHz link)
Long-range point-to-point connectivity for distant site bridging
Integrated 5 GHz backup radio for link continuity
High-gain directional antenna with narrow beam alignment
10G SFP+ and Gigabit RJ45 interfaces for flexible networking
IPX6-rated weather-resistant outdoor design
Integrated GPS for alignment and synchronization support
UISP platform management and monitoring tools
Performance Characteristics
The system operates across the 57-71 GHz spectrum, supporting wide channel bandwidth options for high data transfer rates. Its narrow beam design requires precise alignment, which enables strong directional performance over extended distances when clear line-of-sight is available.
Deployment Use
This unit is typically deployed in environments requiring high-speed wireless bridging between buildings, campuses, or remote infrastructure points. It is particularly suited for scenarios where physical cabling is difficult or where rapid deployment between fixed locations is required.
Ubiquiti airFiber 5XHD AF-5XHD is a modular airFiber radio system designed to serve a wide range of frequencies and is compatible with various Ubiquiti® antennas. Operating in the 5 GHz frequency band, the airFiber AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz and advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution.
The airFiber 5XHD AF-5XHD is engineered for high-performance and flexibility, making it ideal for a variety of applications. Its modular design allows for easy integration with different antennas, providing a versatile and powerful solution for long-distance wireless communication.
Key Features of Ubiquiti airFiber AF-5XHD
Programmable Transmit Power: Customize power levels for optimal performance.
Programmable Duty Cycle: GPS synchronized frames for efficient data transmission.
Configurable GPS Synchronization: Enhance network coordination and performance.
Split TX and RX Frequency: Separate transmission and reception frequencies for improved efficiency.
Split TX and RX Channel Bandwidth: Customize bandwidth allocation for better performance.
Local Security Management for SMBs: Secure and manage your network locally.
Dual Redundant Gigabit Ethernet Ports with PoE: Ensure reliable connectivity and power.
OFDM and OFDMA Support: Advanced modulation techniques for enhanced performance.
Bluetooth Wireless Configuration: Easy setup and management via Bluetooth.
AlignLock Antenna Aiming Guard: Simplify antenna alignment for optimal signal strength.
User-Configurable Interference Mitigation: Minimize interference for clearer communication.
Redundant Images for Fail-Safe Configuration: Ensure continuous operation with backup configurations.
Persistent Spectrum Analysis with Dedicated RX: Monitor and analyze the spectrum for optimal performance.
Wide Voltage Range, Enhanced Surge Protection: Protect your equipment from power surges.
Performance Overview
The AF-5XHD delivers real-world throughput exceeding 1 Gbps under ideal conditions. It is intended for scenarios where fiber is not practical, providing a dependable wireless backhaul link that maintains high-speed connectivity between buildings or towers. Line-of-sight and careful installation practices are critical to achieving maximum performance.
Deployment Scenarios
Common applications include connecting campus buildings, linking towers for service providers, and setting up high-capacity wireless backhaul in areas where wired infrastructure is difficult or costly to install. Its flexible antenna compatibility and alignment tools make it suitable for custom deployments requiring precise link management.
Ubiquiti Extended Warranty
Ubiquiti currently offers 1 year standard manufacturer warranty on equipment purchased through official UK distributors.
In the unlikely event that you have any issues with your Ubiquiti product within the 1 year of manufacturer warranty, please contact your account manager in the first instance. Our technical team will do everything they can to find a resolution to your problem. If a fix cannot be provided, then an RMA will need to be registered via the Ubiquiti Reseller Portal.
On all purchases made through Comms Express, we offer our customers options to upgrade the standard manufacturer warranty to a 3 or 5 year advanced hardware replacement.
Available warranty options:
Warranty: |
The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
Product Features
4+ km link range
6 Gbps max. throughput
5 GHz 800+ Mbps weather-resilient backup radio
(1) GbE and (1) 10G SFP+ port
Precision alignment mount
Integrated GPS & Bluetooth
Terragraph Certified
Ubiquiti Extended Warranty
Ubiquiti currently offers 1 year standard manufacturer warranty on equipment purchased through official UK distributors.
In the unlikely event that you have any issues with your Ubiquiti product within the 1 year of manufacturer warranty, please contact your account manager in the first instance. Our technical team will do everything they can to find a resolution to your problem. If a fix cannot be provided, then an RMA will need to be registered via the Ubiquiti Reseller Portal.
On all purchases made through Comms Express, we offer our customers options to upgrade the standard manufacturer warranty to a 3 or 5 year advanced hardware replacement.
Available warranty options:
Warranty: |

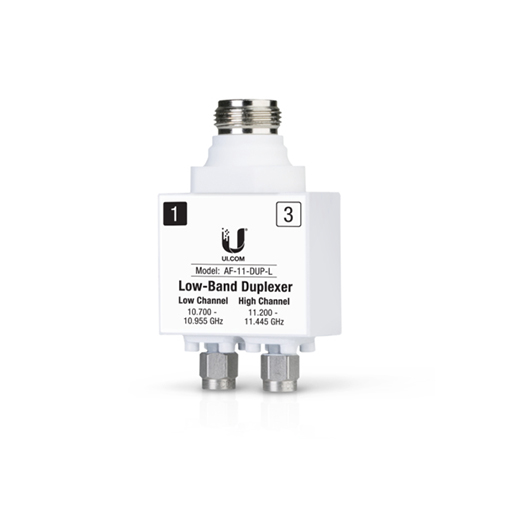

Ubiquiti's AF-11-DUP-L is for high-capacity wireless links in the 11 GHz licensed spectrum. It plays a critical role in enabling long-distance, low-latency data transmission using airFiber radios, making it well-suited for demanding point-to-point applications. The low-band duplexer manages simultaneous transmission and reception on split frequencies, giving operators flexibility in building and maintaining stable links with minimal interference.
Key Features of Ubiquiti AF-11-DUP-L
Supports 11 GHz licensed band (Low channel: 10.700 - 10.955 GHz, High channel: 11.200 - 11.445 GHz)
Single-duplex operation for SISO; dual-duplex for MIMO setup
Field-configurable TX/RX channel orientation
Compatible with AF-11
Designed for integration with airFiber AF-11G35 antennas
Weather-sealed connectors for outdoor use
Built to Integrate Seamlessly
Created to fit directly with Ubiquiti's airFiber AF-11 and AF-11FX radios, the AF-11-DUP-L also connects securely to the AF-11G35 antenna. Its N-type connectors are weatherproofed for long-term reliability in outdoor environments, reducing maintenance over time.
Designed for Licensed Wireless Backhaul
The AF-11-DUP-L makes use of licensed spectrum to provide controlled, interference-resistant wireless backhaul. By operating in the 11 GHz band, it avoids the congestion typical of unlicensed bands, allowing for steady throughput in both urban and rural deployments.
Modular and Flexible Channel Pairing
This duplexer gives installers the freedom to select their transmit and receive channels independently, supporting a wide range of channel configurations. Whether used as a single unit in SISO mode or paired for MIMO, it adapts easily to unique site requirements.
airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances
AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum. Includes a built-in Bluetooth management radio for easy setup.
Product Features
12+ km link range
2 Gbps max. throughput
1 GbE RJ45 port
Precision alignment mount
Integrated GPS & Bluetooth
Ubiquiti Extended Warranty
Ubiquiti currently offers 1 year standard manufacturer warranty on equipment purchased through official UK distributors.
In the unlikely event that you have any issues with your Ubiquiti product within the 1 year of manufacturer warranty, please contact your account manager in the first instance. Our technical team will do everything they can to find a resolution to your problem. If a fix cannot be provided, then an RMA will need to be registered via the Ubiquiti Reseller Portal.
On all purchases made through Comms Express, we offer our customers options to upgrade the standard manufacturer warranty to a 3 or 5 year advanced hardware replacement.
Available warranty options:
Warranty: |
Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.
Works with the Ubiquiti Internet Service Provider (UISP™) Application
Centrally manage your networks and customers with ease - Organize your subscription plans, setup billing and invoicing, and grow your customer base - View your network's topology, advanced analytics, and more - Set up devices quickly and manage them on the go with powerful mobile app support
Ubiquiti Extended Warranty
Ubiquiti currently offers 1 year standard manufacturer warranty on equipment purchased through official UK distributors.
In the unlikely event that you have any issues with your Ubiquiti product within the 1 year of manufacturer warranty, please contact your account manager in the first instance. Our technical team will do everything they can to find a resolution to your problem. If a fix cannot be provided, then an RMA will need to be registered via the Ubiquiti Reseller Portal.
On all purchases made through Comms Express, we offer our customers options to upgrade the standard manufacturer warranty to a 3 or 5 year advanced hardware replacement.
Available warranty options:
Warranty: |
The airFiber®5 is purpose-built for outdoor, PtP bridging and carrier-class network backhauls.
Innovative Antenna Design
The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.
Revolutionary Performance
Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.
Long-Range Links: 100+ km
Designed to be a high-performance backhaul, the airFiber®5 performs at a range of up to 100+ km.
Low-Latency Carrier Backhaul
The airFiber®5 supports FDD (Frequency Division Duplexing) in full-duplex mode for <1 ms latency, resulting in increased efficiency for carrier-class network backhauls.
5 GHz Unlicensed Band
The airFiber®5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).
