TREND Networks SignalTek Range

If you install or maintain data cabling, SignalTEK CT allows you to generate PDF test reports that prove installed links run at Gigabit Ethernet transmission rates.

Now includes a Touchscreen
Advanced wiremapping with TDR fault location
Gigabit performance test to the IEEE802.3ab Ethernet standard
Automatic generation of PDF reports
Report upload to USB memory stick without a PC
For installers, this means having a cost-effective way to demonstrate that the copper cabling was installed correctly and is capable of supporting Ethernet applications. By proving real world performance, SignalTEK CT confirms a professional job - reducing the risk of call backs. SignalTEK CT also gives network owners the assurance that installed cabling will support bandwidth hungry services like VoIP, IP CCTV and video streaming following moves, adds and changes.

SignalTEK CT automatically generates test reports in PDF or CSV format. Use the free TREND AnyWARE app from TREND Networks to view / send data cable and network test reports to colleagues and clients anywhere.

The hassle of connecting to local Wi-Fi is eliminated to provide a superior user experience, because the TREND tester serves as Wi-Fi hotspot.

Advanced wiremapping with TDR fault location
Gigabit performance test to the IEEE802.3ab Ethernet standard
Automatic generation of PDF reports
Report upload to USB memory stick without a PC
The TREND AnyWARE app is supported by SignalTEK CT and SignalTEK NT.

For instructions on how to use the app please refer to your TREND Networks tester quick reference guide or manual.













Features:

Wireless connection to Apple and Android smartphones with the free TREND AnyWARE™ app. View your reports on your smart phone before sharing them using your preferred data sharing method including email or file sharing app.

Contents - 1 x SignalTEK CT display unit, 1 x SignalTEK CT remote unit, 2 x Power module (rechargeable), 2 x Power supply with EU/UK/US adaptors, 2 x Patch cables - 30cm, Cat 5e STP, 1 x USB Wi-Fi adapter, 1 x Quick reference guide (English), 1 x Carrying case.

Test Reporting - SignalTEK CT automatically generates test reports in PDF or CSV format. The summary page of each report can be customised to include logo, company and operator details. Choose between 3 different reports that can show either passed, failed or all test reports in each report:

Fast & Flexible - Fast Autotest provides proof of network performance in seconds. USB port enables rapid transfer of test results to memory stick. Support for shielded and unshielded twisted pair cable including Cat 5e, Cat 6, Cat 6A and Cat 7 (TIA 568A and 568B wiring schemes). Stores up to 5000 tests to accommodate even the largest jobs. Ability to identify and trace cables with a compatible amplifier probe (62-164)

Intuitive - Automatic generation of PDF format test reports makes documentation effortless. User-friendly menu structure for trouble-free operation and minimal training. Simple cable naming and job creation enhances on-site productivity

Dependable - Tests against IEEE802.3ab to assure cable performance against a recognised international standard. Field replaceable RJ45 contacts eliminate downtime from worn or damaged connectors. Rugged design provides protection against knocks in the fieldNo requirement for annual calibration reducing cost of ownership

Application - Testing of twisted pair data cables to demonstrate that the copper cabling was installed correctly and is capable of supporting Ethernet applications to the IEEE 802.3ab Gigabit Ethernet Standard

If you install, maintain or troubleshoot data cabling and Ethernet networks, SignalTEK NT allows you to prove the performance up to Gigabit Ethernet transmission rates.

Now includes a Touchscreen
Gigabit performance testing on passive cabling and active networks
Generates PDF test reports to IEEE 802.3ab standard
Simulates VoIP/CCTV/Web/IP video network traffic
Tests connection speed, portID, ping, traceroute, IPv4/IPv6
Supports TREND AnyWARE app
By simulating actual network traffic users are able to test and document network and data cable performance to Gigabit Ethernet standards.

Where system warranties are not required the SignalTEK NT is a cost effective way of proving your copper and fibre networks provide error-free performance.

SignalTEK NT automatically generates test reports in PDF or CSV format. Use the free TREND AnyWARE™ app from TREND Networks to view / send data cable and network test reports to colleagues and clients anywhere.

Gigabit performance testing on passive cabling and active networks
Generates test reports to IEEE 802.3ab standard
Simulates VoIP/CCTV/Web/IP video network traffic
Tests connection speed, port ID, ping, traceroute, IPv4/IPv6
Advanced PoE/PoE+ testing
Customers who have previously purchased SignalTEK II & SignalTEK II FO models can upgrade their tester by purchasing the approved USB Wi-Fi adapter (Edimax EW-7811Un) and downloading the latest software.











Features:

Cable Installation - Network traffic performance test on copper and fibre to IEEE802.3ab standard. Wiremap test for open, shorts, miswires and split pairs to TIA-568 standard. Gigabit link verification for copper and fibre cabling

Cabling - Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic. PoE/PoE+ verification that displays available voltage at device location. Check Ethernet connectivity at device location to 10/100/1000 Mb/s. Verify network configuration (device IP/gateway address/subnet mask). Switch port identification via LLDP/CDP protocols


Troubleshooting & Diagnostics:

Cabling - Distance to fault using TDR technology (copper only). Ability to identify and trace cables with a compatible amplifier probe (62-164). Optical power indication (with compatible SFP modules). Network load testing through switches simulating CCTV/IPTV/VoIP/Web traffic. Stress test network before installing bandwidth hungry devices. Port blink to visually trace cable from work area outlet to network switch. Displays port ID of LLDP/CDP enabled switches to eliminate manual cable tracing.

Identify network connection problems as hardware, network or configuration faults. Ping local network devices and Internet URL’s. Count number of hops between network points with traceroute tests. PoE load testing to confirm available power meets PoE device requirements

Applications - SignalTEK NT is used to quickly prove that Ethernet will work correctly after installation in cable installations such as SOHO or residential cabling where cable certification is cost prohibitive or where the end customer does not require the cable manufacturer’s warranty programs. Workstation or Laptop has an extremely slow network access.

SignalTEK NT can be used to run a simplified transmission test to check network performance. A 100Mb/s LAN environment gets upgraded to 1 Gb/s. SignalTEK NT can be used to check if the existing (old) cabling can support up to 1Gb/s Ethernet. An existing LAN installation gets upgraded to VoIP. SignalTEK NT can be used to check if both the cabling as well as the active components can support VoIP traffic.

After MACs (Moves/Adds/Changes) of active devices, SignalTEK NT can be used to ensure minimum bandwidth requirements are met. In industrial Ethernet applications, SignalTEK NT can be used to verify cabling performance to 100Mb/s or Gigabit requirements. SignalTEK NT can be used to test throughput of an industrial Ethernet LAN

Contents: Includes 1 x display unit, 1 x remote unit, 2 x NiMH battery packs, 2 x patch cables -30cm, Cat 5e STP, 2 x power supply with EU/UK/US adaptors, 1 x USB Wi-Fi adapter, 1 x Quick Reference Guide, 1 x carry case

Depend On Us Rewards Promotion

How to claim:

Purchase a LanTEK IV-S (any model), FiberMASTER Quad OTDR (R240-QIP), SignalTEK 10G FT or Pro (R157001 or R157003) or a SignalTEK NT (R156005).
Complete the purchase information form and submit a copy of your receipt / invoice
Review your gift(s)
The free gift(s) will then be delivered straight to your door
NB: Please note this promotion is valid for all products purchased from the 1st October 2023 and 31st January 2024. Promotional gifts must be redeemed within 90 days of purchase.

Upgrade your current SignalTEK 10G Ethernet tester with more features and functionality.

SignalTEK 10G is a future-proof investment as additional features can be unlocked with a simple license key when required. There are two upgrade options to choose from: fibre testing and advanced network testing:

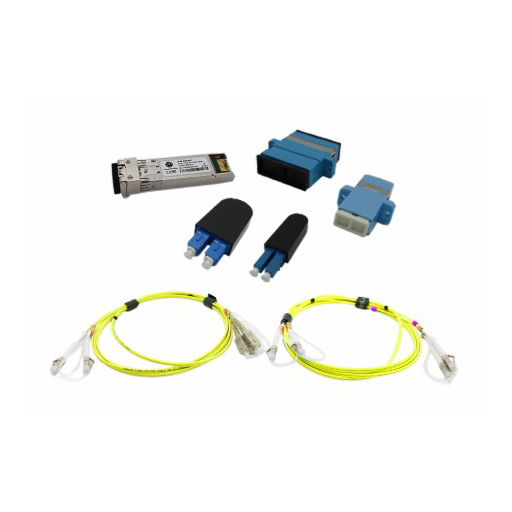

Fibre Testing



(UPGRADE10GFIB)

Testing Scenario

Verify fibre link speed to 1G or 10G, measure optical power and data throughput.

Validate Fibre Link Speed

The fibre link speed test confirms the connection is 1G or 10G which can be affected by cable length or signal loss.

Troubleshoot Fibre Cable Issues

The Tx & Rx optical power measurement is compared to the expected power level to determine attenuation in a fibre link. This indicates if the connector is dirty or damaged which is the number one cause of failure.

Easy to understand traffic light status

The simple traffic light indicator displays Good, Marginal or Poor power level based on IEEE 802.3 1G/10G limits.

Max throughput test

The SignalTEK 10G will prove the maximum available bandwidth over the fibre link up to 10Gb/s.

Discover a faulty SFP

The SFP temperature is measured to help understand if it has become faulty. Network Testing



(UPGRADE10GNET)

Port & network summary info

Press the Autotest button to display summary information and allow for detailed inspection of network parameters.

VLAN detection & operation

Automatic detection of VLAN IDs allows the user to configure SignalTEK 10G for operation on a VLAN.

Custom Wiremap

Use a list of wiremap templates for common Ethernet cable types as well as non-Ethernet cables, such as Profinet and ISDN.

CDP/LLDP/EDP port information

Show port information using Cisco Discovery Protocol (CPD). Link Layer Discovery Protocol (LLDP) and Extreme Discovery Protocol (EDP).

Netscan

Display list of IP and MAC addresses of every device connected to
the network.

72-hour event log

Find rogue devices and intermittent issues using the 72-hour event log.

If you install, maintain or troubleshoot data cabling and Ethernet Networks, SignalTEK NT allows you to prove the performance up to Gigabit Ethernet transmission rates.

By simulating actual network traffic users are able to test and document network and data cable performance to Gigabit Ethernet standards.

Where system warranties are not required the SignalTEK NT is a cost effective way of proving your copper and fibre networks provide error-free performance.

The STNT-KIT bundle includes a SignalTEK NT, Active Remotes Full Kit, Amplifier Probe, 2 x GbE Fibre Kit LX, 2 x GbE Fibre Kit SX, One-Click Fibre Cleaner STC-FC-1.25mm and 3 year warranty.

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)

The new SignalTEK 10G measures the maximum bandwidth of the network cabling up to 10 Gigabits per second. By simulating actual network traffic users can test, troubleshoot and document network and data cable performance up to 10 Gigabit Ethernet standards.

SignalTEK 10G has built-in Wi-Fi connectivity to connect seamlessly to the free AnyWARE Cloud test management system. AnyWARE Cloud offers pre-configuration to eliminate errors on-site, label printer connectivity to save time and "proof of performance" PDF reports for the clients.


Features

Determine max bandwidth up to 10 Gb/s


Verify Multi-Gig upgrades on existing cabling


Pass/Fail to 1/2.5/5/10Gb IEEE standards


Eliminate PoE guesswork up to 90W


Copper and fibre interfaces up to 10Gb


TREND AnyWARE Cloud and PDF reporting






SignalTEK 10G CT Kit Contents



SignalTEK 10G Display/Remote handsets


2 Hanging Straps


Carry Case


2 Power Supplies


2 2m Cat 6A shielded patch cables


2 Li-ion Batteries


Quick Reference Guides






Tester Details




Comparison Table


Category Solution SignalTEK 10G CT SignalTEK 10G FT SignalTEK 10G NT SignalTEK 10G PRO Copper

Max bandwidth test up to 10Gb/s • • • • Data transmission test 1/2.5/5/10Gb • • • • NbaseT/Multi-Gigabit test 1/2.5/5/10Gb • • • • Wiremap, distance to fault, length • • • • Cable tracing (with compatible probe) • • • • Pass / Fail to copper IEEE standards • • • • PoE

Pass / Fail to PoE IEEE standards • • • • Max power available (up to 90 watts) • • • • Type (af/at/bt) and Class (1 to 8) • • • • Displays voltage and which pairs have PoE • • • • Fibre
(optional)

Optical Tx/Rx power indication   •   • Max bandwidth test up to 10Gb/s   •   • Data transmission test 1/10Gb   •   • Pass / Fail to fibre IEEE standards   •   • SFP temperature, vendor and model   •   • Supports SFP/SFP+ (MM&SM)   •   • Network
(optional)

Switch Speed - 100M, 1G, 2.5G, 5G, 10G     • • VLAN, PING, TraceRoute, Hub blink, NetScan     • • CDP/LLDP/EDP port information     • • Uptime efficiency and 72 hour event log     • • Testing with packet loss, jitter and delay     • • Prove network performance up to 10G     • •


Save £600 with Trade-In


To qualify for Trade-In, the following list of cable certifiers can be traded to qualify for the promotional price:

Valid with Cable IQ, NetXpert LANXpert, LinkRunner, Etherscope, One Touch, NaviTEK, SignalTEK or any cable certifier.

The qualifying tester must be returned to TREND Networks and the serial number provided at time of purchase

The new SignalTEK 10G measures the maximum bandwidth of the network cabling up to 10 Gigabits per second. By simulating actual network traffic users can test, troubleshoot and document network and data cable performance up to 10 Gigabit Ethernet standards.

SignalTEK 10G has built-in Wi-Fi connectivity to connect seamlessly to the free AnyWARE Cloud test management system. AnyWARE Cloud offers pre-configuration to eliminate errors on-site, label printer connectivity to save time and "proof of performance" PDF reports for the clients.


Features
Determine max bandwidth up to 10 Gb/s


Verify Multi-Gig upgrades on existing cabling


Pass/Fail to 1/2.5/5/10Gb IEEE standards


Eliminate PoE guesswork up to 90W


Copper and fibre interfaces up to 10Gb


TREND AnyWARE Cloud and PDF reporting




SignalTEK 10G NT Kit Contents
SignalTEK 10G Display/Remote handsets


2 Hanging Straps


Carry Case


2 Power Supplies
2 2m Cat 6A shielded patch cables


2 Li-ion Batteries


Quick Reference Guides


  Tester Details



Comparison Table

Category Solution SignalTEK 10G CT SignalTEK 10G FT SignalTEK 10G NT SignalTEK 10G PRO Copper

Max bandwidth test up to 10Gb/s • • • • Data transmission test 1/2.5/5/10Gb • • • • NbaseT/Multi-Gigabit test 1/2.5/5/10Gb • • • • Wiremap, distance to fault, length • • • • Cable tracing (with compatible probe) • • • • Pass / Fail to copper IEEE standards • • • • PoE

Pass / Fail to PoE IEEE standards • • • • Max power available (up to 90 watts) • • • • Type (af/at/bt) and Class (1 to 8) • • • • Displays voltage and which pairs have PoE • • • • Fibre
(optional)

Optical Tx/Rx power indication   •   • Max bandwidth test up to 10Gb/s   •   • Data transmission test 1/10Gb   •   • Pass / Fail to fibre IEEE standards   •   • SFP temperature, vendor and model   •   • Supports SFP/SFP+ (MM&SM)   •   • Network
(optional)

Switch Speed - 100M, 1G, 2.5G, 5G, 10G     • • VLAN, PING, TraceRoute, Hub blink, NetScan     • • CDP/LLDP/EDP port information     • • Uptime efficiency and 72 hour event log     • • Testing with packet loss, jitter and delay     • • Prove network performance up to 10G     • •


Save £600 with Trade-In

To qualify for Trade-In, the following list of cable certifiers can be traded to qualify for the promotional price:

Valid with Cable IQ, NetXpert LANXpert, LinkRunner, Etherscope, One Touch, NaviTEK, SignalTEK or any cable certifier.

The qualifying tester must be returned to TREND Networks and the serial number provided at time of purchase

The new SignalTEK 10G measures the maximum bandwidth of the network cabling up to 10 Gigabits per second. By simulating actual network traffic users can test, troubleshoot and document network and data cable performance up to 10 Gigabit Ethernet standards.

SignalTEK 10G has built-in Wi-Fi connectivity to connect seamlessly to the free AnyWARE Cloud test management system. AnyWARE Cloud offers pre-configuration to eliminate errors on-site, label printer connectivity to save time and "proof of performance" PDF reports for the clients.


Features

Determine max bandwidth up to 10 Gb/s


Verify Multi-Gig upgrades on existing cabling


Pass/Fail to 1/2.5/5/10Gb IEEE standards


Eliminate PoE guesswork up to 90W


Copper and fibre interfaces up to 10Gb


TREND AnyWARE Cloud and PDF reporting




SignalTEK 10G FT Kit Contents



SignalTEK 10G Display/Remote handsets


2 Hanging Straps


Carry Case


2 Power Supplies


2 2m Cat 6A shielded patch cables


2 Li-ion Batteries


Quick Reference Guides






Tester Details




Comparison Table


Category Solution SignalTEK 10G CT SignalTEK 10G FT SignalTEK 10G NT SignalTEK 10G PRO Copper

Max bandwidth test up to 10Gb/s • • • • Data transmission test 1/2.5/5/10Gb • • • • NbaseT/Multi-Gigabit test 1/2.5/5/10Gb • • • • Wiremap, distance to fault, length • • • • Cable tracing (with compatible probe) • • • • Pass / Fail to copper IEEE standards • • • • PoE

Pass / Fail to PoE IEEE standards • • • • Max power available (up to 90 watts) • • • • Type (af/at/bt) and Class (1 to 8) • • • • Displays voltage and which pairs have PoE • • • • Fibre
(optional)

Optical Tx/Rx power indication • • Max bandwidth test up to 10Gb/s • • Data transmission test 1/10Gb • • Pass / Fail to fibre IEEE standards • • SFP temperature, vendor and model • • Supports SFP/SFP+ (MM&SM) • • Network
(optional)

Switch Speed - 100M, 1G, 2.5G, 5G, 10G • • VLAN, PING, TraceRoute, Hub blink, NetScan • • CDP/LLDP/EDP port information • • Uptime efficiency and 72 hour event log • • Testing with packet loss, jitter and delay • • Prove network performance up to 10G • •


Save £600 with Trade-In


To qualify for Trade-In, the following list of cable certifiers can be traded to qualify for the promotional price:

Valid with Cable IQ, NetXpert LANXpert, LinkRunner, Etherscope, One Touch, NaviTEK, SignalTEK or any cable certifier.

The qualifying tester must be returned to TREND Networks and the serial number provided at time of purchase

Depend On Us Rewards Promotion

How to claim:

Purchase a LanTEK IV-S (any model), FiberMASTER Quad OTDR (R240-QIP), SignalTEK 10G FT or Pro (R157001 or R157003) or a SignalTEK NT (R156005).
Complete the purchase information form and submit a copy of your receipt / invoice
Review your gift(s)
The free gift(s) will then be delivered straight to your door
NB: Please note this promotion is valid for all products purchased from the 1st October 2023 and 31st January 2024. Promotional gifts must be redeemed within 90 days of purchase.

The new SignalTEK 10G measures the maximum bandwidth of the network cabling up to 10 Gigabits per second. By simulating actual network traffic users can test, troubleshoot and document network and data cable performance up to 10 Gigabit Ethernet standards.

SignalTEK 10G has built-in Wi-Fi connectivity to connect seamlessly to the free AnyWARE Cloud test management system. AnyWARE Cloud offers pre-configuration to eliminate errors on-site, label printer connectivity to save time and "proof of performance" PDF reports for the clients.


Features

Determine max bandwidth up to 10 Gb/s


Verify Multi-Gig upgrades on existing cabling


Pass/Fail to 1/2.5/5/10Gb IEEE standards


Eliminate PoE guesswork up to 90W


Copper and fibre interfaces up to 10Gb


TREND AnyWARE Cloud and PDF reporting






SignalTEK 10G PRO Kit Contents



SignalTEK 10G Display/Remote handsets


2 Hanging Straps


Carry Case


2 Power Supplies


2 2m Cat 6A shielded patch cables


2 Li-ion Batteries


Quick Reference Guides




Tester Details




Comparison Table


Category Solution SignalTEK 10G CT SignalTEK 10G FT SignalTEK 10G NT SignalTEK 10G PRO Copper

Max bandwidth test up to 10Gb/s • • • • Data transmission test 1/2.5/5/10Gb • • • • NbaseT/Multi-Gigabit test 1/2.5/5/10Gb • • • • Wiremap, distance to fault, length • • • • Cable tracing (with compatible probe) • • • • Pass / Fail to copper IEEE standards • • • • PoE

Pass / Fail to PoE IEEE standards • • • • Max power available (up to 90 watts) • • • • Type (af/at/bt) and Class (1 to 8) • • • • Displays voltage and which pairs have PoE • • • • Fibre
(optional)

Optical Tx/Rx power indication   •   • Max bandwidth test up to 10Gb/s   •   • Data transmission test 1/10Gb   •   • Pass / Fail to fibre IEEE standards   •   • SFP temperature, vendor and model   •   • Supports SFP/SFP+ (MM&SM)   •   • Network
(optional)

Switch Speed - 100M, 1G, 2.5G, 5G, 10G     • • VLAN, PING, TraceRoute, Hub blink, NetScan     • • CDP/LLDP/EDP port information     • • Uptime efficiency and 72 hour event log     • • Testing with packet loss, jitter and delay     • • Prove network performance up to 10G     • •


Save £600 with Trade-In


To qualify for Trade-In, the following list of cable certifiers can be traded to qualify for the promotional price:

Valid with Cable IQ, NetXpert LANXpert, LinkRunner, Etherscope, One Touch, NaviTEK, SignalTEK or any cable certifier.

The qualifying tester must be returned to TREND Networks and the serial number provided at time of purchase

Depend On Us Rewards Promotion

How to claim:

Purchase a LanTEK IV-S (any model), FiberMASTER Quad OTDR (R240-QIP), SignalTEK 10G FT or Pro (R157001 or R157003) or a SignalTEK NT (R156005).
Complete the purchase information form and submit a copy of your receipt / invoice
Review your gift(s)
The free gift(s) will then be delivered straight to your door
NB: Please note this promotion is valid for all products purchased from the 1st October 2023 and 31st January 2024. Promotional gifts must be redeemed within 90 days of purchase.

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)

TREND Networks R156006W2 2 Year Warranty for SignalTEK CT with Touchscreen

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)

TREND Networks R156005W2 2 Year Warranty for SignalTEK NT with Touchscreen

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)

TREND Networks R157000W2 2 Year Warranty  for SignalTEK 10G CT

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)

TREND Networks R157002W2 2 Year Warranty for SignalTEK 10G NT

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)

TREND Networks R157001W2 2 Year Warranty for SignalTEK 10G FT

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)

TREND Networks R157003W2 2 Year Warranty for SignalTEK 10G PRO

Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)
