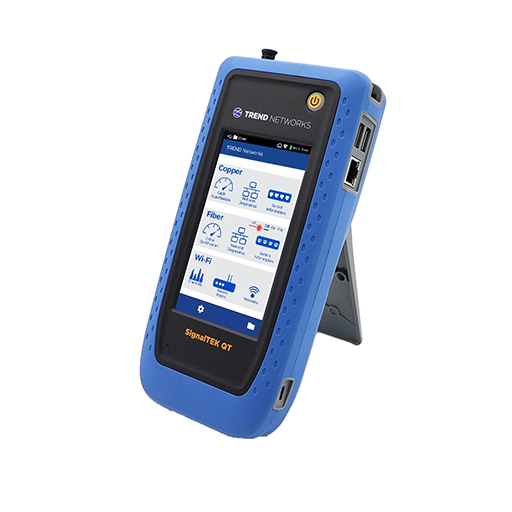

The SignalTEK QT Pro stands as the flagship model in its series, offering comprehensive testing for copper, multimode/single-mode fiber, and Wi-Fi networks, all within a single device. It measures optical loss (dB), fiber length, Wi-Fi signal strength, Ethernet network performance, and supports analysis of PoE installations up to 90W. Tailored for installers, IT managers, and integrators, it streamlines workflow with project management and reporting via the TREND AnyWARE cloud, significantly saving time.
The TREND AnyWARE Cloud management system allows real time collaboration between Project Managers and Field Technicians. There is no need for Field Technicians to setup the SignalTEK QT, Project Managers can pre-configure jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes and reducing the time taken to prepare reports for customers and warranties
SignalTEK QT joins the TREND AnyWARE ecosystem, a unified family of testers with a common user interface for a seamless testing experience when switching between different types of testing. Results from any device or user can be uploaded into the TREND AnyWARE Cloud, the world's fastest platform for viewing, storing, and sharing data from a single or multiple job sites.
Supporting the full range of TREND Networks tools, including LanTEK and FiberTEK IV, SignalTEK 10G, SignalTEK QT, PoE PRO, and VDV II you can upload tests, generate, and share professional reports for free, all securely stored in TREND AnyWARE, developed on the Microsoft Azure-powered platform for unmatched security and reliability
Ensure the desired network speed is supported by performing an RF test of the cable to test NEXT, Return Loss and Insertion Loss. SignalTEK QT will display the available performance versus the desired speed with an easy-to-read display. Up to 12 remotes are available for rapid testing. SignalTEK QT allows selection of speeds from 10Mb/s to 10Gb/s including the new 2.5 & 5Gb/s multigig speeds.
SignalTEK QT Pro qualifies fibre links in accordance with the IEEE 802.3 standard up to 100Gb/s by measuring insertion loss and length of fibre cabling using a convenient loopback test. TREND's high performance SFP modules offer high accuracy insertion loss measurements and the SignalTEK QT Pro detects the installed SFP module to automatically set Pass/Fail limits.
Analyse Wi-Fi channel strength and identify access points that are on overlapping channels to maximise network performance. Channel utilisation graphs help determine which access points (APs) are overloaded with users. Connect to a network and perform diagnostics with ping, traceroute and device scan tests.
As networks evolve to support higher bandwidth, lower latency, and increased device density, 10 Gigabit Etherne is rapidly becoming the standard for future-proof LAN infrastructures. The transition to fibre optic backbones and the growing demand on Wi-Fi networks require precise reliable and scalable testing solutions, which is exactly what the SignalTEK QT delivers. The SignalTEK QT Series was designed for today's Copper, Fibre and Wi-Fi networks

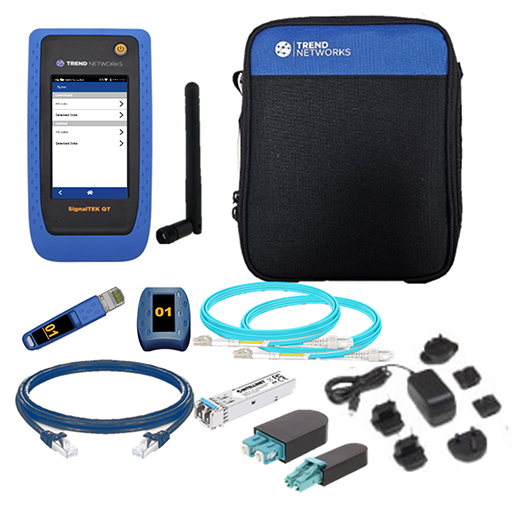

SignalTEK QT Pro 10 Gigabit Copper & Fibre Qualification Tester. 10G copper/fibre qualifier with Wi-Fi (internal and external antennas), soft carry case, 1 x plug (male) copper remote - ID #1, 1 x socket (female) copper remote - ID #1, 1m Cat 6A shielded patch cord, 1 x 850nm MM high stability SFP module, 1 x LC-LC and 1 x LC-SC OM3 MM duplex patch cords, 1 x LC and 1 x SC multimode fibre loopback remotes, 2.5 & 1.25mm fibre cleaning pen, USB-C charger with changeable plugs.
*For complete specifications see the documentation tab above.
The SignalTEK QT Pro stands as the flagship model in its series, offering comprehensive testing for copper, multimode/single-mode fiber, and Wi-Fi networks, all within a single device. It measures optical loss (dB), fiber length, Wi-Fi signal strength, Ethernet network performance, and supports analysis of PoE installations up to 90W. Tailored for installers, IT managers, and integrators, it streamlines workflow with project management and reporting via the TREND AnyWARE cloud, significantly saving time.
The TREND AnyWARE Cloud management system allows real time collaboration between Project Managers and Field Technicians. There is no need for Field Technicians to setup the SignalTEK QT, Project Managers can pre-configure jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes and reducing the time taken to prepare reports for customers and warranties
SignalTEK QT joins the TREND AnyWARE ecosystem, a unified family of testers with a common user interface for a seamless testing experience when switching between different types of testing. Results from any device or user can be uploaded into the TREND AnyWARE Cloud, the world's fastest platform for viewing, storing, and sharing data from a single or multiple job sites.
Supporting the full range of TREND Networks tools, including LanTEK and FiberTEK IV, SignalTEK 10G, SignalTEK QT, PoE PRO, and VDV II you can upload tests, generate, and share professional reports for free, all securely stored in TREND AnyWARE, developed on the Microsoft Azure-powered platform for unmatched security and reliability
Ensure the desired network speed is supported by performing an RF test of the cable to test NEXT, Return Loss and Insertion Loss. SignalTEK QT will display the available performance versus the desired speed with an easy-to-read display. Up to 12 remotes are available for rapid testing. SignalTEK QT allows selection of speeds from 10Mb/s to 10Gb/s including the new 2.5 & 5Gb/s multigig speeds.
SignalTEK QT Pro qualifies fibre links in accordance with the IEEE 802.3 standard up to 100Gb/s by measuring insertion loss and length of fibre cabling using a convenient loopback test. TREND's high performance SFP modules offer high accuracy insertion loss measurements and the SignalTEK QT Pro detects the installed SFP module to automatically set Pass/Fail limits.
Analyse Wi-Fi channel strength and identify access points that are on overlapping channels to maximise network performance. Channel utilisation graphs help determine which access points (APs) are overloaded with users. Connect to a network and perform diagnostics with ping, traceroute and device scan tests.
As networks evolve to support higher bandwidth, lower latency, and increased device density, 10 Gigabit Etherne is rapidly becoming the standard for future-proof LAN infrastructures. The transition to fibre optic backbones and the growing demand on Wi-Fi networks require precise reliable and scalable testing solutions, which is exactly what the SignalTEK QT delivers. The SignalTEK QT Series was designed for today's Copper, Fibre and Wi-Fi networks
SignalTEK QT Pro 10 Gigabit Copper & Fibre Qualification Tester. 10G copper/fibre qualifier with Wi-Fi (internal and external antennas), soft carry case, 1 x plug (male) copper remote - ID #1, 1 x socket (female) copper remote - ID #1, 1m Cat 6A shielded patch cord, 1 x 850nm MM high stability SFP module, 1 x LC-LC and 1 x LC-SC OM3 MM duplex patch cords, 1 x LC and 1 x SC multimode fibre loopback remotes, 2.5 & 1.25mm fibre cleaning pen, USB-C charger with changeable plugs.
*For complete specifications see the documentation tab above.
