StarTech 100GbE MSA Uncoded SMF Optic Transceivers

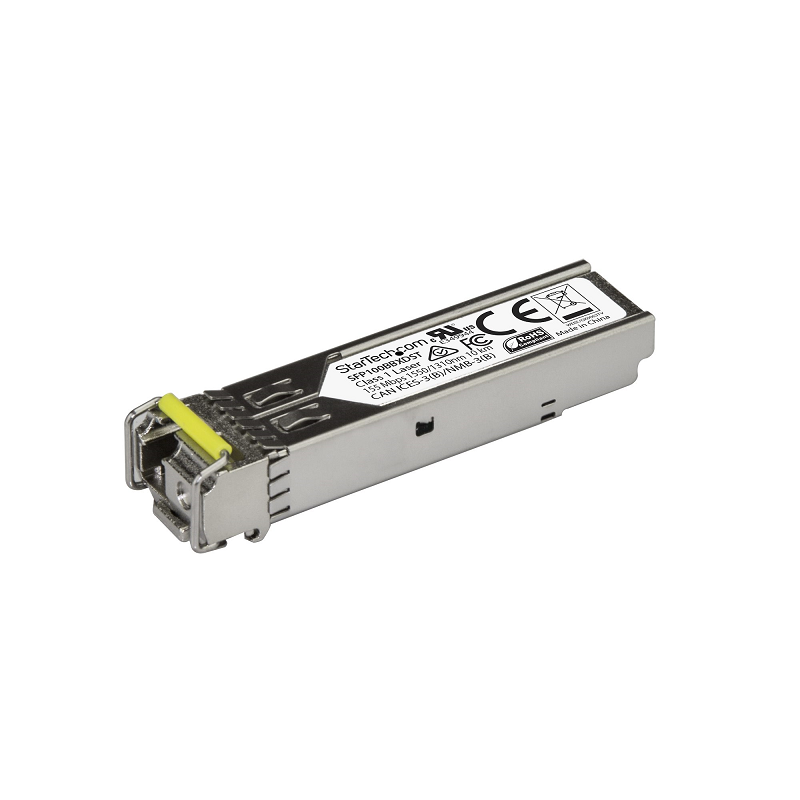

MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Gigabit Ethernet BiDi Fiber (SMF) (SFP100BBXDST)

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP100BBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXUST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Applications: Replace defective or damaged SFP modules
Expand your network to remote segments







Features: MSA UNCODED SFP TRANSCEIVER: 100Mb Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 100MbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 100BASE-BX 100Mbps 100Mb Bi-Directional Downstream Single Mode (SMF) LC Connector 1550nmTx/1310nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules







StarTech.com SFP Cables: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications: Wavelength: 1550nmTx/1310nmRx
Maximum Data Transfer Rate: 155 Mbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 155 Mbit/s Interface type SFP Fiber optic connector CXP,LC

Performance Product colour Silver Housing material Aluminium Hot-Plug support Yes Wavelength-division multiplexing (WDM)/strong> Yes Digital Diagnostics Monitoring (DDM) Yes Maximum transfer distance 10000 m Tx power (min) 1550 nm Rx power (min) 1310 dBmW Maximum data transfer rate 155 Mbit/s

Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 95%

Weight & dimensions Width 16 mm Depth 60 mm Height 11 mm Weight 18 g

Logistics data Master (outer) case width 19.3 cm Master (outer) case length 30.7 cm Master (outer) case height 16.2 cm Quantity per master (outer) case 20 pc(s) Full specification and details can be found in the
