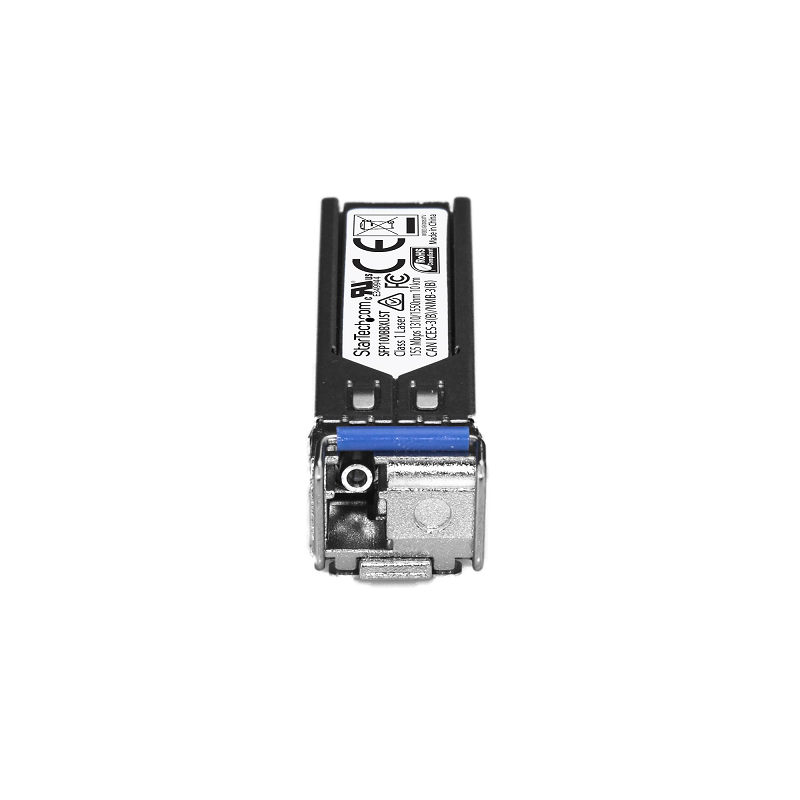

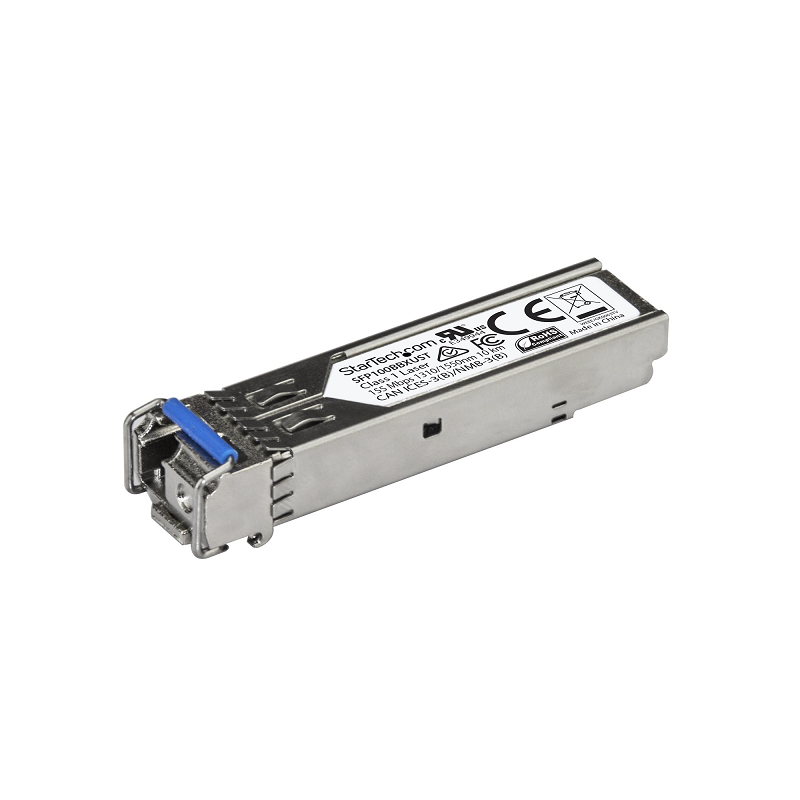

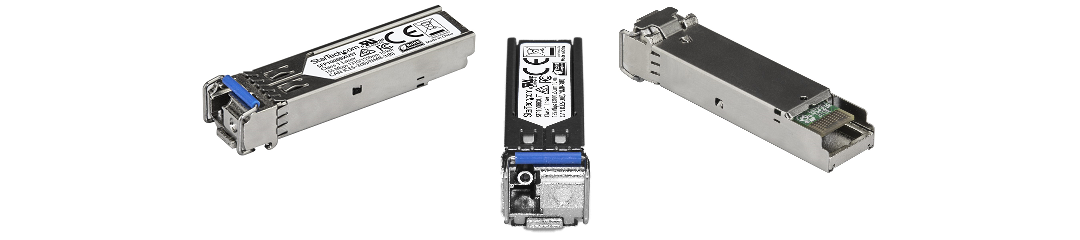

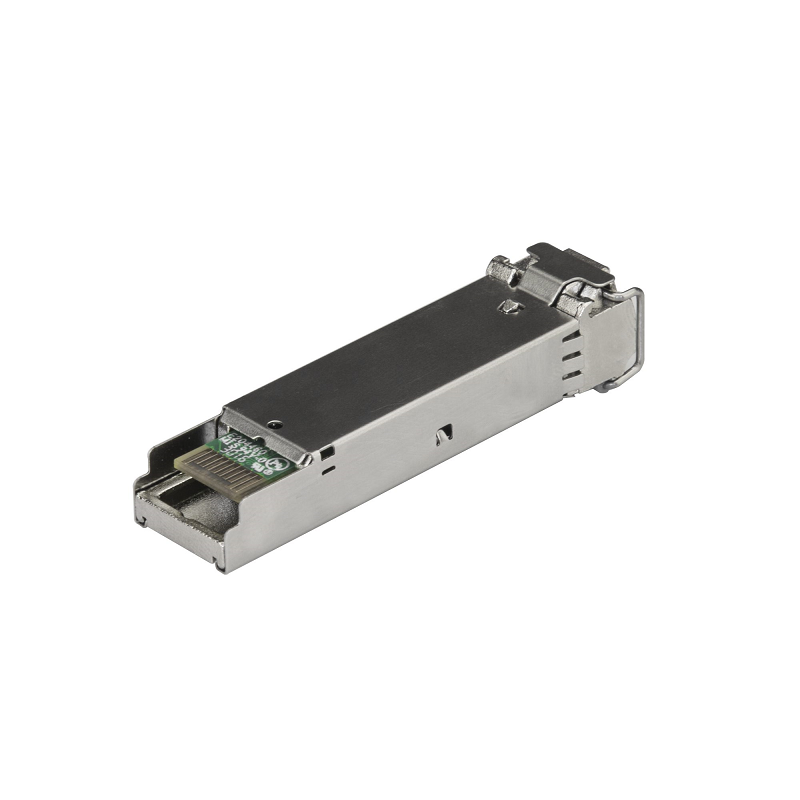

StarTech SFP100BBXUST SFP Transceiver Module - 100 MbE Ethernet BiDi Fiber (SMF) MSA Uncoded 54 Star

MSA Uncoded SFP Transceiver Module - 100BASE-BX - 100 MbE Ethernet BiDi Fiber (SMF) (SFP100BBXUST)

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP100BBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXDST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mbps connectivity over fiber cabling.

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Applications:

• Replace defective or damaged SFP modules
• Expand your network to remote segments

Features:

• MSA UNCODED SFP TRANSCEIVER: 100Mb Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 100MbE connectivity
• INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 100 Mb Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
• TECHNICAL SPECS: 100BASE-BX 100Mbps 100Mb Bi-Directional Upstream Single Mode (SMF) LC Connector 1310nmTx/1550nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
• LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
• WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules

StarTech.com SFP Cables:

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Technical Specifications:

• Wavelength: 1310nmTx/1550nmRx
• Maximum Data Transfer Rate: 155 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

Full specification and details can be found in the PDF file
