Microchip Indoor PoE

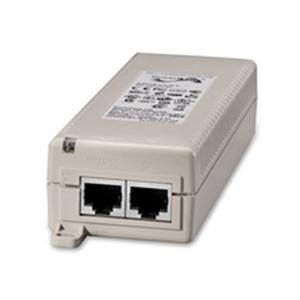

PowerDsine's 3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.

The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.

With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for current as well as emerging high power applications. The PD-9001GR/AT is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. It is also backward compatible and safe to use with any IEEE 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as Wi-MAX and wireless IEEE 802.11n access points.

Summary

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. It is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as wireless IEEE 802.11n access points. The PD-9501GC provides power on all 4-pairs while being backwards compatible to 802.3af and 802.3at powered devices.

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. It is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as wireless IEEE 802.11n access points. The PD-9501GC provides power on all 4-pairs while being backwards compatible to 802.3af and 802.3at powered devices.

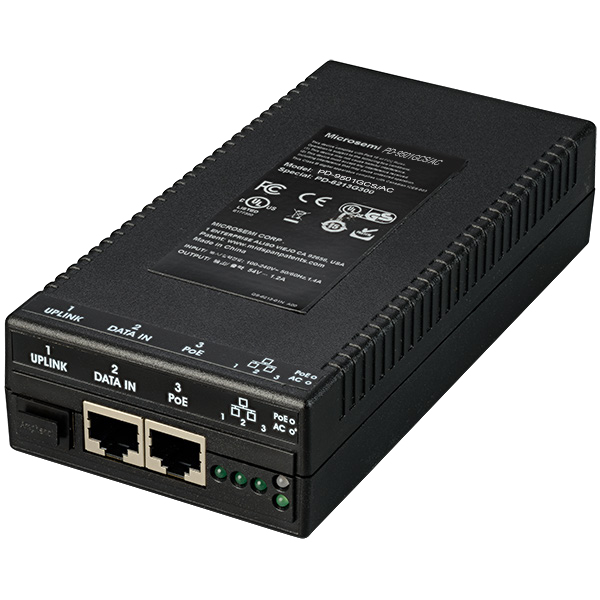

The Microchip PD-9501GCS is a Media converter with PoE functionality. It has total of 3 ports that can be active simultaneously. Data input can be via SFP module or via the RJ45 port, the output will be data and power up to 60W.
The media converter offers unique solution to power long-range installations where the data input comes over fiber. Standard SFP modules can be used (SM or MM modules).
The 9501GCS complies with IEEE 802.3bt type 3 and will provide PoE after detection, the PoE port will provide the power level needed by the end device offering a safe solution for all types of applications starting with IEEE 802.3af loads and up to IEEE 802.3bt 4-pairs loads.

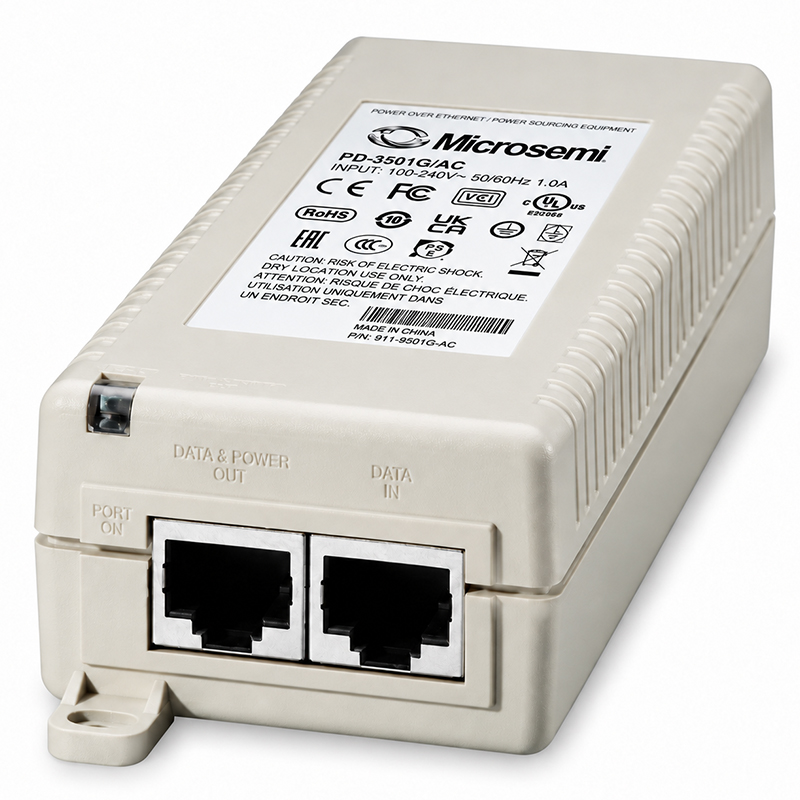

The Microchip PD-3501G/AC-UK single-port PoE midspan provides a compact and cost-effective IEEE 802.3af compliant solution for delivering power to IP phones, WLAN access points, network cameras and other IP terminal devices. Using existing Ethernet cabling, this plug-and-play PoE midspan provides reliable power without requiring changes to the existing network infrastructure.

Key Features of Microchip PD-3501G/AC-UK PoE Midspan Single-port PoE midspan for compatible IP terminal devices
IEEE 802.3af compliant
Provides power over existing Ethernet infrastructure
Suitable for IP phones, WLAN access points and network cameras
Compact and stackable design
Supports legacy PoE devices
Plug-and-play installation
Designed to minimise changes to existing network infrastructure
Single-Port PoE PowerThe Microchip PD-3501G/AC-UK is a single-port PoE midspan designed to provide power to compatible IP terminal devices over standard Ethernet cabling, helping simplify deployment where powered network equipment is required.

IEEE 802.3af ComplianceThe PD-3501G/AC-UK complies with IEEE 802.3af requirements, providing a standards-based PoE solution for compatible network devices and helping support dependable power delivery across Ethernet infrastructure.

Power Over Existing Ethernet InfrastructureDesigned to work with existing Ethernet infrastructure, the PD-3501G can provide power without requiring major changes to the network. This allows compatible powered devices to be integrated into established network environments.

Wide Range of IP ApplicationsThe PoE midspan is suitable for powering compatible IP phones, WLAN access points, network cameras and other IP terminal devices, providing a flexible solution for a variety of network deployments.

Compact and Stackable DesignThe compact design of the PD-3501G/AC-UK makes it suitable for installations where available space is limited. Its stackable construction also provides flexibility when deploying multiple units within a network environment.

Legacy PoE SupportThe PD-3501G includes legacy PoE support, helping provide compatibility with appropriate existing PoE equipment and making it suitable for network environments containing established powered devices.

Plug-and-Play InstallationWith plug-and-play installation, the PD-3501G/AC-UK can be implemented with minimal configuration. Its straightforward deployment helps simplify the process of adding PoE capability to an existing Ethernet network.

Cost-Effective Network ExpansionThe compact and affordable PD-3501G provides a practical way to introduce PoE power to compatible network devices while leveraging existing Ethernet infrastructure and avoiding unnecessary changes to the wider network.

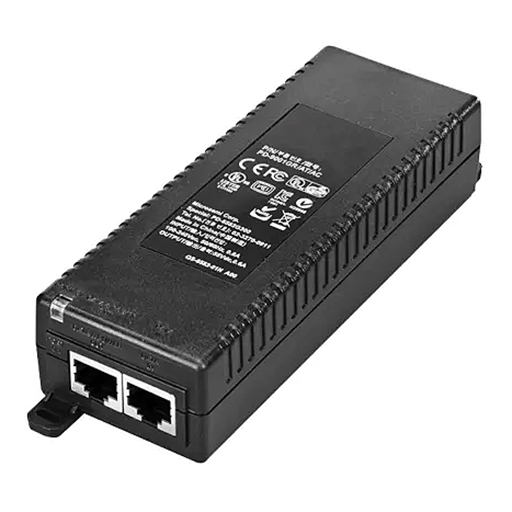

The Microchip PD-3501GS/AC-UK is a compact single-port Power over Ethernet (PoE) midspan injector designed to deliver both power and data through standard Ethernet cabling. Fully compliant with IEEE 802.3af, it provides a simple way to power compatible devices such as IP phones, wireless access points, and network cameras without modifying existing network infrastructure. With Gigabit data support and straightforward plug-and-play deployment, it offers an efficient solution for adding PoE capability to non-PoE network environments.

Key Features of Microchip PD-3501GS/AC-UK Single-port IEEE 802.3af compliant PoE midspan injector
Delivers up to 15.4W of PoE power
Supports 10/100/1000 Mbps Gigabit Ethernet data rates
Plug-and-play installation with no network configuration required
Compact, stackable design for flexible placement
Works over standard Ethernet cabling infrastructure
Compatible with IP phones, wireless access points, and network cameras
Clear LED indicators for power and channel status
Energy-efficient design compliant with modern efficiency standards
Reliable Power Over Ethernet Deployment The PD-3501GS/AC-UK enables network administrators to supply power to compatible devices through the same Ethernet cable used for data transmission. By injecting up to 15.4W of power onto the cable, it eliminates the need for separate power adapters and electrical outlets near connected devices, simplifying installations and reducing cabling complexity.

IEEE 802.3af Standards Compliance Designed in accordance with the IEEE 802.3af PoE standard, the injector ensures safe and consistent power delivery to compliant powered devices. This standardised approach provides reliable operation with a wide range of PoE-enabled equipment, supporting stable network performance while protecting connected devices.

Gigabit Ethernet Data Support With support for 10/100/1000 Mbps Ethernet speeds, the PD-3501GS/AC-UK allows high-performance data transmission alongside power delivery. This makes it suitable for bandwidth-intensive applications such as high-resolution IP surveillance, enterprise wireless networking, and modern VoIP deployments.

Compact and Space-Efficient Design The injector features a small, lightweight housing that can easily be positioned in network cabinets, on desks, or within structured cabling environments. Its stackable design allows multiple units to be deployed efficiently in locations where several powered devices need to be supported.

Simple Plug-and-Play Installation No configuration is required to begin using the PD-3501GS/AC-UK. Once connected between a network switch and the powered device, the injector automatically provides power over the Ethernet link. This streamlined installation process allows organisations to quickly add PoE capability to existing networks.

Clear Status Indicators Integrated LED indicators provide quick visual confirmation of device operation. A blinking blue LED signals AC power status, while a green channel power indicator confirms when PoE is being delivered to the connected device. These indicators help simplify troubleshooting and monitoring.

Designed for Indoor Network Environments Engineered for indoor deployment, the injector operates across a wide temperature range and supports typical enterprise environmental conditions. This makes it suitable for installation in offices, communication rooms, and other controlled indoor networking spaces.

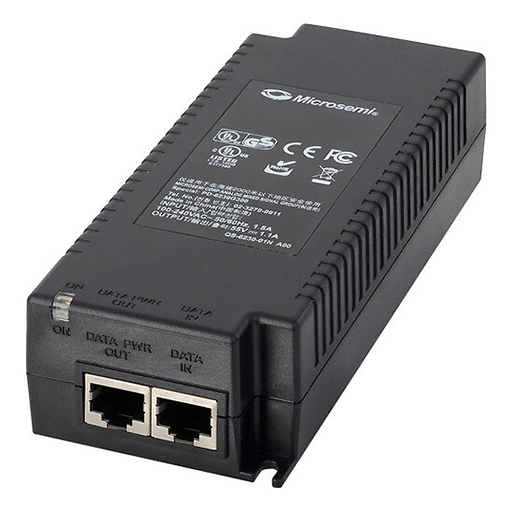

The Microchip PD-9001GS/AC-UK Single-Port PoE Midspan provides a practical way to deliver both power and data to compatible network devices over a single Ethernet cable. Designed for indoor installations, this compact midspan injector supports Gigabit networking and delivers up to 30W of power, making it suitable for modern wireless access points, IP cameras, and other PoE-enabled equipment. With automatic detection, efficient energy usage, and compliance with IEEE PoE standards, it offers a straightforward solution for expanding network infrastructure without additional power cabling.

Key Features of Microchip PD-9001GS/AC-UK Single-port PoE midspan injector delivering up to 30W of power
Compliant with IEEE 802.3at and backward compatible with IEEE 802.3af
Supports 10/100/1000Base-T Gigabit Ethernet data transmission
Automatic detection of connected PoE devices
Protection against non-standard Ethernet terminals
Energy efficient design compliant with DOE Level VI and VII efficiency requirements
Compact housing suitable for indoor installations
Ideal for wireless access points, PTZ cameras, and IP communication devices
Reliable Single-Port Power over Ethernet The PD-9001GS/AC-UK midspan injector enables network devices to receive power and data through a single Ethernet connection. By delivering up to 30W of output power, it supports demanding PoE devices while simplifying installations by removing the need for separate electrical wiring at the device location.

IEEE 802.3at PoE Compliance Fully compliant with the IEEE 802.3at Power over Ethernet standard, this midspan provides reliable power delivery using a two-event classification method. It also maintains backward compatibility with IEEE 802.3af devices, allowing it to operate with both newer and existing PoE-enabled equipment across a wide range of applications.

Gigabit Network Compatibility Supporting 10/100/1000 Mbps Ethernet connections, the PD-9001GS ensures that network performance is maintained while power is delivered to connected devices. This makes it suitable for bandwidth-intensive systems such as high-definition surveillance cameras, wireless access points, and other Gigabit network hardware.

Automatic Device Detection and Protection The midspan automatically detects connected PoE-compatible devices and provides only the power required. Built-in protection mechanisms prevent power from being supplied to non-standard Ethernet devices, helping safeguard connected equipment and maintain stable operation within the network.

Efficient and Energy-Conscious Operation Designed with modern energy standards in mind, the PD-9001GS meets DOE Level VI and Level VII efficiency requirements. This helps reduce energy consumption during operation while maintaining consistent power delivery to connected PoE devices.

Compact Design for Flexible Installation With its compact form factor, the PD-9001GS midspan can be installed easily in a variety of indoor environments. Its size makes it suitable for deployment near network cabinets, workstations, or equipment racks where space may be limited while still providing dependable PoE functionality.

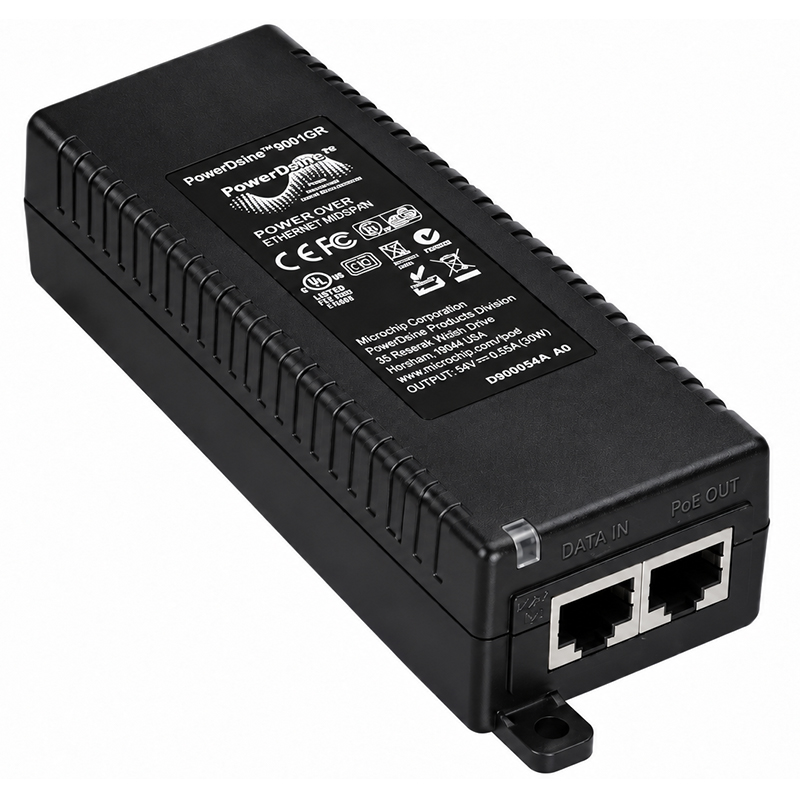

The Microsemi PD-9001GR/AT/AC-UK is a single-port Gigabit PoE Midspan designed to provide reliable remote power for high-power network applications. Delivering up to 30W and supporting IEEE 802.3at with backward compatibility to IEEE 802.3af, this PoE midspan supports devices such as 802.11n wireless access points, PTZ cameras, video phones, WiMAX equipment, and other 10/100/1000Base-T network devices.

Key Features of Microsemi PD-9001GR/AT/AC-UK PoE Midspan Single-port high-power Gigabit PoE Midspan
IEEE 802.3at compliant with 2-event classification
Up to 30W guaranteed output power
Backward compatible with IEEE 802.3af devices
Supports 10/100/1000Base-T applications
Safe power delivery provides low-power devices with only the power they require
Automatic detection and protection of non-standard Ethernet terminals
Compact design for WLAN access point and IP camera installations
High-Power Gigabit PoE SolutionThe PD-9001GR/AT/AC-UK provides up to 30W of PoE output through a single port, making it suitable for powering current and emerging high-power Ethernet applications. Its compact form provides a practical way to add PoE capability without requiring major changes to the network infrastructure.

IEEE 802.3at ComplianceCompliant with the IEEE 802.3at PoE standard, this midspan is designed to support applications that require higher power levels than traditional PoE solutions. Two-event classification helps enable compatible powered devices to receive the appropriate power level.

Backward Compatible with IEEE 802.3afThe unit is backward compatible with IEEE 802.3af, allowing it to support a broad range of existing PoE devices. This makes it suitable for network environments containing both established and newer powered Ethernet equipment.

30W Power OutputWith a guaranteed output power of up to 30W, the midspan can remotely power higher-demand devices such as wireless access points, PTZ cameras and video phones. The available power helps support applications that require more than standard low-power PoE.

10/100/1000Base-T SupportThe midspan supports 10/100/1000Base-T applications, providing compatibility with both existing Fast Ethernet equipment and Gigabit Ethernet devices. This makes it suitable for mixed network environments and emerging wireless applications.

Wireless Access Point ApplicationsThe high-power PoE design is well suited to wireless networking equipment, including 802.11n access points and WiMAX devices. Remote power delivery can simplify installations where access points are positioned away from convenient electrical outlets.

IP Camera and Video ApplicationsThe midspan can support powered network devices such as pan-tilt-zoom cameras and video phones. Its single-port architecture provides a straightforward solution for installations where individual devices require remote Ethernet power.

Automatic Device DetectionAutomatic detection helps identify connected Ethernet terminals, while protection for non-standard devices adds an extra layer of safety during deployment. Low-power devices receive only the power they need, helping support efficient PoE operation.

Compact Installation DesignIts compact form factor allows the midspan to fit easily into WLAN access point and IP camera installations. The space-conscious design makes it practical for network deployments where installation space is limited.

Flexible Network PoweringBy combining Gigabit Ethernet support, high-power PoE delivery and compatibility with both IEEE 802.3at and IEEE 802.3af devices, this single-port midspan provides a flexible way to extend power to a variety of Ethernet-connected applications.

The Microchip PD-IN/SP11 is an indoor PoE Surge Protector designed to protect Ethernet networks from surge events that can enter a building from outdoor environments through Ethernet cabling. Supporting PoE applications up to 95W and data rates up to 1 Gbps, this compact passive surge protection device is suitable for installation at building entrances or in outdoor cabinets near WLAN access points and IP cameras.

Key Features of Microchip PD-IN/SP11 PoE Surge Protector Indoor Ethernet and PoE surge protection
Passive device requiring no external power
Supports PoE applications up to 95W
Supports data rates up to 1 Gbps
Protects all eight Ethernet lines
Compact design for flexible installation
Suitable for building entrances and outdoor cabinets
Indoor PoE Surge ProtectionThe PD-IN/SP11 is designed to help protect indoor Ethernet networks from surge events that may travel into a building through outdoor Ethernet cabling. It provides a dedicated layer of protection between the outdoor cable route and indoor network equipment.

Protection for Ethernet NetworksThis surge protection device is suitable for Ethernet installations where cabling passes between outdoor and indoor environments. Installing the unit at the building entrance can help protect the indoor network against surge events entering through the Ethernet connection.

Up to 95W PoE SupportSupporting PoE applications up to 95W, the surge protector can be incorporated into high-power Power over Ethernet installations. This makes it suitable for network environments using higher-power PoE devices.

Up to 1 Gbps Data RatesThe device supports Ethernet data rates of up to 1 Gbps, allowing it to be used with Gigabit Ethernet network connections while providing surge protection for the connected cabling infrastructure.

All Eight Lines ProtectedAll eight Ethernet lines are protected, providing comprehensive coverage across the network connection. This helps maintain protection across the full Ethernet cabling interface rather than limiting protection to selected lines.

Passive OperationThe PD-IN/SP11 is a passive surge protection device and requires no external power. Its passive design allows it to be integrated into an Ethernet installation without needing a separate power source.

Compact InstallationThe compact form factor allows the surge protector to fit easily into network installations where space is limited. Its small footprint supports practical deployment alongside existing Ethernet infrastructure.

Building Entrance ProtectionThe device can be installed at the entrance of a building to provide protection for indoor network equipment. Positioning the surge protector at this point creates a practical protection stage where outdoor Ethernet cabling enters the indoor network environment.

Outdoor Cabinet ApplicationsThe surge protector can also be installed in an outdoor cabinet close to connected equipment such as WLAN access points and IP cameras. This provides flexibility when protecting Ethernet connections in outdoor network deployments.

WLAN and IP Camera ProtectionSuitable for installations involving WLAN access points and IP cameras, the device helps protect Ethernet connections serving outdoor equipment. Its PoE support allows it to be incorporated into powered network applications without requiring external power.

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9001-10GC enables remote power for a new range of applications including 802.11ac access points, pan-tilt-zoom (PTZ) cameras and videophones. It is backward compatible to IEEE 802.3af PoE standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10G devices such as wireless IEEE 802.11ac access points.

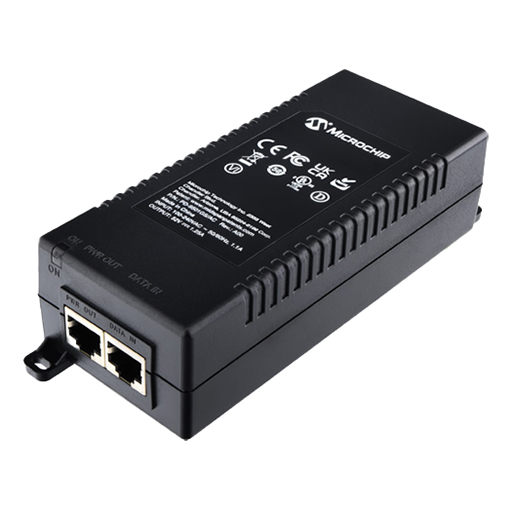

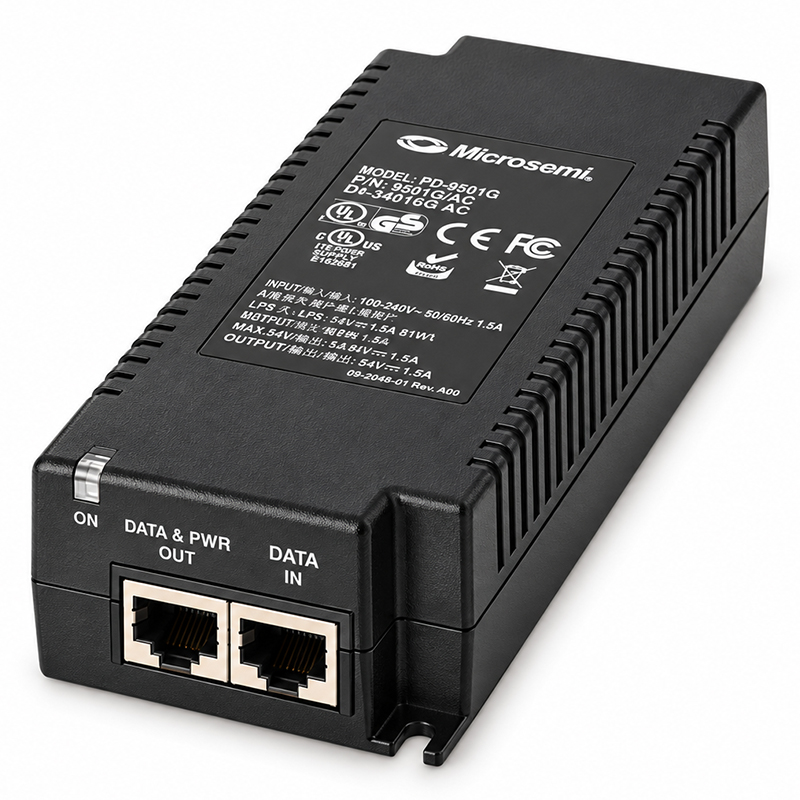

The Microchip PD-9501GS/AC-UK Single-Port PoE Midspan provides a practical way to add high-power Power over Ethernet to an existing network. Designed for indoor installations, this compact injector delivers up to 60W of power while maintaining full Gigabit data performance. It enables a single Ethernet cable to carry both power and data to compatible devices, making it suitable for high-demand network equipment such as wireless access points, PTZ cameras, and IP communication systems.

Key Features of Microchip PD-9501GS/AC-UK Delivers up to 60W of PoE power over a single port
Supports IEEE 802.3bt Type 3 powered devices
Backwards compatible with IEEE 802.3af and IEEE 802.3at
Gigabit data support (10/100/1000Base-T)
Power delivery over all four Ethernet pairs
Plug-and-play installation with automatic device detection
Compact indoor midspan design
Energy efficient design compliant with DOE Level VI
Integrated protection for non-standard Ethernet devices
Status indicators for power and channel activity
High-Power 60W PoE Output The PD-9501GS/AC-UK delivers up to 60 watts of Power over Ethernet, making it suitable for modern high-power network devices. This capability supports demanding equipment such as high-performance wireless access points, PTZ surveillance cameras, and advanced IP communication systems.

IEEE 802.3bt Type 3 Compatibility Designed to meet IEEE 802.3bt Type 3 standards, this PoE midspan ensures reliable power delivery to newer high-power powered devices. It provides consistent performance while maintaining compatibility with established PoE standards.

Backward Compatibility with Legacy PoE Devices The injector supports IEEE 802.3af and IEEE 802.3at powered devices, allowing it to operate seamlessly within mixed network environments. This makes it suitable for upgrading existing installations without replacing compatible equipment.

Gigabit Data Transmission With full support for 10/100/1000Base-T networking, the PD-9501GS/AC-UK maintains high-speed data performance while delivering power. This ensures reliable connectivity for bandwidth-intensive applications and modern network infrastructure.

Four-Pair Power Delivery Power is delivered across all four twisted pairs of the Ethernet cable, allowing the unit to provide higher power levels required by advanced PoE devices while maintaining stable operation.

Plug-and-Play Installation The midspan is designed for straightforward deployment with plug-and-play functionality. No complex configuration is required, allowing it to be integrated quickly into new or existing Ethernet networks.

Compact Indoor Design With compact dimensions of approximately 140 × 60 × 40 mm and a lightweight design, the PD-9501GS/AC-UK fits easily into indoor network installations, including tight spaces often found in camera or wireless access point deployments.

Automatic Detection and Device Protection The system automatically detects connected powered devices and only delivers the required power level. Built-in safeguards also protect non-standard Ethernet devices by preventing unintended power delivery.

Energy Efficient Operation The unit meets DOE Level VI efficiency requirements, helping reduce energy consumption while maintaining reliable PoE performance. This makes it suitable for continuous network operation in business environments.

Status Indicators for Monitoring Integrated LED indicators provide clear status information, including AC power indication and channel power activity. These visual indicators help simplify monitoring and troubleshooting during operation.

Flexible Deployment for Network Devices The PD-9501GS/AC-UK is suitable for powering a wide range of Ethernet devices including wireless access points, IP cameras, videophones, and thin clients. Its combination of high power output and Gigabit support makes it a practical addition to modern network infrastructure.

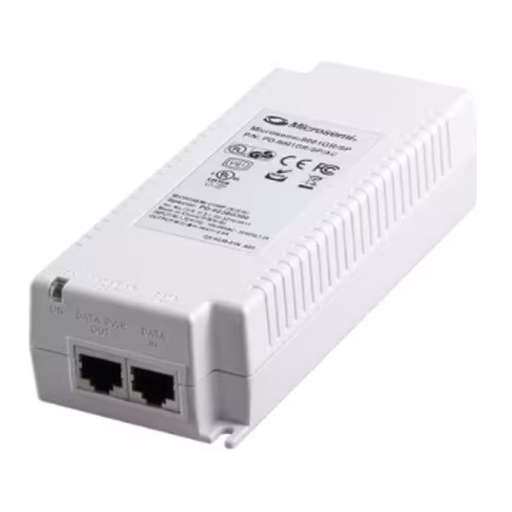

The Microchip PD-9001GR/SP/AC-EU is a single-port, high-power Gigabit PoE Midspan with surge protection, designed for remote powering of current and emerging high-power network applications. Delivering up to 30W and supporting IEEE 802.3at with backward compatibility to IEEE 802.3af, this PoE midspan is suitable for 802.11n access points, PTZ cameras, video phones, WiMAX equipment, and other 10/100/1000Base-T devices, with surge protection making it well suited to outdoor powered-device installations.

Key Features of Microchip PD-9001GR/SP/AC-EU PoE Midspan Single-port high-power Gigabit PoE Midspan
Integrated surge protection for outdoor powered-device installations
IEEE 802.3at compliant with 2-event classification
Up to 30W guaranteed output power
Backward compatible with IEEE 802.3af devices
Compatible with IEEE 802.3af and pre-standard devices
Supports 10/100/1000Base-T applications
Safe power delivery for low-power devices
Automatic detection and protection of non-standard Ethernet terminals
High-Power Gigabit PoE SolutionThe PD-9001GR/SP/AC-EU provides up to 30W of remote PoE power through a single port, making it suitable for high-power Ethernet applications. It provides a practical solution for delivering both network connectivity and power to compatible devices over existing Ethernet infrastructure.

Integrated Surge ProtectionBuilt-in surge protection provides an added layer of protection for installations involving outdoor powered devices. This makes the midspan particularly suitable for applications such as outdoor IP camera deployments and other network equipment exposed to installation environments where surge protection is important.

IEEE 802.3at ComplianceThe midspan complies with the IEEE 802.3at PoE standard and supports 2-event classification. This enables compatible high-power devices to receive the power required for their intended operation.

IEEE 802.3af Backward CompatibilityBackward compatibility with IEEE 802.3af allows the unit to support a wide range of established PoE equipment. It is also compatible with pre-standard devices, helping provide flexibility across mixed network environments.

30W Guaranteed Power OutputWith a guaranteed output power of up to 30W, the midspan can support higher-power network devices including 802.11n access points, Pan-Tilt-Zoom cameras and video phones. This higher power capacity helps accommodate applications beyond traditional low-power PoE.

10/100/1000Base-T SupportSupport for 10/100/1000Base-T applications provides compatibility with Fast Ethernet and Gigabit Ethernet network devices. This allows the midspan to integrate into both existing network environments and newer high-speed deployments.

Wireless Network ApplicationsThe high-power PoE design is suitable for wireless networking equipment such as WiMAX systems and 802.11n access points. Remote power delivery can simplify installations where wireless equipment is positioned away from readily available electrical outlets.

Outdoor IP Camera SupportThe surge-protected design is well suited to IP camera installations, including outdoor deployments. Remote power delivery helps simplify the installation of powered cameras while reducing the need for separate local power connections.

Automatic Device DetectionAutomatic detection and protection of non-standard Ethernet terminals helps provide safer PoE operation across different connected devices. Low-power equipment receives only the power it needs, supporting controlled power delivery.

Flexible PoE Device CompatibilityThe combination of IEEE 802.3at support, IEEE 802.3af backward compatibility and pre-standard device compatibility provides flexible remote powering for a variety of Ethernet-connected equipment. This makes the solution suitable for evolving network installations containing both existing and emerging devices.

The Microchip PD-9001GR/SP/AC-UK is a single-port, high-power Gigabit PoE Midspan with surge protection, designed for remote powering of current and emerging high-power network applications. Delivering up to 30W and supporting IEEE 802.3at with backward compatibility to IEEE 802.3af, this PoE midspan is suitable for 802.11n access points, PTZ cameras, video phones, WiMAX equipment, and other 10/100/1000Base-T devices, with surge protection making it well suited to outdoor powered-device installations.

Key Features of Microchip PD-9001GR/SP/AC-UK PoE Midspan Single-port high-power Gigabit PoE Midspan
Integrated surge protection for outdoor powered-device installations
IEEE 802.3at compliant with 2-event classification
Up to 30W guaranteed output power
Backward compatible with IEEE 802.3af devices
Compatible with IEEE 802.3af and pre-standard devices
Supports 10/100/1000Base-T applications
Safe power delivery for low-power devices
Automatic detection and protection of non-standard Ethernet terminals
High-Power Gigabit PoE SolutionThe PD-9001GR/SP/AC-UK provides up to 30W of remote PoE power through a single port, making it suitable for high-power Ethernet applications. It provides a practical solution for delivering both network connectivity and power to compatible devices over existing Ethernet infrastructure.

Integrated Surge ProtectionBuilt-in surge protection provides an added layer of protection for installations involving outdoor powered devices. This makes the midspan particularly suitable for applications such as outdoor IP camera deployments and other network equipment exposed to installation environments where surge protection is important.

IEEE 802.3at ComplianceThe midspan complies with the IEEE 802.3at PoE standard and supports 2-event classification. This enables compatible high-power devices to receive the power required for their intended operation.

IEEE 802.3af Backward CompatibilityBackward compatibility with IEEE 802.3af allows the unit to support a wide range of established PoE equipment. It is also compatible with pre-standard devices, helping provide flexibility across mixed network environments.

30W Guaranteed Power OutputWith a guaranteed output power of up to 30W, the midspan can support higher-power network devices including 802.11n access points, Pan-Tilt-Zoom cameras and video phones. This higher power capacity helps accommodate applications beyond traditional low-power PoE.

10/100/1000Base-T SupportSupport for 10/100/1000Base-T applications provides compatibility with Fast Ethernet and Gigabit Ethernet network devices. This allows the midspan to integrate into both existing network environments and newer high-speed deployments.

Wireless Network ApplicationsThe high-power PoE design is suitable for wireless networking equipment such as WiMAX systems and 802.11n access points. Remote power delivery can simplify installations where wireless equipment is positioned away from readily available electrical outlets.

Outdoor IP Camera SupportThe surge-protected design is well suited to IP camera installations, including outdoor deployments. Remote power delivery helps simplify the installation of powered cameras while reducing the need for separate local power connections.

Automatic Device DetectionAutomatic detection and protection of non-standard Ethernet terminals helps provide safer PoE operation across different connected devices. Low-power equipment receives only the power it needs, supporting controlled power delivery.

Flexible PoE Device CompatibilityThe combination of IEEE 802.3at support, IEEE 802.3af backward compatibility and pre-standard device compatibility provides flexible remote powering for a variety of Ethernet-connected equipment. This makes the solution suitable for evolving network installations containing both existing and emerging devices.

Product Images are for Illustrative Purposes only; may Depict this product amongst others in the same series

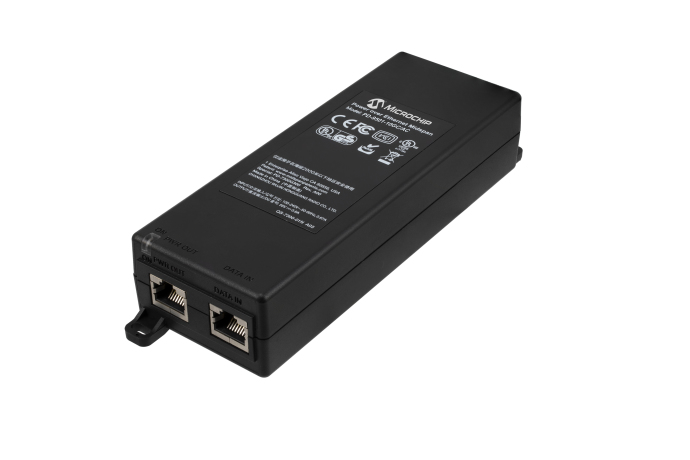

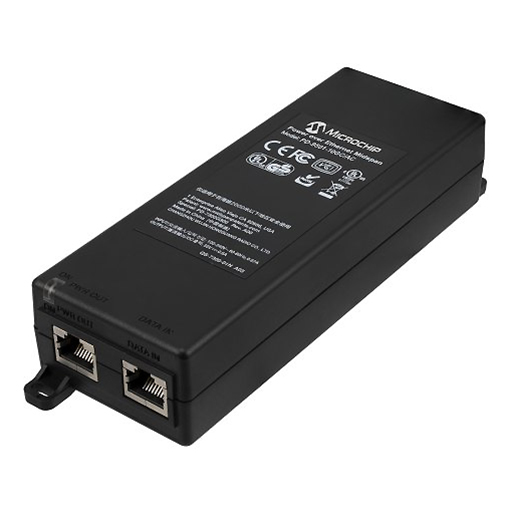

The Microchip PD-9501-10GC/AC-UK is a compact single-port PoE midspan designed to deliver reliable high-power connectivity for modern network devices. Providing up to 60W of power over all four Ethernet pairs, it enables remote powering of demanding indoor equipment such as high-performance wireless access points, PTZ surveillance cameras, and advanced IP communication systems. With support for multi-gigabit data speeds up to 10Gbps and compliance with the IEEE 802.3bt Type 3 standard, this midspan offers a practical way to expand power and data delivery across existing network infrastructure.

Key Features of Microchip PD-9501-10GC/AC-UK Single-port PoE midspan delivering up to 60W output power
Supports IEEE 802.3bt Type 3 with backward compatibility to 802.3af/at
Enables remote power for high-demand devices such as PTZ cameras and 802.11ac access points
Supports data speeds up to 10Gbps
Compatible with 10/100/1000Base-T and emerging 10GbE wireless devices
Indoor-rated design with operating temperature of 0°C to 40°C
AC powered with multiple international power cord options
Compliant with RoHS, WEEE, and CE regulations
Designed to meet current EMI and safety standards
High-Power 60W PoE Delivery The PD-9501-10GC provides up to 60W of power through a single Ethernet connection, supporting devices that require higher power levels than traditional PoE standards. This capability makes it suitable for powering modern wireless infrastructure, advanced security cameras, and other power-intensive IP devices without requiring additional electrical wiring.

Support for High-Speed Data Networks Designed for performance-driven environments, the midspan supports data rates up to 10Gbps. It works with standard 10/100/1000Base-T networks as well as emerging 10GbE wireless devices, ensuring that high-speed connectivity and power delivery operate seamlessly together.

IEEE 802.3bt Type 3 Compliance This midspan complies with the IEEE 802.3bt Type 3 PoE standard, delivering power efficiently across all four pairs of the Ethernet cable. It also maintains backward compatibility with IEEE 802.3af and IEEE 802.3at devices, allowing integration with both existing and newer network hardware.

Simple Midspan Integration Operating as a PoE midspan, the unit installs easily between a network switch and a powered device. This approach enables PoE capability to be added to non-PoE switches without replacing existing infrastructure, offering a straightforward upgrade path for networks requiring higher power delivery.

Designed for Indoor Network Environments The PD-9501-10GC is built for indoor installations, supporting operating temperatures from 0°C to 40°C and humidity levels up to 95%. Its compact design makes it suitable for offices, network closets, and equipment rooms where reliable PoE delivery is required.

Regulatory and Safety Compliance To meet global regulatory requirements, the device complies with RoHS, WEEE, and CE standards and adheres to current EMI and electrical safety regulations. Multiple international AC power cord options are available, allowing deployment in a wide range of regions.

Summary

The single port PoE midspan is a high-power solution for remote powering of current and emerging high power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac Access Points, pan-tilt zoom (PTZ) cameras and videophones. The PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compatible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 GbE devices such as wireless IEEE 802.11ac access points.

The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9601GC is designed to power PoE compliant devices such as IEEE 802.11ax access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals requiring up to 90W of power. The midspan is IEEE 802.3bt type 4 and is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points, powering 10/100/1000Base-T devices. With the midspan’s plug and-play installation, they are easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

The Microchip PD-9001GI/DC 1-Port Industrial Midspan PoE Injector provides up to 30W of remote power for high-power network applications such as 802.11n access points, Pan-Tilt Zoom (PTZ) cameras and other IP terminals. Compliant with IEEE 802.3at and backward compatible with IEEE 802.3af, this industrial PoE injector supports 10/100/1000 Mbps Ethernet devices and features a 20 to 60 Vdc dual DC input range, extended operating temperatures and flexible DIN-rail or wall mounting.

Key Features of Microchip PD-9001GI/DC Industrial PoE Injector Single-port high-power industrial PoE midspan
Up to 30W output power compliant with IEEE 802.3at
Backward compatible with IEEE 802.3af
Dual DC input supporting 20 to 60 Vdc
Supports 10/100/1000 Mbps Ethernet devices
Industrial-rated IP30 enclosure
Extended operating temperature range from -40°C to +75°C
Plug-and-play installation
DIN-rail or wall mountable
Suitable for industrial and outdoor applications
30W High-Power PoE OutputThe Microchip PD-9001GI/DC provides up to 30W of PoE output power, enabling remote power delivery for higher-power network equipment such as 802.11n wireless access points, PTZ cameras and other compatible IP terminals.

IEEE 802.3at ComplianceThis midspan PoE injector complies with the IEEE 802.3at PoE standard and is backward compatible with IEEE 802.3af, providing support for compatible powered devices across these PoE standards.

Dual DC InputThe industrial PoE injector features a dual DC input design supporting a 20 to 60 Vdc input range, providing a flexible power input solution for suitable industrial network installations.

10/100/1000 Mbps SupportThe PD-9001GI/DC supports 10/100/1000 Mbps Ethernet connectivity, allowing it to be used with compatible Fast Ethernet and Gigabit Ethernet network devices.

Industrial-Rated IP30 DesignDesigned for industrial applications, the PoE injector features an IP30-rated enclosure. Its industrial-focused construction makes it suitable for network deployments where robust environmental specifications are required.

Extended Temperature RangeThe PoE injector is designed to operate across an extended temperature range of -40°C to +75°C, supporting installations in demanding industrial and outdoor environments.

Plug-and-Play InstallationWith plug-and-play installation, the PD-9001GI/DC provides a straightforward way to add high-power PoE capability to compatible network devices without requiring complex configuration.

DIN-Rail or Wall MountableThis midspan PoE injector can be mounted on a DIN rail or wall, providing installation flexibility for industrial networking cabinets, control environments and other suitable locations.

Industrial and Outdoor ApplicationsWith its extended temperature range, industrial-rated design and flexible mounting options, the Microchip PD-9001GI/DC is suited to industrial and outdoor network applications requiring reliable high-power PoE delivery.

High-Power IP Device SupportThe 30W PoE output makes this PoE injector suitable for a range of higher-power IP terminals, including compatible 802.11n access points, Pan-Tilt Zoom cameras and other network devices requiring remote power.

The Microchip PD-9501GCS/AC-UK is a versatile PoE media converter designed to extend network connectivity while delivering high-power PoE to connected devices. Supporting both fiber and copper data inputs, this compact indoor solution allows network deployments to power remote devices across long distances while maintaining reliable data transmission. With IEEE 802.3bt Type 3 compliance and support for standard SFP modules, it provides a flexible and efficient option for installations that require both media conversion and high-power PoE from a single device.

Key Features of Microchip PD-9501GCS/AC-UK Delivers up to 60W PoE output with IEEE 802.3bt Type 3 compliance
Supports simultaneous operation of three ports
Dual data input options via SFP module or RJ45 Ethernet
Compatible with standard single-mode and multi-mode SFP modules
Automatic PoE detection for safe device power delivery
Supports IEEE 802.3af, 802.3at, and up to four-pair 802.3bt loads
Designed for indoor network and long-range fiber installations
Flexible Data Input Options The PD-9501GCS allows network data to be delivered through either a standard RJ45 Ethernet connection or an SFP module. This flexibility enables the device to integrate easily into both fiber and copper network infrastructures, making it suitable for a wide range of deployment environments.

High-Power 60W PoE Delivery With support for IEEE 802.3bt Type 3, this media converter can deliver up to 60 watts of power to connected devices. This makes it suitable for powering high-demand network equipment such as advanced wireless access points, IP cameras, and other powered devices requiring increased PoE capacity.

Simultaneous Three-Port Operation The unit is designed with three ports that can operate at the same time, allowing efficient data and power flow within the network. This simultaneous functionality supports smooth connectivity between fiber input, copper networking, and PoE output devices.

SFP Module Compatibility The converter supports standard SFP modules, including both single-mode and multi-mode options. This ensures compatibility with a wide range of fiber infrastructure, allowing installers to choose the appropriate module for the required transmission distance and network design.

Optimised for Long-Range Installations By combining fiber connectivity with PoE output, the PD-9501GCS provides a practical solution for powering devices located far from traditional network switches. It allows fiber backbones to deliver both data and power distribution to remote network equipment.

Automatic Detection and Power Management PoE output is only activated after device detection, ensuring safe and controlled power delivery. The system automatically determines the power requirements of the connected device, supporting IEEE 802.3af loads through to four-pair IEEE 802.3bt powered devices.

Reliable Indoor Deployment Designed for indoor networking environments, the PD-9501GCS offers a compact and efficient solution for enterprise, commercial, and infrastructure deployments where fiber connectivity and PoE power delivery need to operate together.

The Microchip PD-9006G/ACDC/M-EK is a reliable 6-port Power over Ethernet (PoE) midspan designed to add power delivery to existing Ethernet networks without replacing current switching infrastructure. Built to meet IEEE 802.3at standards, this indoor midspan provides up to 30W of power per port, supporting a wide range of powered devices such as wireless access points, IP cameras, and VoIP phones while maintaining high-speed Gigabit connectivity.

Key Features of Microchip PD-9006G/ACDC/M-EK 6-port PoE midspan for powering Ethernet devices
Delivers up to 30W per port with IEEE 802.3at compliance
Gigabit data support (10/100/1000 Mbps)
Compatible with both IEEE 802.3at and IEEE 802.3af powered devices
Designed for indoor network deployments
Plug-and-play operation with existing Ethernet switches
Supports devices such as wireless access points, IP cameras, and IP phones
Nominal 55V DC PoE output
AC input range of 100–240V at 50/60Hz
Cost-effective way to upgrade networks with PoE capability
Designed for High-Power PoE Applications The PD-9006G/ACDC/M-EK midspan is designed to power demanding Ethernet devices that require higher power levels than standard PoE. With support for IEEE 802.3at, the unit can supply up to 30W per port, making it suitable for modern wireless access points, PTZ cameras, IP videophones, and other network equipment that requires stable power delivery over Ethernet.

Seamless Integration with Existing Networks This PoE midspan allows network administrators to add PoE functionality to an existing LAN without replacing switches or installing new cabling. Positioned between a non-PoE switch and connected devices, it injects power onto the Ethernet line while preserving full data performance.

Gigabit Ethernet Performance Supporting 10/100/1000 Mbps data rates, the PD-9006G maintains full Gigabit throughput while delivering power. This ensures bandwidth-intensive applications such as video surveillance, wireless networking, and multimedia communications operate smoothly alongside power delivery.

Backward Compatibility for Flexible Deployment The unit is backward compatible with IEEE 802.3af devices, enabling mixed deployments across older and newer network hardware. This flexibility allows organizations to gradually upgrade infrastructure without losing compatibility with existing powered devices.

Plug-and-Play Installation Designed for straightforward deployment, the PD-9006G midspan offers plug-and-play operation that requires minimal configuration. Once installed between the network switch and endpoint devices, it automatically detects compatible equipment and delivers power accordingly.

Reliable Indoor Power Delivery Engineered for indoor installations, the PD-9006G provides stable PoE output with a nominal voltage of 55V DC. With a universal AC input range of 100–240V at 50/60Hz, it can be used in a variety of deployment environments and power conditions.

The Microchip PD-6524GC/AC-EK 24-port PoE midspan provides up to 15.4W of PoE power to compatible IP telephones, wireless LAN access points, security network cameras and other data terminals over standard Ethernet cabling. Supporting IEEE 802.3af, 10/100/1000Base-T applications and remote management through web control or SNMPv3, this plug-and-play PoE midspan provides a practical way to add power delivery while leaving existing network infrastructure unaltered.

Key Features of Microchip PD-6524GC/AC-EK PoE Midspan 24-port PoE midspan for compatible network devices
Supports IEEE 802.3af powered devices
Provides up to 15.4W of output power over two pairs
Supports 10/100/1000Base-T applications
Remote management using web control and/or SNMPv3
Includes Power View Pro management software
Plug-and-play installation
Automatic detection and protection of nonstandard Ethernet terminals
Designed to work with existing Ethernet infrastructure
24-Port PoE MidspanThe Microchip PD-6524GC/AC-EK is a 24-port PoE midspan designed to deliver power to multiple compatible Ethernet devices. It provides a centralised solution for adding PoE capability to an existing network infrastructure.

Up to 15.4W PoE OutputThe midspan provides up to 15.4W of PoE output power over two pairs, supporting compatible IEEE 802.3af powered devices that require power delivery through standard Ethernet cabling.

IEEE 802.3af SupportSupporting the IEEE 802.3af standard, this PoE midspan is designed to provide power to compatible powered devices including IP telephones, wireless LAN access points and security network cameras.

10/100/1000Base-T ApplicationsThe midspan supports 10/100/1000Base-T applications, making it suitable for Ethernet environments operating across a range of common network speeds.

Remote ManagementFor remote administration, this midspan supports web-based control and SNMPv3 management. These capabilities provide network administrators with options for monitoring and managing the PoE midspan remotely.

Power View Pro Management SoftwareThe PD-65xxGC family includes Power View Pro management software, providing an additional management solution for supported deployments where centralised control and monitoring of PoE infrastructure are required.

Plug-and-Play InstallationDesigned for plug-and-play installation, the PD-6524GC/AC-EK can be deployed using existing Ethernet infrastructure. This helps simplify the addition of PoE power without requiring changes to the underlying network architecture.

Automatic Device DetectionThe midspan provides automatic detection and protection of nonstandard Ethernet terminals, helping support safer operation when compatible and nonstandard devices are connected to the network.

Flexible Network Device SupportThis midspan is designed to power a range of compatible data terminals, including IP telephones, wireless LAN access points, security network cameras and other IEEE 802.3af devices.

Existing Infrastructure IntegrationBy delivering PoE over standard Ethernet data cables, the midspan allows compatible powered devices to be added while leaving the existing network infrastructure completely unaltered.

The PowerDsine 9000G Family is designed specifically to power 802.11n and 802.3at Access Points, PTZ and Dome network cameras, Video Phones, Thin Clients and other Ethernet end terminals that require high power. The PowerDsine 9000G Family includes 6, 12, and 24- port models and are fully backward compatible and safe to use with any 802.3af terminal such as VoIP Phones, IP Cameras and WLAN Access Points. With PowerDsine PoE Midspans, data and power flow smoothly and safely over a single LAN cable with no interference, leaving your network infrastructure completely unaltered.

For secure remote management, all PD-9000G models include PowerView Pro management software supporting IPv4 and IPv6 addressing.

The Microchip PD-9606GC/AC-EK is a 6-port managed PoE Midspan designed to deliver up to 90W per port for high-power Ethernet applications. Supporting IEEE 802.3bt Type 4 powered devices, 4-pair power delivery, and 10/100/1000Base-T connectivity, this solution is suitable for 802.11 access points, PTZ and dome cameras, IP videophones, thin clients, and other high-power network end terminals.

Key Features of Microchip PD-9606GC/AC-EK PoE Midspan 6-port managed PoE Midspan
Up to 90W per port using 4-pair power delivery
Supports IEEE 802.3bt Type 4 powered devices
Backward compatible with IEEE 802.3af and 802.3at devices
Supports legacy and pre-standard PoE devices
10/100/1000 Mbps Ethernet support
PowerView™ Pro remote web-based SNMPv3 power management
Plug-and-play installation using existing Ethernet infrastructure
AC input with EU/UK cord configuration
6-Port High-Power PoE MidspanThe PD-9606GC/AC-EK provides six PoE ports for remotely powering multiple high-power Ethernet devices from a central location. With up to 90W available per port, it is designed for demanding applications requiring higher levels of PoE power.

IEEE 802.3bt Type 4 SupportSupport for IEEE 802.3bt Type 4 powered devices enables high-power PoE delivery for current and emerging network equipment. Four-pair power delivery allows compatible devices to receive the power required for their applications.

90W Per-Port Power DeliveryEach port can provide up to 90W of power, making the midspan suitable for high-power Ethernet end terminals. This power capacity supports devices that require more than traditional IEEE 802.3af and 802.3at PoE solutions can provide.

Backward CompatibilityThe unit is backward compatible with IEEE 802.3af and IEEE 802.3at powered devices, allowing it to support a wide range of existing PoE equipment alongside newer high-power devices. Legacy and pre-standard support further extends its compatibility.

10/100/1000 Mbps EthernetSupport for 10/100/1000 Mbps Ethernet provides connectivity for Fast Ethernet and Gigabit Ethernet devices. This allows the midspan to integrate with existing network infrastructure while supporting newer high-speed applications.

High-Power Device SupportThe multiport design is suited to a variety of high-power Ethernet applications, including IEEE 802.11 access points, Pan-Tilt-Zoom and dome cameras, IP videophones, thin clients and other powered network end terminals.

Managed PoE OperationManagement capabilities provide greater visibility and control over connected PoE ports. The solution is designed for managed network environments where administrators need to monitor and manage power delivery across multiple devices.

PowerView™ Pro ManagementPowerView™ Pro provides a remote web-based SNMPv3 power management environment, enabling network administrators to manage the PoE system remotely. This helps simplify administration of connected powered devices across the network.

Plug-and-Play InstallationPlug-and-play installation makes it straightforward to introduce high-power PoE into an existing Ethernet network. The midspan allows organisations to leverage existing cabling and infrastructure without requiring separate local power connections for supported devices.

Future-Ready Network PowerBy combining IEEE 802.3bt Type 4 support, 90W per-port power, Gigabit Ethernet connectivity and backward compatibility, the midspan provides a flexible platform for deploying both established and emerging high-power Ethernet applications.

EU/UK Cord ConfigurationThis version is supplied with an EU/UK cord configuration and AC input, providing a practical power connection for compatible installations. Its six-port architecture helps consolidate PoE power delivery into a single network solution.

PD-9612GC
12 ports, 90W, IEEE 802.3bt-compliant indoor PoE midspan

The twelve ports PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9612GC is designed specifically to power IEEE 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 90W of power. The solution supports IEEE 802.3bt powered devices and is also backward compatible and safe to use with any IEEE 802.3af/at terminal. It can power both existing 10/100Base-T devices and Gigabit devices. With the midspan’s plug and-play installation, it is easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

Microchip’s PD9506-10GC is a six ports Power over Ethernet midspan offering 60W power per port according to the IEEE 802.3bt standard. The PD-95XX-10GC family is available in 6, 12 and 24 port configurations. Input power is provided through a universal AC voltage connector. The product is designed for use with a standard 10/100/1000 and 10G BaseT Ethernet network over a standard category 6A or better cabling plant, according to the IEEE 802.3bt standard. The PD-9506-10GC incorporates power management through Microchip’s PowerView Pro software allowing the user to monitor and control the midspan via a remote network management station.

The Microchip PD-9624GC/AC-EK is a high-power PoE midspan designed to deliver reliable power and data connectivity across demanding network environments. Built for modern IP devices, this 24-port solution provides up to 90W per port and supports the IEEE 802.3bt Type 4 standard, making it suitable for high-power applications such as advanced wireless access points, PTZ cameras, and IP communication systems. With plug-and-play deployment and full backward compatibility with IEEE 802.3af and 802.3at devices, it offers a practical way to extend existing Ethernet infrastructure while preparing networks for higher power requirements.

Key Features of Microchip PD-9624GC/AC-EK 24-port PoE midspan delivering up to 90W per port
Compliant with IEEE 802.3bt Type 4 PoE standard
Backward compatible with IEEE 802.3af and IEEE 802.3at devices
Gigabit data support with 10/100/1000 Mbps throughput
Supports high-power devices including Wi-Fi access points and PTZ cameras
PowerView™ Pro remote web-based management with SNMPv3
Plug-and-play deployment with existing Ethernet switches
Aggregate power capacity up to 950W
Integrated system and port power status indicators
Rack-mountable form factor for structured network installations
High-Power 90W PoE Capability Designed to support power-hungry network devices, the PD-9624GC/AC-EK delivers up to 90 watts per port using the IEEE 802.3bt Type 4 PoE standard. This allows a single Ethernet cable to supply both power and data to demanding equipment such as multi-radio wireless access points, IP videophones, and high-resolution security cameras.

IEEE 802.3bt Standard with Legacy Compatibility The midspan supports the latest IEEE 802.3bt specification while remaining fully compatible with earlier IEEE 802.3af and 802.3at powered devices. This ensures seamless operation across mixed device environments, allowing network upgrades without replacing existing hardware.

Gigabit Network Performance Supporting 10/100/1000 Mbps Ethernet speeds, the PD-9624GC/AC-EK maintains full Gigabit throughput across all connected ports. This ensures high-bandwidth applications such as HD video surveillance, VoIP communications, and enterprise wireless connectivity perform reliably.

PowerView™ Pro Network Management Integrated PowerView™ Pro management provides a remote web-based interface for monitoring and controlling PoE power distribution. With SNMPv3 support, administrators can manage power allocation, monitor port status, and integrate the midspan into existing network management systems for improved operational oversight.

Flexible Multi-Port Deployment Part of the PD-96xxGC family, the platform is designed to support installations ranging from smaller deployments to high-density networks. The 24-port configuration provides significant power capacity while maintaining a compact rack-mountable design suitable for enterprise network cabinets.

Efficient Installation with Existing Infrastructure As a plug-and-play PoE midspan, the PD-9624GC/AC-EK installs between a standard Ethernet switch and connected devices without requiring major network changes. This approach allows organizations to add PoE capability to non-PoE switches while extending the life of existing infrastructure.

Reliable Power Distribution Architecture The system distributes power across both spare and data pairs, delivering a nominal output voltage of 54V DC. With an aggregate power budget of up to 950W, the midspan can support multiple high-power devices simultaneously while maintaining consistent power delivery.

Clear Status Monitoring Integrated LED indicators provide quick visual feedback on system power and individual port activity. Green and orange indicators show how power is delivered across data and spare pairs, helping administrators identify port status and troubleshoot connections quickly.

Designed for Indoor Network Environments The PD-9624GC/AC-EK operates within a temperature range of 0°C to 40°C and supports high humidity conditions up to 90% non-condensing. Its durable construction and rack-mount form factor make it well suited for controlled indoor networking environments such as enterprise server rooms and communications closets.

The Microchip PD-9512-10GC/AC-EK is a high-performance 12-port Power over Ethernet midspan designed to deliver reliable power to demanding network devices. Built for modern multi-gigabit networks, it supports up to 60W per port and complies with the IEEE 802.3bt PoE standard. This midspan enables efficient deployment of high-power devices such as advanced wireless access points, security cameras, and IoT equipment while maintaining compatibility with standard Ethernet infrastructure.

Key Features of Microchip PD-9512-10GC/AC-EK 12-port PoE midspan delivering up to 60W per port
Fully compliant with IEEE 802.3bt PoE standard
Supports 10/100/1000 Mbps and 10GBase-T Ethernet networks
Designed for Category 6A or higher cabling infrastructure
Centralised monitoring and management via PowerView Pro software
Universal AC input power connection
Part of the scalable PD-95XX-10GC family with 6, 12, and 24 port options
High-Power PoE Capability The PD-9512-10GC/AC-EK delivers up to 60 watts of power per port, allowing it to support high-demand PoE devices that require more power than traditional PoE standards provide. This makes it suitable for powering next-generation wireless access points, PTZ cameras, and other network devices with increased energy requirements.

IEEE 802.3bt Compliance Designed in accordance with the IEEE 802.3bt standard, this midspan ensures consistent and reliable PoE delivery across connected devices. The standard enables higher power transmission over Ethernet cables while maintaining interoperability with compatible powered devices and network equipment.

Multi-Gigabit Network Support The midspan is engineered to operate seamlessly within modern Ethernet environments, supporting standard 10/100/1000 Mbps networks as well as 10GBase-T connectivity. This flexibility allows organisations to deploy PoE power without impacting network performance or speed.

Flexible Deployment Across Network Sizes As part of the PD-95XX-10GC family, the PD-9512-10GC/AC-EK integrates into a broader range of midspan solutions available in 6, 12, and 24 port configurations. This allows network administrators to select a model that best matches their infrastructure requirements while maintaining consistent performance and management capabilities.

Remote Monitoring with PowerView Pro The unit incorporates advanced power management using Microchip’s PowerView Pro software. Through a remote network management station, administrators can monitor port activity, manage power distribution, and maintain greater visibility over the PoE environment.

Standard Cabling Compatibility The PD-9512-10GC/AC-EK operates over standard Category 6A or higher Ethernet cabling, ensuring reliable power and data transmission across modern network infrastructures. This compatibility simplifies deployment and allows organisations to integrate PoE power without major cabling upgrades.

Reliable AC Power Input With a universal AC input connector, the midspan can be easily integrated into a variety of environments. This design supports straightforward installation while providing consistent power delivery to all connected PoE devices.

Microchip’s PD9524-10GC is a six ports Power over Ethernet midspan offering 60W power per port according to the IEEE 802.3bt standard. The PD-95XX-10GC family is available in 6, 12 and 24 port configurations. Input power is provided through a universal AC voltage connector. The product is designed for use with a standard 10/100/1000 and 10G BaseT Ethernet network over a standard category 6A or better cabling plant, according to the IEEE 802.3bt standard. The PD-9524-10GC incorporates power management through Microchip’s PowerView Pro software allowing the user to monitor and control the midspan via a remote network management station.
