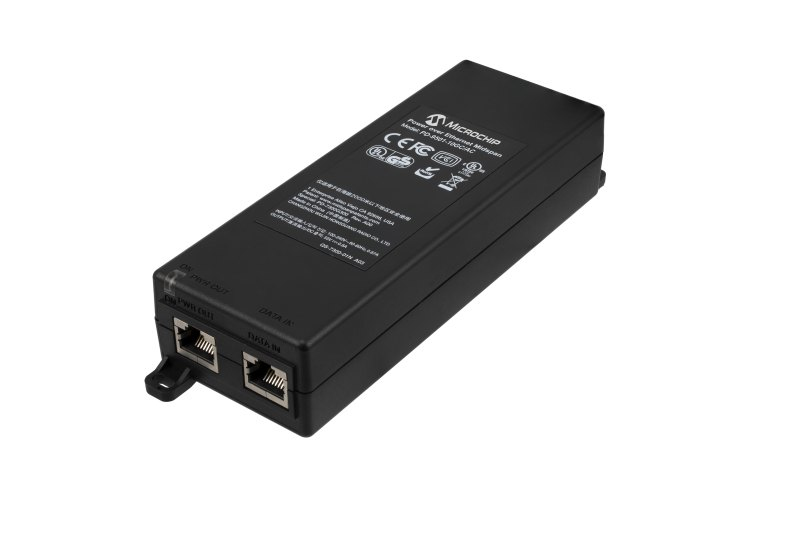

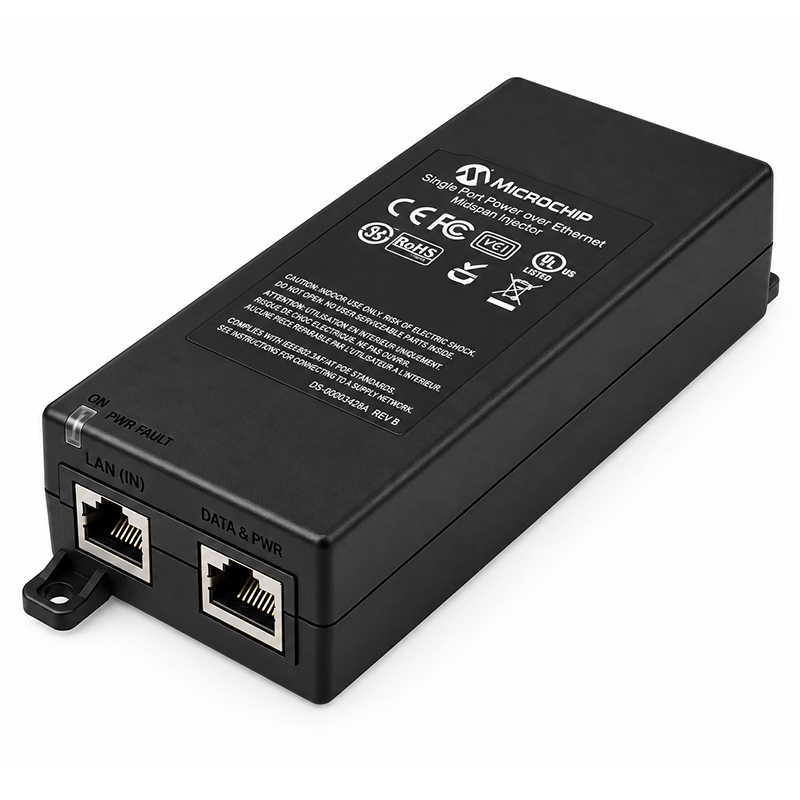

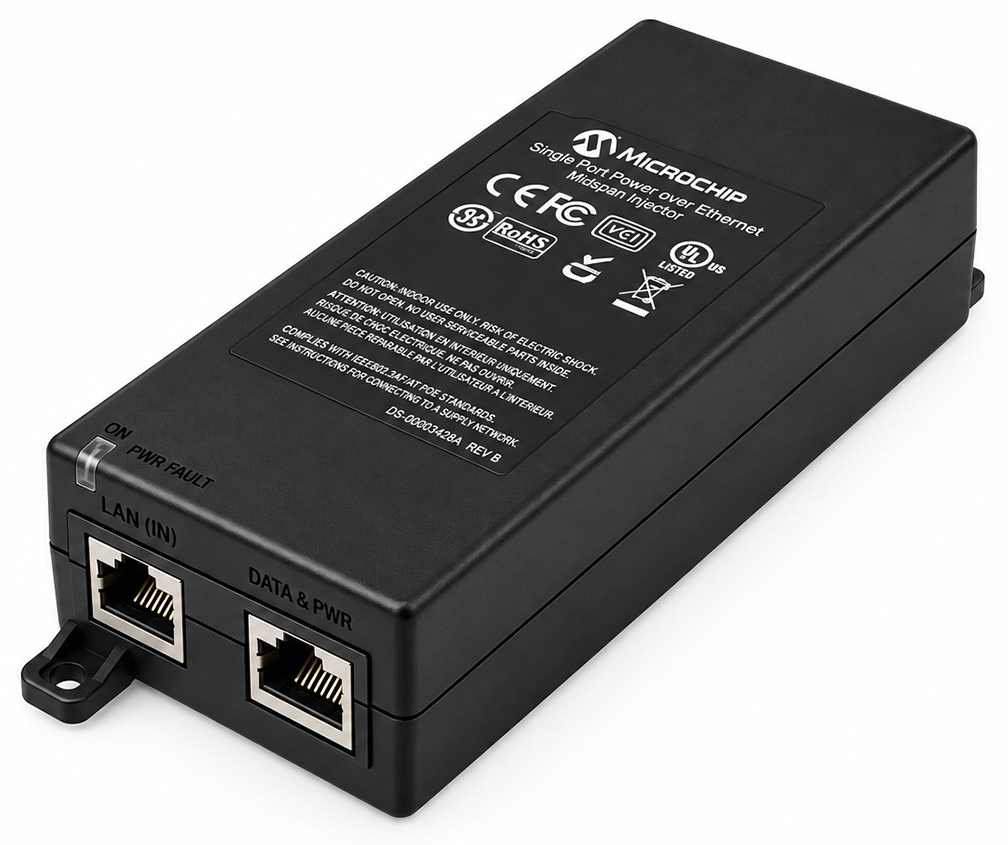

Microchip PD-9001-10GC/AC-UK Single-Port, 10 Gbps, IEEE 802.3at Indoor PoE Midspan

Microchip PD-9001-10GC/AC-UK Single-Port 10Gbps IEEE 802.3at Indoor PoE Midspan

The Microchip PD-9001-10GC/AC-UK is a single-port indoor PoE midspan designed to add up to 30W of Power over Ethernet to high-speed network connections. It supports data rates from 10/100/1000Mbps through to 2.5Gbps, 5Gbps and 10Gbps, making it suitable for high-bandwidth devices such as wireless access points, Pan-Tilt-Zoom (PTZ) cameras and video phones.

IEEE 802.3at compliant and backwards compatible with IEEE 802.3af powered devices, the PD-9001-10GC provides a straightforward way to add PoE to an existing Ethernet connection without replacing the network switch.

• Single-port 10Gbps PoE midspan for indoor network installations [PoE injector fitted between network switch and powered device]
• Delivers up to 30W PoE output power
• Supports 10/100/1000Mbps and 2.5/5/10Gbps Ethernet data rates
• IEEE 802.3at compliant
• Backwards compatible with IEEE 802.3af powered devices
• Automatic detection and protection of non-standard Ethernet terminals
• Low-power devices receive only the power they require
• 100-240V AC, 50/60Hz input
• Yellow AC power and green channel power indicators

If this particular midspan is not perfect for your requirements, Comms Express also offer a wide range of alternative Microchip Indoor PoE products:

• Microchip Indoor PoE - alternative PoE injectors and midspans for powering compatible network devices

*For complete specifications see the documentation tab above
