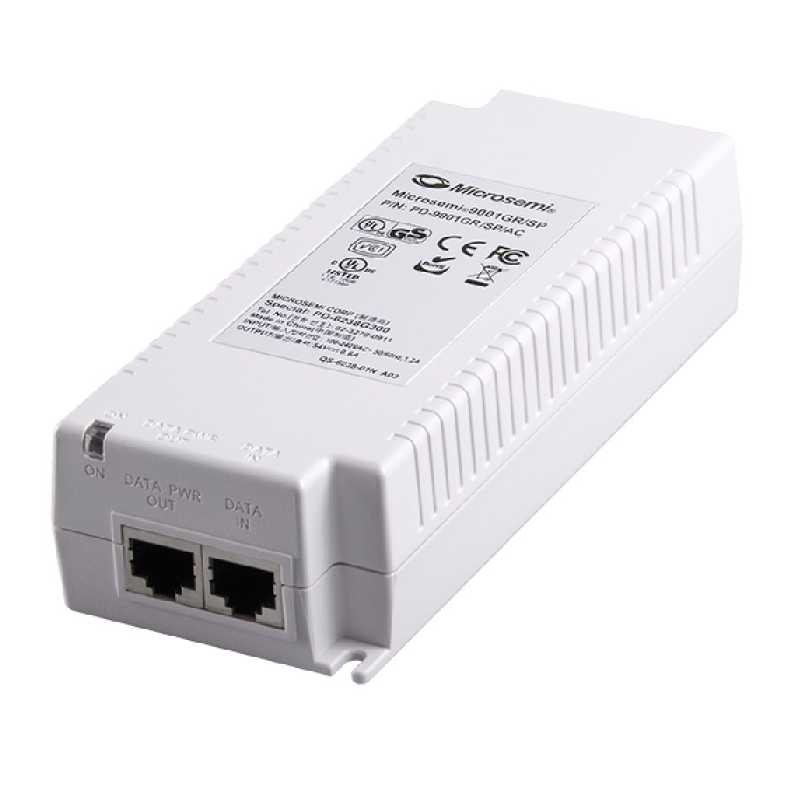

PD-9001GR/SP Indoor PoE Injector
Single-Port, High-Power Gigabit Midspan, 802.3at Compliant with Surge Protection
Microchip’s PD-9001GR/SP is a single-port, highpower solution for remote powering of current and emerging high-power applications. The PD-9001GR/ SP provides surge protection functionality optimal for the installation of outdoor PDs. Generating up to 30W, the PD-9001GR/SP enables remote power for a new range of applications including 802.11n access points, Pan-Tilt-Zoom (PTZ) cameras and video phones. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11n access points.
• IEEE 802.3at compliant with 2-event classification
• IEEE 802.3af backward compatible
• Output power of 30W is guaranteed
• Supports 10/100/1000Base-T applications
• Compatible with IEEE 802.3af devices and pre-standard devices
• Safe: low power devices receive only the power they need
• Automatic Detection and Protection of non–standard Ethernet terminals
• IP camera installations
The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GR/SP provides surge protection functionality optimal for the installation of outdoor PDs. The midspan enables remote power for a new range of applications including 802.11n access points, pan-tilt-zoom (PTZ) cameras, and video-phones. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100 Base-T network devices and emerging wireless 1000 Base-T devices such as WiMAX and wireless IEEE 802.11n access points.
Microchip multi-Power over Ethernet (mPoE) is a technology that powers any wired network device seamlessly and efficiently, making it the ideal solution for Ethernet-based applications. Leveraging a uniquely designed algorithm, this technology solves interoperability issues between different PoE standards and legacy solutions to provide an international network power standard. As a pioneer in PoE technology, we offer a comprehensive end-to-end portfolio of PoE solutions comprised of PoE ICs and PoE systems (midspans/injectors and switches).
Full specification and details can be found in the Product Datasheet PDF file
