Overview
The PD-OUT-SP11 is a high quality surge protection device designed to protect indoor Ethernet networks from lightning that may come from the outdoor environment through the Ethernet cable. The product is enclosed in a metal weatherproof enclosure, meeting IP66. It can be easily mounted on a wall or a pole. The SP device can be installed before the cable enters the building to protect the indoor network or immediately adjacent to the wall- or pole-mounted outdoor device (i.e. WLAN AP, IP Camera, etc).
Features PD-OUT-SP11 with cord
- Supports data rates of up to 1Gbps
- All eight lines protected including PoE
- Waterproof (IP66)
- Can be wall or pole mounted
- Surge Handling Capability: 10kV, 5kA to ground in 80/20us; 800V, 100A PoE
- Regulatory Compliance: REACH, RoHS, WEEE, IEC60529 level IP66, NEMA 250, level 4x
- Surge Compliance: IEC61643-21, GR1089, ITU-T K.45
- Safety Approvals: UL 497B
The Microchip PD-9001GO-ET/AC is a rugged single-port outdoor PoE midspan designed to deliver reliable power and data to network devices in demanding environments. Compliant with IEEE 802.3at standards, this injector provides up to 30W of power over Ethernet while supporting Gigabit data speeds. Built for outdoor deployment with IP67 protection and an extended temperature range, it enables access points, IP cameras, and other PoE-powered devices to operate efficiently without requiring changes to existing network infrastructure.
Key Features of Microchip PD-9001GO-ET/AC
Single-port outdoor PoE midspan delivering up to 30W
IEEE 802.3at compliant and compatible with IEEE 802.3af devices
IP67 rated enclosure for outdoor installations
Supports 10/100/1000 Mbps Ethernet data speeds
Extended operating temperature range from -40°C to +65°C
Integrated surge protection for both AC and PoE ports
Plug-and-play installation with no network changes required
Ideal for wireless access points, IP cameras, and outdoor network devices
Reliable Outdoor PoE Power Delivery
The PD-9001GO-ET/AC provides a dependable way to supply both power and data over a single Ethernet cable in outdoor environments. Delivering up to 30 watts of power, it supports a wide range of PoE-powered devices such as wireless LAN access points, security cameras, and other IP-based terminals.
Built for Harsh Environmental Conditions
Designed specifically for outdoor deployments, the unit features an IP67-rated enclosure that protects against dust and water ingress. Combined with an extended temperature operating range from -40°C to +65°C, the midspan maintains stable performance in extreme weather conditions.
Gigabit Data and Power Over a Single Cable
Supporting 10/100/1000 Mbps data transmission, the PD-9001GO-ET/AC ensures high-speed network connectivity while simultaneously delivering PoE power. This allows network administrators to deploy devices in remote outdoor locations without installing additional power lines.
Integrated Surge Protection
To safeguard connected equipment, the midspan includes built-in surge protection on both the AC input and PoE output ports. This protection helps prevent damage from electrical surges caused by lightning or unstable outdoor power conditions.
Simple Plug-and-Play Installation
The PD-9001GO-ET/AC integrates seamlessly into existing Ethernet networks without requiring infrastructure modifications. Its plug-and-play design allows quick deployment, making it a practical solution for expanding outdoor network coverage with minimal installation effort.
Flexible Compatibility with PoE Devices
Fully compliant with IEEE 802.3at and backward compatible with IEEE 802.3af devices, the midspan supports a wide range of PoE-powered equipment. This flexibility ensures reliable operation with both modern and legacy network devices.
PD-9501GCO Outdoor PoE Injector
Single-Port, IP67, IEEE® 802.3bt Type 3, 60W Outdoor Power over Ethernet (PoE) Midspan With Extended Temperature Range
Microchip's PD-9501GCO Power over Ethernet (PoE) single-port midspan offers a cost effective, IEEE 802.3bt Type 3-compliant solution with pre-bt support. It guarantees 60 Watts of power and is designed for operation in outdoor environments. It allows wireless LAN access points, security network cameras and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered.
The PD-9501GCO offers surge protection for both the AC and the PoE ports. It is also weather rated with dust and water intrusion protection.
Product Features:
• Outdoor rated: IP67
• Extended temperature range –40?C to +65?C
• Supports IEEE 802.3bt Type 3 standard PDs
• IEEE 802.3af/at backward compatible
• One part number for worldwide use (AC connector)
• Supports 10/100/1000 Mbps data rates
• Plug-and-play installation
• Integrated surge protection
The single-port midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Microchip multi-Power over Ethernet (mPoE) is a technology that powers any wired network device seamlessly and efficiently, making it the ideal solution for Ethernet-based applications. Leveraging a uniquely designed algorithm, this technology solves interoperability issues between different PoE standards and legacy solutions to provide an international network power standard. As a pioneer in PoE technology, we offer a comprehensive end-to-end portfolio of PoE solutions comprised of PoE ICs and PoE systems (midspans/injectors and switches).
Full specification and details can be found in the Product Datasheet PDF file
The single port PoE midspan offers a cost effective, IEEE 802.3bt Type 4 compliant solution for outdoor installations, guaranteeing 90 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9601GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
*For complete specifications see the documentation tab above

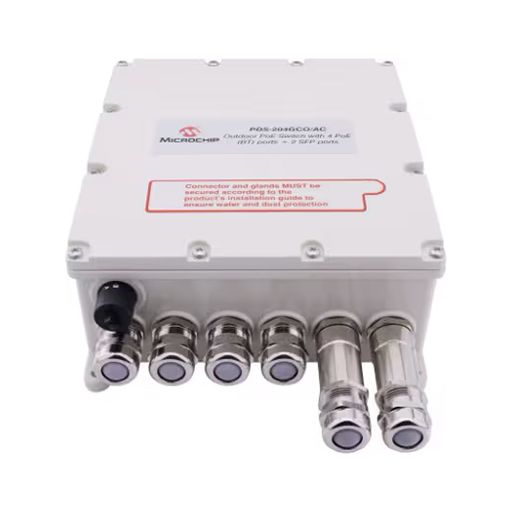

PDS-204GCO is a next-generation outdoor Power over Ethernet (PoE) switch for smart cities. It allows Wi-Fi® access points, security network cameras and many other IoT devices to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered.
With an IP67 rating, PDS-204GCO complies with the highest outdoor environment standards and enables easy installation without the need to open the unit.
The PDS-204GCO includes four PoE Giga ports with a total output power of 150W. It supports the IEEE® 802.3bt Type 4 standard and contains two fiber links that support 1G or 2.5G speeds each. It supports advanced network features to meet the highest cyber security threats at all network levels and enables multiple network topologies such as network daisy chain or ring for easy installation and network redundancy.
It also offers surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.
*For complete specifications see the documentation tab above
