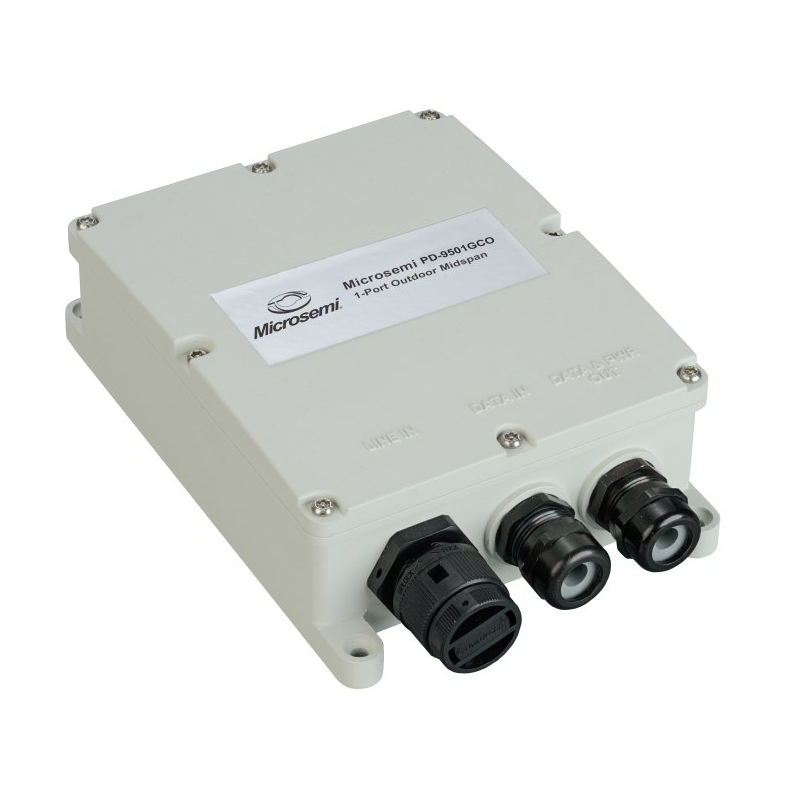

PD-9501GCO Outdoor PoE Injector
Single-Port, IP67, IEEE® 802.3bt Type 3, 60W Outdoor Power over Ethernet (PoE) Midspan With Extended Temperature Range
Microchip's PD-9501GCO Power over Ethernet (PoE) single-port midspan offers a cost effective, IEEE 802.3bt Type 3-compliant solution with pre-bt support. It guarantees 60 Watts of power and is designed for operation in outdoor environments. It allows wireless LAN access points, security network cameras and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered.
The PD-9501GCO offers surge protection for both the AC and the PoE ports. It is also weather rated with dust and water intrusion protection.
• Outdoor rated: IP67
• Extended temperature range –40?C to +65?C
• Supports IEEE 802.3bt Type 3 standard PDs
• IEEE 802.3af/at backward compatible
• One part number for worldwide use (AC connector)
• Supports 10/100/1000 Mbps data rates
• Plug-and-play installation
• Integrated surge protection
The single-port midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Microchip multi-Power over Ethernet (mPoE) is a technology that powers any wired network device seamlessly and efficiently, making it the ideal solution for Ethernet-based applications. Leveraging a uniquely designed algorithm, this technology solves interoperability issues between different PoE standards and legacy solutions to provide an international network power standard. As a pioneer in PoE technology, we offer a comprehensive end-to-end portfolio of PoE solutions comprised of PoE ICs and PoE systems (midspans/injectors and switches).
Full specification and details can be found in the Product Datasheet PDF file
