The Adaptec 2279900-R internal right-angle mini SAS HD fan-out cable provides reliable connectivity between compatible Adaptec Series 7, 7Q and 7H adapters and SATA disks or SAS/SATA backplanes. Featuring an SFF-8643 mini SAS HD connector, four right-angle Serial ATA connections and integrated sideband signals, this 0.8m cable is designed for flexible internal storage installations and efficient cable routing.

Key Features of Adaptec 2279900-R SAS Fan-Out Cable Internal right-angle mini SAS HD fan-out cable
Mini SAS HD SFF-8643 connector
Four right-angle Serial ATA connections
Includes sideband signals
Designed for Adaptec Series 7, 7Q and 7H adapters
Connects compatible adapters to SATA disks
Suitable for connection to SAS/SATA backplanes
0.8m cable length
Right-angle connectors support practical internal cable routing
Internal Storage Connectivity The Adaptec 2279900-R is an internal fan-out cable designed to connect compatible Adaptec storage adapters with SATA disks or SAS/SATA backplanes. It provides a practical connection solution for suitable server and storage system configurations.

Mini SAS HD SFF-8643 Connection The SFF-8643 mini SAS HD connector provides the adapter-side connection for compatible Adaptec Series 7, 7Q and 7H storage adapters, supporting internal high-density storage connectivity.

Four Serial ATA Connections The fan-out design terminates in four right-angle Serial ATA connections, allowing a compatible storage adapter to connect to multiple SATA disks through a single internal cable assembly.

SATA Disk and Backplane Support Designed for use with SATA disks or compatible SAS/SATA backplanes, the cable provides flexible connectivity for a range of internal storage configurations using compatible Adaptec adapters.

Sideband Signal Support Integrated sideband signals provide additional communication capability alongside the storage connections, supporting compatible SAS/SATA backplane configurations that require sideband functionality.

Right-Angle Design The right-angle configuration at the connections helps provide practical cable positioning inside compatible server and storage chassis. This design can assist with routing where internal space around storage connectors is limited.

0.8m Cable Length Measuring 0.8 metres, the Adaptec 2279900-R provides useful reach for internal installations while helping accommodate different chassis layouts and the positioning of storage adapters, disks and backplanes.

Series 7 Adapter Compatibility The cable is designed for connection with Adaptec Series 7, 7Q and 7H adapters, providing a suitable internal interface for compatible SATA disks and SAS/SATA backplanes.

This is an internal mini-SAS HD ×4 (SFF-8643) to 4 ×1 SATA adapter-based fan-out cable with sideband signals (SFF-8448) to connect a SAS/SATA adapter to SATA disks or a SAS/SATA backplane.

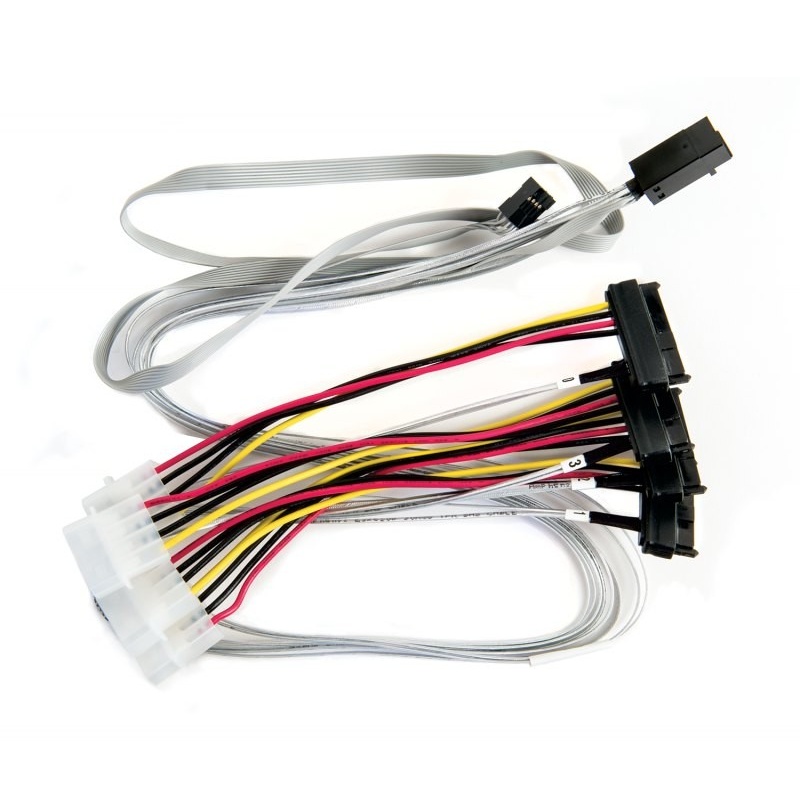

The Adaptec 2280100-R internal mini SAS HD fan-out cable provides reliable connectivity between compatible Adaptec Series 7, 7Q and 7H adapters and SAS disks. Featuring an SFF-8643 mini SAS HD connector, four SFF-8482 Serial Attached SCSI connections, sideband signals and a 0.8m cable length, it is designed for efficient internal storage connectivity in compatible server and storage systems.

Key Features of Adaptec 2280100-R SAS Fan-Out Cable Internal mini SAS HD fan-out cable
Mini SAS HD SFF-8643 connector
Four SFF-8482 Serial Attached SCSI connections
Adapter-based fan-out design
Includes sideband signals
Designed for Adaptec Series 7, 7Q and 7H adapters
Connects compatible adapters to SAS disks
0.8m cable length
Internal SAS Connectivity The Adaptec 2280100-R is an internal fan-out cable designed to connect compatible Adaptec storage adapters to SAS disks. It provides a practical internal connectivity solution for compatible server and storage system configurations.

Mini SAS HD SFF-8643 Connection The SFF-8643 mini SAS HD connector provides the adapter-side connection for compatible Adaptec Series 7, 7Q and 7H storage adapters, supporting high-density internal SAS connectivity.

Four SAS Connections The fan-out design provides four SFF-8482 Serial Attached SCSI connections, allowing a compatible storage adapter to connect to multiple SAS disks through a single internal cable assembly.

Sideband Signal Support Integrated sideband signals provide additional communication capability alongside the SAS connections, supporting compatible storage configurations that require sideband functionality.

0.8m Cable Length Measuring 0.8 metres, the Adaptec 2280100-R provides useful reach for internal server and storage installations while helping accommodate different chassis layouts and component positions.

Series 7 Adapter Compatibility The cable is designed for use with Adaptec Series 7, 7Q and 7H adapters, providing the required fan-out connectivity for compatible SAS storage devices.

The Adaptec 2280000-R internal right-angle mini SAS HD fan-out cable provides reliable storage connectivity between compatible Adaptec Series 7, 7Q, 7H and 7He adapters and SATA disks or SAS/SATA backplanes. Featuring an SFF-8643 mini SAS HD connector, four Serial ATA connections, sideband signals and a 0.8m cable length, it is designed for flexible internal storage installations and practical cable routing.

Key Features of Adaptec 2280000-R SAS Fan-Out Cable Internal right-angle mini SAS HD fan-out cable
Mini SAS HD SFF-8643 connector
Four Serial ATA connections
Adapter-based fan-out design
Includes sideband signals
Designed for Adaptec Series 7, 7Q, 7H and 7He adapters
Connects compatible adapters to SATA disks
Suitable for connection to SAS/SATA backplanes
0.8m cable length
Right-angle design supports practical internal cable routing
Internal Storage Connectivity The Adaptec 2280000-R is an internal fan-out cable designed to connect compatible Adaptec storage adapters with SATA disks or SAS/SATA backplanes. It provides a practical connectivity solution for suitable server and storage system configurations.

Mini SAS HD SFF-8643 Connection The SFF-8643 mini SAS HD connector provides the adapter-side connection for compatible Adaptec Series 7, 7Q, 7H and 7He storage adapters, supporting internal high-density storage connectivity.

Four Serial ATA Connections The fan-out design provides four Serial ATA connections, allowing a compatible storage adapter to connect to multiple SATA disks through a single internal cable assembly.

SATA Disk and Backplane Support Designed for connection to SATA disks or compatible SAS/SATA backplanes, the cable provides flexible connectivity for internal storage configurations using compatible Adaptec adapters.

Sideband Signal Support Integrated sideband signals provide additional communication capability alongside the storage connections, supporting compatible SAS/SATA backplane configurations that require sideband functionality.

Right-Angle Design The right-angle configuration helps provide practical cable positioning inside compatible server and storage chassis. This design can assist with internal cable routing where space around storage connectors is limited.

0.8m Cable Length Measuring 0.8 metres, the Adaptec 2280000-R provides useful reach for internal installations while helping accommodate different chassis layouts and the positioning of storage adapters, disks and backplanes.

Series 7 Adapter Compatibility The cable is designed for use with Adaptec Series 7, 7Q, 7H and 7He adapters, providing a suitable internal interface for compatible SATA disks and SAS/SATA backplanes.

The Microchip 2282200-R 0.5 m Mini-SAS HD Data Transfer Cable provides reliable internal connectivity between compatible SAS/SATA adapters and SAS/SATA backplanes. Featuring Mini-SAS HD x4 (SFF-8643) connectors, a 0.5 m cable length, and male-to-male connectivity, this black internal cable is designed for RAID and Host Bus Adapter environments requiring a practical Mini-SAS HD connection.

Key Features of Microchip Mini-SAS HD Data Transfer Cable 0.5 m internal Mini-SAS HD data transfer cable
Mini-SAS HD x4 (SFF-8643) connector configuration
Male-to-male connector design
Designed to connect SAS/SATA adapters to SAS/SATA backplanes
Suitable for internal server and storage applications
Black cable construction
Supports compatible RAID and Host Bus Adapter configurations
Internal SAS/SATA ConnectivityThe Microchip 2282200-R is designed to provide an internal connection between a compatible SAS/SATA adapter and a SAS/SATA backplane. Its Mini-SAS HD interface makes it suitable for storage systems using SFF-8643 connections.

Mini-SAS HD x4 ConnectionsBoth ends of the cable use Mini-SAS HD x4 SFF-8643 connectors, providing a matching interface for compatible SAS/SATA adapters and backplanes. This configuration supports straightforward internal storage connectivity.

0.5 Metre Cable LengthWith a compact 0.5 m length, the 2282200-R is suited to internal server and storage installations where a shorter cable can provide a practical connection between closely positioned components.

Male-to-Male ConnectivityThe Microchip 2282200-R features male connectors at both ends, providing the appropriate connection format for compatible SFF-8643 interfaces on SAS/SATA storage hardware.

SAS/SATA Backplane SupportThis internal Mini-SAS HD cable is designed for connecting a SAS/SATA adapter to a SAS/SATA backplane, helping establish a direct data connection within compatible server and storage systems.

RAID and Host Bus Adapter ApplicationsThe 2282200-R is suitable for internal storage configurations involving RAID and Host Bus Adapter hardware, providing a dedicated Mini-SAS HD connection between compatible components.

Compact Black Cable DesignFinished in black, the cable is suited to professional server and storage environments. Its compact 0.5 m construction can help provide a neat internal connection where longer cabling is unnecessary.

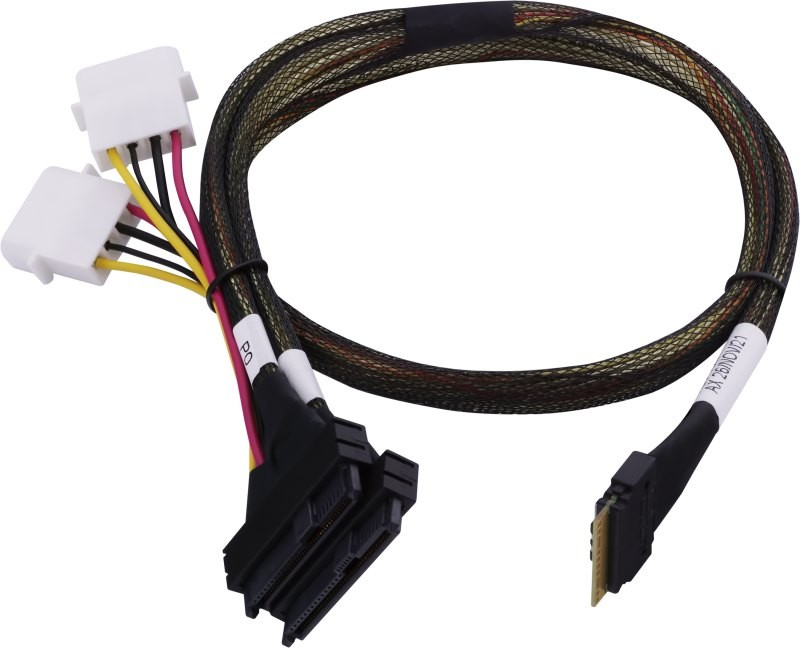

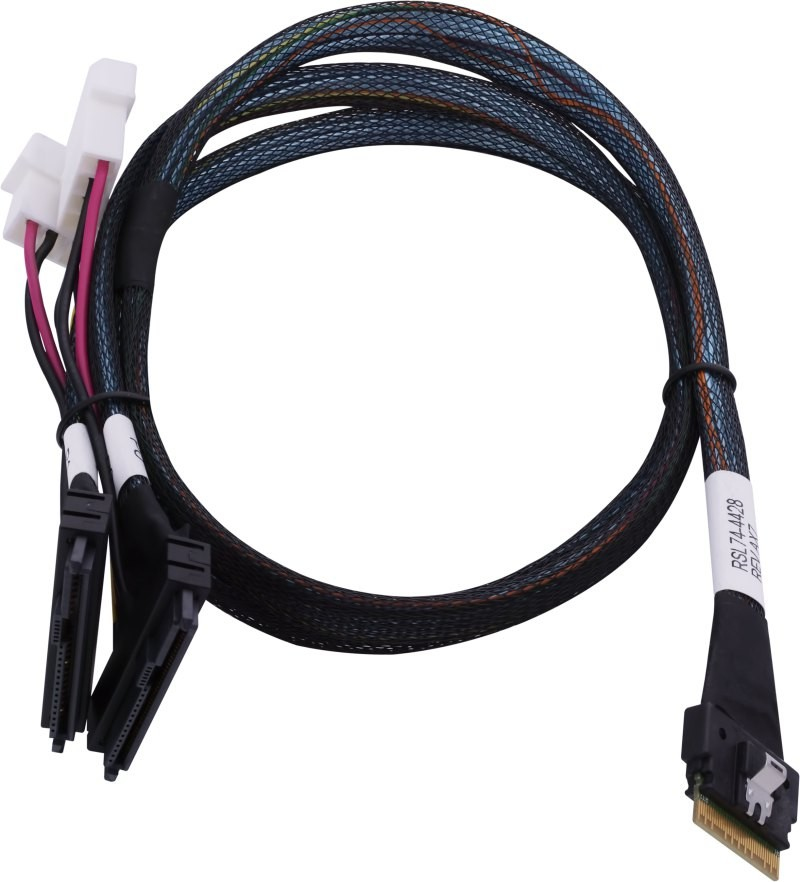

This is an internal SlimSAS ×8 (SFF-8654) to 2SFF-8639 ×4 U.2 tri-mode cable for direct attached connectivity for SAS/SATA/NVMe adapters.

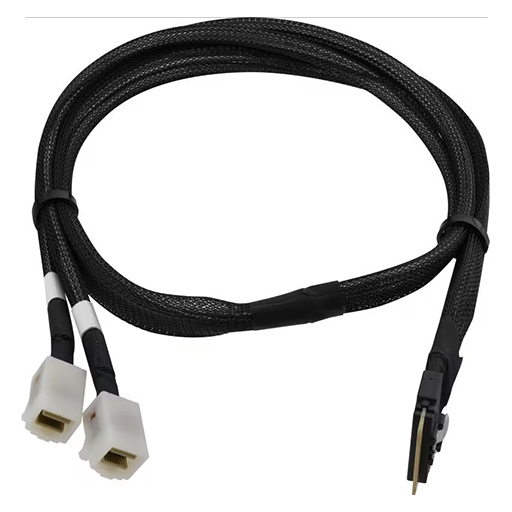

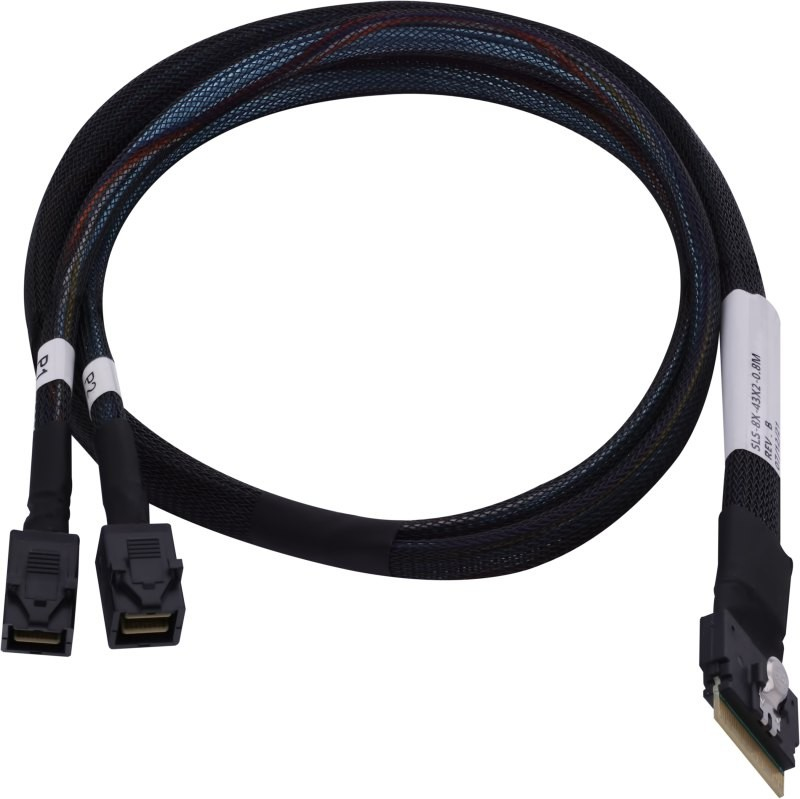

This internal SlimSAS ×8 (SFF-8654) to 2MiniSAS HD ×4 (SFF-8643) tri-mode cable connects a SAS/SATA/NVMe adapter to a SAS/SATA backplane.

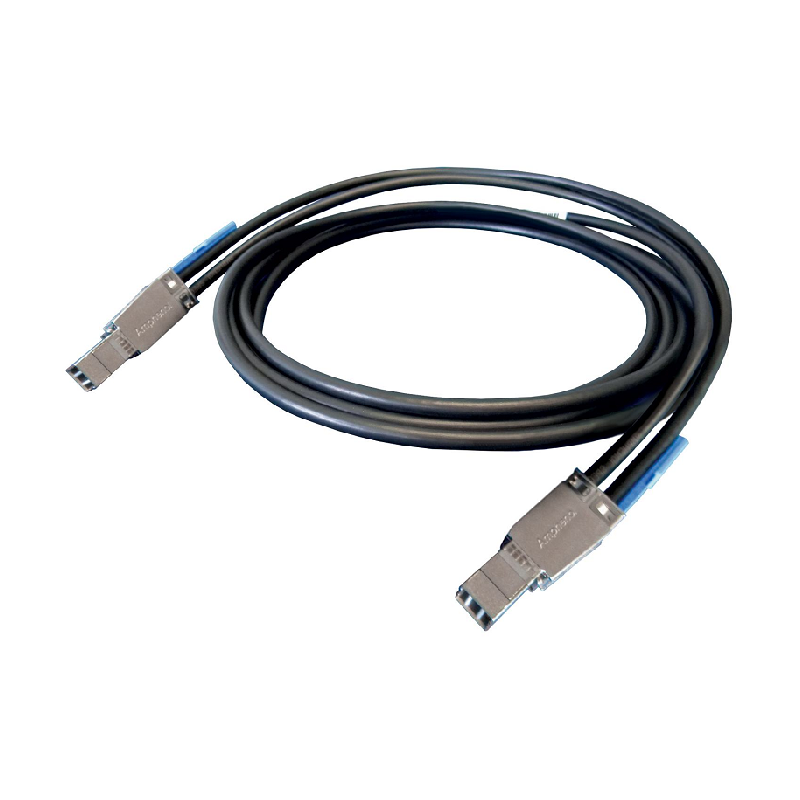

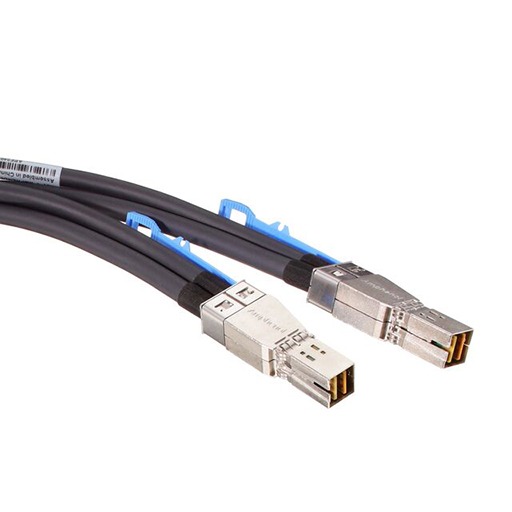

The Microchip 2282600-R 2 m Mini-SAS HD Data Transfer Cable provides reliable external connectivity for compatible SAS storage systems. Featuring SFF-8644 Mini-SAS HD connectors at both ends, a male-to-male configuration, and a 2 m cable length, this black external cable is designed to provide a practical high-speed connection between compatible SAS devices and storage hardware.

Key Features of Microchip Mini-SAS HD Data Transfer Cable 2 m external Mini-SAS HD data transfer cable
SFF-8644 Mini-SAS HD connector at both ends
Male-to-male connector configuration
Designed for external SAS storage connectivity
Provides a practical 2 m connection between compatible devices
Black cable construction
Suitable for compatible Mini-SAS HD storage systems
External Mini-SAS HD ConnectivityThe Microchip 2282600-R is an external Mini-SAS HD cable designed to provide connectivity between compatible SAS storage hardware. Its SFF-8644 interfaces are suited to external storage configurations using Mini-SAS HD connections.

Dual SFF-8644 ConnectorsBoth ends of the cable feature SFF-8644 Mini-SAS HD connectors, providing a direct connection between compatible external SAS interfaces and helping simplify storage system connectivity.

2 Metre Cable LengthWith a 2 m cable length, the transfer cable provides useful reach for external SAS storage installations where connected equipment may be positioned further apart than an internal cable configuration allows.

Male-to-Male ConnectionThe Microchip 2282600-R features male connectors at both ends, providing the appropriate connection format for compatible SFF-8644 Mini-SAS HD interfaces.

External SAS Storage ApplicationsThis cable is designed for external SAS connectivity, making it suitable for compatible storage environments that require a Mini-SAS HD connection between external devices and storage hardware.

Reliable Data Transfer ConnectivityThis transfer cable provides a dedicated Mini-SAS HD connection for compatible SAS systems, helping establish a dependable external data path between connected storage components.

Practical Black Cable DesignFinished in black, the cable is suited to professional server and storage environments. Its 2 m length provides additional flexibility when arranging compatible external SAS equipment.

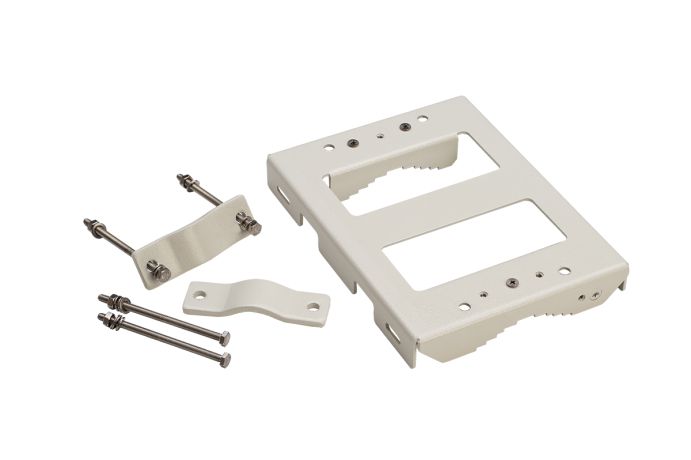

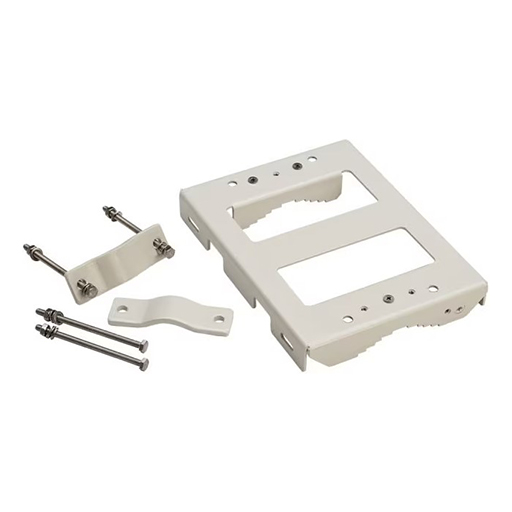

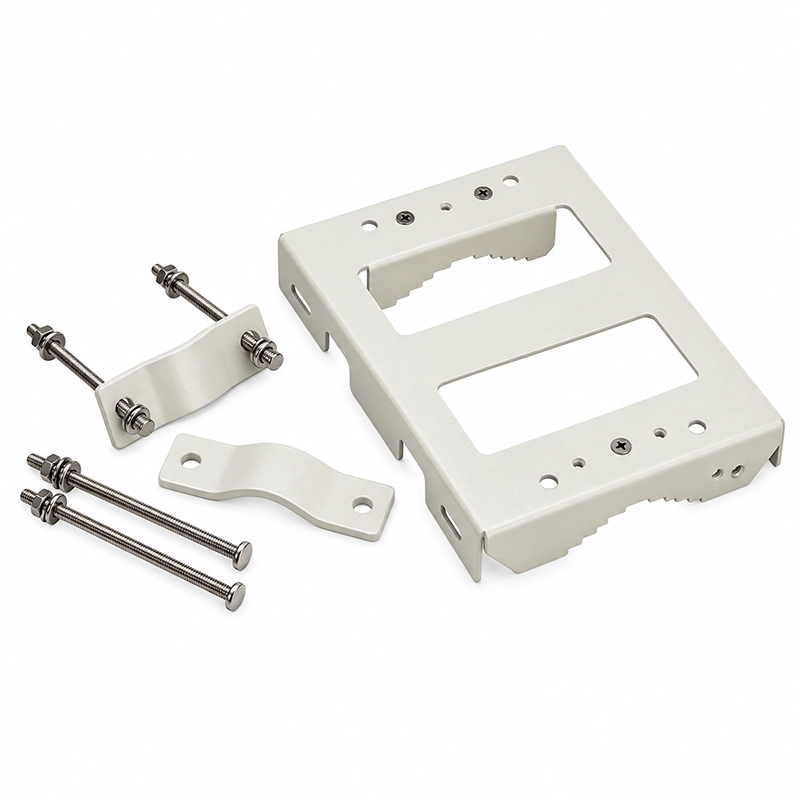

The Microchip PD-OUT/MBK/GCO Mounting Bracket provides a reliable mounting solution for GCO family PoE devices, supporting secure installation in both indoor and outdoor environments. Designed for pole mounting, this stainless steel bracket offers a stable platform for compatible Microchip units while maintaining a straightforward installation process. Its durable construction and practical hardware components make it suitable for network deployments that require dependable device positioning in a range of environmental conditions.

Key Features of Microchip PD-OUT/MBK/GCO Mounting Brackets Designed for use with Microchip GCO family PoE devices
Suitable for indoor and outdoor installations
Compatible with pole diameters from 2.5” to 8” (63.5 mm – 203.2 mm)
Durable stainless steel SUS304 construction
Simple and secure mounting process
Includes essential hardware for installation
Compatibility with GCO Series Devices The PD-OUT/MBK/GCO mounting bracket is designed to support multiple devices within the Microchip GCO family. Compatible models include PD-9001GO-ET, PD-9001GCO/AC, PD-9501GCO/AC, PD-9501-5GCO/AC, PD-9501-10GCO/AC, PD-9501-25GCO/AC, PD-9501GCO/DC, and PD-9601GCO/AC. This compatibility allows installers to use a single bracket solution across a variety of network power injector configurations.

Outdoor-Ready Construction Built from stainless steel SUS304, the bracket is designed to withstand demanding environmental conditions. The corrosion-resistant material makes it suitable for long-term outdoor use while also performing reliably in indoor deployments where durability and structural stability are required.

Pole Mount Installation The bracket is designed specifically for pole mounting applications, supporting pole diameters ranging from 2.5 inches to 8 inches (63.5 mm to 203.2 mm). This flexibility allows it to be installed across a variety of infrastructure setups such as lighting poles, utility poles, or network equipment mounts.

Secure and Straightforward Setup Installation is simplified through a robust mounting design that focuses on stability and ease of assembly. The bracket system ensures devices are firmly secured to the mounting surface while reducing the time required for deployment during network installations.

Package Contents The PD-OUT/MBK/GCO mounting bracket package includes the components required for installation. Supplied items consist of four PH M5x18 screws with lock and spring washers, two worm clamps, and two pole brackets, providing the necessary hardware to complete a secure pole-mounted setup.

Compact and Lightweight Design With a total weight of approximately 0.5 kg (1.1 lbs), the bracket offers a sturdy mounting solution without adding unnecessary bulk to the installation. Its compact form helps maintain a neat equipment layout while supporting reliable device placement.

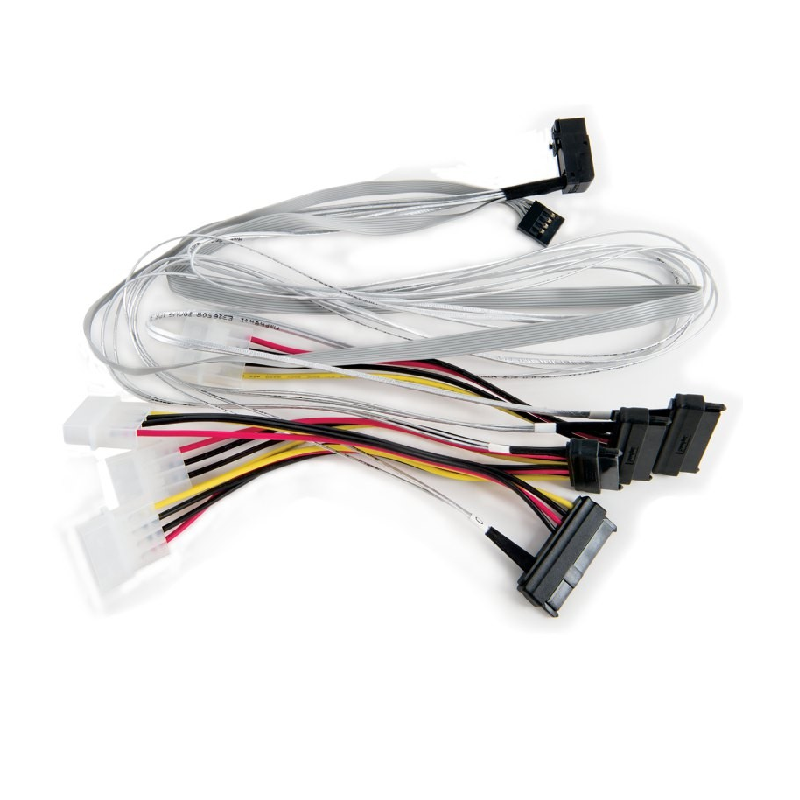

The Adaptec 2279600-R internal right-angle mini SAS HD fan-out cable provides a reliable connection between compatible Adaptec Series 7, 7Q, 7H and 7He adapters and SAS disks. Featuring an SFF-8643 mini SAS HD connector, four SFF-8482 SAS connections and integrated sideband signals, this 0.8m cable is designed for efficient internal storage connectivity and flexible cable routing within compatible systems.

Key Features of Adaptec 2279600-R SAS Fan-Out Cable Internal right-angle mini SAS HD fan-out cable
Mini SAS HD SFF-8643 connector
Four SFF-8482 SAS connections
Adapter-based Serial Attached SCSI connectivity
Includes sideband signals
Designed for Adaptec Series 7, 7Q, 7H and 7He adapters
Connects compatible adapters to SAS disks
0.8m cable length
Right-angle design supports convenient internal cable routing
Internal SAS Connectivity The Adaptec 2279600-R is an internal SAS fan-out cable designed to connect compatible Adaptec storage adapters to SAS disks. It provides multiple SAS connections from a single mini SAS HD interface for suitable internal storage configurations.

Mini SAS HD SFF-8643 Connection Featuring an SFF-8643 mini SAS HD connector, the cable provides the host-side connection required for compatible Adaptec Series 7, 7Q, 7H and 7He adapters.

Four SAS Connections The fan-out design terminates in four SFF-8482 Serial Attached SCSI connections, allowing a compatible storage adapter to connect to multiple SAS disks through a single cable assembly.

Sideband Signal Support Integrated sideband signals provide additional communication capability alongside the SAS connections, supporting compatible storage configurations that require sideband functionality.

Right-Angle Design The internal right-angle configuration helps provide practical cable positioning within compatible computer and server chassis. This can assist with cable routing where space around internal storage connections is limited.

0.8m Cable Length Measuring 0.8 metres, the Adaptec 2279600-R provides a practical cable length for internal system installations, helping connect compatible storage adapters and SAS disks within the chassis.

Designed for Adaptec Series 7 Adapters The cable is designed for use with Adaptec Series 7, 7Q, 7H and 7He adapters, providing the required fan-out connectivity for compatible SAS storage devices.

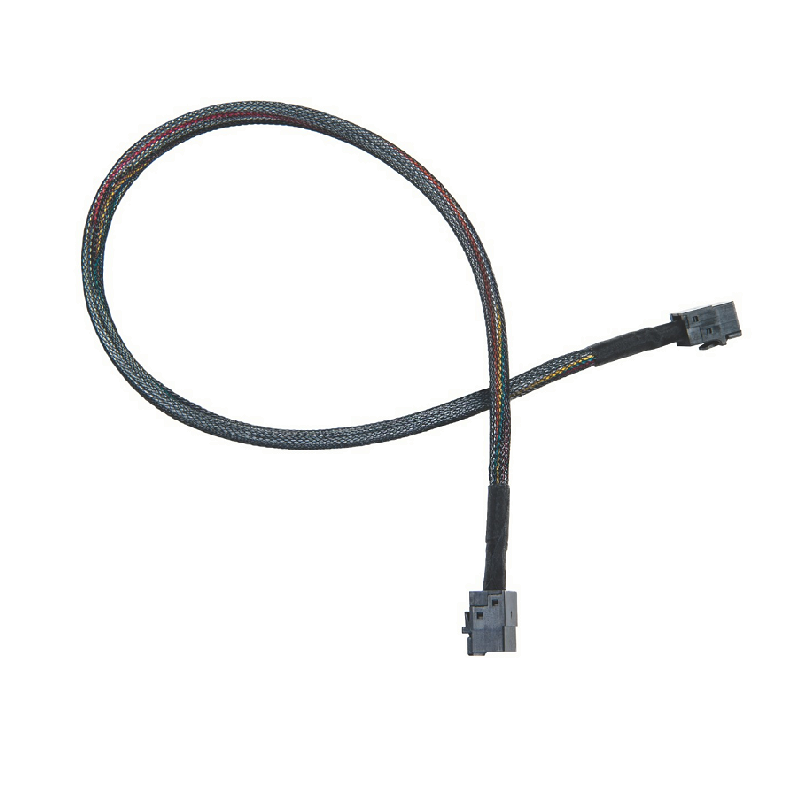

The Microchip 2282100-R 1 m Mini-SAS HD Data Transfer Cable provides reliable internal connectivity between SAS/SATA adapters and SAS/SATA backplanes with mini-SAS HD connectors. Featuring mini-SAS HD ×4 (SFF-8643) connectors at both ends, a straight connector design, and a 1 m cable length, this cable is suitable for RAID and Host Bus Adapter applications supporting data transfer rates of up to 6 Gbit/s.

Key Features of Microchip 2282100-R Mini-SAS HD Data Transfer Cable 1 m internal Mini-SAS HD data transfer cable
Mini-SAS HD ×4 (SFF-8643) connector at both ends
Designed to connect SAS/SATA adapters to SAS/SATA backplanes
Supports data transfer rates of up to 6 Gbit/s
Straight connector form factor on both ends
Compatible with HBA 1000 Series and Series 8/8Q RAID adapters
Compatible with Series 7/7Q/7H/7He adapters
Black cable construction for professional internal installations
Internal SAS/SATA ConnectivityThe Microchip 2282100-R is designed for internal storage connectivity, linking compatible SAS/SATA adapters with SAS/SATA backplanes equipped with mini-SAS HD connectors. It provides a straightforward cable solution for server and storage system configurations.

Mini-SAS HD SFF-8643 ConnectorsBoth ends of the transfer cable feature mini-SAS HD ×4 SFF-8643 connectors. This matching connector configuration is designed for systems that use mini-SAS HD interfaces on both the adapter and backplane.

1 Metre Cable LengthWith a 1 m cable length, the Microchip 2282100-R provides practical reach for internal server and storage installations while helping maintain an organised connection between the SAS/SATA adapter and backplane.

Up to 6 Gbit/s Data TransferThe cable supports a maximum data transfer rate of 6 Gbit/s, making it suitable for compatible SAS/SATA storage environments where dependable internal data connectivity is required.

Straight Connector DesignBoth mini-SAS HD connectors use a straight form factor, providing a conventional connection layout for internal storage hardware and helping simplify cable routing within compatible systems.

RAID and HBA CompatibilityThis transfer cable is compatible with HBA 1000 Series, Series 8/8Q RAID, and Series 7/7Q/7H/7He adapters, making it suitable for a range of Microchip storage controller configurations.

SAS/SATA Backplane SupportDesigned for use with SAS/SATA backplanes featuring mini-SAS HD connectors, this internal cable helps establish a direct connection between compatible storage controllers and backplane hardware.

Professional Black Cable ConstructionThe 2282100-R features a black cable finish suited to professional server and storage environments, providing a practical solution for internal data connections in compatible systems.

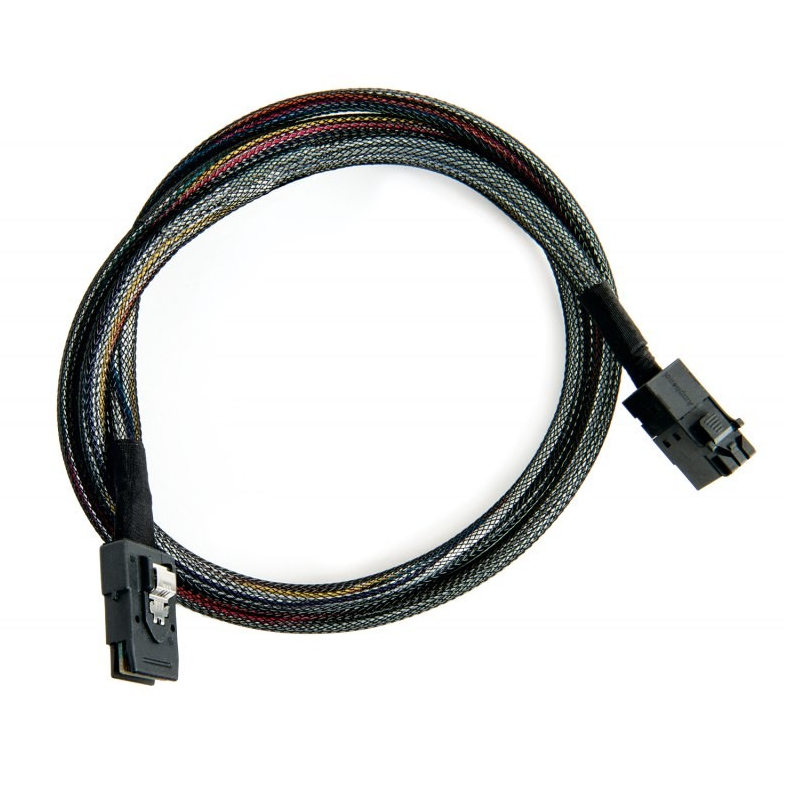

The Adaptec 2281200-R internal mini SAS HD to mini SAS cable provides reliable storage connectivity between compatible Adaptec Series 7, 7Q and 7H adapters and SAS/SATA backplanes. Measuring 0.5 metres, this SFF-8643 to SFF-8087 cable is designed for internal server and storage installations, providing a practical connection between the host adapter and backplane.

Key Features of Adaptec 2281200-R SAS Cable Internal mini SAS HD to mini SAS cable
Mini SAS HD SFF-8643 connector
Mini SAS SFF-8087 connector
Designed for connecting compatible Adaptec adapters to SAS/SATA backplanes
Compatible with Adaptec Series 7, 7Q and 7H adapters
0.5m cable length
Designed for internal server and storage installations
Internal SAS Connectivity The Adaptec 2281200-R is an internal mini SAS HD to mini SAS cable designed to connect compatible Adaptec storage adapters with SAS/SATA backplanes. It provides a direct connection for suitable internal storage configurations.

Mini SAS HD SFF-8643 Connection The SFF-8643 mini SAS HD connector provides the adapter-side connection for compatible Adaptec Series 7, 7Q and 7H storage adapters, supporting internal high-density SAS connectivity.

Mini SAS SFF-8087 Connection The opposite end features an SFF-8087 mini SAS connector for connection to compatible SAS/SATA backplanes, making the cable suitable for internal server and storage configurations.

SAS and SATA Backplane Support Designed for connecting a compatible Series 7, 7Q or 7H adapter to a SAS/SATA backplane, the cable provides the internal interface required for compatible storage system configurations.

0.5m Cable Length Measuring 0.5 metres, the Adaptec 2281200-R provides a compact cable length for internal server and storage installations, helping accommodate chassis layouts where shorter cable runs are preferred.

Series 7 Adapter Compatibility The cable is designed for use with Adaptec Series 7, 7Q and 7H adapters, providing a suitable internal connection between the storage controller and compatible SAS/SATA backplane.

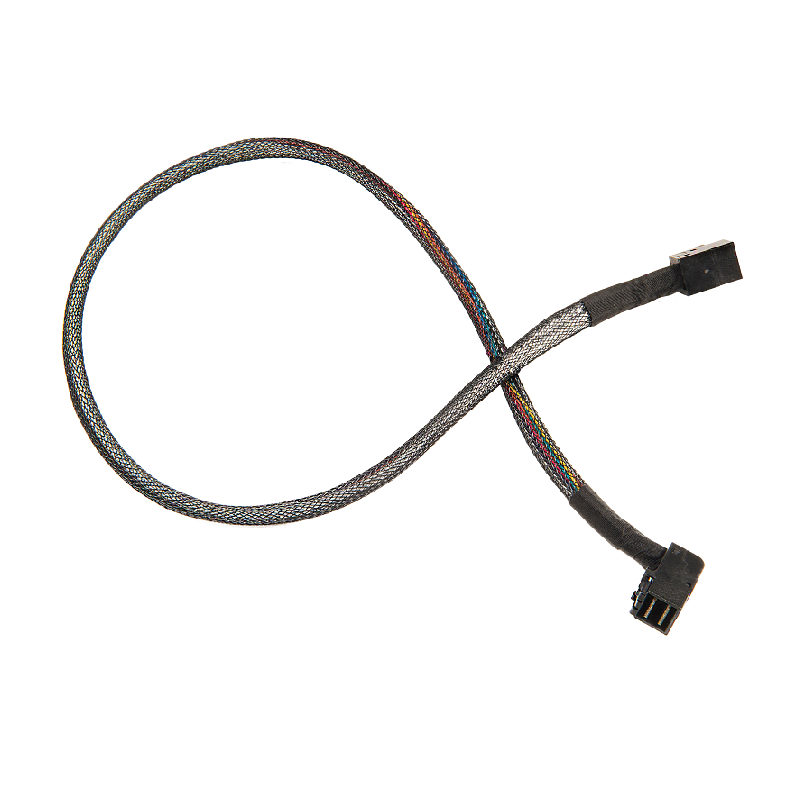

The Microchip 2282800-R 1 m Right-Angle Mini-SAS HD Transfer Cable provides a practical internal connection for RAID and Host Bus Adapter applications. Featuring Mini-SAS HD x4 (SFF-8643) connectors at both ends, a male-to-male configuration, and a right-angle design, this 1 m black cable is designed to connect compatible SAS/SATA adapters to SAS/SATA backplanes.

Key Features of Microchip Mini-SAS HD Transfer Cable 1 m right-angle Mini-SAS HD transfer cable
Mini-SAS HD x4 (SFF-8643) connector at both ends
Male-to-male connector configuration
Designed to connect SAS/SATA adapters to SAS/SATA backplanes
Right-angle connector design for practical internal cable routing
Suitable for RAID and Host Bus Adapter applications
Black cable construction
Internal SAS/SATA ConnectivityThe Microchip 2282800-R is designed for internal storage connectivity between a compatible SAS/SATA adapter and SAS/SATA backplane. Its Mini-SAS HD interfaces provide a direct connection for compatible internal storage configurations.

Mini-SAS HD SFF-8643 ConnectorsBoth ends of the transfer cable feature Mini-SAS HD x4 SFF-8643 connectors, providing a matching interface for compatible SAS/SATA adapters and backplanes.

1 Metre Cable LengthWith a 1 m cable length, the 2282800-R provides useful reach for internal server and storage installations while maintaining a practical connection between the adapter and backplane.

Right-Angle Connector DesignThe right-angle configuration is designed to support practical internal cable routing, making this transfer cable suitable for system layouts where connector orientation can help accommodate available space.

Male-to-Male ConnectivityThe Microchip 2282800-R features male connectors at both ends, providing the appropriate connection format for compatible SFF-8643 Mini-SAS HD interfaces.

RAID and Host Bus Adapter ApplicationsThis Mini-SAS HD transfer cable is suitable for RAID and Host Bus Adapter environments where a reliable internal connection is required between compatible SAS/SATA controller hardware and a storage backplane.

SAS/SATA Backplane SupportThis transfer cable is designed to connect a SAS/SATA adapter to a SAS/SATA backplane, providing a dedicated internal data connection for compatible server and storage systems.

Black Internal Cable ConstructionFinished in black, the cable is suited to professional server and storage environments. Its 1 m length and right-angle design provide a practical solution for organised internal connectivity.

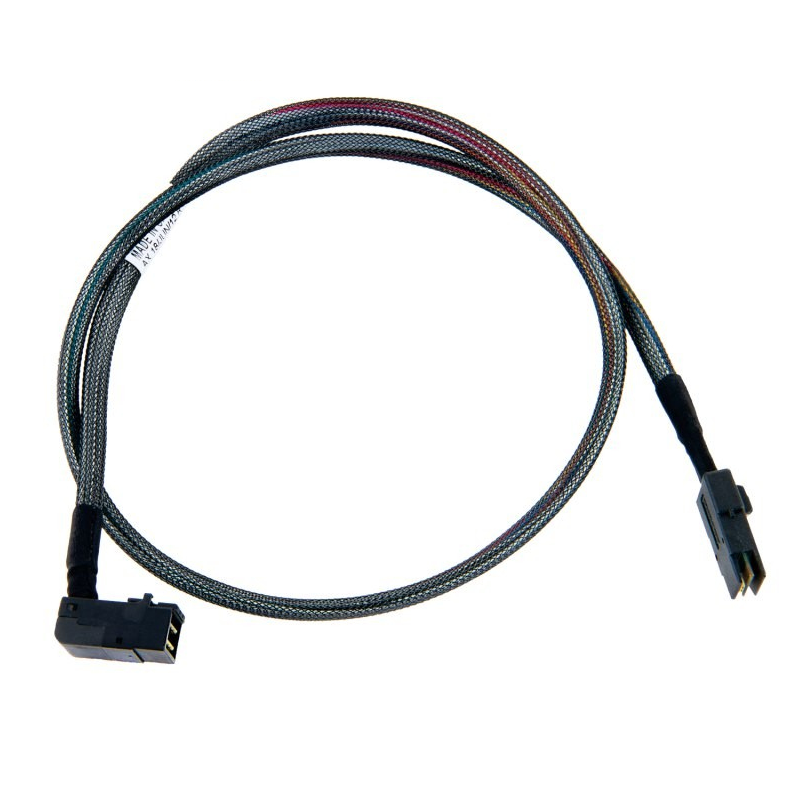

The Adaptec 2280200-R internal right-angle mini SAS HD to mini SAS cable provides reliable connectivity between compatible Adaptec Series 7, 7Q and 7H adapters and SAS/SATA backplanes. Featuring an SFF-8643 mini SAS HD connector, SFF-8087 mini SAS connection and a 0.8m cable length, this cable is designed for practical internal storage installations and efficient cable routing within compatible server and storage systems.

Key Features of Adaptec 2280200-R SAS Cable Internal right-angle mini SAS HD to mini SAS cable
Mini SAS HD SFF-8643 connector
Mini SAS SFF-8087 connector
Designed for connecting compatible Adaptec adapters to SAS/SATA backplanes
Compatible with Adaptec Series 7, 7Q and 7H adapters
0.8m cable length
Right-angle design supports practical internal cable routing
Available in a 0.5m version under part number 2281300-R
Internal SAS Connectivity The Adaptec 2280200-R is an internal mini SAS HD to mini SAS cable designed to connect compatible Adaptec storage adapters with SAS/SATA backplanes. It provides a direct connection for suitable internal storage configurations.

Mini SAS HD SFF-8643 Connection The SFF-8643 mini SAS HD connector provides the adapter-side connection for compatible Adaptec Series 7, 7Q and 7H storage adapters, supporting high-density internal storage connectivity.

Mini SAS SFF-8087 Connection The opposite end features an SFF-8087 mini SAS connector for connection to compatible SAS/SATA backplanes, making the cable suitable for internal server and storage configurations.

SAS and SATA Backplane Support Designed to connect a compatible Series 7, 7Q or 7H adapter to a SAS/SATA backplane, the cable provides the internal interface required for compatible storage system configurations.

Right-Angle Design The right-angle configuration helps provide practical cable positioning within compatible server and storage chassis. This design can assist with cable routing where space around internal storage connections is limited.

0.8m Cable Length Measuring 0.8 metres, the Adaptec 2280200-R provides useful reach for internal server and storage installations while helping accommodate different chassis layouts and component positions.

Series 7 Adapter Compatibility The cable is designed for use with Adaptec Series 7, 7Q and 7H adapters, providing a suitable internal connection between the storage controller and compatible SAS/SATA backplane.

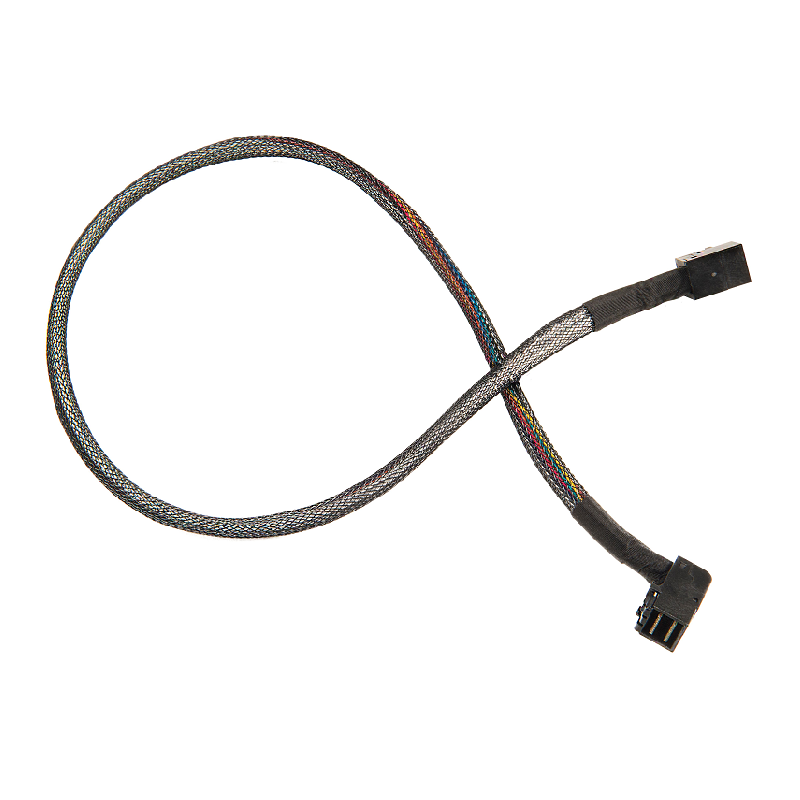

The Microchip 2282500-R 0.5 m Right-Angle Mini-SAS HD Transfer Cable provides a compact internal connection for compatible RAID and Host Bus Adapter applications. Featuring SFF-8643 Mini-SAS HD connectors at both ends, a male-to-male configuration, right-angle design, and support for data transfer rates up to 12 Gbit/s, this 0.5 m black cable is designed for efficient SAS storage connectivity.

Key Features of Microchip Mini-SAS HD Transfer Cable 0.5 m right-angle Mini-SAS HD transfer cable
SFF-8643 Mini-SAS HD connector at both ends
Male-to-male connector configuration
Supports data transfer rates of up to 12 Gbit/s
Designed for RAID and Host Bus Adapter applications
Right-angle connector design for practical internal cable routing
Black cable construction
Right-Angle Mini-SAS HD ConnectivityThe Microchip 2282500-R provides an internal Mini-SAS HD connection with a right-angle design, making it suitable for installations where connector orientation and internal cable routing are important considerations.

Dual SFF-8643 ConnectorsBoth ends of the cable feature SFF-8643 Mini-SAS HD connectors, providing a direct connection between compatible SAS storage components that use Mini-SAS HD interfaces.

0.5 Metre Cable LengthWith a 0.5 m length, the 2282500-R offers a compact cabling solution for internal server and storage configurations where connected components are positioned relatively close together.

Up to 12 Gbit/s Data TransferThe cable supports data transfer rates of up to 12 Gbit/s, making it suitable for compatible high-speed SAS storage environments and internal data connections.

Male-to-Male ConnectionThe Microchip 2282500-R uses male connectors at both ends, providing a suitable connection format for compatible SFF-8643 Mini-SAS HD interfaces.

RAID and Host Bus Adapter ApplicationsDesigned for RAID and Host Bus Adapter environments, this Mini-SAS HD transfer cable provides an internal connection for compatible storage hardware and controller configurations.

Practical Right-Angle DesignThe right-angle configuration can help accommodate internal layouts where a straight connector may be less suitable, providing greater flexibility when routing the cable within compatible server and storage systems.

Black Internal Cable ConstructionFinished in black, the 2282500-R is suited to professional server and storage environments, while its compact 0.5 m construction supports tidy internal connectivity.

The Adaptec 2281300-R internal right-angle mini SAS HD to mini SAS cable provides reliable storage connectivity between compatible Adaptec Series 7, 7Q and 7H adapters and SAS/SATA backplanes. Measuring 0.5 metres, this SFF-8643 to SFF-8087 cable features a right-angle design for practical internal cable routing, making it suitable for compact server and storage installations.

Key Features of Adaptec 2281300-R SAS Cable Internal right-angle mini SAS HD to mini SAS cable
Mini SAS HD SFF-8643 connector
Mini SAS SFF-8087 connector
Designed for connecting compatible Adaptec adapters to SAS/SATA backplanes
Compatible with Adaptec Series 7, 7Q and 7H adapters
0.5m cable length
Right-angle design supports practical internal cable routing
Designed for internal server and storage installations
Internal SAS Connectivity The Adaptec 2281300-R is an internal mini SAS HD to mini SAS cable designed to connect compatible Adaptec storage adapters with SAS/SATA backplanes. It provides a direct connection for suitable internal storage configurations.

Mini SAS HD SFF-8643 Connection The SFF-8643 mini SAS HD connector provides the adapter-side connection for compatible Adaptec Series 7, 7Q and 7H storage adapters, supporting high-density internal SAS connectivity.

Mini SAS SFF-8087 Connection The opposite end features an SFF-8087 mini SAS connector for connection to compatible SAS/SATA backplanes, making the cable suitable for internal server and storage configurations.

SAS and SATA Backplane Support Designed for connecting a compatible Series 7, 7Q or 7H adapter to a SAS/SATA backplane, the cable provides the internal interface required for compatible storage system configurations.

Right-Angle Design The right-angle configuration helps provide practical connector positioning within compatible server and storage chassis. This design can assist with cable routing where space around internal storage connections is limited.

0.5m Cable Length Measuring 0.5 metres, the Adaptec 2281300-R provides a compact cable length for internal server and storage installations, helping accommodate chassis layouts where shorter cable runs are preferred.

Series 7 Adapter Compatibility The cable is designed for use with Adaptec Series 7, 7Q and 7H adapters, providing a suitable internal connection between the storage controller and compatible SAS/SATA backplane.

The Adaptec 2279700-R internal mini SAS HD to mini SAS cable provides reliable storage connectivity between compatible Adaptec Series 7, 7Q and 7H adapters and SAS/SATA backplanes. Measuring 1 metre, this SFF-8643 to SFF-8087 cable is designed for internal server and storage system installations, providing a practical connection between the host adapter and backplane.

Key Features of Adaptec 2279700-R SAS Cable Internal mini SAS HD to mini SAS cable
SFF-8643 mini SAS HD connector
SFF-8087 mini SAS connector
Designed for connecting compatible Adaptec adapters to SAS/SATA backplanes
Compatible with Adaptec Series 7, 7Q and 7H adapters
1 metre cable length
Designed for internal server and storage installations
Internal SAS Connectivity The Adaptec 2279700-R is an internal mini SAS HD to mini SAS cable designed to connect compatible Adaptec storage adapters with SAS/SATA backplanes. It provides a direct connection for suitable internal storage configurations.

Mini SAS HD SFF-8643 Connector The SFF-8643 mini SAS HD connector provides the adapter-side connection for compatible Adaptec Series 7, 7Q and 7H storage adapters, supporting internal SAS connectivity within compatible systems.

Mini SAS SFF-8087 Connection The opposite end features an SFF-8087 mini SAS connector for connection to compatible SAS/SATA backplanes, making the cable suitable for internal storage and server configurations.

SAS and SATA Backplane Support Designed for connecting a compatible Series 7, 7Q or 7H adapter to a SAS/SATA backplane, the cable provides the internal interface required for compatible storage system configurations.

1 Metre Cable Length With a 1 metre cable length, the Adaptec 2279700-R provides useful reach for internal server and storage installations while helping accommodate different chassis layouts and component positions.

Series 7 Adapter Compatibility The cable is designed for use with Adaptec Series 7, 7Q and 7H adapters, providing a compatible internal connection between the storage controller and SAS/SATA backplane.

The Microchip PD-AFATBT-Tester PoE AF/AT/BT Tester is a compact, plug-and-play tool for checking an RJ-45 outlet for the presence of Power over Ethernet. Designed for system integrators and installers, this PoE tester detects IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt and PoH power standards while simulating a Dual Signature PD Class 5/Type 4 device.

Key Features of Microchip PD-AFATBT-Tester PoE Tester Tests RJ-45 outlets for the presence of Power over Ethernet
Detects IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt standards
Detects Power over HDBaseT (PoH)
Simulates Dual Signature PD Class 5/Type 4
Compact design for system integrators and installers
Plug-and-play operation
Simple and convenient to use
PoE Power DetectionThe PD-AFATBT-Tester provides a convenient way to check an RJ-45 outlet for the presence of Power over Ethernet. By connecting the tester directly to the outlet, installers can determine whether the cabling infrastructure is supplying PoE power.

IEEE 802.3af DetectionThe tester can detect IEEE 802.3af PoE, making it suitable for checking network outlets that provide standard PoE power to compatible devices. This helps installers verify the availability of supported power before connecting powered equipment.

IEEE 802.3at DetectionSupport for IEEE 802.3at detection allows the tester to identify higher-power PoE availability. This provides a practical tool for checking infrastructure intended to support compatible higher-power network devices.

IEEE 802.3bt DetectionThe tester also detects IEEE 802.3bt power, making it suitable for newer high-power PoE installations. This provides installers with a simple way to check infrastructure supporting the latest PoE applications.

Power over HDBaseT DetectionIn addition to PoE standards, the tester detects Power over HDBaseT (PoH). This broadens its usefulness for installers working with different powered Ethernet and network infrastructure technologies.

Dual Signature PD SimulationThe unit simulates a Dual Signature PD Class 5/Type 4 device, allowing compatible power sourcing equipment to be tested with a representative high-power powered-device load.

Compact Installer DesignIts compact design is specifically tailored for system integrators and installers. The portable format makes it practical to carry between installation sites and use during network infrastructure testing.

Plug-and-Play OperationThe tester is designed for straightforward plug-and-play use. Simply connecting it to a compatible RJ-45 outlet provides a convenient method for checking the presence and type of supported PoE power.

Simple Network Infrastructure TestingBy combining multi-standard PoE detection with a compact form factor and simple operation, the PD-AFATBT-Tester provides a practical solution for verifying powered Ethernet outlets during installation, maintenance and system integration work.

Summary

The outdoor mounting brackets PD-OUT/MBK/ET and PD-OUT/MBK/S are designed for wall mount installations as well as small and large poles (up to 8’’ diameter) installations. The outdoor mounting package is designed to ease the installation of PoE systems.

Summary

The outdoor mounting brackets PD-OUT/MBK/ET and PD-OUT/MBK/S are designed for wall mount installations as well as small and large poles (up to 8’’ diameter) installations. The outdoor mounting package is designed to ease the installation of PoE systems.

The Microchip 2305800-R Adaptec Data Transfer Cable provides internal direct-attached connectivity between a compatible SAS/SATA/NVMe adapter and multiple SATA endpoints. Featuring one SlimSAS x8 (SFF-8654) connector to eight SATA x1 SFF-8482 connections and a 0.8 m cable length, this cable is designed for direct-attached storage configurations and is compatible with the HBA 1200 Host Bus Adapter.

Key Features of Microchip 2305800-R Data Transfer Cable Internal SlimSAS x8 to 8 SATA x1 data transfer cable
One x8 SFF-8654 connection to the adapter
Eight x1 SFF-8482 connections to endpoints
Designed for direct-attached storage connectivity
Supports compatible SAS/SATA/NVMe adapter configurations
0.8 m cable length
SATA connectivity type
Compatible with HBA 1200 Host Bus Adapter
Direct-Attached Storage ConnectivityThe Microchip 2305800-R is an internal data transfer cable designed for direct-attached connectivity between a compatible storage adapter and multiple SATA endpoints. It provides a practical solution for internal storage configurations.

SlimSAS x8 Adapter ConnectionThe adapter side features one SlimSAS x8 SFF-8654 connector, providing an eight-lane interface for connection to compatible SAS/SATA/NVMe adapter hardware.

Eight SATA ConnectionsThe opposite end of the cable provides eight x1 SFF-8482 connections, allowing a single SlimSAS x8 adapter interface to connect with multiple compatible SATA storage endpoints.

0.8 Metre Cable LengthWith a 0.8 m length, the transfer cable provides practical reach for internal server and storage installations while helping maintain an organised connection between the adapter and attached drives.

SATA ConnectivityThe cable is designed for SATA connectivity and provides eight SFF-8482 endpoint connections for compatible storage devices in direct-attached configurations.

SAS/SATA/NVMe Adapter SupportThe 2305800-R is designed for direct-attached connectivity with compatible SAS/SATA/NVMe adapters, providing a flexible cable configuration for supported storage environments.

HBA 1200 CompatibilityThis transfer cable is compatible with the HBA 1200 Host Bus Adapter, making it suitable for supported configurations requiring a SlimSAS x8 connection to multiple SATA endpoints.

Efficient Internal Cable ConfigurationBy combining one SlimSAS x8 adapter connection with eight SATA endpoint connections, the cable provides a consolidated internal connectivity solution for compatible direct-attached storage systems.

This is an internal SlimSAS ×8 (SFF-8654) to 2SFF-8639 ×4 U.3 tri-mode cable for direct attached connectivity for SAS/SATA/NVMe adapters.

The Microchip 2305100-R Adaptec Data Transfer Cable provides internal tri-mode connectivity between a compatible SAS/SATA/NVMe adapter and an NVMe backplane. Featuring a SlimSAS x8 (SFF-8654) connector to two MiniSAS HD x4 (SFF-8643) connectors and a 0.8 m cable length, this cable is designed for NVMe storage applications and is compatible with SmartRAID 3200 RAID Adapters.

Key Features of Microchip 2305100-R Data Transfer Cable Internal SlimSAS x8 to 2 x MiniSAS HD data transfer cable
SlimSAS x8 (SFF-8654) connection to adapter
Two MiniSAS HD x4 (SFF-8643) connections to endpoints
Supports tri-mode SAS/SATA/NVMe connectivity
0.8 m cable length
Designed for connection to an NVMe backplane
Compatible with SmartRAID 3200 RAID Adapters
Suitable for NVMe storage applications
Internal Tri-Mode ConnectivityThe Microchip 2305100-R is an internal tri-mode data transfer cable designed to connect a compatible SAS/SATA/NVMe adapter to an NVMe backplane. It provides a practical cabling solution for modern storage architectures supporting multiple storage protocols.

SlimSAS x8 Adapter ConnectionThe adapter side of the cable uses one SlimSAS x8 SFF-8654 connector, providing an eight-lane interface for connection to compatible RAID adapter hardware.

Dual MiniSAS HD EndpointsThe opposite end features two MiniSAS HD x4 SFF-8643 connectors, providing two four-lane connections for compatible storage backplane configurations.

NVMe Backplane SupportThe transfer cable is designed for use with NVMe backplanes, providing connectivity between compatible adapter hardware and NVMe storage endpoints within an internal server or storage system.

SAS/SATA/NVMe Tri-Mode SupportWith tri-mode connectivity, the cable is designed for storage environments where SAS, SATA and NVMe technologies may be supported by compatible controller and backplane hardware.

0.8 Metre Cable LengthAt 0.8 m in length, the Microchip 2305100-R provides practical reach for internal server and storage installations while supporting organised cable routing between the adapter and backplane.

SmartRAID 3200 CompatibilityThe cable is compatible with SmartRAID 3200 RAID Adapters, making it suitable for supported RAID configurations that require SlimSAS and MiniSAS HD connectivity to an NVMe backplane.

Designed for Modern Storage SystemsThis transfer cable provides a purpose-built connection between a SlimSAS x8 adapter interface and dual MiniSAS HD endpoints, making it suitable for compatible internal NVMe storage and tri-mode server configurations.

This is an internal SlimSAS™ ×8 (SFF-8654) to 2SlimSAS ×8 (SFF-8654) tri-mode cable to connect a Serial Attached SCSI (SAS)/Serial ATA (SATA)/NVMe adapter to a SAS/SATA/NVMe backplane.

The Microchip 2305900-R Internal SlimSAS Cable is designed to provide reliable high-speed connectivity for modern enterprise storage systems. Supporting tri-mode operation across SAS, SATA, and NVMe devices, this 24Gb/s cable enables efficient communication between controllers and storage backplanes. With a SlimSAS x8 (SFF-8654) host connection splitting into two SlimSAS x4 connectors, it offers flexible internal connectivity for high-density server and storage environments. The 0.8-metre length is ideal for clean internal routing while maintaining signal integrity in performance-focused infrastructure.

Key Features of Microchip 2305900-R Supports up to 24Gb/s data transfer for high-performance storage connectivity
SlimSAS x8 (SFF-8654) to dual SlimSAS x4 cable configuration
Tri-mode support for SAS, SATA, and NVMe devices
Designed for compatibility with modern RAID adapters and HBAs
0.8m cable length for efficient internal server routing
Optimised for enterprise storage and high-density server deployments
Reliable signal integrity for demanding data environments
Tri-Mode Storage Connectivity The Microchip 2305900-R cable supports tri-mode architecture, enabling connectivity across SAS, SATA, and NVMe devices through a single adapter. This flexibility simplifies infrastructure design while allowing storage environments to evolve without requiring cable replacements. It is well suited for modern systems that combine multiple storage technologies within the same platform.

SlimSAS x8 to Dual SlimSAS x4 Design Featuring a SlimSAS x8 (SFF-8654) connector on the host side that splits into two SlimSAS x4 connectors, this cable allows a single controller port to connect to multiple endpoints or backplane inputs. The design supports efficient port utilisation while maintaining high bandwidth for demanding storage workloads.

High-Speed 24Gb/s Performance Built to support data transfer speeds of up to 24Gb/s, the cable is engineered to handle the requirements of modern enterprise storage environments. This performance level ensures reliable throughput for large data sets, virtualisation workloads, and high-performance computing applications.

Optimised for RAID Adapters and HBAs The cable is designed for use with compatible storage controllers such as RAID adapters and host bus adapters that utilise SlimSAS connectivity. It enables seamless communication between controllers and internal storage backplanes, supporting high-performance configurations in servers and data centre hardware.

Efficient Internal Cable Routing With a length of 0.8 metres, the Microchip 2305900-R provides sufficient reach for typical internal server layouts while helping maintain organised cable management. The compact SlimSAS connectors and flexible cable structure make it easier to route within dense server chassis.

Designed for Modern Data Infrastructure Engineered for high-density computing environments, this cable supports the connectivity requirements of enterprise servers, storage arrays, and data centre platforms. Its combination of tri-mode support, high bandwidth capability, and efficient connector design makes it a practical solution for scalable storage architectures.

PowerDsine’s PD-AS-951 High-Power active splitters enable data terminals that were not originally designed to accept power from the Ethernet, to be powered by Power over Ethernet midspans. The PDAS-
951 High Power splitter (user selectable 12V or 24V) can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11n Access-Points, Thin- Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video-
Phones and more.

This is an internal SlimSAS ×8 (SFF-8654) to 2Oculinks ×4 (SFF-8612) tri-mode cable to connect a SAS/SATA/NVMe adapter to an NVMe backplane.

This is an internal SlimSAS ×8 (SFF-8654) to 2SFF-8639 ×4 U.2 tri-mode cable for direct attached connectivity for SAS/SATA/NVMe adapters.

This is an internal SlimSAS ×8 (SFF-8654) to 4SFF-8639 ×2 U.3 tri-mode cable for direct attached connectivity for SAS/SATA/NVMe adapters.

This is an internal SlimSAS ×8 (SFF-8654) to 2SFF-8639 ×1 U.3 tri-mode cable for direct attached connectivity for SAS/SATA/NVMe adapters.

This is an internal SlimSAS ×8 (SFF-8654) to 2SFF-8639 ×1 U.2 tri-mode cable for direct attached connectivity for SAS/SATA/NVMe adapters.

The Microchip 2306000-R External mini-SAS HD x4 to mini-SAS HD x4 cable provides reliable high-speed connectivity between compatible storage adapters and external SAS or SATA enclosures. Designed for use with Microchip Adaptec SmartRAID and HBA solutions, this 2-meter external cable supports high-bandwidth data transfer while maintaining stable connections for demanding storage environments. Built with mini-SAS HD connectors and engineered for performance, it enables efficient communication between RAID adapters and JBOD storage systems.

Key Features of Microchip 2306000-R External mini-SAS HD x4 to mini-SAS HD x4 cable
Supports high-speed 24Gb/s SAS data transfer
SFF-8643 to SFF-8644 connector configuration
2 meter cable length for flexible external connections
Designed for Microchip Adaptec SmartRAID and HBA adapters
Ideal for connecting RAID controllers to external JBOD storage
Reliable signal integrity for high-performance storage environments
Optimised for External Storage Connectivity The 2306000-R cable is designed to link compatible RAID adapters and host bus adapters to external storage enclosures. Its mini-SAS HD interface ensures efficient communication between systems and JBOD units, making it suitable for enterprise storage environments where consistent data throughput is required.

High-Bandwidth 24Gb/s SAS Performance Supporting modern SAS standards, this cable enables high-speed data transfer rates up to 24Gb/s. This ensures storage systems can handle intensive workloads such as large data transfers, virtualization environments, and high-capacity storage operations.

Mini-SAS HD Connector Design The cable features mini-SAS HD connectors with SFF-8643 and SFF-8644 interfaces. These connectors are widely used in enterprise storage hardware, providing compact design, secure connections, and reliable signal integrity for high-performance server and storage infrastructure.

Compatibility with Adaptec SmartRAID and HBA Solutions This cable is built for use with Microchip Adaptec SmartRAID 3200 series adapters and HBA 1200 host bus adapters. It provides a dependable link between the controller and external SAS or SATA JBOD enclosures, supporting flexible storage expansion.

Flexible 2 Meter Cable Length The 2 meter cable length provides convenient reach for connecting servers to external storage devices within rack environments. This added flexibility helps simplify cable routing while maintaining reliable high-speed connectivity.
