Microchip PD-9001GR/AT/AC-EU Single-port, Gigabit PoE Midspan, 802.3at Compliant

Microchip PD-9001GR/AT/AC-EU Single-Port Gigabit PoE Midspan, 802.3at Compliant

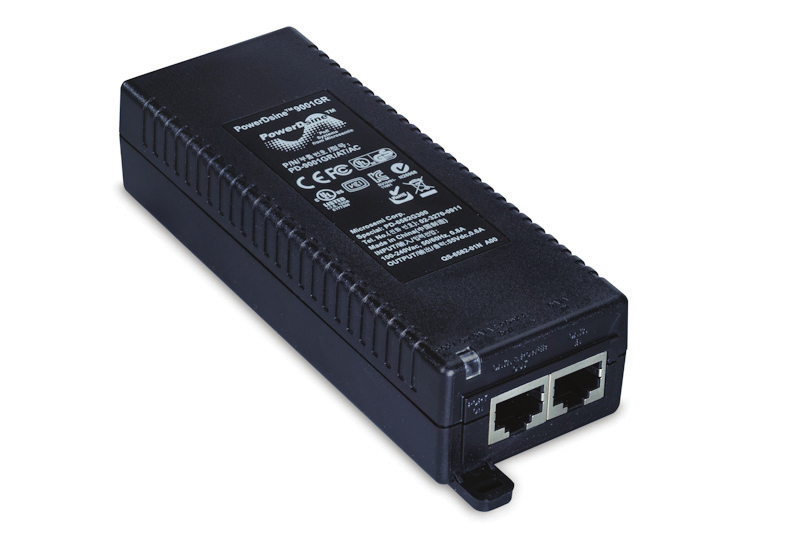

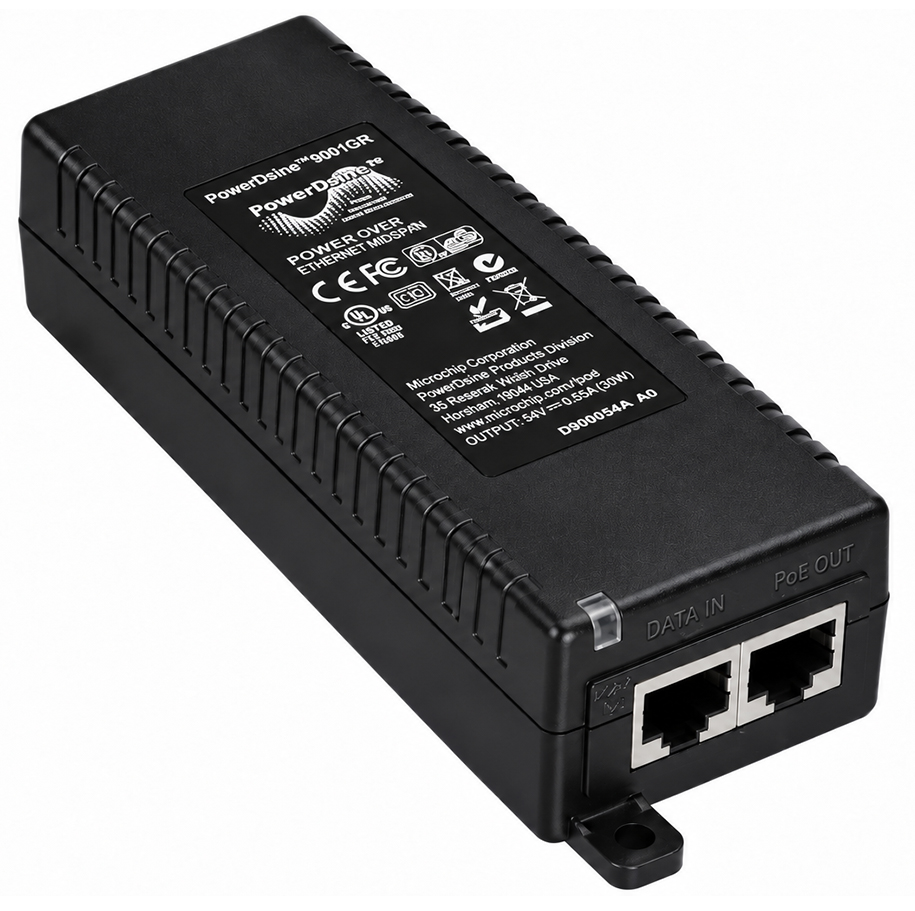

The Microchip PD-9001GR/AT/AC-EU is a single-port Gigabit PoE midspan designed to add up to 30W of Power over Ethernet to an existing network connection. It is suitable for powering devices such as wireless access points, Pan-Tilt-Zoom (PTZ) cameras and video phones.

Supporting 10/100/1000Base-T Ethernet, the PD-9001GR complies with IEEE 802.3at and is backwards compatible with IEEE 802.3af powered devices.

• Single-port Gigabit PoE midspan for indoor network installations [PoE injector fitted between network switch and powered device]
• Delivers up to 30W PoE output power
• IEEE 802.3at compliant with 2-event classification
• Backwards compatible with IEEE 802.3af powered devices
• Supports 10/100/1000Base-T Ethernet connections
• Automatically detects and protects against non-standard Ethernet terminals
• Low-power devices receive only the power they require
• 100-240V AC, 50/60Hz power input
• Yellow AC power and green channel power status indicators

If this particular midspan is not perfect for your requirements, Comms Express also offer a wide range of alternative Microchip Indoor PoE products:

• Microchip Indoor PoE - alternative PoE injectors and midspans for powering compatible network devices

*For complete specifications see the documentation tab above
