IEC C19 - C20 Cables

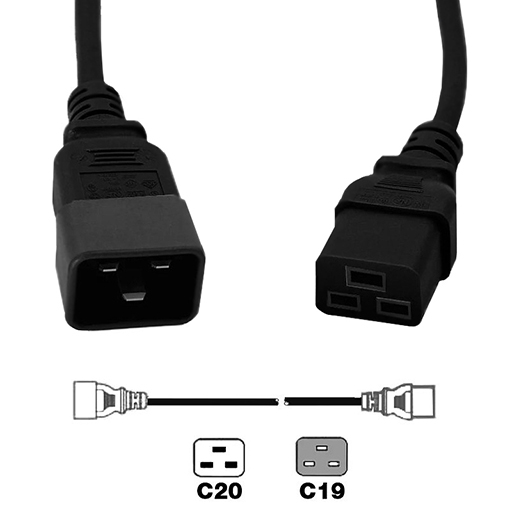

IEC C19 – IEC C20 16A Power Extension Cables - 0.5m - 2.5m available in Black, Red, White & Blue

 Features:

Plug: IEC C20
Equipment End: IEC C19
Cable Size: 3 x 1.50mm
Cable Type: H05VV-F 300/500v
Lengths Available: 0.5m, 1m, 2.5m,
Colours Available: White / Red / Blue / Black
Suitable for use with UPS
Fully Moulded and Fused
Colour: Black and Hanked
16amp Rated Cables
Technical Specification:

Class: Class 1 Powercord

Plug Approval: IEC C20 Male coupler approved to IEC 60320-2-2 UL CSA

Conductors: 2P+E -250V

Connector: IEC C19 connector approved to IEC320

ROHS: ROHS compliant

Fuse Rating: 16A

Voltage Rating: 250V

Temperature Rating: 70c

Plug Type: IEC 60320 C20

Connector Type: IEC 60320 C19

Conductor Size: 1.50mm2

No of Conductors: 3

The new IEC-lock power lead design provides a simple way of securing a power lead to any electrical appliance that uses an IEC type mains lead.

As with most good designs the IEC-lock's patented locking mechanism is beautifully simple. The lead is simply connected to the appliance as any other IEC lead.

Once the lead has been fitted the IEC-lock mechanism locks it to the appliance, ensuring that the lead cannot become accidentally disconnected.

Protection of computer equipment and servers fromaccidental disconnection helping to protect valuable data
Ideal for protecting appliances that are vulnerable to vibration where standard connectors may become accidentally disconnected
Suitable for various medical applications that require a secure power source Unique 'Patented' Female C19 connector 'IEC-Lock'
Suitable for use with 'Any' standard IEC inlet
Loose coiled to avoid permanent kinks and ensure tidy installation
IEC-Lock moulded to leads are currently available with cable lengths to bare-ends with variable


Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 0.6m

This Series of Rack Power Distribution Units (PDU) comes with Locking IEC Receptacles. The output and input connections are C19 to C20. The cord length is 0.6m. Locking IEC system allows the use of optional locking IEC power cords for added power cord security and enhanced reliability. No tools are required to disengage the locking feature and remove the plug from the locking receptacle.

Includes: 3 left-angle jumper cords, 3 right-angle jumper cords

Key Features

Maximum Total Current Draw 16 Number of Power Cords 6 Maximum Input Current 16A Maximum Line Current 16A Cord Length 0.6 Meters

Power Cord Kit (6 ea), Locking, C19 to C20, 1.2m

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Key Features

Maximum Total Current Draw 16 Number of Power Cords 6 Maximum Input Current 16A Maximum Line Current 16A Cord Length 1.2 Meters

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.2m

This Series of Rack Power Distribution Units (PDU) comes with Locking IEC Receptacles. The output and input connections are C19 to C20. The cord length is 1.2m. Locking IEC system allows the use of optional locking IEC power cords for added power cord security and enhanced reliability. No tools are required to disengage the locking feature and remove the plug from the locking receptacle.

Includes: 3 left-angle jumper cords, 3 right-angle jumper cords

Key Features

Maximum Total Current Draw 16 Number of Power Cords 6 Maximum Input Current 16A Maximum Line Current 16A Cord Length 1.2 Meters

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8m

This Series of Rack Power Distribution Units (PDU) comes with Locking IEC Receptacles. The output and input connections are C19 to C20. The cord length is 1.8m. Locking IEC system allows the use of optional locking IEC power cords for added power cord security and enhanced reliability. No tools are required to disengage the locking feature and remove the plug from the locking receptacle.

Includes: 3 left-angle jumper cords, 3 right-angle jumper cords

Key Features

Maximum Total Current Draw 16 Number of Power Cords 6 Maximum Input Current 16A Maximum Line Current 16A Cord Length 1.8 Meters

Power Cord Kit (6 ea), Locking, C19 to C20, 1.8m

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Key Features

Maximum Total Current Draw 16 Number of Power Cords 6 Maximum Input Current 16A Maximum Line Current 16A Cord Length 1.8 Meters

Power Cord Kit (6 ea), C19 to C20 (90 degree), 1.8m

Low profile cord designed to eliminate space interference when accessing removable hot swap blade modules.

Includes: 3 left-angle jumper cords, 3 right-angle jumper cords

Key Features

Output Connections IEC 60320 C19 Input Connections IEC 60320 C20 Cord Length 1.8 Meters

Power Cord, C19 to C20, 0.6m

Wide selection of Rack PDU power cords for a variety of IT equipment.

Key Features

Output Connections IEC 60320 C19 Input Connections IEC 60320 C20 Cord Length 0.6 Meters

Power Cord Kit (6 ea), Locking, C19 to C20, 0.6m

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Key Features

Maximum Total Current Draw 10 Number of Power Cords 6 Maximum Input Current 16A Maximum Line Current 16A Cord Length 0.6 Meters

Power Cord, Locking C19 to Rewireable, 3.0m

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Key Features

Maximum Total Current Draw 16 Maximum Input Current 16A Maximum Line Current 16A Cord Length 3.0 Meters

Power Cord, C19 to C20, 4.5m

Rack PDU power cords for a variety of IT equipment. The output and input connections are C19 to C20. The cord length is 4.5m. The Nominal Output Voltage is 230V.

Key Features

Output Connections IEC 60320 C19 Input Connections IEC 60320 C20 Nominal Output Voltage 230V Cord Length 4.6 Meters

Power Cord, Locking C19 to C20, 3.0m

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Key Features

Maximum Total Current Draw 16 Maximum Line Current 16A Cord Length 3.0 Meters

Power Cord Kit (6 ea), C19 to C20 (90 degree), 0.6m

Low profile cord designed to eliminate space interference when accessing removable hot swap blade modules.

Includes: 3 left-angle jumper cords, 3 right-angle jumper cords

Key Features

Output Connections IEC 60320 C19 Input Connections IEC 60320 C20 Cord Length 0.6 Meters

Power Cord, C19 to C20, 2.0m

Wide selection of Rack PDU power cords for a variety of IT equipment.

Key Features

Maximum Total Current Draw 20 Maximum Input Current 20A Maximum Line Current 20A Cord Length 2.0 Meters

Power Cord Kit (6 ea), C19 to C20 (90 degree), 1.2m

Low profile cord designed to eliminate space interference when accessing removable hot swap blade modules.

Includes: 3 left-angle jumper cords, 3 right-angle jumper cords

Key Features

Output Connections IEC 60320 C19 Input Connections IEC 60320 C20 Cord Length 1.2 Meters

The C19 to C20 locking power cable that eliminates accidental and vibration disconnects of IT equipment.

The reliability of physical power distribution in data centres depends to a large degree on the how well the power cords have been secured. When maintenance or configuration work is being performed, the cords connecting active IT hardware and the power source or PDU (Power Distribution Unit) can often be accidentally dislodged or even completely disconnected. This can lead to system disruptions or even total failures of productive hardware. What is particularly aggravating is that fixing these kinds of disruptions is time-consuming and, depending on how long it takes, can be very expensive but most aggravating of all is that these problems and risks could have been prevented in the first place if a power cord with integrated locking mechanism had been used from the outset.

The power cords with integrated locking mechanism are available for all C19 or C20 plugs and for special country configurations. The zLock Dual Sided IEC Locking Cable is the first truly universal C19 to C20 locking power cable that is 100% compatible with existing plugs and receptacles! The dual locking cables simply replace existing power cables and eliminate any accidental and vibration disconnects. They do not require a special mating plug or receptacle in order to have a secure connection.

The power cables and all connected IT devices are well protected against unintentional mechanical disconnections and the resulting power supply disruptions which lead to downtime and possible hardware damage. The zLock Dual Sided IEC Locking Cable can be released by simply pulling the red sliding tabs of the C19 connector or opening the twist lock on the C20 side. Simply replace your existing power cable with the zLock Dual Sided IEC Locking Cable and enjoy your increased uptime.

The highlights of the zLock Dual Sided IEC Locking Power Cable
Unique power cable that locks both ends
Plug and play replacement for existing power cables of IT devices
Requires no mating plug or receptacle on the other side of the connection
Truly universally compatible
Prevents power cables from being dislodged
Protects hardware against power supply interruptions and related damages
Eliminates accidental and vibration disconnects
Increases the reliability of power distribution in any data centre or IT environment
Mechanism locks automatically when connected to the power supply inlet
Unlock by simply pulling the red sliding tabs (C19) or opening the twist lock (C20)
UL Listed (UL 817) and CE compliant (IEC 60320)
Cable lengths: 0.5m, 1.0m, 1.5m, 2.0m or 2.5m
Other lengths and colours available upon request
Black, White and Red available as a special order of 250 units per length in 3m, 3.5m, 4.0m, 4.5m & 5m lengths.
