APC Easy UPS SRV

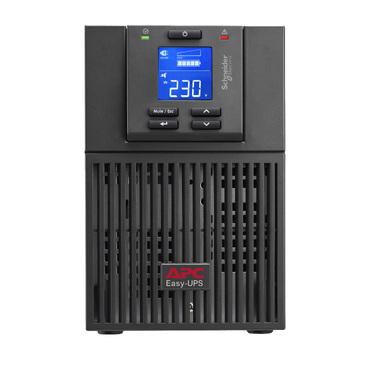

APC SRV1KI ImageAPC Easy UPS On-Line, 1000VA/800W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Replacement battery (1) is available
1000VA/800W double-conversion on-line pure sine wave tower UPS
High operating efficiency in energy-saving ECO mode
Prolonged battery life with intelligent temperature-compensated charging
Easy-to-read LCD interface for detailed and accurate information on UPS status
APC Easy UPS 1 Ph Online Features Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

  ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.

  Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.

  Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.

  Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.

  High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated

  Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.


Features: AC input
Input circuit breaker
USB port
RS-232
Intelligent card slot
Battery disconnector
Outlet Group
Ground screw
  Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 1000VA/800W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Replacement battery (1) is available
1000VA/800W double-conversion on-line pure sine wave 2U rackmount UPS
High operating efficiency in energy-saving ECO mode
Prolonged battery life with intelligent temperature-compensated charging
Easy-to-read LCD interface for detailed and accurate information on UPS status




APC Easy UPS 1 Ph Online Features

True online double-conversion
Ensures clean, reliable power supply to essential loads from brownouts, line noise, voltage transients and power outages.

Generator Compatible
Generator-compatible with a wide Input Frequency range (40Hz–70Hz) ensures clean, uninterrupted power to the loads during power outage.





High Power Factor
Output power factor up to 0.9
Powers more servers than similar UPSs with equivalent VA ratings with lower power factors.

High Efficiency
Up to 88-90% efficiency in online double conversion mode and 93 - 94% in ECO mode which saves utility and cooling costs without compromising performance or reliability.





Environmentally Robust
Conformal coated to help protect the components from the elements, including moisture, dust and extreme temperatures.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.





Cold Start Capability
Enables user to power up connected equipment’s on battery mode when utility power is not available

Wide Input Voltage Range
1-3kVA - 120-280VAC, Works in unstable power conditions and minimizes transfer to battery





Built-in Automatic Bypass
Ensures seamless power to the load even in the event of UPS internal detected fault or error.

Emergency Power Off (EPO)
Remote UPS shutoff in the event of a fire or other emergency. The UPS can accept normally closed (NC) contacts.





2 year warranty on UPS
Comprehensive warranty for electronics and battery functionality provides peace of mind. In an unlikely event of a detected fault or error, your product will be repaired or replaced quickly.












Features:

AC input
Input circuit breaker
USB port
RS-232
Intelligent card slot
Battery disconnector
Outlet Group
Ground screw




Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 1000VA/800W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The SRV UPS is compatible with replacement battery cartridge APCRBCV200. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• Replacement battery (1) is available

• 1000VA/800W double-conversion on-line pure sine wave 2U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.








Features: 1. AC input/p>

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Outlet Group

7. Ground screw



Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

Easy UPS On-Line Lithium-ion 230 V

Schneider Electric Easy UPS On-Line Lithium-ion accommodates a wide input voltage range for unstable power conditions by providing clean power for essential and sensitive devices.

The rack/tower convertible design provides flexibility in utilizing the space.

Thats Certainty in a Connected World.

Peace of mind with Lithium-ion UPS

Easy UPS On-Line Lithium-ion has a 3X battery life and comes with a 3-year warranty. Saves time and hassle from service dispatches compared to VRLA battery replacements.

Save on Total Cost of Ownership

Lower Total Cost of Ownership (TCO) by minimizing battery replacement and labor costs during the life of the UPS.

Versatile design with Rack/Tower convertible

Provides flexibility to change from a rack to tower installation using default accessories.

Lighter and Space Saving

Easy UPS Lithium-Ion is built-in 2U rack height that makes it lighter and space saving compared to VRLA.

Simplified Monitoring and Management

PowerChute™ Serial Shutdown software provides graceful unattended shutdown of servers and workstations using serial or USB cables and helps prevent data corruption and costly equipment damage.

Optional Network Management Card (part number AP9544 sold separately) supports network-based monitoring of Easy UPS On-Line Lithium-ion.

Longer Runtime

3X longer runtime and faster recharge time compared to VRLA

Double-conversion On-Line

Ensures clean, reliable power supply to essential loads from brownouts, line noise, voltage transients and power outages.

High Power Factor

More real output power in watts with 0.9 PF.

High Efficiency

In on-line double-conversion mode up to 90% efficiency

In ECO mode saves utility and cooling costs without compromising performance or reliability up to 96% efficiency

Emergency Power Off (EPO)

Remote UPS shutoff in the event of emergency. The UPS can accept normally closed (NC) contacts.

Longer Runtime, Compact, and Light Weight

Lithium-ion battery packs in 2U rack height allows longer runtime, is lighter and saves space compared to the VRLA battery pack.

LCD Display

Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally

3-year Warranty

Comprehensive warranty for electronics and battery functionality provides peace of mind. In an unlikely event of a detected fault, your product will be repaired or replaced.

Easy UPS Diagram

On/Off status: Indicates power is ON
On/Off button: Press to turn ON or OFF
Alert LED: Flashes red when UPS has a notification or is in steady state when there is an alert
On/Off status: Indicates power is ON
On/Off button: Press to turn ON or OFF
Alert LED: Flashes red when UPS has a notification or is in steady state when there is an alert
APC Easy UPS SRVSL1KRIRK Specifications

Run time for load Min 90W (10% capacity) - 1h 23min
Max 900W (100% capacity) - 10min 6sec Main Input Voltage 230 V Other Input Voltage 230 V Main Output Voltage 230 V Other Output Voltage 220 V
240 V Rated power in W 900 W Rated power in VA 1000 VA Input Connection Type IEC 60320 C14 Output connection type 6 IEC 60320 C13 Number of rack unit 2U Battery type Li-Ion (Lithium-Ion) Provided equipment Basic UPS signalling RS-232 cable
USB cable
C13-C14 power cord
IEC-C14 - Shuko input power cord
Rack mounting brackets
Rack mounting support rails
Stabilization feet
User manual
Safety guide

APC Easy UPS On-Line, 1000VA/800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 1000VA/900W double-conversion on-line pure sine wave 4U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV36RLBP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.








Features: 1. AC input/p>

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Battery disconnector

7. Outlet Group

8. Ground screw



Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 2000VA/1600W, Tower, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV200.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• Replacement battery (1) is available

• 1000VA/800W double-conversion on-line pure sine wave 2U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.








Features: 1. AC input/p>

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Battery disconnector

7. Outlet Group

8. Ground screw



Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 2000VA/1600W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. T

he On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV201.

The UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• Replacement battery (1) is available

• 2000VA/1600W double-conversion on-line pure sine wave 2U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status






Features:

1. AC input/p>

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Outlet Group

7. Ground screw





Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 2000VA/1600W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centres, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.




• Replacement battery is available

• 2000VA/1800W double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.











ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.





Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.











Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.











High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA





Environmentally Robust
Conformal coated











Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.





LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.










Features:

1. AC input/p>

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Outlet Group

7. Ground screw





Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

Easy UPS On-Line Lithium-ion 230 V

Schneider Electric Easy UPS On-Line Lithium-ion accommodates a wide input voltage range for unstable power conditions by providing clean power for essential and sensitive devices.

The rack/tower convertible design provides flexibility in utilizing the space.

Thats Certainty in a Connected World.

Peace of mind with Lithium-ion UPS

Easy UPS On-Line Lithium-ion has a 3X battery life and comes with a 3-year warranty. Saves time and hassle from service dispatches compared to VRLA battery replacements.

Save on Total Cost of Ownership

Lower Total Cost of Ownership (TCO) by minimizing battery replacement and labor costs during the life of the UPS.

Versatile design with Rack/Tower convertible

Provides flexibility to change from a rack to tower installation using default accessories.

Lighter and Space Saving

Easy UPS Lithium-Ion is built-in 2U rack height that makes it lighter and space saving compared to VRLA.

Simplified Monitoring and Management

PowerChute™ Serial Shutdown software provides graceful unattended shutdown of servers and workstations using serial or USB cables and helps prevent data corruption and costly equipment damage.

Optional Network Management Card (part number AP9544 sold separately) supports network-based monitoring of Easy UPS On-Line Lithium-ion.

Longer Runtime

3X longer runtime and faster recharge time compared to VRLA

Double-conversion On-Line

Ensures clean, reliable power supply to essential loads from brownouts, line noise, voltage transients and power outages.

High Power Factor

More real output power in watts with 0.9 PF.

High Efficiency

In on-line double-conversion mode up to 90% efficiency

In ECO mode saves utility and cooling costs without compromising performance or reliability up to 96% efficiency

Emergency Power Off (EPO)

Remote UPS shutoff in the event of emergency. The UPS can accept normally closed (NC) contacts.

Longer Runtime, Compact, and Light Weight

Lithium-ion battery packs in 2U rack height allows longer runtime, is lighter and saves space compared to the VRLA battery pack.

LCD Display

Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally

3-year Warranty

Comprehensive warranty for electronics and battery functionality provides peace of mind. In an unlikely event of a detected fault, your product will be repaired or replaced.

Easy UPS Diagram

On/Off status: Indicates power is ON
On/Off button: Press to turn ON or OFF
Alert LED: Flashes red when UPS has a notification or is in steady state when there is an alert
On/Off status: Indicates power is ON
On/Off button: Press to turn ON or OFF
Alert LED: Flashes red when UPS has a notification or is in steady state when there is an alert
APC Easy UPS SRVSL2KRIRK Specifications

Run time for load Min 180W (10% capacity) - 1h 30min
Max 1800W (100% capacity) - 10min 6sec Main Input Voltage 230 V Other Input Voltage 230 V Main Output Voltage 230 V Other Output Voltage 220 V
240 V Rated power in W 1800 W Rated power in VA 2000 VA Input Connection Type IEC 60320 C20 Output connection type 6 IEC 60320 C13 Number of rack unit 2U Battery type Li-Ion (Lithium-Ion) Provided equipment Basic UPS signalling RS-232 cable
USB cable
C13-C14 power cord
IEC-C20 - Shuko input power cord
Rack mounting brackets
Rack mounting support rails
Stabilization feet
User manual
Safety guide

APC Easy UPS On-Line SRV 3000VA 230V

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV205.

The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centres, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.




• Replacement battery is available

• 3kVA/2400W double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status






APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.











Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.











ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Environmentally Robust
Conformal coated





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.











LCD / LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery










Features:

1. AC input

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Battery disconnector

7. Outlet Group

8. Ground Screw









Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 2000VA/1600W, Tower, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Key Features:



2000VA/1600W double-conversion on-line pure sine wave tower UPS
High operating efficiency in energy-saving ECO mode
Add up to 4 external battery packs (SRV72BP-9A) for extended runtime
Easy-to-read LCD interface for detailed and accurate information on UPS status


APC Easy UPS 1 Ph Online Features:

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified through the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.

Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.

Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.

Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.

High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated

Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.




1. AC input/p>

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Battery connector

7. Outlet Group

8. Ground screw





Additional information can be found in the Brochure PDF file



Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 2000VA/1600W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 2000VA/1600W double-conversion on-line pure sine wave 4U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV72RLBP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.






Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/O rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions.

The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202. T

he UPS is compatible with SRVRK1 rail kit sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centres, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



• Replacement battery is available

• 3kVA/2400W double-conversion on-line pure sine wave 2U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status






APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uniterrupted power to the loads in the event of an extended power outage.





ECO Mode / Green Mode
This is an energy saving mode and the input voltage regulation range can be set / modified through the LCD display.











OVCD (Overvoltage Cutoff Device) protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend the life of the UPS





Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent precision temperature compensated charging.











Input Power Factory Connection
Minimizes installation cots by enabling the use of smaller generators and cabling.





Excellent Power Quality and Performance
True Double Conversion - provides tight voltage and frequency regulation and zero transfer time for reactive loads (machinery, lab equipment, etc.)











Wide input voltage range
60% Load: 110-300VAC
Allow for unstable power environment





Built-in Automatic Bypass
Ensures seamless power to load even in the event of catastrophic UPS failure











USB Port / Serial Port
Provides management of the UPS via USB communication





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.











High Power Factor
More real output power in watts 0.8 PF (1, 2, 3 kVA), PF = 1 (6 & 10 kVA).





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.












Features:

1. AC input

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Outlet Group

7. Ground Screw









Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

Easy UPS On-Line Lithium-ion 230 V

Schneider Electric Easy UPS On-Line Lithium-ion accommodates a wide input voltage range for unstable power conditions by providing clean power for essential and sensitive devices.

The rack/tower convertible design provides flexibility in utilizing the space.

Thats Certainty in a Connected World.

Peace of mind with Lithium-ion UPS

Easy UPS On-Line Lithium-ion has a 3X battery life and comes with a 3-year warranty. Saves time and hassle from service dispatches compared to VRLA battery replacements.

Save on Total Cost of Ownership

Lower Total Cost of Ownership (TCO) by minimizing battery replacement and labor costs during the life of the UPS.

Versatile design with Rack/Tower convertible

Provides flexibility to change from a rack to tower installation using default accessories.

Lighter and Space Saving

Easy UPS Lithium-Ion is built-in 2U rack height that makes it lighter and space saving compared to VRLA.

Simplified Monitoring and Management

PowerChute™ Serial Shutdown software provides graceful unattended shutdown of servers and workstations using serial or USB cables and helps prevent data corruption and costly equipment damage.

Optional Network Management Card (part number AP9544 sold separately) supports network-based monitoring of Easy UPS On-Line Lithium-ion.

Longer Runtime

3X longer runtime and faster recharge time compared to VRLA

Double-conversion On-Line

Ensures clean, reliable power supply to essential loads from brownouts, line noise, voltage transients and power outages.

High Power Factor

More real output power in watts with 0.9 PF.

High Efficiency

In on-line double-conversion mode up to 90% efficiency

In ECO mode saves utility and cooling costs without compromising performance or reliability up to 96% efficiency

Emergency Power Off (EPO)

Remote UPS shutoff in the event of emergency. The UPS can accept normally closed (NC) contacts.

Longer Runtime, Compact, and Light Weight

Lithium-ion battery packs in 2U rack height allows longer runtime, is lighter and saves space compared to the VRLA battery pack.

LCD Display

Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally

3-year Warranty

Comprehensive warranty for electronics and battery functionality provides peace of mind. In an unlikely event of a detected fault, your product will be repaired or replaced.

Easy UPS Diagram

On/Off status: Indicates power is ON
On/Off button: Press to turn ON or OFF
Alert LED: Flashes red when UPS has a notification or is in steady state when there is an alert
On/Off status: Indicates power is ON
On/Off button: Press to turn ON or OFF
Alert LED: Flashes red when UPS has a notification or is in steady state when there is an alert
APC Easy UPS SRVSL3KRIRK Specifications

Run time for load Min 270W (10% capacity) - 1h 24min
Max 2700W (100% capacity) - 9min 1sec Main Input Voltage 230 V Other Input Voltage 230 V Main Output Voltage 230 V Other Output Voltage 220 V
240 V Rated power in W 2700 W Rated power in VA 3000 VA Input Connection Type IEC 60320 C20 Output connection type 6 IEC 60320 C13
1 IEC 60320 C19 Number of rack unit 2U Battery type Li-Ion (Lithium-Ion) Provided equipment Basic UPS signalling RS-232 cable
USB cable
C13-C14 power cord
IEC-C20 - Shuko input power cord
Rack mounting brackets
Rack mounting support rails
Stabilization feet
User manual
Safety guide

APC Easy UPS On-Line, 3kVA/2400W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/ rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV202.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



• Replacement battery is available

• 3kVA/2400W double-conversion on-line pure sine wave 2U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status






APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





High Power Factor
More real output power in watts: 0.8 PF for 2 & 3 kVA, unity PF for 6 & 10 kVA.











Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.











ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Environmentally Robust
Conformal coated





Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.











LCD / LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.





Intelligent Battery Maanagemet
Maximizes battery performance through intelligent precision temperature compensated charging.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery










Features:

1. AC input

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Outlet Group

7. Ground Screw







Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 3kVA/2400W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended runtime

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 3kVA/2400W double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV72BP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status


APC Easy UPS 1 Ph Online Features Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

  Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.

  ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.

  High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.

  Environmentally Robust
Conformal coated

Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

  LCD / LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.

Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

  Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery


Features: 1. AC input

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Battery disconnector

7. Outlet Group

8. Ground Screw





Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line SRV 3000VA RM 230V with Extended Runtime Battery Pack, Rail Kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



• 3kVA/2400W double-conversion on-line pure sine wave 4U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV72RLBP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status






APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





High Power Factor
More real output power in watts: 0.8 PF for 2 & 3 kVA, unity PF for 6 & 10 kVA.











Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.











ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified through the LCD display.





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Environmentally Robust
Conformal coated





Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.











LCD / LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.





Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery










Features:

1. AC input

2. Input circuit breaker

3. USB port

4. RS-232

5. Intelligent card slot

6. Outlet Group

7. Ground Screw







Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+N+E) outlet.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



• 6kVA/6kW double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





High Power Factor
More real output power in watts: 0.8 PF for 2 & 3 kVA, unity PF for 6 & 10 kVA.











Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.











ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Environmentally Robust
Conformal coated





Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.











LCD / LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.





Intelligent Battery Maanagemet
Maximizes battery performance through intelligent precision temperature compensated charging.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery










Features:

1. Serial communications (RS-232) port/p>

2. USB port

3. Emergency power off (EPO) connector

4. External maintenance bypass signal port

5. Intelligent card slot

6. Battery connector

7. Ground screw

8. Input circuit breaker

9. Input and output hardwiring terminals





Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/O rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately.

The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



• 6kVA/6kW double-conversion on-line pure sine wave 4U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.











High Power Factor
More real output power in watts 0.8 PF (1, 2, 3 kVA), PF = 1 (6 & 10 kVA)





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.











Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.











Built-in Automatic Bypass
Ensures seamless power to load even in the event of catastophic UPS failure.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery










Features:

1. Serial communications (RS-232) port/p>

2. USB port

3. Emergency power off (EPO) connector

4. External maintenance bypass signal port

5. Intelligent card slot

6. Battery connector

7. Ground screw

8. Input circuit breaker

9. Input and output hardwiring terminals





Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/ rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 6kVA/6kW double-conversion on-line pure sine wave 4U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status

APC Easy UPS 1 Ph Online Features Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

  ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.

  Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.

  Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.

  Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.

  High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated

  Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.


Features: 1. Serial communications (RS-232) port/p>

2. USB port

3. Emergency power off (EPO) connector

4. External maintenance bypass signal port

5. Intelligent card slot

6. Battery connector

7. Ground screw

8. Input circuit breaker

9. Input and output hardwiring terminals

  Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 6kVA/6kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management.

The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centres, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



• 6kVA/6kW double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV240BP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





High Power Factor
More real output power in watts: 0.8 PF for 2 & 3 kVA, unity PF for 6 & 10 kVA.











Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.











ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Environmentally Robust
Conformal coated





Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.











LCD / LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.





Intelligent Battery Maanagemet
Maximizes battery performance through intelligent precision temperature compensated charging.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery










Features:

1. Serial communications (RS-232) port/p>

2. Emergency Power Off (EPO) terminals

3. Intelligence card slot

4. Battery connector

5. Maintenance Bypass switch

6. Input circuit breaker

7. Input and output hardwiring terminals

8. USB port





Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line SRV 6000VA RM 230V with Extended Runtime Battery Pack

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.

The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management.

The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centres, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.



• 6kVA/6kW double-conversion on-line pure sine wave 5U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV240RLBP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features



Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.





Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.











ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.





Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.











Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery





Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.











Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.





USB Port / Serial Port
Provides management of the UPS via USB/serial communication.











Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.





Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.











High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA





Environmentally Robust
Conformal coated











Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.





LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.










Features:

1. Serial communications (RS-232) port/p>

2. USB port

3. Emergency power off (EPO) connector

4. External maintenance bypass signal port

5. Intelligent card slot

6. Battery connector

7. Ground screw

8. Input circuit breaker

9. Input and output hardwiring terminals





Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 6kVA/6kW, Rackmount 5U, 230V, Hard wire 3-wire(P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 6kVA/6kW double-conversion on-line pure sine wave 5U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV240RLBP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status

APC Easy UPS 1 Ph Online Features Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

  ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.

  Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.

  Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.

  Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.

  High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated

  Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.


Features: 1. Serial communications (RS-232) port/p>

2. USB port

3. Emergency power off (EPO) connector

4. External maintenance bypass signal port

5. Intelligent card slot

6. Battery connector

7. Ground screw

8. Input circuit breaker

9. Input and output hardwiring terminals

  Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 10kVA/10kW double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.








Features: 1. Serial communications (RS-232) port/p>

2. Emergency power off (EPO) connector

3. Intelligent card slot

4. Battery disconnector

5. Maintenance Bypass switch

6. Input circuit breaker

7. Input and output hardwiring terminals

8. USB port



Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 4U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, W/ Rail Kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 4U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 10kVA/10kW double-conversion on-line pure sine wave 4U rackmount UPS

• High operating efficiency in energy-saving ECO mode

• Prolonged battery life with intelligent temperature-compensated charging

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.








Features: 1. Serial communications (RS-232) port/p>

2. USB port

3. Emergency power off (EPO) connector

4. External maintenance bypass signal port

5. Intelligent card slot

6. Battery connector

7. Ground screw

8. Input circuit breaker

9. Input and output hardwiring terminals



Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 10kVA/10kW double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV240BP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.








Features: 1. Serial communications (RS-232) port/p>

2. Emergency power off (EPO) connector

3. Intelligent card slot

4. Battery disconnector

5. Maintenance Bypass switch

6. Input circuit breaker

7. Input and output hardwiring terminals

8. USB port



Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/O rail kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

• 10kVA/10kW double-conversion on-line pure sine wave tower UPS

• High operating efficiency in energy-saving ECO mode

• Add up to 4 external battery packs (SRV240BP-9A) for extended runtime

• Easy-to-read LCD interface for detailed and accurate information on UPS status





APC Easy UPS 1 Ph Online Features

Generator Compatible
Ensure clean, uninterrupted power to the loads during an extended power range.

Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.





ECO Mode / Green Mode
Energy saving mode allows input voltage regulation range to be set/modified throug the LCD display.

Extended Runtime Models Available
Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications.





Wide Input Voltage Range
60% Load: 110-300VAC
Allows for unstable power environments and minimizes transfer to battery

Excellent Power Quality and Performance
True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads.





Flash Upgradeable Firmware
Allows for field updates of firmware via communication ports.

USB Port / Serial Port
Provides management of the UPS via USB/serial communication.





Overvoltage Cutoff Device Protection
Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan.

Intelligent Battery Management
Maximizes battery performance through intelligent precision temperature compensated charging.





High Power Factor
More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust
Conformal coated





Power Conditioning
Protects connected loads from surges, spikes, lightning and other power disturbances.

LCD/LED Display
Intuitive interface provides detailed and accurate information about UPS status with ability to configure locally.








Features: 1. Serial communications (RS-232) port/p>

2. USB port

3. Emergency power off (EPO) connector

4. External maintenance bypass signal port

5. Intelligent card slot

6. Battery connector

7. Ground screw

8. Input circuit breaker

9. Input and output hardwiring terminals



Additional information can be found in the Brochure PDF file

Installation information can be found in the User Guide PDF file

APC Easy UPS Lithium-ion External Battery Pack for 1/2/3kVA SRVL Extended runtime model, 48V 2400Wh, 2U Rackmount

Double-conversion On-line UPS with Lithium-Ion battery to scalable runtime. Ideal UPS for essential power protection needs even in the most unstable power conditions.

Includes

Power cable
Rack mounting brackets
RJ11 cable
Safety guide
User manual
APC Easy UPS On-Line Range Features High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

  ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

  Management Software

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

  Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

  Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



APC Easy UPS On-Line, 1000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/O rail kit

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 1000VA Extendeded runtime model Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 95% in ECO mode saves utility and cooling costs without compromising performance or reliability.

Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 36.3kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Rail kit, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Includes

Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C14 - Schuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
APC Easy UPS On-Line Range Features High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

  ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

  Management Software

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

  Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

  Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



APC Easy UPS On-Line, 1000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 1000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 95% in ECO mode saves utility and cooling costs without compromising performance or reliability.

Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 36.3kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Includes

Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C14 - Schuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
APC Easy UPS On-Line Range Features High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

  ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

  Management Software

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

  Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

  Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



APC Easy UPS On-Line, 2000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/O rail kit

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 2000VA Extendeded runtime model Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 96% in ECO mode saves utility and cooling costs without compromising performance or reliability.

Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 37.1kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Rail kit, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Includes

Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C20 - Schuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
APC Easy UPS On-Line Range Features High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

  ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

  Management Software

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

  Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

  Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



APC Easy UPS On-Line, 2000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 2000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 96% in ECO mode saves utility and cooling costs without compromising performance or reliability.

Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 37.1kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Includes

Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C20 - Schuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
APC Easy UPS On-Line Range Features High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

  ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

  Management Software

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

  Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

  Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended runtime, W/O rail kit

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 3000VA Extendeded runtime model Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 96% in ECO mode saves utility and cooling costs without compromising performance or reliability.

Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 38.3kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Rail kit, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Includes

Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C20 - Schuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
APC Easy UPS On-Line Range Features High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

  ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

  Management Software

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

  Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

  Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



APC Easy UPS On-Line, 3kVA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 + 1 IEC C19 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit

3kVA/2700W double-conversion on-line pure sine wave 4U rackmount UPS
Rack/Tower convertible (rail kit included)
Add up to 2 external battery packs (SRVL48RMBP2U) for extended runtime
Lithium-ion battery minimizes the need to replace battery during UPS lifetime
Graceful shutdown of servers and workstations
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets.

The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS.

The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.

Includes

Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C20 - Schuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
APC Easy UPS On-Line Range Features High efficiency

High efficiency rates that remain stable even at lower operating power levels

Generator Compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

  ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

  Management Software

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

  Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

  Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Key Specifications

Main Input/Output Voltage: 230 V
Other Input/Output Voltage: 220 V, 240 V
Rated power: 10000 W/VA
Output connector type: Hard wire 3-wire (1P + N + E) 1
Number of Rack unit: 5U
Includes:
1 USB cable, 1 RS-232 configuration cable
2 rack mounting brackets, 2 rack mounting support rails
1 external battery pack, 1 battery cable
User manual
*For complete specifications and features see the documentation tab above
