StarTech Dell Compatible SFP SMF Transceivers

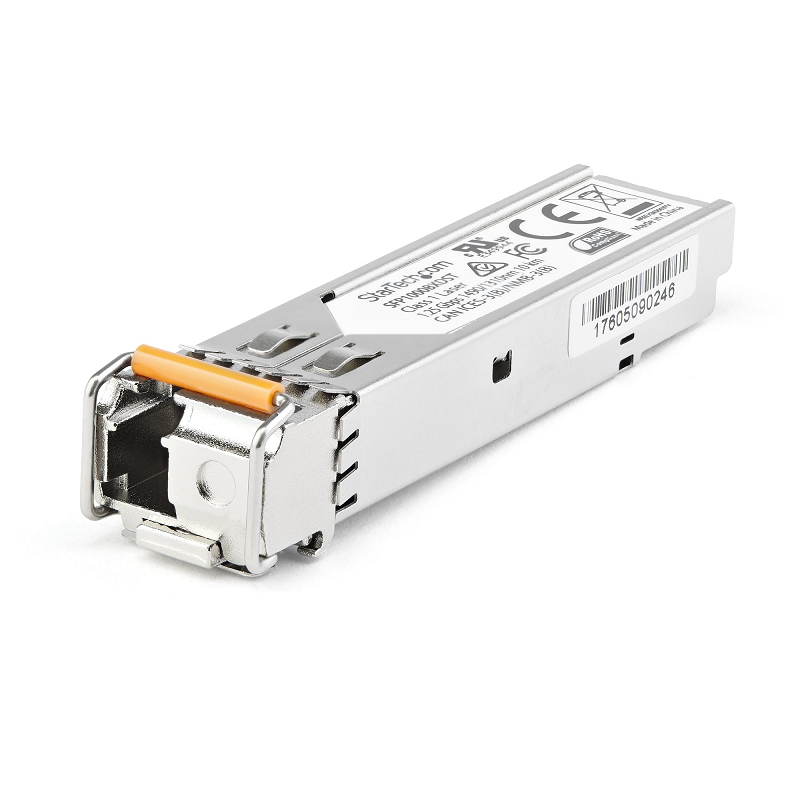

Dell EMC SFP-1G-BX10-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP1GBX10UES)

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP1GBX10UES is a Dell EMC SFP-1G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX10DES. They are designed, programmed and tested to work with 1000Base-BX10 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-1G-BX10-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 1000BASE-BX-U 1Gbps 1G Bi-Directional Upstream Single Mode (SMF) LC Connector 1310nmTx/1490nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1310nmTx/1490nmRx
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,713,222 hours
Power Consumption: < 1.3 W
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 1000 Mbit/s Interface type SFP Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3713222 h Brand compatibility Dell Tx wavelength (max) 1310 nm Rx wavelength (max) 1490 nm Maximum transfer distance 10000 m Maximum data transfer rate 1000 Mbit/s Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-10G-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP10GLREMST is a Dell EMC SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000Base-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-10G-LR COMPATIBLE SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
TECHNICAL SPECS: 10GBASE-LR 10Gbps Single Mode (SMF) LC Connector 1310nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Dell EMC routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1330 nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 38,631,862 hours
Power Consumption: < 1.3 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 38631862 h Brand compatibility Dell Maximum transfer distance 10000 m Wavelength 1310 nm Maximum data transfer rate 10000 Mbit/s Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No SFP transceiver standard LR Fiber ethernet cabling technology 10GBASE-LR

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-1G-BX40-D Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP1GBX40DES)

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The SFP1GBX40DES is a Dell EMC SFP-1G-BX40-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX40UES. They are designed, programmed and tested to work with 1000Base-BX40 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-1G-BX40-D COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 1000BASE-BX-D 1Gbps 1G Bi-Directional Downstream Single Mode (SMF) LC Connector 1490nmTx/1310nmRx Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1490nmTx/1310nmRx
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
MTBF: 3,713,222 hours
Power Consumption: < 1.6 W
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 1000 Mbit/s Interface type SFP Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3713222 h Brand compatibility Dell Tx wavelength (max) 1490 nm Rx wavelength (max) 1310 nm Maximum transfer distance 40000 m Maximum data transfer rate 1000 Mbit/s Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

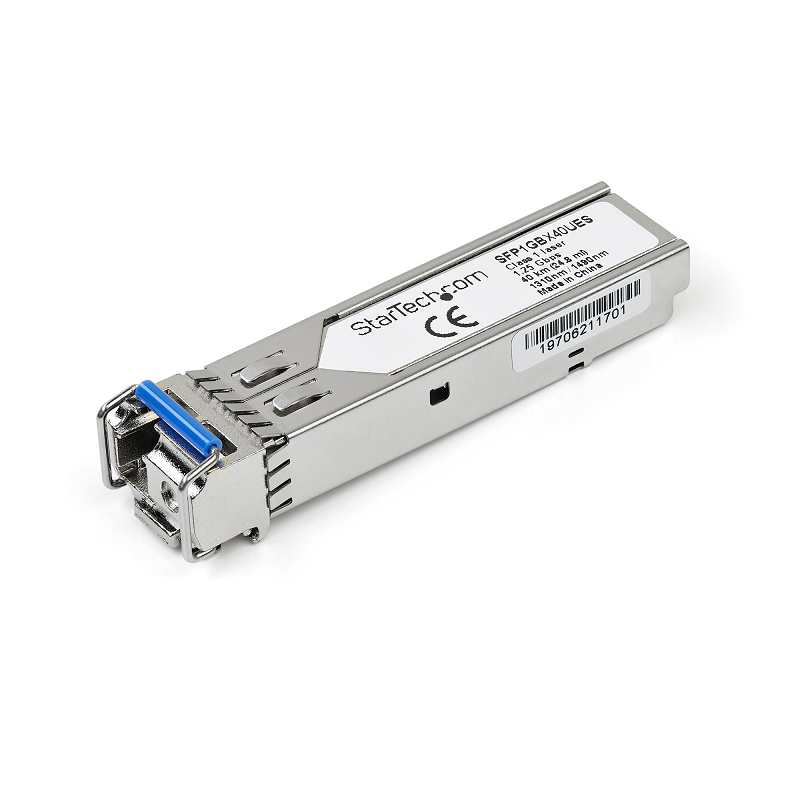

Dell EMC SFP-1G-BX40-U Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP1GBX40UES)

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The SFP1GBX40UES is a Dell EMC SFP-1G-BX40-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX40DES. They are designed, programmed and tested to work with 1000Base-BX40 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-1G-BX40-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 1000BASE-BX-U 1Gbps 1G Bi-Directional Upstream Single Mode (SMF) LC Connector 1310nmTx/1490nmRx Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1310nmTx/1490nmRx
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
Power Consumption: < 1.6 W
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 1000 Mbit/s Interface type SFP Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3713222 h Brand compatibility Dell Tx wavelength (max) 1310 nm Rx wavelength (max) 1490 nm Maximum transfer distance 40000 m Maximum data transfer rate 1000 Mbit/s Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-10G-BX10-U Compatible SFP+ Module - 10GBASE-BX-U - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP10GBX10US)

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP10GBX10US is a Dell EMC SFP-10G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBX10DS. They are designed, programmed and tested to work with 10GBase-BX10 compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-10G-BX10-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX-U 10Gbps 10G Bi-Directional Upstream Single Mode (SMF) LC Connector 1270nmTx/1330nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1330nmTx/1270nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,736,187 hours
Power Consumption: < 1.3 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3736187 h Brand compatibility Dell Tx wavelength (max) 1330 nm Rx wavelength (max) 1270 nm Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No Maximum transfer distance 10000 m Maximum data transfer rate 10000 Mbit/s

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-10G-BX10-D Compatible SFP+ Module - 10GBASE-BX-D - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP10GBX10DS)

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFP10GBX10DS is a Dell EMC SFP-10G-BX10-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBX10US. They are designed, programmed and tested to work with 10GBase-BX10 compatible Dell EMC switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-10G-BX10-D COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX-D 10Gbps 10G Bi-Directional Downstream Single Mode (SMF) LC Connector 1330nmTx/1270nmRx Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1270nmTx/1330nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,736,187 hours
Power Consumption: < 1.3 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Fiber optic connector LV

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3736187 h Brand compatibility Dell Tx wavelength (max) 1270 nm Rx wavelength (max) 1330 nm Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No Maximum transfer distance 10000 m Maximum data transfer rate 10000 Mbit/s

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

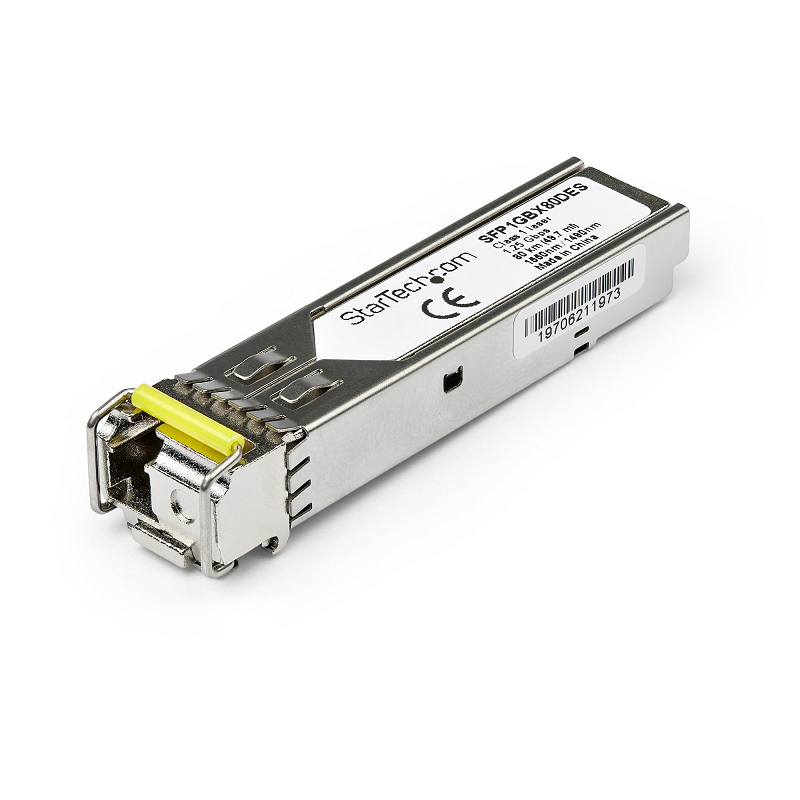

Dell EMC SFP-1G-BX80-D Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP1GBX80DES)

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

The SFP1GBX80DES is a Dell EMC SFP-1G-BX80-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80UES. They are designed, programmed and tested to work with 1000Base-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-1G-BX80-D COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 1000BASE-BX-D 1Gbps 1G Bi-Directional Downstream Single Mode (SMF) LC Connector 1550nmTX/1490nmRX Digital Diagnostic Monitoring (DDM) Distances up to 80km (49.7mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1550nmTX/1490nmRX
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 80 km (49.7 mi)
Power Consumption: Low power consumption
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 1000 Mbit/s Interface type SFP Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3713222 h Brand compatibility Dell Tx wavelength (max) 1550 nm Rx wavelength (max) 1490 nm Maximum transfer distance 80000 m Maximum data transfer rate 1000 Mbit/s Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-10G-BX40-U Compatible SFP+ Module - 10GBASE-BX-U - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP10GBX40US)

10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The SFP10GBX40US is a Dell EMC SFP-10G-BX40-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBX40DS. They are designed, programmed and tested to work with 10GBase-BX40 compatible Dell EMC switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-10G-BX40-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX-U 10Gbps 10G Bi-Directional Upstream Single Mode (SMF) LC Connector 1270nmTx/1330nmRx Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1270nmTx/1330nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
MTBF: 3,736,187 hours
Power Consumption: < 1.6 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3736187 h Brand compatibility Dell Tx wavelength (max) 1330 nm Rx wavelength (max) 1270 nm Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No Maximum transfer distance 40000 m Maximum data transfer rate 10000 Mbit/s

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-10G-BX40-D Compatible SFP+ Module - 10GBASE-BX-D - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP10GBX40DS)

10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The SFP10GBX40DS is a Dell EMC SFP-10G-BX40-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBX40US. They are designed, programmed and tested to work with 10GBase-BX40 compatible Dell EMC switches and routers. The SFP+ transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-10G-BX40-D COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
TECHNICAL SPECS: 10GBASE-BX-D 10Gbps 10G Bi-Directional Downstream Single Mode (SMF) LC Connector 1330nmTx/1270nmRx Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1270nmTx/1330nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
MTBF: 3,736,187 hours
Power Consumption: < 1.6 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Fiber optic connector LV

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 3736187 h Brand compatibility Dell Tx wavelength (max) 1270 nm Rx wavelength (max) 1330 nm Digital Diagnostics Monitoring (DDM) Yes Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No Maximum transfer distance 40000 m Maximum data transfer rate 10000 Mbit/s

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC QSFP-40G-LR4 Compatible QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber SMF Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1311nm - DDM

40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The QSFP40GLR4ES is a Dell EMC QSFP-40G-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBase-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC QSFP-40G-LR4 COMPATIBLE QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 40GbE connectivity
TECHNICAL SPECS: 40GBASE-LR4 40Gbps Single Mode (SMF) LC Connector 1311nm Digital Diagnostic Monitoring (DDM) Distances up to 10km (6.2mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Dell EMC routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1311 nm
Maximum Data Transfer Rate: 40 Gbps
Type: Single Mode
Connection Type: MPO Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 8,596,956 hours
Power Consumption: < 1.3 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 40000 Mbit/s Interface type QSFP+ Fiber optic connector MPO

Performance Product colour Silver Hot-swap Yes Hot-Plug support Yes Mean time between failures (MTBF) 8596956 h Brand compatibility Dell Maximum transfer distance 10000 m Wavelength 1311 nm Maximum data transfer rate 40000 Mbit/s Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 40 g

Logistics data Master (outer) case width 12 cm Master (outer) case length 20.5 cm Master (outer) case height 35 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-10G-ER Compatible SFP+ Module - 10GBASE-ER - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 40km - 1550nm - DDM

10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The SFP10GEREMST is a Dell EMC SFP-10G-ER compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-ER compliant networks, with a maximum distance of up to 40 km (24.8 mi).

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-10G-ER COMPATIBLE SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
TECHNICAL SPECS: 10GBASE-ER 10Gbps Single Mode (SMF) LC Connector 1550nm Digital Diagnostic Monitoring (DDM) Distances up to 40km (24.8mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Dell EMC routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1550 nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 40 km (24.8 mi)
MTBF: 38,631,862 hours
Power Consumption: < 1.6 Watt
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 38631862 h Brand compatibility Dell Maximum transfer distance 40000 m Wavelength 1550 nm Maximum data transfer rate 10000 Mbit/s Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No SFP transceiver standard ER Fiber ethernet cabling technology 10GBASE-ER

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the

Dell EMC SFP-10G-ZR Compatible SFP+ Module - 10GBASE-ZR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 80km - 1550nm - DDM

10 Gbps | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

The SFP10GZREMST is a Dell EMC SFP-10G-ZR compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBase-ZR compliant networks, with a maximum distance of up to 80 km (49.7 mi).

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.












Features:

100% DELL EMC SFP-10G-ZR COMPATIBLE SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
TECHNICAL SPECS: 10GBASE-ZR 10Gbps Single Mode (SMF) LC Connector 1550nm Digital Diagnostic Monitoring (DDM) Distances up to 80km (49.7mi)
TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Dell EMC routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself - not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules







StarTech.com SFPs: All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.




Technical Specifications:

Wavelength: 1550 nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode
Connection Type: LC Connector
Maximum Transfer Distance: 80 km (49.7 mi)
MTBF: 38,631,862 hours
Power Consumption: Low power consumption
Digital Diagnostics Monitoring (DDM): Yes







Network SFP transceiver type Fiber optic Maximum data transfer rate 10000 Mbit/s Interface type SFP+ Fiber optic connector LC

Performance Product colour Silver Hot-swap Yes Mean time between failures (MTBF) 38631862 h Brand compatibility Dell Maximum transfer distance 80000 m Wavelength 1550 nm Maximum data transfer rate 10000 Mbit/s Single-mode fiber (SMF) supported Yes Multi-mode fiber (MMF) supported No SFP transceiver standard ZR Fiber ethernet cabling technology 10GBASE-ZR

Weight & dimensions Width 58.4 mm Depth 13.9 mm Height 12.6 mm Weight 30 g

Logistics data Master (outer) case width 9 cm Master (outer) case length 11.5 cm Master (outer) case height 3.1 cm Quantity per master (outer) case 1 pc(s) Full specification and details can be found in the
