PoE Injectors & Splitters

Low-cost passive PoE base unit for powering passive PoE devices over ethernet (Gigabit - 10/100/1000 Mbps). Simply connect your power source to the injector, and then use an ethernet cable to connect the injector to the RouterBOARD device. Helps reduce the number of cables required in an installation.

Can be used to power and communicate with RouterBoard devices that support 9-48V PoE.

MikroTik RBGPOE Specifications:

Current: 2A
Input Voltage: 9 - 48 V
License level: 0
Output Voltage: Same as input

The Mikrotik GESP+PoE-IN is a passive POE injector from the surge-protecting GESP product line.

You can’t buy safety, but you can buy MikroTik devices to keep your setup safe.

Here’s what a typical use-case would be like. You have a mast with some antennas. And some switches on the ground. Put the GESP surge protector up there. It comes sealed inside a new and improved IP67 weatherproof enclosure. Your antennas are now safe during a lightning storm. Now add the GESP+POE-IN injector below the mast - to protect the switches and to power the antennas.

Don’t forget about the grounding wire! Secure it to the rackmount, mast, or any other structure that is connected to the ground. For maximum protection, you should use a surge protector on both ends of long cables.

These tiny devices can make all the difference when it comes to lightning strikes or static build-up.

The GESP units can usually absorb multiple impacts, but make sure to check their condition after each surge. For attachment of GESP units, we recommend using PVC zip ties.

The GESP+PoE-IN is designed to be combined with the existing RBGESP Enclosure to provide maximum security and peace of mind.

The MikroTik GPEN11 is a wall-mountable passive PoE power injector, designed for WISPs to power CPE back-bone equipment. The GPEN11 is part of the GPEN (Gigabit Passive Ethernet Network) concept, which aims to replace GPON installations with lower cost and more easy to deploy ethernet alternative.

It even has a designated space for an ISP sticker on the front. Sticker size: 6,6 x 2,54 cm.

Specifications:


1G 10/100/1000 Ethernet ports: 2
Number of 1G Ethernet ports with PoE-out: 1
Number of DC inputs: 1 (DC jack)
PoE-out port: Ether2
PoE out: Passive PoE
Supported input voltage: 12 - 57 V
Dimensions: 92 x 104 x 24 mm
Operating temperature: -40°C to 70°C


Please note: this unit does not include a PSU

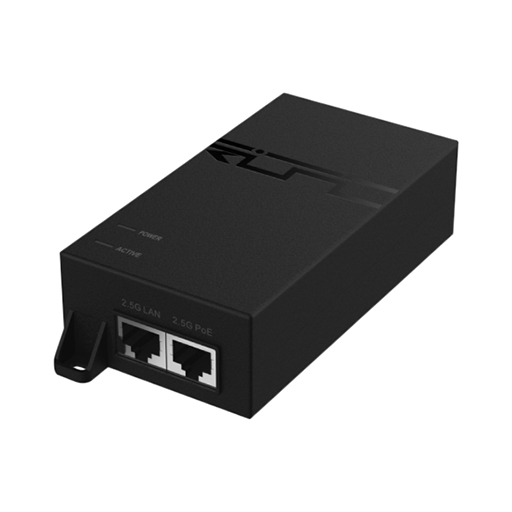

The Ruijie Reyee RG-POE-50-60W-MG PoE Injector delivers a reliable 56V DC output at 1.08A, ensuring consistent power for network devices. With a versatile 100-240V AC input range, it supports an input current of 1.5A at 120VAC and 1.2A at 240VAC. The injector features a low inrush current of under 60A peak at 120VAC for smooth startup. Its 4-pair powering configuration (Pins 1, 2, 4, 5 +; Pins 3, 6, 7, 8 -) optimizes power delivery and enhances network performance.

Highlights Stable and high-performance power supply for access points.
Adapted for a range of environmental temperatures.
Better surge protection range.
Compatible with the following products:
RG-RAP2260(H)
RG-RAP6260(H)
RG-RAP6260(H)-D

Note: Minimum Order Quantity for this product is: 2

The Veracity VOR-OB12 OUTBREAK PoE Splitter is designed to draw power from a PoE-enabled network connection and convert it into a stable 12V DC output while continuing to pass through Ethernet data. It is commonly used to support non-PoE devices within PoE infrastructure, reducing the need for separate local power supplies and simplifying device placement in structured network installations.

Key Features of Veracity VOR-OB12 Simple POE splitter delivering clean power to non-POE devices
Fully IEEE 802.3af compliant and gigabit compatible
Compact unit with integral wall mount lugs
Ideal for non-POE wireless access points, IP phones, IP cameras
Power Conversion Capability The unit extracts power directly from a PoE source and delivers a regulated 12V DC supply. This allows equipment that does not natively support PoE to operate within a single-cable network setup without additional local adapters.

Installation Use Case The splitter is suited to environments where PoE switches are already deployed but end devices require traditional DC input. It is typically installed inline between the PoE source and the powered device, supporting flexible equipment placement across a network layout.

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.

The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet.

D-Link's DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance.

Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.

1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)

Scale your Power over Ethernet connection by 100m, or daisy chain up to four extenders for longer distance

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.










Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.




Unrestricted PoE+ range and convenience Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.

Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you’re all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ injector (POEINJ1G) or PoE+ switch (IES81000POE).




Daisy chain for longer distance and flexibility Still need more distance? If an extra 100m isn’t enough, this full-featured PoE extender offers daisy chain capability.

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It’s perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).












Convenient installation options and durable construction Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.

You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.





Applications:

Ideal for Wi-Fi access points, IP phones, surveillance cameras, and kiosks where a power connection is not available
Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities
Perfect for SOHO, SMB, system integrators, and IT administrators









Features:

Deploy and access your Gigabit PoE-powered devices (PD) further away
Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
Compact, wall-mountable, and rugged metal housing for convenience and reliability
2kV ESD and surge protection
Plug-and-play setup with no power adapter required
IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
52V to 56V output voltage
Automatically detects your connected PD to prevent damage if incorrectly installed










Product Overview:







Performance Jumbo frames support No Duplex system Full, Half Plug and Play Yes Type Network repeater Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 2000 Mbit/s Mean time between failures (MTBF) 50000 h Auto MDIX IEEE Yes Auto-negotiation Yes
Technical details Jumbo frames support No Duplex system Full, Half Plug and Play Yes LED indicators Activity, Link, PoE Type Network repeater Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 2000 Mbit/s Auto MDIX IEEE Yes Auto-negotiation Yes Sustainability certificates RoHS
Network Cabling technology 10/100/1000Base-T(X) Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Ports & interfaces Power over Ethernet (PoE) ports quantity 2
Design Housing material Steel LED indicators Activity, Link, PoE Certification CE, FCC, TAA, REACH Product colour Black
Power Power consumption (max) 3.2 W Power over Ethernet (PoE) Yes AC input voltage 52 - 56 V
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 85 °C Operating relative humidity (H-H) 5 - 95 %
Weight & dimensions Width 69 mm Depth 94 mm Height 25 mm Weight 193 g
Packaging data Package width 135 mm Package depth 205 mm Package height 70 mm Package weight 343 kg Full specification and details can be found in the

4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af

Deliver power and data to four Power over Ethernet devices using this wall-mountable PoE+ midspan hub

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices — such as IP cameras — using standard Ethernet cable.













More power, with less cost and hassle This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power — up to 30.8W — from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.




Easy to set up in mixed environments This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.




Convenient, protected connections Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech.com 2-year warranty and free lifetime technical support.





Product Overview:








Applications:

Ideal for high-power PoE+ devices requiring Gigabit speeds such as PTZ (Pan, Tilt, Zoom) cameras and Wi-Fi access points (WAP)
Enable remote installation of touchscreens, information kiosks, and phones in locations where a power connection is not available
Perfect for SOHO, SMB, system integrators, and IT administrators









Features:

Easily connect, power, and operate up to four Gigabit PoE-powered devices (PD)
Delivers full power to each port — up to 30.8 watts (802.3at) or 15.4 watts (802.3af) to each connected device
Flexible setup, with a desktop-sized, or wall-mountable metal housing
Plug-and-play setup and operation
Automatically detects the powered device to provide the appropriate level of power output
Circuit protection prevents power interference between each port
Support for 10/100/1000 Mbps networks and devices, as well as Auto-Negotiation and auto-MDIX










Product Drawing:







Performance Duplex system Full Plug and Play Yes Type Network transmitter Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 100 m Mean time between failures (MTBF) 50000 h Auto MDIX IEEE Yes Auto-negotiation Yes
Technical details Duplex system Full Plug and Play Yes LED indicators PoE, Power Type Network transmitter Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 2000 Mbit/s Auto MDIX IEEE Yes Auto-negotiation Yes Sustainability certificates RoHS
Network Cabling technology 10/100/1000Base-T(X) Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ports & interfaces Power over Ethernet (PoE) ports quantity 4 DC-in jack Yes Ethernet LAN (RJ-45) ports 8
Design Housing material Steel LED indicators PoE, Power Certification CE, FCC Product colour Black
Power Power consumption (max) 120 W Power plug type Type M Power over Ethernet (PoE) Yes AC input voltage 100 - 240 V Output voltage 52 V Output current 2.31 A
Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 95 %
Weight & dimensions Width 70 mm Depth 94 mm Height 26 mm Weight 204 g
Packaging data Package width 180 mm Package depth 305 mm Package height 90 mm Package weight 1.63 kg AC adapter included Yes Manual Yes Cables included AC Full specification and details can be found in the

A new, lower cost, passive PoE base unit for powering passive PoE devices over ethernet (for 10/100Mbps products).

Simply connect your power source to the injector, and then use an ethernet cable to connect the injector to the RouterBOARD device. Helps to reduce the number of cables required in an installation.

For use with MikroTik RouterBoards that support 10-28V PoE powering, input needs to be at least 18V to accomodate any losses in cables.

MikroTik RBPOE Specifications:



Input Voltage10 - 28 V
License level - 0
Output Voltage - Same as input

The Ruijie Reyee RG-POE-AF15 GbE PoE Injector is engineered to provide efficient and reliable power to network devices. Delivering 52V DC at 0.3A, it ensures a steady power flow for devices that require consistent energy. Its input range of 100-240V AC at 50/60Hz and an input current of 0.5A (Max) offer broad compatibility, while the injector’s inrush current remains below 80A at 230V AC, ensuring a smooth start-up. Featuring a 2-pair powering configuration (Pins 4, 5 +; Pins 7, 8 -), it enhances power delivery for optimal network performance.

Highlights Stable and high-performance power supply for access points.
Adapted for a range of environmental temperatures.
Better surge protection range.
Compatible with the following products:
RG-RAP1201
RG-RAP1200(P)
RG-RAP1200(F)
RG-RAP6202(G)
RG-RAP2200(E)

The Ruijie Reyee RG-POE-AT30 GbE PoE Injector is built to deliver reliable and efficient power to network devices. With an output of 52V DC at 0.60A, it ensures a stable power supply for connected devices. The injector supports a wide input voltage range of 100-240V AC at 50/60Hz, with a maximum input current of 0.7A, and maintains an inrush current of 100A at 230V AC for smooth startup. Featuring a 2-pair powering configuration (Pins 4, 5 +; Pins 7, 8 -), it optimizes power delivery for improved network performance.

Highlights Stable and high-performance power supply for access points.
Adapted for a range of environmental temperatures.
Better surge protection range.
Compatible with the following products:
RG-RAP1200(F)
RG-RAP1200(P)
RG-RAP1201
RG-RAP1260
RG-RAP1261
RG-RAP2200(F)
RG-RAP2200(E)
RG-RAP2260
RG-RAP2260(G)
RG-RAP2260(E)
RG-RAP2266
RG-RAP6202(G)
RG-RAP6260(G)
RG-RAP6262
RG-RAP6262(G)

Note: Minimum Order Quantity for this product is: 2

Veracity's OUTBREAK lets you upgrade network equipment such as IP cameras to be fully POE compatible.

Simply connect OUTBREAK in line with the IP camera's network connection, and wire its DC output to the camera's power input. The camera can then connect to the network while OUTBREAK converts Power over Ethernet to the lower-voltage supply it requires.

Key Features of Veracity VOR-OB5 Converts IEEE 802.3af PoE input into regulated 5V DC output
Maintains full Ethernet data pass-through for connected devices
Supports 10/100/1000 Mbps network speeds
Designed for low-power IP equipment compatibility
Built-in protection against electrical irregularities
Compact form factor suitable for tight installation spaces
Power Handling Receives power directly from a PoE-enabled switch or injector and delivers a regulated 5V DC output suitable for devices requiring low-voltage input, while maintaining stable operation across typical network loads.

Network Support Passes Ethernet data through without interruption, supporting standard Gigabit network communication, ensuring connected devices retain full network performance alongside power delivery.

Power and data to your network device

AXIS T8120 Midspan 15 W 1-port is a compact and flexible solution for your PoE-based network devices. It is compliant with IEEE 802.3af (15W).

The midspan can be installed on a wall, shelf, or DIN rail with an accessory DIN clip.

IEEE 802.3af
Reduced installation costs
Plug-and-play

SonicWave 02-SSC-0004 Global Multi-Gigabit PoE+ Injector (802.3AT)

1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af

Deliver power and data to your Power over Ethernet device using this mountable PoE+ midspan










This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).


The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.




Convenience and cost savings This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.




Easy to set up in mixed environments You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.

Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.




Intelligent power allocation Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.

The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.





Product Diagram:








Applications:

Ideal for high-power PoE+ devices requiring Gigabit speeds such as PTZ (Pan, Tilt, Zoom) cameras and Wi-Fi access points (WAP)
Enable remote installation of touchscreens, information kiosks, and phones in locations where a power connection isn’t available
Perfect for small and home offices, as well as SMB applications, including system integrations, and IT administration









Features:

Easily connect, power, and operate a Gigabit PoE-powered device (PD)
Supplies up to 30-watts power output
Flexible setup, with a desktop-sized, or surface-mountable housing
Save money by using your existing Cat5 or better Ethernet cable
Fast, plug-and-play setup and operation, with no configuration required
Provides one PoE+ (PSE, power and data) 10/100/1000Mbps compliant RJ45 port - 802.3at and 802.3af
Integrates shielded RJ45 connectors
Automatically detects the powered device to provide the appropriate level of power output









Network Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u Duplex system Full Power over Ethernet (PoE) Yes Ethernet LAN data rates 10, 100, 1000 Mbit/s Ethernet interface type Gigabit Ethernet Cable types supported Cat5 Power over Ethernet (PoE) voltage 48 V
Features Plug and Play Yes Maximum operating distance 100 m Product colour Black Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u LED indicators Power Certification RoHS, CE, FCC
Ports & interfaces DC-in jack Yes Ethernet LAN (RJ-45) ports 2
Power Output power 30 V Output current 0.64 A Power consumption (max) 36 W Power over Ethernet (PoE) voltage Yes Input voltage 100 - 240 V Input current 0.75 A Ethernet LAN data rates 10, 100, 1000 Mbit/s Ethernet interface type Gigabit Ethernet
Operational conditions Operating temperature (T-T) -20 - 85 °C Storage temperature (T-T) 0 - 45 °C Operating relative humidity (H-H) 10 - 90 %
Weight & dimensions Width 63 mm Depth 70 mm Height 25 mm Weight 52 g
Packaging data Package width 230 mm Package depth 190 mm Package height 76 mm Package weight 1.04 kg Power cord included Yes Quick installation guide Yes Full specification and details can be found in the

Note: Minimum Order Quantity for this product is: 5

Ethernet Extender for non-POE connections OUTREACH Lite provides a simple way to double the length of a 10/100 Ethernet connection. No configuration is required, it does not require a local power supply, and it does not restrict the throughput of the network link at all.

Compact and wall-mountable, OUTREACH Lite takes its power from the network cable using the universal 802.3af Power over Ethernet (POE) standard. Network connections can easily be upgraded to POE compatibility if it is not already available using a simple injector.

Note: OUTREACH Lite is powered by POE but does not forward it to other equipment. To extend network connections to devices that need POE or POE Plus, see Veracity's OUTREACH Max POE-forwarding Ethernet extender.

Rapid installation

Extending network cable runs from an existing POE switch port is as simple as connecting OUTREACH Lite in-line with the cable.  Cable runs of up to 200 metres (656 feet) in length are possible, by using a single OUTREACH Lite to connect two individual sections of up to 100 metres (328 feet) each.

Veracity's OUTREACH Lite Ethernet extender requires no external power supply.  It simply has two network ports which configure automatically on connection for network speed, duplex and crossover.

If no POE is available on the network, Veracity's OUTSOURCE injector can easily be added at either end of the connection.  No other equipment is required by end devices, as all Cat5/Cat6 links are regular Ethernet connections.

Full-bandwidth Ethernet extender

Because OUTREACH Lite repeats the Ethernet signal before it can degrade, the network can be extended without any restriction on its data capacity.  Thus the 200Mbit/s bandwidth of regular full-duplex 100BASE-T Ethernet is maintained, for maximum reliability and predictability of operation.

Go further

OUTREACH Lite can be used in combination with Veracity's OUTREACH Max POE-forwarding Ethernet extender, to create connections of 300 metres, 400 metres or even further.

For example, to extend a 100BASE-T connection to 400 metres (1312 feet) without any bandwidth restriction, two OUTREACH Max units would be located at 100 metre intervals, followed by an OUTREACH Lite. POE from the switch or injector would be forwarded by the OUTREACH Maxes as far as the OUTREACH Lite, so no power connections would be required along the connection.

This technique can be used to create unrestricted Cat5 network connections of greater than 2km (1.25 miles) in length if required.  See Veracity's "Long Range Ethernet Extension" application note for more information.



Key technical features:

Range:
At least 200m using a single OUTREACH Lite
Up to 2200m when used with combinations of OUTSOURCE and OUTREACH Max

Network:
10BASE-T / 100BASE-TX, full/half duplex (auto-negotiated)
Patch or crossover cables

POE in:
IEEE 802.3af Class 2 powered device
Device power 1.3 watts

POE out:
Not supported in OUTREACH Lite

Dimensions:
L 105mm x W 40mm x H 22mm

Applications:

IP Video

Use OUTREACH Lite to extend network connections to IP video cameras that are locally powered and only require an Ethernet connection without POE.

OUTREACH Lite and OUTREACH Max can also be used to upgrade legacy twisted-pair video installations to IP, where the Cat 5 infrastructure for a network is already in place, but run lengths exceed the 100 meter limit for Ethernet.

All cabled network installations

OUTREACH Lite can be buried, located in conduits and plenum spaces, or wall mounted wherever network cable needs to run.  Because OUTREACH Lite draws its own power from a POE source in the network closet, reliability and flexibility are maximised.

AXIS 30 W Midspan AC/DC

When mains power is not an option, 30 W



• 24 V AC and 10-28 V DC input

• IEEE 802.3af and 802.3at output

• Compatible with Axis PoE devices

• Flexible installation

• Plug-and-play


AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power.


24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras.


10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.




System example:







Features Wall mountable Yes Product colour Black LED indicators Yes Technical details Input voltage 10-18 V Ethernet LAN data rates 10,100,1000 Mbit/s Ethernet interface type Fast Ethernet, Gigabit Ethernet Doesn't contain PVC Power Ethernet LAN (RJ-45) ports 2 RJ-45 input ports 1 RJ-45 output ports 1 Operational conditions Operating temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 0 - 95 % Storage temperature (T-T) -40 - 75 °C

Note: Minimum Order Quantity for this product is: 2

Ethernet is the ubiquitous technology for Local Area Network (LAN) installation, and the majority of networks in place use the 100Base-TX network standards. (A Gigabit version of OUTREACH Lite XT is also available).

However, many security installations demand network connections that exceed the maximum 100 metres (328 feet) distance limit for wired Ethernet.

The Veracity VOR-ORL-XTOUTREACH Lite XT provides an instant solution to this restriction. Simply connect an OUTREACH Lite XT in line with the network cable - adding a Power over Ethernet (POE) injector if required - to double the available range to 200 metres (656ft).

Key Features of Veracity VOR-ORL-XT IP66/67 Nema 4X/6P tough enclosure for external installation
Instantly doubles cable range to 200 metres
Extend an additional 100 metres per unit with multiple units
Powered by POE (Power over Ethernet)
Easy to fit cable seals for cables with existing RJ45 plugs
Universal 10/100 compatibility (Gigabit available)
Secure wall mounting with detachable bracket
Simple installation OUTREACH Lite XT takes advantage of the universal 802.3af/at/bt POE standards, so it can draw its own power from the network connection. No local power is required, so OUTREACH Lite XT can be located exactly where needed. If your network switch has POE, simply connect OUTREACH Lite XT up to 100 metres from the switch, and it will deliver another 100 metres reach over regular Cat5e or similar cable (Diagram 1).

If POE is not available, the link can easily be upgraded using a low-cost POE injector such as Veracity's OUTSOURCE (Diagram 2). No set-up or network configuration is required, as OUTREACH Lite XT automatically sets up network speed, duplex and crossover on connection, and does not require an IP or MAC address.

Go further If a network extension beyond 200 metres (656ft) is required, Veracity's OUTREACH Max XT may be installed to extend Ethernet and POE to OUTREACH Lite XT. For example, a 300 metre (984ft) connection between a POE switch and another network device can be achieved by fitting an OUTREACH Max XT at 100 metres along the cable, followed by 100m then an OUTREACH Lite XT, and up to 100m to the non POE networked end-point device.

For longer Ethernet runs, Veracity recommends LONGSPAN long distance point-to-point devices, which can achieve 100Base-TX connections with POE at up to 820m (2,690ft).

No restrictions Because OUTREACH Max XT and OUTREACH Lite XT simply restore the network connection every 100 metres, the full (100Mbit/s) bandwidth of 100Base-TX Ethernet is maintained across the entire link. This maximises performance and transparency, with no risk of a reduced or unpredictable bandwidth, even at distances of several hundred metres or more.

Note: Minimum Order Quantity for this product is: 4

Outdoor Ethernet and POE Extender

OUTREACH G models as these support full gigabit data rates Simply connecting an OUTREACH Max XT in line with the network cable instantly doubles the Ethernet range from 100 to 200 metres,and forwards POE to the connected devices.

OUTREACH Max XT overcomes the distance limits of normal gigabit Ethernet.

OUTREACH Max XT outdoor-rated network extender for POE devices up to 60 watts, including IP67, Nema 4X/6P rated connector covers and 2/4 bolt wall-mounting bracket

OUTREACH Max XT lets you locate your external IP camera or wireless transmitter right where you want it, without being restricted by the 100metre (328 feet) limit for Ethernet cables.

Based on Veracity's established OUTREACH Max extender, compatibility with regular 802.3af POE, 802.3at POE plus and 802.3bt High power POE is assured, with no configuration or setup required.

Its rugged and streamlined enclosure features IP67, NEMA 4X/6P rated connector covers that assemble easily around conventionally terminated Cat 5e and Cat 6 cables.

Guaranteed operation over an extended temperature range and versatile mounting options mean OUTREACH Max XT is suited to a wide range of installation scenarios.

And inter-building network links or extension to non-POE equipment is also supported, with Veracity's OUTREACH Lite XT model.



Network, POE and Range:

See the OUTREACH Max page for OUTREACH Max XT specifications
See the OUTREACH Lite page for OUTREACH Lite XT specifications
Environmental:


Ambient temperature -40C to 70C / -40F to 158F
Relative humidity up to 85% non-condensing
Ingress protection to IP67, NEMA 4X/6P enclosure polycarbonate
Dimensions:

W 50mm x H 31mm x L 125mm (210mm with connectors fitted)
Mounting plate 74 x 64 x 2mm

Applications:

OUTREACH Max XT Ethernet extenders are ideal for IP video applications, as they eliminate the one disadvantage that network cameras have compared to older analogue cameras: the limited cable length. As POE is becoming universal in digital video installations, Cat 5 cable extension is as simple as connecting an OUTREACH Max XT wherever it is needed.

OUTREACH Max XT can also be used to upgrade legacy twisted-pair video installations to IP with POE, where the Cat 5 infrastructure for a network is already in place, but run lengths exceed the 100 meter limit for Ethernet.

PTZ cameras, heater/blower units and door interlocks are all examples of products that are adopting the extended-power POE Plus standard that OUTREACH Max XT also supports.

Wireless networking

Like IP cameras, wireless access points (WAPs) are ideally suited to POE as they must be positioned optimally in locations that are often inaccessible or remote. Using OUTREACH Max XT, a WAP - or Bluetooth access point or RFID reader - can be located just where it is needed for optimal coverage.

High-power radios and 802.11n APs can take advantage of the POE Plus power which OUTREACH Max XT supports.

Extending non-POE networks

OUTREACH Max XT can be used in combination with OUTREACH Lite XT to extend networks without POE from 300 meters to over 2 kilometers.

Note: Minimum Order Quantity for this product is: 4

The Veracity VOR-ORL-GXT OUTREACH Lite G XT is a compact inline Ethernet extender designed to carry Gigabit network traffic beyond standard cable limits using Power over Ethernet for its own operation. It is intended for installations where long cable runs are required and where local power at the extension point is not practical, supporting stable data transmission across extended distances in structured network deployments.

Key Features of Veracity VOR-ORL-GXT IP66/67 Nema 4X/6P tough enclosure for external installation
Instantly doubles gigabit cable range to 200 metres
Extend an additional 100 metres per unit with multiple units
Powered by POE (Power over Ethernet)
Easy to fit cable seals for cables with existing RJ45 plugs
Universal 10/100/1000 compatibility
Secure wall mounting with detachable bracket
Simple installation OUTREACH Lite GXT takes advantage of the universal 802.3af/at/bt POE standards, so it can draw its own power from the network connection. No local power is required, so OUTREACH Lite GXT can be located exactly where needed.

If your gigabit network switch has POE, simply connect OUTREACH Lite GXT up to 100 metres from the switch, and it will deliver another 100 metres’ reach over regular Cat5e or similar cable (Diagram 1). If POE is not available, the link can easily be upgraded using a low-cost POE injector such as Veracity's OUTSOURCE 30 (Diagram 2) which is gigabit compatible.

No set-up or network configuration is required, as OUTREACH Lite GXT automatically sets up network speed, duplex and crossover on connection, and does not require an IP or MAC address.

Go further If a network extension beyond 200 metres (656 feet) is required, Veracity's OUTREACH Max GXT may be installed to extend Ethernet and POE to OUTREACH Lite GXT. For example, a 300 metre (984 feet) connection between a gigabit POE switch and another network device can be achieved by fitting an OUTREACH Max GXT at 100 metres along the cable, followed by 100m then an OUTREACH Lite GXT, and up to 100m to the non POE networked end-point device (such as another switch or a Wireless Access Point).

For longer Ethernet runs, Veracity recommends LONGSPAN long distance point-to-point devices, which can achieve 100Base-TX connections with POE at up to 820m (2,690ft).

No restrictions Because OUTREACH Max GXT and OUTREACH Lite GXT simply restore the network connection every 100 metres, full gigabit bandwidth Ethernet is maintained across the entire link. This maximises performance and transparency, with no risk of a reduced or unpredictable bandwidth, even at distances of several hundred metres or more.

Note: Minimum Order Quantity for this product is: 2

The Veracity VLS-LSM-B LONGSPAN Max (Base) is designed to extend Ethernet and PoE far beyond standard network limits, making it well suited for demanding installations where distance and power delivery are critical. Acting as the base unit in a LONGSPAN Max link, it enables full-bandwidth data transmission alongside high-power PoE over a single cable. Its automatic configuration and consistent performance make it a practical choice for connecting remote IP devices such as cameras and access points across large sites.

Key Features of Veracity VLS-LSM-B LONGSPAN® enhanced with 90W POE capability (802.3bt)
Long range point-to-point Ethernet over Cat5e or Cat6 cable
Unrestricted 100Base-TX with POE at over 820 metres
Can deliver 60W at 250 metres, 40W at 390 metres
Ruggedised for high performance over a wide temperature range
Smart POE power and diagnostic display for reliable installation
Fully automatic, simple to install and maintenance-free
Veracity LONGSPAN Max Base

Veracity LONGSPAN Network Extender - Network (RJ-45) - 820 m Extended Range

Maximum POE power and bandwidth over extreme distances for IP cameras

LONGSPAN Max™ adds 90W POE power capability to the extremely successful LONGSPAN™ range of long-distance network extenders for Cat5e or Cat6 cable.

Maximum power, full-speed long-range Ethernet link with SAFEVIEW® diagnostics

LONGSPAN Max delivers unrestricted 100Base-TX with 802.3bt high power POE at distances far beyond the normal Ethernet limits for problem-free external PTZ IP camera installation



Features: • Connect a LONGSPAN Max Base to a LONGSPAN Max Camera and then to a POE camera, or other POE device

• CAT6 cable is recommended for increased POE delivery at distance.

• In this configuration, the LONGSPAN Max Base unit must be powered by a separate Veracity 54-57V DC power supply for maximum power.

• The LONGSPAN Max Base unit can output a maximum of 90W POE depending upon the optional PSU

• LONGSPAN Max Base can be used to power a LONGSPAN Max Camera or a LONGSPAN Max Quad at the device end










COMPATIBILITY LONGSPAN Max models are compatible with all of the standard LONGSPAN Base 8, LONGSPAN Base, Camera and Lite models.

For full details of distances, available POE and the recommended power supplies, please see the tables in the LONGSPAN Max Application Notes and Veracity Datasheets



POE POWER BUDGET The Veracity 54-57V DC power supplies provide maximum range and Hi-POE power budget at the camera end.

For maximum POE delivery, especially when using with a LONGSPAN Max Quad, the LONGSPAN Max Camera end device can be powered locally with a Veracity 54-57V PSU of up to 240W.



LONG RANGE ETHERNET & Hi-POE


Connect a LONGSPAN Max Base to a LONGSPAN Max Camera and then to a POE camera, or other POE device.

CAT6 cable is recommended for increased POE delivery at distance.

In this configuration, the LONGSPAN Max Base unit must be powered by a separate Veracity 54-57V DC power supply for maximum power.

The LONGSPAN Max Base unit can output a maximum of 90W POE depending upon the optional PSU.

LONGSPAN Max Base can be used to power a LONGSPAN Max Camera or a LONGSPAN Max Quad at the device end.

Note: Minimum Order Quantity for this product is: 5

The Veracity VLS-LSM-C is a camera-side unit within the LONGSPAN MAX range, designed to carry Ethernet data and PoE power over extended distances using standard Cat5e or Cat6 cabling. It is commonly used in IP surveillance setups where long cable runs are required between the network switch and the camera location, allowing both connectivity and power to be delivered through a single link.

Key Features of Veracity VLS-LSM-C LONGSPAN™ enhanced with 90W POE capability (802.3bt).
Long range point-to-point Ethernet over Cat5e or Cat6 cable
Unrestricted 100Base-TX with POE at over 820 metres
Can deliver 60W at 200 metres, 40W at 350 metres
Ruggedised for high performance over a wide temperature range
Smart POE power and diagnostic display for reliable installation
Fully automatic, simple to install and maintenance-free
Veracity LONGSPAN Max Camera

Veracity LONGSPAN Network Extender - Network (RJ-45) - 820 m Extended Range

Maximum POE power and bandwidth over extreme distances for IP cameras

LONGSPAN Max™ adds 90W POE power capability to the extremely successful LONGSPAN™ range of long-distance network extenders for Cat5e or Cat6 cable.

Maximum power, full-speed long-range Ethernet link with SAFEVIEW® diagnostics

LONGSPAN Max delivers unrestricted 100Base-TX with 802.3bt high power POE at distances far beyond the normal Ethernet limits for problem-free external PTZ IP camera installation







The Power and Bandwidth your IP Camera Needs, at Exceptional Distances LONGSPAN delivers unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices.

LONGSPAN is a point-to-point solution. It self-configures for the best performance. No set up or configuration is required. LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.

LONGSPAN offers unrestricted 100Base-TX at a phenomenal 820 metres range, with POE-equipped models delivering full-power 802.3at POE Plus at 600 metres, LONGSPAN assures reliability in the most challenging scenarios.

LONGSPAN is available in POE and data-only models. It is also available in high power Max single and Quad versions for the base and camera ends. See Documentation Tab for all datasheets including LONGSPAN Base 8, LONGSPAN Max and LONGSPAN Max Quad datasheets.



Unrivalled range, uncompromised bandwidth IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That's why LONGSPAN has been designed to support the full 200Mbps bandwidth required for reliable 100Base-TX Ethernet at up to 820 metres Cat 6 (or 690 metres Cat 5e).

For even more extreme distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres, over ten times the conventional limit for cabled Ethernet.



More power, much further LONGSPAN models with POE can be powered from conventional IEEE 802.3af POE or 802.3at POE Plus and 802.3bt High Power POE switches and injectors, or Veracity's versatile power supply options can be specified for maximum range and power.

The full 25 watts required for POE Plus devices is available at up to 600 metres Cat 6 when a Veracity power supply is used, or 5 to 20 watts can be delivered from other POE sources depending on range and cable type. LONGSPAN Max High Power devices are also now available up to 90W.



Upgrade to IP, keep the UTP Sites with legacy analogue cameras often use UTP baluns to send video over several hundred metres of twisted pair cable. LONGSPAN facilitates a simple upgrade path to IP for these installations.

LONGSPAN can automatically detect and adapt to single-pair cables, and deliver the same uncompromised 10 or 100Base-TX connection up to 820 metres, assuring predictable IP video quality each and every time.



High density, high reliability LONGSPAN's unique, expandable mounting system permits up to 24 channels to be mounted in just 1U of rack space, with configurable rear-mount power supplies available if desired.

Smart diagnostic LEDs, including a SAFEVIEW® display on POE models, provide instant confirmation of cable-dependent power availability, and feedback of remote link status and other diagnostic information, for fast, confident installation.



High Power POE Over Cat5e or Cat6 Application Diagram:







Local Power at the Camera End Application Diagram:







Local power option As shown in the diagram above, LONGSPAN Max Camera devices can be locally-powered to deliver the maximum POE (71W) to the IP camera or other POE-powered device, irrespective of LONGSPAN link distance.

In this configuration, the LONGSPAN link could be 820m and LONGSPAN Max Base would be replaced with LONGSPAN Lite as POE transmission over the link is not required. A Quad version of LONGSPAN Max is also available for the camera end with four 802.3bt compatible POE ports, allowing the connection of up to four IP devices over one LONGSPAN link.



Designed for installers LONGSPAN devices self-configure for the best performance every time they are connected. No user setup, no DIP switch settings, and no system pairings are required.

Veracity’s SAFEVIEW® smart LED display provides instant, visible confirmation of link status, power availability, and useful diagnostic information, from each device at either end of the cable.

High-density device unit installations are supported, with up to 24 single Base devices or four LONGSPAN Base 8 devices mounted in a 1U rack space including options for rear-mounted Veracity POE power supplies.



Surge protection LONGSPAN devices have built-in surge potection, but for long external runs additional surge protection is strongly recommended.

AXIS 30 W Outdoor Midspan

For outdoor use, -40 °C to 65 °C (-40 °F to 149 °F)



• Outdoor-ready, IP66/IP67 - and NEMA 4X-rated

• IEEE 802.3af and 802.3at

• 100 to 240 V AC


The outdoor-ready midspan is IP66/IP67- and NEMA 4X-rated, with extended temperature range up to -40 °C to 65 °C (-40 °F to 149 °F). The midspan offers surge protection up to 6kV for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66/IP67-rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 30W midspan is compatible with IEEE 802.3af and IEEE 802.3at supported devices.





System example:







Features Housing material Aluminium Brand compatibility Axis Type Midspan Placement supported Outdoor Product colour Black, Grey International Protection (IP) code IP66 Number of connectors 3 Power Output voltage 54 V Input voltage 100-240 V Rated power 30 W Input frequency 50/60 Hz Operational conditions Operating temperature (T-T) -40 - 65 °C Operating relative humidity (H-H) 10 - 100 % Storage temperature (T-T) -40 - 85 °C Storage relative humidity (H-H) 0 - 95 %

AXIS 30 W Midspan

For indoor use, 240 V AC



• IEEE 802.3af and IEEE 802.3at

• 10/100/1000 Mbps

• 100 to 240 V AC

• Plug-and-play



AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE.

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. With a single network cable, a PoE midspan injects power to the network device with built-in PoE support and enables data communication between the device and the switch. No need to replace existing Ethernet switches and cabling infrastructure.




System example:






Features Housing material Plastic Brand compatibility Axis Type Midspan Product colour Black LED indicators Yes Power Output voltage 56 V Input voltage 100 - 240 V Rated power 30 W Input frequency 47-63 Hz Operational conditions Operating temperature (T-T) -20 - 40 °C Operating relative humidity (H-H) -40 - 75 %

Power over Ethernet extender repeates the data signal and forward the PoE to the camera, PoE+ compliant it is compatible with all Axis cameras. No additional power supply is required. The maximum total distance between switch and camera depends on the power input and the power required by the camera, but all cameras can be at least extended to 200 meter connection.

Compatibility

AXIS T8129 PoE Extender is compatible with all Axis network video products with PoE, and supports both IEEE 802.3af and IEEE 802.3at. Check in the Typical set-up section for connection examples with Axis network video products.

Range

Range depends on the power required, so a 25 watt PTZ dome camera may be located 200 m (656 ft.) away using a single AXIS T8129. Or, the cable length to a regular 5 watt network camera may extend up to 400 m (1312 ft.), by fitting three AXIS T8129 at 100 m (328 ft.) intervals. Check in the Range tab for information about Maximum distances.

No additional power supply

AXIS T8129 does not require any additional power supply and the connected network camera is fed by a single PoE switch or midspan. It offers two female Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is maintained.

The AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.

*For complete specifications see the documentation tab above

AXIS T8144 60 W Industrial Midspan

Robust in industrial installations



• 60 W Power over Ethernet

• Wide temperature range -40 °C to 75 °C (-40 °F to 167 °F)

• Dual DC inputs 20-60 VDC

• Wide compatibility with Axis PoE devices

• Plug-and-play


AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.


AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and offers wide compatibility with Axis PoE devices.




System example:







Features Wall mountable Yes Product colour Black Rack mounting Yes LED indicators Alarm, PoE, Power Power Output voltage 60 V Input voltage 20 - 60 V Power consumption (max) 72 W AC adapter output voltage 20 - 60 V Operational conditions Operating temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 0 - 95 % Storage temperature (T-T) -40 - 85 °C Operating altitude -40 - 185 m

Single Port Gigabit PoE+ Injector

The SilverNet single port Gigabit PoE+ injector can carry power to devices such as IP cameras, wireless Access points, VoIP phones and much more. The SIL 48G PoE+ provides a cost effective alternative to upgrading existing switches to PoE enabled devices. With quick and easy plug and play, you can rapidly enable PoE devices on your network.

Features



Singleport Gigabit PoE+ injector
PoE/PoE+,15.4W to 30W per port
Compact, standalone design
2x Auto 10/100/1000BASE-TRJ45 ports
LED indicators – Power, Link/Activity, Speed, PoE
240VAC power supply
Built in surge protection
Dimensions: 62mm(W) x 38.5mm(H) x 165mm(L)
Operating temperature (0°C ~+40°C)
Storage temperature (-10°C ~+70°C)
Compliant with: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab1000BASE-T IEEE 802.3x Flow Control IEEE 802.11af/at

Note: Minimum Order Quantity for this product is: 10

Ethernet Extender for POE and POE Plus equipment OUTREACH Max enables network installers to overcome the distance limitations of Ethernet and Power over Ethernet (POE) easily, meaning that IP cameras, wireless access points, and other POE-powered network devices can be located right where they are needed.

Simply connect OUTREACH Max in-line with the Cat5 or Cat6 network cable for every extra 100 metres (328 feet) of length required. No configuration or electrical supply is needed, and full-rate network throughput is maintained.

Note: OUTREACH Max extends network connections to POE-enabled devices only.

Extend Ethernet and POE

Ethernet and POE both restrict cable distances to 100 metres (328 feet) between network ports.  However, POE-powered devices such as IP cameras and wireless access points frequently must be located at far greater distances from the nearest network switch or power outlet.

OUTREACH Max provides an instant solution to this problem.  By connecting an OUTREACH Max for every extra 100 metres of cable, both Ethernet and POE can be extended to 200, 300, or even 800 metres (2625 feet).

Max power extension

OUTREACH Max is compatible with all regular (IEEE 802.3af) POE devices.  In addition, it can be used with IEEE 802.3at POE Plus equipment, and even non-standard or "4-pair" POE to over 60 watts.

For maximum power and range, Veracity's OUTSOURCE enhanced POE injector may be used.  The OUTSOURCE Plus enhanced POE Plus injector is recommended for all POE Plus applications.

Max cable range

OUTREACH Max's efficient design maximises the distance POE can be extended to, and multiple units can be connected in series for distances beyond 200 metres.

Range depends on the power required, so a 25 watt PTZ camera may be located 200 metres away using a single OUTREACH Max. Or, the cable length to a regular 5 watt IP camera may extend up to 800 metres (2625 feet), by fitting seven OUTREACH Maxes at 100 metre intervals.  See Veracity's forthcoming "Long Range Ethernet Extension" application note for more information.

Max reliability

Because OUTREACH Max draws its own power from the POE on the cable, all electrical power for the connected devices comes from a single POE switch or injector, which simplifies installation and allows back-up and control of all network power.

OUTREACH Max's only connections are its two Ethernet ports, and both configure automatically for link speed, duplex and crossover, to eliminate the risk of misconfiguration. Power is forwarded automatically, and issues with POE power classes are avoided.

As OUTREACH Max repeats the network connection every 100 metres, quality does not degrade.  This means that the full bandwidth of 100BASE-T Ethernet (200Mbit/sec) is maintained, even over 800 metre runs. This is essential for assured transparency and predictability.

Key technical features:

Range:

100m (328') per cable segment between OUTREACH Max units:

Camera power 6W 12W 18W 25W Range with POE switch 400m 200m n/a n/a Range with OUTSOURCE 700m 300m n/a n/a Range with OUTSOURCE Plus 700m 450m 350m 200m
(Range depends only on peak device power and not "POE power class") Network:

10BASE-T / 100BASE-TX, full/half duplex (auto-negotiated)


POE standards supported:
IEEE 802.3af POE
EEE 802.3at (2-event) POE Plus
"Always-on" / "dumb" 48V POE
"Four-pair" POE
Dimensions:
L 105mm x W 40mm x H 22mm
Applications:

IP Video and Security

OUTREACH Max Ethernet extenders are ideal for IP video applications, as they eliminate the one disadvantage that network cameras have compared to older analogue cameras: the limited cable length.  As POE is becoming universal in digital video installations, Cat 5 cable extension is as simple as connecting an OUTREACH Max wherever it is needed.

OUTREACH Max can also be used to upgrade legacy twisted-pair video installations to IP with POE, where the Cat 5 infrastructure for a network is already in place, but run lengths exceed the 100 meter limit for Ethernet.

PTZ cameras, heater/blower units and door interlocks are all examples of products that are adopting the extended-power POE Plus  standard that OUTREACH Max also supports.

Wireless networking

Like IP cameras, wireless access points (WAPs) are ideally suited to POE as they must be positioned optimally in locations that are often inaccessible or remote.  Using OUTREACH Max, a WAP - or Bluetooth access point or RFID reader - can be located just where it is needed for optimal coverage.

High-power radios and 802.11n APs can take advantage of the POE Plus power which OUTREACH Max supports.

Extending non-POE networks

OUTREACH Max can be used in combination with OUTREACH Lite to extend networks without POE from 300 meters to over 2 kilometers.
