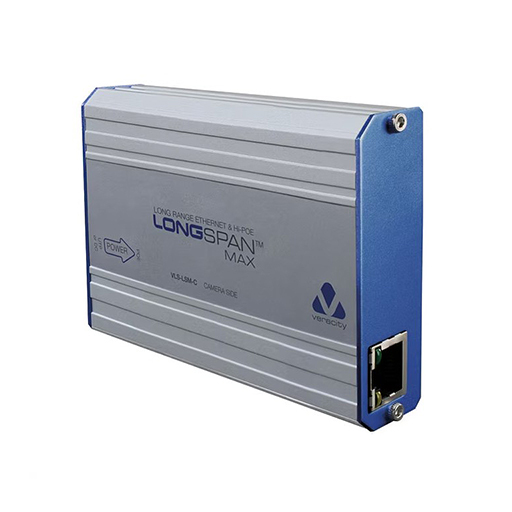

Veracity LONGSPAN Max Camera
Veracity LONGSPAN Network Extender - Network (RJ-45) - 820 m Extended Range
Maximum POE power and bandwidth over extreme distances for IP cameras
LONGSPAN Max™ adds 90W POE power capability to the extremely successful LONGSPAN™ range of long-distance network extenders for Cat5e or Cat6 cable.
Maximum power, full-speed long-range Ethernet link with SAFEVIEW® diagnostics
LONGSPAN Max delivers unrestricted 100Base-TX with 802.3bt high power POE at distances far beyond the normal Ethernet limits for problem-free external PTZ IP camera installation
• LONGSPAN™ enhanced with 90W POE capability (802.3bt
• Long range point-to-point Ethernet over Cat5e or Cat6 cable
• Unrestricted 100Base-TX with POE at over 820 metres
• Can deliver 60W at 200 metres, 40W at 350 metres
• Ruggedised for high performance over a wide temperature range
• Smart POE power and diagnostic display for reliable installation
• Fully automatic, simple to install and maintenance-free
LONGSPAN delivers unprecedented power and bandwidth over extreme lengths of regular Cat 5e or Cat 6 network cable, enabling a dependable connection to IP cameras and other remote network devices.
LONGSPAN is a point-to-point solution. It self-configures for the best performance. No set up or configuration is required. LONGSPAN even supports single-pair UTP cables, providing a fast upgrade solution for legacy analogue systems.
LONGSPAN offers unrestricted 100Base-TX at a phenomenal 820 metres range, with POE-equipped models delivering full-power 802.3at POE Plus at 600 metres, LONGSPAN assures reliability in the most challenging scenarios.
LONGSPAN is available in POE and data-only models. It is also available in high power Max single and Quad versions for the base and camera ends. See Documentation Tab for all datasheets including LONGSPAN Base 8, LONGSPAN Max and LONGSPAN Max Quad datasheets.
IP cameras can demand peak network bandwidth of several times their average data rate while transmitting critical high-activity or low-light scenes. That's why LONGSPAN has been designed to support the full 200Mbps bandwidth required for reliable 100Base-TX Ethernet at up to 820 metres Cat 6 (or 690 metres Cat 5e).
For even more extreme distances, LONGSPAN can automatically negotiate a 10Base-T connection, supporting a range in excess of 1000 metres, over ten times the conventional limit for cabled Ethernet.
LONGSPAN models with POE can be powered from conventional IEEE 802.3af POE or 802.3at POE Plus and 802.3bt High Power POE switches and injectors, or Veracity's versatile power supply options can be specified for maximum range and power.
The full 25 watts required for POE Plus devices is available at up to 600 metres Cat 6 when a Veracity power supply is used, or 5 to 20 watts can be delivered from other POE sources depending on range and cable type. LONGSPAN Max High Power devices are also now available up to 90W.
Sites with legacy analogue cameras often use UTP baluns to send video over several hundred metres of twisted pair cable. LONGSPAN facilitates a simple upgrade path to IP for these installations.
LONGSPAN can automatically detect and adapt to single-pair cables, and deliver the same uncompromised 10 or 100Base-TX connection up to 820 metres, assuring predictable IP video quality each and every time.
LONGSPAN's unique, expandable mounting system permits up to 24 channels to be mounted in just 1U of rack space, with configurable rear-mount power supplies available if desired.
Smart diagnostic LEDs, including a SAFEVIEW® display on POE models, provide instant confirmation of cable-dependent power availability, and feedback of remote link status and other diagnostic information, for fast, confident installation.
As shown in the diagram above, LONGSPAN Max Camera devices can be locally-powered to deliver the maximum POE (71W) to the IP camera or other POE-powered device, irrespective of LONGSPAN link distance.
In this configuration, the LONGSPAN link could be 820m and LONGSPAN Max Base would be replaced with LONGSPAN Lite as POE transmission over the link is not required. A Quad version of LONGSPAN Max is also available for the camera end with four 802.3bt compatible POE ports, allowing the connection of up to four IP devices over one LONGSPAN link.
LONGSPAN devices self-configure for the best performance every time they are connected. No user setup, no DIP switch settings, and no system pairings are required.
Veracity’s SAFEVIEW® smart LED display provides instant, visible confirmation of link status, power availability, and useful diagnostic information, from each device at either end of the cable.
High-density device unit installations are supported, with up to 24 single Base devices or four LONGSPAN Base 8 devices mounted in a 1U rack space including options for rear-mounted Veracity POE power supplies.
LONGSPAN devices have built-in surge potection, but for long external runs additional surge protection is strongly recommended.
Full specification and details can be found in the Product Datasheet PDF file
A quick install guide can be found in the Product Datasheet PDF file
