| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEVOR-ORL-XT |
| Manufacturer No: | VOR-ORL-XT |
| Delivery: | In Stock: 5-7 Days |
 |
Note: Minimum Order Quantity for this product is: 2
Ethernet is the ubiquitous technology for Local Area Network (LAN) installation, and the majority of networks in place use the 100Base-TX network standards. (A Gigabit version of OUTREACH Lite XT is also available).
However, many security installations demand network connections that exceed the maximum 100 metres (328 feet) distance limit for wired Ethernet.
The Veracity VOR-ORL-XTOUTREACH Lite XT provides an instant solution to this restriction. Simply connect an OUTREACH Lite XT in line with the network cable - adding a Power over Ethernet (POE) injector if required - to double the available range to 200 metres (656ft).

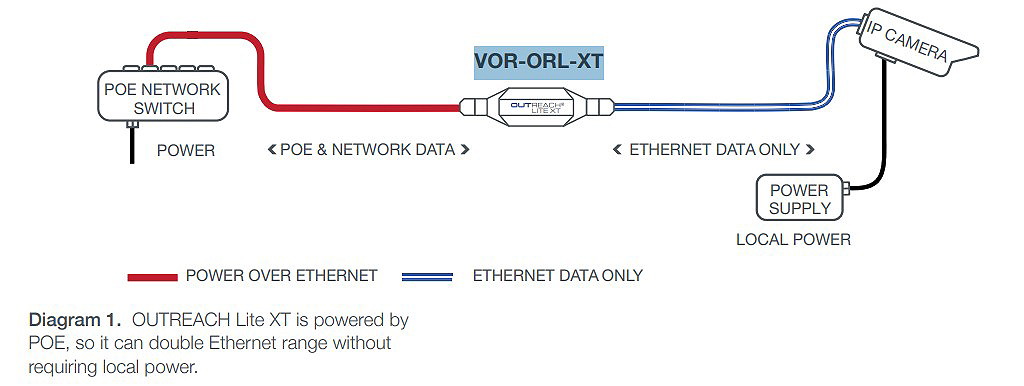

OUTREACH Lite XT takes advantage of the universal 802.3af/at/bt POE standards, so it can draw its own power from the network connection. No local power is required, so OUTREACH Lite XT can be located exactly where needed. If your network switch has POE, simply connect OUTREACH Lite XT up to 100 metres from the switch, and it will deliver another 100 metres reach over regular Cat5e or similar cable (Diagram 1).

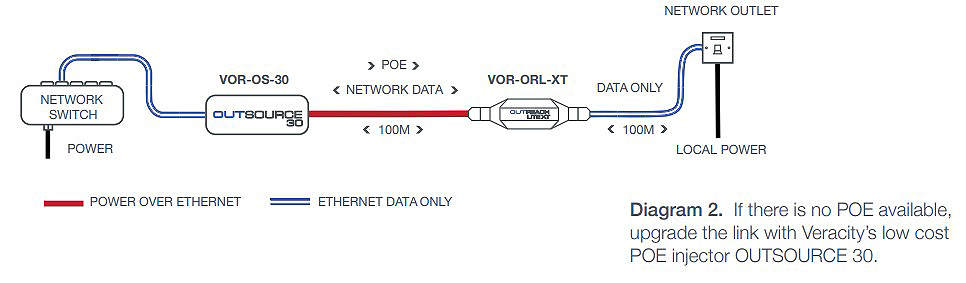

If POE is not available, the link can easily be upgraded using a low-cost POE injector such as Veracity's OUTSOURCE (Diagram 2). No set-up or network configuration is required, as OUTREACH Lite XT automatically sets up network speed, duplex and crossover on connection, and does not require an IP or MAC address.
If a network extension beyond 200 metres (656ft) is required, Veracity's OUTREACH Max XT may be installed to extend Ethernet and POE to OUTREACH Lite XT. For example, a 300 metre (984ft) connection between a POE switch and another network device can be achieved by fitting an OUTREACH Max XT at 100 metres along the cable, followed by 100m then an OUTREACH Lite XT, and up to 100m to the non POE networked end-point device.
For longer Ethernet runs, Veracity recommends LONGSPAN long distance point-to-point devices, which can achieve 100Base-TX connections with POE at up to 820m (2,690ft).
Because OUTREACH Max XT and OUTREACH Lite XT simply restore the network connection every 100 metres, the full (100Mbit/s) bandwidth of 100Base-TX Ethernet is maintained across the entire link. This maximises performance and transparency, with no risk of a reduced or unpredictable bandwidth, even at distances of several hundred metres or more.

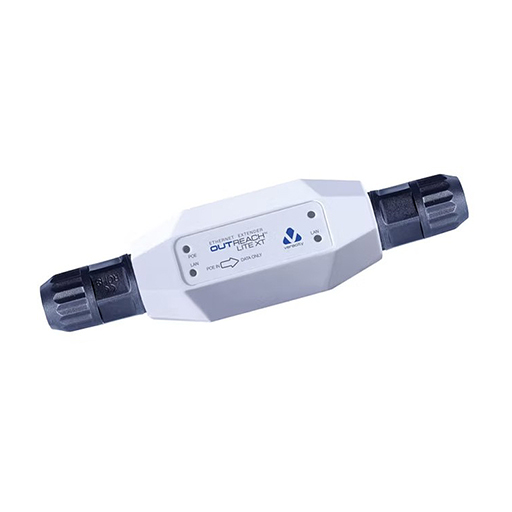

OUTREACH Lite XT outdoor-rated network extender for non-POE equipment, including IP67, Nema 4X/6P rated connector covers and 2/4 bolt wall-mounting bracket.
OUTREACH Lite XT lets you locate your external IP camera or wireless transmitter right where you want it, without being restricted by the 100metre (328 feet) limit for Ethernet cables.
Based on Veracity's established OUTREACH Max extender, compatibility with regular 802.3af POE, 802.3at POE plus and 802.3bt High power POE is assured, with no configuration or setup required.
Its rugged and streamlined enclosure features IP67, NEMA 4X/6P rated connector covers that assemble easily around conventionally terminated Cat 5e and Cat 6 cables.
Guaranteed operation over an extended temperature range and versatile mounting options mean OUTREACH Max XT is suited to a wide range of installation scenarios.
And inter-building network links or extension to non-POE equipment is also supported, with Veracity's OUTREACH Lite XT model.
OUTREACH Max XT Ethernet extenders are ideal for IP video applications, as they eliminate the one disadvantage that network cameras have compared to older analogue cameras: the limited cable length. As POE is becoming universal in digital video installations, Cat 5 cable extension is as simple as connecting an OUTREACH Max XT wherever it is needed.
OUTREACH Max XT can also be used to upgrade legacy twisted-pair video installations to IP with POE, where the Cat 5 infrastructure for a network is already in place, but run lengths exceed the 100 meter limit for Ethernet.
PTZ cameras, heater/blower units and door interlocks are all examples of products that are adopting the extended-power POE Plus standard that OUTREACH Max XT also supports.
Like IP cameras, wireless access points (WAPs) are ideally suited to POE as they must be positioned optimally in locations that are often inaccessible or remote. Using OUTREACH Max XT, a WAP - or Bluetooth access point or RFID reader - can be located just where it is needed for optimal coverage.
High-power radios and 802.11n APs can take advantage of the POE Plus power which OUTREACH Max XT supports.
OUTREACH Max XT can be used in combination with OUTREACH Lite XT to extend networks without POE from 300 meters to over 2 kilometers.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
