DrayTek Switches

VigorSwitch Q60x is a small, high-performance unmanaged 2.5 Gigabit Ethernet switch with 5 x 2.5-Gigabit RJ-45 LAN ports and 1 x 10-Gigabit SFP+ port. Use the faster 2.5 GbE ports for high-speed connections between switches, servers, and wireless access points such as the VigorAP 805. The 10Gb SFP+ interface can be an ideal option for uplink purposes to connect to a router or another switch.

Key Specifications 5 x RJ-45 2.5 Gigabit Ethernet Ports
1 x SFP+ 10GbE Port for Uplink / Fibre
Compact Form Factor
Wall Mountable
Fanless (Silent) Operation
Low Power Consumption
Key Features & Benefits 2.5 Gigabit Ethernet Ports A significant speed upgrade with faster data transfer rates. Improved bandwidth to accommodate more devices without compromising performance, providing smoother, faster, and more reliable connections.

Benefits: Ideal for high-demand applications such as HD video streaming, large file transfers, gaming, and cloud services.

SFP+ 10GbE Port for Uplink / Fibre Utilise ultra-fast, high-bandwidth fibre uplink to connect to core networks, servers, or other switches with 1 SFP+ 10GbE port. Enable faster data transfers between your device and external network infrastructure.

Benefits:Seamless integration with existing network infrastructures and supporting high-volume data transfers.

Compact Form Factor Reliable performance in a durable metal casing ideal for smaller office spaces and suitable for easy accessibility.

Benefits:Placement option flexibility that allows for discreat and accessible display.

Plug and Play Deployment The VigorSwitch Q60x unmanaged switch just needs power to connect devices on the network. The switch is aware of Untagged and VLAN tag traffic that can be sent without any configuration.

Benefits:Placement option flexibility that allows for discreat and accessible display.

I/O Diagram

The DrayTek VSG1080-K VigorSwitch G1080 is a small, high-performance Gigabit smart switch designed for small and medium business networks that require simple network management, with support for VLANs, QoS and Link Aggregation (increases uplink speed for high data volume applications).



The G1080 is an ulta-low power device, consuming under 1A, even when fully loaded. It is powered by an AC/DC adaptor (included). It's a low cost device, ideal for adding additional Ethernet ports to your router with a small footprint.

The VigorSwitch G1080 can be managed directly through its web interface, or can be installed in conjunction with a compatible Vigor router to expand the router's network, with the VigorSwitch G1080 managed and monitored through the DrayTek Vigor router's web interface.

Product Features Power from USB If you have limited space or power sockets, the VigorSwitch G1080 can also be powered by USB - perhaps the USB port on PC or one on your DrayTek Vigor router**. Requires optional USB-DC cable (part no. 'HVUSB1'). Otherwise you can just power the device with the supplied AC/DC power supply.

Central Management The DrayTek VigorSwitch G1080 can operate in standalone mode and be managed through its web interface or, if you need to manage and monitor the switch remotely, or have several DrayTek VigorSwitches to administer, you can centrally manage VigorSwitches on a site from the DrayTek router which they are physically connected to.

With DrayTek Central Switch Management, connected VigorSwitches can be monitored, managed and provisioned simply by accessing the router's web interface, either locally or from across the Internet.

Network Segmentation Tag-based VLAN This type of VLAN can be used to segment networks using a single network link between the DrayTek Vigor router with multiple subnets (VLANs) and the VigorSwitch G1080, with different ports being assigned to each of the router's VLANs.

Port-based VLAN This type of VLAN configures the VigorSwitch G1080 as two separate network switches, with some ports being assigned to each of these networks, but kept fully isolated from each other.

Prioritise traffic & ports with Quality of Service The VigorSwitch G1080 supports Quality of Service to prioritise latency sensitive traffic using both 802.1p CoS (Class of Service) and Port based mode.

802.1p CoS allows both software applications - such as Skype, and network devices - such as VoIP handsets that send priority tags with their time sensitive data, to be prioritised over general data transfers using the 4 flexible Queues and scheduling system of the switch.

With Port-based Quality of Service, VoIP phone handsets can be assigned a higher priority than a Network Attached Storage server, so that file transfers over the network cannot affect call quality.

Control port throughput with Rate Limiting The VigorSwitch G1080 can control the bandwidth available to each of its network switch ports, with the Ingress rate (data received on that port) and Egress rate (data sent from the switch to that port) being configurable in increments from 512 kilobits per second, 1 megabit per second, 2mbps, up to 512mbps and Unlimited.

Multicast IGMP Snooping With IGMP Snooping enabled, the VigorSwitch G1080 can determine which ports are requesting multicast data streams, with IP-TV for instance, and send that data only to the ports that have requested it, instead of the multicast streams being sent to all ports of the switch.

The VigorSwitch G1080 can keep track of up to 128 multicast groups.

Link Aggregation / Port Trunking When connecting the VigorSwitch G1080 to a larger network switch such as the VigorSwitch G1280, the link between that switch and the G1080 could be a bottleneck for the devices communicating between those two switches. With Link Aggregation configured on both switches and two 1Gb/s network links between the two switches, traffic can be shared between the two ports, effectively doubling the bandwidth of the uplink and providing resilience should one of the links fail.

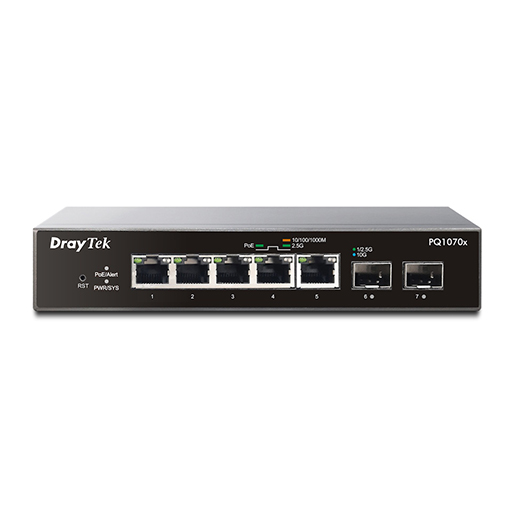

The DrayTek VigorSwitch PQ1070x is a compact 2.5G PoE+ switch designed to deliver steady performance for modern networks, offering reliable multi-gig connectivity, PoE power for key devices, and 10G uplinks for flexible expansion.

Key Features of DrayTek VSPQ1070X-K 5 x RJ-45 2.5 Gigabit Ethernet Ports (2500/1000/100/10) with PoE+
2 x SFP+ 10GbE Ports for Uplink / Fibre
Compact form factor
Wall Mountable
Fanless (Silent) Operation
Low Power Consumption
VigorSwitch PQ1070x is a small, high-performance 2.5 Gigabit Ethernet switch with 5 x 2.5-Gigabit RJ-45 LAN ports and 2 x 10-Gigabit SFP+ interfaces. Use the faster 2.5 GbE ports for high-speed connections between switches, servers, and wireless access points such as the VigorAP 1062C. The 10Gb SFP+ interfaces are an ideal option for uplink purposes to connect to a router or another switch.

This lightweight, low-power network switch is easy to deploy. It's fanless operation makes it a great match for small office/desk environments.

2.5 Gigabit Ethernet Ports A significant speed upgrade with faster data transfer rates. Improved bandwidth to accommodate more devices without compromising performance, providing smoother, faster, and more reliable connections.

SFP+ 10GbE Ports for Uplink / Fibre Utilise ultra-fast, high-bandwidth fibre uplinks to connect to core networks, servers, or other switches with 2 SFP+ 10GbE ports. Enable faster data transfers between your device and external network infrastructure.

Compact Form Factor Reliable performance in a durable metal casing, ideal for smaller office spaces and suitable for easy accessibility.

Low Power, High Performance Engineered for efficiency, this switch delivers fast 2.5GbE and SFP+ connectivity with PoE+ support, offering strong performance while keeping power use low.

The DrayTek Vigor VSP2100-K 8 Port GB PoE Layer 2+ Managed Switch is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.

The VigorSwitch P2100 is able to power your network devices via Power over Ethernet, with a generous 140 watt power budget to provide power to each of its 8 PoE / PoE+ enabled Gigabit LAN ports.

The VigorSwitch P2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.



Product Features Great Security Features Secure & control access to your network. Protect your network against unauthorised access and network problems with DrayTek’s IP Conflict Prevention, 802.1X port authentication, DHCP Snooping, and Access Control Lists. Check the features sections for more information.

Smart Power over Ethernet Power & manage IP cameras, phones and Wireless APs. Provides ample power through Ethernet to each of the 8 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.

Advanced Layer 2+ Routing Features Provides a fast and secure bridge between networks. Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

ONVIF IP Camera Surveillance Management Easily configure, deploy & manage IP Cameras. Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. PoE Device Check and Email Alerts with Camera Snapshot help to rapidly detect & troubleshoot problems.

Rack Mountable & Silent Flexible installation. Quiet in operation. Fit the VigorSwitch P2100 with the included rack mounting kit into any standard 19” rack. Fanless and silent, these switches are ideal for use in a quiet office or home environment.

Manage Centrally or Stand-Alone Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff. Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Web Smart 28-Port Gigabit Switch

Designed for SOHO and small business networks


The VigorSwitch G1282 is a high-performance, Smart Managed Gigabit Ethernet switch. With 24 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router, implementing complex networks with VLANs and adding port-level security with the switch's Access Control List.

Designed for centralised management, the VigorSwitch G1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router's Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.


Manage Centrally or Stand-Alone

Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface. IP Camera Management

Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.   Automatic VLAN Assignment

Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in. 4 SFP Ports for Uplinks

Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.   Useful Security Features

Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard. Rack Mountable & Silent

Fit the VigorSwitch G1282 with the included rack mounting kit into any standard 19” rack.

The switch is fanless and silent, ideal for use in a quiet office environment.


VigorSwitch P1282 Diagram




Key Specifications

24 x RJ-45 Gigabit Ethernet Ports
4 x RJ-45 / SFP Gigabit Ethernet Ports
Cloud Managed with VigorACS
802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
ONVIF IP Camera Surveillance Management with PoE Device Check
Access Control List (ACL) for port & traffic level security
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Centrally managed or standalone operation
Key Features



Link Aggregation (LAG) & Port Trunking

Bundle two or more ports together to increase aggregate throughput and improve resiliency. Rack Mountable & Silent

Includes rack mount fittings to fit in any 19" rack with 1u height. Quiet in operation.
Cloud Management

Manage the VigorSwitch G1282 from anywhere with VigorACS Cloud Management. Central Site Management

Easily configure switches remotely with a DrayTek Vigor router or VigorConnect.
Dynamic MAC-based VLAN

Network port changes are easier to manage with MAC-based VLANs automating port re-configuration. Surveillance & Voice Auto VLAN

Auto configures VLANs for IP cameras and IP phones, recognises traffic and manages QoS prioritization.
ONVIF IP Camera Management

Manage and view ONVIF capable cameras, automatically detecting their topology on the network. IP Camera Snapshot Alert

Locate IP Camera problems quickly with Mail Alerts from the switch showing the IP Camera's last snapshot.
IP Conflict Prevention

Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. QoS (Quality of Service)

Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Useful Security Features

Protect your network against unauthorised access with DoS Defence, ACL port level Firewall & IP Source Guard. 4 SFP Ports for Uplinks

Uplink to Fiber or direct-attach to additional switches, with 4x Gigabit SFP Ports.

VigorSwitch P1281x 24 Port GbE 4 Ports 10Gbps SFP+ Switch with PoE/PoE+ VigorSwitch P1281x is a smart switch featuring 24 GbE PoE+ ports (for a total output of 140W) and four extra independent SFP+ 10Gbps interfaces. SFP+ connections provide high-speed uplinks between switches, servers, and network-attached storage devices at speeds of up to 10 Gbps per port.

Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Key Features & Benefits IP Camera Management Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.

Benefits: Easily configure, deploy & manage connected IP Cameras.

Smart Power over Ethernet Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.


Benefits: Power and manage IP cameras, IP phones and Wireless APs

High Speed 10 Gigabit SFP+ Uplinks 4 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

Benefits: Increase network throughput and meet demanding bandwidth requirements.

Automatic VLAN Assignment Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.

Benefits: Less time to install, move ports around without reconfiguring VLANs.

Great Security Features Protect your network against unauthorised access and network problems with IP Conflict Prevention, IP Source Guard and Access Control List.


Benefits: Secure & control access to your network.

Manage Centrally or Stand-Alone Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

I/O Diagram

The VigorSwitch P1282 is a high-performance, Smart Managed Gigabit Ethernet switch with 4 SFP uplink ports. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports, it's ideal for powering connected IP phones, IP cameras and wireless access points.

The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports.

Designed for centralised management, the VigorSwitch P1282 can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system and/or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Key Features

Manage Centrally or Stand-Alone

Configure and monitor the switch through the VigorACS cloud management platform, through VigorConnect, through a DrayTek Vigor router, or directly via the device's Web Interface.

Benefits: Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Automatic VLAN Assignment

Voice, Surveillance and MAC VLANs dynamically assign VLANs to IP Phones, IP Cameras and more. Ensures the same network setup and Quality of Service regardless of where devices are plugged in.

Benefits: Less time to install, move ports around without reconfiguring VLANs.

Useful Security Features

Protect your network against unauthorised access and network problems with IP Conflict Prevention, DoS Defence, Access Control Lists for IPv4, IPv6, MAC and IP Source Guard.

Benefits: Secure & control access to your network.

Smart Power over Ethernet

Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & Device Check features ensure your PoE devices are powered and working.

Benefits: Power and manage IP cameras, IP phones and Wireless APs.

IP Camera Management

Manage IP Cameras easily with detection and management of ONVIF cameras. Use PoE Device Check, auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.

Benefits: Easily configure, deploy & manage connected IP Cameras.

4 SFP Ports for Uplinks

Uplink to Fibre or direct-attach to additional switches, with 4x Gigabit SFP Ports. Connect switches over long distances with SFP Fibre modules.

Benefits: Flexible installation. Surpass the 100m limit of copper cabling.

Key Specifications

24 x RJ-45 Gigabit Ethernet Ports with PoE+
4 x RJ-45 / SFP Gigabit Ethernet Ports
400-watt Power-over-Ethernet budget for demanding applications
Cloud Managed with VigorACS
802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
ONVIF IP Camera Surveillance Management with PoE Device Check
Access Control List (ACL) for port & traffic level security
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Centrally managed or standalone operation

Overview

DrayTek VigorSwitch FX2120 is a full 10 Gigabit switch with 12x SFP+ ports for uplink/downlink and 1x console port. It is well-suited for ISP and enterprise network with intensive data transmission.

Supporting OpenFlow 1.3, it’s also a future-proofed switch that can be operating in either traditional switch or SDN switch mode.

Equipped with Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch FX2120 improves local network sustainability and efficiency regardless of the gateway. Furthermore, with IP Conflict Detection & Prevention, ONVIF Surveillance and a lot more, this is the balanced switch that brings advanced features into mid-sized environments.



Product Features Auto Surveillance & Voice VLAN Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

10G SFP+ Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

ONVIF-Friendly Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.

IPv6 Ready VigorSwitch FX2120 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

Wire-Speed VLAN Routing Improve overall network performance by using VigorSwitch FX2120 to route the inter-VLAN traffic directly and offload the router.

Web-Based GUI Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.

IP Conflict Prevention Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Multiple Admin Accounts Multiple Admin accounts with two levels of administrator privilege.

Access Control VigorSwitch FX2120 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.

Central Switch Management Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

QoS (Quality of Service) Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

Energy-Efficient Ethernet Compliant with IEEE 802.3az to reduce power consumption.

The DrayTek VigorSwitch G2542x delivers enterprise-level performance and flexibility with 48 Gigabit Ethernet ports and 6 SFP+ 10Gbps fiber links. Designed for small to medium-sized enterprises, this Layer 2+ managed switch combines intelligent network control, wire-speed VLAN routing, and advanced management features to ensure reliability and efficiency even when the main gateway is offline.

48x GbE 10/100/1000Mbps Ethernet, RJ-45

6x 10G SFP+ 1000Mbps/10Gpbs fiber slot

216 Gbps Switching Capacity

Backup Power DC 12V redundant power socket

148x Gigabit Ethernet
26x SFP+ Ports
31x DC Power Socket (backup usage)
41x Console Port
5Power Socket
Key Features of VigorSwitch G2542x 48x Gigabit Ethernet ports and 6x 10G SFP+ fiber uplinks
216 Gbps switching capacity
Redundant DC power input for fail-safe operation
Comprehensive Layer 3 functionality for VLAN routing and DHCP services
Advanced network management through a web-based GUI
10G SFP+ Connectivity Equipped with six 10G-capable SFP+ ports, the VigorSwitch G2542x enables high-speed uplinks and aggregation to core switches, ensuring fast data throughput and minimal bottlenecks in large networks.

ONVIF-Friendly Surveillance Integration The switch automatically recognizes ONVIF devices across VLANs, displaying an intuitive surveillance topology with live video feeds. Administrators can manage IP cameras, perform remote maintenance, and receive snapshot alerts for unresponsive devices.

Wire-Speed VLAN Routing Improve overall network efficiency by routing inter-VLAN traffic directly through the switch. This reduces router load and ensures seamless data transfer across VLANs.

IPv6 Ready Fully compatible with IPv6 protocols, the VigorSwitch G2542x supports MLD Snooping, IPv6 ACL, and DNS Resolver for future-proof network architecture.

Auto Surveillance & Voice VLAN Automatically detects IP camera and VoIP traffic, applying Class of Service (CoS) tags for priority handling. This feature enhances video and voice quality across the network.

Web-Based GUI Management The graphical web console provides an intuitive overview of port activity, network topology, and hardware status, simplifying monitoring and configuration tasks.

IP Conflict Detection & Prevention The VigorSwitch G2542x continuously monitors for IP conflicts. It can alert administrators of misconfigured hosts or block conflicting devices to maintain network stability.

Access Control & Security Supports IP/MAC-based Access Control Lists (ACL) and IEEE 802.1x port authentication with RADIUS, ensuring only authorized hosts gain access to network resources.

Multiple Admin Accounts Allows multiple administrator accounts with tiered access privileges for enhanced control and management flexibility within enterprise environments.

Centralized Switch Management Integrates seamlessly with DrayTek routers for centralized management, VLAN setup, device monitoring, and configuration provisioning from a single interface.

Quality of Service (QoS) Prioritize mission-critical applications using CoS, DSCP, and IP Precedence tagging, optimizing bandwidth allocation for smoother performance under heavy network load.

Energy-Efficient Ethernet Compliant with IEEE 802.3az standards, the switch dynamically reduces power consumption based on network traffic and cable length, improving energy efficiency.

LLDP-MED Support Enhances VoIP deployment by automatically detecting IP phones, assigning VLANs, and prioritizing voice traffic for superior call quality.

All-in-One Management Solution Through DrayTek’s LAN Management system, the VigorSwitch G2542x supports automatic device discovery, centralized monitoring, provisioning, and remote maintenance, reducing administrative workload and simplifying multi-device management.

Included Accessories Each VigorSwitch G2542x package includes a rack mount kit, console cable, power cord, and quick start guide, ensuring quick and professional deployment in any network environment.

The VigorSwitch P2280x is a high-performance, L2+ Managed Gigabit Ethernet switch. With 24 PoE+ (Power over Ethernet) RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports for high bandwidth uplinks to Servers, Network Attached Storage and Switches.

The 400 watt PoE power budget provides ample power through Ethernet, to each of its 24 PoE / PoE+ enabled Gigabit LAN ports. Supporting up to 30 watts per port, it can easily power a large number of IP cameras, IP phones, wireless APs and other PoE devices. Use the 4 SFP+ ports for high speed uplinks between Switches, Servers and Network-Attached-Storage at up to 10 Gigabits per port.

Designed for centralised management, the VigorSwitch P2280x can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

Key Features

400W PoE Power Budget

Provides ample power through Ethernet to each of the 24 PoE / PoE+ enabled Gigabit LAN ports. PoE scheduling, priority & monitoring features ensure your PoE devices are powered and working.

Benefits: Power a large number of IP cameras, IP phones, wireless APs and other PoE devices.

Manage Centrally or Stand-Alone

Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

Benefits: Saves time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.

Great Security Features

Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information.

Benefits: Secure & control access to your network.

High Speed 10 Gigabit SFP+ Uplinks

4 SFP+ ports allows your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

Benefits: Easily increase network throughput and meet demanding bandwidth requirements.

Advanced Layer 2+ Routing Features

Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

Benefits: Provides a fast and secure bridge between networks.

Hardware Monitoring

Monitor switch temperature, power supply and fan status to ensure stable & constant operation. The switch's fans run quieter with Smart fan control.

Benefits: Email notification alerts for power loss, downtime or configuration changes.

The DrayTek VigorSwitch PQ2300xb (VSPQ2300XB-K) is a 30-port managed switch designed for high-performance networks. It combines 24 × 2.5 GbE RJ-45 ports with PoE/PoE+/PoE++ and 6 × 10 GbE SFP+ fiber ports, giving flexibility for a mix of standard and high-bandwidth devices. The switch supports VLAN routing, static routes, DHCP services, and inter-VLAN routing, making it suitable for organized, multi-segmented networks. With a total PoE budget of 400 W, it can power multiple devices like Wi-Fi 6 access points, IP cameras, VoIP phones, and LED lighting over a single network cable.

Key Features of DrayTek VSPQ2300XB-K 24 x RJ-45 multi-Gigabit Ethernet Ports (2500/1000/100/10) with PoE (8 PoE++ / 16 PoE+)
6 x SFP+ 10GbE Ports for Uplink / Fibre
PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
400-watt Power-over-Ethernet budget
802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
VLAN Routing & Static Route with DHCP server / relay
QoS for Application traffic prioritisation
802.1x RADIUS / TACACS+ Port Authentication with Accounting
Voice VLAN for QoS (OUI Mode)
Access Control List (ACL)
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Centrally managed or standalone operation
Console Port
VigorSwitch PQ2300xb is a 2.5 Gigabit L2+ Managed switch with 8 PoE++ 2.5GbE ports, 16 PoE+ 2.5GbE ports (total of 400W output) and 6 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.

Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2300xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.

Future Proof multi-Gigabit Ethernet interfaces 24 2.5GbE Ethernet ports improve your core network speed while using existing CAT 5E or later cable infrastructure. Ideal for Wi-Fi 6 access point connections such as the VigorAP 1062C

Advanced Layer 2+ Routing Features Expand your network with support for Layer 3 features. Static Routes, VLAN Routing and Multi-subnet DHCP server connect separate networks through the VigorSwitch

High Speed 10 Gigabit SFP+ Uplinks 6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.

400W PoE++ Power Budget Provides power through Ethernet to the PoE enabled 2.5 Gigabit LAN ports. Up to 90W (PoE++) can be delivered to the each of the first 8 dedicated Ethernet ports. PoE scheduling and monitoring features ensure your PoE devices are powered and working

Great Security Features Protect your network against unauthorised access and network problems with 802.1X port authentication, IP Conflict Prevention, DHCP Snooping, IP Source Guard and Access Control List.

Manage Centrally or Stand-Alone Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.

LAN Management DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.

Provisioning Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.

Monitoring VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.

System Maintenance You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.

10-Gigabit Fully Managed Switch with 6 10Gb SFP+ Ports and 48 Gb Ports


VigorSwitch G2540xs is a 54 port Gigabit L2+ Managed switch with a plethora of management options and enterprise-level features to improve network stability and security for businesses.

Use the 4 switchable SFP/RJ-45 ports and 2 dedicated SFP module slots to link with additional switches using link aggregation, or plug in a suitable SFP module to use optical Fibre as an Ethernet uplink.

Designed for centralised management, the VigorSwitch G2540xs can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router's Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.


High Speed 10 Gigabit SFP+ Uplinks

6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network. Advanced Layer 2+ Routing Features

Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.   Manage Centrally or Stand-Alone

Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface. Hardware Monitoring

It monitors and controls the switch's temperature and operating voltages. Email notification alerts integrated for power loss, downtime or configuration changes.   Great Security Features

Protect your network against unauthorised access and network problems with 802.1X port authentication, DHCP Snooping, IP Source Guard and Access Control Lists. Check the features sections for more information. IP Camera Management

Manage IP Cameras easily with detection and management of ONVIF cameras. Use auto-generated IP Camera topology and Camera Snapshots to detect & troubleshoot problems.


DrayTek VigorSwitch G2540xs Diagram




Key Specifications

48 x RJ-45 Gigabit Ethernet Ports
6 x SFP+ 10GbE Ports for Uplink / Fibre
802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
VLAN Routing & Static Route with DHCP server / relay
QoS for Application traffic prioritisation
802.1x RADIUS / TACACS+ Port Authentication with Accounting
Voice VLAN for QoS (OUI Mode)
Access Control List (ACL)
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Hardware Monitor with smart fan control
Centrally managed or standalone operation
Console Port

The DrayTek Vigor VSG2100-K 8 Port GB Layer 2+ Managed Switch is a high-performance, Layer 2+ Managed Ethernet switch. With 8 RJ-45 Gigabit LAN ports, it's ideal for adding network ports to a DrayTek Vigor router. The enterprise-level features allow your business to improve network stability and security.



The VigorSwitch G2100 works superbly in standalone mode, but designed for centralised management, it can be provisioned and monitored by one of DrayTek’s central management platforms. These include the VigorACS management platform, VigorConnect on-site management and DrayTek’s router-based switch management These platforms allow you to drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.





Product Features Great Security Features Secure & control access to your network. Protect your network against unauthorised access and network problems with DrayTek’s IP Conflict Prevention, 802.1X port authentication, DHCP Snooping, and Access Control Lists. Check the features sections for more information.

IP Conflict Prevention Ensures network stability without intervention. Use DrayTek's powerful and easy to configure IP Conflict Prevention system to improve network stability and security, by avoiding IP conflicts caused by a misconfigured or malicious host.

Advanced Layer 2+ Routing Features Provides a fast and secure bridge between networks. Expand your network with support for Layer 3 features such as Static Routes and VLAN Routing, to connect separate networks through the VigorSwitch.

ONVIF IP Camera Surveillance Management Easily configure, deploy & manage IP Cameras. Make IP camera management easier with detection and management of ONVIF cameras. View a topology of all cameras connected. PoE Device Check and Email Alerts with Camera Snapshot help to rapidly detect & troubleshoot problems.

Rack Mountable & Silent Flexible installation. Quiet in operation. Fit the VigorSwitch G2100 with the included rack mounting kit into any standard 19” rack. Fanless and silent, these switches are ideal for use in a quiet office or home environment.

Manage Centrally or Stand-Alone Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff. Configure and monitor the switch through the VigorACS cloud management platform, DrayTek's Central Switch Management for Vigor routers, or directly via the device's Web Interface.

VigorSwitch G2282x L2+ Managed 10G Switch DrayTek VigorSwitch 2282x series is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch 2282x series also provides DC power input as other power source, which helps to ensure uninterrupted operation. Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing.

VigorSwitch P2282X - 28-Port L2+ Managed 10G PoE Switch DrayTek VigorSwitch P2282x is a Layer 2+ Managed 10 Gbps switch. It has 24x Gigabit Ethernet LAN ports and 4x SFP+ 10Gbps Fiber links for uplink/downlink. Besides the fixed AC power input, VigorSwitch P2282x also provide DC power input as other power source, which helps to ensure uninterrupted operation and protect connected devices in the event of AC power supply failure.

VigorSwitch P2282x has 24x PoE+ ports with 400W power budget, making it be suitable for more IoT applications integration, including LED lighting, POS (point of sale) computer, motion sensors, IP Cam,…etc. With a 12/54V DC backup power supply, VigorSwitch P2282x can protect critical data from the connected PD devices and maintain uninterrupted network connectivity.

Supporting advanced Layer 3 features, including DHCP Server and VLAN Routing. This enhances network efficiency and ensures uninterrupted LAN connectivity, even when the gateway is offline, which makes it an excellent solution for a network with increasing traffic demands.

Key Specification

24x PoE/PoE+ - 10/100/1000Mbps Ethernet, RJ-45
4x 10G SFP+ - 1000Mbps/10Gbps fiber slot
400 watts - PoE Power Budget
Backup Power - 2x DC redundant power socket
PoE (Power over Ethernet)

Deliver power and data over one ethernet cable, turn on/off the PoE device periodically with PoE Schedule.

10G SFP+

Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.

Ping Device Check

Enable Ping check to selected devices to keep monitoring on their status. If ping timeout, power cycle (if PoE enabled) the port and/or send out mail alert.

ONVIF-Friendly

Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.

Wire-Speed VLAN Routing

Improve overall network performance by using VigorSwitch P2282x to route the inter-VLAN traffic directly and offload the router.

IPv6 Ready

VigorSwitch P2282x supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.

Auto Surveillance & Voice VLAN

Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.

Web-Based GUI

Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.

IP Conflict Prevention

Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.

Multiple Admin Accounts

Multiple Admin accounts with two levels of administrator privilege.

QoS (Quality of Service)

Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.

Central Switch Management

Set up VLAN easily from the router and get a centralized hierarchy view of the switches.

The DrayTek VigorSwitch P2542x is a high-performance 54-Port Layer 2+ Managed 10G PoE switch designed to power, connect, and manage large-scale network environments. It delivers enterprise-grade reliability with 48 Gigabit Ethernet LAN ports, 6 SFP+ 10G fiber uplinks, and a 400W PoE power budget, all within a compact 1U rackmount chassis. With both DC and AC power inputs, it provides flexible deployment options ideal for modern businesses requiring stable and scalable networking solutions.

48x PoE/PoE+ 10/100/1000Mbps Ethernet, RJ-45

6x 10G SFP+ 1000Mbps/10Gpbs fiber slot

400 watts PoE Power Budget

216 Gbps Switching Capacity

148x PoE/PoE+ Gigabit Ethernet
26x SFP+ Port
3Link/PoE LED Slide Switch
42x DC Power Socket (backup usage)
5Console Port
6Power Socket
Key Features of VigorSwitch P2542x 48x Gigabit Ethernet PoE/PoE+ Ports with up to 400W Power Budget
6x 10G SFP+ Fiber Uplink Ports for High-Speed Aggregation
Advanced Layer 2+ Management with DHCP Server & VLAN Routing
ONVIF-Friendly Interface for IP Surveillance Integration
IP Conflict Detection and Prevention for Network Stability
Centralized Management via DrayTek Vigor Router SWM
Energy-Efficient Ethernet Compliant with IEEE 802.3az
Power over Ethernet (PoE) Deliver both power and data through a single Ethernet cable using PoE/PoE+ technology. The PoE scheduling and prioritization features allow precise control over power delivery to connected devices, ensuring consistent performance and energy efficiency across your network.

10G SFP+ Fiber Uplinks Equipped with six 10G SFP+ ports, the VigorSwitch P2542x supports ultra-fast uplinks or aggregation links to core switches, ensuring seamless high-speed data transfer across demanding network environments.

ONVIF-Friendly Management Recognizes ONVIF-compliant IP cameras and NVRs, displaying network topology and enabling device management from a unified interface. Administrators can view camera feeds, perform remote reboots, and receive email alerts with snapshots for non-responsive cameras.

Advanced Layer 2+ Networking Supports DHCP server and VLAN routing, allowing internal LAN communication to continue even if the gateway is offline. The switch can assign dynamic IPs for up to 8 VLANs and support up to 512 routing entries, improving internal network efficiency.

Wire-Speed VLAN Routing Optimize internal traffic by routing inter-VLAN data directly through the switch, reducing router load and improving performance across critical applications like VoIP, video surveillance, and file sharing.

IPv6 Ready Supports modern IPv6 networking with MLD Snooping, IPv6 ACL, and DNS Resolver, ensuring compatibility with next-generation networks and services.

Auto Surveillance & Voice VLAN Automatically identifies and prioritizes traffic from IP cameras and VoIP phones. This ensures real-time communication quality and stable video monitoring, reducing configuration time for network administrators.

Web-Based Management Interface Manage and monitor ports, PoE status, and system information through an intuitive web-based GUI. The graphical layout provides clear visibility of connected devices and active network topology.

IP Conflict Prevention Enhances network stability by detecting and blocking IP conflicts caused by misconfigured or malicious hosts, keeping connected systems secure and consistent in operation.

Access Control & Multiple Admin Accounts Provides secure multi-user management with two levels of admin privileges and supports ACL by IP/MAC, 802.1x port control, and RADIUS authentication to filter unauthorized devices.

Central Switch Management Integrates seamlessly with DrayTek routers for centralized configuration, monitoring, and control. Administrators can set VLANs, reboot PoE devices, and manage firmware updates remotely through the router’s interface.

Quality of Service (QoS) Ensure optimal performance for critical traffic by prioritizing packets based on CoS, DSCP, or IP precedence tags. Maintain smooth operation for VoIP calls, video conferencing, and streaming services.

Energy-Efficient Operation Complies with IEEE 802.3az Energy-Efficient Ethernet standards, automatically adjusting power consumption based on traffic activity to minimize operational costs and environmental impact.

LLDP-MED for VoIP Optimization Automatically detects and configures VoIP devices using LLDP-MED, simplifying VLAN assignment and prioritizing voice traffic for consistent call quality.

LAN Device Monitoring Continuously pings LAN-connected devices, sending alerts or rebooting ports via PoE cycling if a device becomes unresponsive. This proactive management reduces downtime and maintenance effort.

Centralized LAN Management When connected to a DrayTek Vigor Router, the switch can be automatically discovered, provisioned, and monitored. Administrators can perform remote backups, configuration restores, and firmware updates directly from a single interface.

Package Contents Includes the DrayTek VigorSwitch P2542x unit, rack mount kit, console cable, power cord, and a quick start guide for fast and reliable installation.
