| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DTVSG-2542X-K |
| Manufacturer No: | VSG-2542X-K |
| Delivery: | In Stock: 7-10 Days |
 |

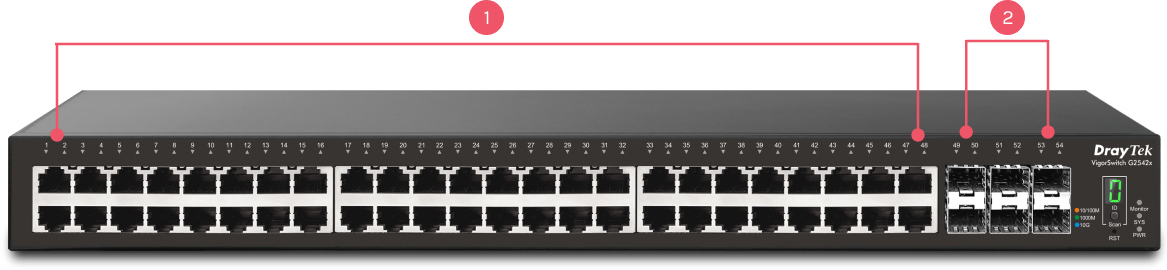

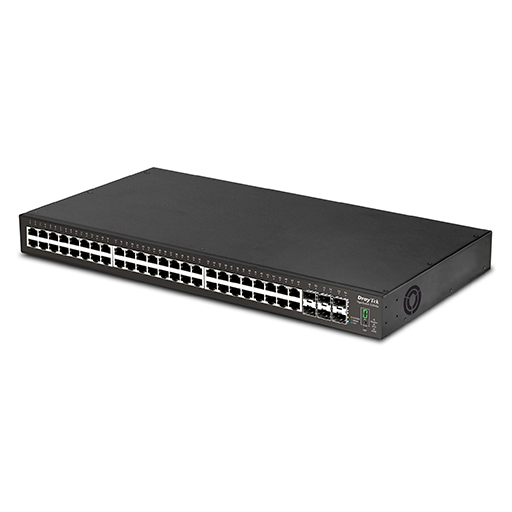

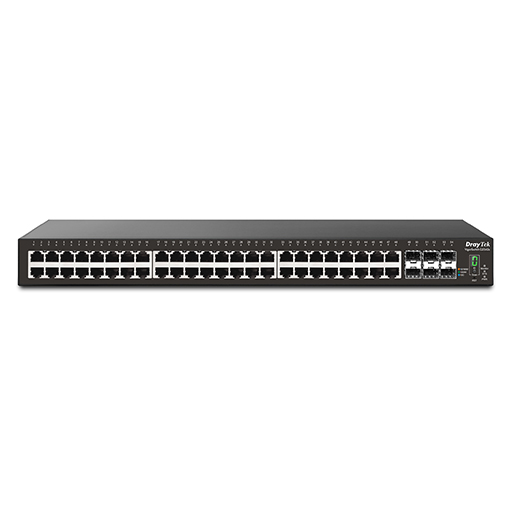

The DrayTek VigorSwitch G2542x delivers enterprise-level performance and flexibility with 48 Gigabit Ethernet ports and 6 SFP+ 10Gbps fiber links. Designed for small to medium-sized enterprises, this Layer 2+ managed switch combines intelligent network control, wire-speed VLAN routing, and advanced management features to ensure reliability and efficiency even when the main gateway is offline.
10/100/1000Mbps Ethernet, RJ-45
1000Mbps/10Gpbs fiber slot
Switching Capacity

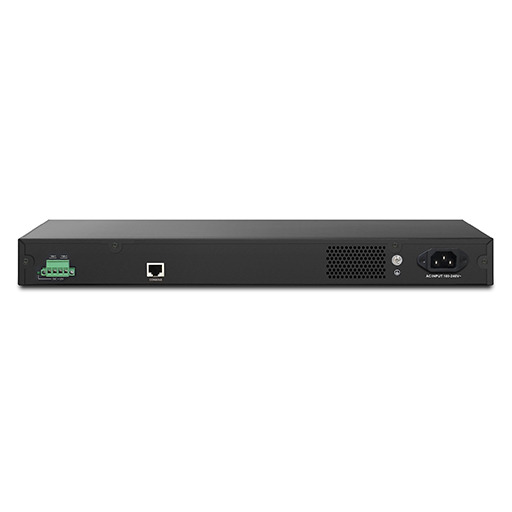

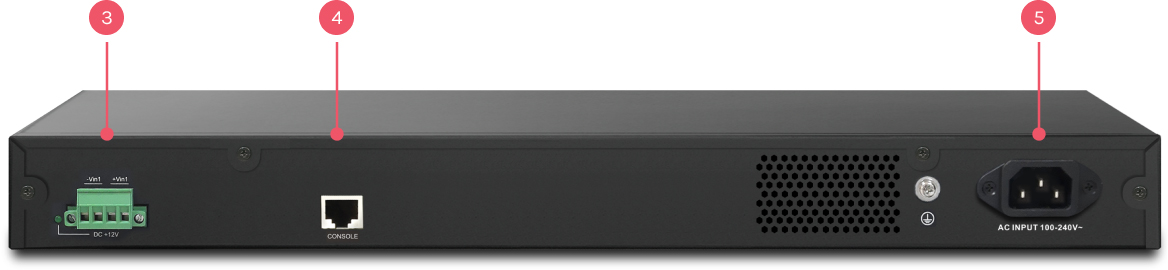

DC 12V redundant power socket
Equipped with six 10G-capable SFP+ ports, the VigorSwitch G2542x enables high-speed uplinks and aggregation to core switches, ensuring fast data throughput and minimal bottlenecks in large networks.
The switch automatically recognizes ONVIF devices across VLANs, displaying an intuitive surveillance topology with live video feeds. Administrators can manage IP cameras, perform remote maintenance, and receive snapshot alerts for unresponsive devices.
Improve overall network efficiency by routing inter-VLAN traffic directly through the switch. This reduces router load and ensures seamless data transfer across VLANs.
Fully compatible with IPv6 protocols, the VigorSwitch G2542x supports MLD Snooping, IPv6 ACL, and DNS Resolver for future-proof network architecture.
Automatically detects IP camera and VoIP traffic, applying Class of Service (CoS) tags for priority handling. This feature enhances video and voice quality across the network.
The graphical web console provides an intuitive overview of port activity, network topology, and hardware status, simplifying monitoring and configuration tasks.
The VigorSwitch G2542x continuously monitors for IP conflicts. It can alert administrators of misconfigured hosts or block conflicting devices to maintain network stability.
Supports IP/MAC-based Access Control Lists (ACL) and IEEE 802.1x port authentication with RADIUS, ensuring only authorized hosts gain access to network resources.
Allows multiple administrator accounts with tiered access privileges for enhanced control and management flexibility within enterprise environments.
Integrates seamlessly with DrayTek routers for centralized management, VLAN setup, device monitoring, and configuration provisioning from a single interface.
Prioritize mission-critical applications using CoS, DSCP, and IP Precedence tagging, optimizing bandwidth allocation for smoother performance under heavy network load.
Compliant with IEEE 802.3az standards, the switch dynamically reduces power consumption based on network traffic and cable length, improving energy efficiency.
Enhances VoIP deployment by automatically detecting IP phones, assigning VLANs, and prioritizing voice traffic for superior call quality.
Through DrayTek’s LAN Management system, the VigorSwitch G2542x supports automatic device discovery, centralized monitoring, provisioning, and remote maintenance, reducing administrative workload and simplifying multi-device management.
Each VigorSwitch G2542x package includes a rack mount kit, console cable, power cord, and quick start guide, ensuring quick and professional deployment in any network environment.
The DrayTek VigorSwitch G2542x delivers enterprise-level performance and flexibility with 48 Gigabit Ethernet ports and 6 SFP+ 10Gbps fiber links. Designed for small to medium-sized enterprises, this Layer 2+ managed switch combines intelligent network control, wire-speed VLAN routing, and advanced management features to ensure reliability and efficiency even when the main gateway is offline.
10/100/1000Mbps Ethernet, RJ-45
1000Mbps/10Gpbs fiber slot
Switching Capacity
DC 12V redundant power socket
Equipped with six 10G-capable SFP+ ports, the VigorSwitch G2542x enables high-speed uplinks and aggregation to core switches, ensuring fast data throughput and minimal bottlenecks in large networks.
The switch automatically recognizes ONVIF devices across VLANs, displaying an intuitive surveillance topology with live video feeds. Administrators can manage IP cameras, perform remote maintenance, and receive snapshot alerts for unresponsive devices.
Improve overall network efficiency by routing inter-VLAN traffic directly through the switch. This reduces router load and ensures seamless data transfer across VLANs.
Fully compatible with IPv6 protocols, the VigorSwitch G2542x supports MLD Snooping, IPv6 ACL, and DNS Resolver for future-proof network architecture.
Automatically detects IP camera and VoIP traffic, applying Class of Service (CoS) tags for priority handling. This feature enhances video and voice quality across the network.
The graphical web console provides an intuitive overview of port activity, network topology, and hardware status, simplifying monitoring and configuration tasks.
The VigorSwitch G2542x continuously monitors for IP conflicts. It can alert administrators of misconfigured hosts or block conflicting devices to maintain network stability.
Supports IP/MAC-based Access Control Lists (ACL) and IEEE 802.1x port authentication with RADIUS, ensuring only authorized hosts gain access to network resources.
Allows multiple administrator accounts with tiered access privileges for enhanced control and management flexibility within enterprise environments.
Integrates seamlessly with DrayTek routers for centralized management, VLAN setup, device monitoring, and configuration provisioning from a single interface.
Prioritize mission-critical applications using CoS, DSCP, and IP Precedence tagging, optimizing bandwidth allocation for smoother performance under heavy network load.
Compliant with IEEE 802.3az standards, the switch dynamically reduces power consumption based on network traffic and cable length, improving energy efficiency.
Enhances VoIP deployment by automatically detecting IP phones, assigning VLANs, and prioritizing voice traffic for superior call quality.
Through DrayTek’s LAN Management system, the VigorSwitch G2542x supports automatic device discovery, centralized monitoring, provisioning, and remote maintenance, reducing administrative workload and simplifying multi-device management.
Each VigorSwitch G2542x package includes a rack mount kit, console cable, power cord, and quick start guide, ensuring quick and professional deployment in any network environment.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
