| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DTVSPQ2300XB-K |
| Manufacturer No: | VSPQ2300XB-K |
| Delivery: | In Stock: Next Day |
 |

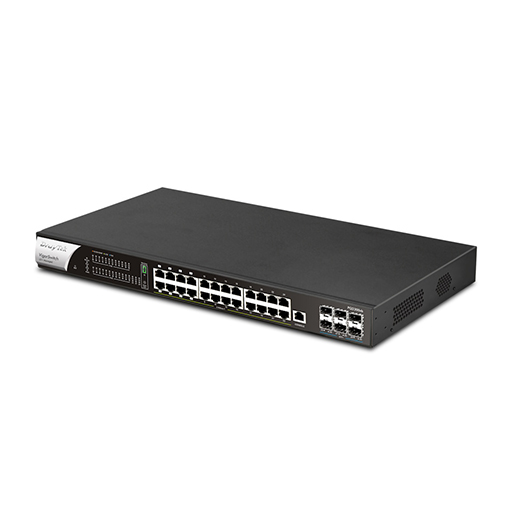

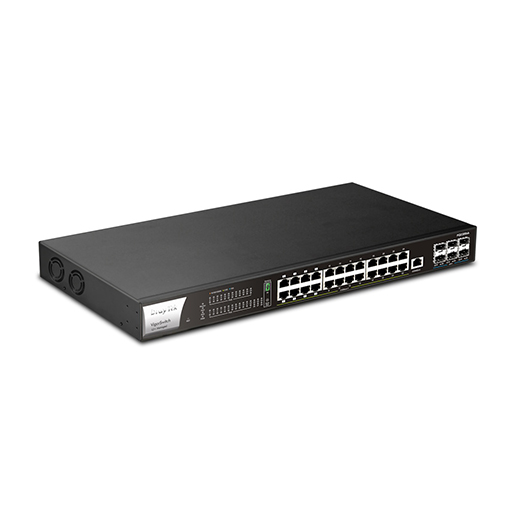

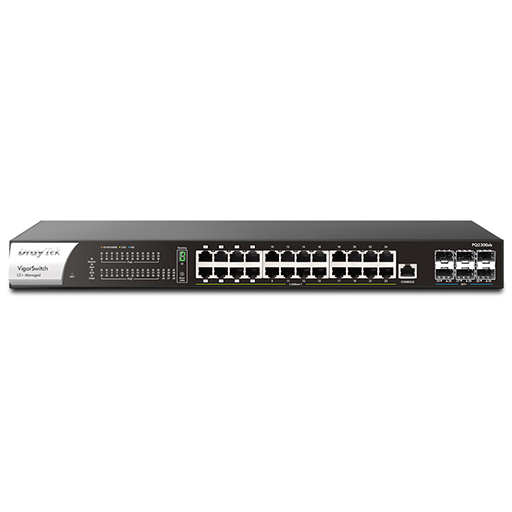

The DrayTek VigorSwitch PQ2300xb (VSPQ2300XB-K) is a 30-port managed switch designed for high-performance networks. It combines 24 × 2.5 GbE RJ-45 ports with PoE/PoE+/PoE++ and 6 × 10 GbE SFP+ fiber ports, giving flexibility for a mix of standard and high-bandwidth devices. The switch supports VLAN routing, static routes, DHCP services, and inter-VLAN routing, making it suitable for organized, multi-segmented networks. With a total PoE budget of 400 W, it can power multiple devices like Wi-Fi 6 access points, IP cameras, VoIP phones, and LED lighting over a single network cable.

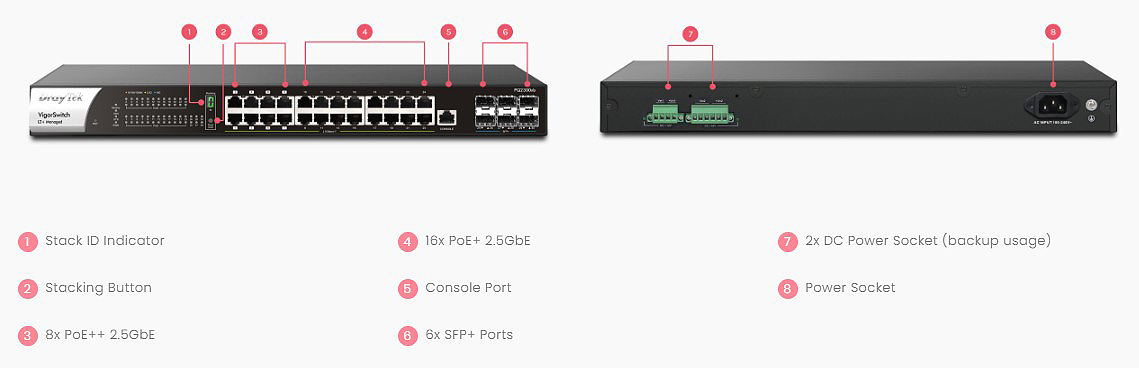

VigorSwitch PQ2300xb is a 2.5 Gigabit L2+ Managed switch with 8 PoE++ 2.5GbE ports, 16 PoE+ 2.5GbE ports (total of 400W output) and 6 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.
Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2300xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
24 2.5GbE Ethernet ports improve your core network speed while using existing CAT 5E or later cable infrastructure. Ideal for Wi-Fi 6 access point connections such as the VigorAP 1062C
Expand your network with support for Layer 3 features. Static Routes, VLAN Routing and Multi-subnet DHCP server connect separate networks through the VigorSwitch
6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Provides power through Ethernet to the PoE enabled 2.5 Gigabit LAN ports. Up to 90W (PoE++) can be delivered to the each of the first 8 dedicated Ethernet ports. PoE scheduling and monitoring features ensure your PoE devices are powered and working
Protect your network against unauthorised access and network problems with 802.1X port authentication, IP Conflict Prevention, DHCP Snooping, IP Source Guard and Access Control List.
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.
The DrayTek VigorSwitch PQ2300xb (VSPQ2300XB-K) is a 30-port managed switch designed for high-performance networks. It combines 24 × 2.5 GbE RJ-45 ports with PoE/PoE+/PoE++ and 6 × 10 GbE SFP+ fiber ports, giving flexibility for a mix of standard and high-bandwidth devices. The switch supports VLAN routing, static routes, DHCP services, and inter-VLAN routing, making it suitable for organized, multi-segmented networks. With a total PoE budget of 400 W, it can power multiple devices like Wi-Fi 6 access points, IP cameras, VoIP phones, and LED lighting over a single network cable.
VigorSwitch PQ2300xb is a 2.5 Gigabit L2+ Managed switch with 8 PoE++ 2.5GbE ports, 16 PoE+ 2.5GbE ports (total of 400W output) and 6 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.
Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2300xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
24 2.5GbE Ethernet ports improve your core network speed while using existing CAT 5E or later cable infrastructure. Ideal for Wi-Fi 6 access point connections such as the VigorAP 1062C
Expand your network with support for Layer 3 features. Static Routes, VLAN Routing and Multi-subnet DHCP server connect separate networks through the VigorSwitch
6 SFP+ ports allow your network to utilise 10Gbps ports to link Switches, Servers and Networked Storage with more bandwidth. This helps you reduce the risk of bottlenecks occurring in your network.
Provides power through Ethernet to the PoE enabled 2.5 Gigabit LAN ports. Up to 90W (PoE++) can be delivered to the each of the first 8 dedicated Ethernet ports. PoE scheduling and monitoring features ensure your PoE devices are powered and working
Protect your network against unauthorised access and network problems with 802.1X port authentication, IP Conflict Prevention, DHCP Snooping, IP Source Guard and Access Control List.
Configure and monitor the switch through the VigorACS cloud management platform, DrayTek’s Central Switch Management for Vigor routers, or directly via the device’s Web Interface.
DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.
