| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DTVSP2542X-K |
| Manufacturer No: | VSP2542X-K |
| Delivery: | In Stock: Next Day |
 |

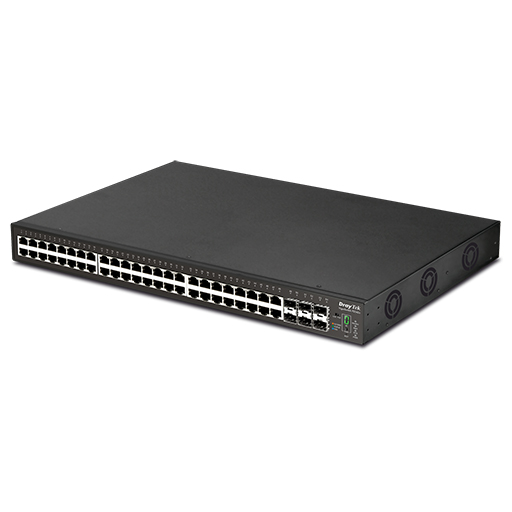

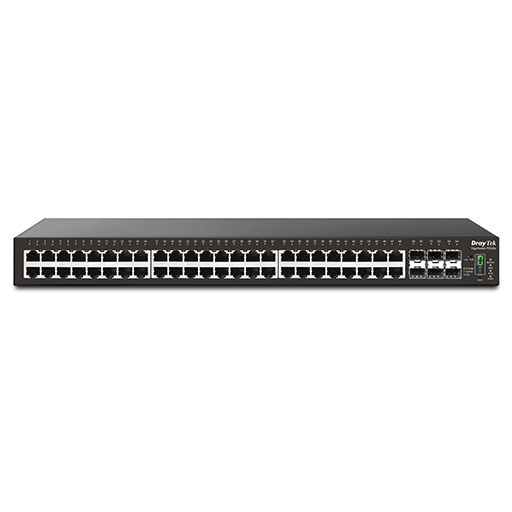

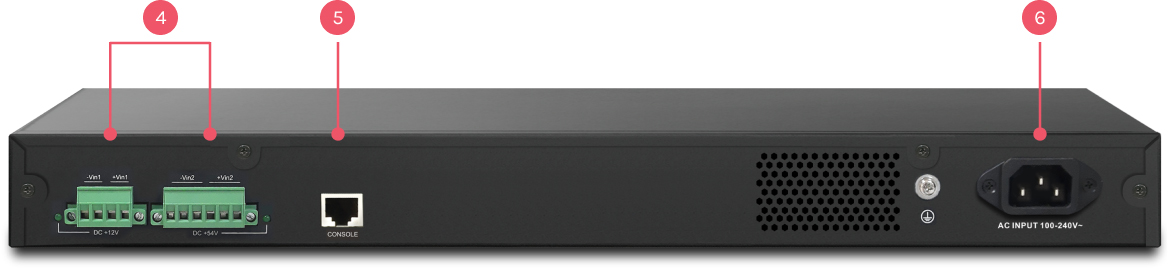

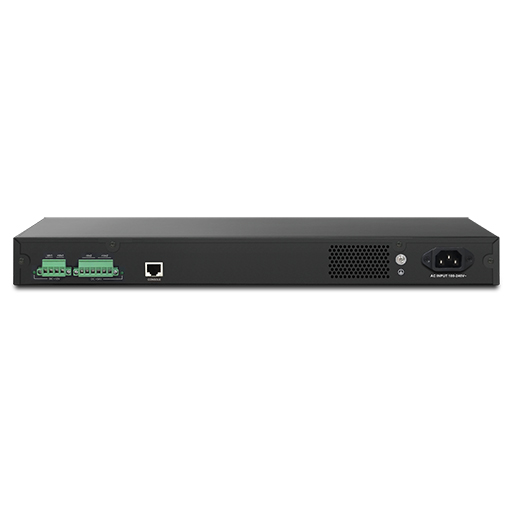

The DrayTek VigorSwitch P2542x is a high-performance 54-Port Layer 2+ Managed 10G PoE switch designed to power, connect, and manage large-scale network environments. It delivers enterprise-grade reliability with 48 Gigabit Ethernet LAN ports, 6 SFP+ 10G fiber uplinks, and a 400W PoE power budget, all within a compact 1U rackmount chassis. With both DC and AC power inputs, it provides flexible deployment options ideal for modern businesses requiring stable and scalable networking solutions.

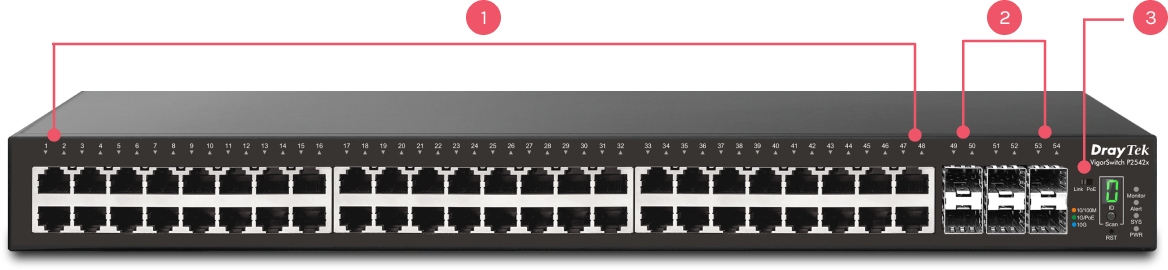

10/100/1000Mbps Ethernet, RJ-45
1000Mbps/10Gpbs fiber slot
PoE Power Budget
Switching Capacity
Deliver both power and data through a single Ethernet cable using PoE/PoE+ technology. The PoE scheduling and prioritization features allow precise control over power delivery to connected devices, ensuring consistent performance and energy efficiency across your network.
Equipped with six 10G SFP+ ports, the VigorSwitch P2542x supports ultra-fast uplinks or aggregation links to core switches, ensuring seamless high-speed data transfer across demanding network environments.
Recognizes ONVIF-compliant IP cameras and NVRs, displaying network topology and enabling device management from a unified interface. Administrators can view camera feeds, perform remote reboots, and receive email alerts with snapshots for non-responsive cameras.
Supports DHCP server and VLAN routing, allowing internal LAN communication to continue even if the gateway is offline. The switch can assign dynamic IPs for up to 8 VLANs and support up to 512 routing entries, improving internal network efficiency.
Optimize internal traffic by routing inter-VLAN data directly through the switch, reducing router load and improving performance across critical applications like VoIP, video surveillance, and file sharing.
Supports modern IPv6 networking with MLD Snooping, IPv6 ACL, and DNS Resolver, ensuring compatibility with next-generation networks and services.
Automatically identifies and prioritizes traffic from IP cameras and VoIP phones. This ensures real-time communication quality and stable video monitoring, reducing configuration time for network administrators.
Manage and monitor ports, PoE status, and system information through an intuitive web-based GUI. The graphical layout provides clear visibility of connected devices and active network topology.
Enhances network stability by detecting and blocking IP conflicts caused by misconfigured or malicious hosts, keeping connected systems secure and consistent in operation.
Provides secure multi-user management with two levels of admin privileges and supports ACL by IP/MAC, 802.1x port control, and RADIUS authentication to filter unauthorized devices.
Integrates seamlessly with DrayTek routers for centralized configuration, monitoring, and control. Administrators can set VLANs, reboot PoE devices, and manage firmware updates remotely through the router’s interface.
Ensure optimal performance for critical traffic by prioritizing packets based on CoS, DSCP, or IP precedence tags. Maintain smooth operation for VoIP calls, video conferencing, and streaming services.
Complies with IEEE 802.3az Energy-Efficient Ethernet standards, automatically adjusting power consumption based on traffic activity to minimize operational costs and environmental impact.
Automatically detects and configures VoIP devices using LLDP-MED, simplifying VLAN assignment and prioritizing voice traffic for consistent call quality.
Continuously pings LAN-connected devices, sending alerts or rebooting ports via PoE cycling if a device becomes unresponsive. This proactive management reduces downtime and maintenance effort.
When connected to a DrayTek Vigor Router, the switch can be automatically discovered, provisioned, and monitored. Administrators can perform remote backups, configuration restores, and firmware updates directly from a single interface.
Includes the DrayTek VigorSwitch P2542x unit, rack mount kit, console cable, power cord, and a quick start guide for fast and reliable installation.
The DrayTek VigorSwitch P2542x is a high-performance 54-Port Layer 2+ Managed 10G PoE switch designed to power, connect, and manage large-scale network environments. It delivers enterprise-grade reliability with 48 Gigabit Ethernet LAN ports, 6 SFP+ 10G fiber uplinks, and a 400W PoE power budget, all within a compact 1U rackmount chassis. With both DC and AC power inputs, it provides flexible deployment options ideal for modern businesses requiring stable and scalable networking solutions.
10/100/1000Mbps Ethernet, RJ-45
1000Mbps/10Gpbs fiber slot
PoE Power Budget
Switching Capacity
Deliver both power and data through a single Ethernet cable using PoE/PoE+ technology. The PoE scheduling and prioritization features allow precise control over power delivery to connected devices, ensuring consistent performance and energy efficiency across your network.
Equipped with six 10G SFP+ ports, the VigorSwitch P2542x supports ultra-fast uplinks or aggregation links to core switches, ensuring seamless high-speed data transfer across demanding network environments.
Recognizes ONVIF-compliant IP cameras and NVRs, displaying network topology and enabling device management from a unified interface. Administrators can view camera feeds, perform remote reboots, and receive email alerts with snapshots for non-responsive cameras.
Supports DHCP server and VLAN routing, allowing internal LAN communication to continue even if the gateway is offline. The switch can assign dynamic IPs for up to 8 VLANs and support up to 512 routing entries, improving internal network efficiency.
Optimize internal traffic by routing inter-VLAN data directly through the switch, reducing router load and improving performance across critical applications like VoIP, video surveillance, and file sharing.
Supports modern IPv6 networking with MLD Snooping, IPv6 ACL, and DNS Resolver, ensuring compatibility with next-generation networks and services.
Automatically identifies and prioritizes traffic from IP cameras and VoIP phones. This ensures real-time communication quality and stable video monitoring, reducing configuration time for network administrators.
Manage and monitor ports, PoE status, and system information through an intuitive web-based GUI. The graphical layout provides clear visibility of connected devices and active network topology.
Enhances network stability by detecting and blocking IP conflicts caused by misconfigured or malicious hosts, keeping connected systems secure and consistent in operation.
Provides secure multi-user management with two levels of admin privileges and supports ACL by IP/MAC, 802.1x port control, and RADIUS authentication to filter unauthorized devices.
Integrates seamlessly with DrayTek routers for centralized configuration, monitoring, and control. Administrators can set VLANs, reboot PoE devices, and manage firmware updates remotely through the router’s interface.
Ensure optimal performance for critical traffic by prioritizing packets based on CoS, DSCP, or IP precedence tags. Maintain smooth operation for VoIP calls, video conferencing, and streaming services.
Complies with IEEE 802.3az Energy-Efficient Ethernet standards, automatically adjusting power consumption based on traffic activity to minimize operational costs and environmental impact.
Automatically detects and configures VoIP devices using LLDP-MED, simplifying VLAN assignment and prioritizing voice traffic for consistent call quality.
Continuously pings LAN-connected devices, sending alerts or rebooting ports via PoE cycling if a device becomes unresponsive. This proactive management reduces downtime and maintenance effort.
When connected to a DrayTek Vigor Router, the switch can be automatically discovered, provisioned, and monitored. Administrators can perform remote backups, configuration restores, and firmware updates directly from a single interface.
Includes the DrayTek VigorSwitch P2542x unit, rack mount kit, console cable, power cord, and a quick start guide for fast and reliable installation.
