Cisco Meraki Antennas & Power

Overview Mounting hardware and cables included

Overview The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8 ft - 25 ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Downtilt Panel Omni antenna can be purchased with 5 or 6 connectors.

Overview This kit provides mounting accessories and hardware for Cisco Meraki MR36 access points.

Product details

Can be used to mount to most 9/16 in, 15/16 in, or 1 ½ in T-rails
Replacement mount plate, drop ceiling clips, security screw tool
Two 6-32x4 mm (flush T-rail) screws, two 6-32x7 mm screws (recessed T-rail)
Two rubber spacers, four wall screws and anchors, and security screws

Overview The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have APs installed on walls or uneven surfaces. This antenna is bendable.

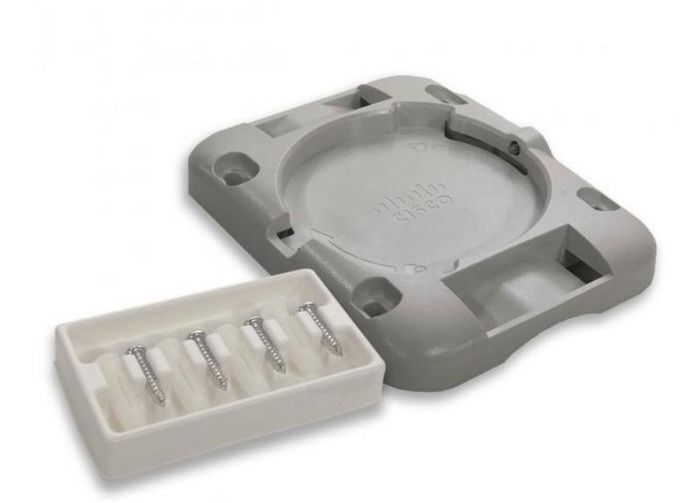

Overview Replacement Mount Plate for MR20

Overview MX replacement antenna

Product Features

Provides powerful wirelsss capabilites to our best-in-class MX devices
Replacement antenna for MX67, MX68, and MX64

Overview Designed to be used in installations where additional cabling outlets are needed (e.g. telephone cabling) via the same wall plate used by an MR30H access point.

Product Details

Replacement mounting accessories for Cisco Meraki MR30H access points
Designed for installations where additional cabling outlets are needed
Contains front and rear panels, two 12 mm Philips head screws, and a keystone jack port

Overview The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best effort deployments usually have APs installed in the hallway to cover adjacent rooms.

Overview Replacement Mount for MR70

Overview Standard mounting arm for E and F series patch antenna

Specifications

Mounting hardware included
dimensions: 8.7 in x 4.4 in x 3.1 in (220 mm x 111 mm x 80 mm)
weight: 1.64 lbs (0.75 kg)
material: steel

Overview Designed to simplify the transition from Cisco Catalyst/Aironet access points to Cisco Meraki access points.

Product Details

Works with MR33, MR36, MR42/E, MR44, MR45, MR46, MR46E, MR52, MR55, MR56
Can be attached directly to the Cisco universal bracket
Contains the mounting adapter and two M3.5 7 mm Phillips head screws

Overview Mounting kit for MR55 and MR56

Product details

Can be used to mount to most 9/16 in, 15/16 in, or 1 ½ in T-rails
Replacement mount plate, drop ceiling clips, security screw tool
Two 6-32x4 mm (flush T-rail) screws, two 6-32x7 mm screws (recessed T-rail)
Two rubber spacers, four wall screws and anchors, and security screws

Overview Ideal for low ceiling installations where wall penetration or extended reach are important. Bendable.

Product Features

Electrical Antenna type: Dipole
Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz
Gain: 3 dBi (2.4) / 5.7 dBi (5)
Half-power bandwidth/horizontal: omni/vertical: 40°
Physical Dimensions: 3.51 in x 0.57 in (89.3 mm x 14.5 mm), 0.71 oz (20.19 g)
Material: PC-ABS
Temperature: 32°F- 104°F (0°C- 40°C); humidity 5% - 95%
connector: RP-TNC
Regulatory Certified for use with MR42E: MA-ANT-3-B5 (5 pack)
Certified for use with MR53E/MR46E: MA-ANT-3-B6 (6 pack)

Overview Mounting Hardware Included

Overview Provide a strong, high-quality signal to your cellular gateway. The optimized cone-shape coverage pattern boosts signal power from your preferred cellular provider.

Specifications

Narrow patch antenna type
Frequency ranges of: 829 (698 - 960) MHz, 1940 (1710 - 2170) MHz, 2495 (2300 - 2690) MHz
160.45 mm x 160.45 mm x 34.45 mm dimensions

Overview The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have APs installed on walls or uneven surfaces. This antenna is bendable.

Overview This kit provides mounting accessories and hardware for Cisco Meraki MR44, MR45, and MR46 access points.

Product details

Can be used to mount to most 9/16 in, 15/16 in, or 1 ½ in T-rails
Replacement mount plate, drop ceiling clips, security screw tool
Two 6-32x4 mm (flush T-rail) screws, two 6-32x7 mm screws (recessed T-rail)
Two rubber spacers, four wall screws and anchors, and security screws

Overview Omni-antenna mount kit, horizontal

Specifications

Mounting hardware included
Dimensions: 5.8 in x 5.2 in x 3.2 in (147 mm x 132 mm x 81 mm)
Weight: 1.07 lbs (0.49 kg)
Material: aluminium

Overview Indoor dual-band downtilt omni-antenna

Product Features

Electrical Antenna type: omni-directional
Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz
Gain (per antenna element): (D6) 2.9 dbi (2.4) / 3.7 dbi (5)
Half-power beamwidth / horizontal: 360° / vertical: 60°/60°
Centered at /-45° down angle

Overview This kit provides mounting accessories and hardware for Cisco Meraki MR76 and MR86 access points.

Includes

Replacement mount plate and drop ceiling clips
Four wall screws and anchors, grounding screws
Also includes mounting straps and a cable gland

The Meraki MA-ANT-20 antenna is a multi-band, omni-directional antenna designed for use with Meraki APs that have N-type connectors. It is a versatile antenna and is suitable for a broad range of applications. The MA-ANT-20 is sold in sets of 2.

Features & Benefits:
Easy to Mount - The antenna comes with everything you need to attach it to your Meraki AP, and is suitable for indoor or outdoor use. No special adapters are needed.
Improved Connectivity -  Meraki’s antenna accessories improve the reach and connectivity of a network by increasing signal strengths between repeaters and clients.


Signal Coverage Patterns

Designed for use with Cisco Meraki MR66 or MR72 5 GHz radios. The sector antenna can extend the range of a Cisco Meraki MR66 or MR72 device by focusing the wireless signal in a specific direction; the best way to establish a medium distance point-to-point wireless link.
Features & Benefits:


Extended Range - The directional antennas focus wireless signals in a particular direction by creating a co-polarization pattern. Typically, you’ll be able to extend the reach of a radio by up to 2.5x in a particular direction.
Easy to Mount - The antenna comes with everything you need for a pole or wall mount, and is suitable for indoor or outdoor use. 2 cables with N-Type connectors are integrated with the antenna.
Improved Connectivity - Cisco Meraki’s antenna accessories improve the reach and connectivity of a Cisco Meraki network by focusing and increasing signal strengths between MR66s and MR72s.




Designed for use with Cisco Meraki MR66 or MR72 2.4 GHz radios. The sector antenna can extend the range of a Cisco Meraki MR66 or MR72 device by focusing the wireless signal in a specific direction; the best way to establish a medium distance point-to-point wireless link.
Features & Benefits:


Extended Range - The directional antennas focus wireless signals in a particular direction by creating a co-polarization pattern. Typically, you’ll be able to extend the reach of a radio by up to 2.5x in a particular direction.
Easy to Mount - The antenna comes with everything you need for a pole or wall mount, and is suitable for indoor or outdoor use. 2 cables with N-Type connectors are integrated with the antenna.
Improved Connectivity - Cisco Meraki’s antenna accessories improve the reach and connectivity of a Cisco Meraki network by focusing and increasing signal strengths between MR66s and MR72s.

Designed for use with Cisco Meraki MR66 or MR72 APs. The patch antenna can extend the range of a Cisco Meraki MR66 or MR72 device by focusing the wireless signal in a specific direction; the best way to establish a medium distance point-to-point wireless link.
Features & Benefits:


Extended Range - The directional antennas focus wireless signals in a particular direction by creating a co-polarization pattern. Typically, you’ll be able to extend the reach of a radio by up to 2.5x in a particular direction.
Easy to Mount - The antenna comes with everything you need for a pole or wall mount, and is suitable for indoor or outdoor use. 2 cables with N-Type connectors are integrated with the antenna.
Improved Connectivity - Cisco Meraki’s antenna accessories improve the reach and connectivity of a Cisco Meraki network by focusing and increasing signal strengths between MR66s and MR72s.

Designed for use with Cisco Meraki MR66, MR72, MR74 and MR84 APs. The sector antenna is ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.
Features & Benefits:


Extended Range - The directional antennas focus wireless signals in a particular direction by creating a co-polarization pattern. Typically, you’ll be able to extend the reach of a radio by up to 2.5x in a particular direction.
Easy to Mount - The antenna comes with everything you need for a pole or wall mount, and is suitable for indoor or outdoor use. 2 cables with N-Type connectors are integrated with the antenna.
Improved Connectivity - Cisco Meraki’s antenna accessories improve the reach and connectivity of a Cisco Meraki network by focusing and increasing signal strengths between MR66s, MR72s, MR74s and MR84s

The Cisco Meraki 12V AC Adapter provides a quick and easy way to power your Cisco Meraki Enterprise access points. The Meraki 12V AC Adapter is compatible with the Meraki MR18, MR32, MR34, MR42, and Z1.

3mt IEC to UK Cisco Meraki AC Power Cord for designed for the MX and MS range

The Dipole antenna is ideal for low ceiling installations where wall penetration or extended reach are important. Some example use cases are low-density deployments like schools and hotels to provide basic connectivity. These types of best-effort deployments usually have APs installed on walls or uneven surfaces. This antenna is bendable. The price shown is for a single unit; the Dipole antenna can be purchased in units of one, five or six.

Technical Specifications

Electrical Antenna type: Dipole Frequency range: 2.400-2.500, 5.150-5.875 GHz Gain: 3 dBi (2.4)/5.7 dBi (5) Polarisation: Linear, Vertical/Horizontal Half-power beamwidth/horizontal: omni Half-power beamwidth/vertical: 40° Physical and Environmental Dimensions: 89.3 mm x 14.5 mm (3.51” x 0.57”) Weight: 20.19 g (0.71 oz) Material: PC-ABS Temperature: 0 °C to 40 °C (32 °F to 104 °F) Humidity: 5%-95% Width: 800mm Connector: RP-TNC Miscellaneous Certified for use with MR42E: MA-ANT-3-B5 (5 pack) Certified for use with MR53E/MR46E: MA-ANT-3-B6 (6 pack) One-year hardware warranty included

The Narrow Patch antenna is ideal for high ceiling (25+ ft) aesthetic consensus installations in high-density applications and where APs are covering high-density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers.

Technical Specifications

Electrical Antenna type: Narrow Patch Frequency range: 2.400-2.500, 5.150-5.875 GHz Gain (per antenna element): F5: 11.2 dBi (2.4) / 10.8 dBi (5)
F6: 11.2 dBi (2.4) / 10.8 dBi (5) Polarisation: Linear, +/- 45° Half-power beamwidth/horizontal: 30° / 30° Half-power beamwidth/vertical: 30° / 30° Physical and Environmental Dimensions: F5: 25.98” x 20.87” 5.12” (660 mm x 530 mm x 130 mm)
F6: 25.98” x 20.87” 5.12” (660 mm x 530 mm x 130 mm) Weight: F5: 6.9 lbs (110.4 oz)
F6: 7.1 lbs (113.6 oz) Material: PC-ABS Temperature: 32 °F to 104 °F (0 °C to 40 °C) Humidity: 5% - 93% Connector: RP-TNC Miscellaneous Certified for use with MR42E: MA-ANT-3-F5 Certified for use with MR53E: MA-ANT-3-F6 1 year hardware warranty included

The Panel Omni antenna is ideal for low ceiling aesthetic conscious installations where wall penetration or extended each are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best-effort deployments usually have APs installed in the hallway to cover adjacent rooms.

Technical Specifications

Electrical Antenna type: Omni Frequency range: 2.400-2.500, 5.150-5.875 GHz Gain (per antenna element): C5: 4.9 dBi (2.4) / 4.9 dBi (5) Polarisation: Linear, vertical/horizontal Half-power beamwidth/horizontal: Omni Half-power beamwidth/vertical: 60° Physical and Environmental Dimensions: C5: 11.81” x 1.38” (300 mm X 35 mm) Weight: C5: 34.39 oz (0.98 kg) Material: PC-ABS Temperature: 32 °F to 104 °F (0 °C to 40 °C) Humidity: 5% - 95% Connector: RP-TNC Miscellaneous Certified for use with MR42E: MA-ANT-3-C5 Certified for use with MR53E: MA-ANT-C6 1 year hardware warranty included

The Panel Omni antenna is ideal for low ceiling aesthetic conscious installations where wall penetration or extended each are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best-effort deployments usually have APs installed in the hallway to cover adjacent rooms.

Technical Specifications

Electrical Antenna type: Omni Frequency range: 2.400-2.500, 5.150-5.875 GHz Gain (per antenna element): 4.9 dbi (2.4) / 4.9 dbi (5) Polarisation: Linear, vertical/horizontal Half-power beamwidth/horizontal: Omni Half-power beamwidth/vertical: 60° Physical and Environmental Dimensions: 11.81” x 1.38” (300 mm x 35 mm) Weight: 37.04 oz (1.05 kg) Material: PC-ABS Temperature: 32 °F to 104 °F (0 °C to 40 °C) Humidity: 5% - 95% Connector: RP-TNC Miscellaneous Certified for use with MR42E: MA-ANT-3-C5 Certified for use with MR53E: MA-ANT-C6 1 year hardware warranty included

The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low-density applications and wall-mounted or ceiling-mounted below 25 ft in high-density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users.

Electrical Antenna type: Wide Patch Frequency range: 2.400-2.500, 5.150-5.875 GHz Gain (per antenna element): 7 dBi (2.4) / 6.3 dBi (5) Polarisation: Linear, +/- 45° Half-power beamwidth/horizontal: 60° / 60° Half-power beamwidth/vertical: 60° / 60° Physical and Environmental Dimensions: 10.83” x 10.83” 0.93” (275 mm x 275 mm x 23.5 mm) Weight: 38.8 oz (1.1 kg) Material: PC-ABS Temperature: 32 °F to 104 °F (0 °C to 40 °C) Humidity: 5% - 93% Connector: RP-TNC Miscellaneous Certified for use with MR42E: MA-ANT-3-E5 Certified for use with MR53E: MA-ANT-3-E6 1 year hardware warranty included
